DJI Avinox eMTBs
Avinox is DJI’s e-bike drive system: a compact mid-motor with its own battery, display and app, launched in 2024 and now fitted by a growing list of eMTB brands.
Get DJI Avinox news & firmware updates in Telegram- Builds
- 101
- Brands
- 17
- Torque (as quoted)
- 120 Nm · 125 Nm · 110 Nm, 125 Nm in Boost
- Battery
- 600-864 Wh
- Price
- ≈€3,275 to €15,095
- Lightest
- 20.2 kg

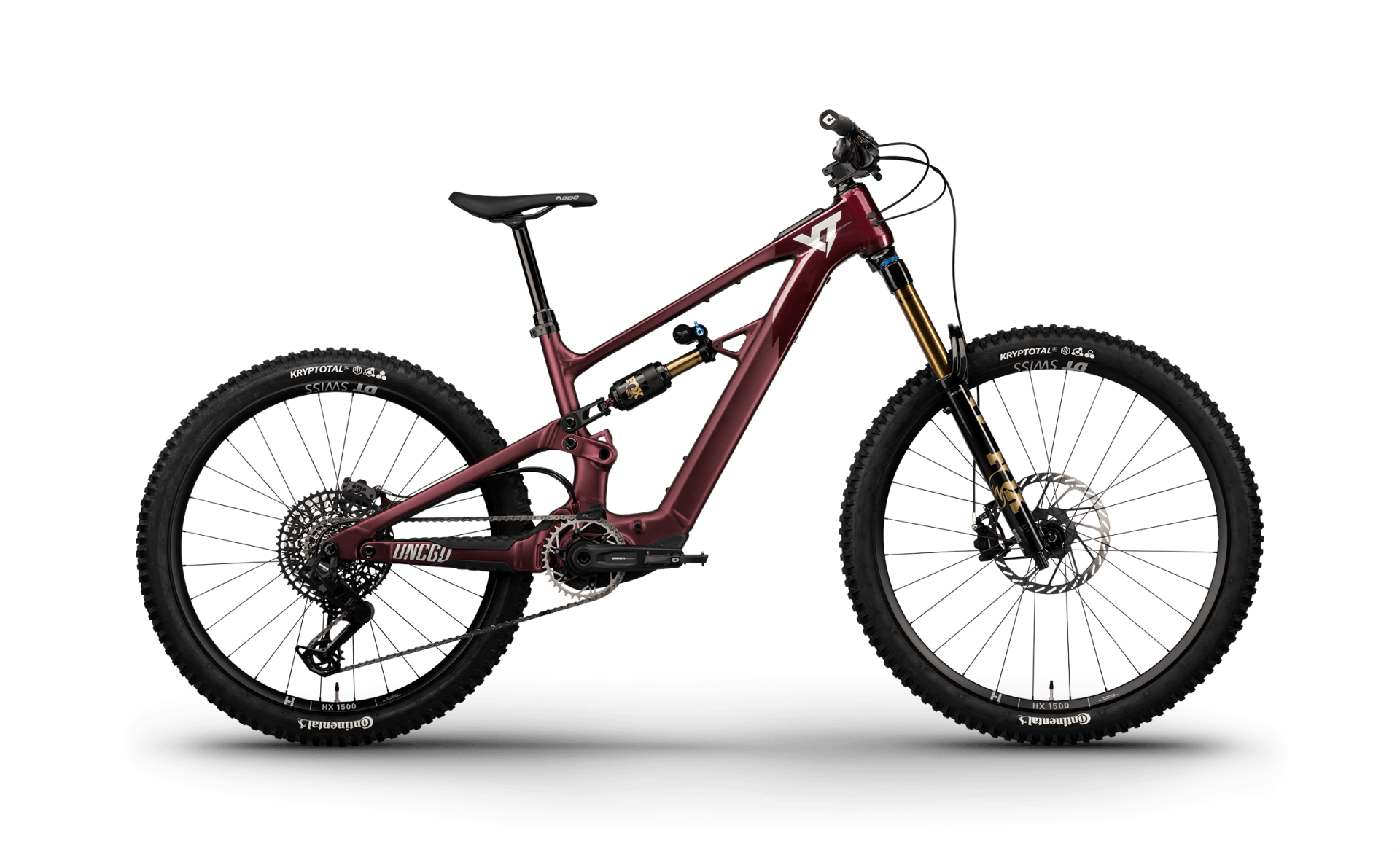

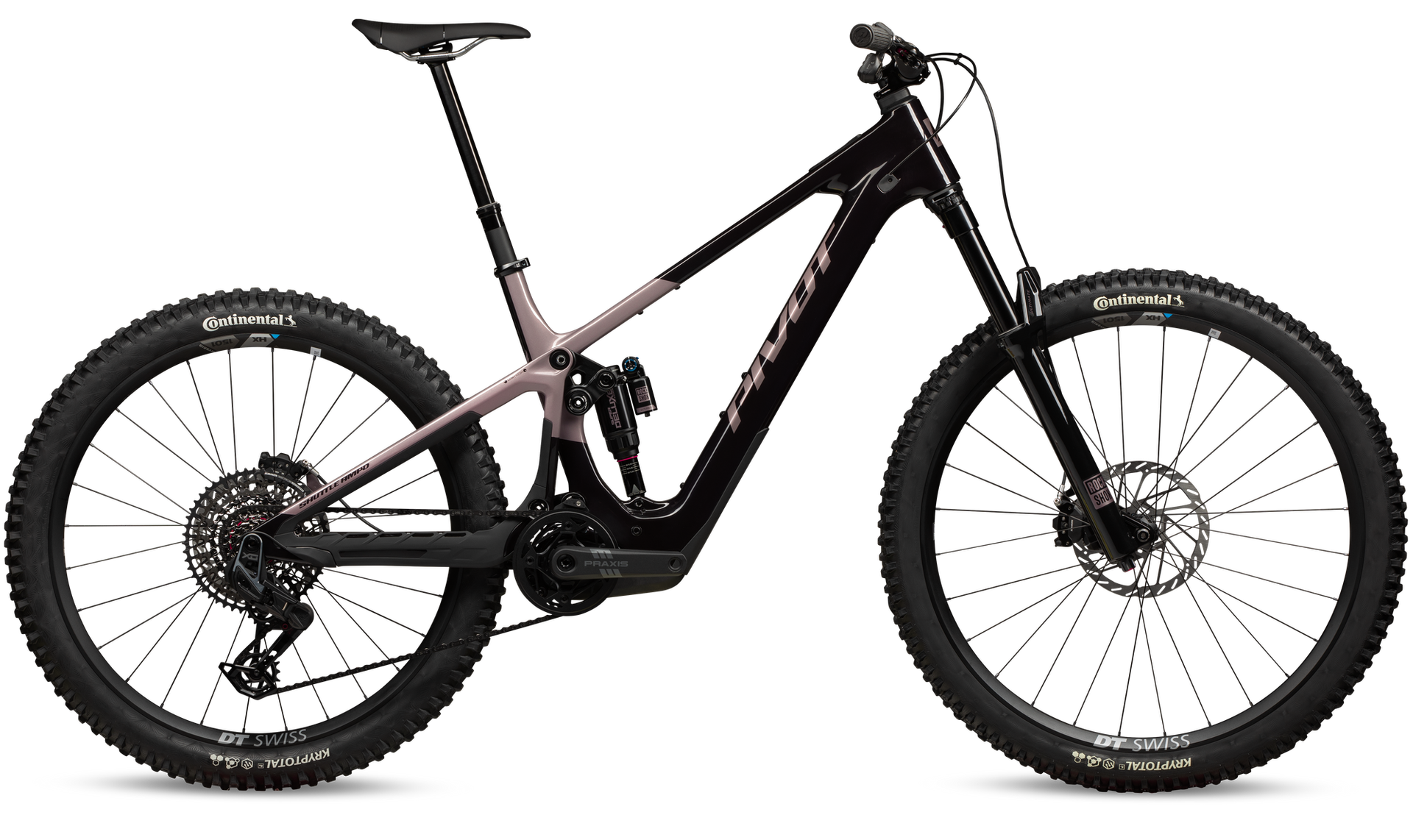

Brands: Whyte, BH, Sunn, Megamo, Amflow, YT Industries, Cube, Propain, Mondraker, Commencal, Canyon, Ducati, Pivot, Rotwild, Orange, Unno, Steppenwolf · filter in catalog →
About the DJI Avinox
Avinox is the e-bike drive system brand of DJI. It debuted in 2024 with the M1 drive unit and was expanded in April 2026 with the M2 and M2S. All units are mid-drive motors with an ISIS crank interface, a rated power of 250 W and an IP66 rating.
The M2S is the flagship: Avinox quotes 130 Nm in regular modes and 150 Nm in Boost, with up to 1,500 W peak power when paired with the high-discharge FP700 or RS800 battery (1,300 W with FS600/FS800). It uses flat-wire windings, a temperature sensor and redesigned cooling fins, plus a dual-meshing gear design intended to cut backlash and pedal-kickback noise.
The system combines an IMU and wheel-speed sensor with torque and cadence measurement to drive the Auto mode and traction-related features. Batteries come in 600, 700 and 800 Wh sizes, and an external 600 Wh range extender is offered. In Avinox's own test, a 75 kg rider on an 800 Wh battery in Auto mode covered about 60 km or roughly 1,440 m of climbing.
Avinox drives are used mainly on full-power trail and enduro bikes, initially from Amflow and later from other brands. The system suits riders who want maximum assistance and a connected ecosystem (GPS, 4G, app tuning), and who accept higher energy use when the extra power is used.
DJI Avinox: specs
| Version | Torque | Peak power | Weight | Notes |
|---|---|---|---|---|
| M1 | 105 Nm (regular modes), 120 Nm (Boost) | 1,000 W | 2.52 kg | First-generation Avinox drive unit; rated power 250 W. |
| M2 | 110 Nm (regular modes), 125 Nm (Boost) | 1,100 W | 2.65 kg | Second generation; same battery and control ecosystem as M2S. |
| M2S | 130 Nm (regular modes), 150 Nm (Boost) | 1,500 W with FP700 or RS800 battery; 1,300 W with FS600 or FS800 battery | 2.59 kg | Flat-wire windings, temperature sensor, new cooling fins, dual-meshing gears to reduce backlash. |
- Launched
- M1: 2024; M2 and M2S: April 2026
- System
- Avinox batteries (FS600, FS800, FP700, RS600, RS800), external 600 Wh range extender bracket, DP100 control display (4G SIM) or DPC100 (no 4G), Bluetooth wireless controllers, Avinox Ride app, 508 W fast charger.
- Batteries
- 600 Wh, 700 Wh (FP700, high-discharge cells) and 800 Wh; removable RS600/RS800 versions; 600 Wh range extender.
- Assist modes
- Auto, Eco, Trail, Turbo, plus Boost (up to 60 seconds, adjustable); walk assist and hill start assist
- App & tuning
- Avinox Ride app: adjustable assistance, max torque, max power, acceleration, assisted start, continued assist, motor overrun and Boost duration; OTA updates; anti-theft alerts (4G with DP100), heart-rate-based assist control, SRAM Transmission Smooth Shift support.
Strengths and drawbacks
Strengths
- + Highest published torque and peak power of the major e-MTB drives (M2S: 150 Nm / 1,500 W)
- + Low drive-unit weight for its output (about 2.5-2.65 kg)
- + Fast charging: 508 W charger fills an FP700 0-100% in about 1 h 46 min
- + Extensive app tuning with eight adjustable assist parameters
Drawbacks
- – Full M2S peak power requires the FP700 or RS800 battery
- – High energy consumption in Turbo/Boost shortens range
- – Third-party range extenders not supported; 4G features require a separate SIM
Error codes & firmware
All DJI Avinox bikes, by price
Prices are manufacturer RRPs in the brand’s currency; ≈€ figures use approximate exchange rates.












DJI Avinox: FAQ
What is the difference between the Avinox M2 and M2S?
The M2 delivers 110 Nm (125 Nm in Boost) and 1,100 W peak, while the M2S delivers 130 Nm (150 Nm in Boost) and up to 1,500 W peak. Avinox lists the M2 at 2.65 kg and the M2S at 2.59 kg.
Does the battery affect M2S power?
Yes. Avinox quotes 1,500 W peak only with the FP700 or RS800 battery; with the FS600 or FS800 battery the M2S peak is 1,300 W.
How long does Boost mode last?
Boost provides up to 60 seconds of maximum torque per activation; the duration can be adjusted in the Avinox Ride app.
Can I use a third-party range extender?
No. Avinox states its hardware and firmware are not compatible with third-party range extenders and that using one voids the warranty. Avinox offers its own 600 Wh extender.
Which eMTBs use the DJI Avinox?
101 builds in our catalog from 17 brands: Whyte, BH, Sunn, Megamo, Amflow, YT Industries, Cube, Propain, Mondraker, Commencal, Canyon, Ducati, Pivot, Rotwild, Orange, Unno, Steppenwolf.
What is the cheapest eMTB with the DJI Avinox?
The Whyte Secta-E at £2,799 (≈€3,275).
What is the lightest eMTB with the DJI Avinox?
The Amflow PL Carbon Pro at a claimed 20.2 kg.
What battery sizes come with the DJI Avinox?
From 600 Wh to 864 Wh, depending on the bike and build.
