SteppenwolfTundra 8
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost mode
- Battery
- 800 WhIntegrated
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

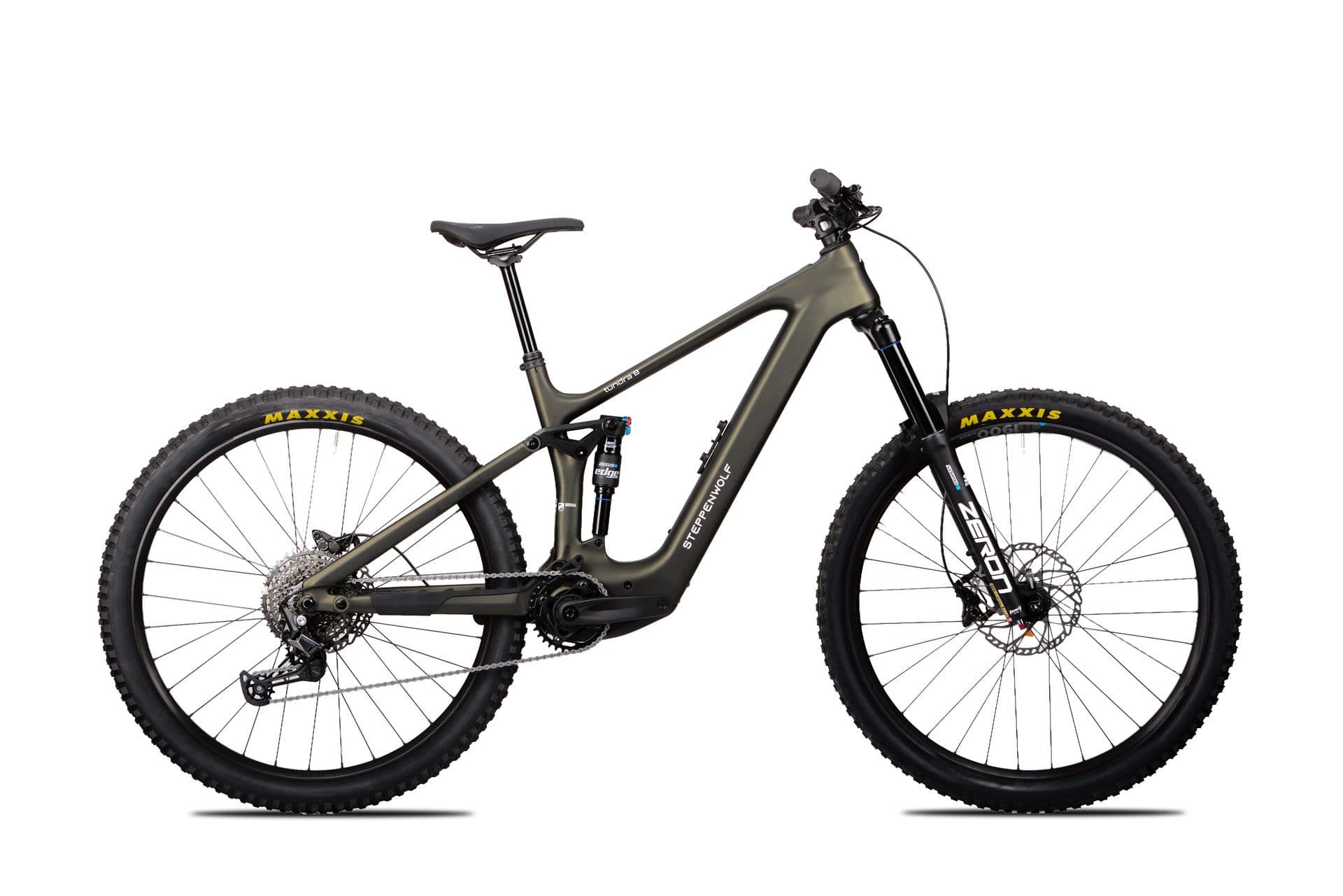

The Tundra 8 is the entry Tundra: SR Suntour Zeron 36 fork and Edge shock, mechanical Shimano Deore Linkglide 11-speed, Shimano four-piston brakes and Rodi wheels; it ships with the 4 A Avinox charger and comes in Moss Green Matte or Racing Red Gloss.
The Tundra is Steppenwolf's 160 mm carbon all-mountain e-MTB for model year 2027, powered by the DJI Avinox M2S motor (130 Nm, 150 Nm in Boost, 1,300 W peak) with an integrated 800 Wh battery and 29" wheels.
- DJI Avinox M2S: 150 Nm in Boost, 1,300 W peak
- 160 mm carbon full-suspension
- Integrated 800 Wh battery
- FidLock ready
Full specifications
Frame & suspension
- Frame
- Steppenwolf carbon full-suspension, 160 mm travel
- Fork
- SR Suntour Zeron 36, Boost
- Shock
- SR Suntour Edge
- Colour
- Moss Green Matte
E-system
- Motor
- DJI Avinox M2S (130 Nm, 150 Nm in Boost, 1,300 W peak)
- Battery
- Avinox 800 Wh, integrated
- Charger
- Avinox 4 A, 168 W
- Display
- Avinox DP100
Drivetrain
- Drivetrain
- Shimano Deore M7230, Linkglide 11-speed, 11–50
Brakes
- Brakes
- Shimano MT420 / MT410
Wheels & tyres
- Wheels
- Rodi, 29", Boost 15×110 / 12×148
- Tyres
- Maxxis Minion DHF / DHR II
Cockpit
- Seatpost
- Limotec, remote lever
Other
- Extras
- FidLock ready
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Tundra geometry
| Size | S | M | L |
|---|---|---|---|
| Reach | 435 mm | 465 mm | 495 mm |
| Stack | 622 mm | 631 mm | 640 mm |
| Head angle | 65° | 65° | 65° |
| Seat angle | 74° | 74° | 74° |
| Top tube (horizontal) | 570 mm | 588 mm | 613 mm |
| Seat tube | 410 mm | 440 mm | 470 mm |
| Head tube | 110 mm | 120 mm | 130 mm |
| Chainstay (rear centre) | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1226 mm | 1244 mm | 1269 mm |
| BB drop | 23.5 mm | 23.5 mm | 23.5 mm |
Source: Steppenwolf geometry overview (MY26 frame data, listed by Steppenwolf as the reference for MY27).
Tundra: builds compared
Tundra range →| Tundra 8 | Tundra 9 | Tundra 10 | |
|---|---|---|---|
| Frame | Carbon | Carbon | Carbon |
| Fork | SR Suntour Zeron 36, Boost | RockShox Psylo Silver RC, 160 mm | RockShox Lyrik Ultimate, 160 mm |
| Shock | SR Suntour Edge | RockShox Deluxe Select+ | RockShox Super Deluxe Ultimate |
| Brakes | Shimano MT420 / MT410 | Magura Louise Elite | SRAM Maven Bronze |
| Display | Avinox DP100 | Avinox DP100 | Avinox DP100 |
Tundra 8: FAQ
What motor and battery does the Steppenwolf Tundra 8 have?
DJI Avinox M2S (130 Nm; 150 Nm in Boost mode). 800 Wh battery — integrated.
How much suspension travel does the Steppenwolf Tundra 8 have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Steppenwolf Tundra 8 come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Tundra 8 and the Tundra 9?
They share the Tundra frame platform and motor; the differences are in the parts — fork: SR Suntour Zeron 36 vs RockShox Psylo Silver RC.
