Full-power eMTBAll-mountain2027
Model range · 3 buildsSteppenwolfTundra
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost mode
- Battery
- 800 WhIntegrated
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
Overview
The Tundra is Steppenwolf's 160 mm carbon all-mountain e-MTB for model year 2027, powered by the DJI Avinox M2S motor (130 Nm, 150 Nm in Boost, 1,300 W peak) with an integrated 800 Wh battery and 29" wheels.
- DJI Avinox M2S: 150 Nm in Boost, 1,300 W peak
- 160 mm carbon full-suspension
- Integrated 800 Wh battery
- FidLock ready
Steppenwolf Tundra builds
Tundra builds compared

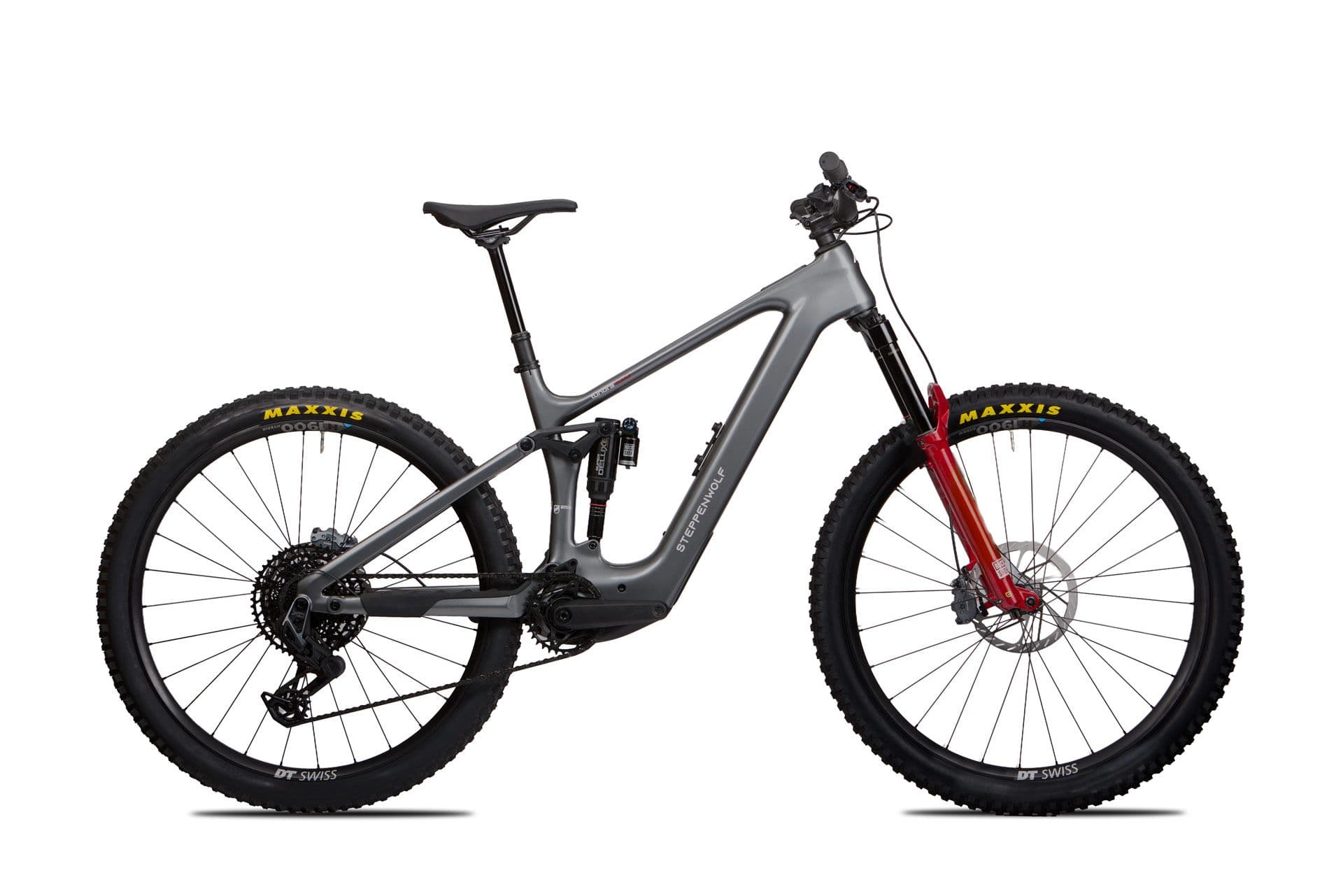

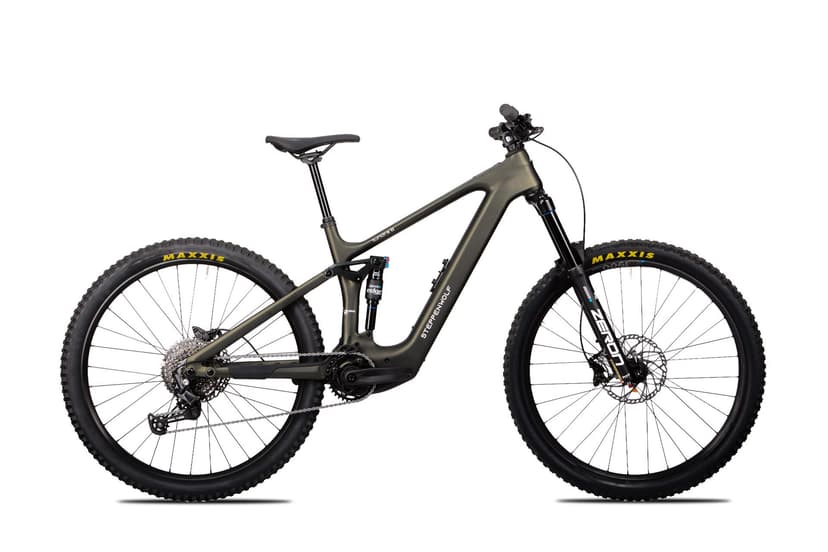

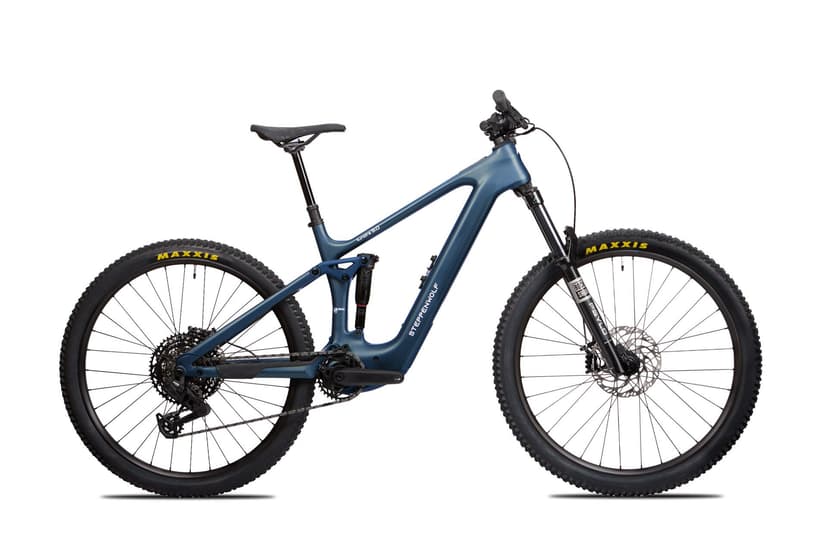

| Tundra 8 | Tundra 9 | Tundra 10 | |
|---|---|---|---|
| Frame | Carbon | Carbon | Carbon |
| Fork | SR Suntour Zeron 36, Boost | RockShox Psylo Silver RC, 160 mm | RockShox Lyrik Ultimate, 160 mm |
| Shock | SR Suntour Edge | RockShox Deluxe Select+ | RockShox Super Deluxe Ultimate |
| Brakes | Shimano MT420 / MT410 | Magura Louise Elite | SRAM Maven Bronze |
| Display | Avinox DP100 | Avinox DP100 | Avinox DP100 |
Tundra geometry
| Size | S | M | L |
|---|---|---|---|
| Reach | 435 mm | 465 mm | 495 mm |
| Stack | 622 mm | 631 mm | 640 mm |
| Head angle | 65° | 65° | 65° |
| Seat angle | 74° | 74° | 74° |
| Top tube (horizontal) | 570 mm | 588 mm | 613 mm |
| Seat tube | 410 mm | 440 mm | 470 mm |
| Head tube | 110 mm | 120 mm | 130 mm |
| Chainstay (rear centre) | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1226 mm | 1244 mm | 1269 mm |
| BB drop | 23.5 mm | 23.5 mm | 23.5 mm |
Source: Steppenwolf geometry overview (MY26 frame data, listed by Steppenwolf as the reference for MY27).
Steppenwolf Tundra: FAQ
How many Steppenwolf Tundra builds are there?
3: Tundra 8, Tundra 9, Tundra 10. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Steppenwolf Tundra use?
DJI Avinox M2S (130 Nm; 150 Nm in Boost mode) with a 800 Wh battery (integrated).
How much travel does the Steppenwolf Tundra have?
160 mm fork and 160 mm rear travel on 29" wheels.
