SteppenwolfTycoon 10
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost mode
- Battery
- 800 WhIntegrated
- Travel F / R
- 170 / 170 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

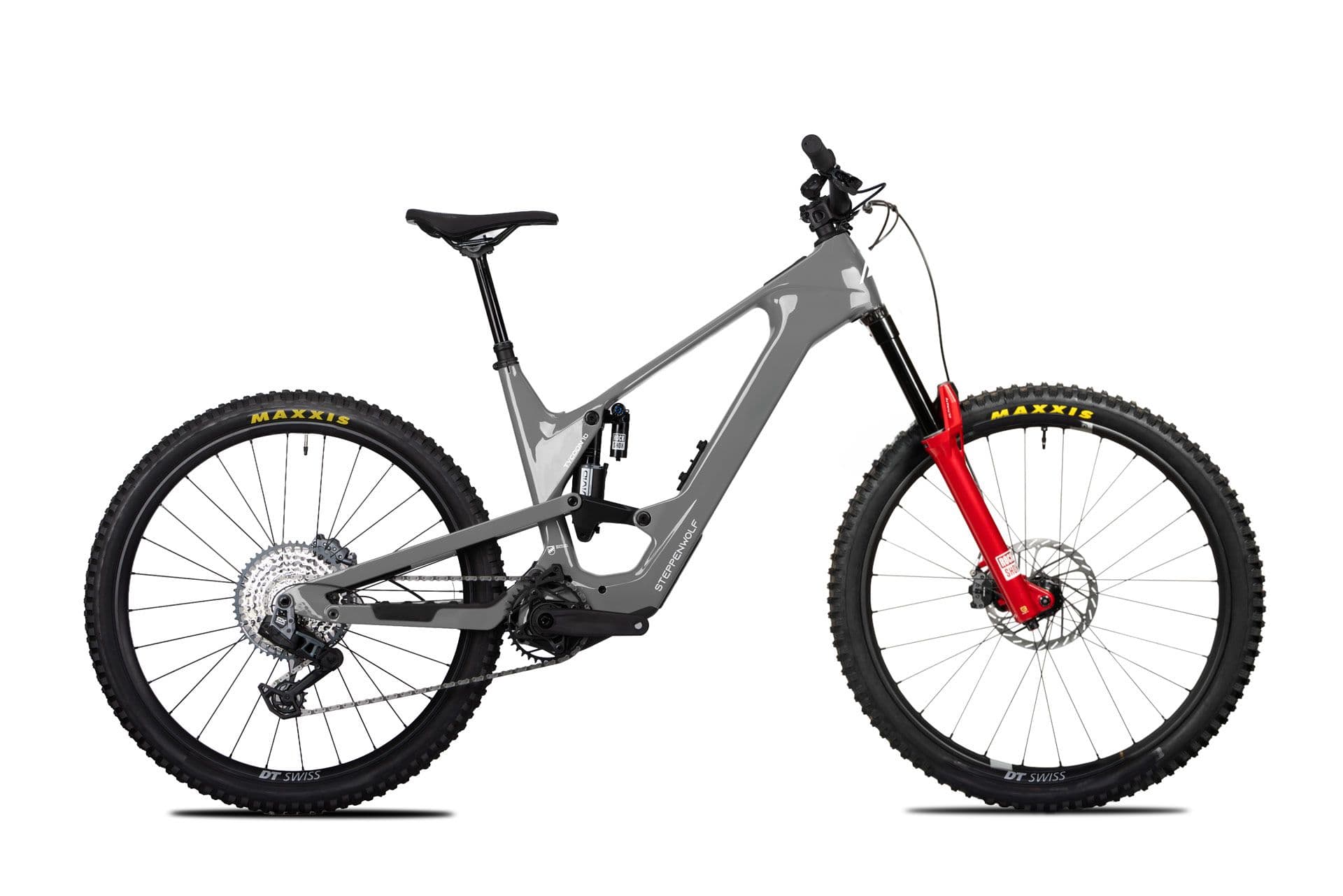

The Tycoon 10 swaps to RockShox suspension — ZEB Ultimate fork and Vivid Air Ultimate shock — with SRAM GX Eagle AXS T-Type shifting, SRAM Maven Bronze brakes and DT Swiss H 1900 wheels around the same 170 mm carbon frame.
The Tycoon is Steppenwolf's 170 mm carbon gravity e-MTB for model year 2027, built around the DJI Avinox M2S motor (130 Nm, 150 Nm in Boost, 1,300 W peak) and an integrated 800 Wh battery on 29" wheels.
- DJI Avinox M2S: 150 Nm in Boost, 1,300 W peak
- 170 mm carbon full-suspension
- Integrated 800 Wh battery
- FidLock ready
Full specifications
Frame & suspension
- Frame
- Steppenwolf carbon full-suspension, 170 mm travel
- Fork
- RockShox ZEB Ultimate, 170 mm
- Shock
- RockShox Vivid Air Ultimate
- Colour
- Titanium Grey Gloss
E-system
- Motor
- DJI Avinox M2S (130 Nm, 150 Nm in Boost, 1,300 W peak)
- Battery
- Avinox 800 Wh, integrated
- Charger
- Avinox 12 A, 508 W
- Display
- Avinox DP100
Drivetrain
- Drivetrain
- SRAM GX Eagle AXS T-Type, 10–52
Brakes
- Brakes
- SRAM Maven Bronze
Wheels & tyres
- Wheels
- DT Swiss H 1900 Spline
- Tyres
- Maxxis Minion DHX / DHR II
Cockpit
- Seatpost
- Limotec, 31.6 mm, remote lever
Other
- Extras
- FidLock ready
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Tycoon geometry
| Size | S | M | L |
|---|---|---|---|
| Reach | 450 mm | 472 mm | 488 mm |
| Stack | 646 mm | 655 mm | 668 mm |
| Head angle | 64° | 64° | 64° |
| Seat angle | 78° | 78° | 78° |
| Top tube (horizontal) | 585 mm | 610 mm | 630 mm |
| Seat tube | 420 mm | 435 mm | 460 mm |
| Head tube | 120 mm | 130 mm | 145 mm |
| Chainstay (rear centre) | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1249 mm | 1275 mm | 1297 mm |
| BB drop | 30 mm | 30 mm | 30 mm |
Source: Steppenwolf geometry overview (MY26 frame data, listed by Steppenwolf as the reference for MY27).
Tycoon: builds compared
Tycoon range →| Tycoon 10 | Tycoon 11 | |
|---|---|---|
| Frame | Carbon | Carbon |
| Fork | RockShox ZEB Ultimate, 170 mm | Fox Factory 38, 170 mm |
| Shock | RockShox Vivid Air Ultimate | Fox Float X2 |
| Brakes | SRAM Maven Bronze | SRAM Maven Ultimate |
| Display | Avinox DP100 | Avinox DP100 |
Tycoon 10: FAQ
What motor and battery does the Steppenwolf Tycoon 10 have?
DJI Avinox M2S (130 Nm; 150 Nm in Boost mode). 800 Wh battery — integrated.
How much suspension travel does the Steppenwolf Tycoon 10 have?
170 mm at the fork and 170 mm at the rear, on 29" wheels.
What sizes does the Steppenwolf Tycoon 10 come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Tycoon 10 and the Tycoon 11?
They share the Tycoon frame platform and motor; the differences are in the parts — fork: RockShox ZEB Ultimate vs Fox Factory 38.
