MegamoRyal 05
- Motor
- DJI Avinox M2S130 Nm (150 Nm Boost); 1,500 W peak
- Battery
- 800 WhRemovable (RS800), key lock
- Travel F / R
- 160 / 160 mm
- Wheels
- 29"
- Frame
- Alloy
Overview

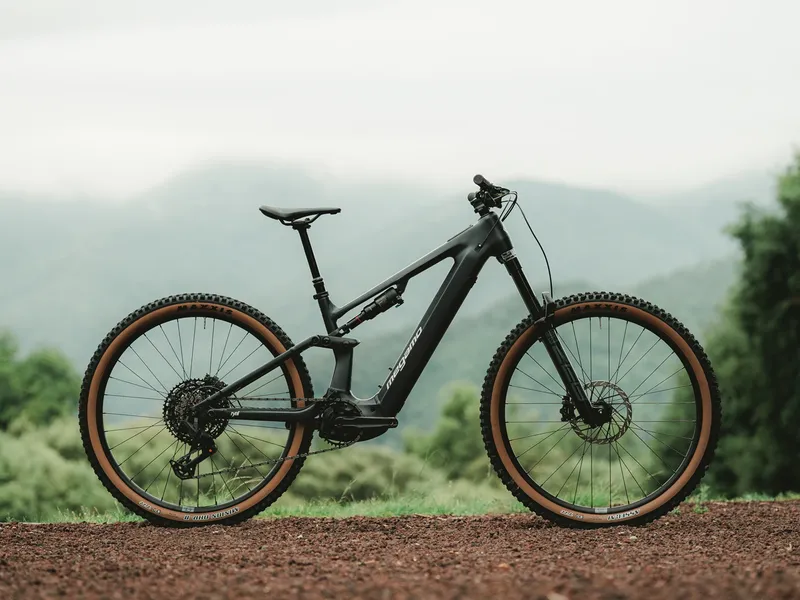

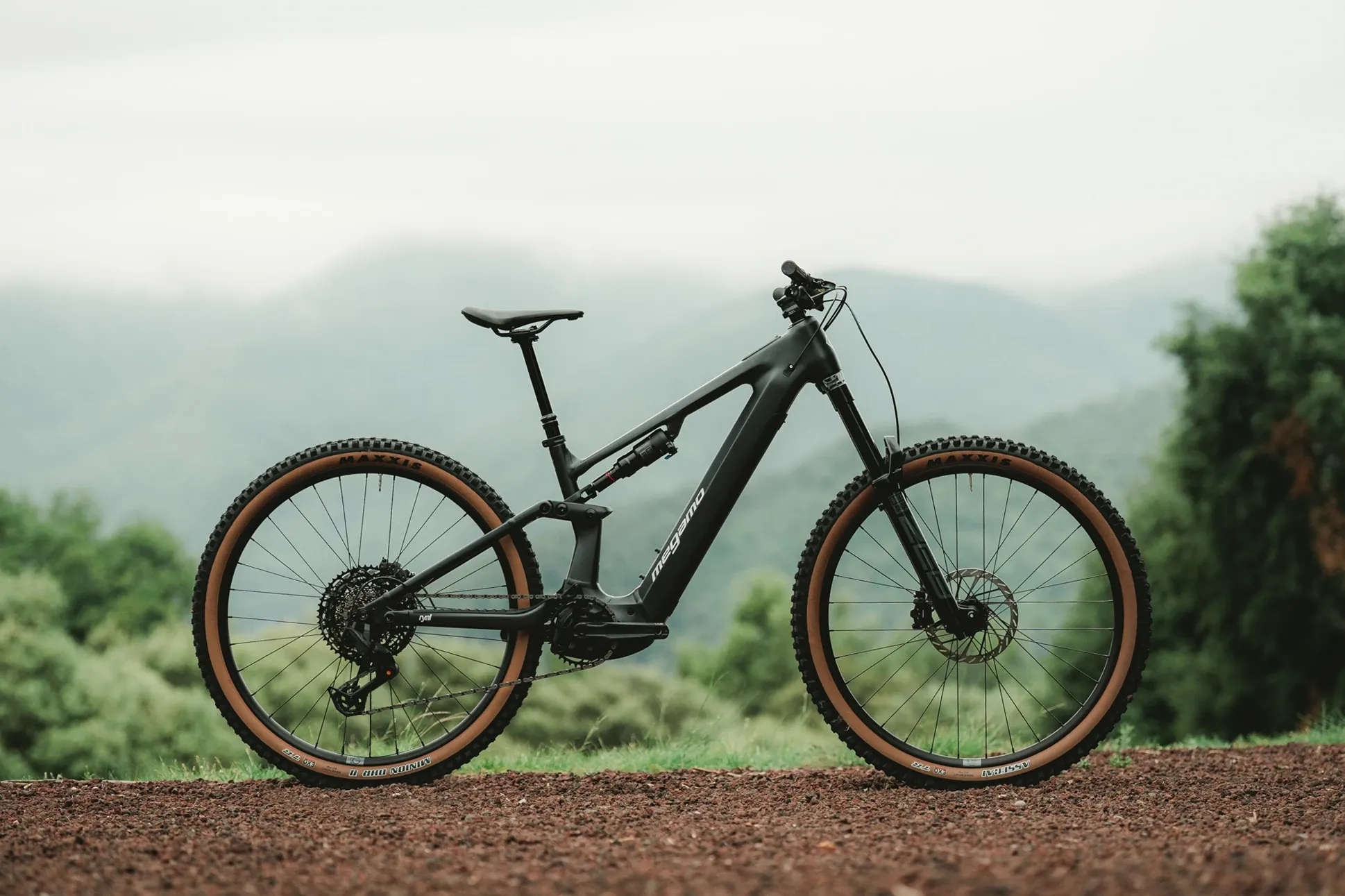

The Megamo Ryal 05 (€5,499) is a mid-range build of the Ryal: DJI Avinox M2S (130 Nm, 150 Nm Boost) with 800 Wh, Fox 38 Float Performance fork, Fox Float Rhythm shock, Sram 90 EAGLE T-TYPE and Shimano XT M8220 brakes.
The Ryal is Megamo's aluminium Avinox e-MTB with 160 mm of travel front and rear, 29-inch wheels and a removable 800 Wh battery (RS800) with a key lock. Megamo describes it as sharing the Reason's DNA with a more relaxed geometry: shorter reach, higher stack and longer chainstays.

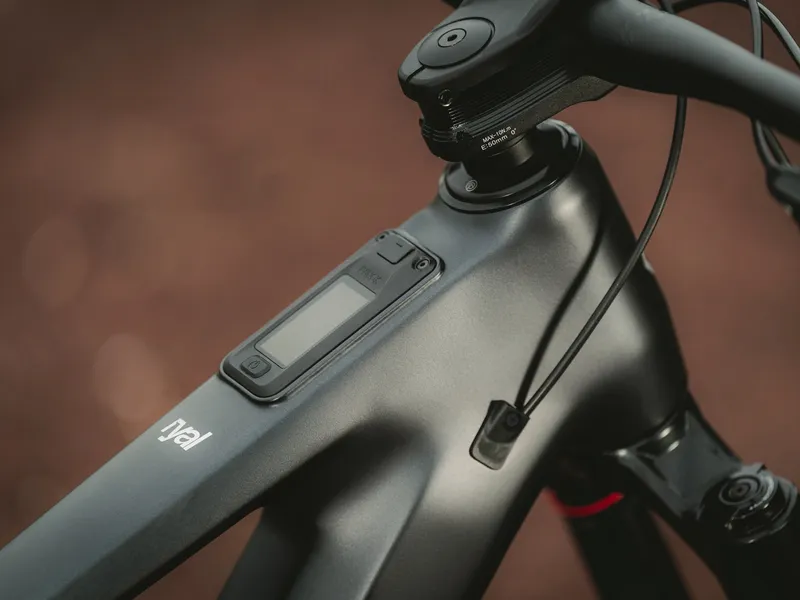

The 03 AXS and 05 use the DJI Avinox M2S (130 Nm, 150 Nm and 1,500 W in Boost mode), the 08 and 10 the Avinox M2 (110 Nm, 125 Nm and 1,100 W in Boost). All builds use the DPC100 2-inch OLED display, the frame accepts dual-chamber shocks and cables can be routed internally or externally.
- Aluminium frame, 160/160 mm travel

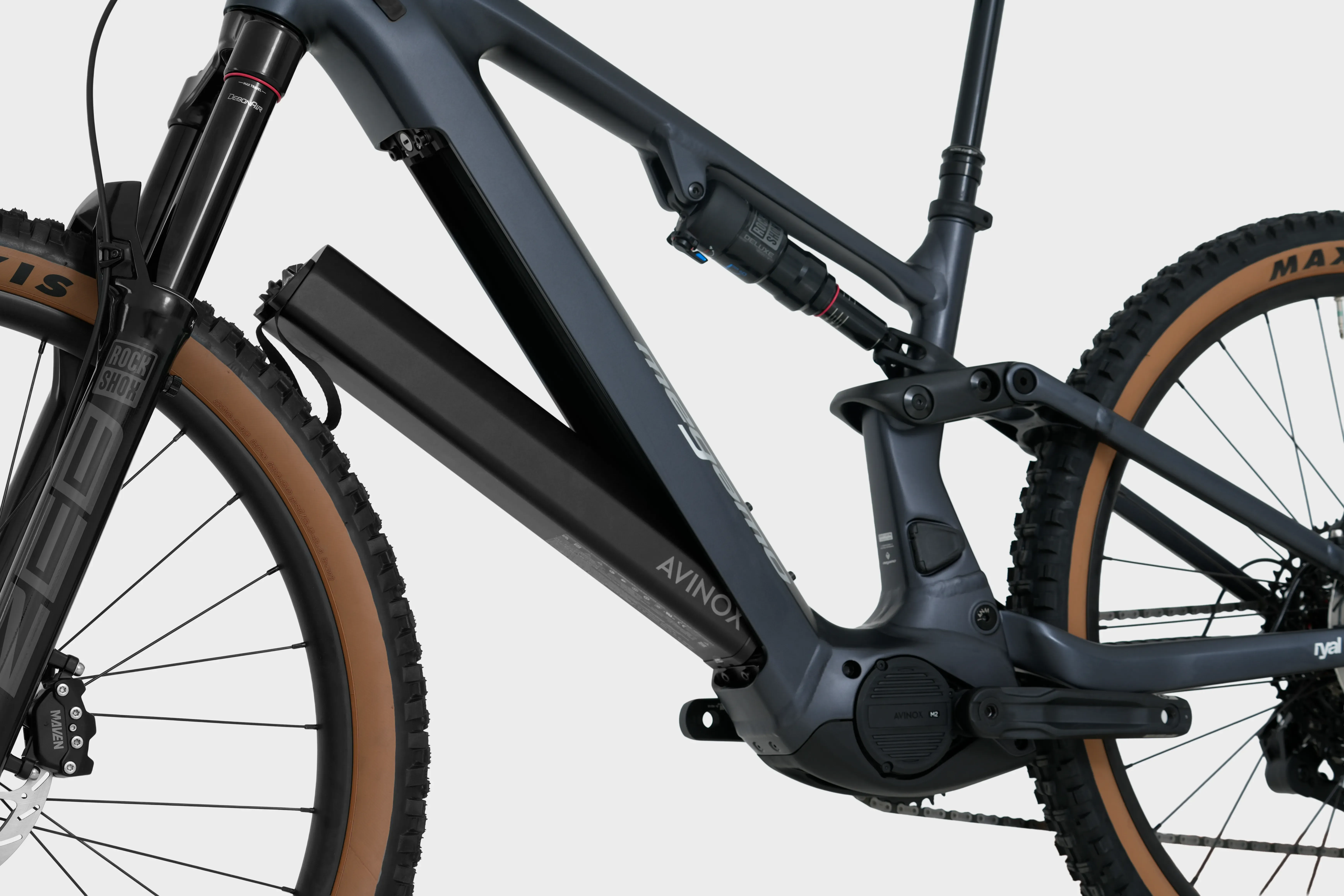

- Removable 800 Wh battery
- Avinox M2S or M2 motor
- More relaxed geometry than the Reason
Gallery
Photos: Megamo
Full specifications
Frame & suspension
- Frame
- Ryal Alloy Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
- Fork
- Fox 38 Float Performance E-Bike Optimized, 160mm Travel, Grip
- Rear shock
- Fox Float Rhythm, Evol LV, 210x55mm, 2 Position
- Headset
- Acros blocklock 135º
E-system

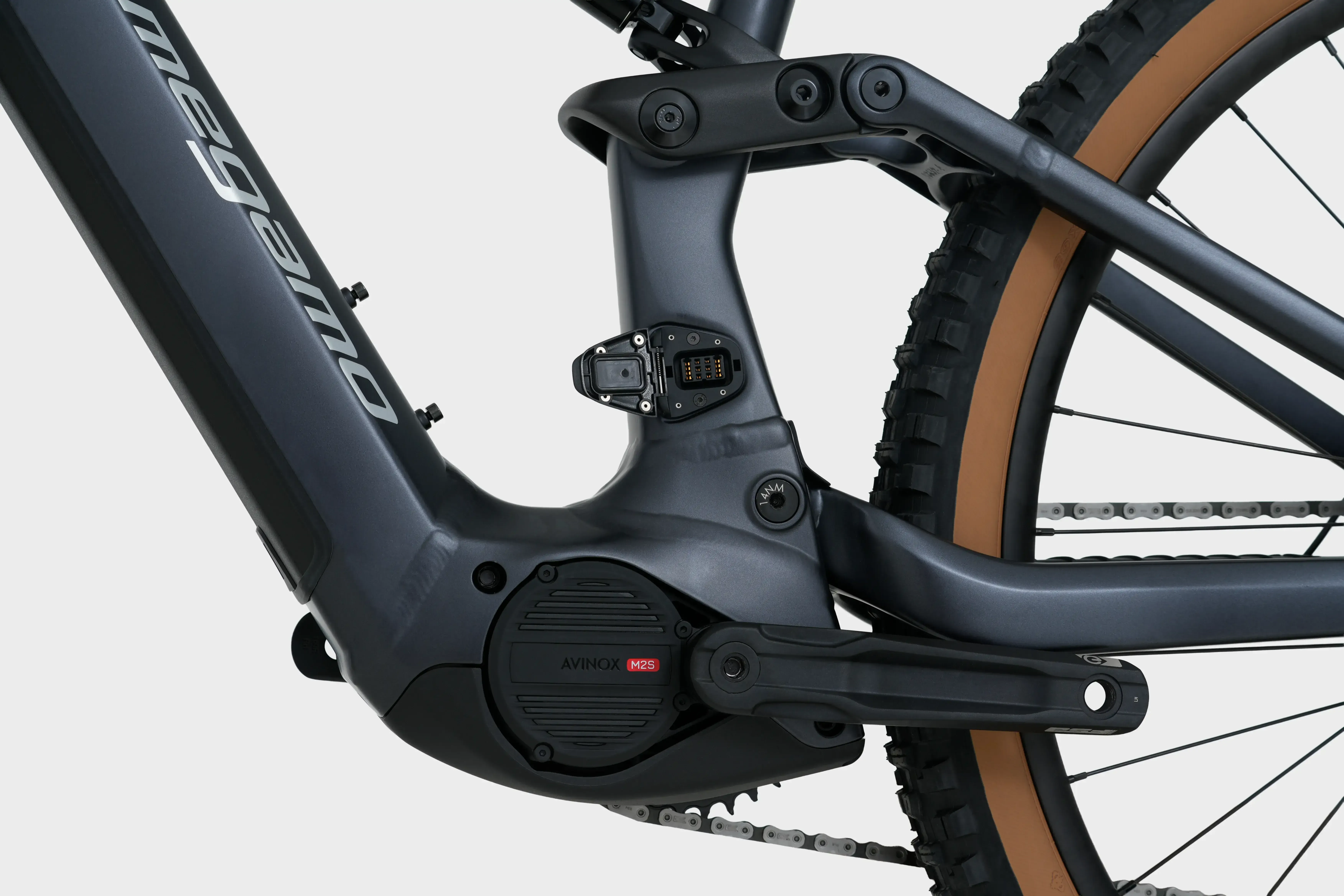

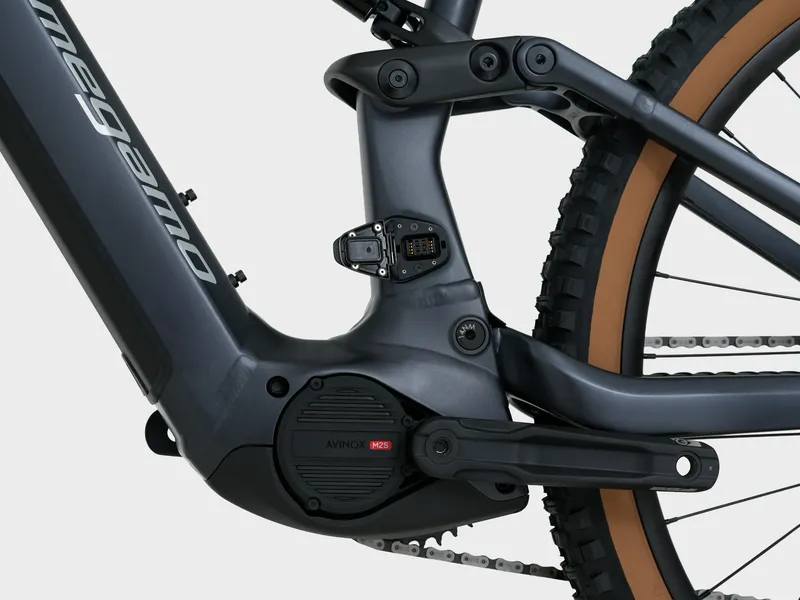

- Motor
- Avinox M2S -150Nm 1500W (Boost mode) / 130Nm 1300W0W
- Battery
- Avinox 800 Wh Removable

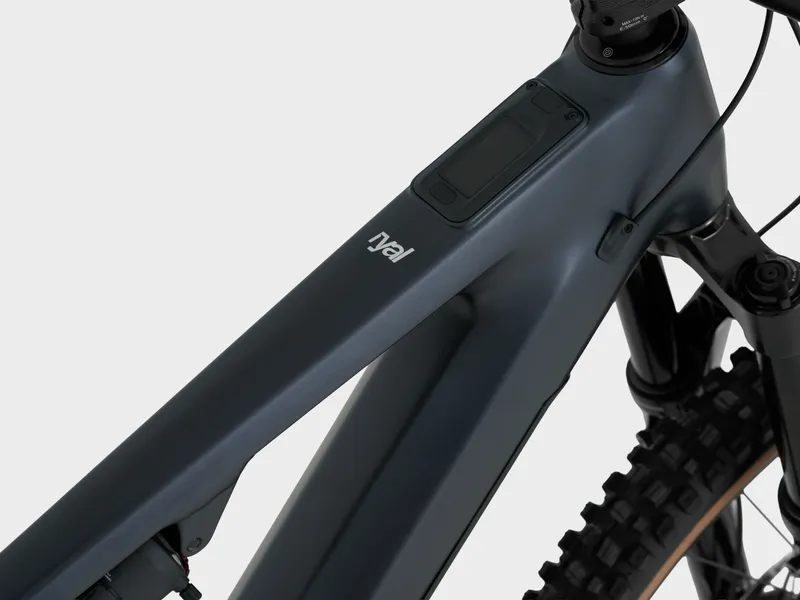

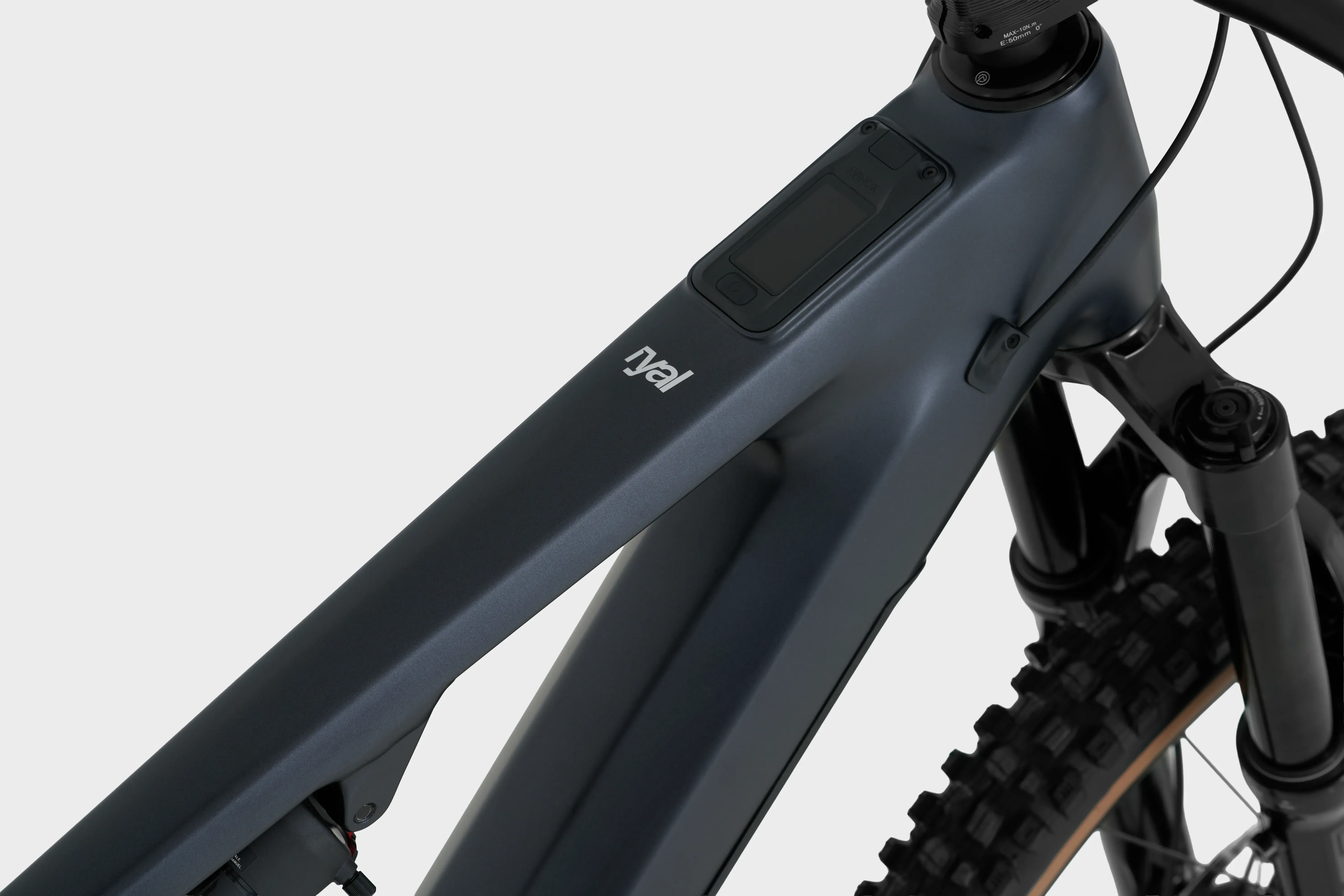

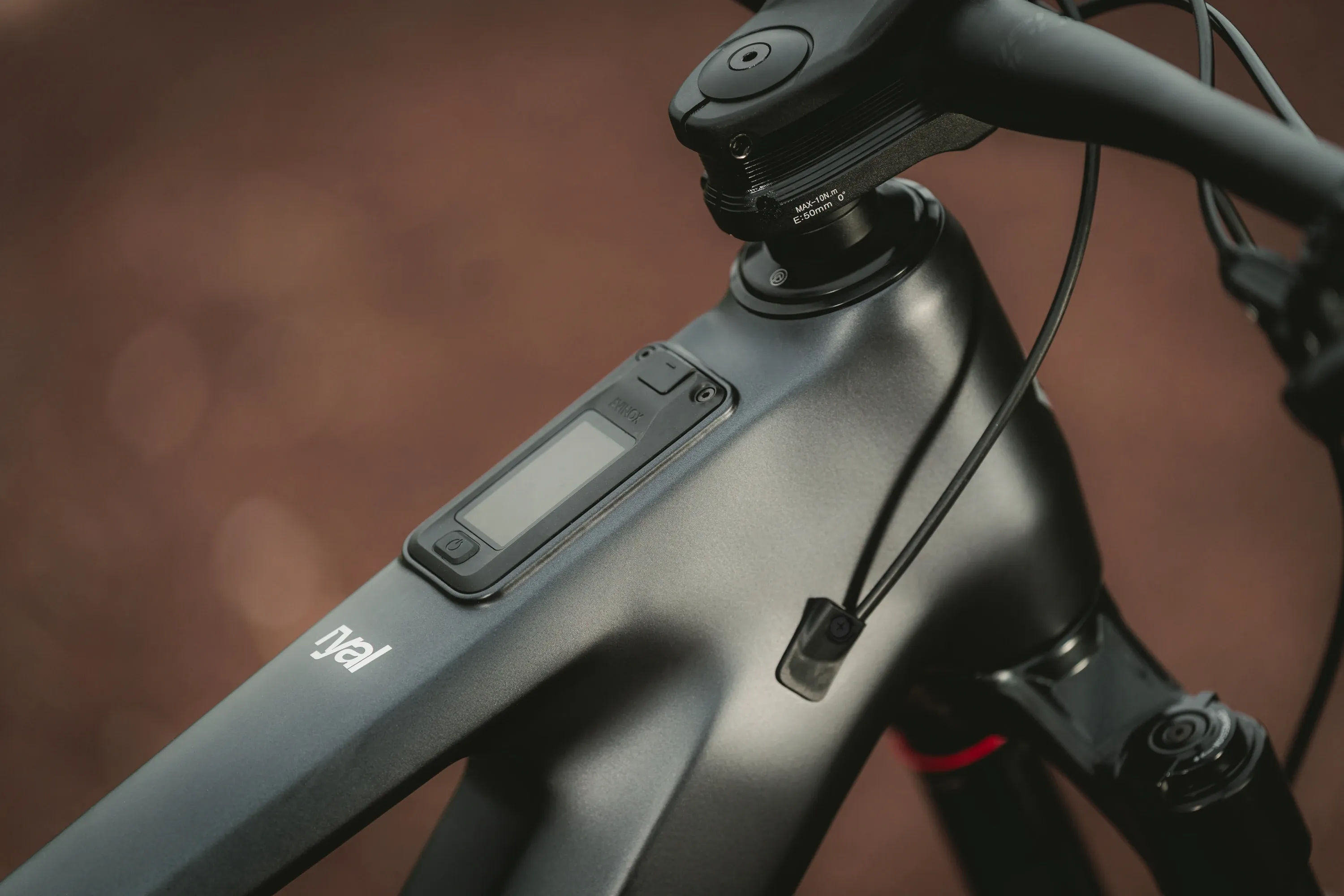

- Display
- Avinox DPC100, 2-inch OLED display
- Charger
- Avinox 4A Charger
Drivetrain
- Rear derailleur
- Sram 90 EAGLE T-TYPE, 12-Speed
- Shifters
- Sram 90 EAGLE T-TYPE
- Crankset
- Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm
- Cassette
- Sram XS 1270 T-TYPE, 10-52T
Brakes
- Brakes
- Shimano XT M8220, Hydraulic Disc 4-Piston, SM-RT86 203 mm
Wheels & tyres
- Tyres
- Maxxis Assegai 29x2.5 EXO+, Tubeless ready
- Wheelset
- Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm
Cockpit
- Handlebar
- Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep
- Stem
- Satori New Ursa, 35 x 50 mm
- Seatpost
- Megamo Ø31.6 mm S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop / XL size 200 mm Drop
- Saddle
- Fizik Terra Aidon X5, 145 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ryal geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ATop tube | 580 mm | 604 mm | 634 mm | 656 mm |
| BChainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| CSeat tube | 390 mm | 410 mm | 430 mm | 460 mm |
| DHead tube | 105 mm | 125 mm | 145 mm | 155 mm |
| EReach | 435 mm | 455 mm | 480 mm | 500 mm |
| FStack | 629 mm | 647 mm | 665 mm | 674 mm |
| GBB drop | 30 mm | 30 mm | 30 mm | 30 mm |
| HHead angle | 64.4° | 64.4° | 64.4° | 64.4° |
| ISeat angle | 77° | 77° | 77° | 77° |
| JWheelbase | 1221 mm | 1249 mm | 1283 mm | 1307 mm |
Source: Megamo.
Ryal: builds compared
Ryal range →| Ryal 10 | Ryal 08 | Ryal 05 | Ryal 03 AXS | |
|---|---|---|---|---|
| Price | €4,299 | €4,799 | €5,499 | €6,999 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | Rock Shox Psylo Silver RC, 160 mm Travel | Rock Shox Zeb Base, 160 mm Travel | Fox 38 Float Performance E-Bike Optimized, 160mm Travel | Fox 38 Float Factory E-Bike Optimized, 160mm Travel |
| Shock | Rock Shox Deluxe Select+ | Rock Shox Deluxe Select+ | Fox Float Rhythm | Fox Float X Factory |
| Derailleur | Shimano XT M8100 | Sram 70 EAGLE T-TYPE | Sram 90 EAGLE T-TYPE | Sram S1000 EAGLE AXS T-TYPE |
| Brakes | Shimano MT520 | Sram Maven Base | Shimano XT M8220 | Shimano XT M8220 |
| Display | Avinox DPC100 | Avinox DPC100 | Avinox DPC100 | Avinox DPC100 |
Ryal 05: FAQ
How much does the Megamo Ryal 05 cost?
€5,499 (RRP Spain (megamo.com, EN), VAT incl.). The Ryal range runs from €4,299 (Ryal 10) to €6,999 (Ryal 03 AXS). Prices vary by country and dealer.
What motor and battery does the Megamo Ryal 05 have?
DJI Avinox M2S (130 Nm (150 Nm Boost); 1,500 W peak). 800 Wh battery — removable (RS800), key lock.
How much suspension travel does the Megamo Ryal 05 have?
160 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Megamo Ryal 05 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ryal 05 and the Ryal 03 AXS?
They share the Ryal frame platform and motor; the differences are in the parts — fork: Fox 38 Float Performance E-Bike Optimized vs Fox 38 Float Factory E-Bike Optimized; shock: Fox Float Rhythm vs Fox Float X Factory; derailleur: Sram 90 EAGLE T-TYPE vs Sram S1000 EAGLE AXS T-TYPE; price: €5,499 vs €6,999.
