Electronic eMTB drivetrains: SRAM Transmission vs Shimano Di2

Wireless shifting used to be a feature you only found on the most expensive bikes. That has changed. In the emtbmag.com bike catalog, 255 of the 626 eMTB builds that list a rear derailleur now shift electronically: 188 use SRAM AXS, 66 use Shimano Di2 and one uses a TRP derailleur. Another 11 builds use the electronically shifted Pinion MGU motor-gearbox. Electronic shifting is no longer limited to top builds. It now appears in the middle of the price ladder too, often as a build that costs a few hundred euros more than its mechanical twin.

So is it worth paying for? This guide goes through the current electronic drivetrains from SRAM and Shimano and how they connect to eMTB motors. It also uses our catalog data to show what the upgrade costs on real bikes.

What "electronic" means on an eMTB

On a regular mountain bike, an electronic derailleur runs on its own small battery and talks to a wireless shifter. On an eMTB there is a second option: the derailleur can be wired to the bike's main battery, so there is no separate battery to charge. Shimano builds dedicated wired e-MTB derailleurs for this. SRAM's AXS derailleurs can be powered by a cable that replaces the clip-on battery. In both cases the shifter on the bar stays wireless.

Connecting the drivetrain to the motor also allows functions a cable cannot offer:

• Shifting without pedalling. Shimano's Free Shift uses the motor to turn the chainring while your cranks stand still, so you can shift into the right gear while coasting into a climb.
• Automatic shifting. Shimano's Auto Shift, SRAM's Auto Shift on Eagle Powertrain bikes and Bosch's eShift with TRP all choose gears from sensor data (cadence, speed, torque) while you ride. You can still shift manually.
• Shifter buttons that control the motor. TQ's July 2025 release package lets SRAM AXS shifters switch assist levels, and its Smartbox reacts to Shimano Di2 levers.

What electronic shifting does not change is the hardware that wears out: chain, cassette and chainring are the same parts whether the derailleur is moved by a cable or a motor. Our chain wear guide applies to both.

SRAM Eagle Transmission: the line-up

SRAM's T-Type Eagle Transmission is the most common drivetrain in our catalog. It mounts directly to the rear axle (SRAM calls this Full Mount) instead of hanging from a derailleur hanger, so it has no hanger to bend and no limit screws. That needs a frame with SRAM's UDH interface that SRAM has verified. SRAM says the cassette has 44 shifting points designed for shifting under load, "including for E-MTB applications". All 12-speed tiers use a 10–52t cassette, and all T-Type parts work together, whether electronic or mechanical.

XX SL: not for eMTBs

The lightest tier is aimed at cross-country racing. SRAM does not offer an XX SL e-MTB groupset, because the XX SL chain and its XS-1299 cassette are not approved for e-MTB use. A few lightweight builds, such as the Specialized S-Works Turbo Levo R and the Cannondale Habit Neo 1, use an XX SL derailleur. If you ever replace parts on bikes like these, check which chain and cassette you are fitting.

XX: the flagship for eMTBs

SRAM XX Eagle AXS Transmission is the top tier SRAM offers for eMTBs. It has a foam-core carbon crank, and SRAM describes its direct-mount T-Type chainrings as its most advanced e-MTB chainrings, with versions for Bosch, Brose, Shimano, TQ and Fazua motors. At its March 2023 launch the groupset cost US$2,049 (€2,450) and the derailleur weighed 465 g. In our catalog XX appears on 27 builds, usually the top model of a range, such as the Yeti LTe XX AXS or the Pivot Shuttle LT Team XX.

X0: the most common premium choice

SRAM X0 Eagle AXS Transmission is the most common electronic drivetrain in the catalog, with 63 builds. It has an aluminium crank with replaceable bash guards, an overload clutch in the derailleur, and a tool-free "Trailside Reset" after a crash. At launch the groupset cost US$1,599 (€1,900) and the derailleur weighed 475 g, slightly more than XX. Examples include the Canyon Strive:ON CFR, the Mondraker Crafty Carbon RR S and the Trek Fuel+ EX 9.9 X0 AXS.

GX: the robust entry to AXS

SRAM GX Eagle AXS Transmission arrived in July 2023 at US$1,099 for the groupset. SRAM calls the GX derailleur its "most robust and rebuildable", with the battery tucked inboard for protection. It uses a steel inner cage and is heavier than XX. GX is on 50 catalog builds. It also matters for owners of cheaper bikes: SRAM sells a GX AXS upgrade kit (derailleur body, battery, AXS Pod shifter and charger) that converts a mechanical Eagle 90 or Eagle 70 bike to electronic shifting later.

S-1000: AXS for complete bikes only

SRAM S-1000 Eagle Transmission is an electronic group sold only on complete bikes. It has a forged aluminium crank and the XS-1270 cassette, which fits a standard HG freehub. On 39 builds it is the usual way brands offer AXS at a lower price, for example on the Canyon Neuron:ON 9 AXS, the YT Decoy X Core 4 and the Whyte Kado RSX.

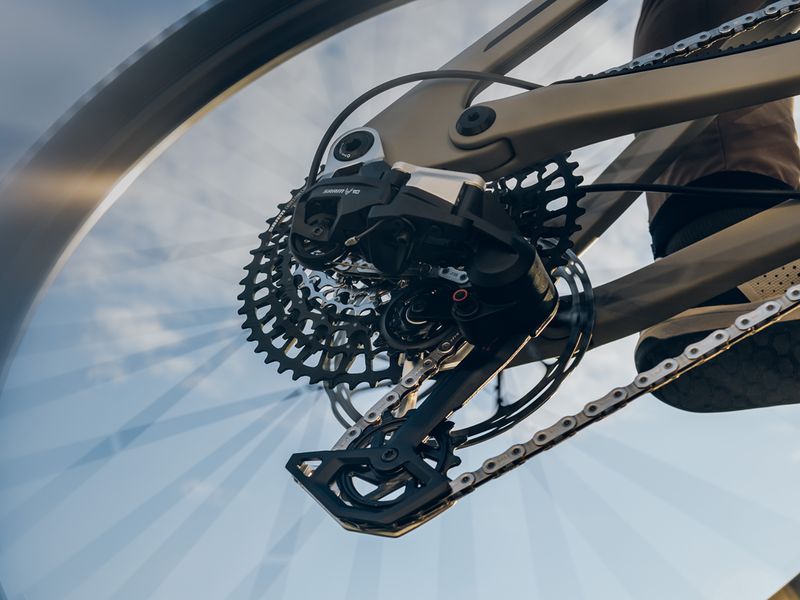

Eagle 90 and Eagle 70: the mechanical T-Type

Since March 2025, SRAM has also offered Full Mount Transmission with a shift cable. Eagle 90 cost about US$670 as a groupset at launch, and its derailleur weighs 389 g. Eagle 70 is mainly sold on complete bikes. Its XS-1270 cassette has a replaceable cluster of five cogs, which SRAM says lets e-MTB riders replace "the hardest working gears". SRAM claims both shift reliably under full motor power. Together they are on 126 catalog builds, more than any single electronic tier.

Eagle Powertrain, XX DH and the new S-Series

SRAM also has its own motor system, Eagle Powertrain. It was developed with Brose and launched in 2023 with a 90 Nm motor, Auto Shift and Coast Shift (shifting while coasting). SRAM still lists it on Nukeproof, Transition, Propain, Berria and GasGas bikes. Yamaha took over Brose's e-bike drive business in August 2025, and SRAM has not said what this means for Powertrain.

XX DH Transmission (February 2026) is a 7-speed, 10–24t downhill groupset and is not designed for pedalling an eMTB uphill. In April 2026 SRAM also launched the hanger-mounted Eagle S-Series, including the S500 AXS derailleur, for frames without UDH.

Shimano Di2: three tiers, each with a wired e-MTB derailleur

Shimano renewed its mountain bike Di2 range in June 2025. The naming is the same in every tier: a derailleur ending in 50 is wireless with its own battery, and one ending in 60 is the wired e-MTB version powered by the bike's battery. The e-MTB derailleurs come in two versions: 12-speed Hyperglide+ or 11-speed LinkGlide. Shimano lists Free Shift and Auto Shift for both.

XTR Di2 M9200

For the first time, Shimano's top group is approved for eMTBs. The wireless RD-M9250 keeps its battery sealed inside the derailleur body and has an automatic impact recovery function. For eMTBs, Shimano offers the wired XTR Di2 RD-M9260 in a 12-speed and an 11-speed LinkGlide version. The shifter has a programmable third button, which can switch Auto Shift on and off. At launch the wireless upgrade kit (derailleur, shifter, battery, charger) cost US$985. XTR Di2 appears on 12 catalog builds, including the Cube Stereo Hybrid ONE44 HPC AT 800 and the Ghost E-Riot LTD.

Deore XT Di2 M8200

XT Di2 is Shimano's main electronic group in our catalog, with 43 builds. The wired e-MTB derailleur is the RD-M8260, sold alongside the wireless M8250. At launch the upgrade kit cost US$860. You will find XT Di2 on the Canyon Spectral:ON CF 9 Di2, the Transition Regulator CX XT Di2 and several BH iLynx+ builds.

Deore Di2 M6200

This is the cheapest way to get Shimano's wireless shifting: the upgrade kit cost US$675 at launch, with the same 24 g battery as the more expensive groups. The Deore Di2 RD-M6260 is the wired e-MTB version. It appears on 10 catalog builds, usually one step above the mechanical model, such as the KTM Macina Lycan Master CX-R Di2 and the Lapierre Overvolt AM 7.8.

The older e-bike-only Di2

Before 2025, Shimano's eMTB Di2 was the XT Di2 RD-M8150, introduced in 2022 with CUES Di2. Both work only with Shimano EP6 and EP801 motors and draw power from the main battery. Many bikes with these parts are still on the trails and on the used market. At launch, full Auto Shift on the M8150 worked only with the 11-speed LinkGlide version; the 12-speed version shifted automatically only while coasting.

LinkGlide or Hyperglide+?

LinkGlide is Shimano's drivetrain designed for e-bike durability. Shimano says it lasts up to three times longer, but that figure compares it with the older Hyperglide in a mud test without shifting, not with today's 12-speed Hyperglide+. On its XTR e-MTB page, Shimano describes LinkGlide as having a lower wear rate under e-MTB torque, and Hyperglide+ as fast and crisp. You trade one gear and a little range for parts that Shimano says wear more slowly.

How the drivetrain connects to the motor

Whether a derailleur can run off the main battery depends on the motor brand and on the cables the bike brand fits. The spec sheets in our catalog show it is now normal across all the big systems:

• Bosch: Whyte specs the Kado Works with an X0 AXS derailleur "powered off the Bosch CX motor system's internal battery". The Transition Regulator CX uses Shimano's wired XT Di2 RD-M8260 with a Bosch Performance Line CX.
• TQ: Trek's Fuel+ EX Di2 builds list a "TQ power cable for Shimano Di2 rear derailleur" with the TQ HPR60.
• DJI Avinox: Amflow fits an "Avinox M2 Series Electronic Rear Derailleur Power Cable" to the AXS derailleur on the PX Carbon, and YT lists an AXS extension cord on the Decoy X. More on the motor on our DJI Avinox page.
• Specialized: the Turbo Levo 4 Pro build powers its X0 derailleur directly from the main battery.
• Shimano: on Shimano EP motors, Free Shift and Auto Shift are part of the system. Shimano's own pages refer only to the "existing e-bike battery" for its wired derailleurs, so ask the bike brand whether Free Shift and Auto Shift work with other motors.

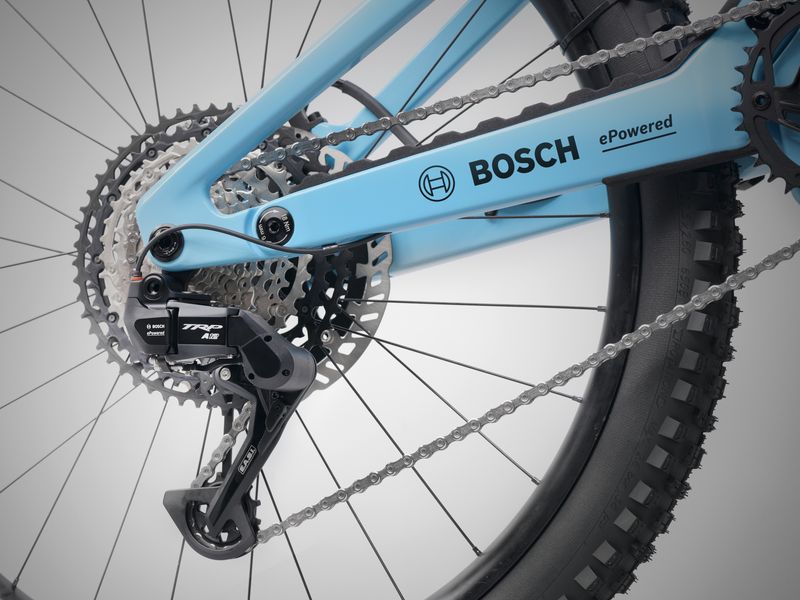

Bosch eShift with TRP

Bosch has its own route to automatic shifting. Since July 2024 the TRP E.A.S.I. A12 derailleur has been part of Bosch's eShift in the smart system. It works only with the Performance Line CX and SX motors. In automatic mode it shifts to keep a cadence you set. RollShift changes gear while you coast, and manual mode is always available through a wireless shifter. TRP lists the derailleur at €445 and the shifter at €110 in Europe. Giant uses a different setup: the Trance Advanced E+ SE pairs a TRP electronic derailleur with Giant's own RideControl Ergo 5 wireless shifter. More on the bike in our Trance Advanced E+ story.

Gearboxes and eCVTs: no derailleur at all

If you want to avoid derailleur wear entirely, there is a third approach. The Pinion MGU E1.12 combines motor and 12-speed gearbox. It shifts electronically, can shift while standing still or under load, and offers Pre.Select (shifting while coasting) and Auto.Shift. Pinion quotes an oil change every 10,000 km. In our catalog it powers bikes such as the Moustache Clutch and Simplon Rapcon :ePinion. Gearboxes built into the motor are also spreading: see our stories on the Intradrive GD8 and the Gobao eCVT in the Alutech ePelmo X1P.

What the upgrade costs on the same bike

The median price of electronic builds in our catalog is about €3,100 higher than mechanical ones. Most of that gap comes from the better suspension, carbon frames and wheels that usually come with electronic shifting. The clearest comparison is between two builds of the same model where only the drivetrain differs. Trek's Fuel+ EX 9.8 XT and Fuel+ EX 9.8 XT Di2 differ only in derailleur, shifter and the TQ power cable, and the price difference is £450. The Fuel+ MX and LX show the same step. Megamo's Reason AL 03 and Reason AL 03 AXS differ only in an Eagle 90 versus S-1000 AXS derailleur and shifter: +€500. At KTM, the Macina Lycan Master CX-R Di2 costs €400 more than the mechanical version.

So, is it worth the extra cost?

The data points to a simple answer: when brands offer the same bike with both options, electronic shifting usually costs €400–500 or about £450 more. That is roughly the price of a set of good tyres and a service, not the €3,000 gap the median prices suggest. Whether it is worth it depends on how you ride.

It makes most sense if:

• you ride technical climbs where you shift under high motor power and want a precise, identical shift every time;
• your bike can power the derailleur from the main battery, so charging stops being an issue;
• you want motor features such as Free Shift, Auto Shift or controlling assist modes from the shifter;
• you are tired of adjusting cables or replacing cables and housing after winter rides in mud.

Mechanical is enough if:

• you are on a tight budget: Eagle 90 and 70 give you the same Full Mount derailleur design with a cable;
• you ride far from power for days and want to fix the drivetrain with a multitool;
• you want to keep the option open: on Transmission bikes, SRAM's GX AXS upgrade kit lets you convert later.

Also remember what stays the same: chain, cassette and chainring wear at the same rate whether the shifting is mechanical or electronic, and on an eMTB they wear faster than on a regular bike. Shifting quality depends just as much on fresh parts as on electronics.
