SRAMEagle 90 Transmission
No groupset price on sram.com series page
- Speeds
- 12 (1x)
- Shifting
- Mechanical (cable)
- Mount
- Full Mount (hangerless)
- Crank arms
- 155–175 mm
Overview
SRAM Eagle 90 Transmission is the mechanical, cable-shifted 12-speed T-Type groupset with hangerless Full Mount derailleur and shifting under E-MTB power.
Eagle Transmission is SRAM's T-Type 12-speed 1x system: Full Mount derailleurs bolt directly around the rear axle with no hanger, and cassette mapping plus X-Sync tooth profiles give, per SRAM, the best shift under load – even with the added power of E-MTB. All T-Type components can be mixed and matched.

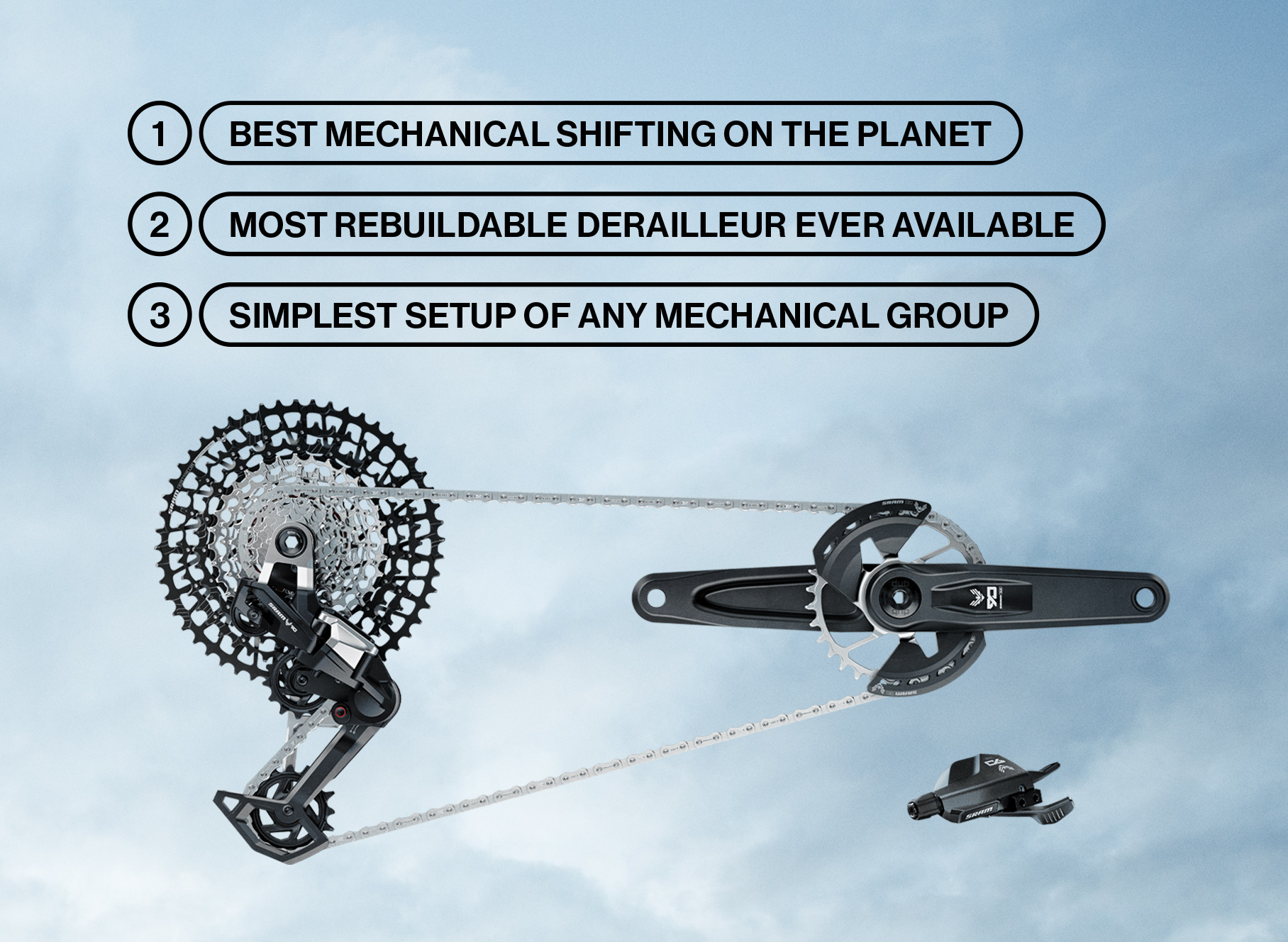

Eagle 90 Transmission is, per SRAM, the world's first mechanical groupset with Full Mount toughness: a rebuildable derailleur with Trailside Reset, a forged aluminium crankset in 155–175 mm arm lengths and a parallel-to-the-bar mechanical shifter that pairs with stealth SRAM brakes.
- Mechanical shifting with Full Mount, no derailleur hanger
- 44 shifting points on T-Type cassettes for shifting under E-MTB power

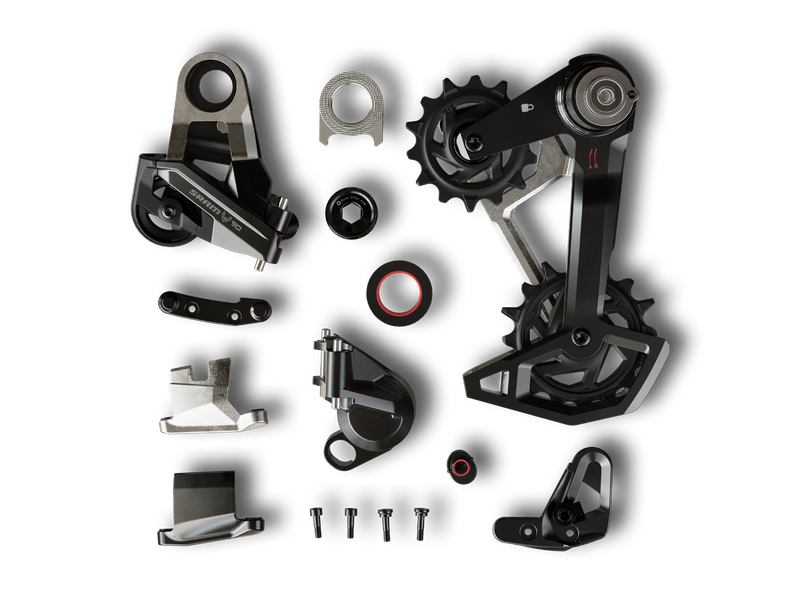

- Rebuildable derailleur with Trailside Reset

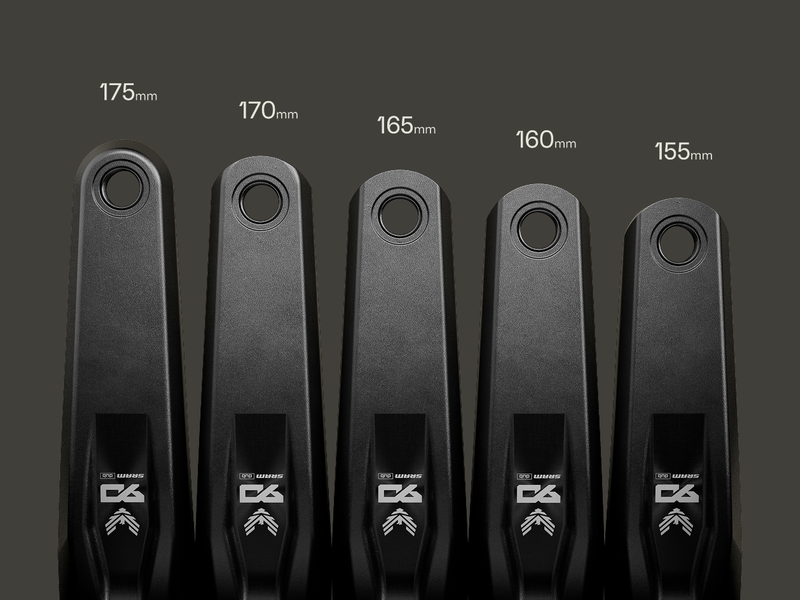

- Forged aluminium crank, 155–175 mm in 5 mm steps
- "Prepare, hang, tighten" setup
Gallery
Full specifications
General
- Shifting
- Mechanical
- Derailleur attachment
- Full Mount, no hanger
- Crank arm lengths
- 155, 160, 165, 170, 175 mm
- Crank material
- Forged aluminium
Compatibility
- Cassettes
- T-Type, 44 shifting points
- AXS upgrade
- GX Eagle AXS Transmission Upgrade Kit
Manufacturer specification — SRAM. Specs and prices can change; check with the brand or your dealer.
SRAM Eagle Transmission versions compared
| XX Eagle AXS Transmission | X0 Eagle AXS Transmission | GX Eagle AXS Transmission | S1000 Eagle Transmission | Eagle 90 Transmission | Eagle 70 Transmission | |
|---|---|---|---|---|---|---|
| Price | — | €1,900 | — | — | — | — |
| Speeds | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) | 12 (1x) |
| Range | 10–52T (XS 1297 T-TYPE 10-52) | 10–52T (XS 1295 T-TYPE 10-52) | 10–52T (XS 1275 T-TYPE 10-52) | — | — | — |
| Shifting | Wireless AXS (Pod Ultimate Concave) | Wireless AXS (Pod Ultimate Concave) | Wireless AXS (Pod) | Wireless AXS | Mechanical (cable) | Mechanical (cable) |
| Crank arms | 165mm, 170mm, 175mm | 165mm, 170mm, 175mm | 165mm, 170mm, 175mm | — | 155–175 mm | — |
| Chainring | 32T DM | 32T DM | 32T DM | — | — | — |
| Max cog | — | — | — | 52T | — | — |
| Mount | — | — | — | Full Mount (hangerless) | Full Mount (hangerless) | Full Mount (hangerless) |
| Cassette | — | — | — | — | — | XS-1270, replaceable 5-gear cluster |
| Weight | — | — | — | — | — | — |
| E-bike rated | — | Yes | Yes | Yes | Yes | Yes |
eMTBs that come with the SRAM Eagle Transmission
SRAM Eagle 90 Transmission: FAQ
Is the SRAM Eagle 90 Transmission suitable for e-bikes?
Yes — SRAM lists it as e-bike rated or e-bike specific.
What are the key specs of the SRAM Eagle 90 Transmission?
Speeds: 12 (1x); Shifting: Mechanical (cable); Mount: Full Mount (hangerless); Crank arms: 155–175 mm.
What other versions of the SRAM Eagle Transmission are there?
XX Eagle AXS Transmission, X0 Eagle AXS Transmission (€1,900), GX Eagle AXS Transmission, S1000 Eagle Transmission, Eagle 70 Transmission.
