AmflowPR Carbon
- Motor
- DJI Avinox M2110 Nm nominal, 125 Nm peak; 1100 W peak
- Battery
- 800 WhRemovable (Avinox RS800)
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 22.6 kgManufacturer figure (size M, without pedals/lights/mudguards, tubeless)
Overview

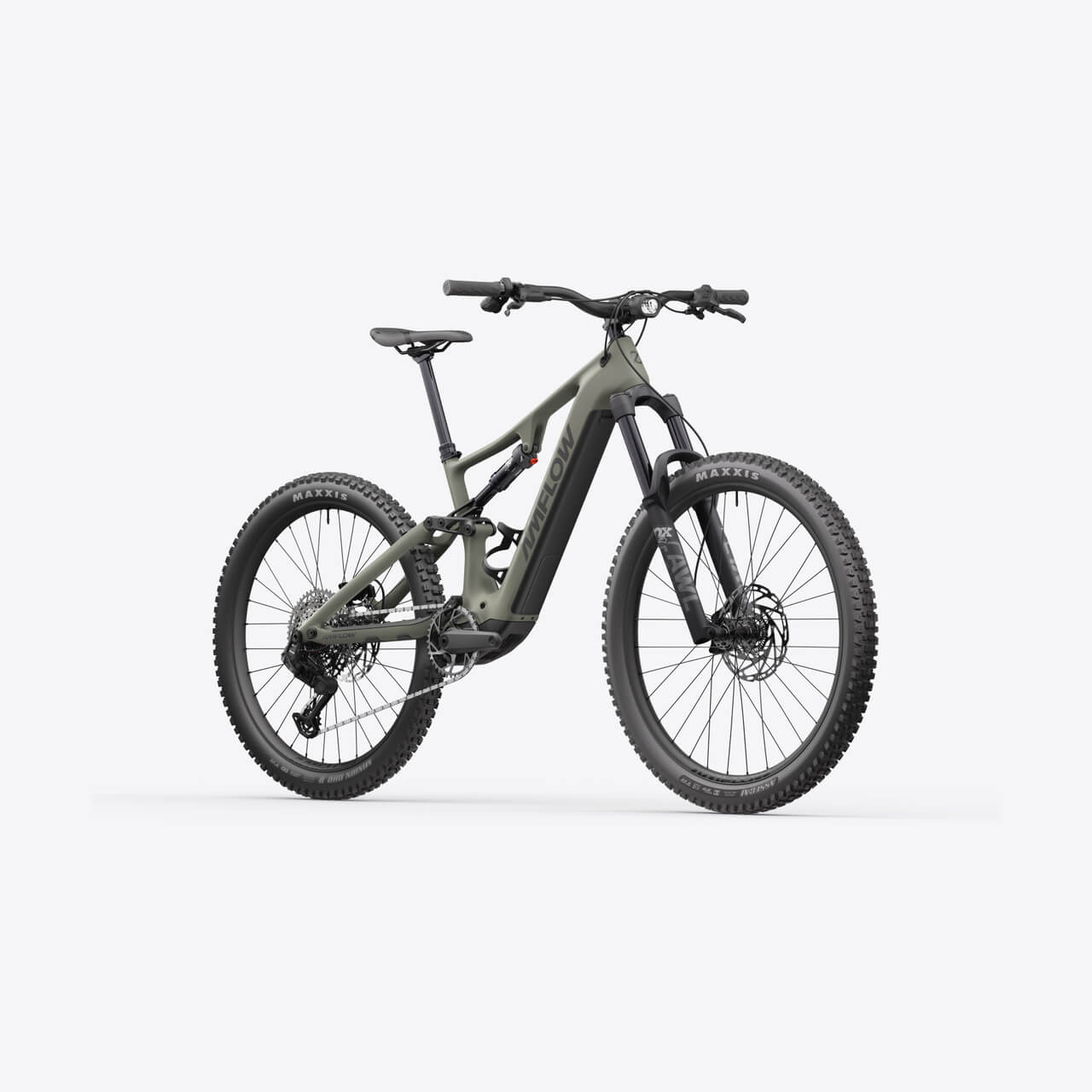

The Amflow PR Carbon (€4,499) is the entry build of the PR Carbon: DJI Avinox M2 (125 Nm peak) with 800 Wh, FOX AWL HD Sport fork, FOX Float Rhythm shock, SRAM S1000 Eagle Transmission and Tektro TKD173 brakes. Claimed weight is 22.6 kg.

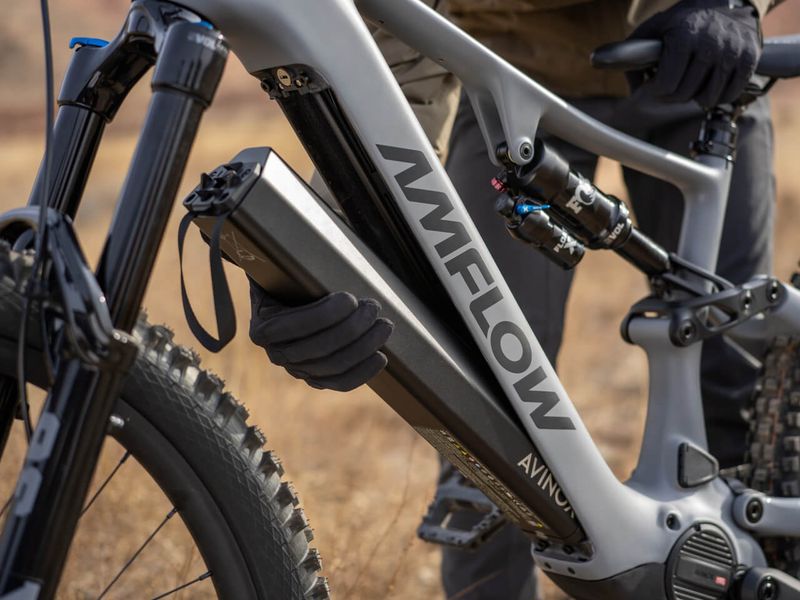

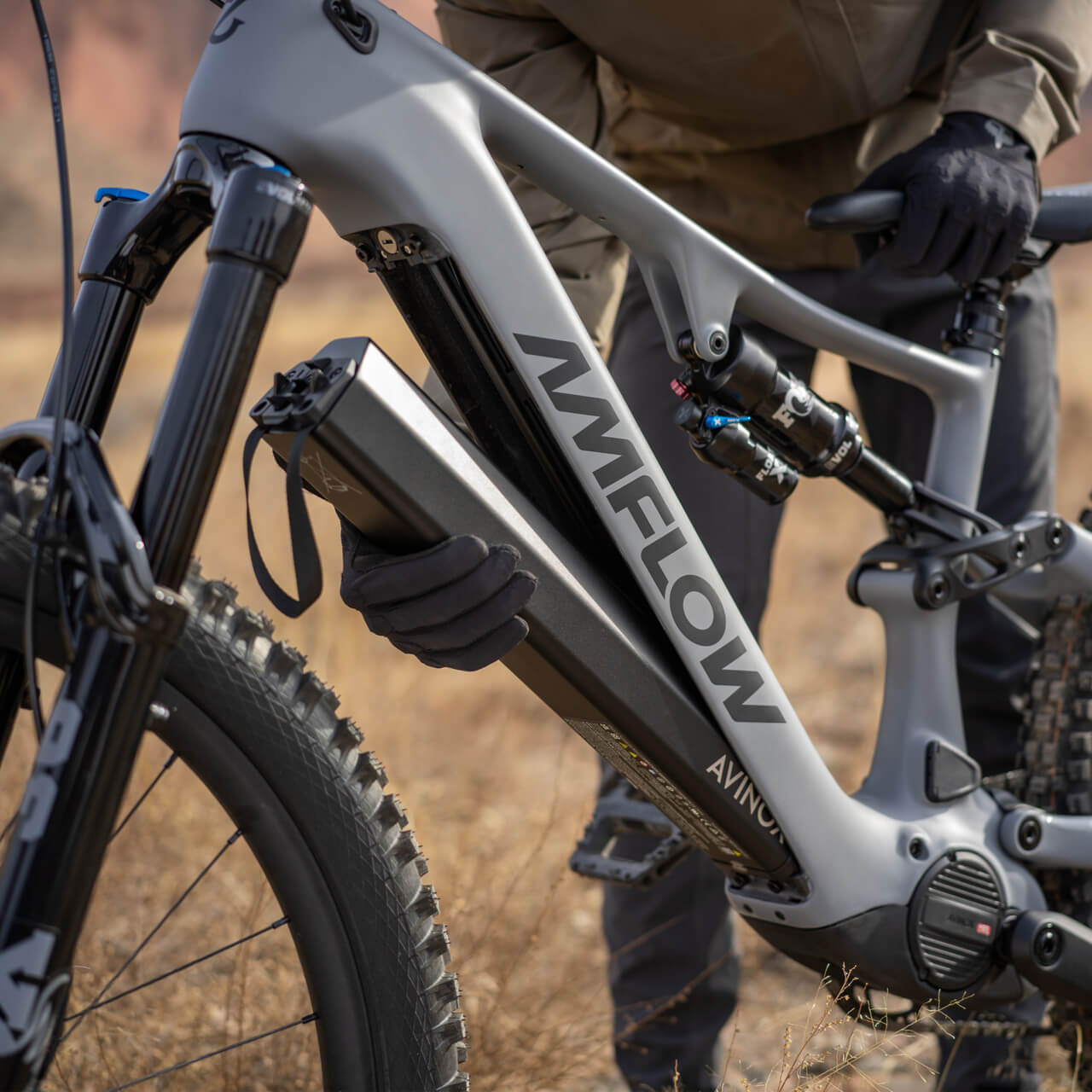

The PR Carbon was launched alongside the PX in April 2026. It has the same adjustable-geometry concept (up to 40 settings, 64.5° default head angle, 440–452 mm chainstays) but a carbon frame of about 2.9 kg (size M) and Avinox's first removable 800 Wh battery, which can be taken out for charging or swapping.
The PR Carbon Pro uses the Avinox M2S motor (130 Nm nominal, 150 Nm peak, 1500 W) with a 508 W fast charger. The PR Carbon has the Avinox M2 (110 Nm nominal, 125 Nm peak, 1100 W) and a 4A/168W charger. Both have 150 mm rear travel, a 160 mm FOX fork and mullet wheels. Claimed weights are 22.6–23.1 kg (size M).
- Removable 800 Wh battery
- Avinox M2S (150 Nm) or M2 (125 Nm)
- 150 mm rear / 160 mm fork, mullet wheels
- 40 geometry settings: headset, BB height, chainstay
Gallery
Photos: Amflow
Full specifications
Frame & suspension
- Frame
- Amflow PR Carbon Frame, 40 adjustable geometry configurations, Compatible with 27.5″ and 29″ rear wheels
- Colour
- Moss Green
- Rear shock
- FOX Float Rhythm, custom tune, LSR adjustment, 210×55mm, air shock
- Fork
- FOX AWL HD Sport, 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
E-system
- Motor

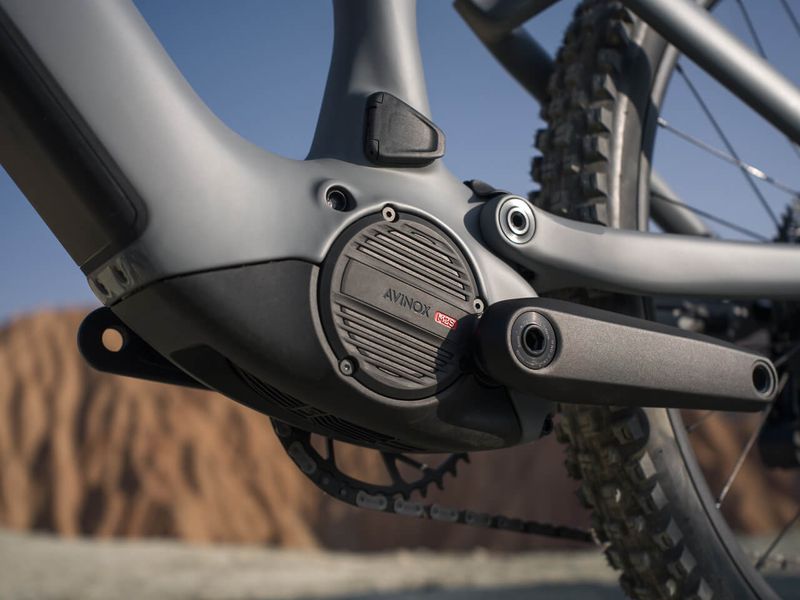

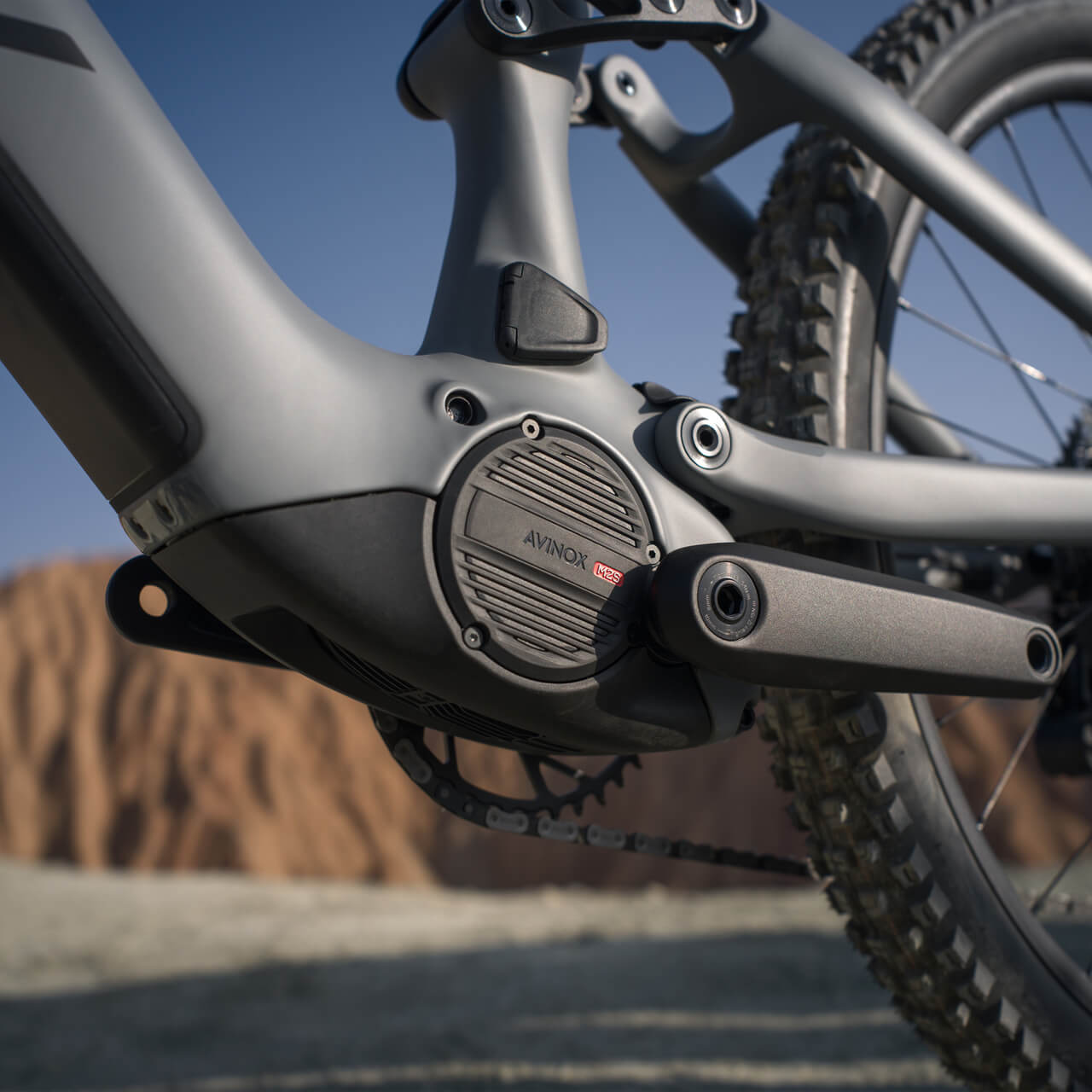

- Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
- Display

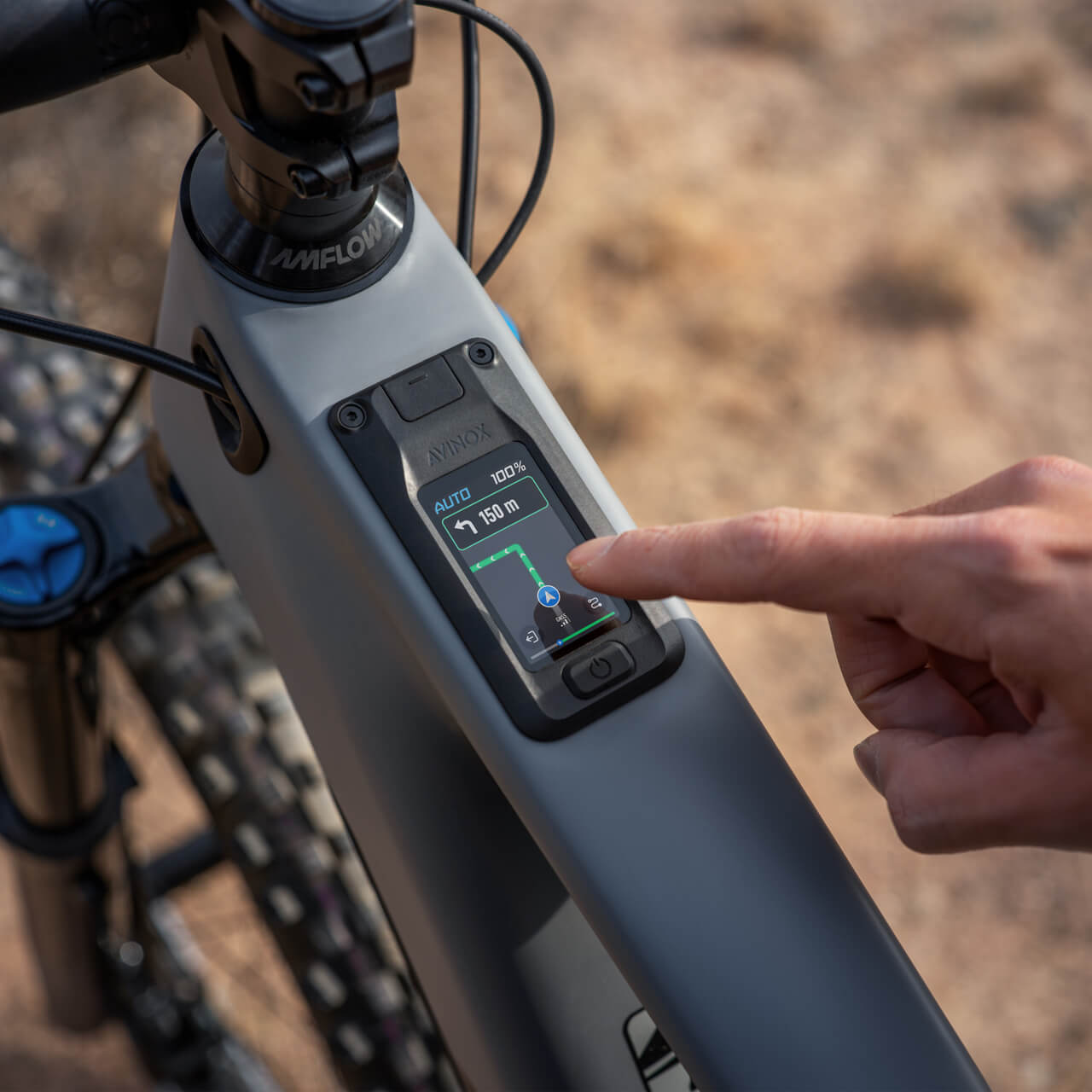

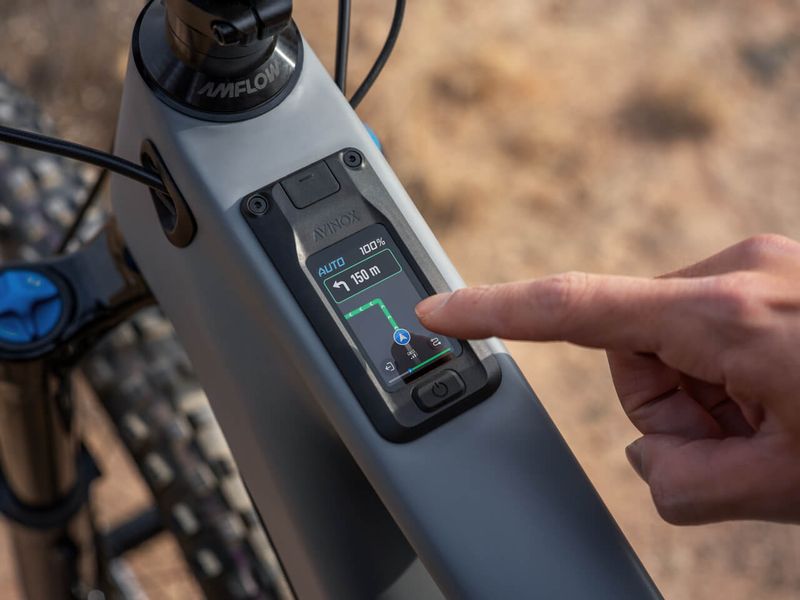

- Avinox Screen, 2-inch OLED Control Display
- Battery
- Avinox Removable Battery, 800Wh
- Remote
- Avinox Wireless Controllers, Right and left sides
- Charger
- Avinox Charger, 4A/168W
Drivetrain
- Rear derailleur

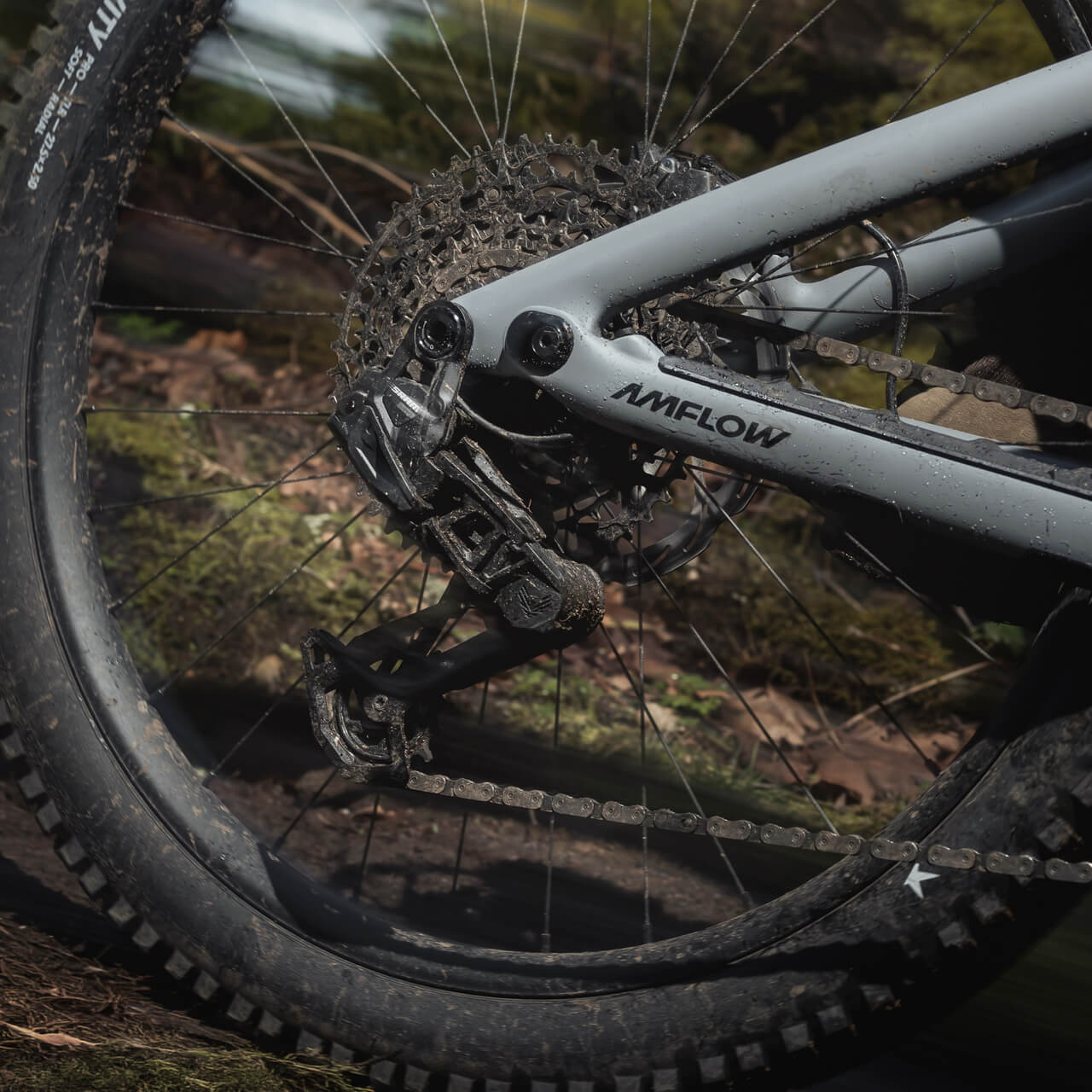

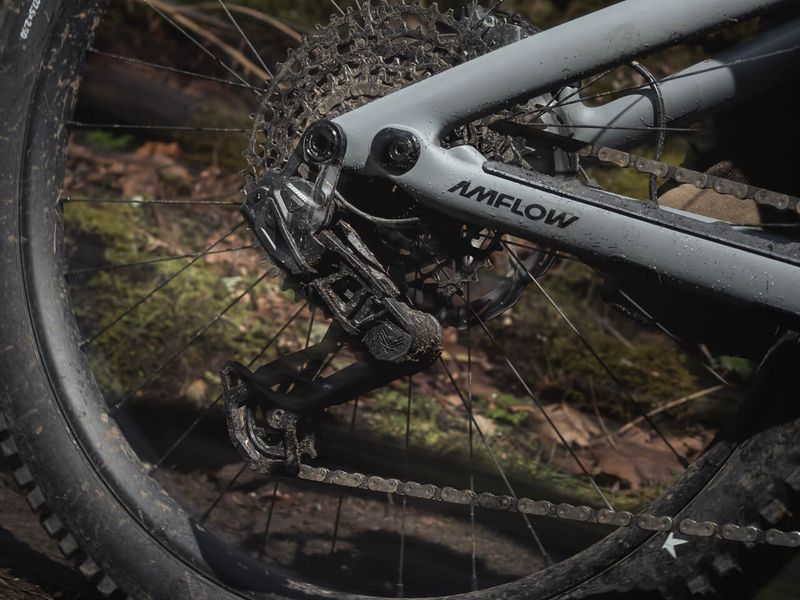

- SRAM S1000 Eagle Transmission Derailleur
- Chainring
- SRAM Eagle Transmission DM Chainring 38T for Avinox
- Shifter
- SRAM AXS Pod Controller
- Cassette
- SRAM XS-1270 Eagle Transmission Cassette 10-52T
- Chain
- SRAM Eagle 70 Transmission Flattop Chain
- Derailleur power
- Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
- Crankset
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
- Brakes
- Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom, Tektro Sensor Rotor (203mm, 2.3mm)
Wheels & tyres
- Wheelset
- Amflow XMA-30 Mullet Version
- Front rim
- Alloy, 29″, 30mm inner width, 32H, tubeless ready
- Rear rim
- Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
- Spokes
- SAPIM E-Light
- Front hub
- Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
- Rear hub
- Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
- Front tyre
- Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR
- Rear tyre
- Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Cockpit
- Handlebar
- Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
- Grips
- Amflow Enduro Grip 2 Lock-on Grips
- Stem
- Amflow Mountain Bike Split Stem, Length: 35mm, Clamping Diameter: 35mm
- Saddle
- Amflow Mountain Saddle
- Seatpost
- Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm), M Frame: 190mm, L/XL Frame: 210mm, XXL Frame: 230mm
Other
- Included accessories

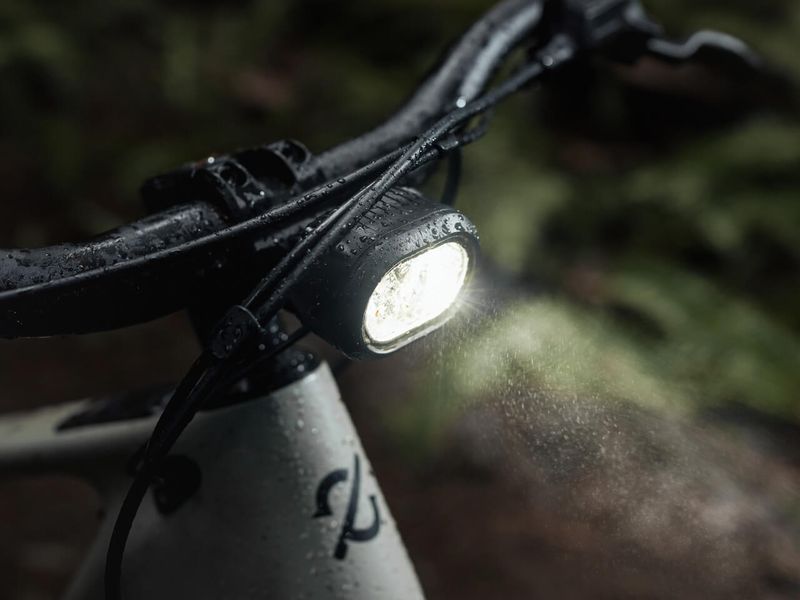

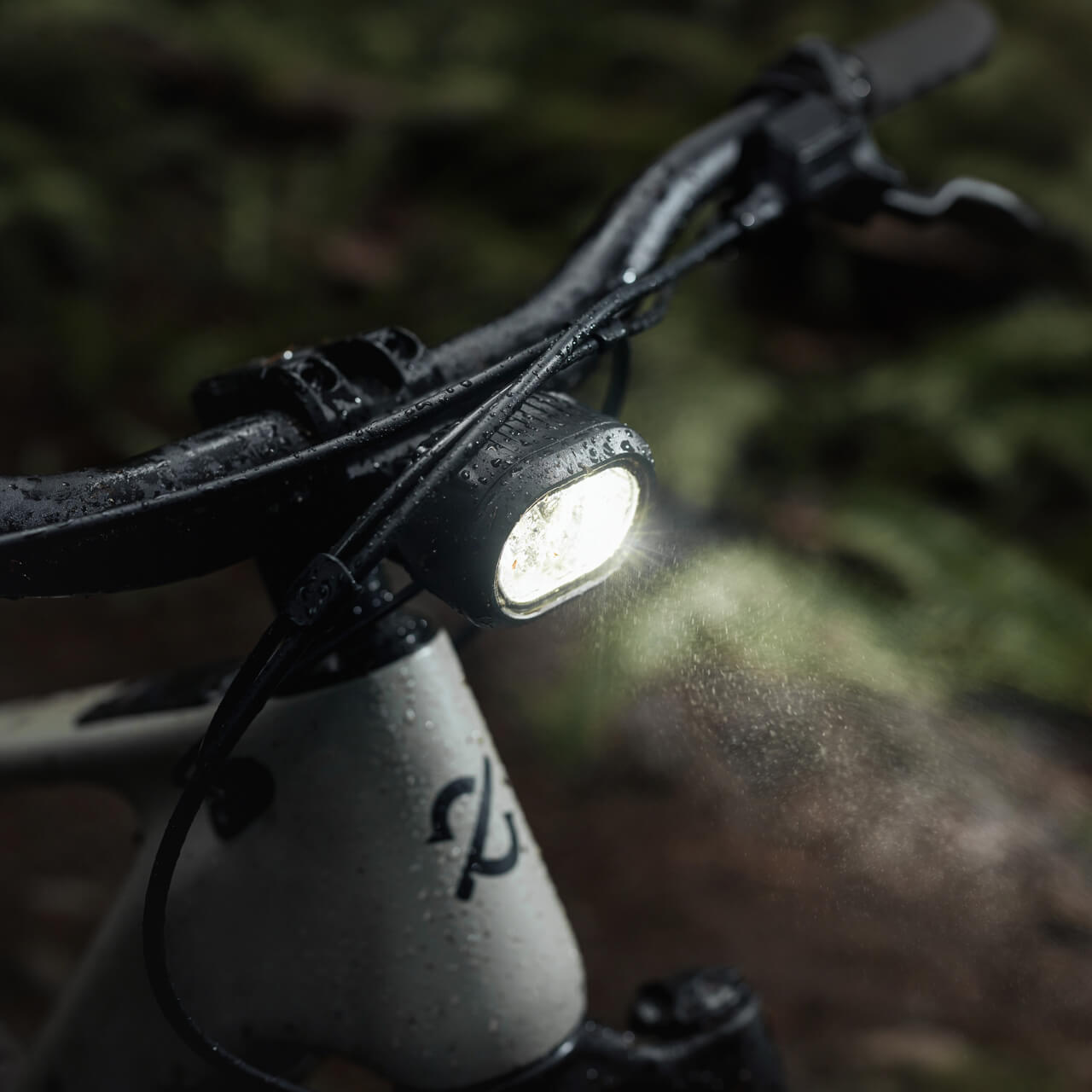

- Avinox Front Light; Amflow Bottle Cage; Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip); Removable Battery Keys × 2; 5/10mm Dropper Post Travel Reducing Spacer; Quick Start Guide; Rear Light; Torque Wrench; Clear Frame Protection Film; Shock Pump
- Weight
- 22.6 kg (size M, manufacturer figure)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
PR Carbon geometry
| Size | M | L | XL | XXL |
|---|---|---|---|---|
| AReach | 452 mm | 475 mm | 500 mm | 527 mm |
| BStack Height | 626 mm | 637 mm | 649 mm | 662 mm |
| CStandover Height | 782.5 mm | 788.9 mm | 791.5 mm | 799.1 mm |
| DFront Center | 787.7 mm | 816 mm | 846.8 mm | 879.9 mm |
| EFork Length | 576 mm | 576 mm | 576 mm | 576 mm |
| FWheelbase | 1227.9 mm | 1256.2 mm | 1287 mm | 1320.1 mm |
| GChainstay Length | 440 / 452 mm | 440 / 452 mm | 440 / 452 mm | 440 / 452 mm |
| HBottom Bracket Drop | 10.4 / 24.5 mm | 10.4 / 24.5 mm | 10.4 / 24.5 mm | 10.4 / 24.5 mm |
| IBottom Bracket Height | 349.5 mm | 349.5 mm | 349.5 mm | 349.5 mm |
| JEffective Top Tube Length | 596.5 mm | 623.5 mm | 652.9 mm | 684.6 mm |
| KHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| LHead Tube Length | 111.4 mm | 123.6 mm | 136.9 mm | 151.3 mm |
| MActual Seat Tube Angle | 70° | 70° | 70° | 70° |
| NEffective Seat Tube Angle | 77° | 76.9° | 76.7° | 76.6° |
| OSeat Tube Height | 405 mm | 425.3 mm | 445 mm | 464 mm |
Source: Amflow. Where two values are given (chainstay length, BB drop) they are the published range across the adjustment positions; head angle is the 64.5° default (adjustable ±1° with headset cups).
PR Carbon: builds compared
PR Carbon range →| PR Carbon | PR Carbon Pro | |
|---|---|---|
| Price | €4,499 | €5,899 |
| Frame | Carbon | Carbon |
| Fork | FOX AWL HD Sport, 160mm travel | FOX 36 Performance, 160mm travel |
| Shock | FOX Float Rhythm | FOX Float X Performance |
| Derailleur | SRAM S1000 Eagle Transmission Derailleur | SRAM S1000 Eagle Transmission Derailleur |
| Brakes | Tektro TKD173 Hydraulic Disc Brake | Magura Gustav Pro Hydraulic Disc Brake |
| Display | Avinox Screen | Avinox Screen |
| Weight | 22.6 kg | 23.1 kg |
PR Carbon: FAQ
How much does the Amflow PR Carbon cost?
€4,499 (RRP Germany, VAT incl.). The PR Carbon range runs from €4,499 (PR Carbon) to €5,899 (PR Carbon Pro). Prices vary by country and dealer.
How much does the Amflow PR Carbon weigh?
Amflow quotes 22.6 kg. It is the lightest build of the PR Carbon.
What motor and battery does the Amflow PR Carbon have?
DJI Avinox M2 (110 Nm nominal, 125 Nm peak; 1100 W peak). 800 Wh battery — removable (Avinox RS800).
How much suspension travel does the Amflow PR Carbon have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Amflow PR Carbon come in?
M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the PR Carbon and the PR Carbon Pro?
They share the PR Carbon frame platform; the differences are in the parts — fork: FOX AWL HD Sport vs FOX 36 Performance; shock: FOX Float Rhythm vs FOX Float X Performance; claimed weight: 22.6 kg vs 23.1 kg; price: €4,499 vs €5,899.
