AmflowPX Carbon
- Motor
- DJI Avinox M2S130 Nm nominal, 150 Nm peak; 1500 W peak
- Battery
- 700 WhIntegrated (Avinox FP700), secondary battery supported
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 21 kgManufacturer figure (size M, without pedals/lights/mudguards, tubeless)
Overview

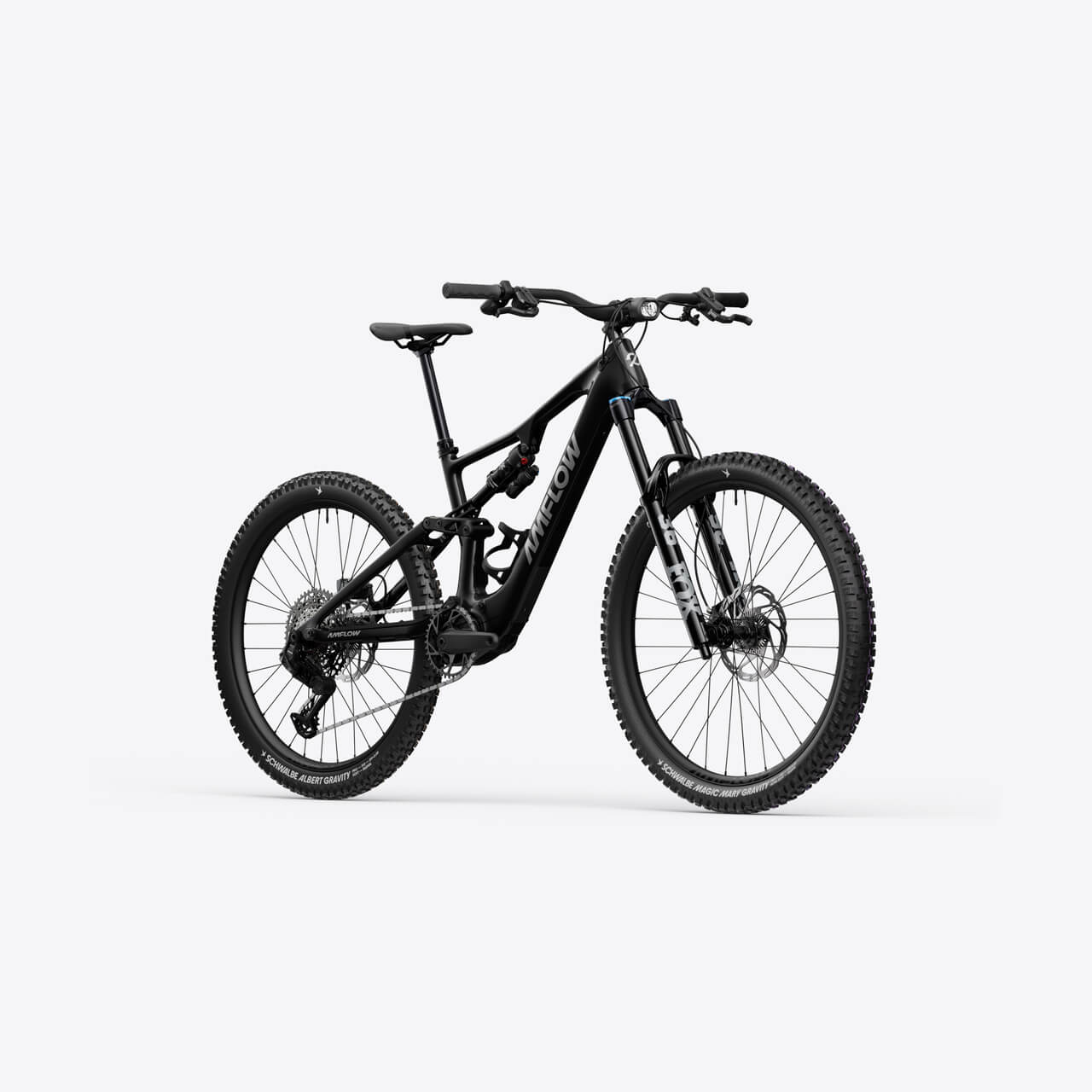

The Amflow PX Carbon (€6,999) is the entry build of the PX Carbon: DJI Avinox M2S (150 Nm peak) with 700 Wh, FOX 36 Performance fork, FOX Float X Performance shock, SRAM S1000 Eagle Transmission and Magura Gustav Pro brakes. Claimed weight is 21.0 kg.
The PX Carbon, launched in April 2026, is Amflow's lightweight full-power eMTB: a carbon frame of about 2.4 kg (size M) with the DJI Avinox M2S drive unit (130 Nm nominal, 150 Nm and 1500 W peak in Boost) and an integrated 700 Wh battery weighing 3.18 kg, charged by a 12A/508W fast charger.
It pairs 150 mm of rear travel with a 160 mm FOX 36 fork and mullet wheels (29-inch front, 27.5-inch rear). Adjustable headset cups (5 positions), bottom-bracket height (2) and chainstay length (4, 438–451 mm) give up to 40 geometry settings around a 64.2° default head angle. Claimed weights are 20.6 kg (PX Carbon Pro) and 21.0 kg (PX Carbon), size M.
- DJI Avinox M2S: 150 Nm / 1500 W peak
- 700 Wh integrated battery
- 150 mm rear / 160 mm fork, mullet wheels
- About 2.4 kg carbon frame, 20.6–21.0 kg bike
Gallery
Photos: Amflow
Full specifications
Frame & suspension
- Frame
- Amflow PX Carbon Frame, 40 adjustable geometry configurations, Compatible with 27.5″ and 29″ rear wheels
- Colour
- Phantom Black
- Rear shock

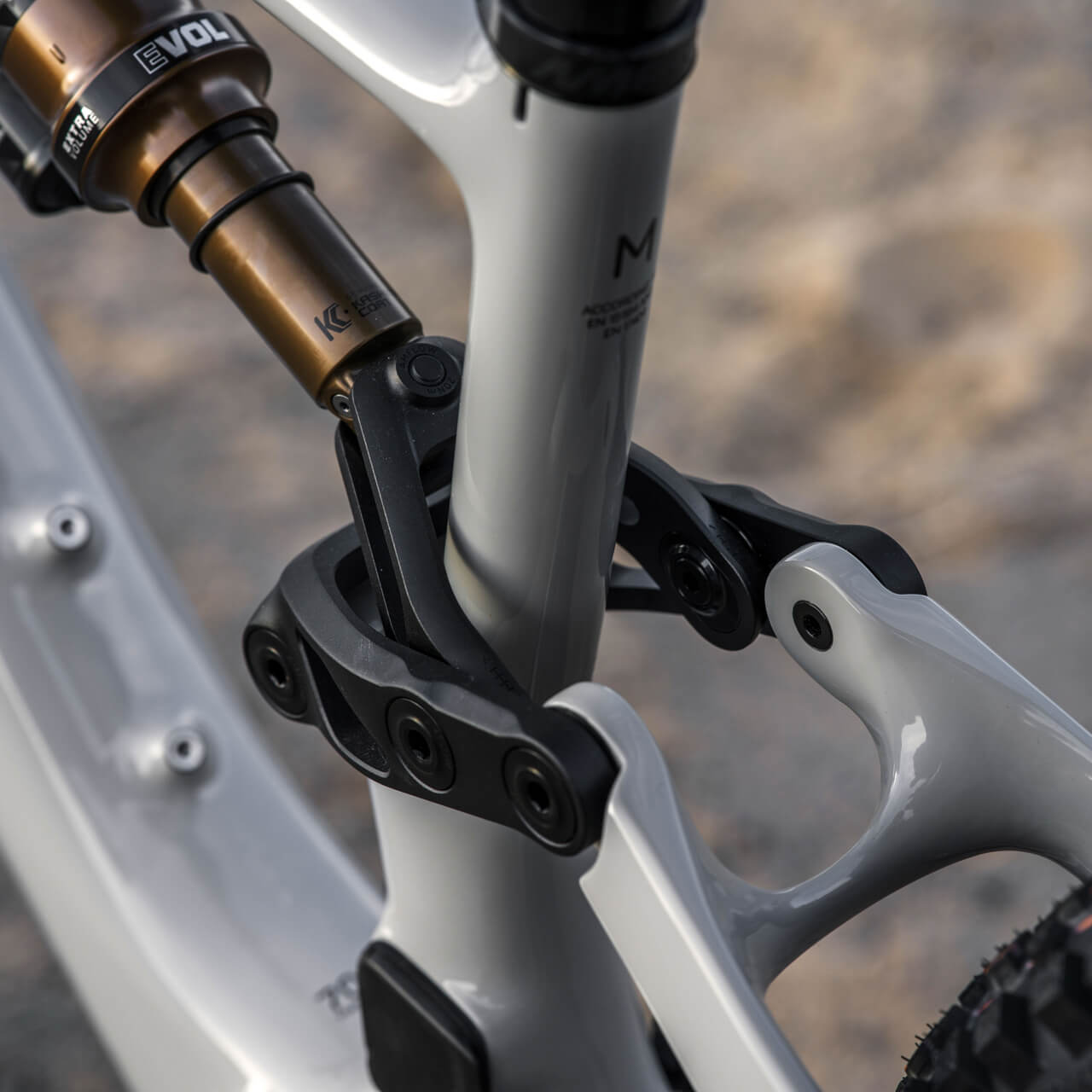

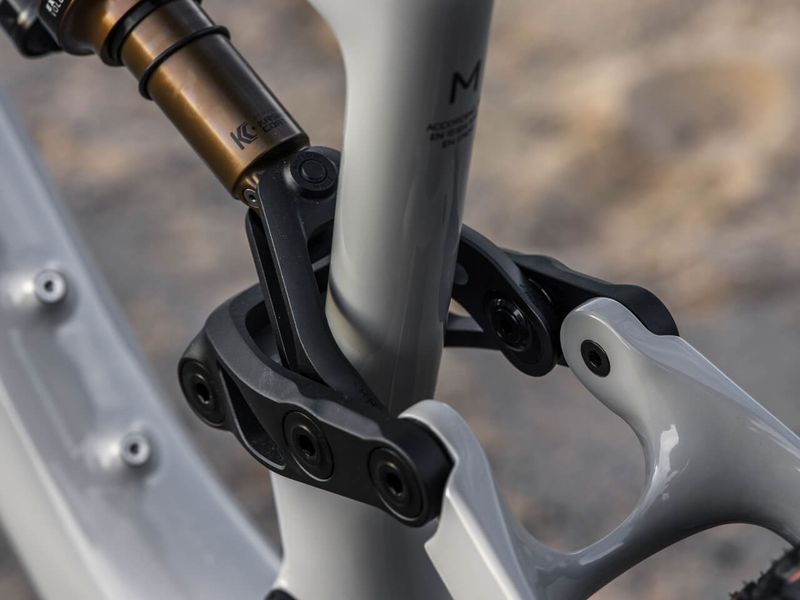

- FOX Float X Performance, 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
- Fork

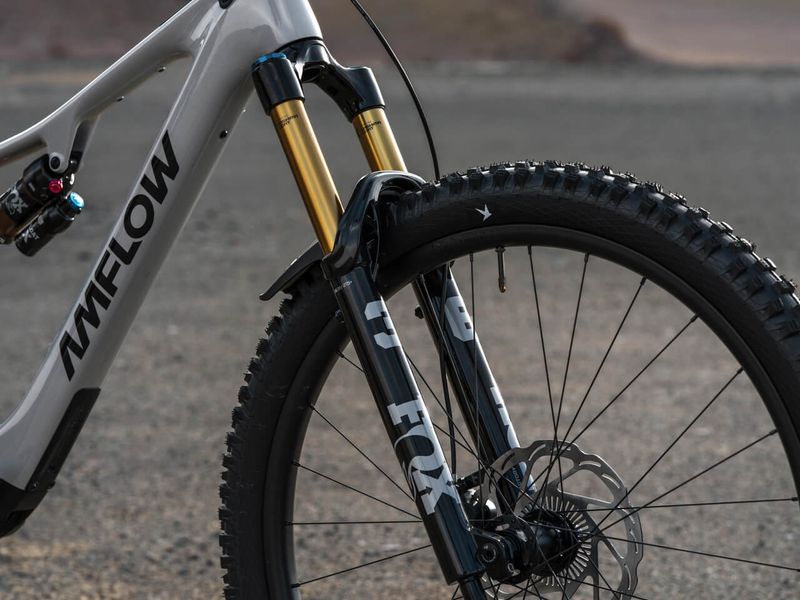

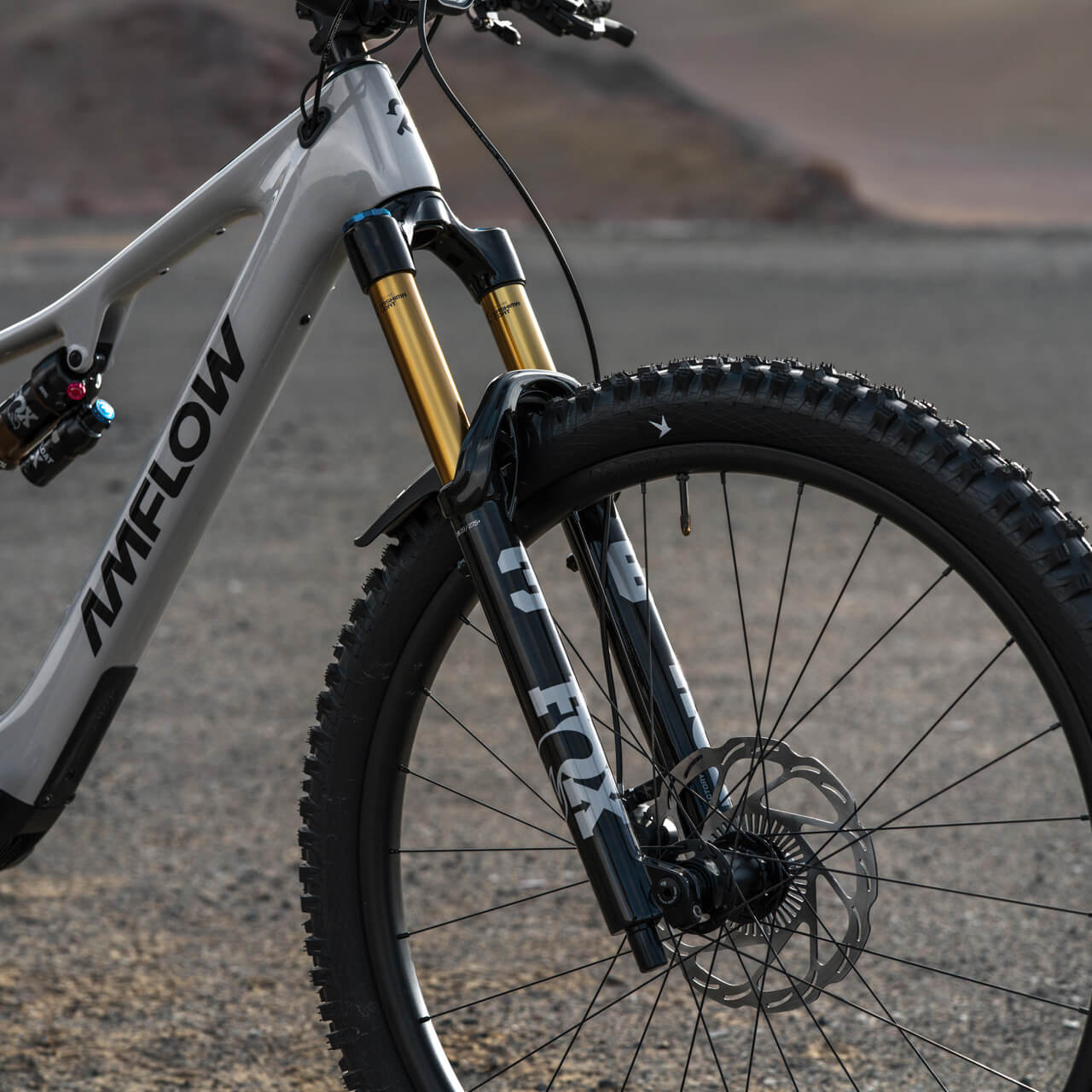

- FOX 36 Performance, 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
E-system
- Motor

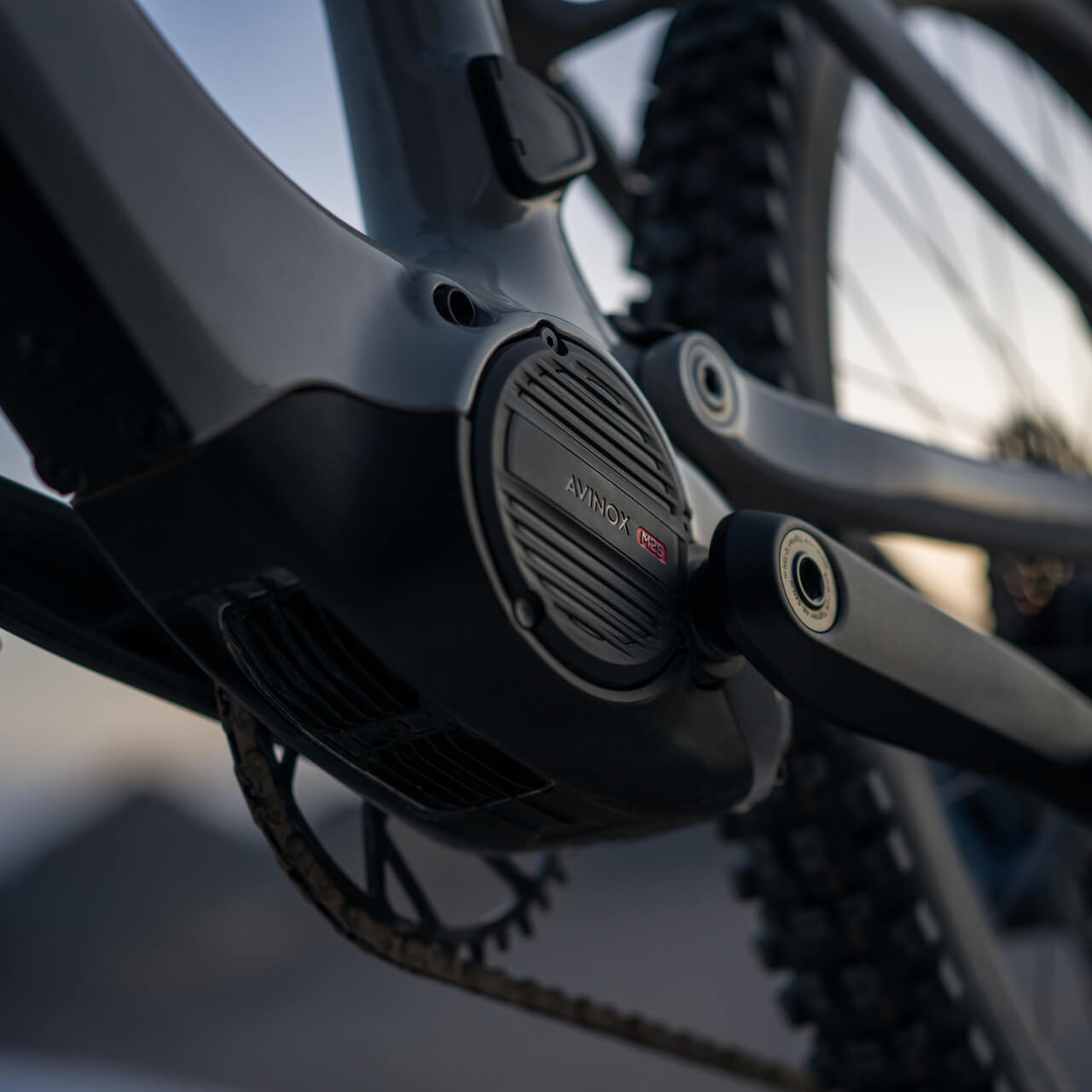

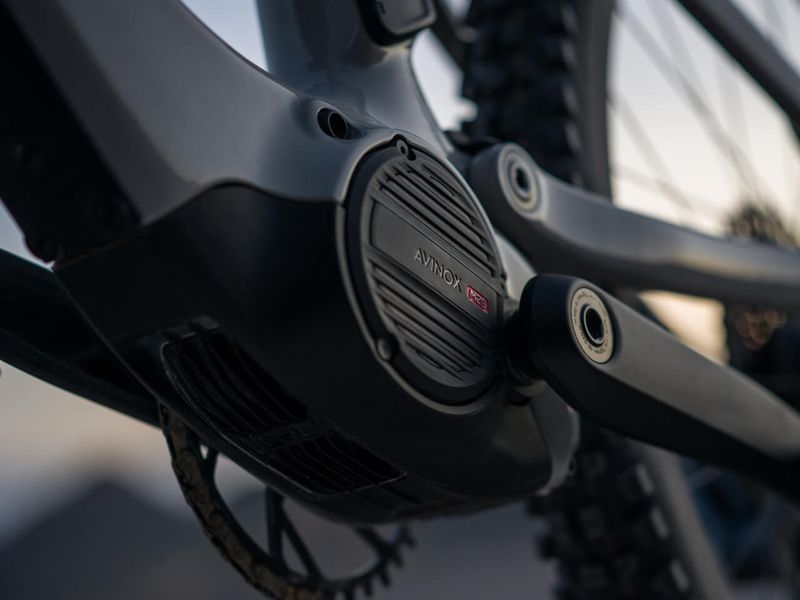

- Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
- Display

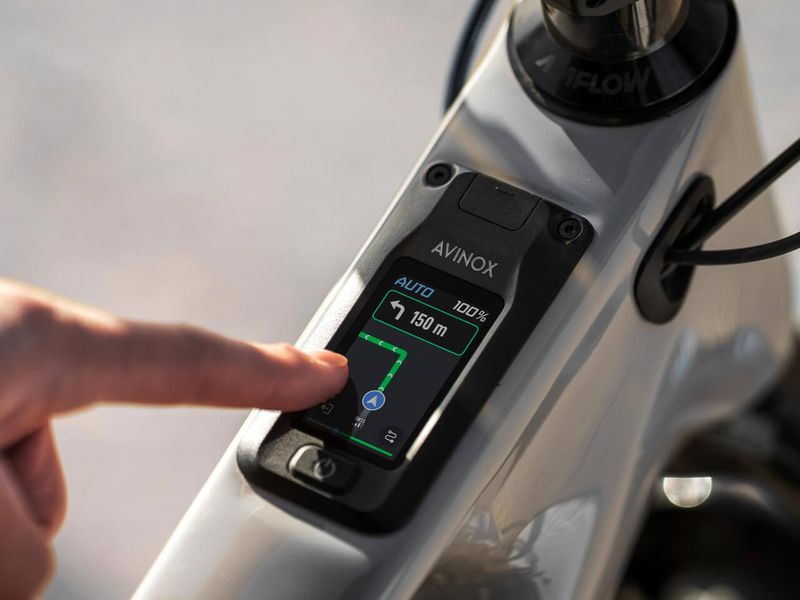

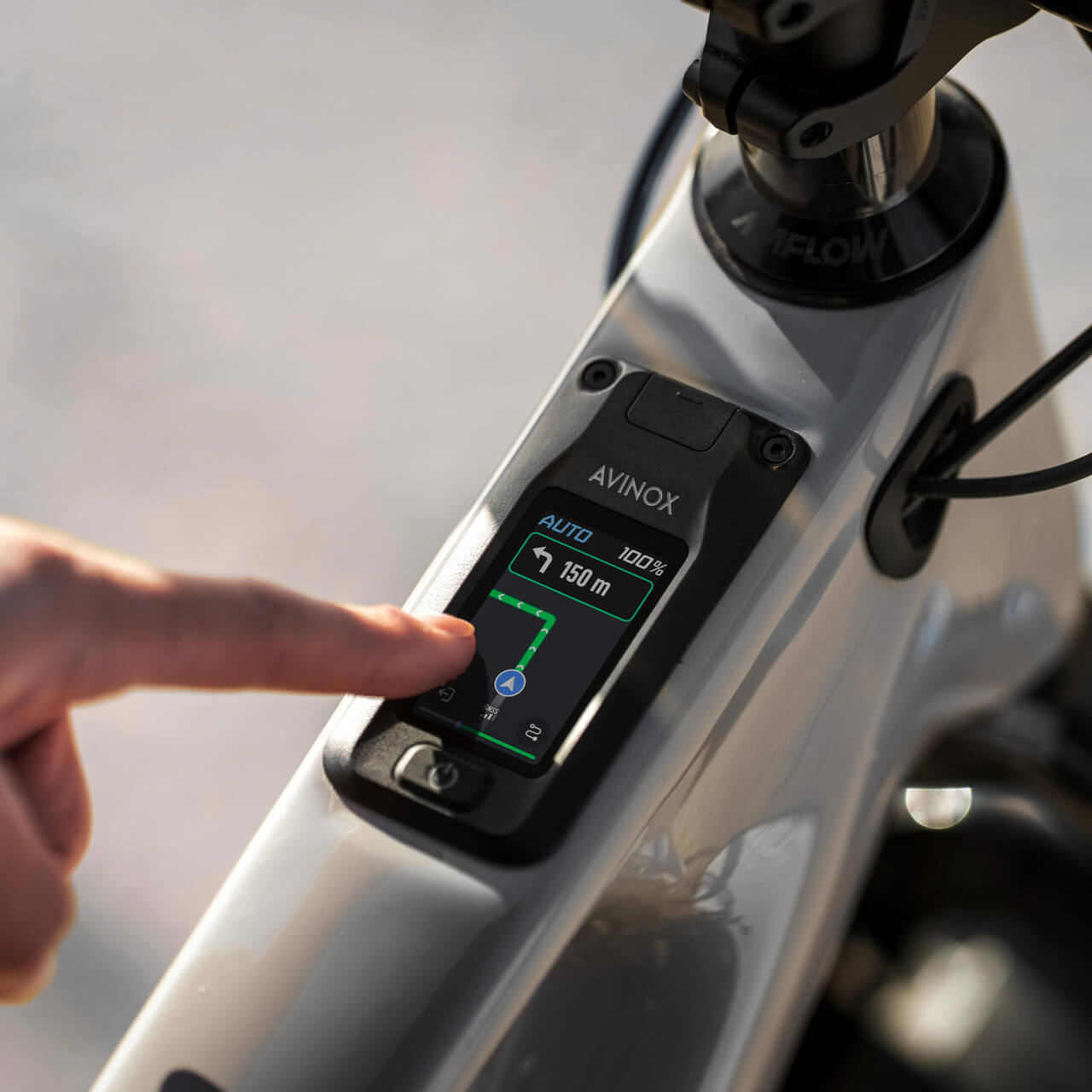

- Avinox Screen, 2-inch OLED Control Display
- Battery
- Avinox Integrated Battery, 700Wh
- Remote
- Avinox Wireless Controllers, Right and left sides
- Charger
- Avinox Fast Charger, 12A/508W
Drivetrain
- Rear derailleur
- SRAM S1000 Eagle Transmission Derailleur
- Chainring
- SRAM Eagle Transmission DM Chainring 38T for Avinox
- Shifter
- SRAM AXS Pod Controller
- Cassette
- SRAM XS-1270 Eagle Transmission Cassette 10-52T
- Chain
- SRAM Eagle 70 Transmission Flattop Chain
- Derailleur power
- Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
- Crankset
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
- Brakes
- Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers, Magura Sensor Rotor (203mm, 2.5mm)
Wheels & tyres
- Wheelset
- Amflow XMA-30 Mullet Version
- Front rim
- Alloy, 29″, 30mm inner width, 32H, tubeless ready
- Rear rim
- Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
- Spokes
- SAPIM E-Light
- Front hub
- Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
- Rear hub
- Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
- Front tyre
- Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
- Rear tyre
- Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Cockpit
- Handlebar
- Amflow Enduro Alloy Handlebar, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
- Grips
- Amflow Enduro Grip 2 Lock-on Grips
- Stem
- Amflow Mountain Bike Split Stem, Length: 35mm, Clamping Diameter: 35mm
- Saddle
- Amflow Mountain Saddle
- Seatpost
- Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm), M/L Frame: 190mm, XL Frame: 210mm, XXL Frame: 230mm
Other
- Included accessories
- Avinox Front Light; Amflow Bottle Cage; Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip); 5/10mm Dropper Post Travel Reducing Spacer; Rear Light; Torque Wrench; Clear Frame Protection Film; Shock Pump; Quick Start Guide
- Weight
- 21.0 kg (size M, manufacturer figure)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
PX Carbon geometry
| Size | M | L | XL | XXL |
|---|---|---|---|---|
| AReach | 455 mm | 478 mm | 503 mm | 528 mm |
| BStack Height | 622.1 mm | 632.2 mm | 645.9 mm | 659 mm |
| CStandover Height | 780 mm | 785 mm | 790 mm | 795 mm |
| DFront Center | 793.1 mm | 820.9 mm | 852 mm | 883.9 mm |
| EFork Length | 570 mm | 570 mm | 570 mm | 570 mm |
| FWheelbase | 1231.3 mm | 1259.1 mm | 1290.2 mm | 1322.1 mm |
| GChainstay Length | 438 / 451 mm | 438 / 451 mm | 438 / 451 mm | 438 / 451 mm |
| HBottom Bracket Drop | 10.5 / 23.7 mm | 10.5 / 23.7 mm | 10.5 / 23.7 mm | 10.5 / 23.7 mm |
| IBottom Bracket Height | 345.5 mm | 345.5 mm | 345.5 mm | 345.5 mm |
| JEffective Top Tube Length | 586.9 mm | 619.7 mm | 642.8 mm | 672.2 mm |
| KHead Tube Angle | 64.2° | 64.2° | 64.2° | 64.2° |
| LHead Tube Length | 109 mm | 120 mm | 135 mm | 150 mm |
| MActual Seat Tube Angle | 72° | 72° | 72° | 72° |
| NEffective Seat Tube Angle | 78° | 78° | 78° | 77.7° |
| OSeat Tube Height | 415 mm | 427 mm | 447 mm | 466 mm |
Source: Amflow. Where two values are given (chainstay length, BB drop) they are the published range across the adjustment positions; head angle is the 64.2° default (adjustable ±1° with headset cups).
PX Carbon: builds compared
PX Carbon range →| PX Carbon | PX Carbon Pro | |
|---|---|---|
| Price | €6,999 | €9,999 |
| Frame | Carbon | Carbon |
| Fork | FOX 36 Performance, 160mm travel | FOX 36 Factory, 160mm travel |
| Shock | FOX Float X Performance | FOX Float X Factory |
| Derailleur | SRAM S1000 Eagle Transmission Derailleur | SRAM X0 Eagle Transmission Derailleur |
| Brakes | Magura Gustav Pro Hydraulic Disc Brake | Magura Gustav Pro Hydraulic Disc Brake |
| Display | Avinox Screen | Avinox Screen |
| Weight | 21 kg | 20.6 kg |
PX Carbon: FAQ
How much does the Amflow PX Carbon cost?
€6,999 (RRP Germany, VAT incl.). The PX Carbon range runs from €6,999 (PX Carbon) to €9,999 (PX Carbon Pro). Prices vary by country and dealer.
How much does the Amflow PX Carbon weigh?
Amflow quotes 21 kg. The lightest PX Carbon build is the PX Carbon Pro at 20.6 kg.
What motor and battery does the Amflow PX Carbon have?
DJI Avinox M2S (130 Nm nominal, 150 Nm peak; 1500 W peak). 700 Wh battery — integrated (Avinox FP700), secondary battery supported.
How much suspension travel does the Amflow PX Carbon have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Amflow PX Carbon come in?
M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the PX Carbon and the PX Carbon Pro?
They share the PX Carbon frame platform and motor; the differences are in the parts — fork: FOX 36 Performance vs FOX 36 Factory; shock: FOX Float X Performance vs FOX Float X Factory; derailleur: SRAM S1000 Eagle Transmission Derailleur vs SRAM X0 Eagle Transmission Derailleur; claimed weight: 21 kg vs 20.6 kg; price: €6,999 vs €9,999.
