ScottPatron eRIDE 20
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 24.3 kgManufacturer figure
Overview
The Scott Patron eRIDE 20 (£6,999) is a mid-range build of the Patron eRIDE: Bosch Performance Line CX with 800 Wh, Fox 36 Rhythm fork, Fox Float Performance EVOL shock, SRAM S1000 Eagle AXS Transmission 12 Speed and Shimano Deore BR-M6220 4-Piston brakes. Claimed weight is 24.3 kg.

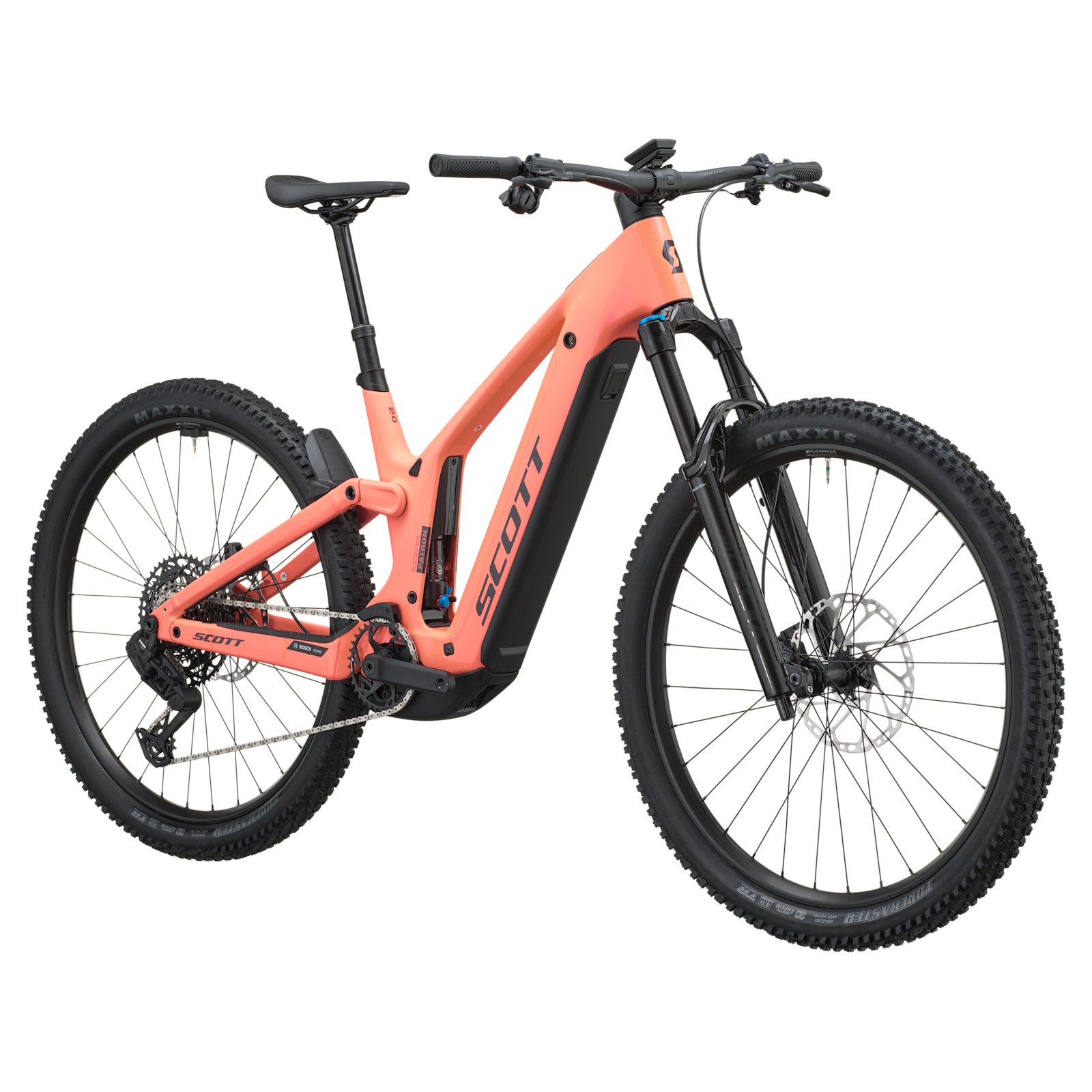

The 2027 Patron eRIDE is Scott's full-power trail and all-mountain e-MTB: a carbon main frame with an alloy rear end, 150 mm of travel front and rear on 29-inch wheels, and a Bosch Performance Line CX motor with an 800 Wh PowerTube.
The shock sits inside the frame behind a cover, the head angle is adjustable via the headset, and the top build adds Bosch ABS Pro brakes.
- 150 mm travel front and rear
- Bosch CX, 800 Wh
- Integrated shock, adjustable head angle
- ABS Pro on the Patron 10

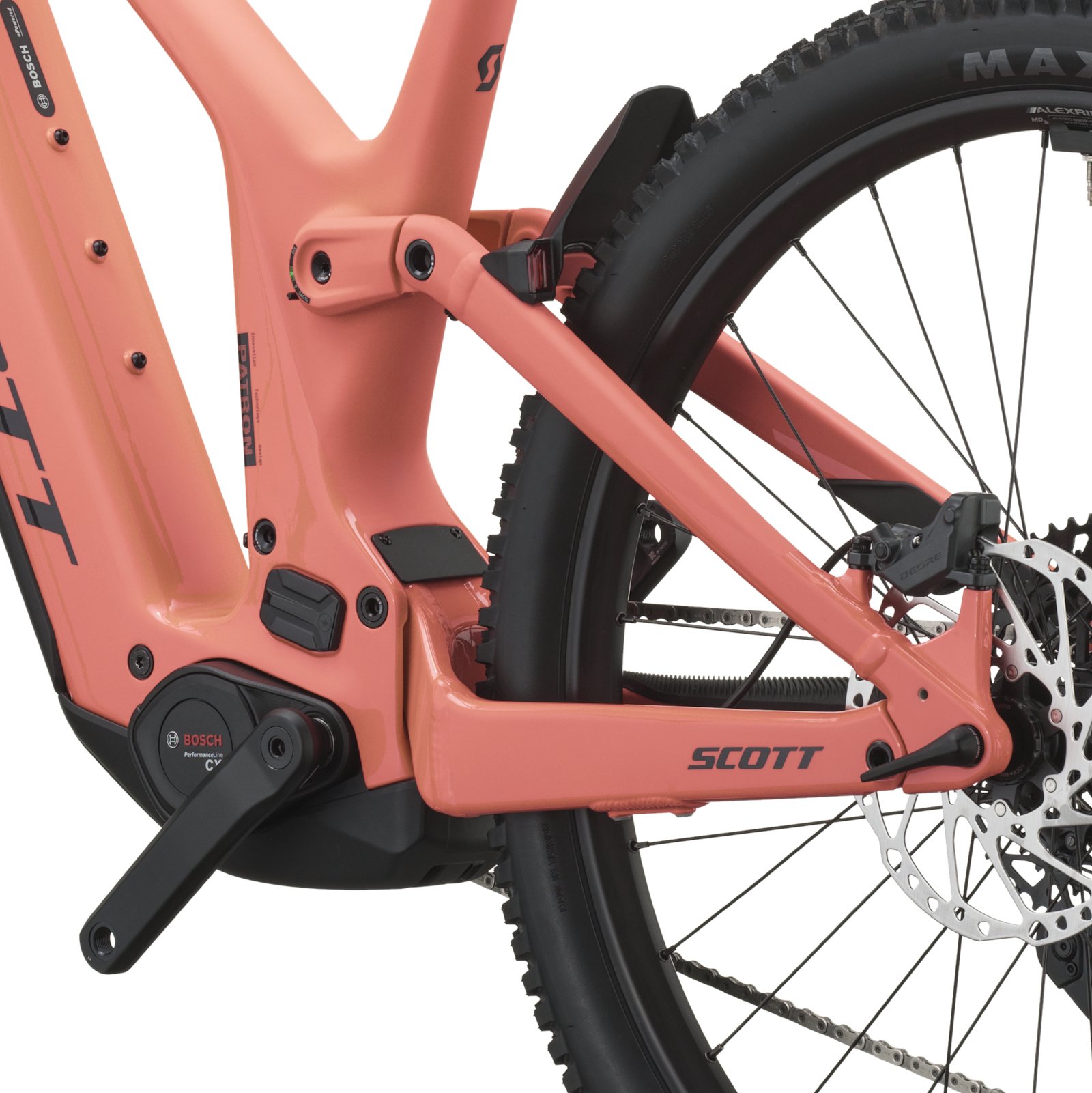

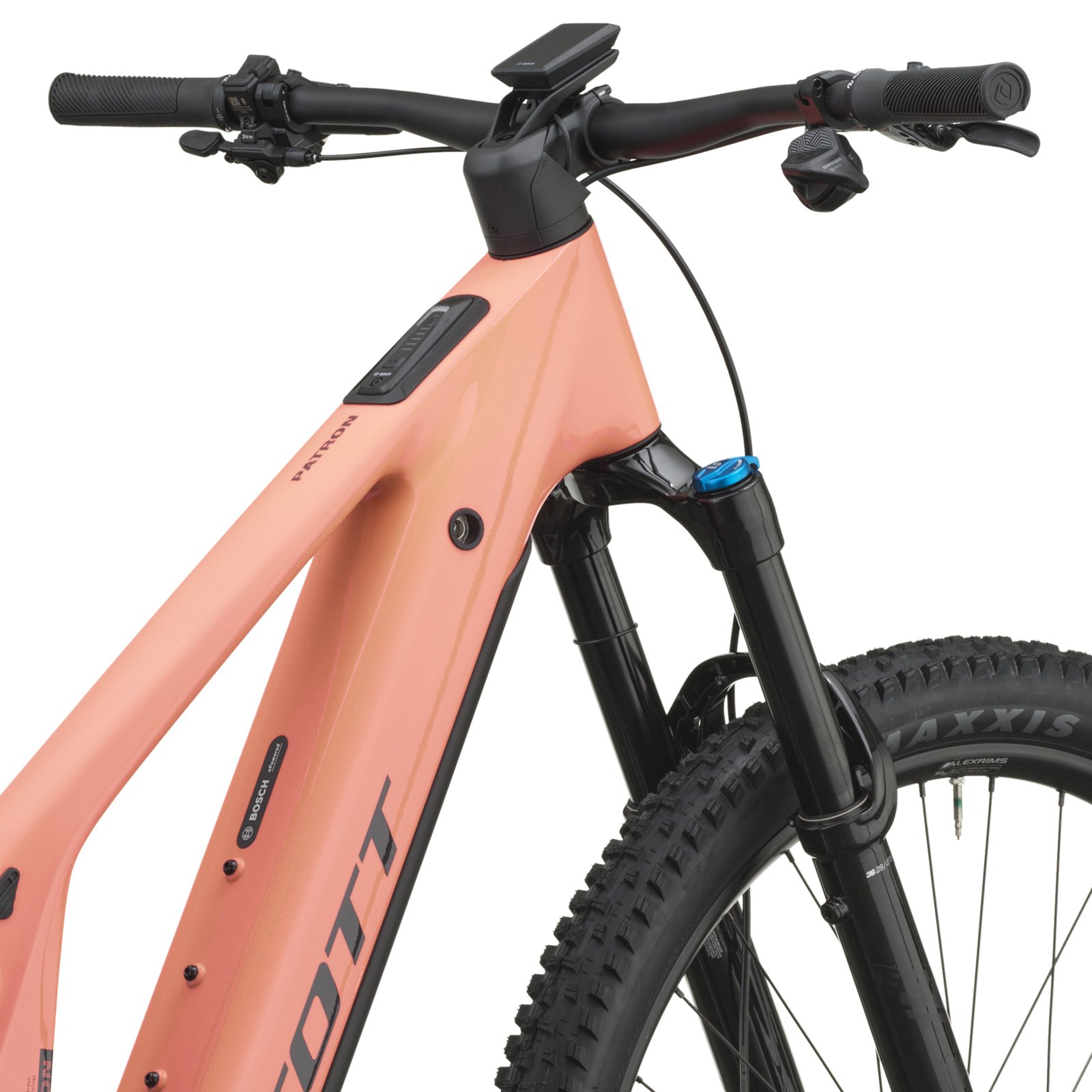

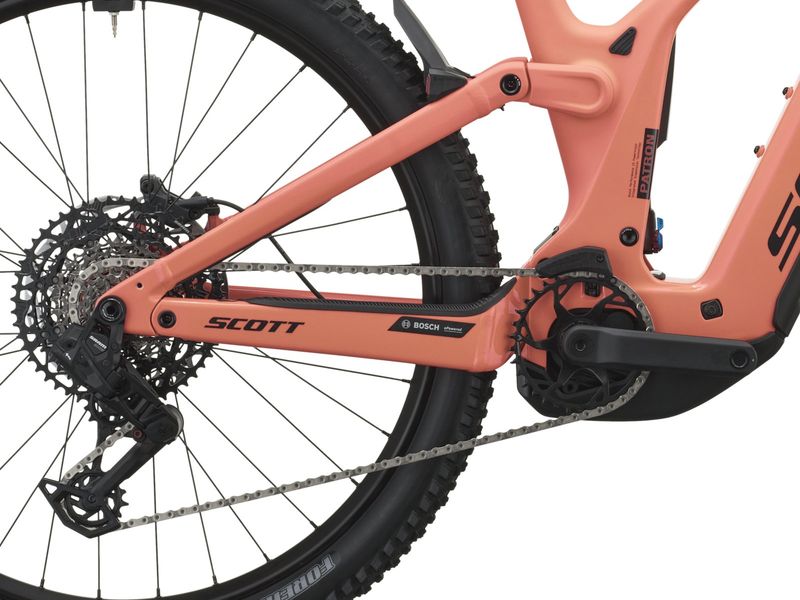

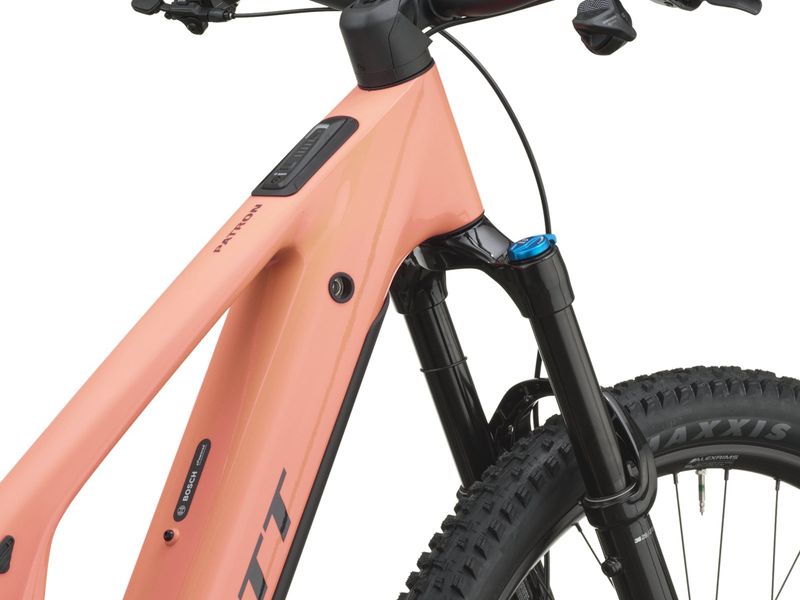

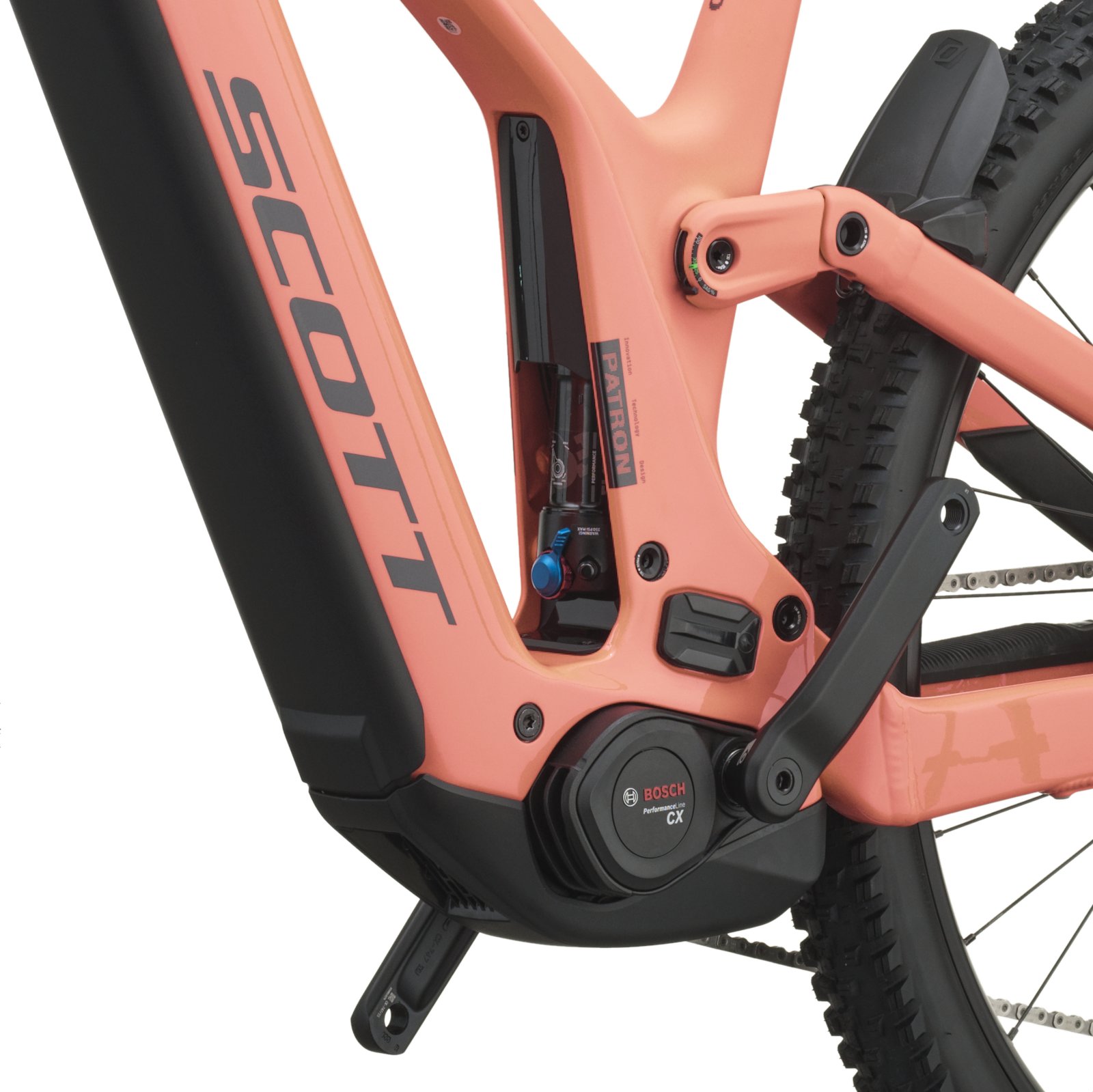

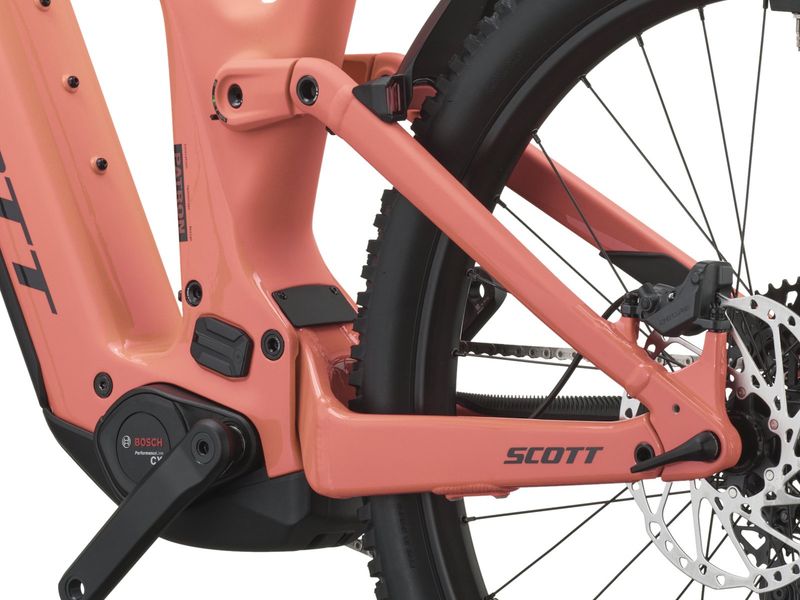

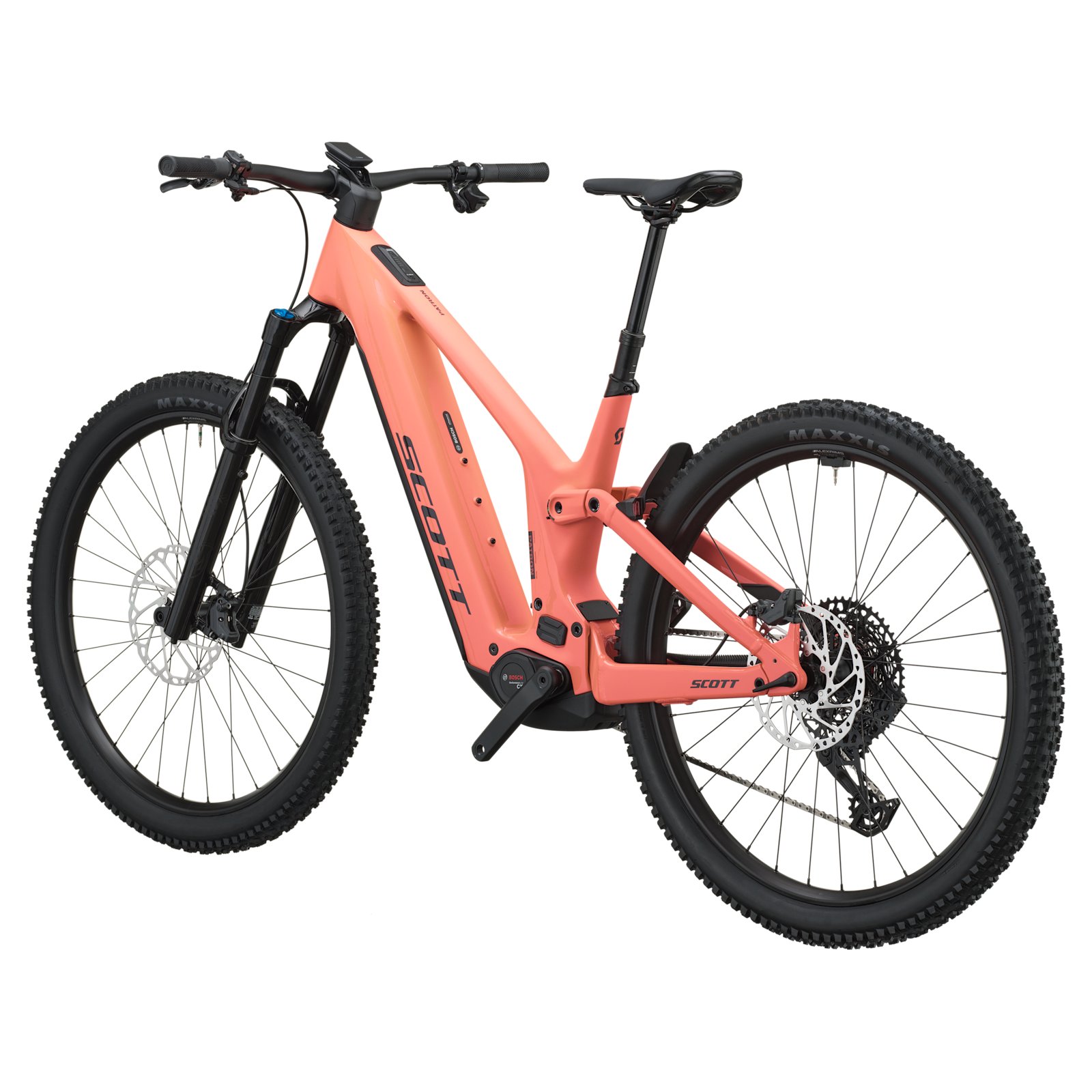

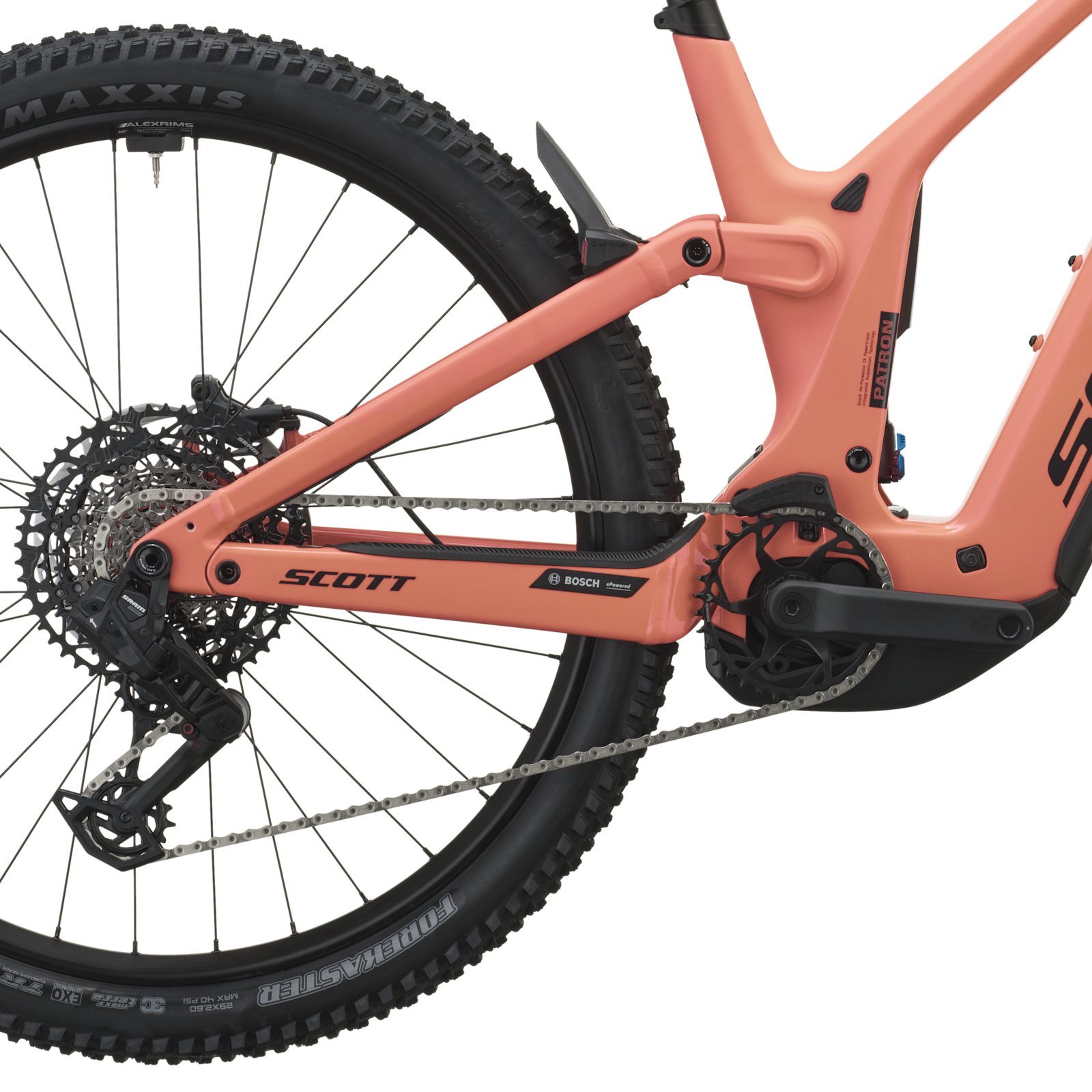

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 150 mm / Rear travel: 150 mm
- Fork

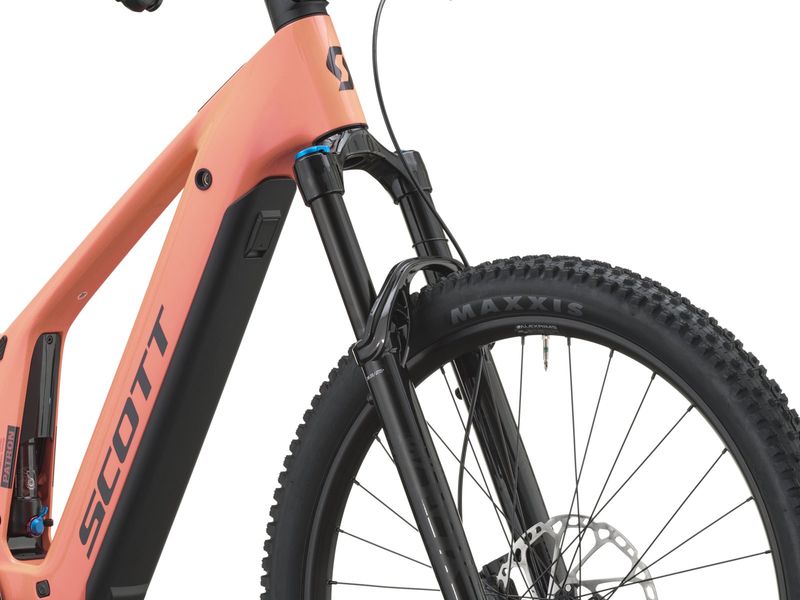

- Fox 36 Rhythm, eOptimized, Grip, Comp & Reb Adj, QR Axle 15x110mm axle, tapered steerer
- Rear shock
- Fox Float Performance EVOL, LSR, 2P Lever
E-system
- Motor

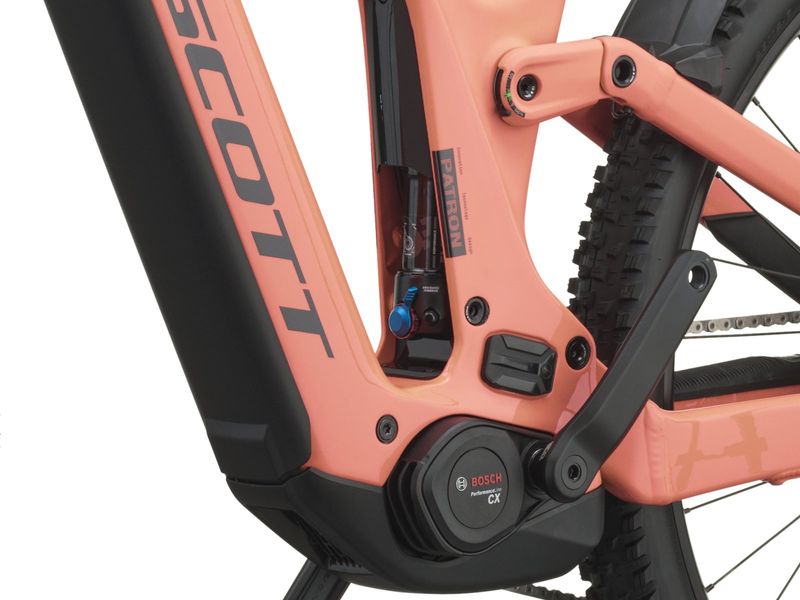

- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch Kiox 300
- Charger
- Bosch 4A Charger 230V
Drivetrain
- Rear derailleur
- SRAM S1000 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
- Shifters
- SRAM AXS Rocker Pod Controller
- Crankset
- FSA alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- SRAM Direct Mount Bosch 34T
- Chain
- SRAM GX Eagle Transmission
- Cassette
- SRAM Eagle XS-1270 Transmission, 10-52T
Brakes
- Brakes
- Shimano Deore BR-M6220 4-Piston
- Front rotor
- Shimano SM-RT64 rotor 220mm
- Rear rotor
- Shimano SM-RT64 rotor 203mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula ECT-148S, Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
Cockpit
- Grips
- Syncros Performance XC Lock-On
- Handlebar
- Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- Stem
- Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 alloy, 31.8mm, 1 1/8"
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- Syncros Tofino-E 2.0
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Other
- Accessories
- Milkit Sealant
- Max system weight
- 130kg
- Weight
- 24.3 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Patron eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 65.8° | 65.8° | 65.8° | 65.8° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 579.3 mm | 605.5 mm | 626.6 mm | 657 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -36.2 mm | -36.1 mm | -35.9 mm | -35.8 mm |
| FBB height | 340.8 mm | 340.9 mm | 341.1 mm | 341.2 mm |
| GWheel base | 1212.8 mm | 1234.9 mm | 1264.7 mm | 1298.4 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.4° | 77.2° | 77.2° | 77.2° |
| KChainstay | 453.5 mm | 453.5 mm | 453.5 mm | 453.5 mm |
| LReach | 439.4 mm | 459.3 mm | 484.7 mm | 514.2 mm |
| MStack | 643 mm | 647.4 mm | 656.3 mm | 665.1 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| PFork length | 561 mm | 561 mm | 561 mm | 561 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
Source: Scott.
Patron eRIDE: builds compared
Patron eRIDE range →| Patron eRIDE 30 | Patron eRIDE 20 | Patron eRIDE 10 | |
|---|---|---|---|
| Price | £5,699 | £6,999 | £8,199 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized | Fox 36 Perf, Air |
| Shock | Fox Float Rhythm LV EVOL | Fox Float Performance EVOL | Fox Float Performance EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | SRAM S1000 Eagle AXS Transmission 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed |
| Brakes | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Intuvia 200 | Bosch Kiox 300 | Bosch Kiox 300 |
| Weight | 24 kg | 24.3 kg | 24.4 kg |
Patron eRIDE 20: FAQ
How much does the Scott Patron eRIDE 20 cost?
£6,999 (UK RRP, VAT incl.). The Patron eRIDE range runs from £5,699 (Patron eRIDE 30) to £8,199 (Patron eRIDE 10). Prices vary by country and dealer.
How much does the Scott Patron eRIDE 20 weigh?
Scott quotes 24.3 kg. The lightest Patron eRIDE build is the Patron eRIDE 30 at 24 kg.
What motor and battery does the Scott Patron eRIDE 20 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Scott Patron eRIDE 20 have?
150 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Scott Patron eRIDE 20 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Patron eRIDE 20 and the Patron eRIDE 10?
They share the Patron eRIDE frame platform and motor; the differences are in the parts — fork: Fox 36 Rhythm vs Fox 36 Perf; derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed vs SRAM GX Eagle AXS Transmission 12 Speed; claimed weight: 24.3 kg vs 24.4 kg; price: £6,999 vs £8,199.
