ScottPatron ST eRIDE 10
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 170 / 150 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 25.3 kgManufacturer figure
Overview
The Scott Patron ST eRIDE 10 (£6,199) is the entry build of the Patron ST eRIDE: Bosch Performance Line CX with 800 Wh, RockShox ZEB fork, RockShox SuperDeluxe shock, SRAM Eagle 70 Transmission and SRAM Maven Base 4-Piston brakes. Claimed weight is 25.3 kg.
The Patron ST eRIDE is the gravity-oriented Patron: the same 150 mm Integrated Suspension Technology rear end and 800 Wh PowerTube, but with a 170 mm fork and slacker geometry (64.9° head angle).
The Tuned build gets a full-carbon frame, Bosch's CX-R motor, Öhlins suspension and ABS Pro brakes; the ST 10 uses the carbon/alloy frame with RockShox suspension.
- 170 mm fork / 150 mm rear
- Bosch CX or CX-R, 800 Wh
- 64.9° head angle
- Öhlins and ABS Pro on the Tuned

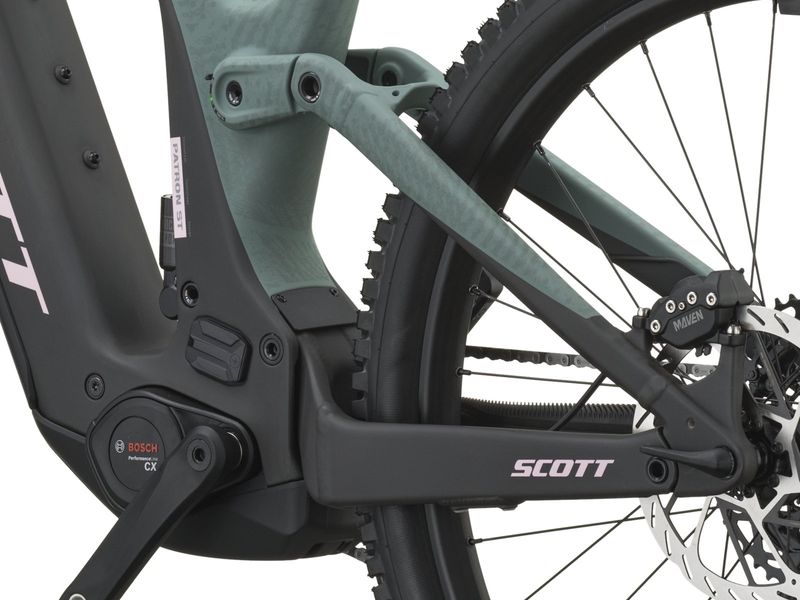

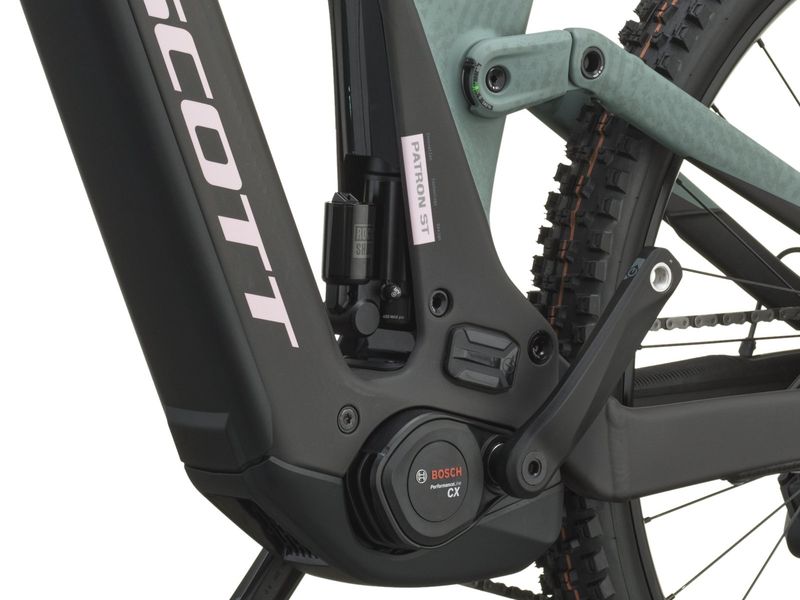

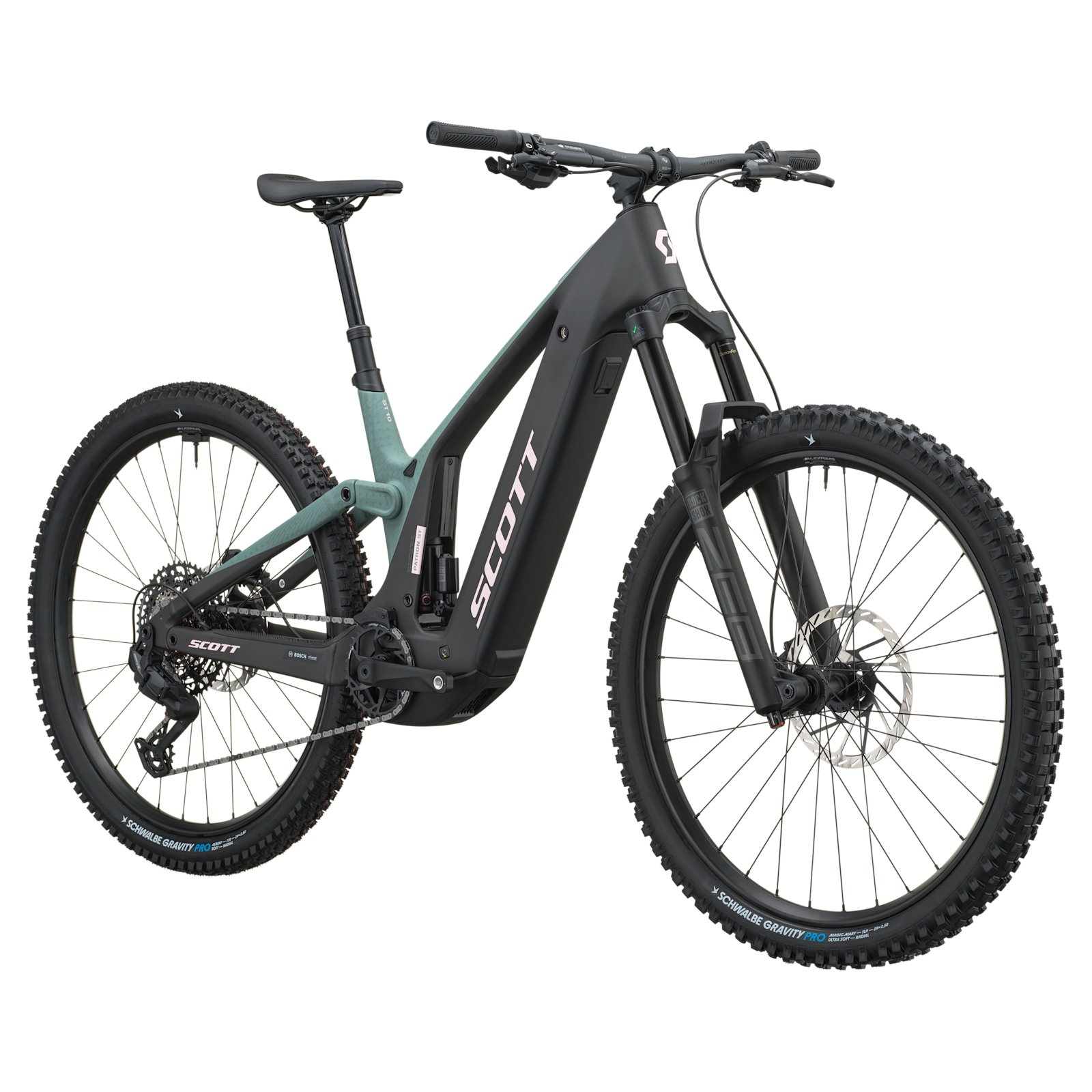

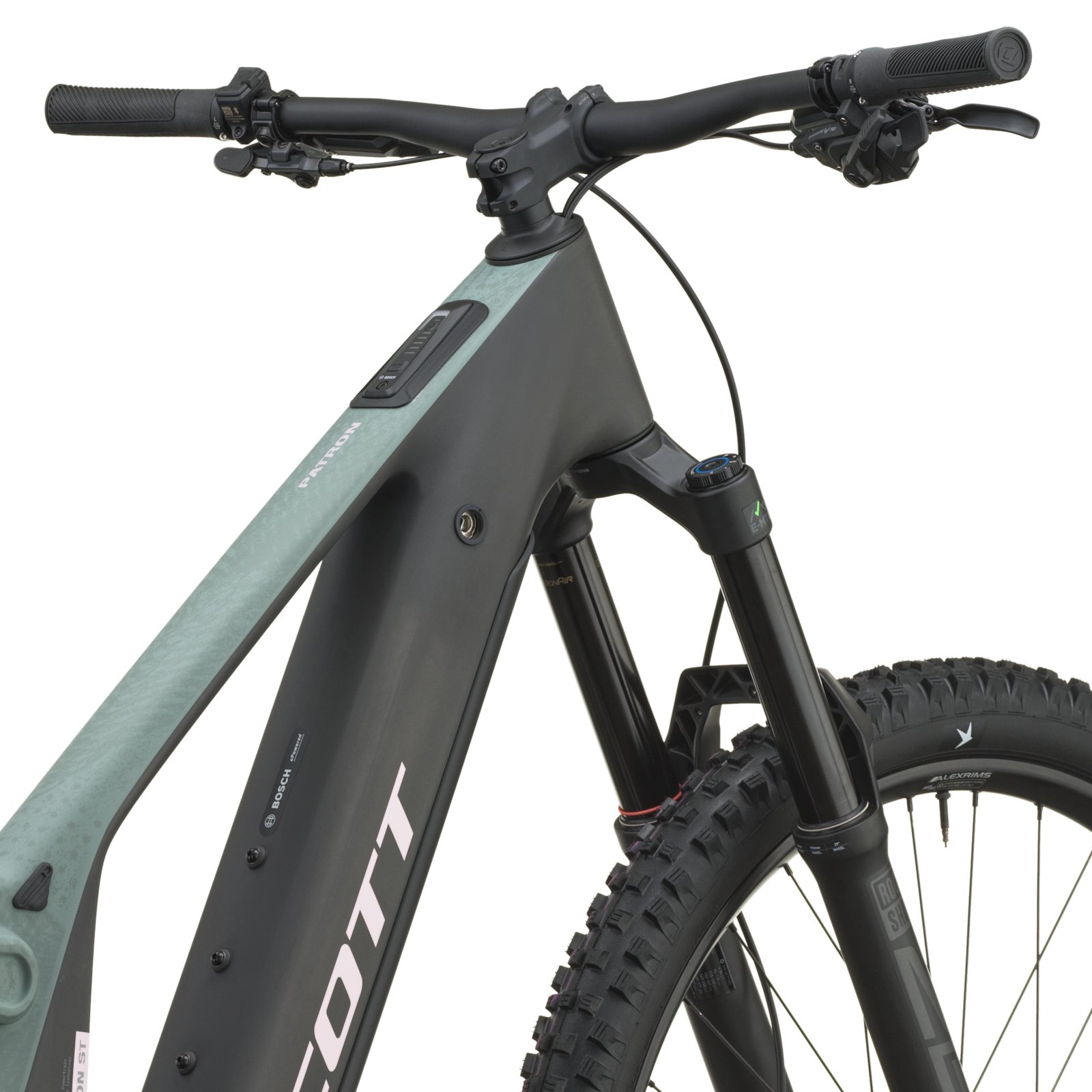

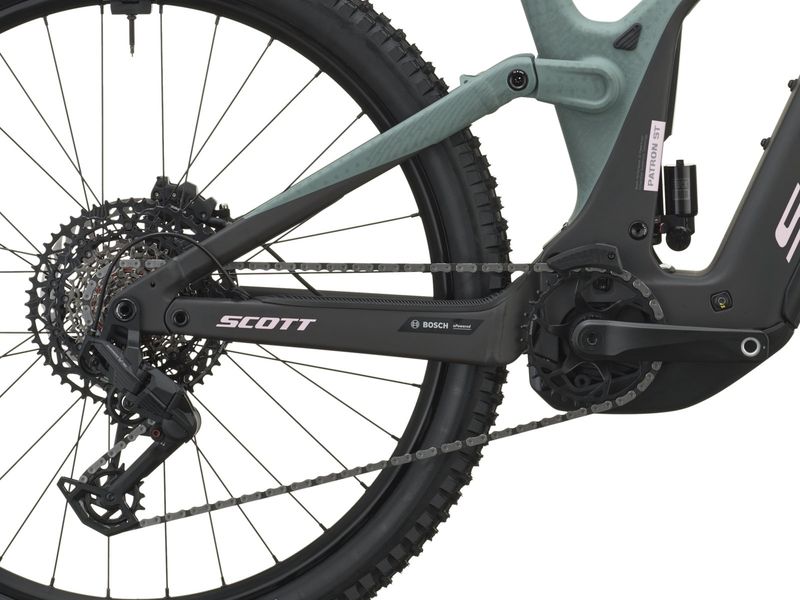

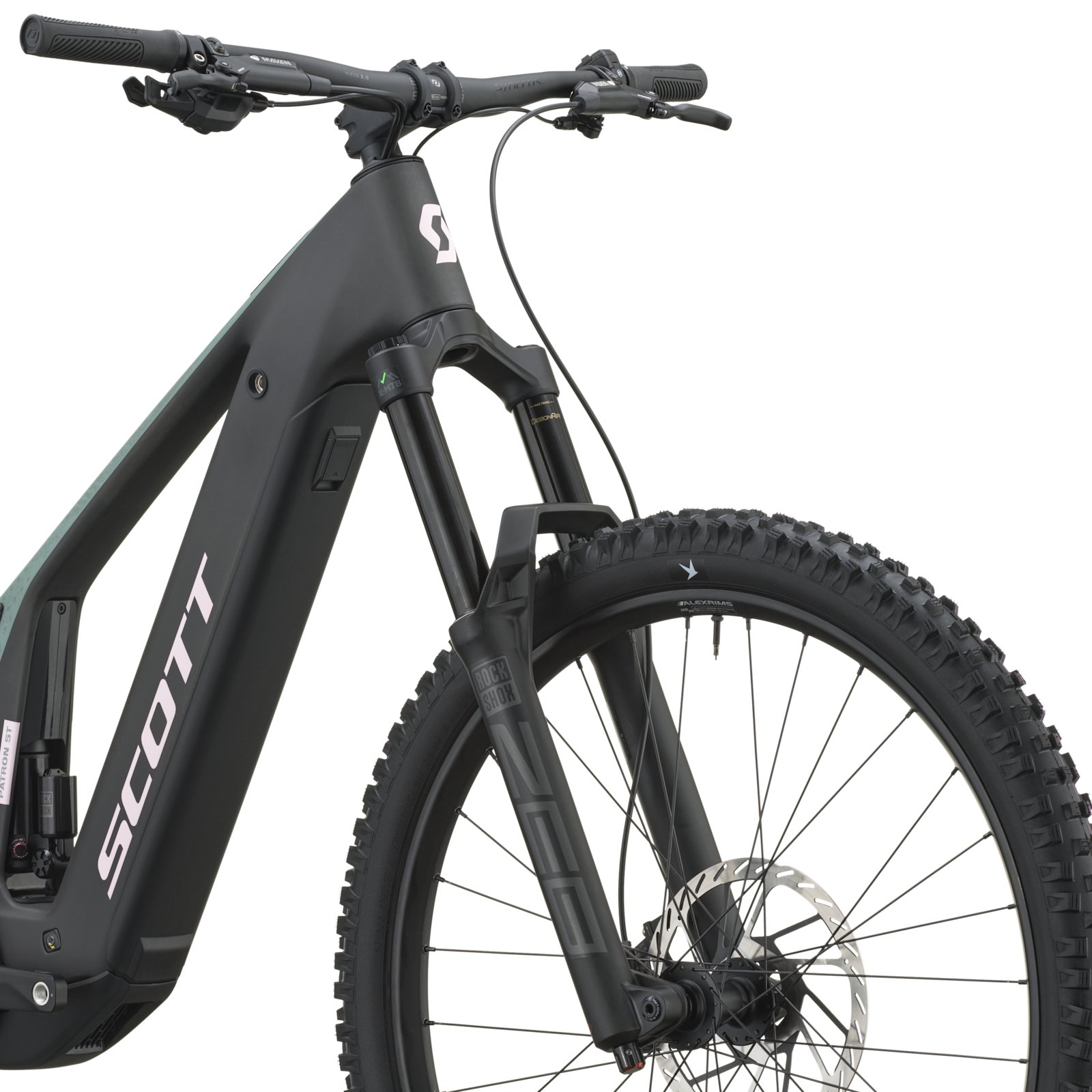

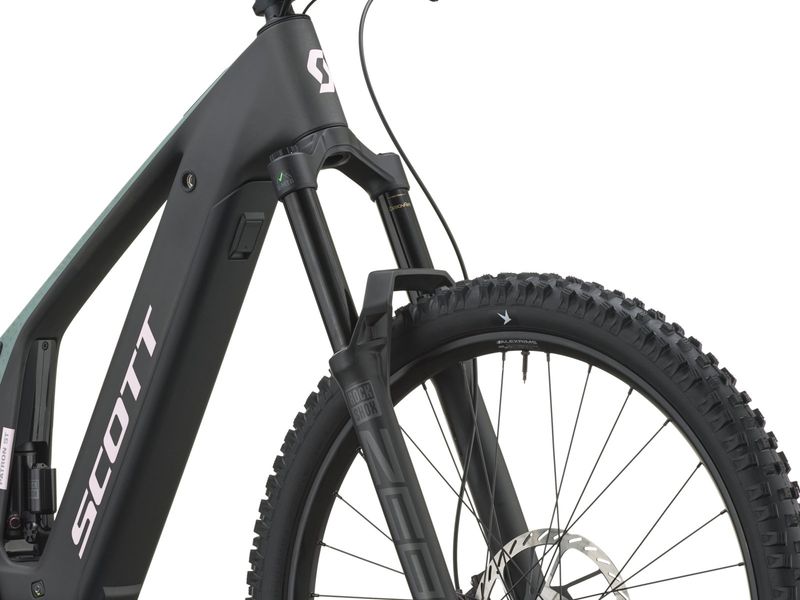

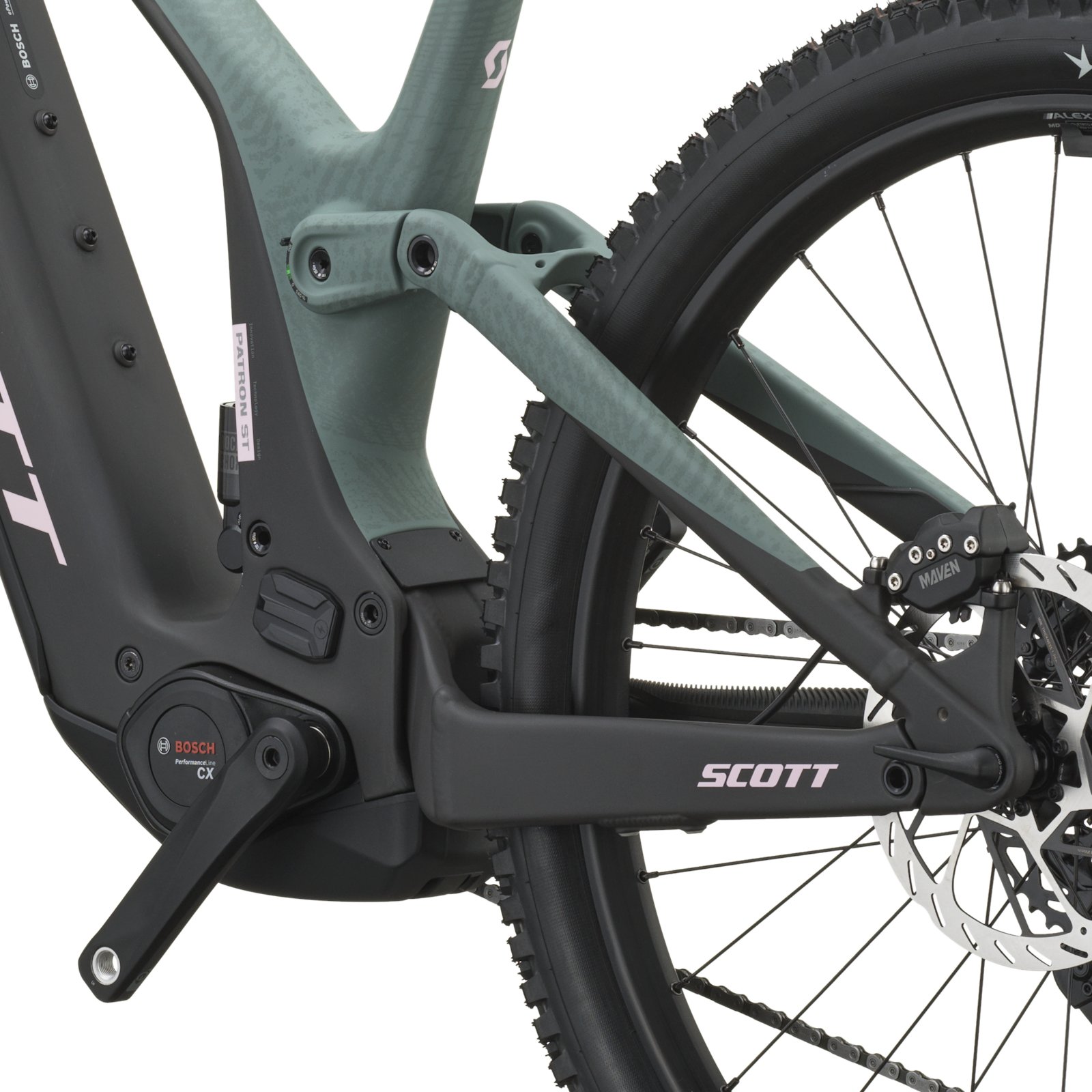

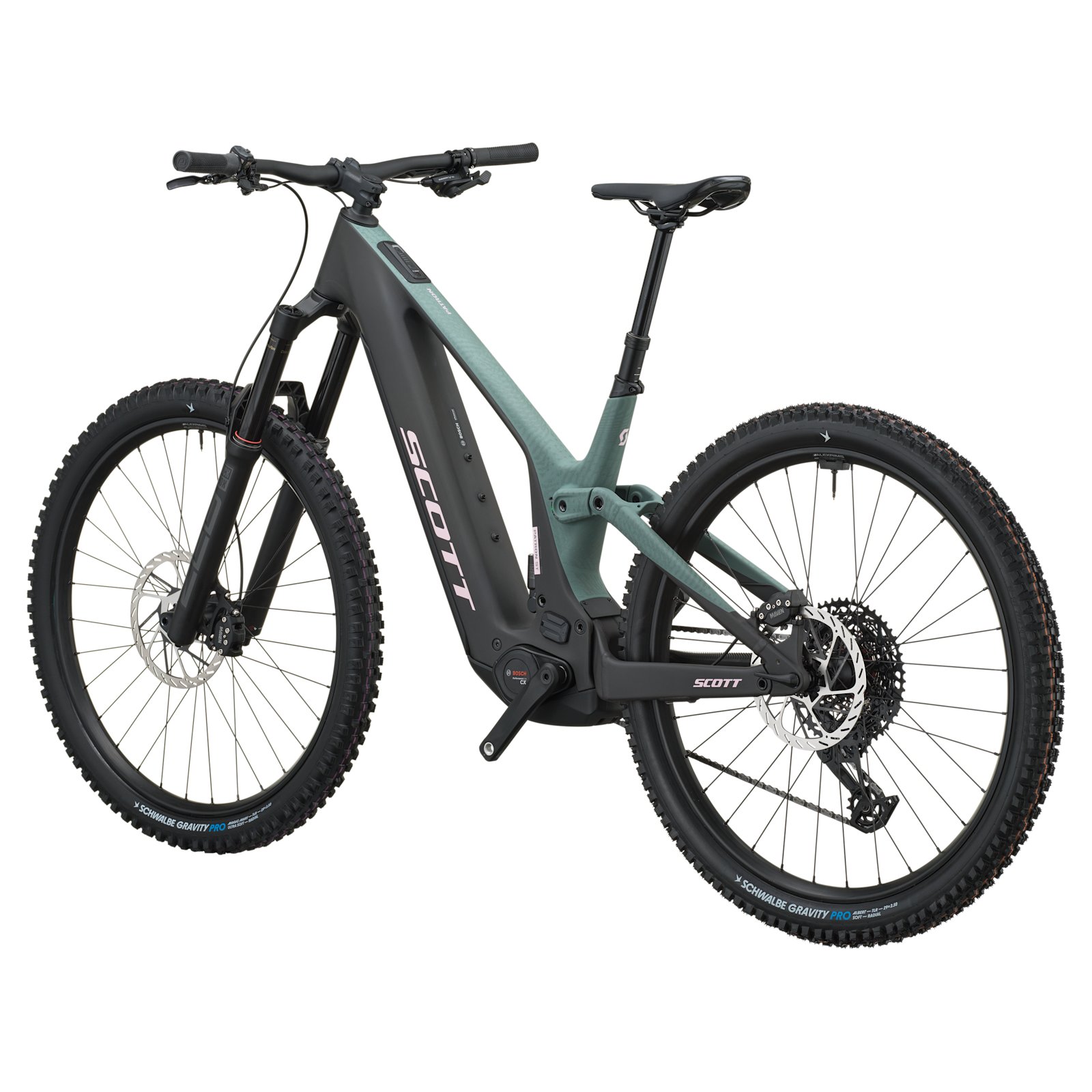

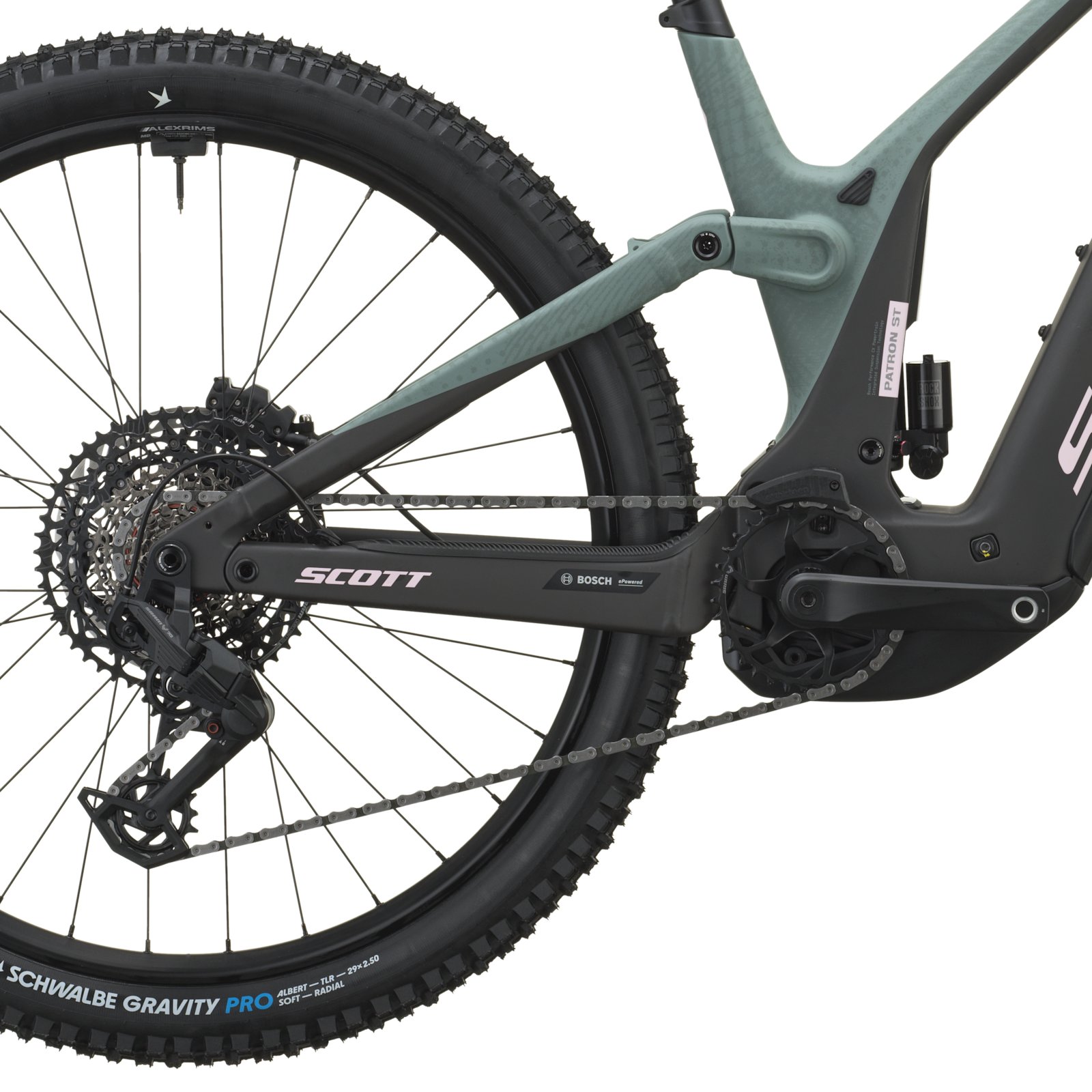

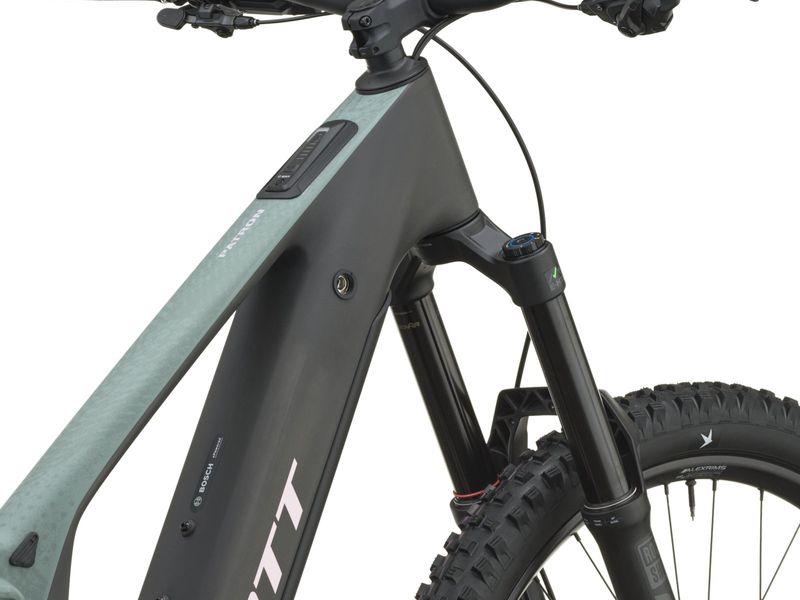

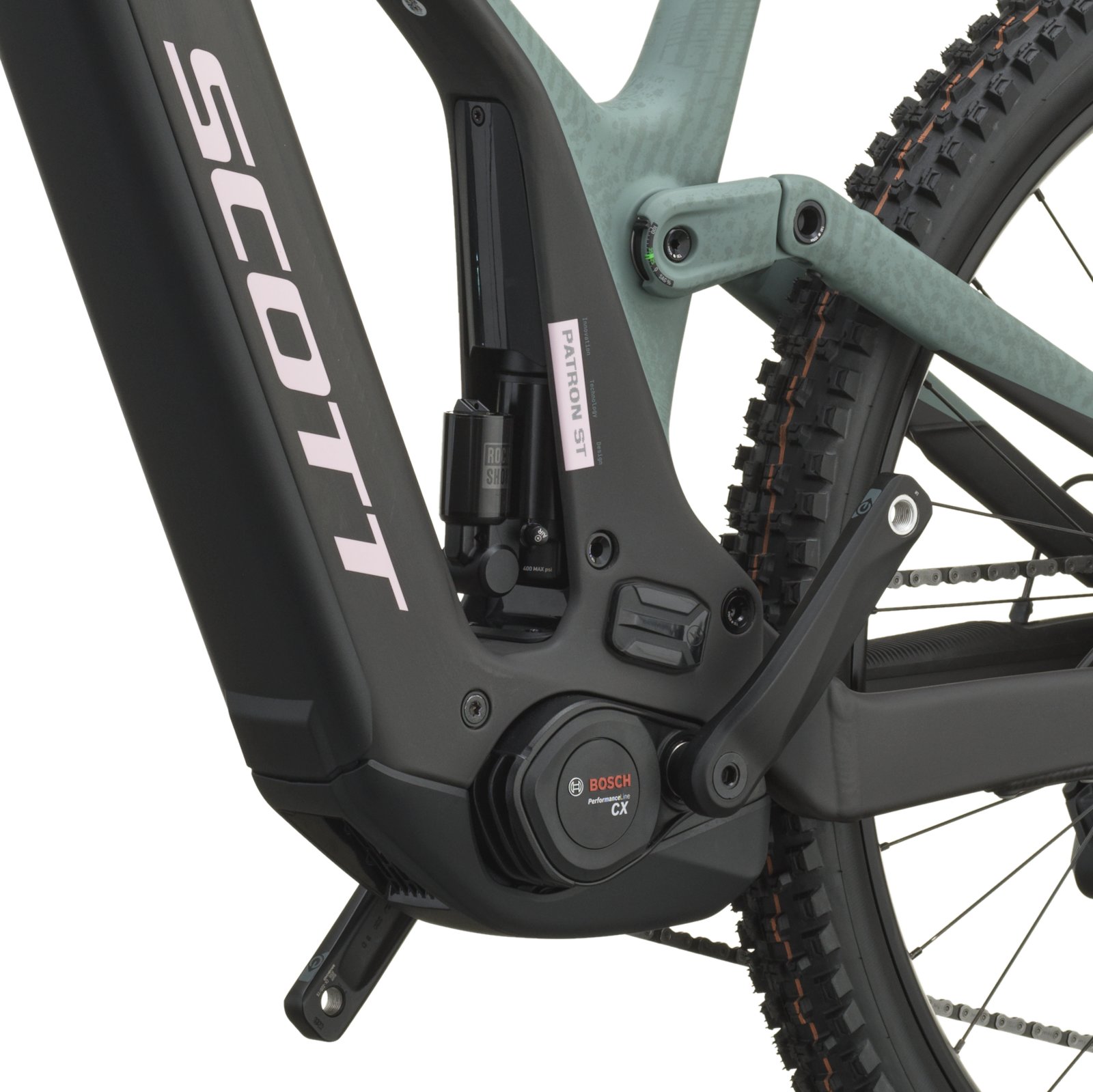

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 170 mm / Rear travel: 150 mm
- Fork
- RockShox ZEB, E-Bike, Delta RC, DebonAir+ Reb Adj., 15x110mm axle, tapered steerer
- Rear shock
- RockShox SuperDeluxe, DebonAir Linear, Trunnion, Reb Adj., T185X55mm
E-system
- Motor
- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch System Controller
- Charger
- Bosch 4A Charger 230V
Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission, 12 Speed
- Shifters
- SRAM Eagle 70 Trigger
- Crankset
- FSA alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- SRAM Direct Mount Bosch 34T
- Chain
- SRAM Eagle 70 Transmission
- Cassette
- SRAM Eagle XS-1270 Transmission, 10-52T
Brakes
- Brakes
- SRAM Maven Base 4-Piston
- Front rotor
- SRAM HS2 6B, 220mm
- Rear rotor
- SRAM HS2 6B, 200mm
Wheels & tyres
- Front hub
- Formula DC-611, 15x110mm
- Rear hub
- Formula EHL-148S, Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Schwalbe Magic Mary 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready, 120TPI Foldable Bead
- Rear tyre
- Schwalbe Albert 29x2.5", Gravity PRO, Radial, Soft, TLR, Foldable Bead
Cockpit
- Grips
- Syncros Performance XC Lock-On
- Handlebar
- Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- Stem
- Syncros DC ST-M200-AL2, 0°, 31.6mm
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- Syncros Tofino-E 1.5, Titanium rails
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Other
- Accessories
- Milkit Sealant
- Max system weight
- 130kg
- Weight
- 25.3 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Patron ST eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 64.9° | 64.9° | 64.9° | 64.9° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 582.4 mm | 607.9 mm | 629.7 mm | 660.2 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -28.4 mm | -28.4 mm | -28.4 mm | -28.5 mm |
| FBB height | 348.6 mm | 348.6 mm | 348.6 mm | 348.5 mm |
| GWheel base | 1222.3 mm | 1244.5 mm | 1274.2 mm | 1308 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 76.4° | 76.3° | 76.3° | 76.3° |
| KChainstay | 454 mm | 454 mm | 454 mm | 454 mm |
| LReach | 428.3 mm | 448.3 mm | 473.9 mm | 503.4 mm |
| MStack | 650.5 mm | 655 mm | 664.2 mm | 673.3 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| OTrail | 127.9 mm | 127.9 mm | 127.9 mm | 127.9 mm |
| PFork length | 584 mm | 584 mm | 584 mm | 584 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
Source: Scott.
Patron ST eRIDE: builds compared
Patron ST eRIDE range →| Patron ST eRIDE 10 | Patron ST eRIDE Tuned | |
|---|---|---|
| Price | £6,199 | £9,399 |
| Frame | Carbon main frame, alloy rear | Carbon |
| Fork | RockShox ZEB, E-Bike | Öhlins RXF38 M.3 Air, TTX-Technology |
| Shock | RockShox SuperDeluxe | RockShox SuperDeluxe Ultimate |
| Derailleur | SRAM Eagle 70 Transmission | SRAM X0 Eagle AXS Transmission 12 Speed |
| Brakes | SRAM Maven Base 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | — |
| Display | Bosch System Controller | Bosch Kiox 400C |
| Weight | 25.3 kg | 24.1 kg |
Patron ST eRIDE 10: FAQ
How much does the Scott Patron ST eRIDE 10 cost?
£6,199 (UK RRP, VAT incl.). The Patron ST eRIDE range runs from £6,199 (Patron ST eRIDE 10) to £9,399 (Patron ST eRIDE Tuned). Prices vary by country and dealer.
How much does the Scott Patron ST eRIDE 10 weigh?
Scott quotes 25.3 kg. The lightest Patron ST eRIDE build is the Patron ST eRIDE Tuned at 24.1 kg.
What motor and battery does the Scott Patron ST eRIDE 10 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Scott Patron ST eRIDE 10 have?
170 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Scott Patron ST eRIDE 10 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Patron ST eRIDE 10 and the Patron ST eRIDE Tuned?
They share the Patron ST eRIDE frame platform; the differences are in the parts — frame: carbon main frame, alloy rear vs carbon; fork: RockShox ZEB vs Öhlins RXF38 M.3 Air; shock: RockShox SuperDeluxe vs RockShox SuperDeluxe Ultimate; derailleur: SRAM Eagle 70 Transmission vs SRAM X0 Eagle AXS Transmission 12 Speed; claimed weight: 25.3 kg vs 24.1 kg; price: £6,199 vs £9,399.
