ScottVoltage eRIDE 920
- Motor
- TQ HPR6060 Nm
- Battery
- 360 Wh+160 Wh range extender
- Travel F / R
- 150 / 155 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 19.8 kgManufacturer figure, tubeless, without range extender
Overview

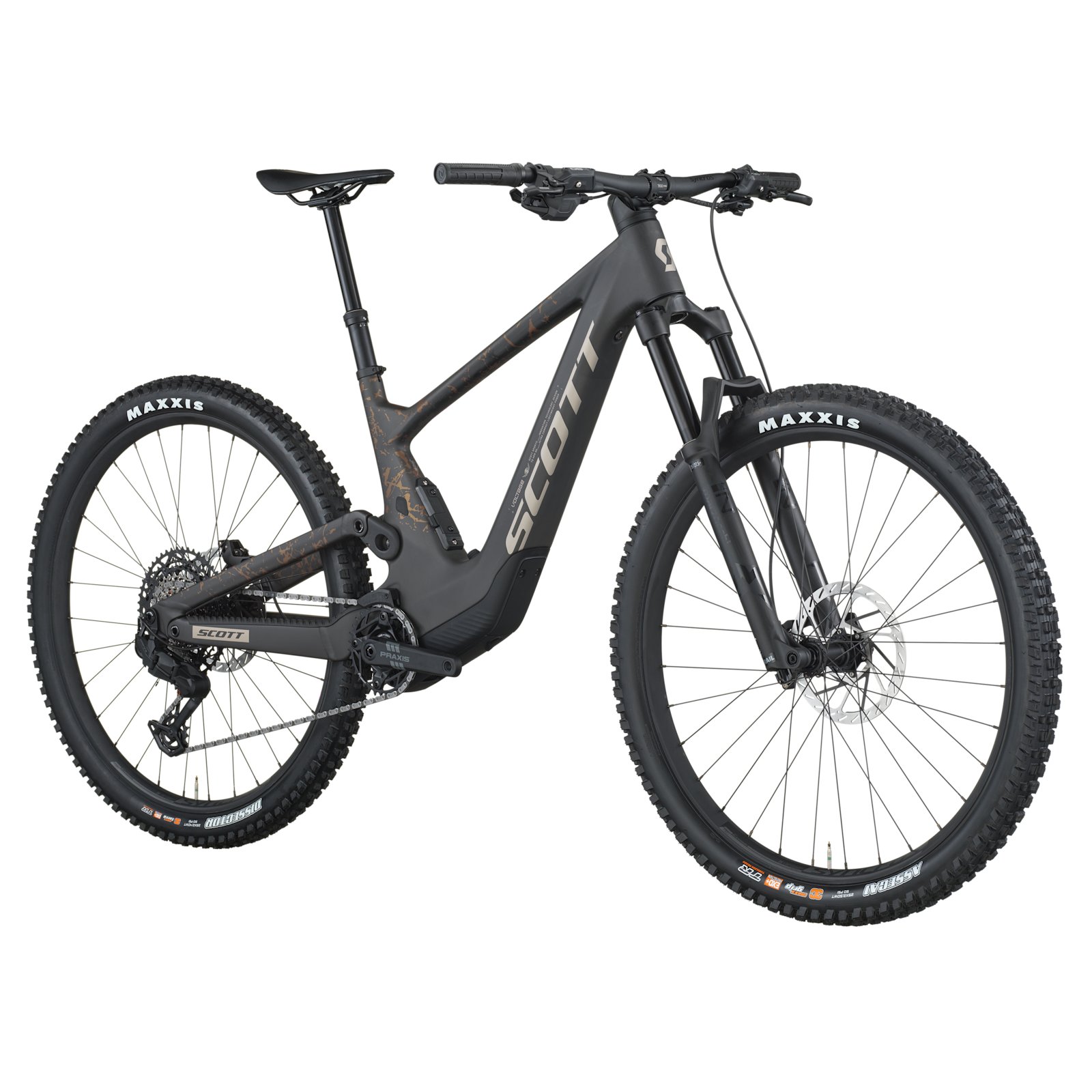

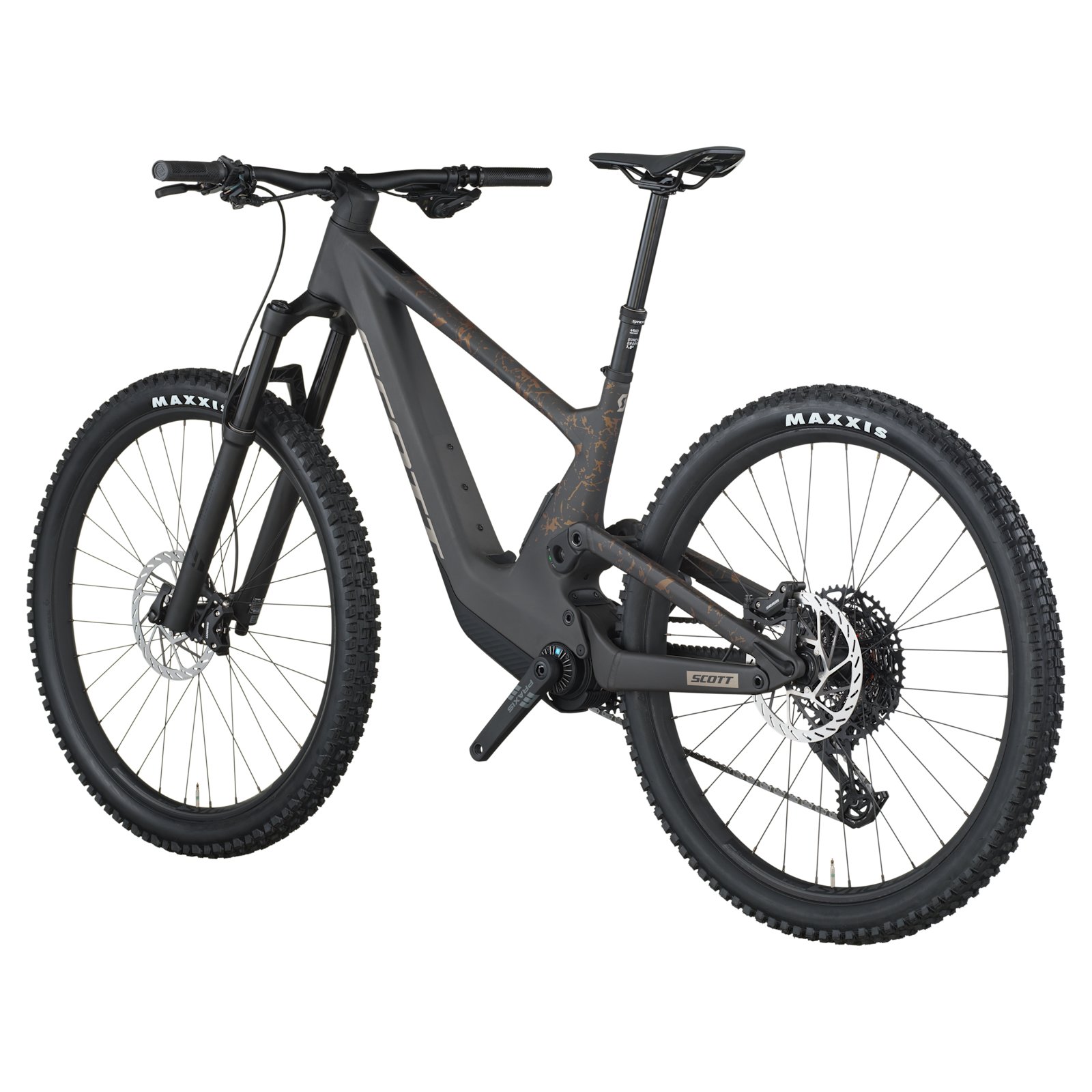

The Scott Voltage eRIDE 920 (£5,999) is the entry build of the Voltage eRIDE: TQ HPR60 with 360 Wh, Marzocchi Z2 Air Rail fork, X-Fusion NUDE 5 RLX Trunnion shock, SRAM Eagle 70 Transmission 12 Speed and SRAM DB4 Stealth 4-Piston brakes. Claimed weight is 19.8 kg (tubeless, without the range extender).
The Voltage eRIDE is Scott's lightweight long-travel trail e-MTB: a carbon frame with 155 mm of rear travel, a 150–160 mm fork and TQ's compact HPR60 motor (60 Nm).
Each build ships with a 360 Wh internal battery plus a 160 Wh range extender; claimed weights start at 19.1 kg without the extender.
- TQ HPR60, 60 Nm
- 360 Wh + 160 Wh range extender
- 155 mm rear travel
- From 19.1 kg claimed

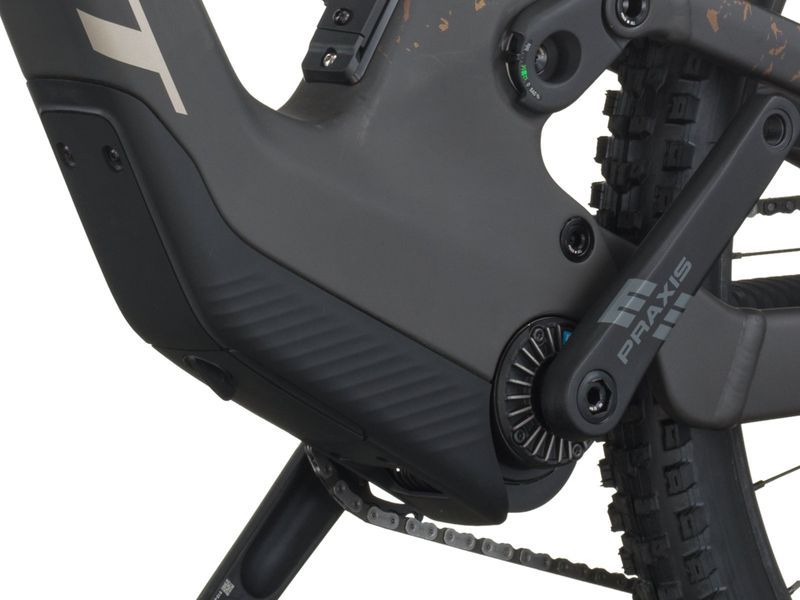

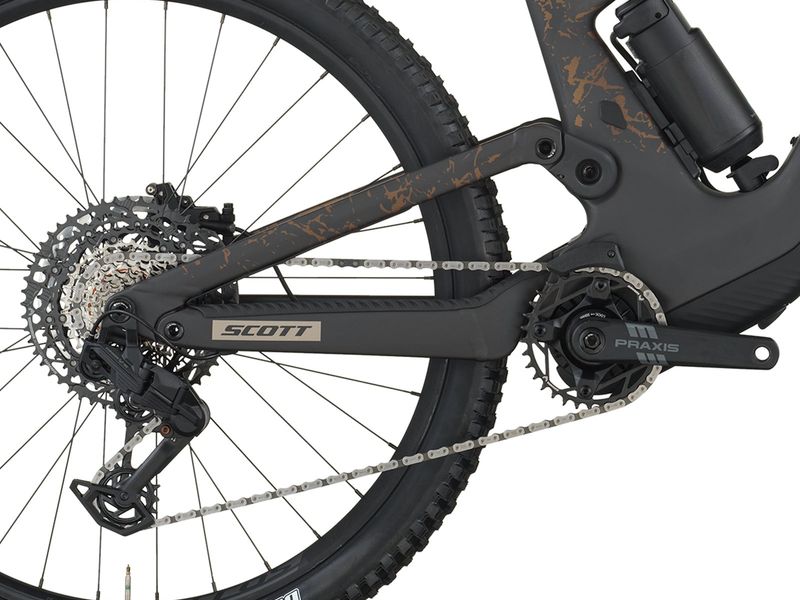

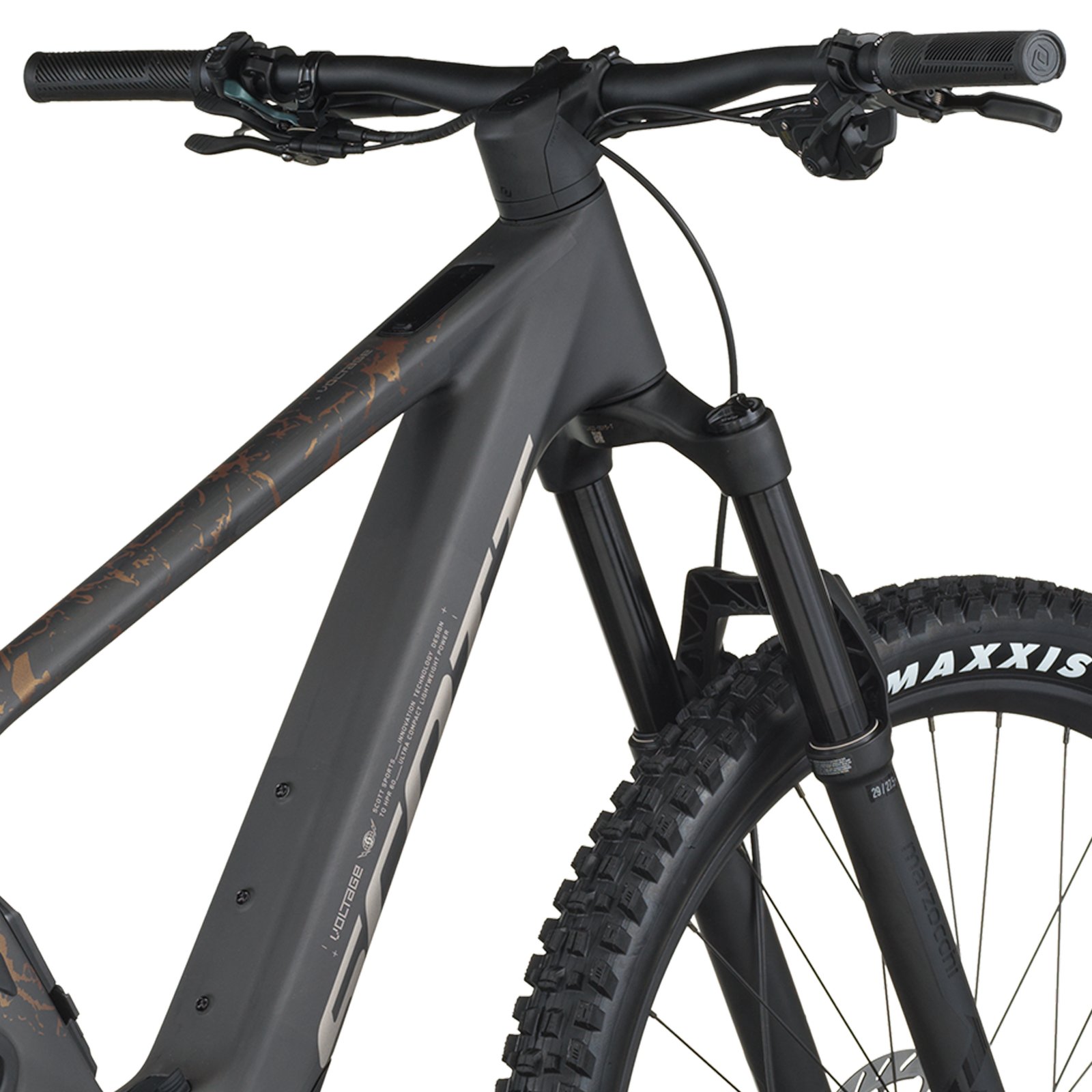

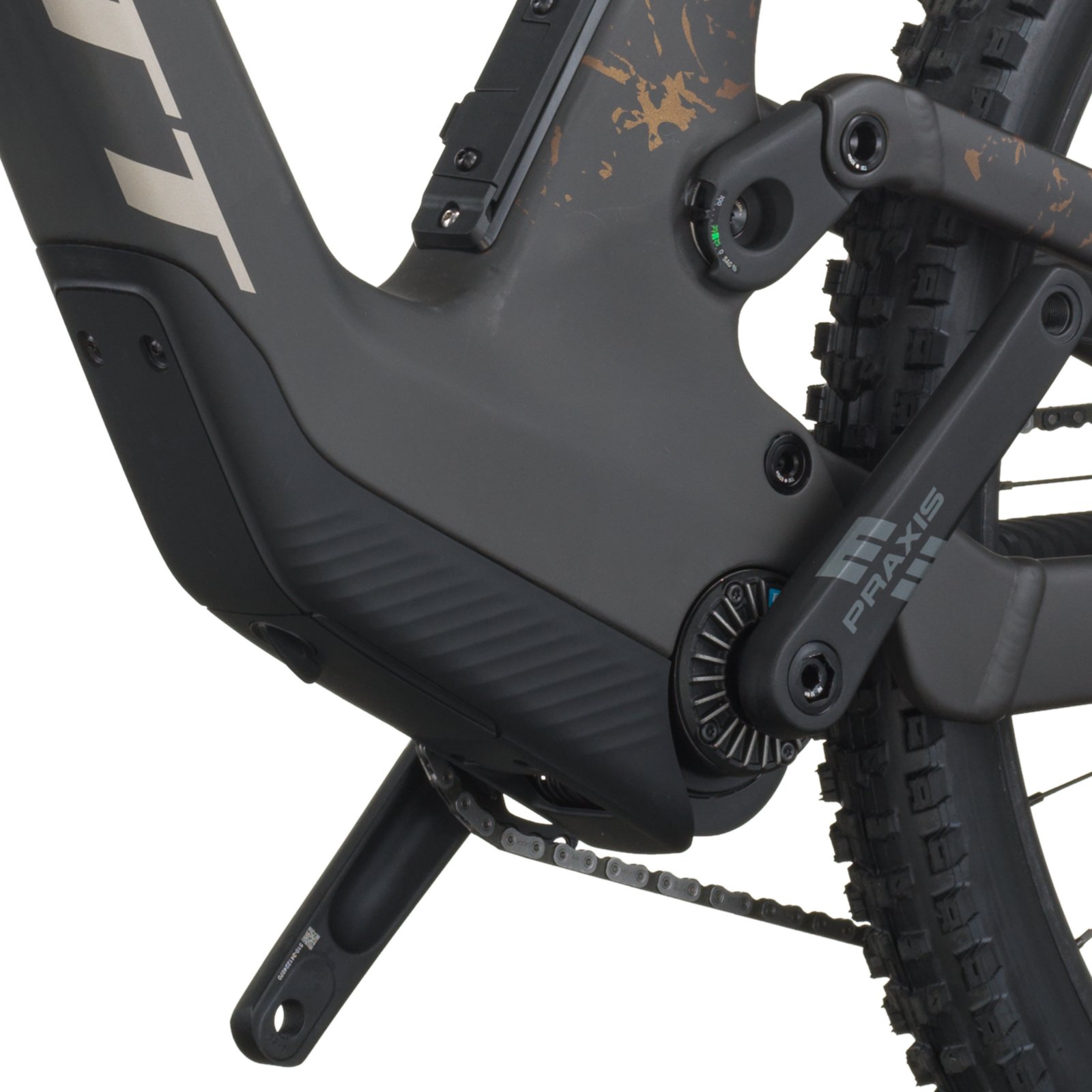

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon HMF Main Frame, Alloy SST-CST; Integrated Suspension Technology; Virtual 4 Link kinematic, Adjustable head angle; Syncros Cable Integration System; TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
- Travel
- Front: 150mm, Rear: 155mm
- Fork

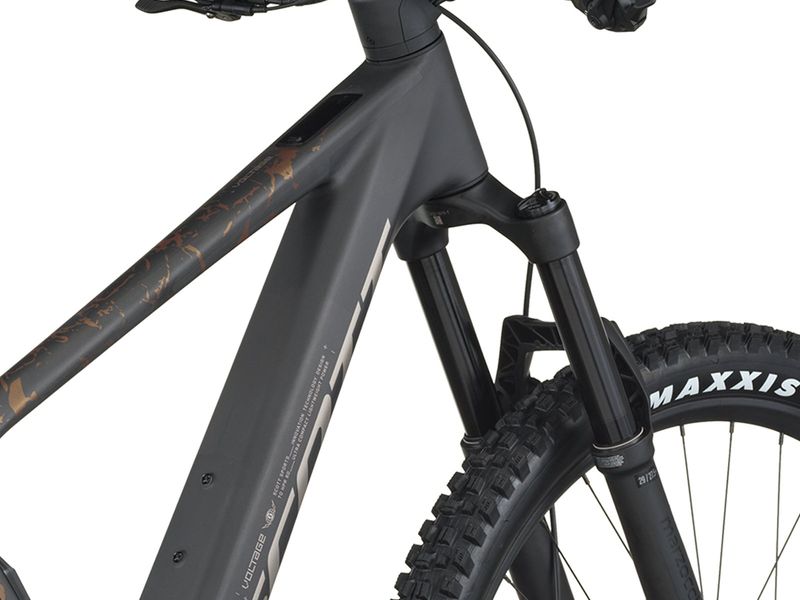

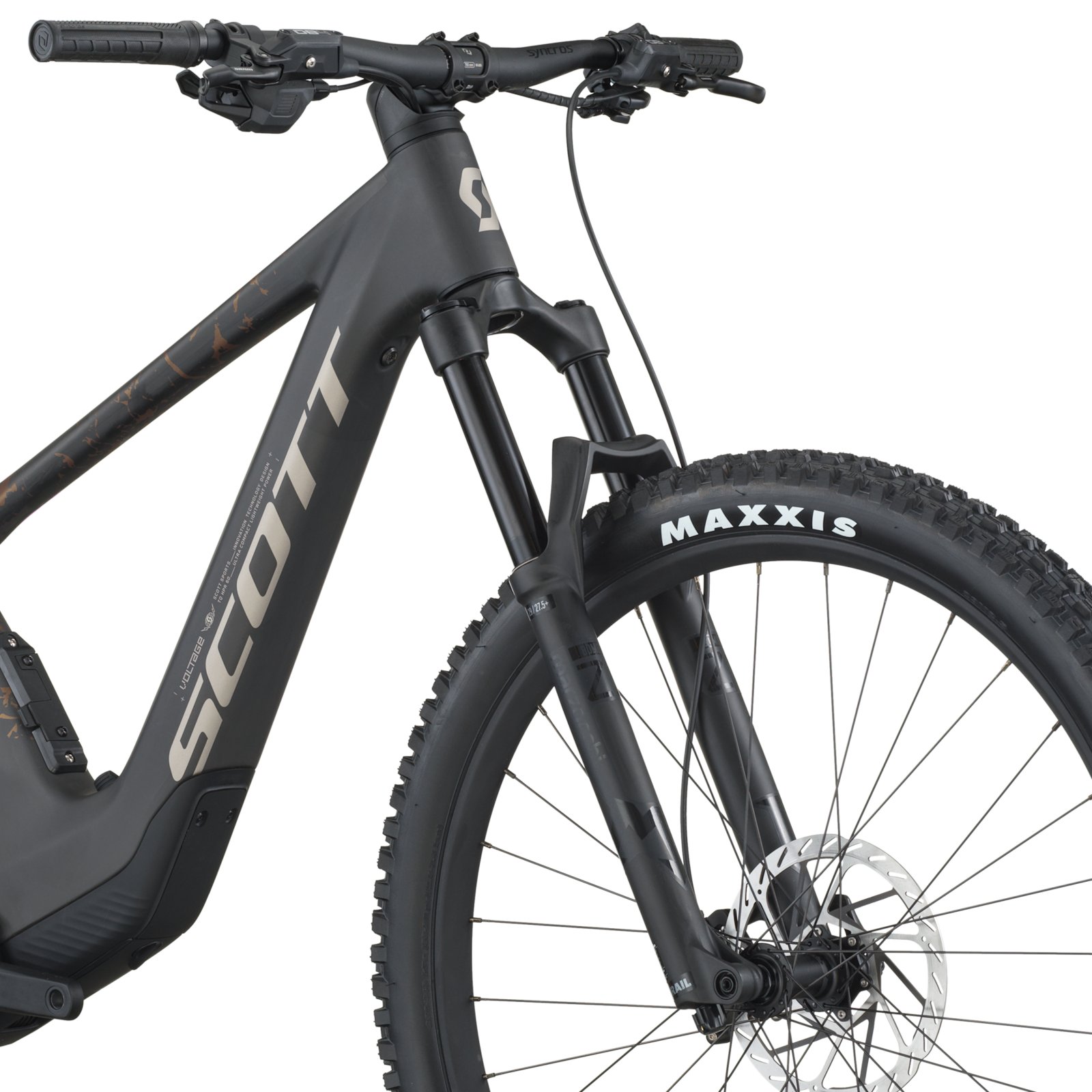

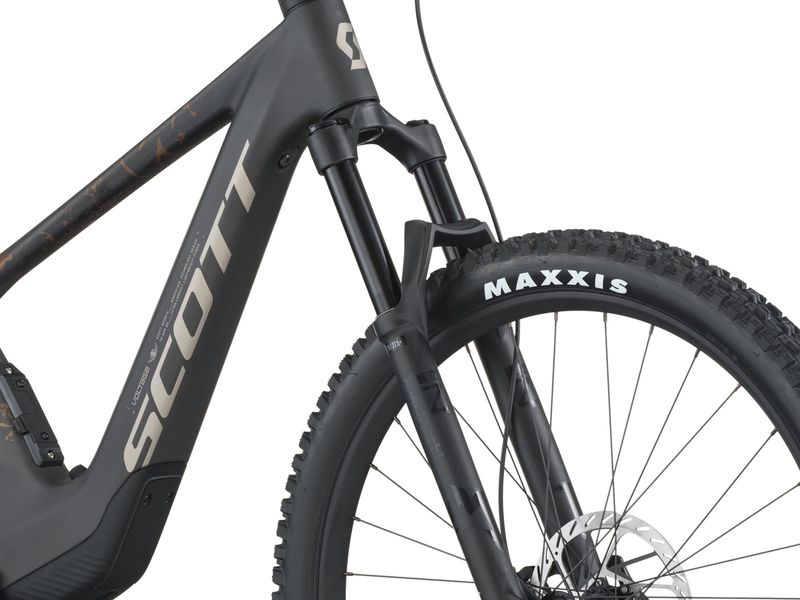

- Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer; 44mm offset, Reb. Adj., Lockout, 150mm travel
- Rear shock

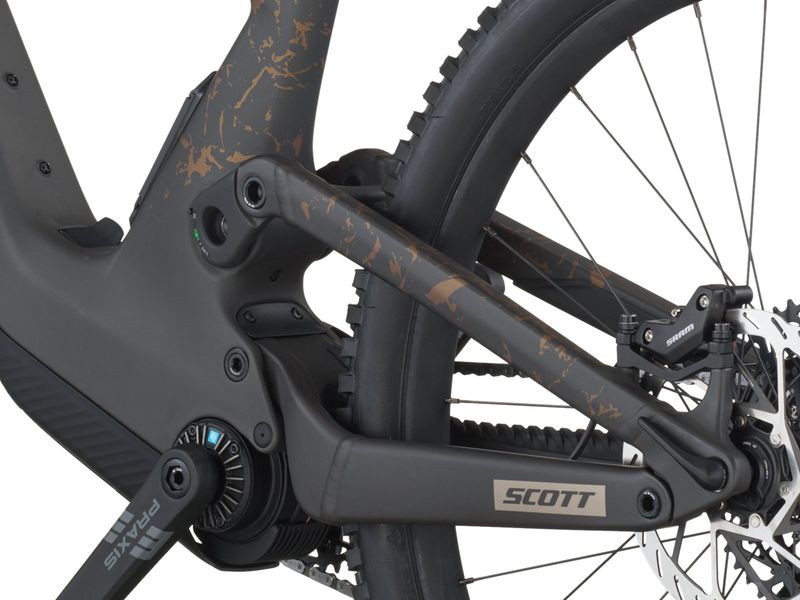

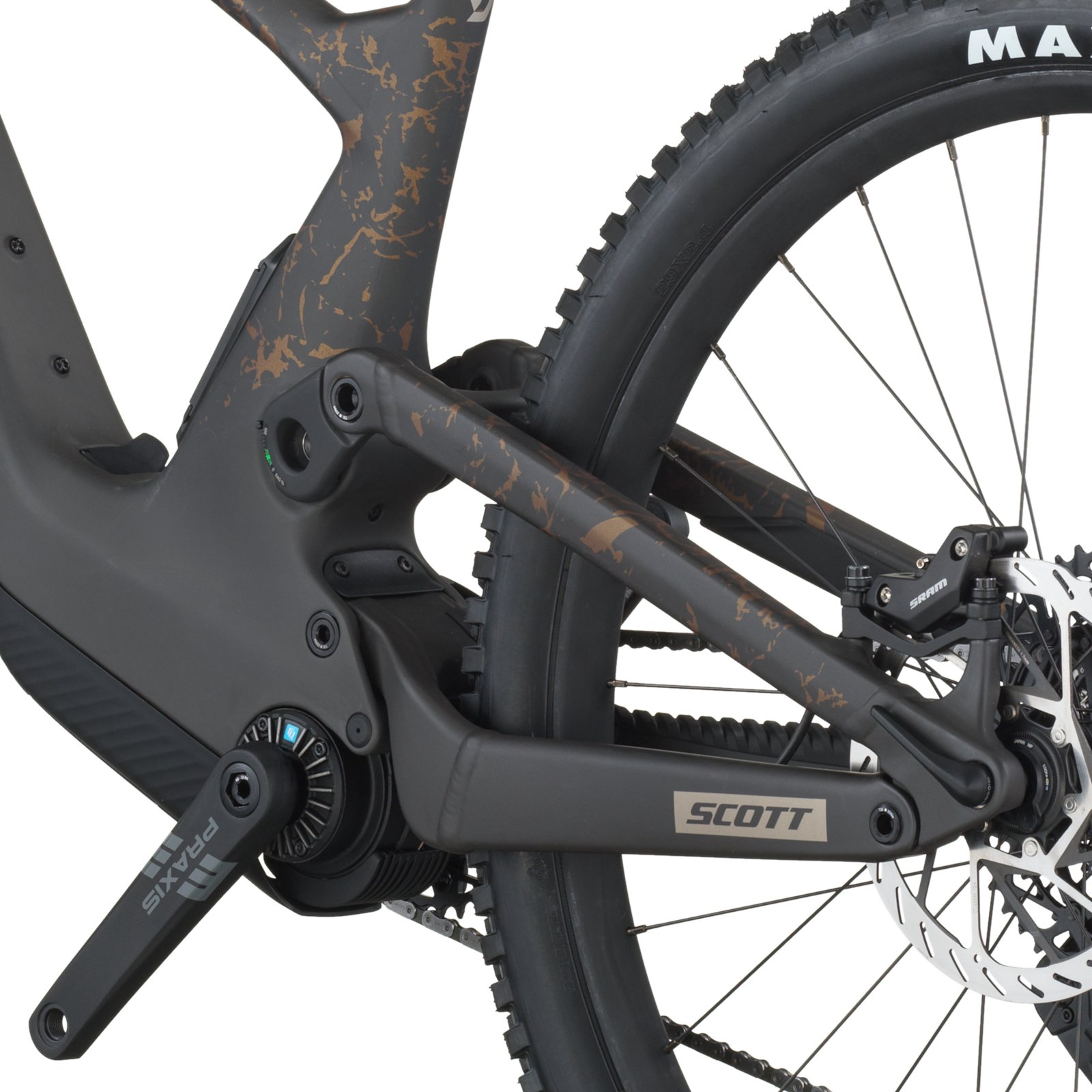

- X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w. travel, geo adj.; 3 modes: Lockout-Traction Control-Descend; Reb. Adj.; Travel 155-100-Lockout, T185X55mm
- Remote
- SCOTT TracLoc 2 Technology; Suspension & Dropper Remote; 3 Suspension modes
E-system
- Motor
- TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
- Battery
- TQ Internal 360Wh + TQ Range Extender 160Wh
- Display
- TQ HPR; Bluetooth, ANT+, Dedicated Smartphone app
- Charger
- TQ 100-240V-4A

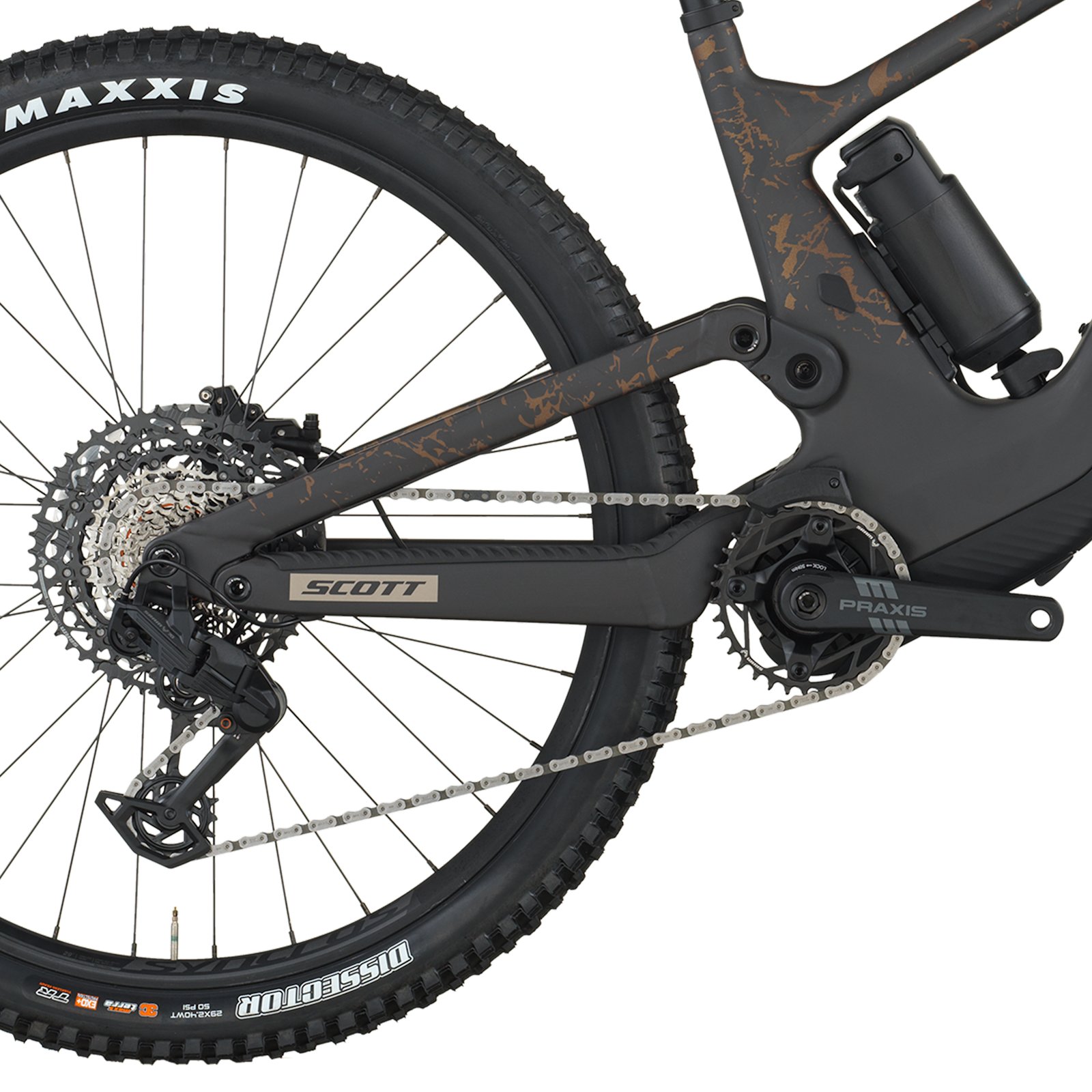

Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission 12 Speed
- Shifters
- SRAM Eagle 70 Shifter
- Crankset
- Praxis Alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- Praxis alloy spider, SRAM Eagle Transmission 34T chainring
- Chain
- SRAM CN Eagle 70 Transmission
- Cassette
- SRAM Eagle XS 1270 Transmission 10-52
Brakes
- Brakes
- SRAM DB4 Stealth 4-Piston Disc
- Rotor
- SRAM HS2 Rotors F&R 200mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula CL-148S, 12x148mm
- Spokes
- Stainless Black 15G, 1.8mm
- Rims
- Syncros X-30S, 32H, 30mm, Sleeve Joint; Tubeless ready
- Front tyre
- Maxxis Assegai, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra
- Rear tyre
- Maxxis Dissector, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra
Cockpit
- Handlebar
- Syncros Hixon 2.0 Alloy 6061; Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm; Syncros Endurance lock-on grips
- Stem
- Syncros AM 2.0; Syncros Cable Integration System; 4° rise, 6061 Alloy, 31.8mm, 1 1/8"
- Seatpost
- Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm; S size 140mm, M size 180mm, L size 180mm, XL size 210mm
- Saddle
- Syncros Tofino 2.0 Regular
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Other
- Max system weight
- 130kg
- Weight
- 19.8 kg (tubeless, without range extender)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Voltage eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 63.9° | 63.9° | 63.9° | 63.9° |
| BHead tube length | 110 mm | 110 mm | 120 mm | 130 mm |
| CTop tube horizontal | 580.2 mm | 600 mm | 629.9 mm | 659.8 mm |
| DStandover height | 765 mm | 765 mm | 772 mm | 788 mm |
| EBB offset | 27.4 mm | 27.5 mm | 27.4 mm | 27.3 mm |
| FBB height | 349.6 mm | 349.5 mm | 349.6 mm | 349.7 mm |
| GWheel base | 1232.8 mm | 1252.6 mm | 1284.8 mm | 1316.9 mm |
| IBB center to top of seattube | 404.6 mm | 424.5 mm | 449.6 mm | 479.7 mm |
| JSeat angle | 77.1° | 77.1° | 77.1° | 77.1° |
| KChainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| LReach | 437.4 mm | 457.2 mm | 485 mm | 512.7 mm |
| MStack | 622.3 mm | 622.4 mm | 631.3 mm | 640.2 mm |
| NStem length | 40 mm | 40 mm | 50 mm | 50 mm |
| OTrail | 135.7 mm | 135.7 mm | 135.7 mm | 135.7 mm |
| PFork length | 571 mm | 571 mm | 571 mm | 571 mm |
| QMaximum Seatpost Insertion | 190 mm | 210 mm | 235 mm | 265 mm |
| RCrank Length | 170 mm | 170 mm | 175 mm | 175 mm |
Source: Scott.
Voltage eRIDE: builds compared
Voltage eRIDE range →| Voltage eRIDE 920 | Voltage eRIDE 910 | Voltage eRIDE 900 Tuned | |
|---|---|---|---|
| Price | £5,999 | £7,799 | £9,599 |
| Frame | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | Marzocchi Z2 Air Rail, Sweep Adj | FOX 36 Rhythm Air Grip, Sweep Adj. | FOX 36 Factory Air GripX2, HSC - LSC - HSR - LSR adjustable |
| Shock | X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w | FOX FLOAT X NUDE EVOL Piggy Back Trunnion | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion |
| Derailleur | SRAM Eagle 70 Transmission 12 Speed | SRAM S1000 Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System | SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System |
| Brakes | SRAM DB4 Stealth 4-Piston Disc | SRAM Maven Bronze Stealth 4-Piston Disc | SRAM Maven Silver Stealth 4-Piston Disc |
| Wheels | Syncros X-30S, 32H | Syncros X-30S, 32H | — |
| Display | TQ HPR; Bluetooth | TQ HPR; Bluetooth | TQ HPR Color; Bluetooth |
| Weight | 19.8 kg | 19.9 kg | 19.1 kg |
Voltage eRIDE 920: FAQ
How much does the Scott Voltage eRIDE 920 cost?
£5,999 (UK RRP, VAT incl.). The Voltage eRIDE range runs from £5,999 (Voltage eRIDE 920) to £9,599 (Voltage eRIDE 900 Tuned). Prices vary by country and dealer.
How much does the Scott Voltage eRIDE 920 weigh?
Scott quotes 19.8 kg. The lightest Voltage eRIDE build is the Voltage eRIDE 900 Tuned at 19.1 kg.
What motor and battery does the Scott Voltage eRIDE 920 have?
TQ HPR60 (60 Nm). 360 Wh battery — +160 Wh range extender.
How much suspension travel does the Scott Voltage eRIDE 920 have?
150 mm at the fork and 155 mm at the rear, on 29" wheels.
What sizes does the Scott Voltage eRIDE 920 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Voltage eRIDE 920 and the Voltage eRIDE 910?
They share the Voltage eRIDE frame platform and motor; the differences are in the parts — frame: carbon main frame, alloy rear vs carbon; fork: Marzocchi Z2 Air Rail vs FOX 36 Rhythm Air Grip; shock: X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w vs FOX FLOAT X NUDE EVOL Piggy Back Trunnion; derailleur: SRAM Eagle 70 Transmission 12 Speed vs SRAM S1000 Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System; claimed weight: 19.8 kg vs 19.9 kg; price: £5,999 vs £7,799.
