TQ HPR50 / HPR60 eMTBs
TQ’s HPR motors use a compact harmonic pin-ring transmission that makes them small, light and very quiet — the reason they are popular on lightweight eMTBs.
- Builds
- 32
- Brands
- 6
- Torque (as quoted)
- 60 Nm, 350 W peak · 60 Nm · 50 Nm
- Battery
- 290–580 Wh
- Price
- ≈€5,599 – €12,256
- Lightest
- 16.2 kg
Brands: Canyon, Trek, Scott, Simplon, Mondraker, Rotwild · filter in catalog →
About the TQ HPR50 / HPR60
TQ's HPR motors are compact light-assist mid-drives that use a harmonic pin-ring transmission instead of conventional gear stages. The HPR50 appeared in 2022 and became a common choice for lightweight e-MTBs; the HPR60 followed in June 2025.
The HPR60 raises output to 60 Nm and 350 W peak (from 50 Nm on the HPR50) while keeping almost the same size and mounting points. TQ added cooling fins to sustain output and addressed overheating concerns of the earlier unit.
Batteries are offered in 290, 360 and 580 Wh, plus a 160 Wh range extender; the 290 Wh pack limits HPR60 output to 250 W. Three modes (Eco, Mid, High) can be tuned via the TQ app, and the system has a top-tube display and small bar remote.
HPR motors suit riders who want a bike that rides close to a non-assisted trail bike, with low noise and low weight. They are fitted to light e-MTBs from brands such as Trek, Yeti, Simplon and others.
TQ HPR50 / HPR60: specs
| Version | Torque | Peak power | Weight | Notes |
|---|---|---|---|---|
| HPR50 | 50 Nm | — | 1.85 kg | Harmonic pin-ring transmission; 360 Wh battery; Q-factor 135 mm. |
| HPR60 | 60 Nm | 350 W (limited to 250 W with 290 Wh battery) | about 1.85-1.92 kg (sources differ) | Improved cooling fins; same frame mounts as HPR50; colour display. |
- Launched
- HPR50: 2022; HPR60: June 2025
- System
- TQ batteries 290/360/580 Wh, 160 Wh range extender, top-tube display (colour on HPR60), compact bar remote, TQ app.
- Batteries
- 290 Wh, 360 Wh, 580 Wh; 160 Wh range extender
- Assist modes
- Eco, Mid, High; walk mode
- App & tuning
- TQ app: adjustable assistance, power, cadence response; OTA firmware updates.
- Q-factor
- 135 mm
Strengths and drawbacks
Strengths
- + Very quiet, including when coasting
- + Among the lightest e-MTB motors at under 2 kg
- + Narrow 135 mm Q-factor
- + HPR60 fits HPR50 frame mounts
Drawbacks
- – Lower torque and power than full-power motors
- – Full 350 W on HPR60 not available with the 290 Wh battery
- – Light-assist character requires more rider effort on steep climbs
Error codes & firmware
All TQ HPR50 / HPR60 bikes, by price
| Bike | Motor | Battery | Travel F / R | Weight | Price |
|---|---|---|---|---|---|
 CanyonSpectral:ONfly CF 8 | TQ HPR50 | 360 Wh | 160 / 150 mm | 18.9 kg | €5,599 |
 TrekFuel+ EX 8 Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £5,000≈€5,850 |
 TrekFuel EXe 9.7 | TQ | 360 Wh | 150 / 140 mm | — | £5,175≈€6,055 |
 CanyonSpectral:ONfly CF 9 | TQ HPR50 | 360 Wh | 160 / 150 mm | 18.8 kg | €6,299 |
 TrekFuel+ EX 9.7 Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £5,500≈€6,435 |
 ScottVoltage eRIDE 920 | TQ HPR60 | 360 Wh | 150 / 155 mm | 19.8 kg | £5,999≈€7,019 |
 ScottLumen eRIDE 920 | TQ HPR60 | 360 Wh | 140 / 130 mm | 18.5 kg | £5,999≈€7,019 |
 TrekSlash+ 9.7 | TQ HPR60 | 580 Wh | 170 / 170 mm | — | £6,000≈€7,020 |
 SimplonRapcon :eTQ Expert | TQ HPR60 | 360 Wh | 170 / 160 mm | 18.4 kg | €7,999 |
 MondrakerNeat R | TQ HPR50 | 360 Wh | 160 / 150 mm | 18.9 kg | €8,499 |
 ScottLumen eRIDE 910 | TQ HPR60 | 360 Wh | 140 / 130 mm | 17.8 kg | £7,599≈€8,891 |
 TrekFuel+ EX 9.8 XT Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £7,625≈€8,921 |
 TrekFuel+ EX 9.8 Eagle 90 Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £7,625≈€8,921 |
 TrekFuel+ MX 9.8 XT Gen 2 | TQ HPR60 | 580 Wh | 160 / 150 mm | — | £7,625≈€8,921 |
 TrekFuel+ MX 9.8 Eagle 90 Gen 2 | TQ HPR60 | 580 Wh | 170 / 150 mm | — | £7,625≈€8,921 |
 ScottVoltage eRIDE 910 | TQ HPR60 | 360 Wh | 160 / 155 mm | 19.9 kg | £7,799≈€9,125 |
 TrekFuel+ LX 9.8 XT Gen 2 | TQ HPR60 | 580 Wh | 170 / 160 mm | — | £7,800≈€9,126 |
 TrekFuel+ LX 9.8 Eagle 90 Gen 2 | TQ HPR60 | 580 Wh | 170 / 160 mm | — | £7,800≈€9,126 |
 TrekFuel+ EX 9.8 XT Di2 Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £8,075≈€9,448 |
 TrekFuel+ MX 9.8 XT Di2 Gen 2 | TQ HPR60 | 580 Wh | 160 / 150 mm | — | £8,075≈€9,448 |
 TrekFuel+ LX 9.8 XT Di2 Gen 2 | TQ HPR60 | 580 Wh | 170 / 160 mm | — | £8,250≈€9,653 |

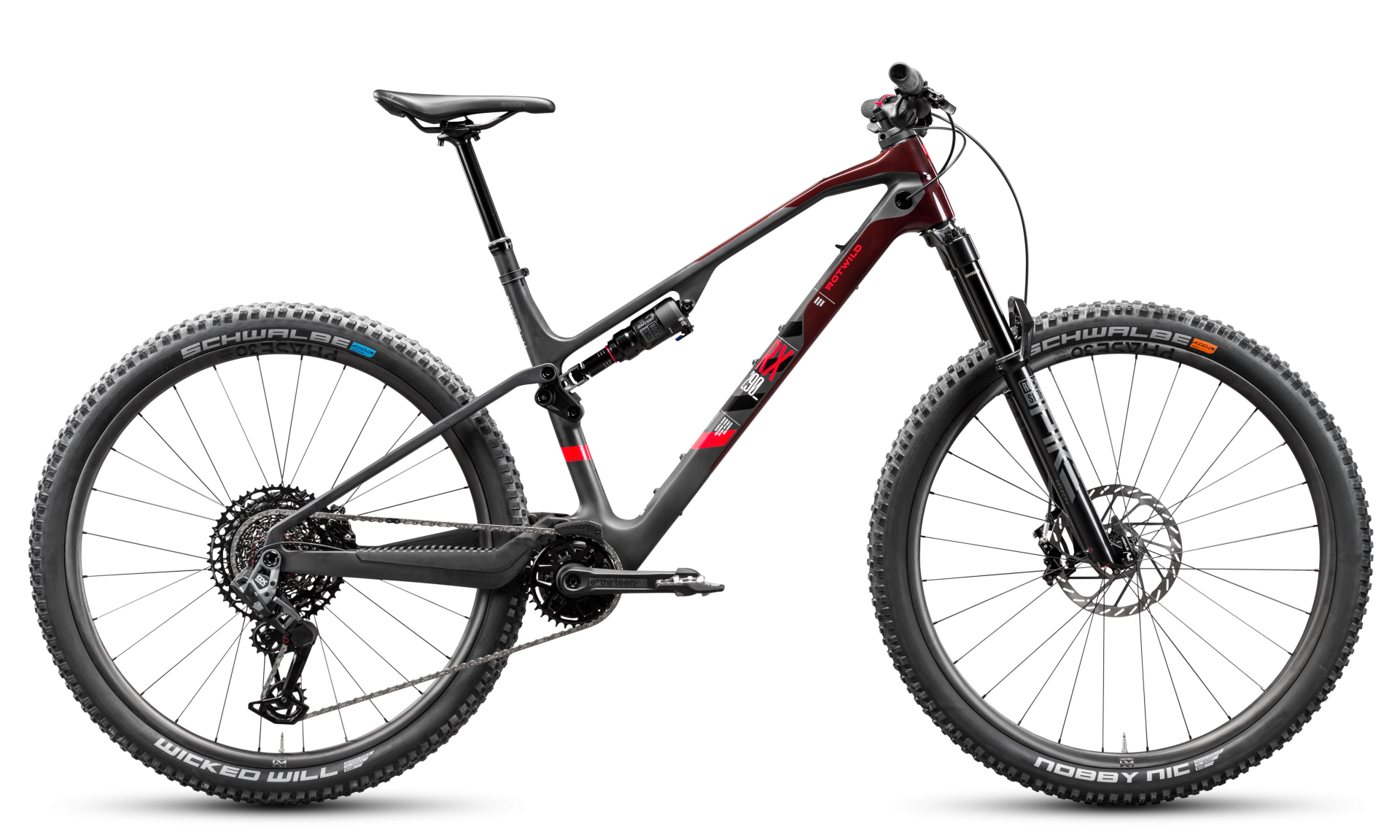

 RotwildR.X290 Pro | TQ HPR60 | 290 Wh | 140 / 120 mm | 16.7 kg | €9,990 |
 MondrakerNeat RR | TQ HPR50 | 360 Wh | 160 / 150 mm | 18.7 kg | €9,999 |

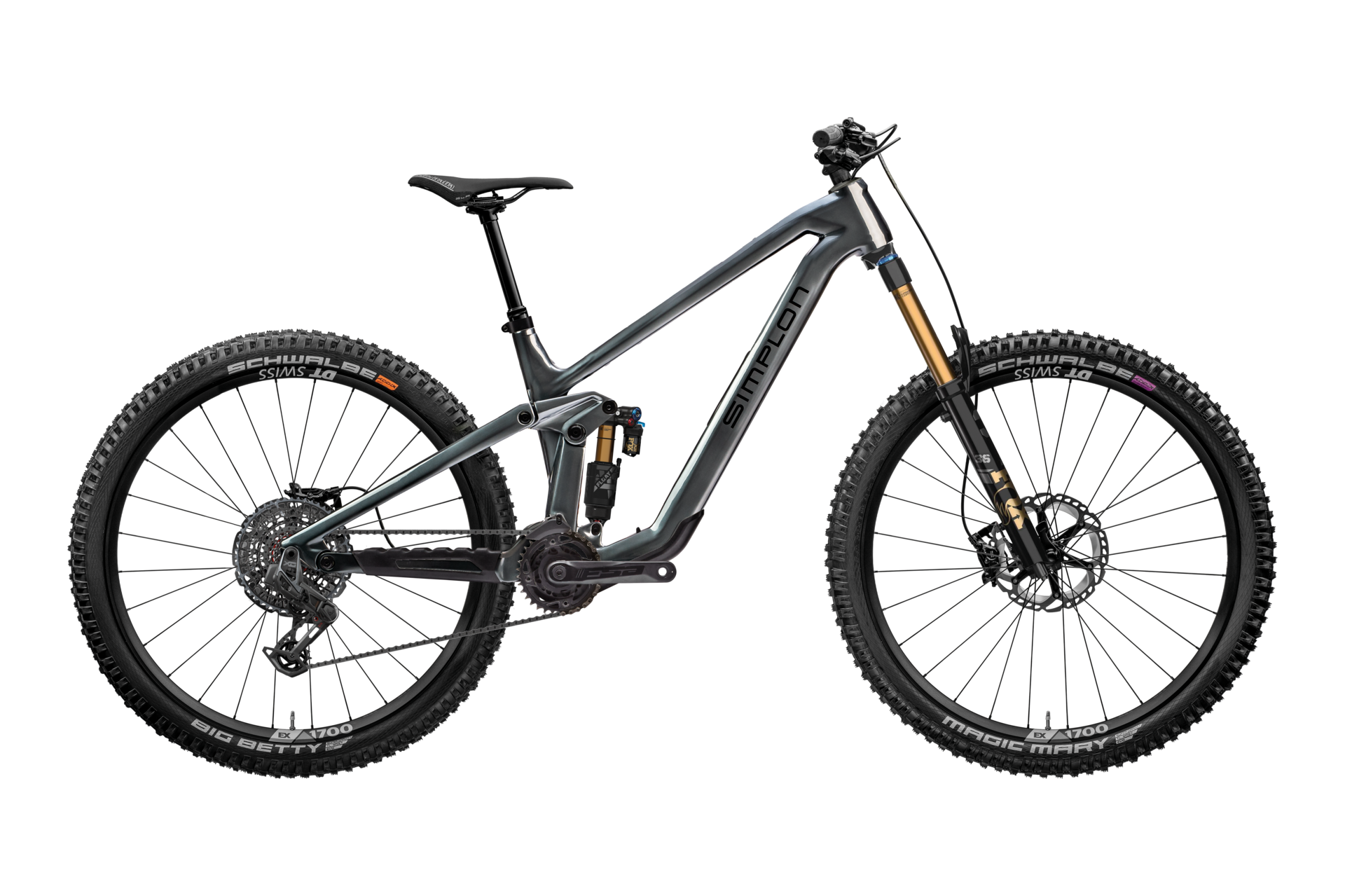

 SimplonRapcon :eTQ Ultimate | TQ HPR60 | 360 Wh | 160 / 160 mm | 18.6 kg | €9,999 |
 ScottLumen eRIDE 900 | TQ HPR60 | 360 Wh | 140 / 130 mm | 18.2 kg | £8,999≈€10,529 |
 TrekSlash+ 9.9 | TQ HPR60 | 580 Wh | 170 / 170 mm | — | £9,000≈€10,530 |
 ScottVoltage eRIDE 900 Tuned | TQ HPR60 | 360 Wh | 160 / 155 mm | 19.1 kg | £9,599≈€11,231 |

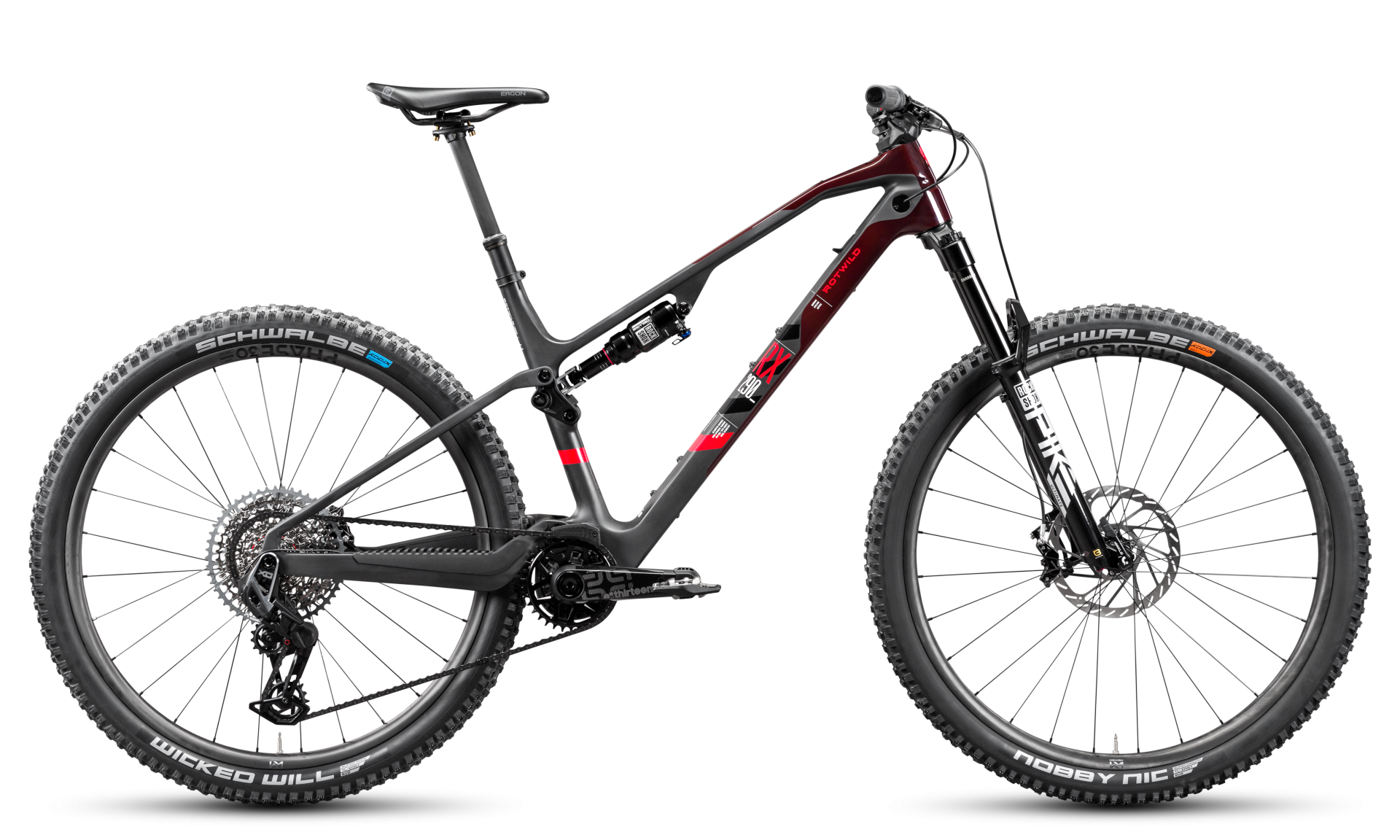

 RotwildR.X290 Ultra | TQ HPR60 | 290 Wh | 140 / 120 mm | 16.2 kg | €11,990 |
 MondrakerNeat RR SL | TQ HPR50 | 360 Wh | 160 / 150 mm | 18.3 kg | €11,999 |
 TrekFuel+ EX 9.9 X0 AXS Gen 2 | TQ HPR60 | 580 Wh | 150 / 145 mm | — | £10,300≈€12,051 |
 TrekFuel+ MX 9.9 X0 AXS Gen 2 | TQ HPR60 | 580 Wh | 170 / 150 mm | — | £10,300≈€12,051 |
 TrekFuel+ LX 9.9 X0 AXS Gen 2 | TQ HPR60 | 580 Wh | 170 / 160 mm | — | £10,475≈€12,256 |
Prices are manufacturer RRPs in the brand’s currency; ≈€ figures use approximate exchange rates.
TQ HPR50 / HPR60: FAQ
What changed from HPR50 to HPR60?
Torque rose from 50 to 60 Nm and peak power to 350 W, with improved cooling. Mounting points remain the same.
What battery sizes are available?
290, 360 and 580 Wh internal batteries plus a 160 Wh range extender. With the 290 Wh battery, the HPR60 is limited to 250 W.
What is the Q-factor of a TQ HPR motor?
135 mm, which is narrow compared with most full-power e-MTB motors.
Which eMTBs use the TQ HPR50 / HPR60?
32 builds in our catalog from 6 brands: Canyon, Trek, Scott, Simplon, Mondraker, Rotwild.
What is the cheapest eMTB with the TQ HPR50 / HPR60?
The Canyon Spectral:ONfly CF 8 at €5,599.
What is the lightest eMTB with the TQ HPR50 / HPR60?
The Rotwild R.X290 Ultra at a claimed 16.2 kg.
What battery sizes come with the TQ HPR50 / HPR60?
From 290 Wh to 580 Wh, depending on the bike and build.
