TrekFuel EXe 9.7
- Motor
- TQ
- Battery
- 360 WhRemovable
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

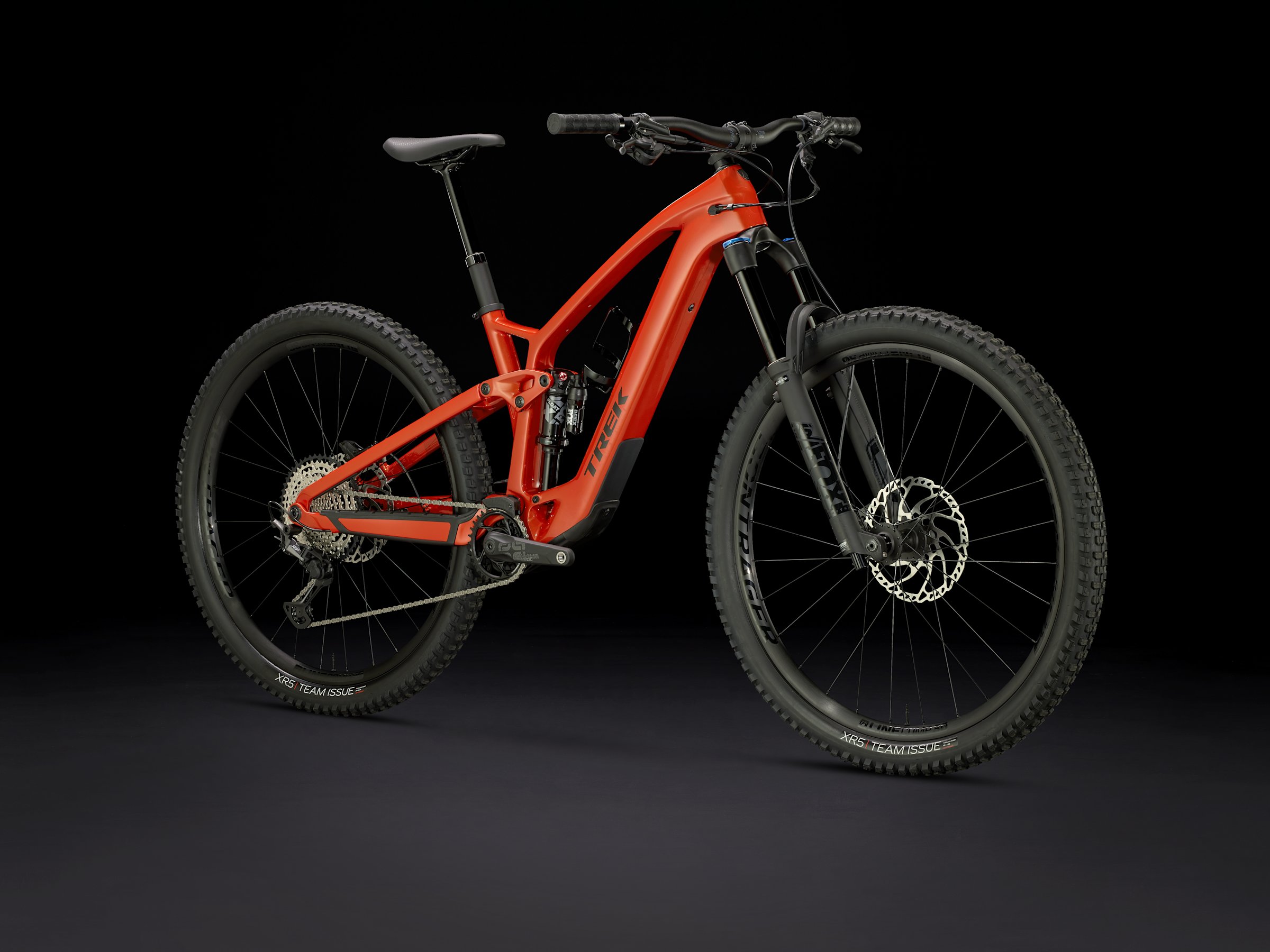

The Trek Fuel EXe 9.7 (£5,175) is the only current build of the Fuel EXe: carbon frame, TQ motor with 360 Wh, RockShox Lyrik Select+ fork, Fox Performance Float X shock, Shimano XT M8100 and Shimano 4-piston hydraulic disc brakes.
The Fuel EXe is Trek's previous-generation lightweight e-MTB, still sold alongside the Fuel+: an OCLV Mountain Carbon frame with 140 mm of rear travel, a 150 mm fork, 29-inch wheels and a compact TQ motor with a removable 360 Wh battery.
- Compact TQ motor, 360 Wh
- 140 mm rear / 150 mm fork
- OCLV Mountain Carbon frame
- 29" wheels
Gallery
Photos: Trek
Full specifications
Frame & suspension
- Shock

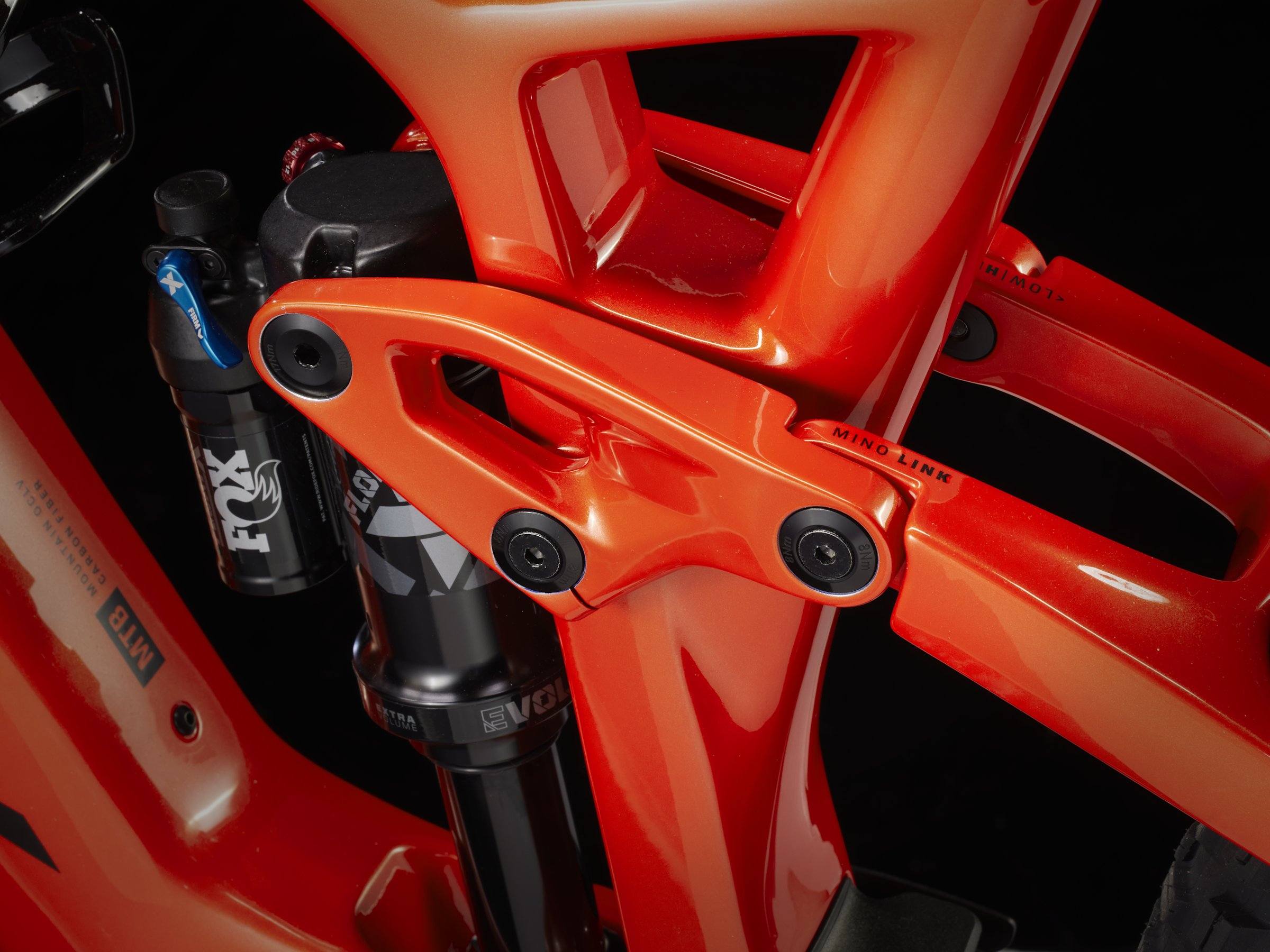

- Fox Performance Float X, 2-position damper, 205 mm x 60 mm
- Shock
- RockShox Super Deluxe Select+ RT, 205mm x 60mm
- Fork
- RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
- Fork
- Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
- Frame
- OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
E-system
- Battery
- TQ 360Wh
- Charger
- TQ 4A charger
Drivetrain
- Chain
- Shimano SLX M7100, 12-speed
- Chainring
- E*thirteen E*spec, 32T alloy ring, 55 mm chainline
- Rear derailleur
- Shimano XT M8100, long cage
- Cassette
- Shimano SLX M7100, 10-51T, 12-speed
- Shifter
- Shimano SLX M7100, 12-speed
Brakes
- Brake rotor
- Shimano RT66, 6-bolt, 203 mm
- Brake
- Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Wheels & tyres
- Skewer rear
- Bontrager Switch thru axle, removable lever
- Rear wheel
- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
- Rear wheel
- Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
- Tyre
- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
- Front wheel
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Cockpit
- Headset
- 1-1/8'' threadless, sealed cartridge bearings
- Stem
- Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Saddle
- Bontrager Arvada, hollow chromoly rails, 138 mm width
- Saddle
- Bontrager Verse P3, chromoly rails
- Handlebar
- Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Handlebar
- Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Grips
- Bontrager XR Trail Elite, nylon lock-on
- Seatpost
- TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
- Seatpost
- Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
Other
- Crank

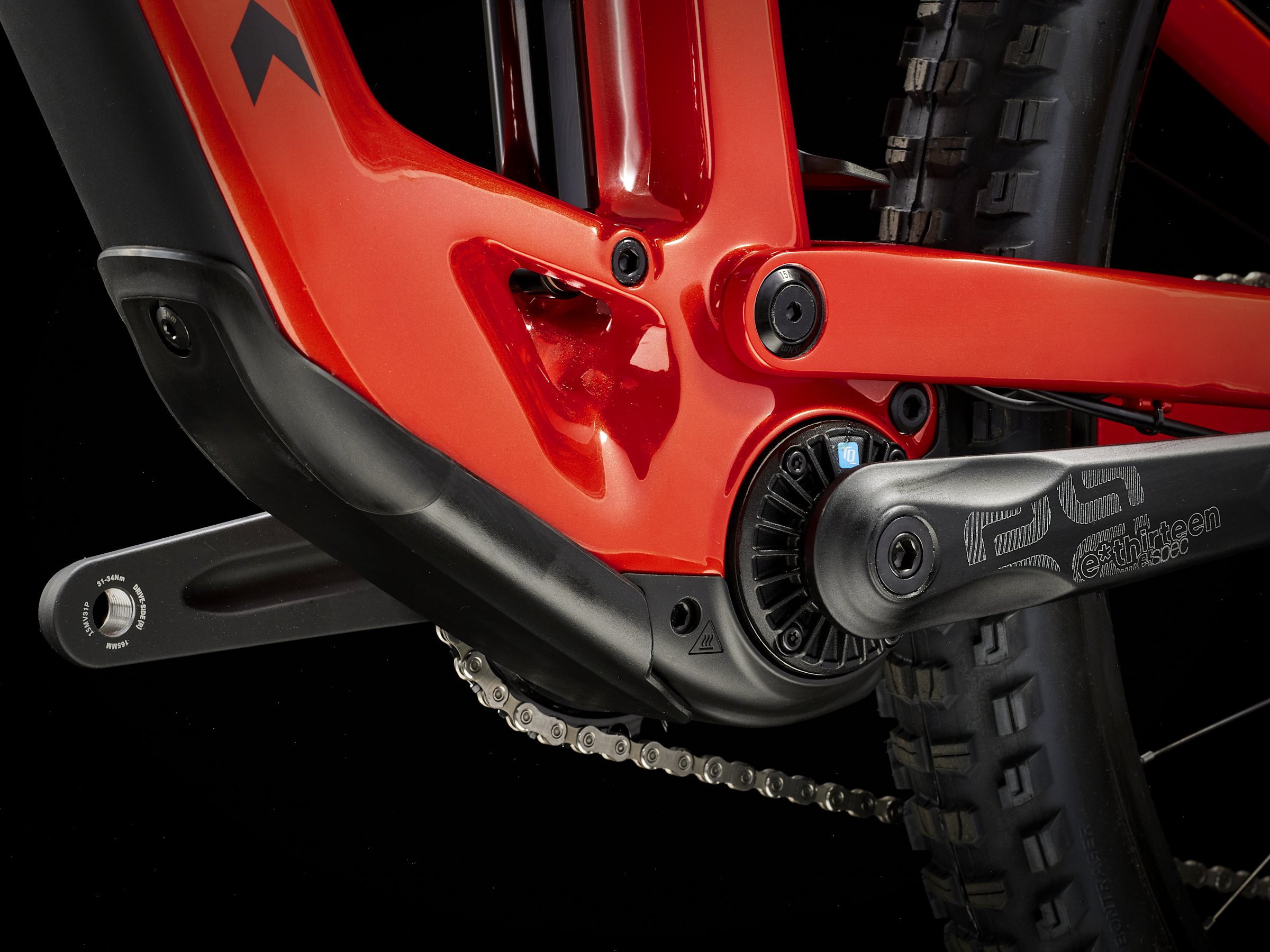

- E*thirteen E*spec Plus, 165 mm length
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Fuel EXe geometry
| Size | M |
|---|---|
| Wheel size | 29" |
| Seat tube length | 410 mm |
| Seat tube angle | 69.8° / 69.3° |
| Effective seat tube angle | 77.3° / 76.8° |
| Head tube length | 110 mm |
| Head angle | 65.3° / 64.8° |
| Effective top tube | 599 mm / 600 mm |
| BB height | 341 mm / 334 mm |
| BB drop | 32 mm / 39 mm |
| Chainstay length | 438 mm / 440 mm |
| Fork offset | 44 mm |
| Trail | 124 mm / 127 mm |
| Wheelbase | 1216 mm / 1217 mm |
| Standover | 733 mm / 727 mm |
| Reach | 459 mm / 453 mm |
| Stack | 625 mm / 629 mm |
| Front centre | 781 mm |
Where two values are given: High / Low Mino Link position. Source: Trek.
Fuel EXe 9.7: FAQ
How much does the Trek Fuel EXe 9.7 cost?
£5,175 (RRP UK, VAT incl.). Prices vary by country and dealer.
What motor and battery does the Trek Fuel EXe 9.7 have?
TQ. 360 Wh battery — removable.
How much suspension travel does the Trek Fuel EXe 9.7 have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Trek Fuel EXe 9.7 come in?
M. Check the geometry table to compare reach and stack between sizes.
