Lightweight eMTBTrail
Model range · 1 buildTrekFuel EXe
- Price
- £5,175
- Motor
- TQ
- Battery
- 360 WhRemovable
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
Overview

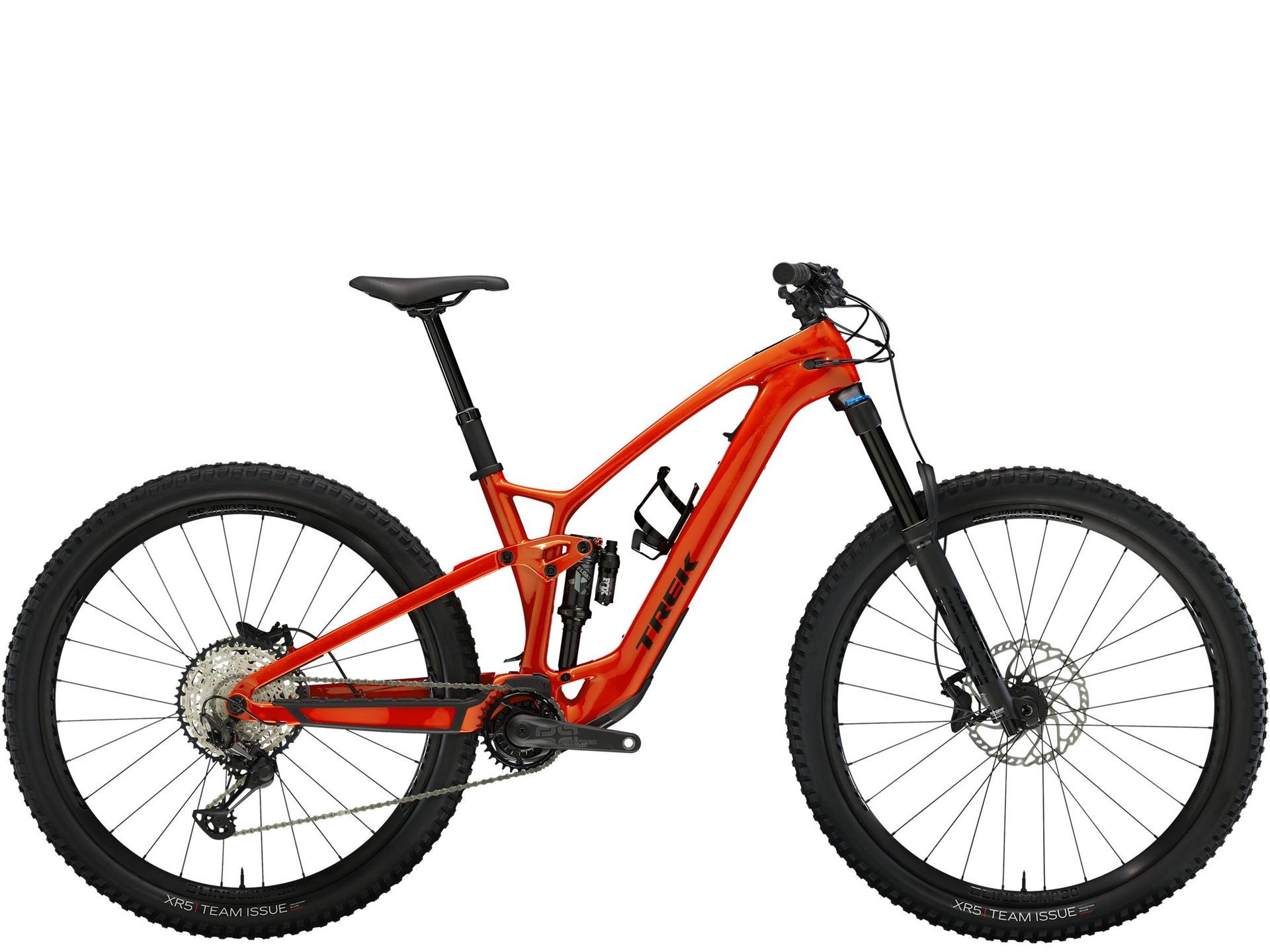

The Fuel EXe is Trek's previous-generation lightweight e-MTB, still sold alongside the Fuel+: an OCLV Mountain Carbon frame with 140 mm of rear travel, a 150 mm fork, 29-inch wheels and a compact TQ motor with a removable 360 Wh battery.
- Compact TQ motor, 360 Wh
- 140 mm rear / 150 mm fork
- OCLV Mountain Carbon frame
- 29" wheels
Trek Fuel EXe builds
Fuel EXe geometry
| Size | M |
|---|---|
| Wheel size | 29" |
| Seat tube length | 410 mm |
| Seat tube angle | 69.8° / 69.3° |
| Effective seat tube angle | 77.3° / 76.8° |
| Head tube length | 110 mm |
| Head angle | 65.3° / 64.8° |
| Effective top tube | 599 mm / 600 mm |
| BB height | 341 mm / 334 mm |
| BB drop | 32 mm / 39 mm |
| Chainstay length | 438 mm / 440 mm |
| Fork offset | 44 mm |
| Trail | 124 mm / 127 mm |
| Wheelbase | 1216 mm / 1217 mm |
| Standover | 733 mm / 727 mm |
| Reach | 459 mm / 453 mm |
| Stack | 625 mm / 629 mm |
| Front centre | 781 mm |
Where two values are given: High / Low Mino Link position. Source: Trek.
Trek Fuel EXe: FAQ
How much does the Trek Fuel EXe cost?
£5,175 depending on the build (Fuel EXe 9.7 £5,175); RRP UK, VAT incl..
What motor and battery does the Trek Fuel EXe use?
TQ with a 360 Wh battery (removable).
How much travel does the Trek Fuel EXe have?
150 mm fork and 140 mm rear travel on 29" wheels.
