TrekSlash+ 9.7
- Motor
- TQ HPR6060 Nm, 350 W peak
- Battery
- 580 Wh
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 21.6 kgSize M, Trek claimed weight, with TLR sealant, no tubes
Watching this bike? Get new models and updates on Telegram →
Overview
£6,000 buys the Slash+ with a carbon frame, the TQ HPR60 motor, Fox Rhythm 38 and Performance Float X, SRAM Eagle 70 and DB 8 brakes. Claimed 21.58 kg (size M). The sensible way into Trek's enduro e-bike.
The Slash+ 9.7 is one of 2 builds of the Trek Slash+. About the Slash+ range and all its builds →

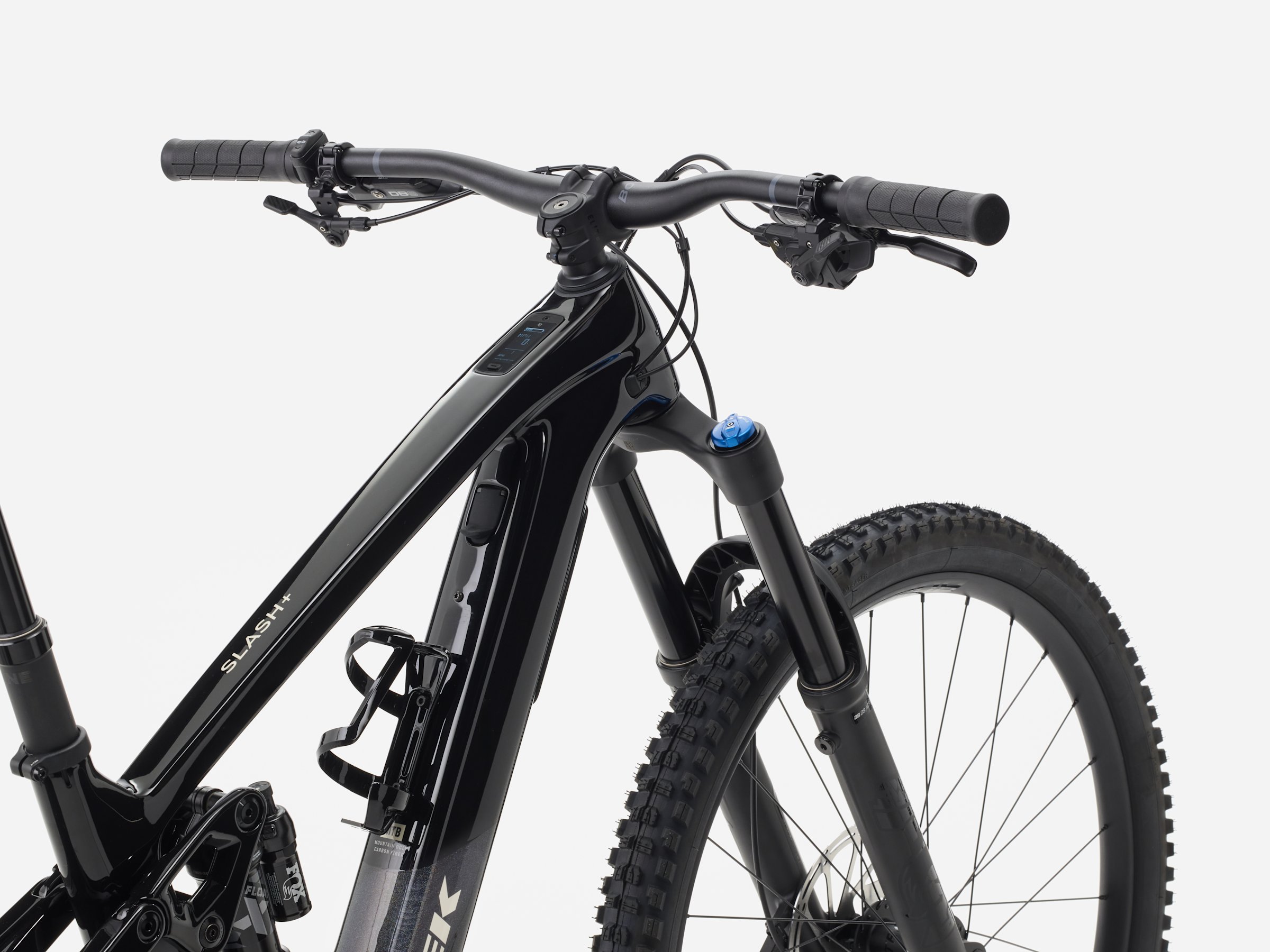

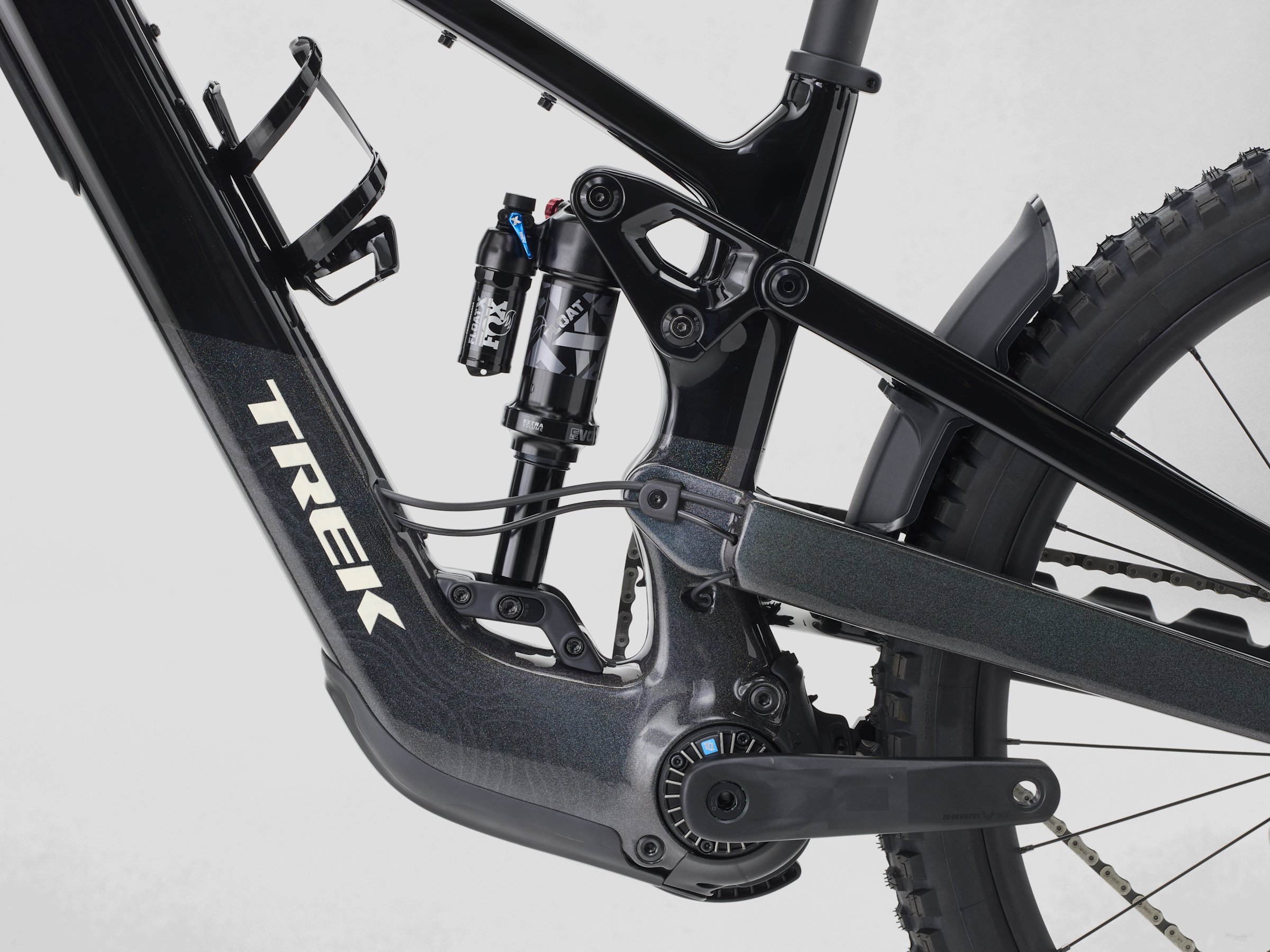

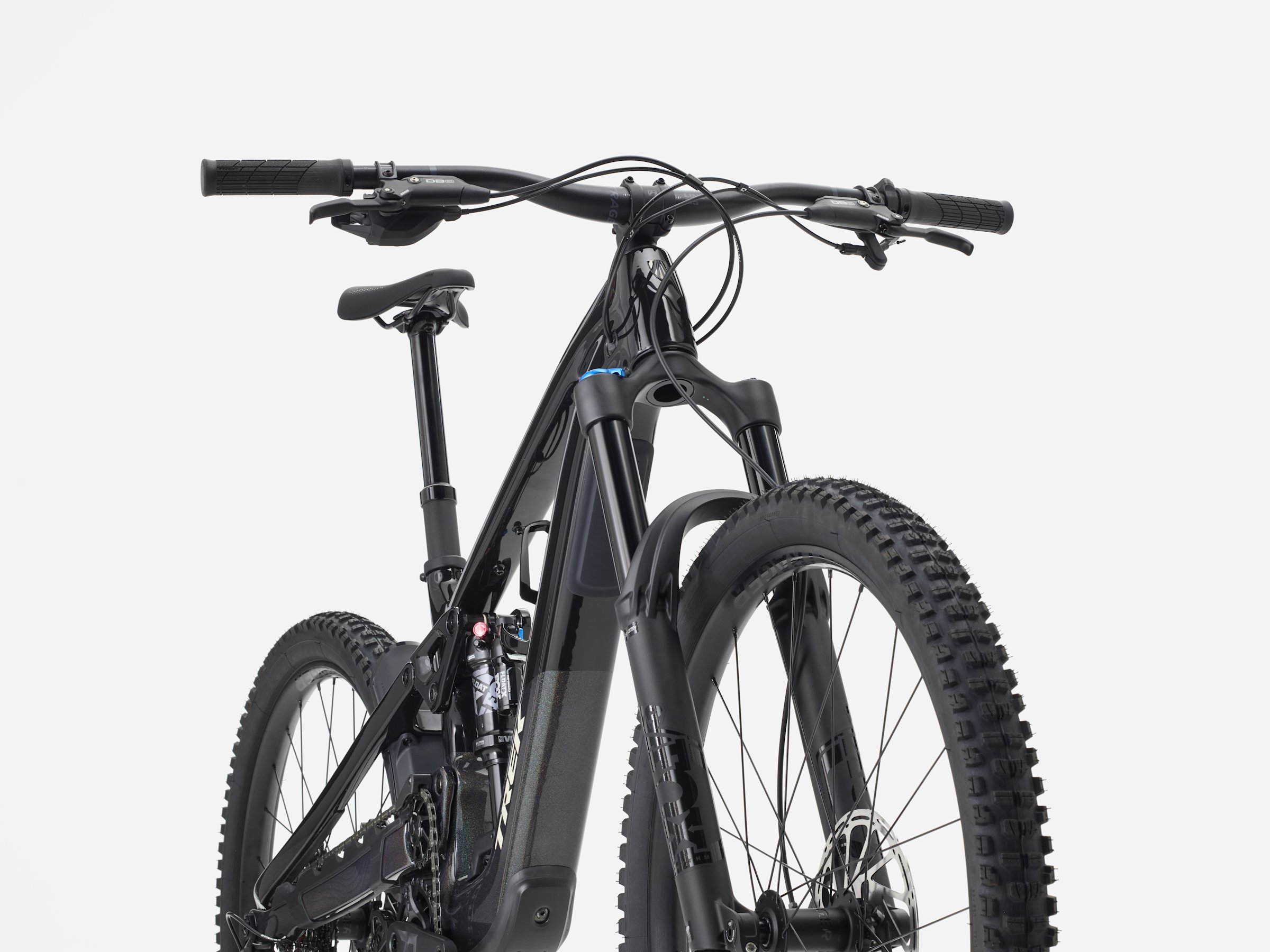

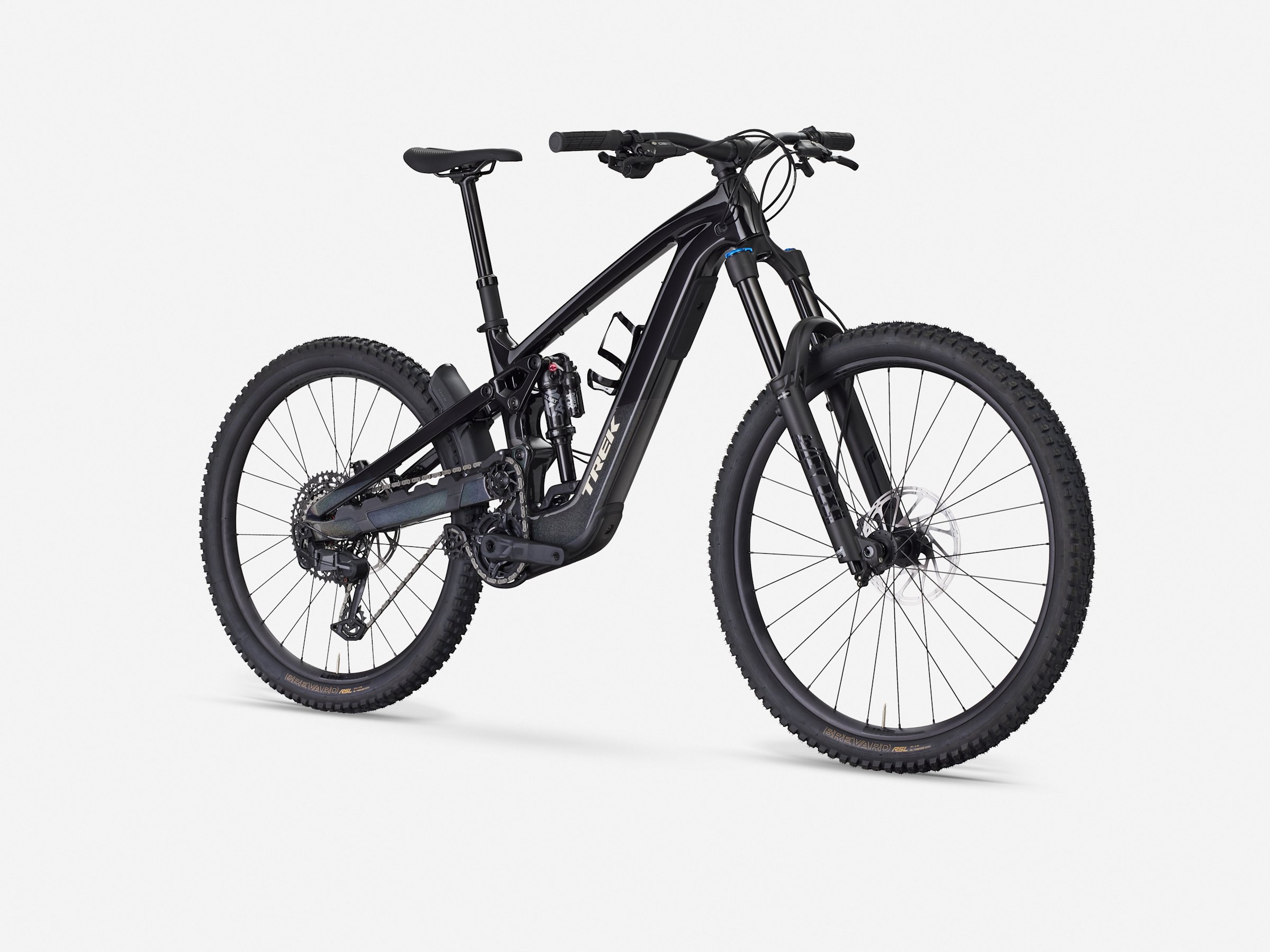

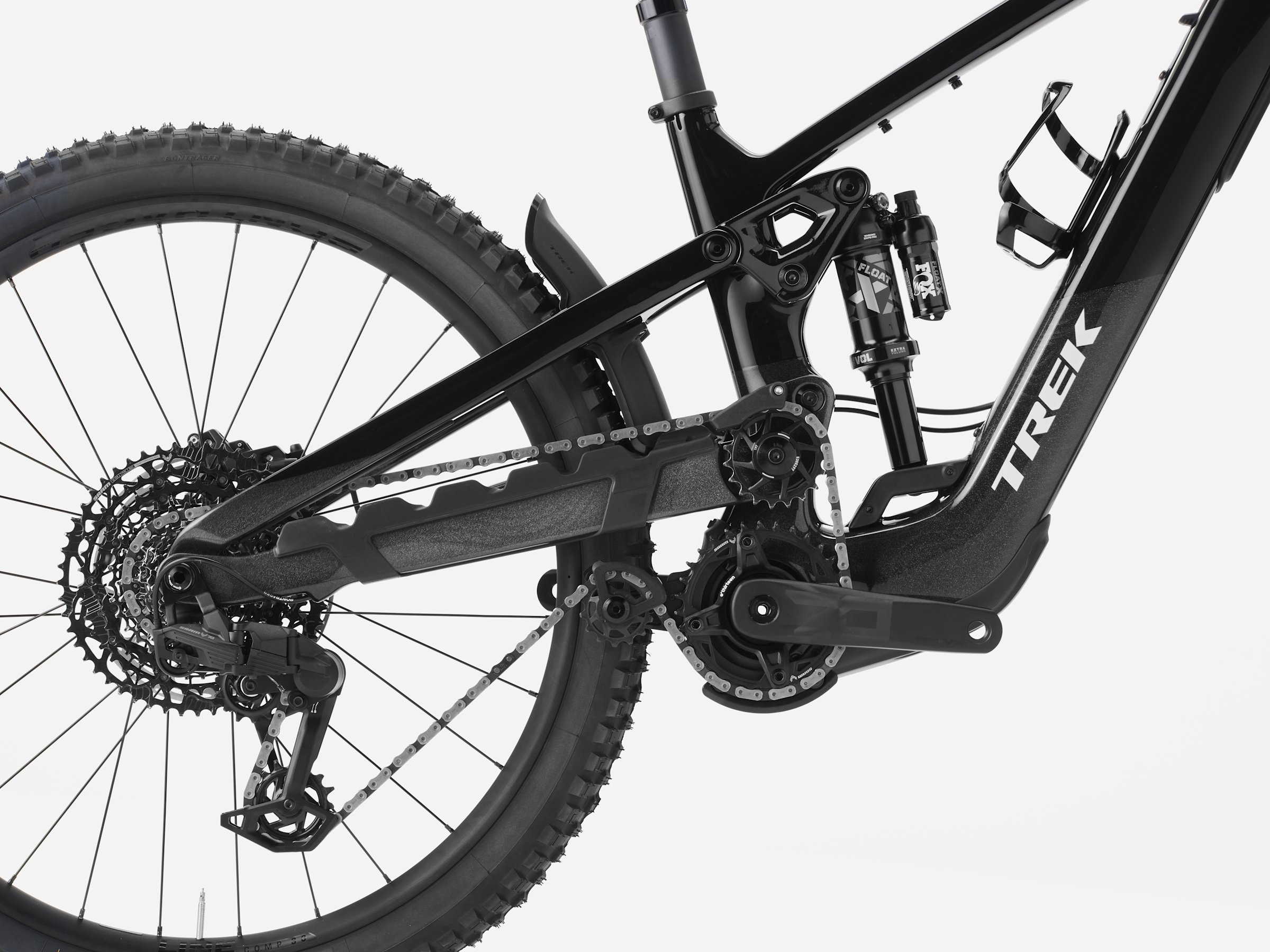

Gallery
Photos: Trek
Full specifications
Frame & suspension
- Shock
- Fox Performance Float X, 2-position damper, 230 mm x 65 mm
- Fork
- Fox Rhythm 38, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 170 mm travel
E-system
- Battery
- TQ 580Wh
- Charger
- TQ 4A charger
- Motor
- TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
Drivetrain
- Chain
- SRAM Eagle 70, T-Type, 12-speed
- Chainring
- SRAM T-Type, 32T, alloy
- Rear derailleur
- SRAM Eagle 70, T-Type
- Cassette
- SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Shifter
- SRAM Eagle 70, 12-speed
Brakes
- Brake rotor
- SRAM CentreLine, 6-bolt, round-edge, 200 mm
- Brake rotor
- SRAM CenterLine 2.0, 6-bolt, 200 mm
- Brake
- SRAM DB 8 4-piston hydraulic disc
Wheels & tyres
- Tyre
- Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.5"
- Front wheel
- Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"
Cockpit
- Headset
- 1-1/8'' threadless, sealed cartridge bearings
- Stem
- Bontrager Elite, 35 mm, 0-degree, 35 mm length
- Handlebar
- Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Saddle
- Bontrager Verse P3, chromoly rails
- Grips
- Trek Line Elite, lock-on
- Seatpost
- Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length
Other
- Crank
- SRAM EAGLE 70, 160 mm length
- Computer
- TQ LED display with Bluetooth & ANT+ connectivity
- Computer part
- TQ handlebar-mounted
- Mudguard
- Trek 27.5" custom fender
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Slash+ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Wheel size | 27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Seat tube length | 390 mm | 400 mm | 435 mm | 470 mm |
| Seat tube angle | 74.0° | 73.9° | 73.9° | 73.9° |
| Effective seat tube angle | 77.6° | 77.5° | 77.2° | 76.7° |
| Head tube length | 110 mm | 110 mm | 120 mm | 140 mm |
| Head angle | 63.5° | 63.4° | 63.4° | 63.4° |
| Effective top tube | 561 mm | 588 mm | 625 mm | 669 mm |
| BB height | 352 mm | 352 mm | 352 mm | 352 mm |
| BB drop | 10 mm | 27 mm | 27 mm | 27 mm |
| Chainstay length | 434 mm | 434 mm | 434 mm | 439 mm |
| Fork offset | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 132 mm | 142 mm | 142 mm | 142 mm |
| Wheelbase | 1205 mm | 1233 mm | 1267 mm | 1317 mm |
| Standover | 771 mm | 776 mm | 770 mm | 769 mm |
| Reach | 430 mm | 449 mm | 479 mm | 519 mm |
| Stack | 597 mm | 631 mm | 639 mm | 658 mm |
Source: Trek.
Slash+: builds compared
Slash+ range →| Slash+ 9.7 | Slash+ 9.9 | |
|---|---|---|
| Price | £6,000 | £9,000 |
| Frame | Carbon | Carbon |
| Fork | Fox Rhythm 38, Float EVOL air spring | RockShox ZEB Ultimate, DebonAir spring |
| Shock | Fox Performance Float X | RockShox Vivid Ultimate |
| Derailleur | SRAM Eagle 70 | SRAM X0 Eagle AXS |
| Brakes | SRAM DB 8 4-piston hydraulic disc | SRAM Maven Silver 4-piston hydraulic disc |
| Wheels | Bontrager Line Comp 30 | Bontrager Line Pro 30 |
| Weight | 21.6 kg | 21.8 kg |
Slash+ 9.7: FAQ
What is the difference between the Slash+ 9.7 and the Slash+ 9.9?
They share the Slash+ frame platform and motor; the differences are in the parts: fork: Fox Rhythm 38 vs RockShox ZEB Ultimate; derailleur: SRAM Eagle 70 vs SRAM X0 Eagle AXS; claimed weight: 21.6 kg vs 21.8 kg; price: £6,000 vs £9,000.
