FanticRampage 1.4 Factory
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhTQ, removable; 160Wh range extender
- Travel F / R
- 140 / 140 mm
- Frame
- Carbon
- Weight
- 15.5 kgManufacturer figure
Overview
The Fantic Rampage 1.4 Factory (€9,490) is the top build of the Rampage 1.4: TQ HPR50 with 360 Wh, Suntour Axon34 140mm fork, Suntour Edge+ 190x45mm shock, Sram GX AXS Eagle. Claimed weight is 15.5 kg.
The Rampage 1.4 is Fantic's full-carbon down-country light e-MTB with 140 mm of rear travel and a 140 mm Suntour fork. It uses the TQ HPR50 motor (50 Nm, 1,850 g) with a 360 Wh removable battery and an optional 160 Wh range extender.
The 'Full Floater' rocker-link rear end was developed with FEM analysis and fatigue testing on Fantic's own benches, and a patented flip chip adjusts the chainstay for 2.2- or 2.4-inch tyres. Fantic quotes 15.5 kg for the Factory build.
- Full-carbon frame, 140/140 mm travel
- TQ HPR50, 50 Nm, 360 Wh
- 160 Wh range extender
- Patented flip chip for 2.2"/2.4" tyres

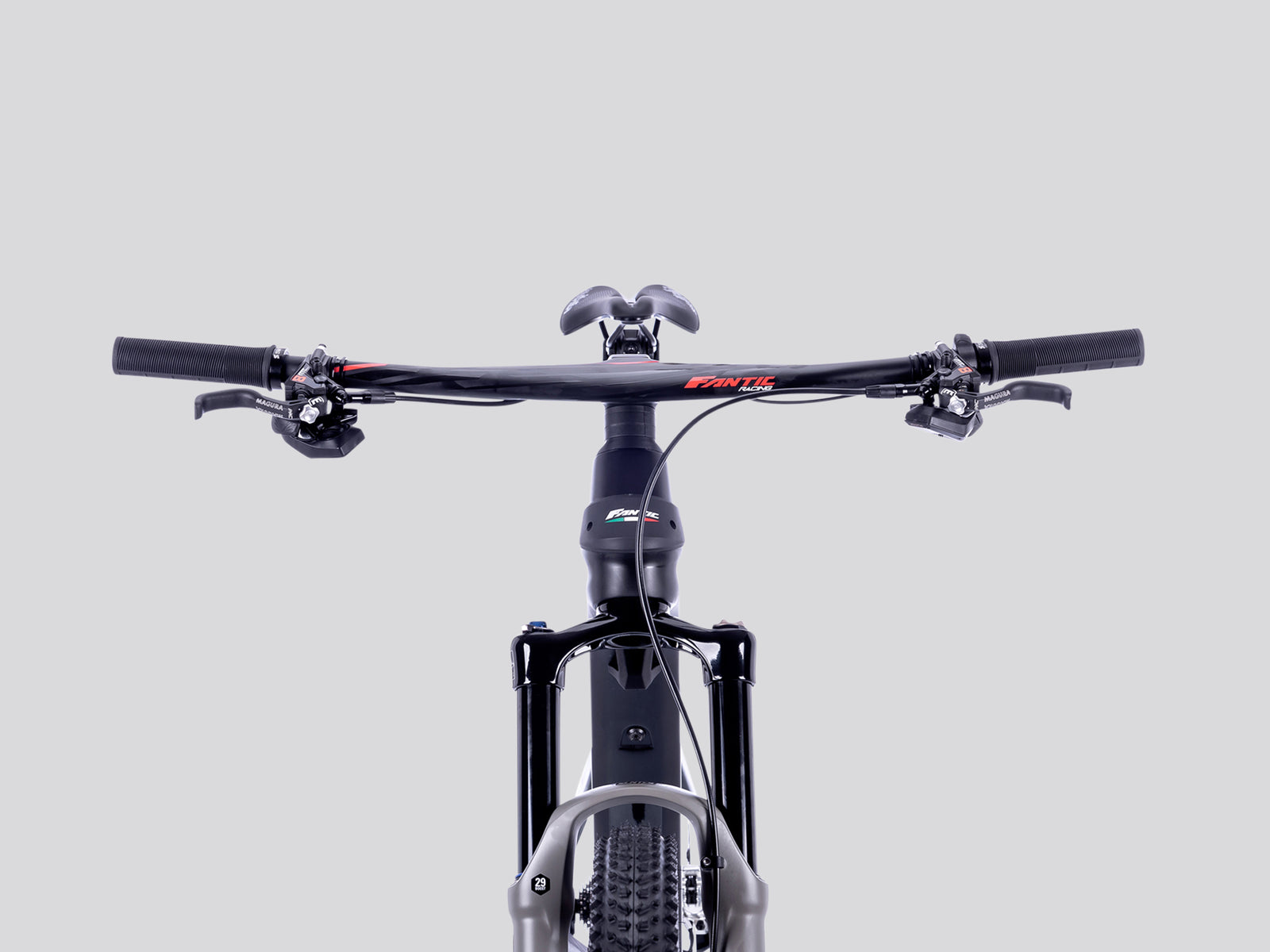

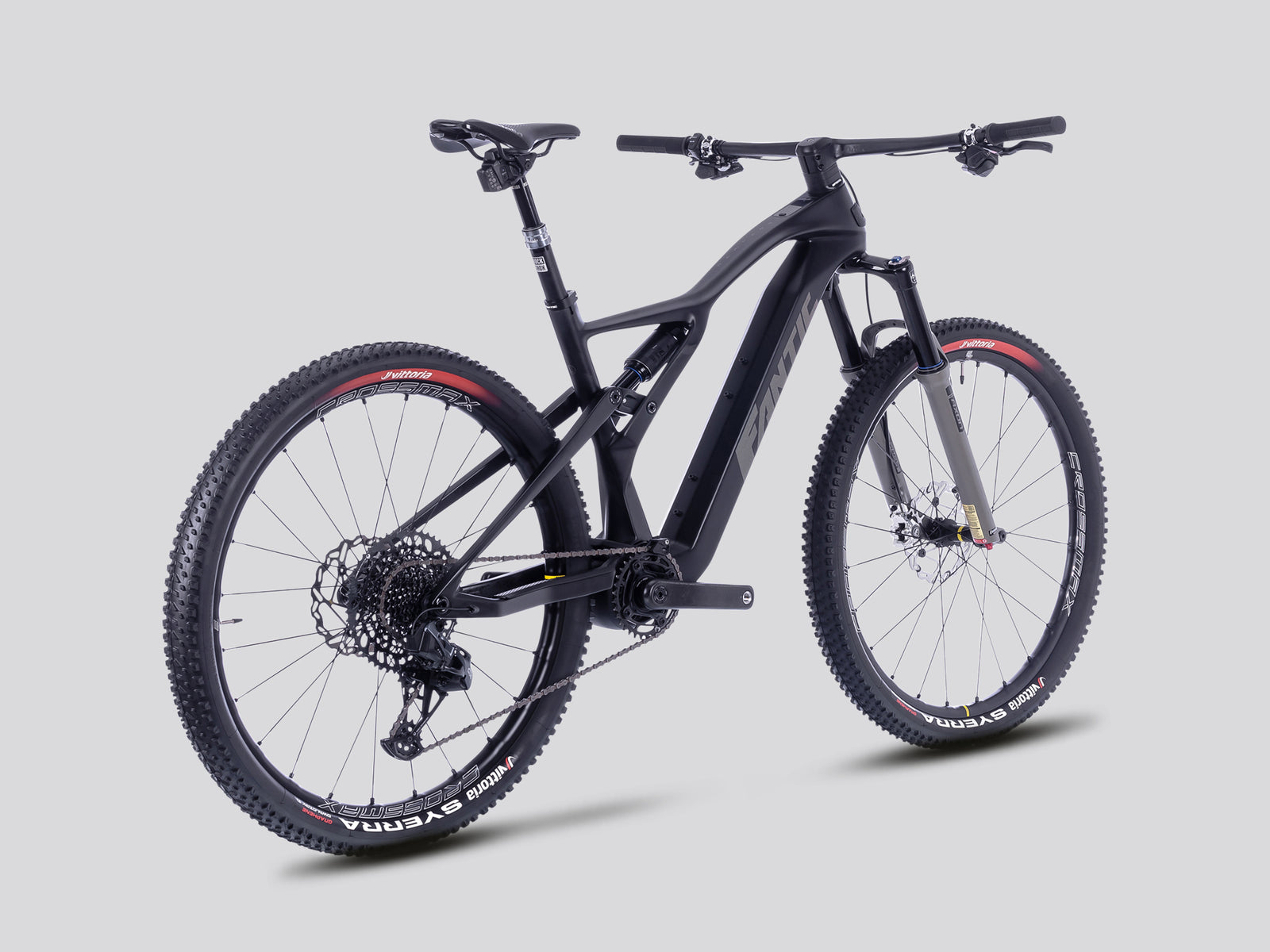

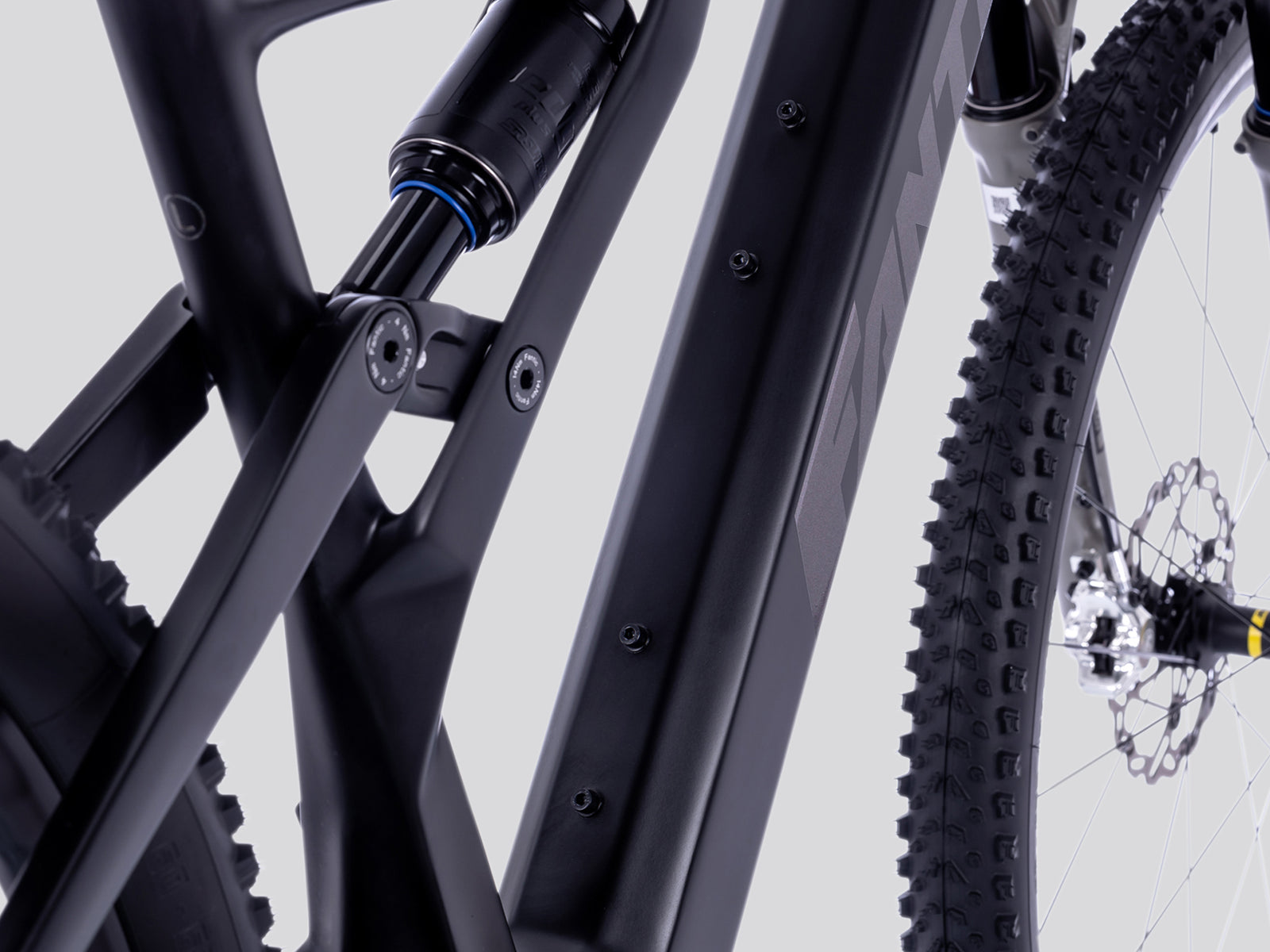

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Fantic Down Country Full Carbon, 140mm travel
- Rear shock
- Suntour Edge+ 190x45mm
- Fork
- Suntour Axon34 140mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- TQ 360Wh
- Range extender
- 160Wh
- Motor
- TQ HPR50 50Nm
- Display
- TQ HPR V01
- Remote
- TQ HPR MTB
Drivetrain
- Chainring
- Sram 34T Eagle technology X-Sync 2
- Crank arm
- FSA CK-8685-1 170mm (S/M) / 175mm (L/XL)
- Shifter
- Sram GX AXS Eagle
- Rear derailleur
- Sram GX AXS Eagle
- Chain
- Sram NX Eagle 12s
- Cassette
- Sram Eagle 12s Rainbow 10-52
Cockpit
- Handlebar
- Fantic Racing integrated Carbon Width 780mm Stem 70mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rampage 1.4 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| 2Seat Tube Angle | 75° | 75° | 75° | 75° |
| 3Reach | 423.5 mm | 442.5 mm | 463.0 mm | 483.0 mm |
| 4Stack | 605 mm | 612 mm | 627 mm | 640 mm |
| 5Top Tube Length | 585 mm | 607 mm | 633 mm | 658 mm |
| 6Head Tube Angle | 64.5° | 65° | 65° | 65.5° |
| 7Head Tube Length | 95 mm | 105 mm | 120 mm | 130 mm |
| 8Fork Length | 562 mm | 562 mm | 562 mm | 562 mm |
| 9Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| 10Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| 11Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
Source: Fantic. Implausible published values for Standover Height, Wheelbase omitted.
Rampage 1.4: builds compared
Rampage 1.4 range →| Rampage 1.4 Sport | Rampage 1.4 Race | Rampage 1.4 Factory | |
|---|---|---|---|
| Price | €5,490 | €6,690 | €9,490 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Suntour Raidon34 140mm | Suntour Axon34 140mm | Suntour Axon34 140mm |
| Shock | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm |
| Derailleur | Sram SX Eagle | Sram GX AXS Eagle | Sram GX AXS Eagle |
| Display | TQ HPR V01 | TQ HPR V01 | TQ HPR V01 |
| Weight | — | — | 15.5 kg |
Rampage 1.4 Factory: FAQ
How much does the Fantic Rampage 1.4 Factory cost?
€9,490 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Rampage 1.4 range runs from €5,490 (Rampage 1.4 Sport) to €9,490 (Rampage 1.4 Factory). Prices vary by country and dealer.
How much does the Fantic Rampage 1.4 Factory weigh?
Fantic quotes 15.5 kg. It is the lightest build of the Rampage 1.4.
What motor and battery does the Fantic Rampage 1.4 Factory have?
TQ HPR50 (50 Nm). 360 Wh battery — tQ, removable; 160Wh range extender.
How much suspension travel does the Fantic Rampage 1.4 Factory have?
140 mm at the fork and 140 mm at the rear.
What sizes does the Fantic Rampage 1.4 Factory come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rampage 1.4 Factory and the Rampage 1.4 Race?
They share the Rampage 1.4 frame platform and motor; the differences are in the parts — price: €9,490 vs €6,690.
