FanticRampage 1.2 Race
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhTQ, removable; 180Wh range extender
- Travel F / R
- 120 / 120 mm
- Frame
- Carbon
Overview
The Fantic Rampage 1.2 Race (€8,290) is the only build of the Rampage 1.2: TQ HPR50 with 360 Wh, Rockshox Sid with remote 120mm fork, RockShox SidLuxe Select+ 190x37,5mm with remote shock, Sram GX AXS Eagle.
The Rampage 1.2 is Fantic's full-carbon cross-country light e-MTB with 120 mm of travel front and rear, and remote lockouts on both fork and shock. It uses the TQ HPR50 motor (50 Nm, 1,850 g) with a removable 360 Wh battery integrated in the frame.
Like the Rampage 1.4 it has a 'Full Floater' rocker-link rear end and Fantic's patented flip chip for two rear-end geometries. Fantic quotes 15.5 kg for the Rampage 1.2 Factory.
- Full-carbon XC frame, 120/120 mm
- TQ HPR50, 50 Nm, 360 Wh
- Remote lockout fork and shock
- Patented flip chip

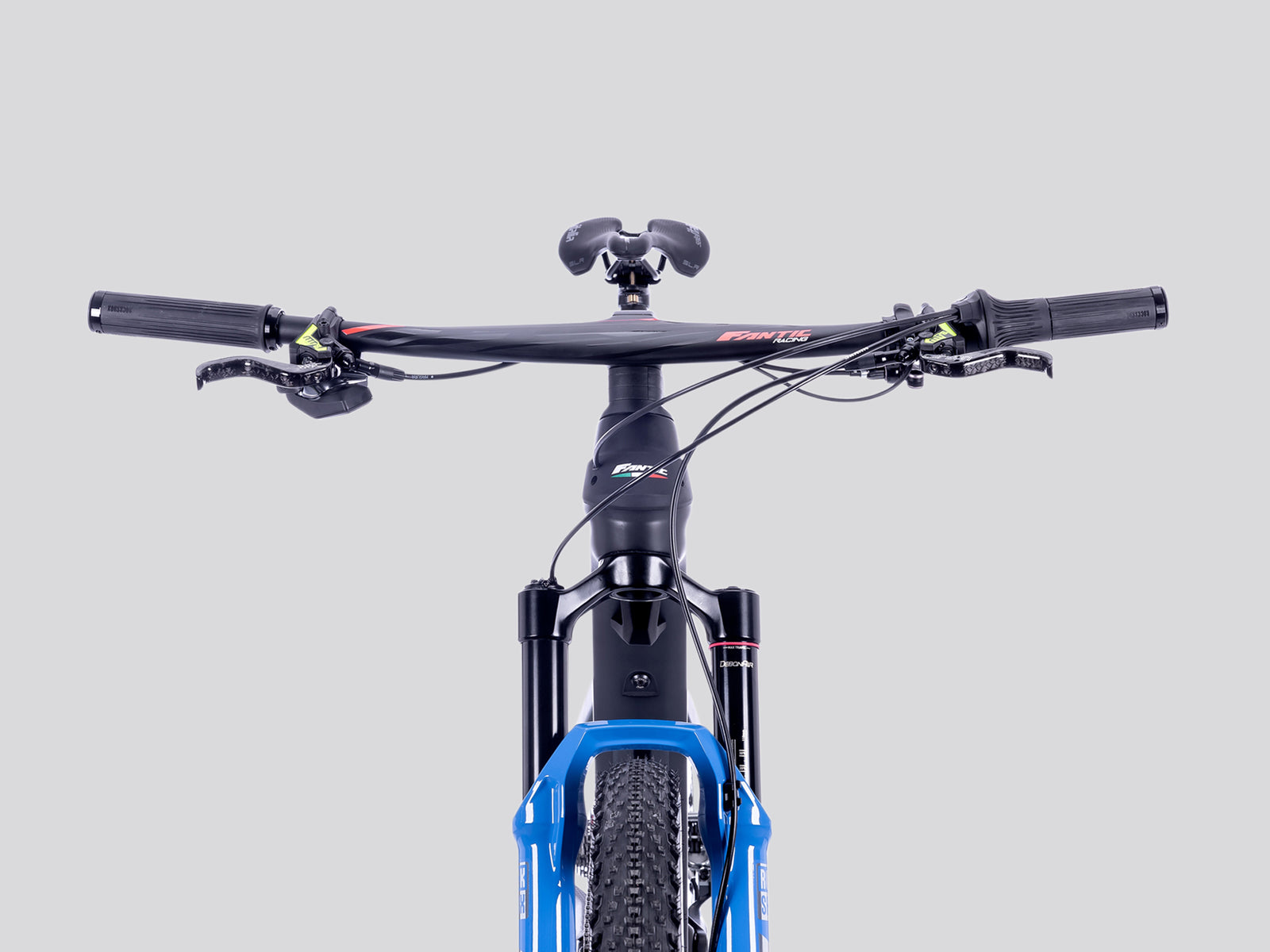

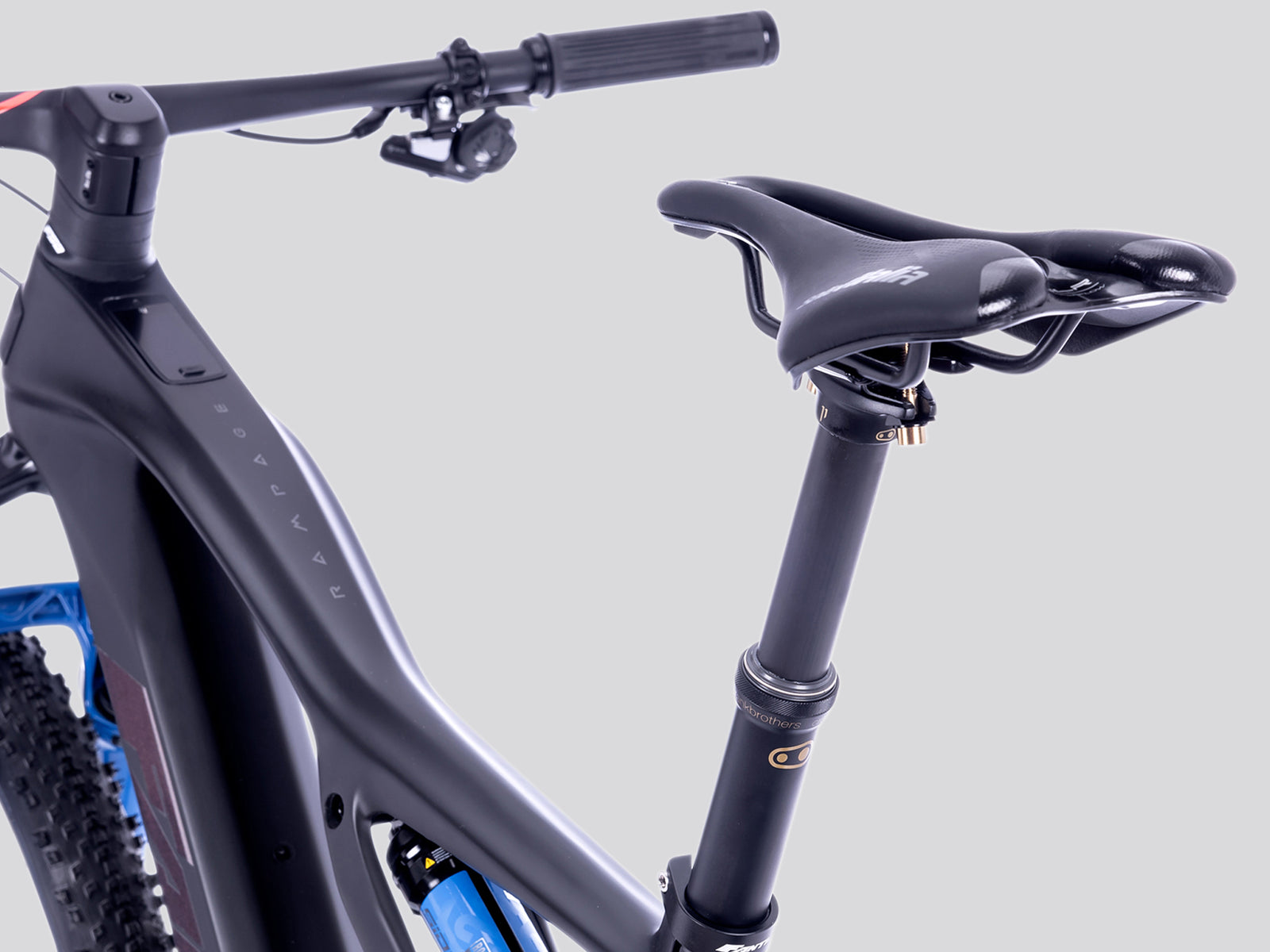

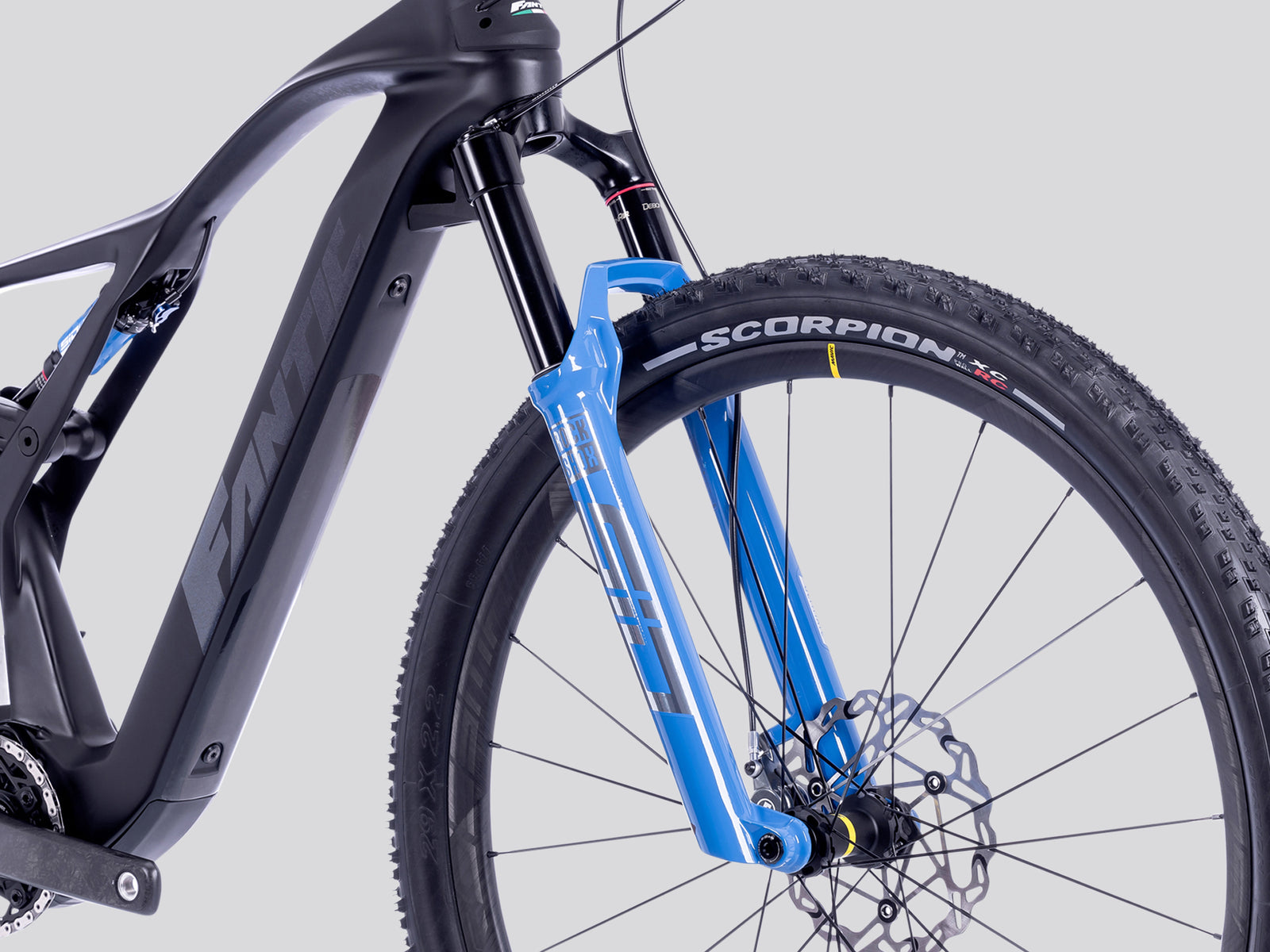

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Fantic Cross Country Full carbon, 120mm travel
- Rear shock
- RockShox SidLuxe Select+ 190x37,5mm with remote
- Fork
- Rockshox Sid with remote 120mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- TQ 360Wh
- Range extender
- 180Wh
- Motor
- TQ HPR50 50Nm
- Display
- TQ HPR V01
- Remote
- TQ HPR MTB
Drivetrain
- Chainring
- Sram 34T Eagle T type
- Crankset
- FSA CK-8685-1
- Shifter
- Sram GX AXS Eagle
- Rear derailleur
- Sram GX AXS Eagle
- Chain
- Sram NX Eagle 12s
- Cassette
- Sram Eagle 12s Rainbow 10-50
Cockpit
- Handlebar
- Fantic Racing integrated Carbon Width 780mm Stem 70mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rampage 1.2 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| 2Seat Tube Angle | 74° | 74° | 74° | 74° |
| 3Reach | 423.5 mm | 442.5 mm | 463.0 mm | 483.0 mm |
| 4Stack | 605 mm | 612 mm | 627 mm | 640 mm |
| 5Top Tube Length | 585 mm | 607 mm | 633 mm | 658 mm |
| 6Head Tube Angle | 66° | 66.50° | 66.50° | 67° |
| 7Head Tube Length | 95 mm | 105 mm | 120 mm | 130 mm |
| 8Fork Length | 531 mm | 531 mm | 531 mm | 531 mm |
| 9Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| 10Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| 11Standover Height | 775 mm | 780 mm | 785 mm | 790 mm |
| 12Wheelbase | 1144 mm | 1160 mm | 1187 mm | 1206 mm |
| 13Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
Source: Fantic.
Rampage 1.2 Race: FAQ
How much does the Fantic Rampage 1.2 Race cost?
€8,290 (RRP Italy/EU (fanticbikes.com), VAT incl.). Prices vary by country and dealer.
What motor and battery does the Fantic Rampage 1.2 Race have?
TQ HPR50 (50 Nm). 360 Wh battery — tQ, removable; 180Wh range extender.
How much suspension travel does the Fantic Rampage 1.2 Race have?
120 mm at the fork and 120 mm at the rear.
What sizes does the Fantic Rampage 1.2 Race come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
