FanticRidge All Mountain Sport
- Motor
- Bosch Performance Line CX Gen 5120 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 170 / – mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Fantic Ridge All Mountain Sport (€5,490) is the entry build of the Ridge All Mountain: Bosch Performance Line CX Gen 5 with 800 Wh, RockShox ZEB 38 170mm fork, RockShox Deluxe Select+ 205X60 tr shock, Sram Eagle 70 T-Type 12V and Sram DB6 brakes.
The Ridge All Mountain is the longer-travel MY26 alloy platform from Fantic, with a RockShox ZEB Select 170 mm fork, a 205x60 mm RockShox Super Deluxe shock and mixed wheels (29-inch front, 27.5-inch rear).

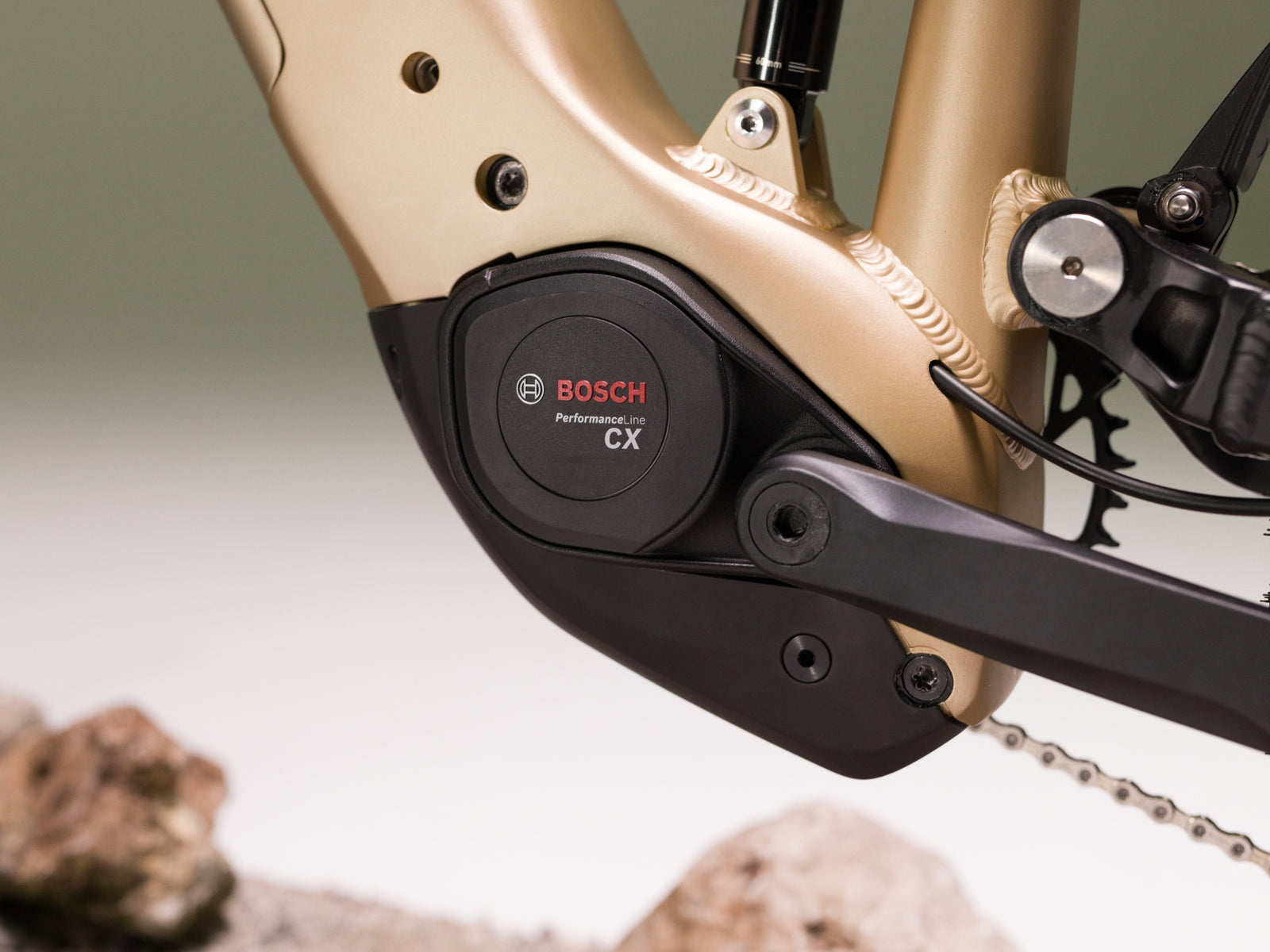

Power comes from the Bosch Performance Line CX Gen 5 motor (120 Nm) with an 800 Wh PowerTube battery that is removed with a keyed ABUS lock. The 'Full Floater' rocker-link rear end and reinforced 'Cobra' head-tube area are shared with the Ridge Trail.
- 170 mm ZEB fork, Super Deluxe shock
- Mullet 29"/27.5" wheels
- Bosch CX Gen 5, 120 Nm, 800 Wh
- ABUS keyed battery removal

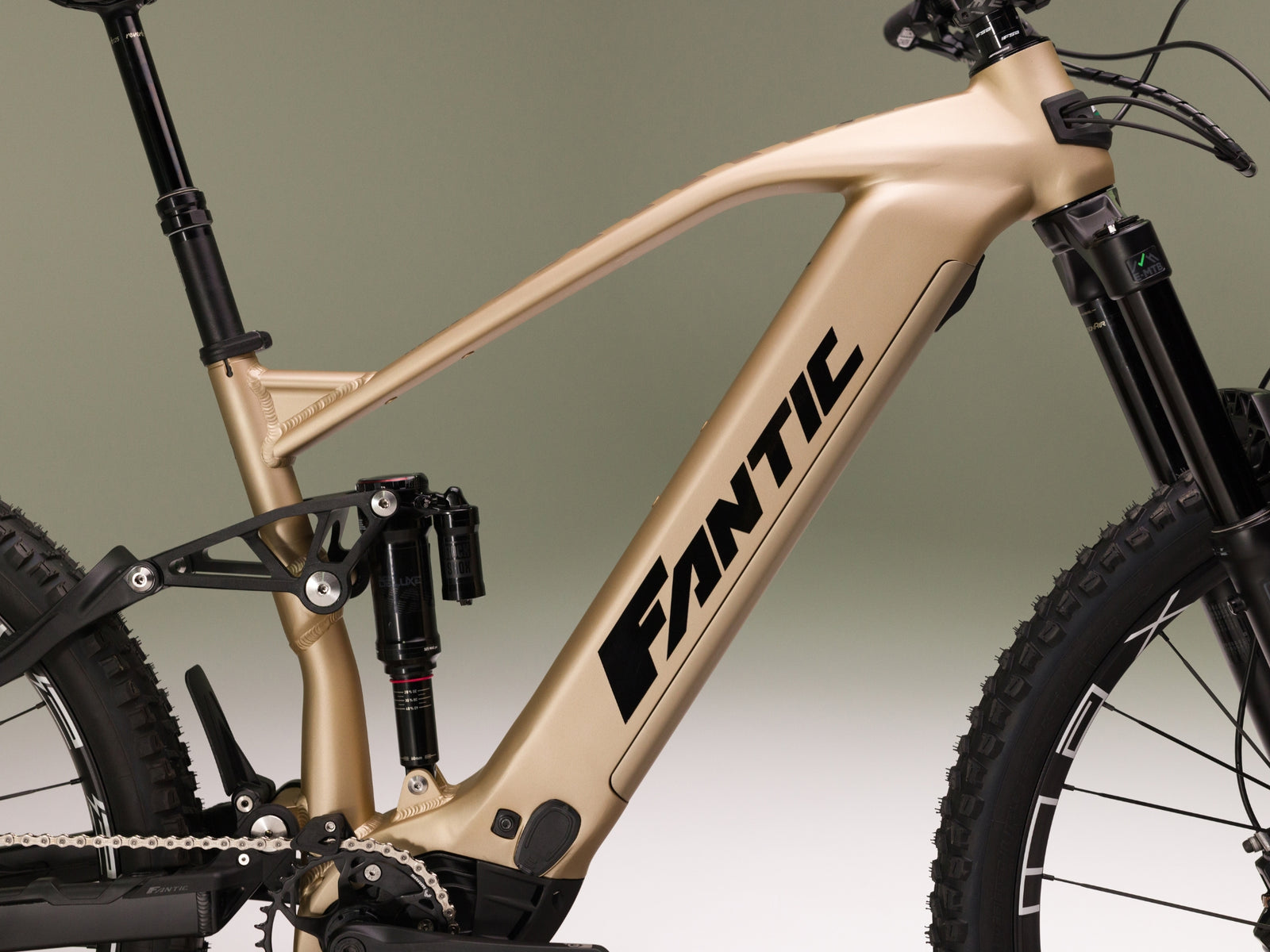

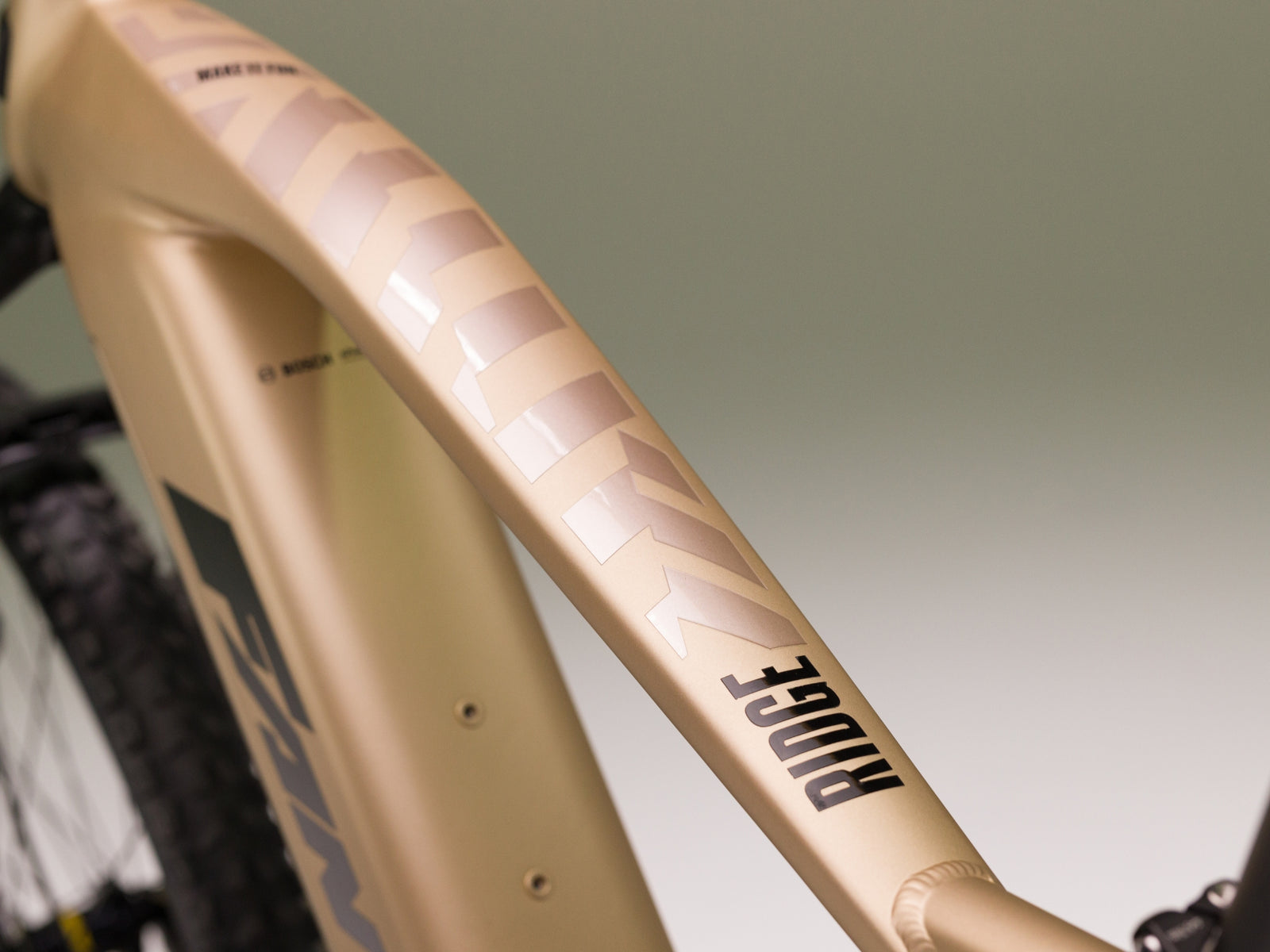

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Tube thickness and weight optimized to ensure maximum durability and control.
- Rear shock
- RockShox Deluxe Select+ 205X60 tr
- Fork
- RockShox ZEB 38 170mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- Bosch PowerTube 800Wh
- Motor
- Bosch Performance Line CX Gen 5
- Remote
- Display Purion 200
Drivetrain
- Crankset
- Sram 34t T-Type
- Crank arm
- FSA CK 762 WIDER 165mm
- Shifter
- Sram Eagle 70 12V SINGLE CLICK MMX
- Rear derailleur
- Sram Eagle 70 T-Type 12V
- Chain
- Sram Eagle 70 12V T-Type 12V
- Cassette
- Sram Eagle 70/90 T-Type 12V 10-52T
Brakes
- Brakes
- Sram DB6
- Brake rotors
- Sram CLEANSWEEP 220/200mm
Wheels & tyres
- Wheelset
- Fantic Racing Alu
- Tyres
- Vittoria e-Martello 29x2,35/27,5x2,6
Cockpit
- Handlebar
- FSA Comet 800mm-Ø35 Rise 15
- Stem
- ZOOM 35mm-Ø35
Other
- Seatpost
- Telescopic Crankbrothers
- Saddle
- Selle Italia Model-X Comfort Superflow
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ridge All Mountain geometry
| Size | S | M | L |
|---|---|---|---|
| 1Seat Tube Length | 390 mm | 430 mm | 470 mm |
| 2Seat Tube Angle | 74.5° | 74.5° | 74.5° |
| 3Reach | 417.5 mm | 449 mm | 475 mm |
| 4Stack | 626 mm | 626 mm | 637.5 mm |
| 5Top Tube Length | 586.5 mm | 618 mm | 649 mm |
| 6Head Tube Angle | 64.5° | 64.5° | 64.5° |
| 7Head Tube Length | 110 mm | 110 mm | 120 mm |
| 8Fork Length | 592 mm | 592 mm | 592 mm |
| 9Bottom Bracket Drop | 8.7 mm | 8.7 mm | 8.7 mm |
| 10Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| 11Standover Height | 793 mm | 806 mm | 809 mm |
| 12Wheelbase | 1226 mm | 1263 mm | 1291 mm |
| 13Chainstay Length | 472 mm | 472 mm | 472 mm |
Source: Fantic.
Ridge All Mountain: builds compared
Ridge All Mountain range →| Ridge All Mountain Sport | Ridge All Mountain Race | |
|---|---|---|
| Price | €5,490 | €7,190 |
| Frame | Alloy | Alloy |
| Fork | RockShox ZEB 38 170mm | RockShox Zeb Select 170mm |
| Shock | RockShox Deluxe Select+ 205X60 tr | RockShox Super Deluxe RC3 205X60 tr |
| Derailleur | Sram Eagle 70 T-Type 12V | Sram GX AXS 12V |
| Brakes | Sram DB6 | Sram Code R |
Ridge All Mountain Sport: FAQ
How much does the Fantic Ridge All Mountain Sport cost?
€5,490 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Ridge All Mountain range runs from €5,490 (Ridge All Mountain Sport) to €7,190 (Ridge All Mountain Race). Prices vary by country and dealer.
What motor and battery does the Fantic Ridge All Mountain Sport have?
Bosch Performance Line CX Gen 5 (120 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Fantic Ridge All Mountain Sport have?
170 mm at the fork, on mullet 29" / 27.5" wheels.
What sizes does the Fantic Ridge All Mountain Sport come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ridge All Mountain Sport and the Ridge All Mountain Race?
They share the Ridge All Mountain frame platform and motor; the differences are in the parts — fork: RockShox ZEB 38 170mm vs RockShox Zeb Select 170mm; shock: RockShox Deluxe Select+ 205X60 tr vs RockShox Super Deluxe RC3 205X60 tr; derailleur: Sram Eagle 70 T-Type 12V vs Sram GX AXS 12V; price: €5,490 vs €7,190.
