FanticRidge All Mountain Race
- Motor
- Bosch Performance Line CX Gen 5120 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 170 / – mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview
The Fantic Ridge All Mountain Race (€7,190) is the top build of the Ridge All Mountain: Bosch Performance Line CX Gen 5 with 800 Wh, RockShox Zeb Select 170mm fork, RockShox Super Deluxe RC3 205X60 tr shock, Sram GX AXS 12V and Sram Code R brakes.
The Ridge All Mountain is the longer-travel MY26 alloy platform from Fantic, with a RockShox ZEB Select 170 mm fork, a 205x60 mm RockShox Super Deluxe shock and mixed wheels (29-inch front, 27.5-inch rear).

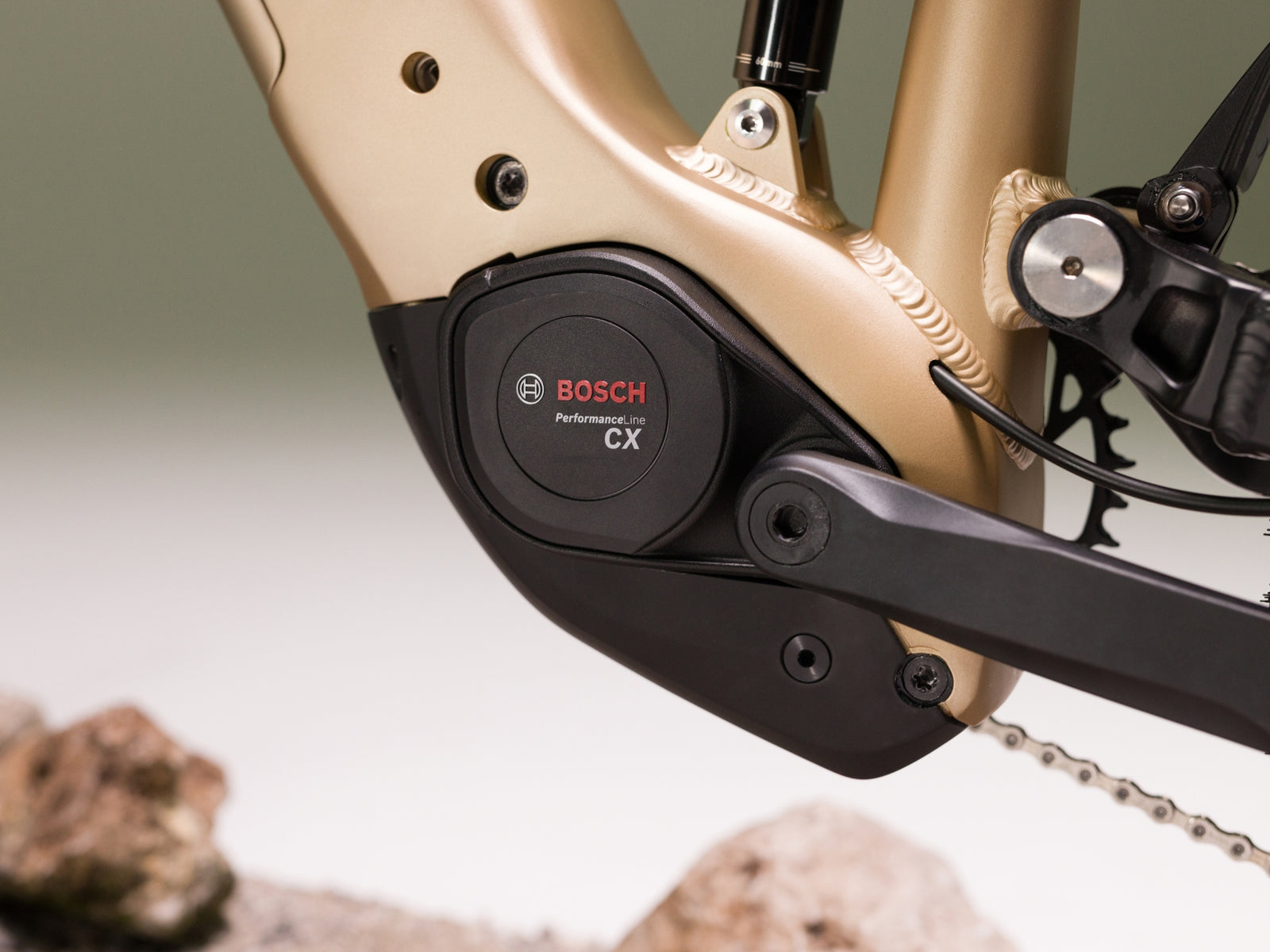

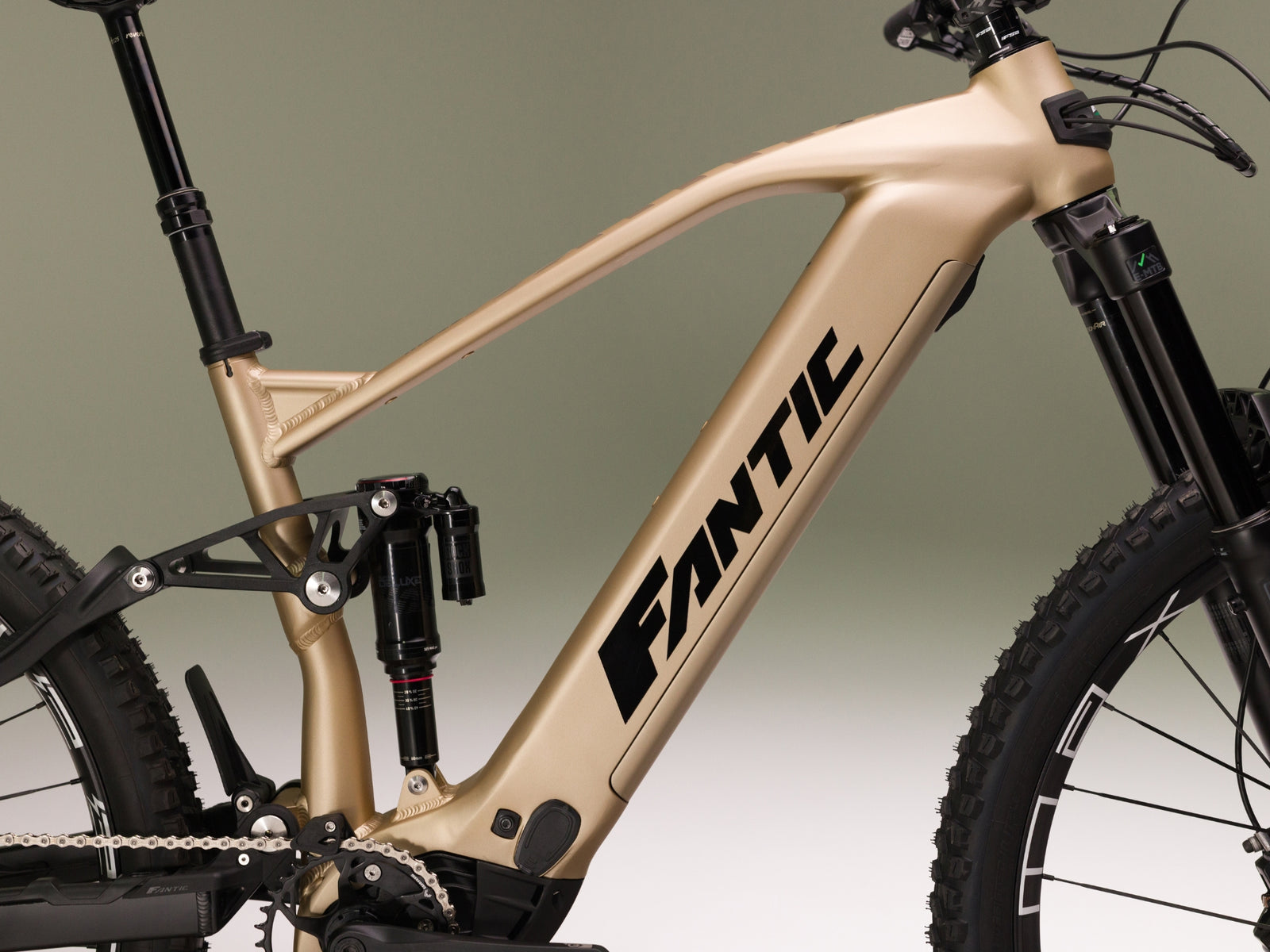

Power comes from the Bosch Performance Line CX Gen 5 motor (120 Nm) with an 800 Wh PowerTube battery that is removed with a keyed ABUS lock. The 'Full Floater' rocker-link rear end and reinforced 'Cobra' head-tube area are shared with the Ridge Trail.
- 170 mm ZEB fork, Super Deluxe shock
- Mullet 29"/27.5" wheels
- Bosch CX Gen 5, 120 Nm, 800 Wh
- ABUS keyed battery removal
Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Tube thickness and weight optimized to ensure maximum durability and control.
- Rear shock
- RockShox Super Deluxe RC3 205X60 tr
- Fork
- RockShox Zeb Select 170mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- Bosch PowerTube 800Wh
- Motor
- Bosch Performance Line CX Gen 5
- Remote
- Display Purion 200
Drivetrain
- Crankset
- Sram 34t X-Sync 2
- Crank arm
- FSA CK 762 WIDER 165mm
- Shifter
- Sram POD AXS 12V
- Rear derailleur
- Sram GX AXS 12V
- Chain
- Sunrace 12v
- Cassette
- Sunrace 12v 11-51T
Brakes
- Brakes
- Sram Code R
- Brake rotors
- Sram CLEANSWEEP 220/200mm
Wheels & tyres
- Wheelset
- Mavic E-Deemax
- Tyres
- Vittoria Goma 29x2,4 / Morsa 27,5x2,6
Cockpit
- Handlebar
- FSA GRADIENT 800mm-35 RISE25
- Stem
- FSA COMET 35mm-Ø35
Other
- Seatpost
- Telescopic RockShox Reverb
- Saddle
- Selle Italia X-Bow Superflow
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ridge All Mountain geometry
| Size | S | M | L |
|---|---|---|---|
| 1Seat Tube Length | 390 mm | 430 mm | 470 mm |
| 2Seat Tube Angle | 74.5° | 74.5° | 74.5° |
| 3Reach | 417.5 mm | 449 mm | 475 mm |
| 4Stack | 626 mm | 626 mm | 637.5 mm |
| 5Top Tube Length | 586.5 mm | 618 mm | 649 mm |
| 6Head Tube Angle | 64.5° | 64.5° | 64.5° |
| 7Head Tube Length | 110 mm | 110 mm | 120 mm |
| 8Fork Length | 592 mm | 592 mm | 592 mm |
| 9Bottom Bracket Drop | 8.7 mm | 8.7 mm | 8.7 mm |
| 10Bottom Bracket Height | 367 mm | 367 mm | 367 mm |
| 11Standover Height | 793 mm | 806 mm | 809 mm |
| 12Wheelbase | 1226 mm | 1263 mm | 1291 mm |
| 13Chainstay Length | 472 mm | 472 mm | 472 mm |
Source: Fantic.
Ridge All Mountain: builds compared
Ridge All Mountain range →| Ridge All Mountain Sport | Ridge All Mountain Race | |
|---|---|---|
| Price | €5,490 | €7,190 |
| Frame | Alloy | Alloy |
| Fork | RockShox ZEB 38 170mm | RockShox Zeb Select 170mm |
| Shock | RockShox Deluxe Select+ 205X60 tr | RockShox Super Deluxe RC3 205X60 tr |
| Derailleur | Sram Eagle 70 T-Type 12V | Sram GX AXS 12V |
| Brakes | Sram DB6 | Sram Code R |
Ridge All Mountain Race: FAQ
How much does the Fantic Ridge All Mountain Race cost?
€7,190 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Ridge All Mountain range runs from €5,490 (Ridge All Mountain Sport) to €7,190 (Ridge All Mountain Race). Prices vary by country and dealer.
What motor and battery does the Fantic Ridge All Mountain Race have?
Bosch Performance Line CX Gen 5 (120 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Fantic Ridge All Mountain Race have?
170 mm at the fork, on mullet 29" / 27.5" wheels.
What sizes does the Fantic Ridge All Mountain Race come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ridge All Mountain Race and the Ridge All Mountain Sport?
They share the Ridge All Mountain frame platform and motor; the differences are in the parts — fork: RockShox Zeb Select 170mm vs RockShox ZEB 38 170mm; shock: RockShox Super Deluxe RC3 205X60 tr vs RockShox Deluxe Select+ 205X60 tr; derailleur: Sram GX AXS 12V vs Sram Eagle 70 T-Type 12V; price: €7,190 vs €5,490.
