FanticRampage 1.4 Sport
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhTQ, removable; 160Wh range extender
- Travel F / R
- 140 / 140 mm
- Frame
- Carbon
Overview
The Fantic Rampage 1.4 Sport (€5,490) is the entry build of the Rampage 1.4: TQ HPR50 with 360 Wh, Suntour Raidon34 140mm fork, Suntour Edge+ 190x45mm shock, Sram SX Eagle.
The Rampage 1.4 is Fantic's full-carbon down-country light e-MTB with 140 mm of rear travel and a 140 mm Suntour fork. It uses the TQ HPR50 motor (50 Nm, 1,850 g) with a 360 Wh removable battery and an optional 160 Wh range extender.
The 'Full Floater' rocker-link rear end was developed with FEM analysis and fatigue testing on Fantic's own benches, and a patented flip chip adjusts the chainstay for 2.2- or 2.4-inch tyres. Fantic quotes 15.5 kg for the Factory build.
- Full-carbon frame, 140/140 mm travel
- TQ HPR50, 50 Nm, 360 Wh
- 160 Wh range extender
- Patented flip chip for 2.2"/2.4" tyres

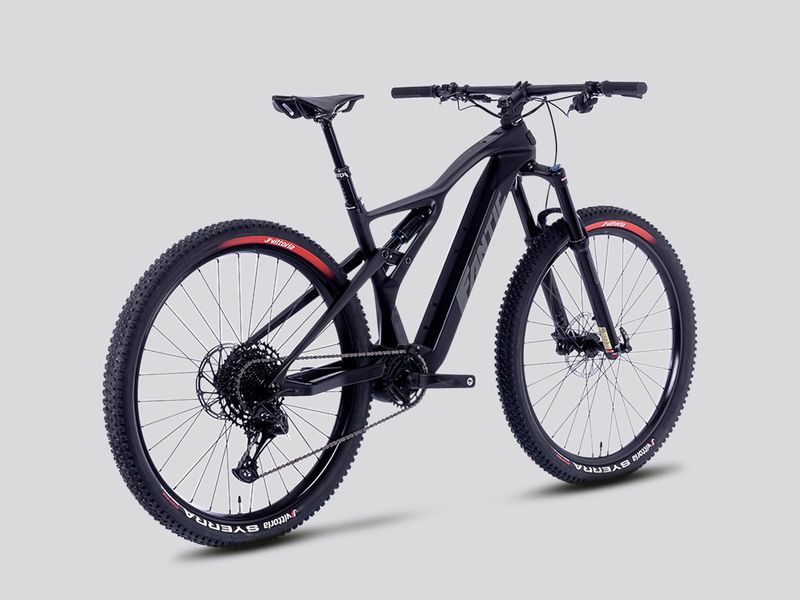

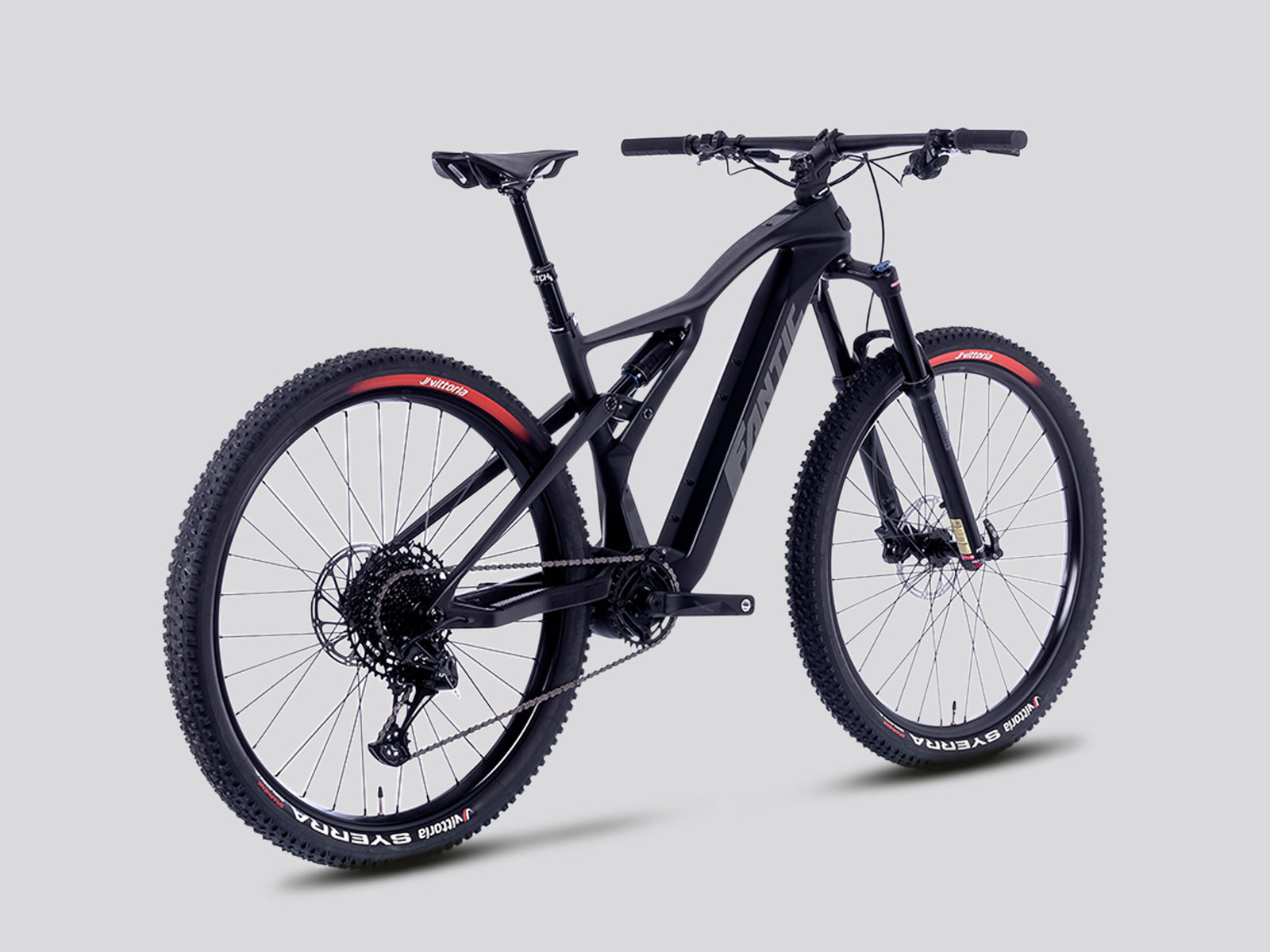

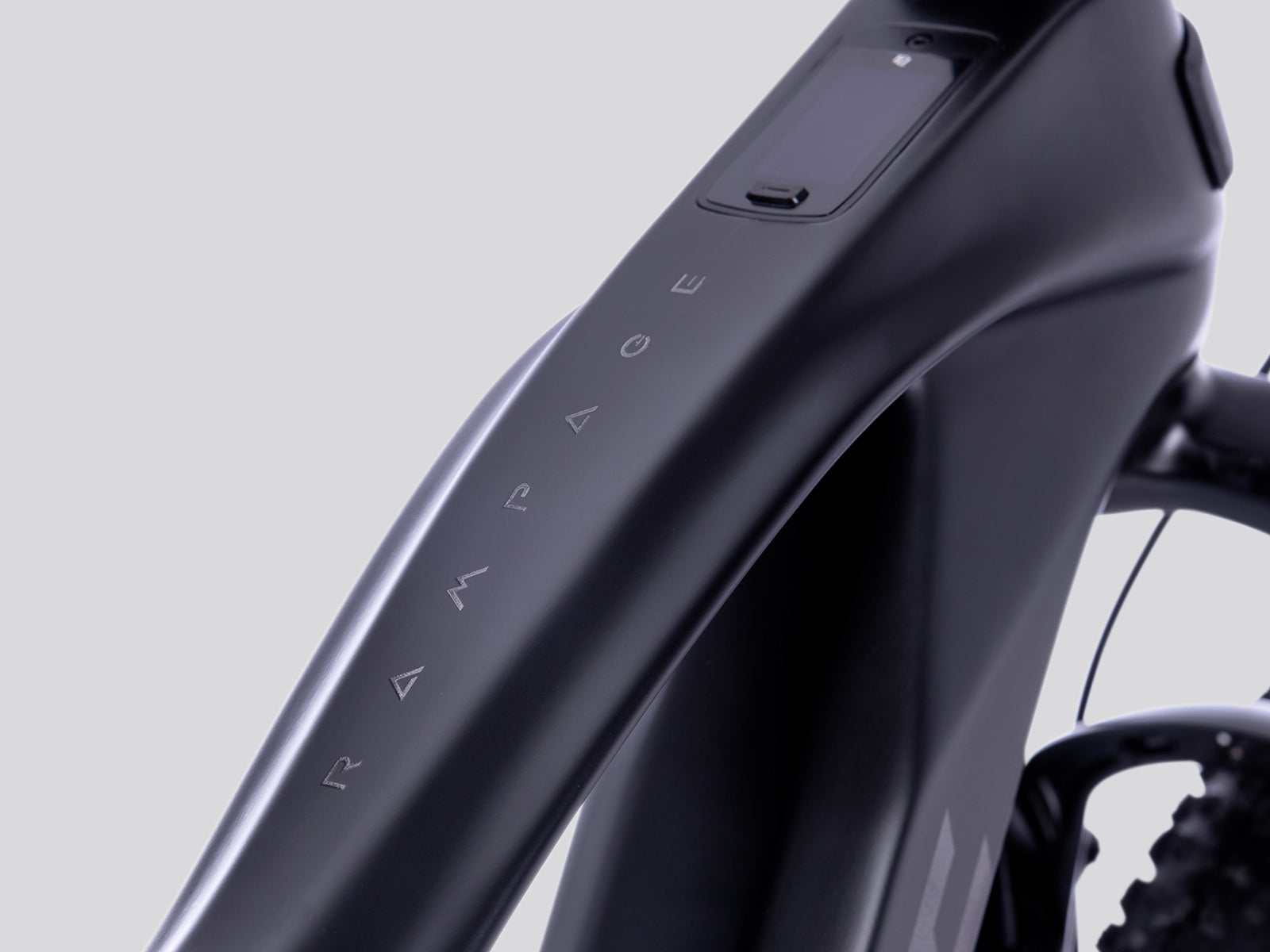

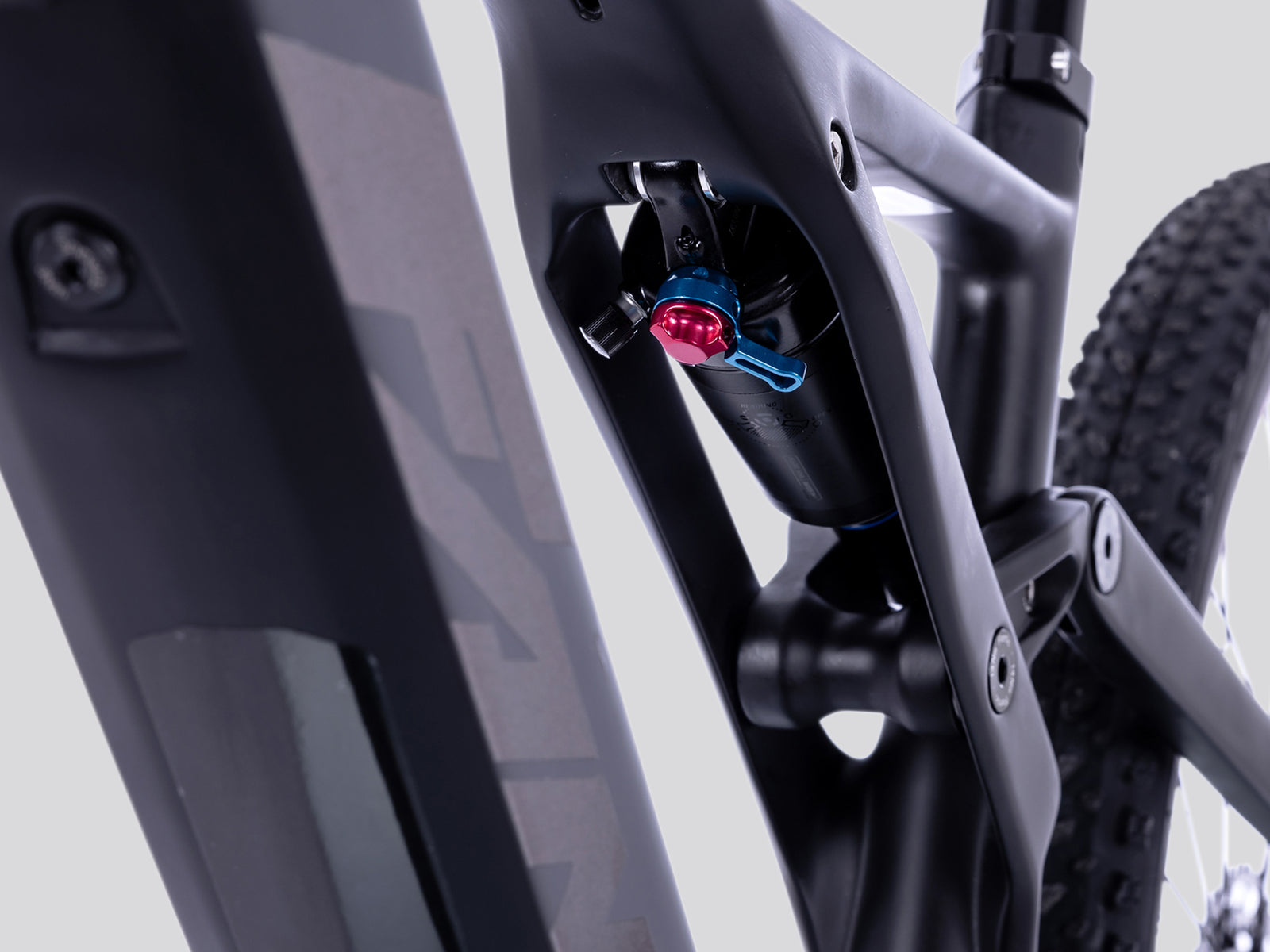

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Fantic Down Country Full Carbon, 140mm travel
- Rear shock
- Suntour Edge+ 190x45mm
- Fork
- Suntour Raidon34 140mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- TQ 360Wh
- Range extender
- 160Wh
- Motor
- TQ HPR50 50Nm
- Display
- TQ HPR V01
- Remote
- TQ HPR MTB
Drivetrain
- Chainring
- Sram 34T Eagle technology X-Sync 2
- Crank arm
- FSA CK-8685-1 170mm (S/M) / 175mm (L/XL)
- Shifter
- Sram SX Eagle
- Rear derailleur
- Sram SX Eagle
- Chain
- Sram SX Eagle 12s
- Cassette
- Sram SX 11-51T 12s
Cockpit
- Handlebar
- Width 760mmø31.8
- Stem
- Length 70mm +/-8°
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rampage 1.4 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| 2Seat Tube Angle | 75° | 75° | 75° | 75° |
| 3Reach | 423.5 mm | 442.5 mm | 463.0 mm | 483.0 mm |
| 4Stack | 605 mm | 612 mm | 627 mm | 640 mm |
| 5Top Tube Length | 585 mm | 607 mm | 633 mm | 658 mm |
| 6Head Tube Angle | 64.5° | 65° | 65° | 65.5° |
| 7Head Tube Length | 95 mm | 105 mm | 120 mm | 130 mm |
| 8Fork Length | 562 mm | 562 mm | 562 mm | 562 mm |
| 9Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| 10Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| 11Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
Source: Fantic. Implausible published values for Standover Height, Wheelbase omitted.
Rampage 1.4: builds compared
Rampage 1.4 range →| Rampage 1.4 Sport | Rampage 1.4 Race | Rampage 1.4 Factory | |
|---|---|---|---|
| Price | €5,490 | €6,690 | €9,490 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Suntour Raidon34 140mm | Suntour Axon34 140mm | Suntour Axon34 140mm |
| Shock | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm |
| Derailleur | Sram SX Eagle | Sram GX AXS Eagle | Sram GX AXS Eagle |
| Display | TQ HPR V01 | TQ HPR V01 | TQ HPR V01 |
| Weight | — | — | 15.5 kg |
Rampage 1.4 Sport: FAQ
How much does the Fantic Rampage 1.4 Sport cost?
€5,490 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Rampage 1.4 range runs from €5,490 (Rampage 1.4 Sport) to €9,490 (Rampage 1.4 Factory). Prices vary by country and dealer.
What motor and battery does the Fantic Rampage 1.4 Sport have?
TQ HPR50 (50 Nm). 360 Wh battery — tQ, removable; 160Wh range extender.
How much suspension travel does the Fantic Rampage 1.4 Sport have?
140 mm at the fork and 140 mm at the rear.
What sizes does the Fantic Rampage 1.4 Sport come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rampage 1.4 Sport and the Rampage 1.4 Race?
They share the Rampage 1.4 frame platform and motor; the differences are in the parts — fork: Suntour Raidon34 140mm vs Suntour Axon34 140mm; derailleur: Sram SX Eagle vs Sram GX AXS Eagle; price: €5,490 vs €6,690.
