Lightweight eMTBDown-country
Rampage 1.4 range · 3 buildsFanticRampage 1.4 Race
€6,690RRP Italy/EU (fanticbikes.com), VAT incl.
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhTQ, removable; 160Wh range extender
- Travel F / R
- 140 / 140 mm
- Frame
- Carbon
Watching this bike? Get new models and updates on Telegram →
Overview
€6,690 moves to a Suntour Axon fork and SRAM GX AXS wireless shifting on the TQ-powered Rampage 1.4.
The Rampage 1.4 Race is one of 3 builds of the Fantic Rampage 1.4. About the Rampage 1.4 range and all its builds →

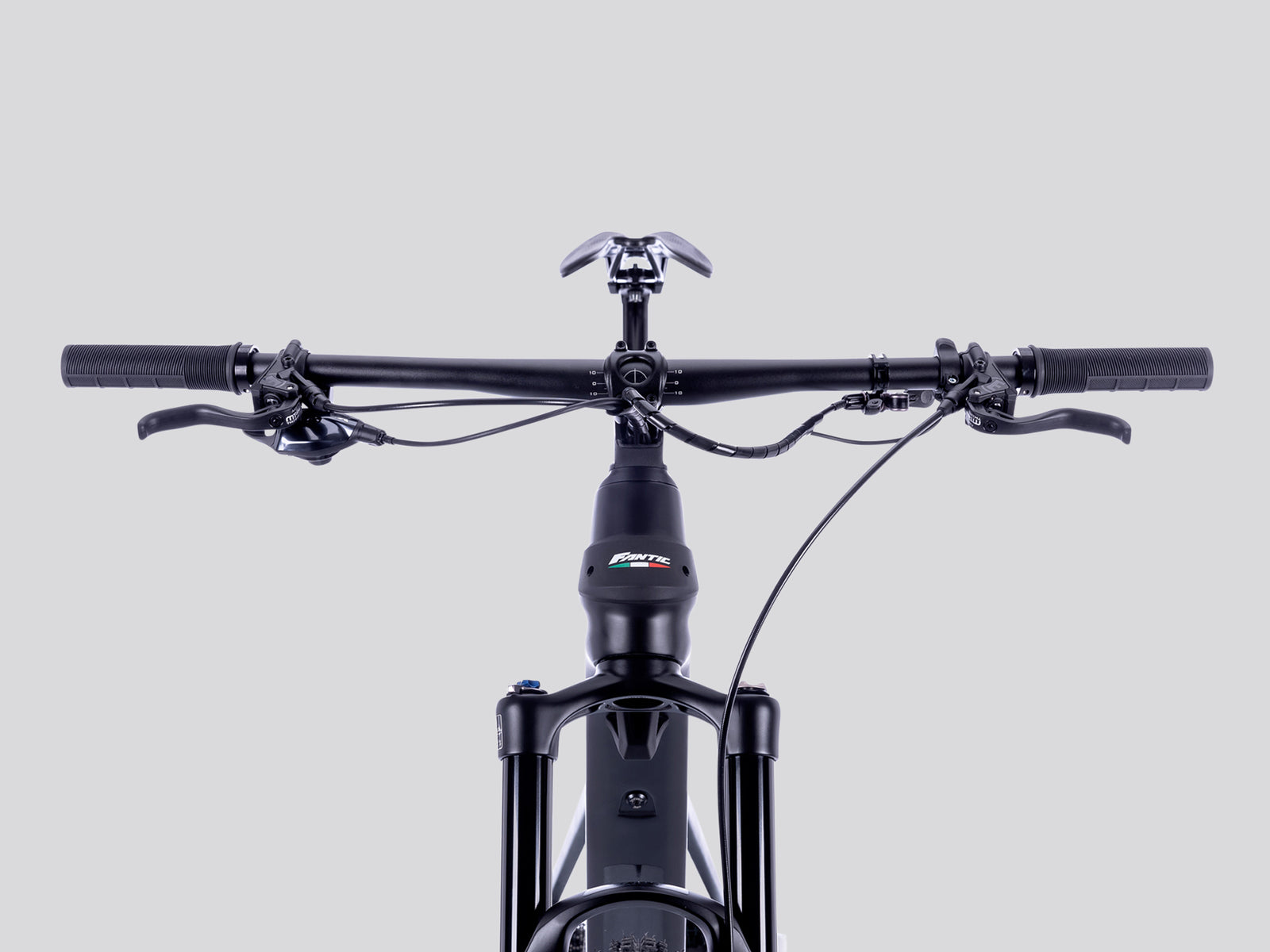

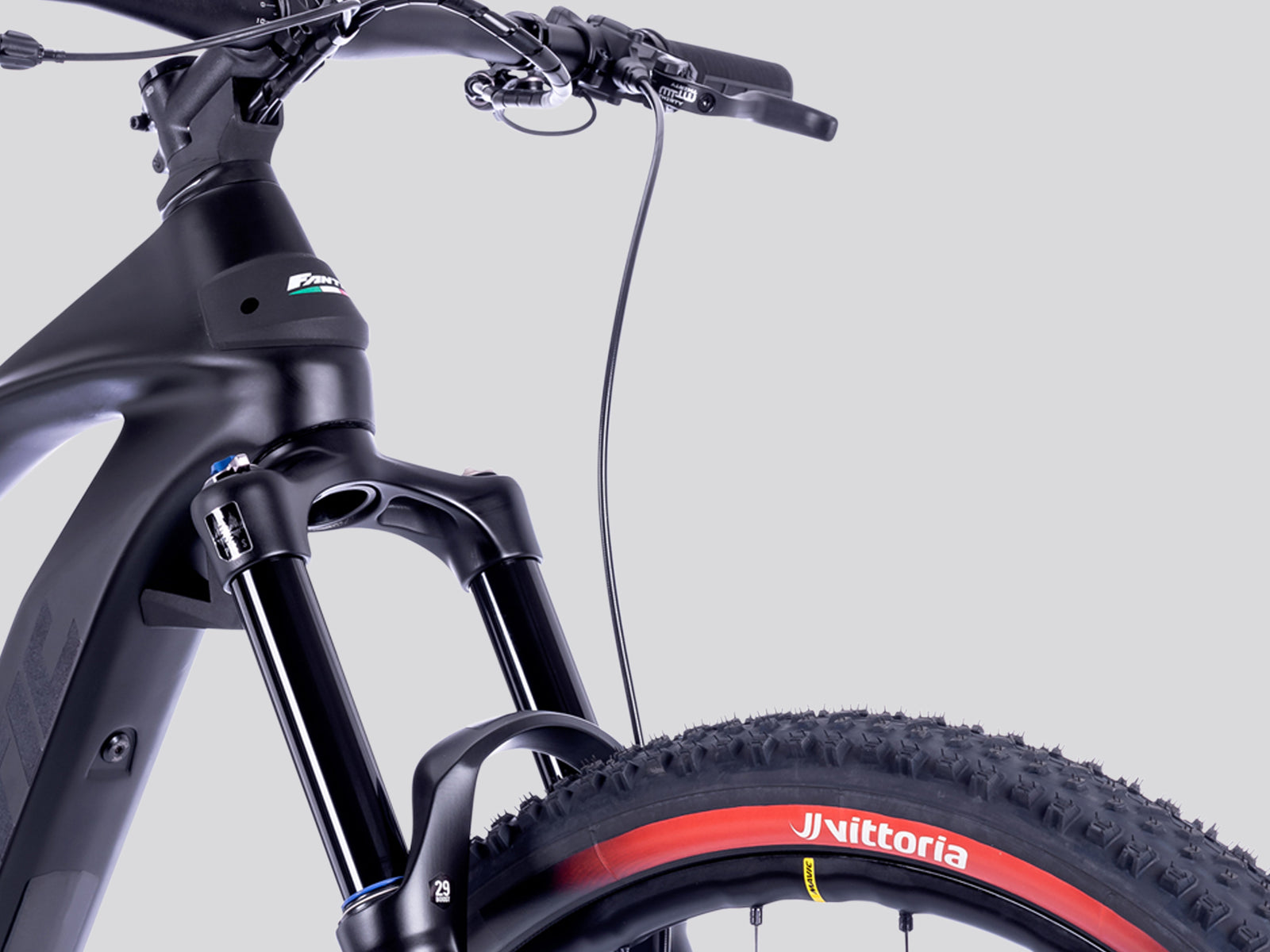

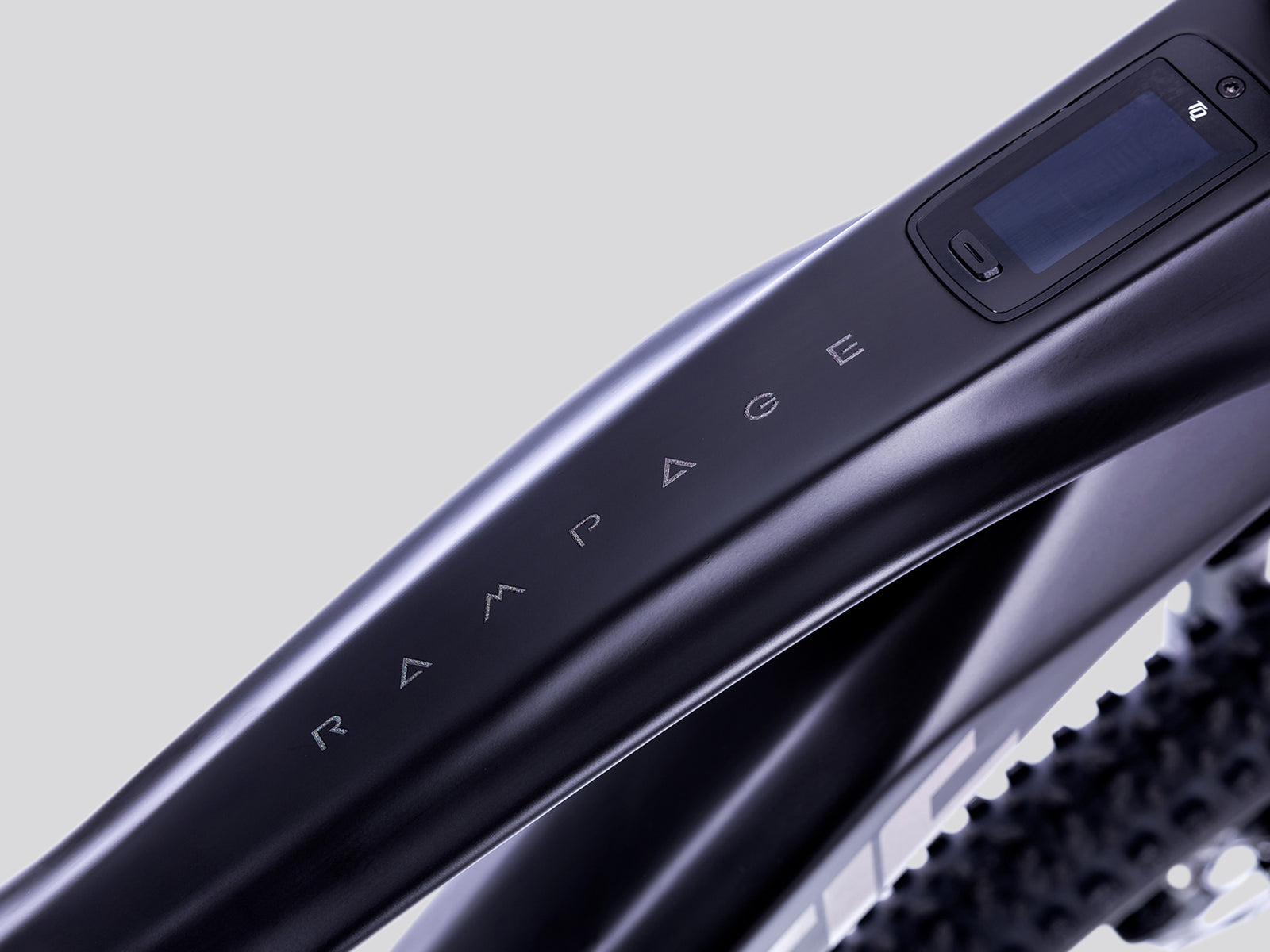

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Fantic Down Country Full Carbon, 140mm travel
- Rear shock
- Suntour Edge+ 190x45mm
- Fork
- Suntour Axon34 140mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- TQ 360Wh
- Range extender
- 160Wh
- Motor
- TQ HPR50 50Nm
- Display
- TQ HPR V01
- Remote
- TQ HPR MTB
Drivetrain
- Chainring
- Sram 34T Eagle technology X-Sync 2
- Crank arm
- FSA CK-8685-1 170mm (S/M) / 175mm (L/XL)
- Shifter
- Sram GX AXS Eagle
- Rear derailleur
- Sram GX AXS Eagle
- Chain
- Sram NX Eagle 12s
- Cassette
- Sram Eagle 12s 10-52
Cockpit
- Handlebar
- Width 760mmø31.8
- Stem
- Length 70mm +/-8°
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Rampage 1.4 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| 2Seat Tube Angle | 75° | 75° | 75° | 75° |
| 3Reach | 423.5 mm | 442.5 mm | 463.0 mm | 483.0 mm |
| 4Stack | 605 mm | 612 mm | 627 mm | 640 mm |
| 5Top Tube Length | 585 mm | 607 mm | 633 mm | 658 mm |
| 6Head Tube Angle | 64.5° | 65° | 65° | 65.5° |
| 7Head Tube Length | 95 mm | 105 mm | 120 mm | 130 mm |
| 8Fork Length | 562 mm | 562 mm | 562 mm | 562 mm |
| 9Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm |
| 10Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| 11Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
Source: Fantic. Implausible published values for Standover Height, Wheelbase omitted.
Rampage 1.4: builds compared
Rampage 1.4 range →| Rampage 1.4 Sport | Rampage 1.4 Race | Rampage 1.4 Factory | |
|---|---|---|---|
| Price | €5,490 | €6,690 | €9,490 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Suntour Raidon34 140mm | Suntour Axon34 140mm | Suntour Axon34 140mm |
| Shock | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm | Suntour Edge+ 190x45mm |
| Derailleur | Sram SX Eagle | Sram GX AXS Eagle | Sram GX AXS Eagle |
| Display | TQ HPR V01 | TQ HPR V01 | TQ HPR V01 |
| Weight | — | — | 15.5 kg |
Rampage 1.4 Race: FAQ
What is the difference between the Rampage 1.4 Race and the Rampage 1.4 Factory?
They share the Rampage 1.4 frame platform and motor; the differences are in the parts: price: €6,690 vs €9,490.
