FanticRidge Trail Sport
- Motor
- Bosch Performance Line CX Gen 5120 Nm
- Battery
- 800 WhBosch PowerTube
- Travel F / R
- 150 / – mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Fantic Ridge Trail Sport (€4,490) is the entry build of the Ridge Trail: Bosch Performance Line CX Gen 5 with 800 Wh, RockShox Psylo Silver RC 150mm fork, RockShox Deluxe Select 205X57,5 tr shock, Sram Eagle 70 T-Type 12V and Sram DB4 brakes.
The Ridge Trail is Fantic's MY26 aluminium trail e-MTB with a hydroformed frame and the 'Cobra' reinforced head-tube design. It runs the Bosch Performance Line CX Gen 5 motor (120 Nm) and an 800 Wh Bosch PowerTube battery.
Its 'Full Floater' rear end uses a Fantic rocker-link system with a progressive compression curve. Builds come with a 150 mm fork and 29-inch wheels in sizes S to L.
- Hydroformed aluminium frame
- Bosch CX Gen 5, 120 Nm, 800 Wh
- 150 mm fork, 29" wheels
- Full Floater rocker-link rear end

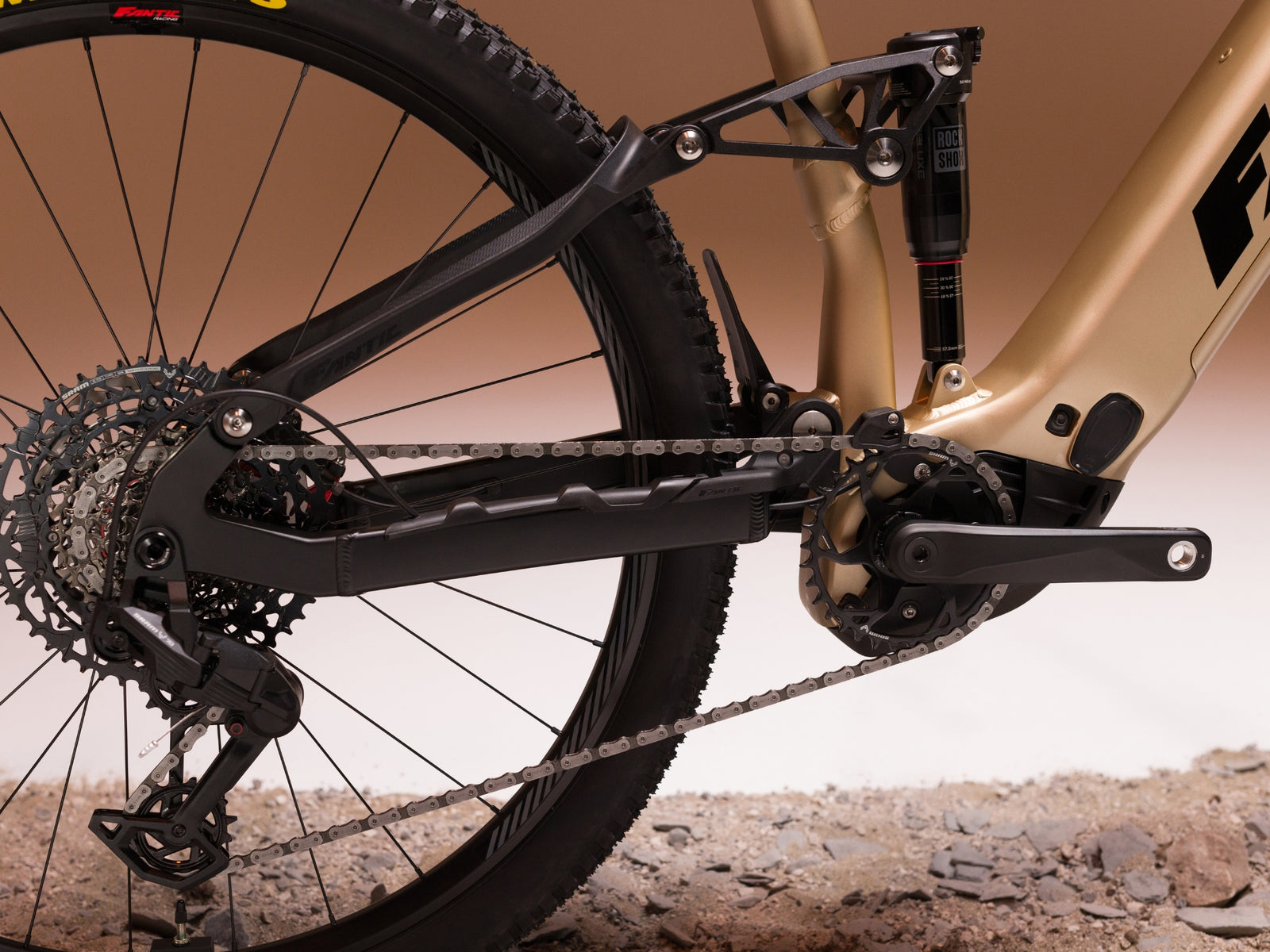

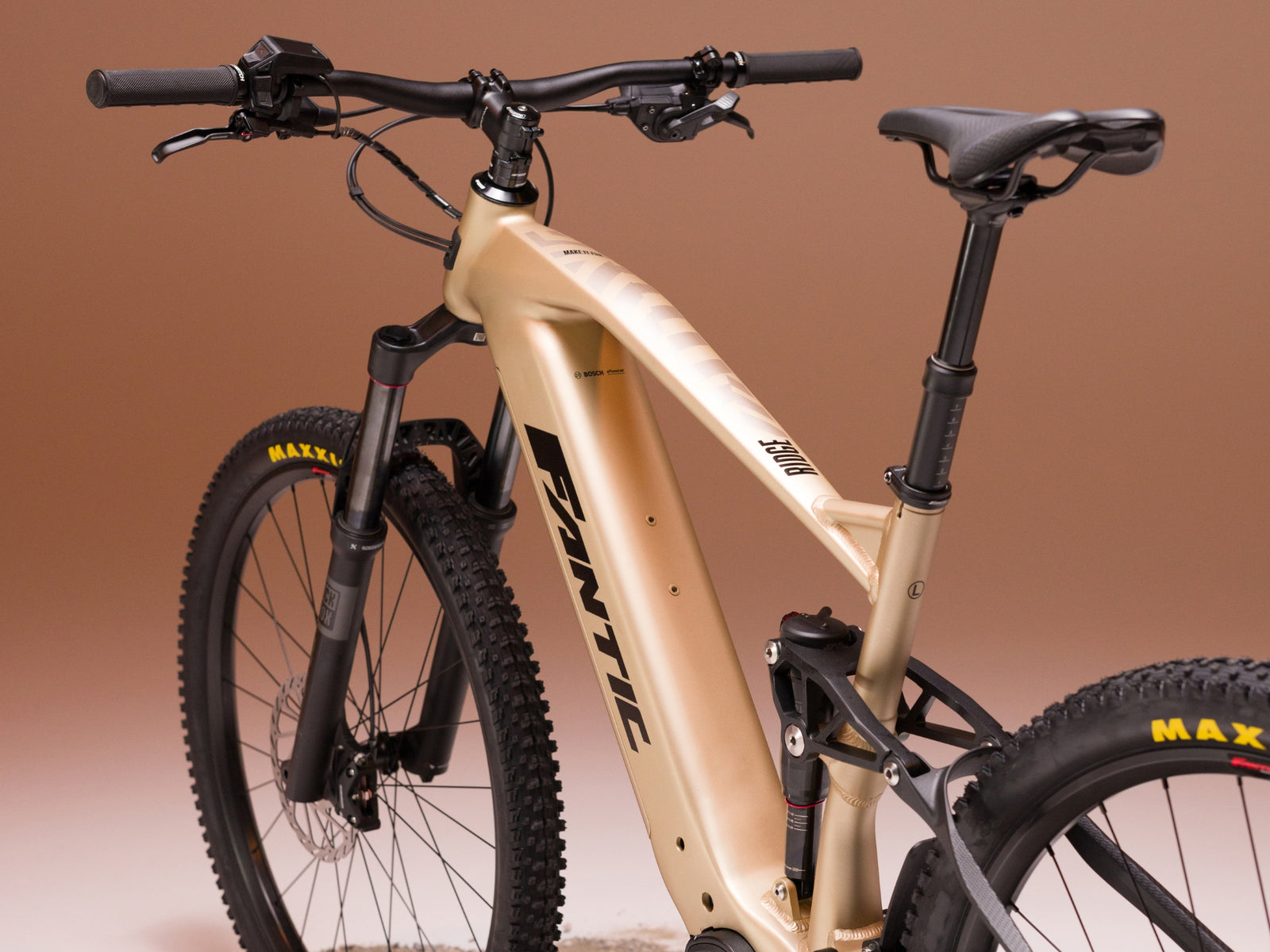

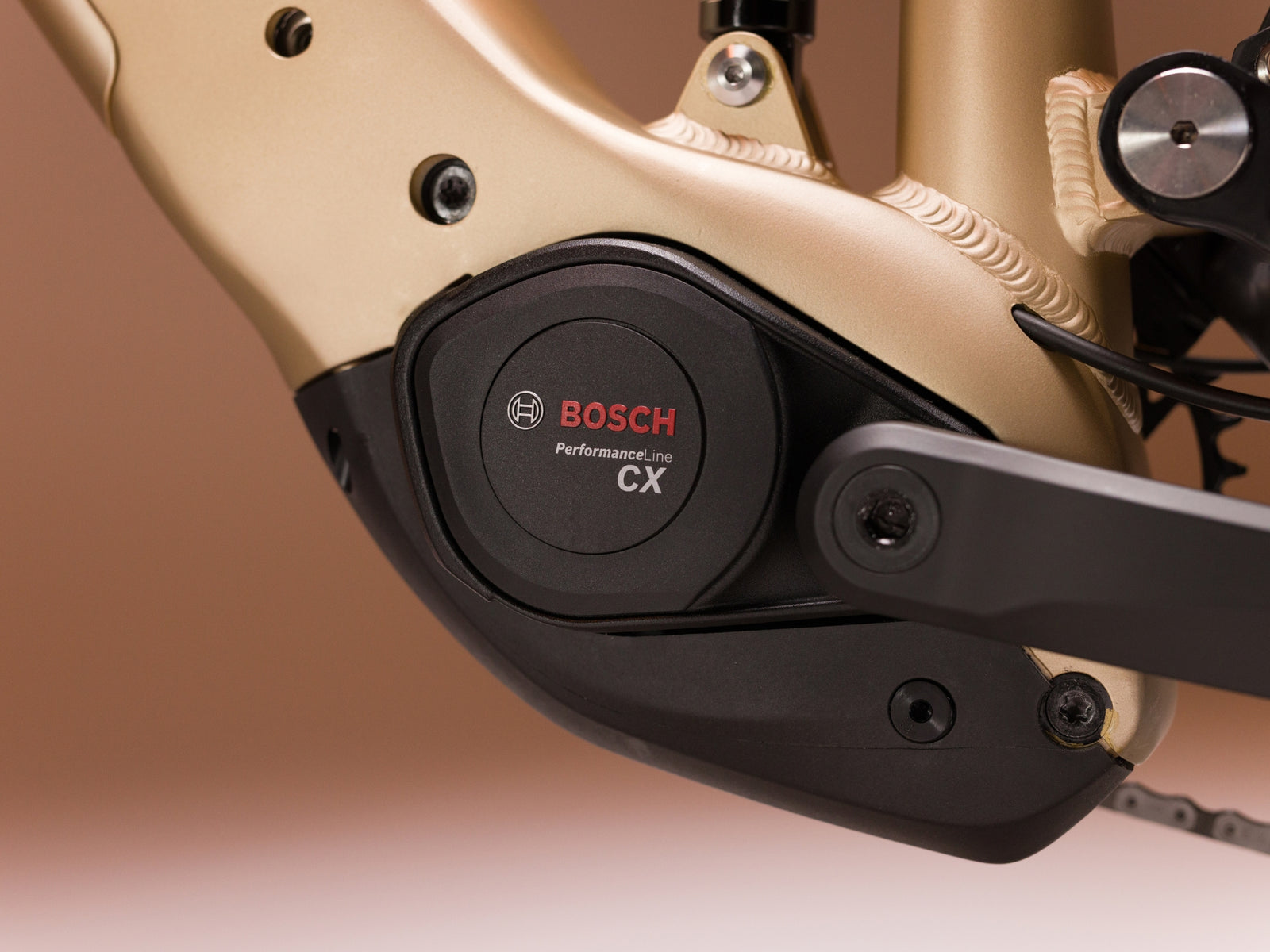

Gallery
Photos: Fantic
Full specifications
Frame & suspension
- Frame
- Tube thickness and weight optimized to ensure maximum durability and control.
- Rear shock
- RockShox Deluxe Select 205X57,5 tr
- Fork
- RockShox Psylo Silver RC 150mm
- Headset
- FSA 1-1/8” - 1,5"
E-system
- Battery
- Bosch PowerTube 800Wh
- Motor
- Bosch Performance Line CX Gen 5
- Display
- Purion 200
Drivetrain
- Crankset
- Sram 34t T-Type
- Crank arm
- FSA CK758/IS 165mm
- Shifter
- Sram Eagle 70 12V SINGLE CLICK MMX
- Rear derailleur
- Sram Eagle 70 T-Type 12V
- Chain
- Sram Eagle 70 12V T-Type 12V
- Cassette
- Sram Eagle 70/90 T-Type 12V 10-52T
Brakes
- Brakes
- Sram DB4
- Brake rotors
- Sram CLEANSWEEP 180/200mm
Wheels & tyres
- Wheelset
- Fantic Racing Alu
- Tyres
- Maxxis Rekon 29x2,4
Cockpit
- Handlebar
- Promax 760mm ϕ31,8mm
- Stem
- Promax 60mm x 6°
Other
- Seatpost
- Telescopic Switch ø30.9
- Saddle
- Selle Italia Model-X Comfort superflow
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ridge Trail geometry
| Size | S | M | L |
|---|---|---|---|
| 1Seat Tube Length | 390 mm | 430 mm | 470 mm |
| 2Seat Tube Angle | 75.5° | 75.5° | 75.5° |
| 3Reach | 428 mm | 462 mm | 486 mm |
| 4Top Tube Length | 586 mm | 620 mm | 646 mm |
| 5Head Tube Angle | 65.5° | 65.5° | 65.5° |
| 6Head Tube Length | 110 mm | 110 mm | 120 mm |
| 7Fork Length | 569 mm | 569 mm | 569 mm |
| 8Bottom Bracket Drop | 16.5 mm | 16.5 mm | 16.5 mm |
| 9Bottom Bracket Height | 359.5 mm | 359.5 mm | 359.5 mm |
| 10Standover Height | 776 mm | 789 mm | 792 mm |
| 11Wheelbase | 1220 mm | 1253 mm | 1281 mm |
| 12Chainstay Length | 472 mm | 472 mm | 472 mm |
Source: Fantic. Implausible published values for Stack omitted.
Ridge Trail: builds compared
Ridge Trail range →| Ridge Trail Sport | Ridge Trail Race | |
|---|---|---|
| Price | €4,490 | €5,990 |
| Frame | Alloy | Alloy |
| Fork | RockShox Psylo Silver RC 150mm | RockShox Suntour Auron 150mm |
| Shock | RockShox Deluxe Select 205X57,5 tr | RockShox Deluxe Select+ 205X57,5 tr |
| Derailleur | Sram Eagle 70 T-Type 12V | Sram Eagle 90 T-Type 12V |
| Brakes | Sram DB4 | Sram Guide T |
| Display | Purion 200 | — |
Ridge Trail Sport: FAQ
How much does the Fantic Ridge Trail Sport cost?
€4,490 (RRP Italy/EU (fanticbikes.com), VAT incl.). The Ridge Trail range runs from €4,490 (Ridge Trail Sport) to €5,990 (Ridge Trail Race). Prices vary by country and dealer.
What motor and battery does the Fantic Ridge Trail Sport have?
Bosch Performance Line CX Gen 5 (120 Nm). 800 Wh battery — bosch PowerTube.
How much suspension travel does the Fantic Ridge Trail Sport have?
150 mm at the fork, on 29" wheels.
What sizes does the Fantic Ridge Trail Sport come in?
S, M, L. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ridge Trail Sport and the Ridge Trail Race?
They share the Ridge Trail frame platform and motor; the differences are in the parts — fork: RockShox Psylo Silver RC 150mm vs RockShox Suntour Auron 150mm; shock: RockShox Deluxe Select 205X57,5 tr vs RockShox Deluxe Select+ 205X57,5 tr; derailleur: Sram Eagle 70 T-Type 12V vs Sram Eagle 90 T-Type 12V; price: €4,490 vs €5,990.
