MondrakerNeat RR SL
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhIntegrated, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Full carbon
- Weight
- 18.3 kgManufacturer figure
Overview

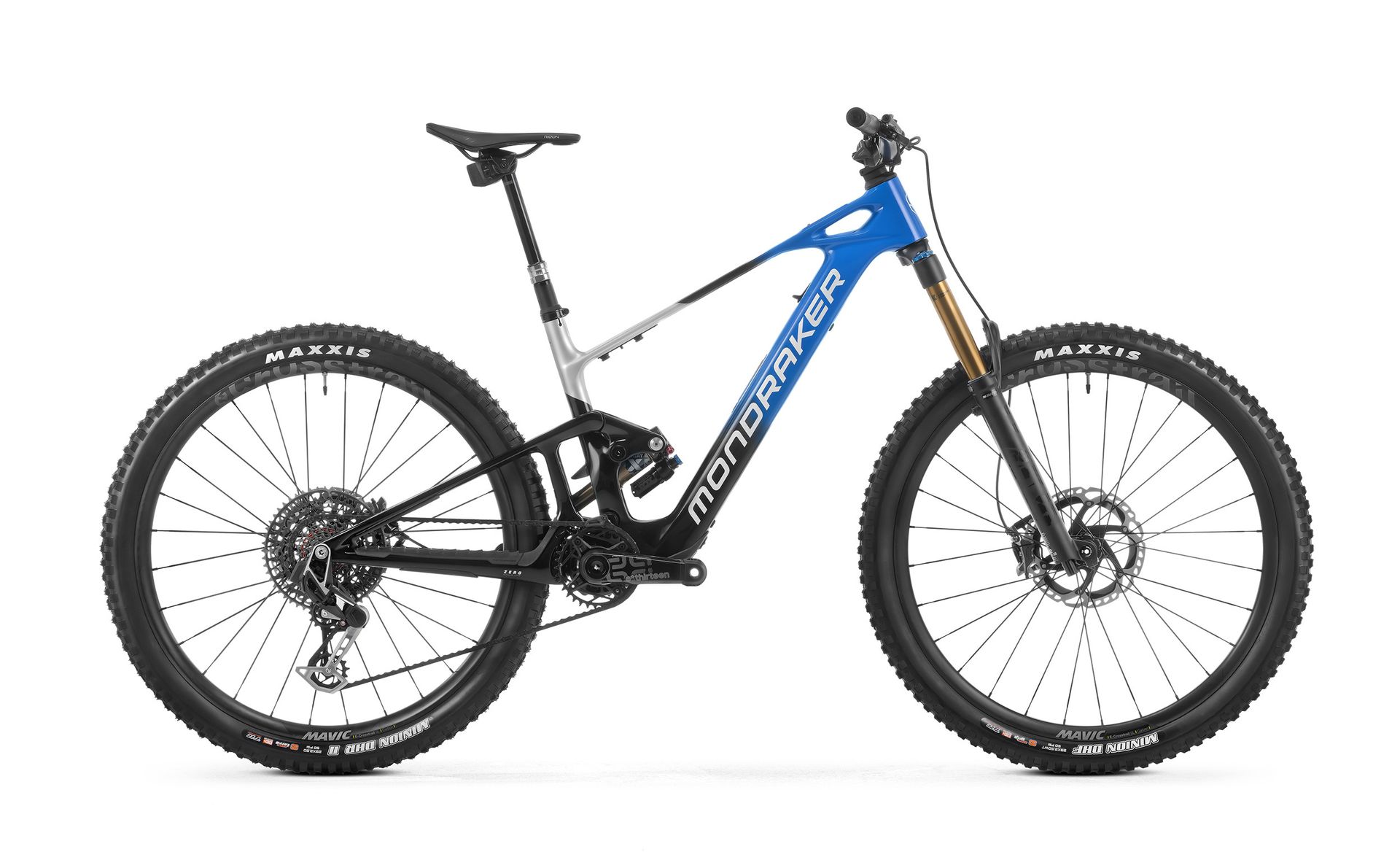

The Neat RR SL is the €11,999 flagship and the lightest bike in the Mondraker eMTB range at a claimed 18.3 kg, with SRAM XX Eagle AXS, Shimano XTR brakes and Mavic carbon wheels. Suspension is the same Fox Factory 36 and Float X as the RR.
Neat is Mondraker's lightest eMTB: a full-carbon Stealth Air frame with 150 mm of rear travel, a 160 mm fork and 29" wheels, built around the compact TQ HPR50 motor and a 360 Wh removable battery.
Claimed weights start at 18.3 kg for the RR SL, the lowest figure in the Mondraker eMTB range.
- TQ HPR50 motor, 360 Wh removable battery
- Full-carbon frame, 150 / 160 mm travel
- From 18.3 kg claimed

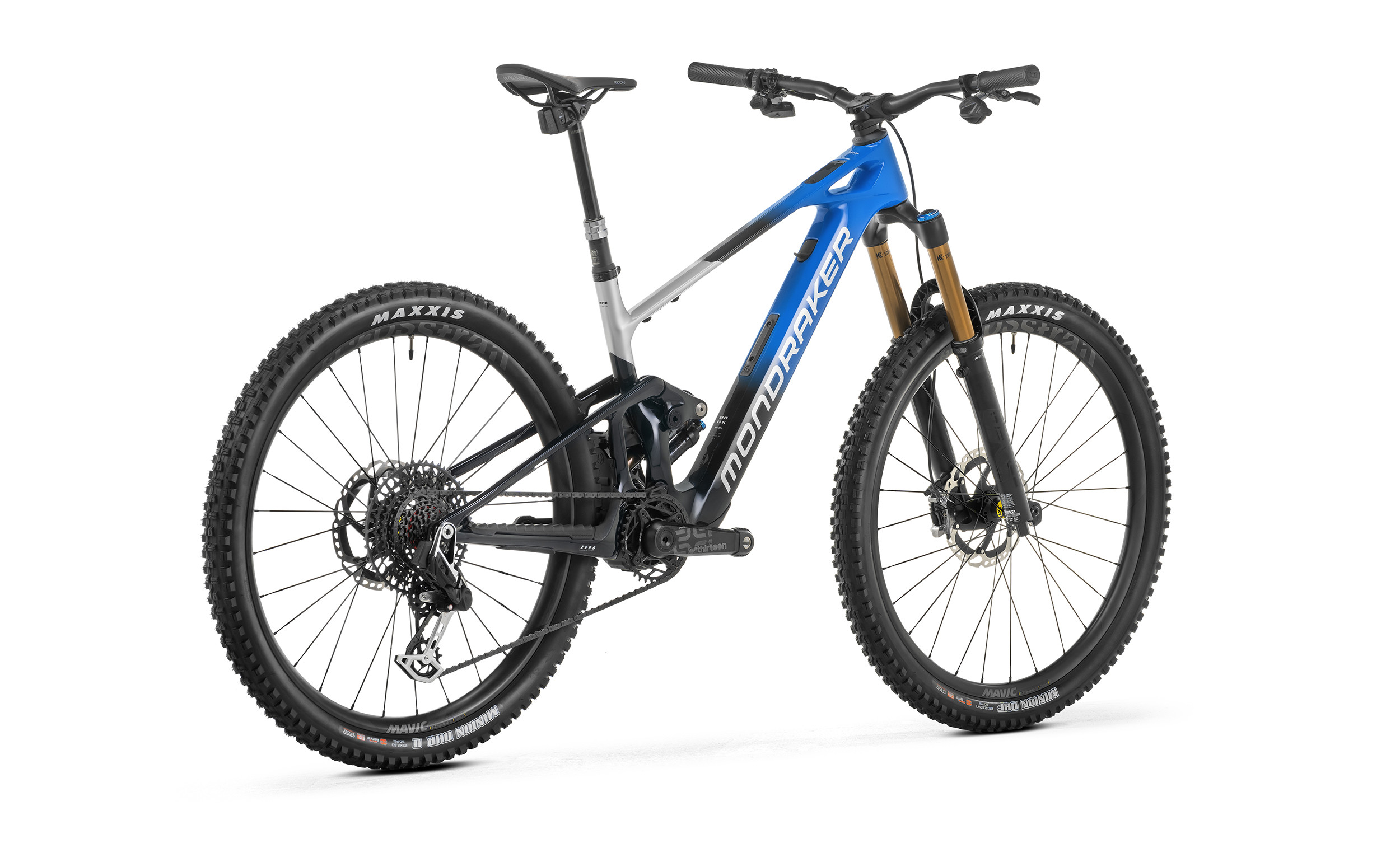

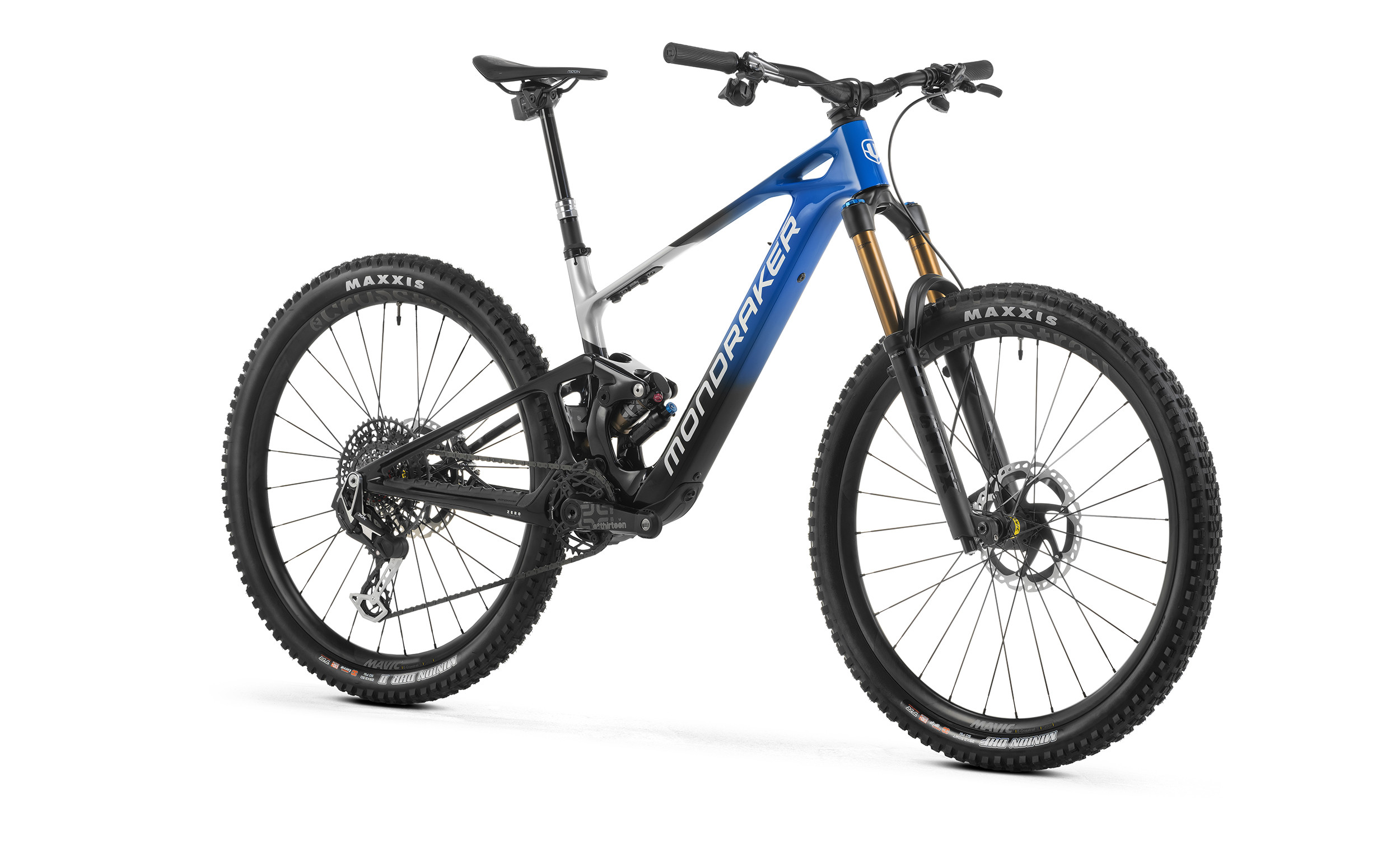

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock
- Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
- Fork
- Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
E-system
- Display
- TQ HPR display V01
- Motor
- TQ HPR-50
- Battery
- TQ HPR-50 360Wh integrated and removable
Drivetrain
- Crankset
- e*Thirteen TRS Race carbon ebike, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
- Chain
- Sram X0 Eagle T-Type, 12s, Powerlock
- Rear derailleur
- Sram XX Eagle AXS, T-Type, 12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XG-1295, 10-52T, T-Type, 12s
Brakes
- Front brake
- Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin
- Rear brake
- Shimano XTR M9120, 4 piston caliper, RTMT905 ICE-Tech 203mm IS 6 bolts one-piece rotor, resin pads with fin
- Brake lever
- Shimano XTR M9120, ergonomic antiskid lever with servo wave, tool less reach adjust,
Wheels & tyres
- Rims
- Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
- Spokes
- Mavic 28 straight-pull double butted spokes
- Front hub
- Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
- Rear hub
- Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
- Front tire
- Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Cockpit
- Headset
- Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
- Handlebar
- Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
- Saddle
- Fizik Terra Aidon Slim X5
Other
- Others
- Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

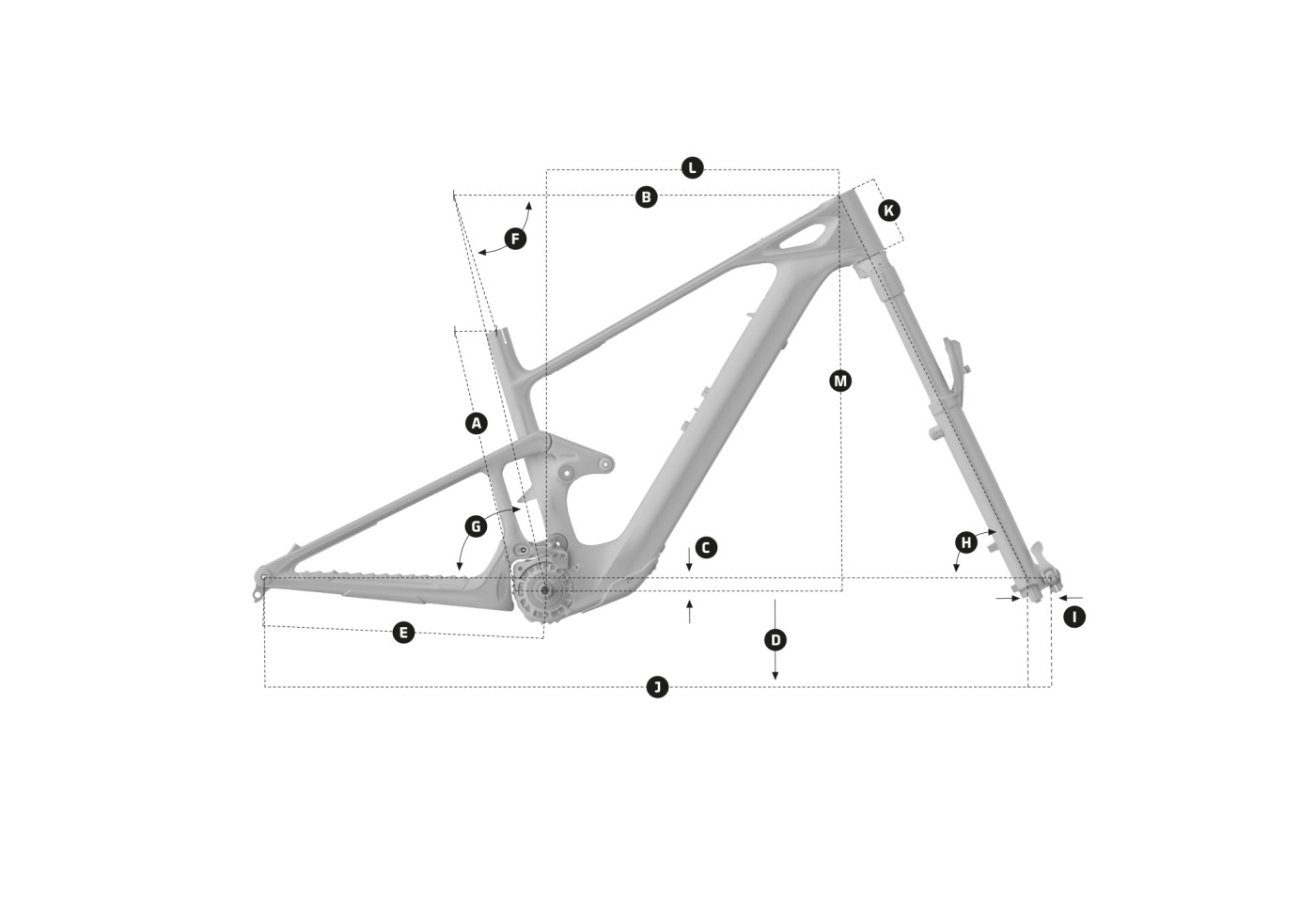

Neat geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 380 mm | 420 mm | 450 mm | 490 mm |
| BTop tube length | 595 mm | 615 mm | 640 mm | 660 mm |
| CBottom bracket drop | -25 mm | -25 mm | -25 mm | -25 mm |
| DBottom bracket height | 348 mm | 348 mm | 348 mm | 348 mm |
| EChainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| FSeat tube angle | 72.6° | 72.6° | 72.6° | 72.6° |
| GEffective seat tube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| HHead tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1235 mm | 1255 mm | 1275 mm | 1295 mm |
| KHead tube length | 110 mm | 110 mm | 130 mm | 140 mm |
| LReach | 450 mm | 470 mm | 495 mm | 515 mm |
| MStack | 626 mm | 626 mm | 642 mm | 650 mm |
Source: Mondraker.
Neat: builds compared
Neat range →| Neat R | Neat RR | Neat RR SL | |
|---|---|---|---|
| Price | €8,499 | €9,999 | €11,999 |
| Frame | Full carbon | Full carbon | Full carbon |
| Fork | RockShox LYRIK Select Charger RC 29, 160mm | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm |
| Shock | Rock Shox Super Deluxe Select | Fox Float X Factory Kashima EVOL | Fox Float X Factory Kashima EVOL |
| Derailleur | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS T-Type,12s | Sram XX Eagle AXS |
| Brakes | Sram DB8 stealth | Shimano XT M8120 | Shimano XTR M9120 |
| Wheels | Mavic E-CrossRide 29, 30mm internal width | Mavic E-CrossTrail SL, 29 Boost 30mm internal width | Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width |
| Display | TQ HPR display V01 | TQ HPR display V01 | TQ HPR display V01 |
| Weight | 18.9 kg | 18.7 kg | 18.3 kg |
Neat RR SL: FAQ
How much does the Mondraker Neat RR SL cost?
€11,999 (RRP Spain, VAT incl.). The Neat range runs from €8,499 (Neat R) to €11,999 (Neat RR SL). Prices vary by country and dealer.
How much does the Mondraker Neat RR SL weigh?
Mondraker quotes 18.3 kg. It is the lightest build of the Neat.
What motor and battery does the Mondraker Neat RR SL have?
TQ HPR50 (50 Nm). 360 Wh battery — integrated, removable.
How much suspension travel does the Mondraker Neat RR SL have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Mondraker Neat RR SL come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Neat RR SL and the Neat RR?
They share the Neat frame platform and motor; the differences are in the parts — derailleur: Sram XX Eagle AXS vs Sram GX Eagle AXS T-Type,12s; brakes: Shimano XTR M9120 vs Shimano XT M8120; claimed weight: 18.3 kg vs 18.7 kg; price: €11,999 vs €9,999.
