MondrakerDune R
- Motor
- Bosch Performance Line SX55 Nm; 60 Nm with Bosch OTA update
- Battery
- 400 WhBosch Compact PowerTube, internal, non-removable
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Full carbon
- Weight
- 20.3 kgManufacturer figure
Overview
The Dune R (€7,999) is the entry build of Mondraker's full-carbon lightweight e-enduro: Bosch SX with 400 Wh, a 170 mm RockShox ZEB Select fork, RockShox Vivid shock and SRAM 90 Eagle T-Type, at a claimed 20.3 kg.
Dune is Mondraker's lightweight e-enduro bike: a full-carbon Stealth Air frame with 165 mm of rear travel, a 170 mm fork and mullet wheels, powered by the compact Bosch SX motor with a 400 Wh battery.
The battery sits inside the down tube and isn't removable; claimed weights are 20.3–20.5 kg.
- Full-carbon frame, 165 / 170 mm travel
- Bosch SX with 400 Wh battery
- Mullet wheels
- Around 20.5 kg claimed

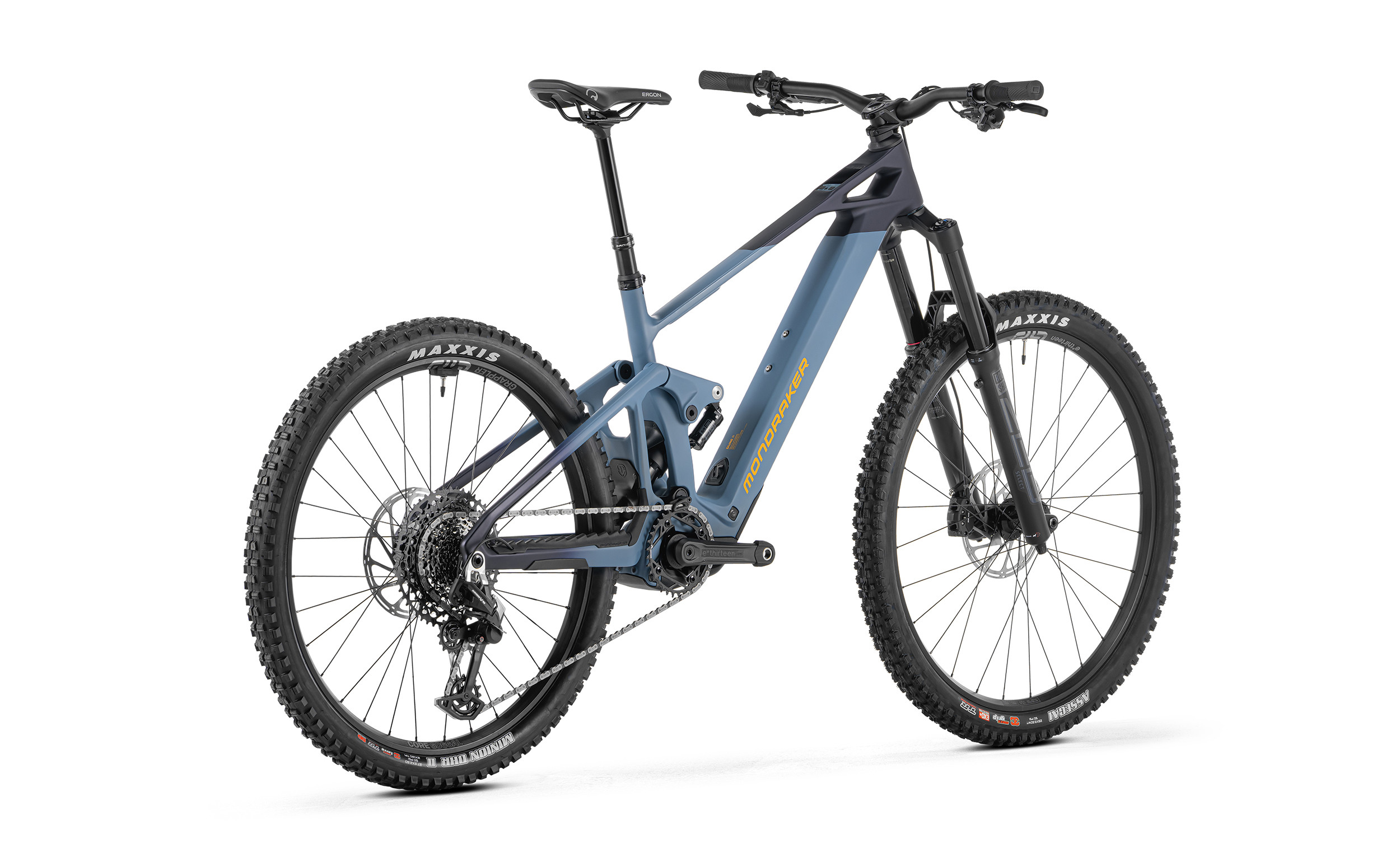

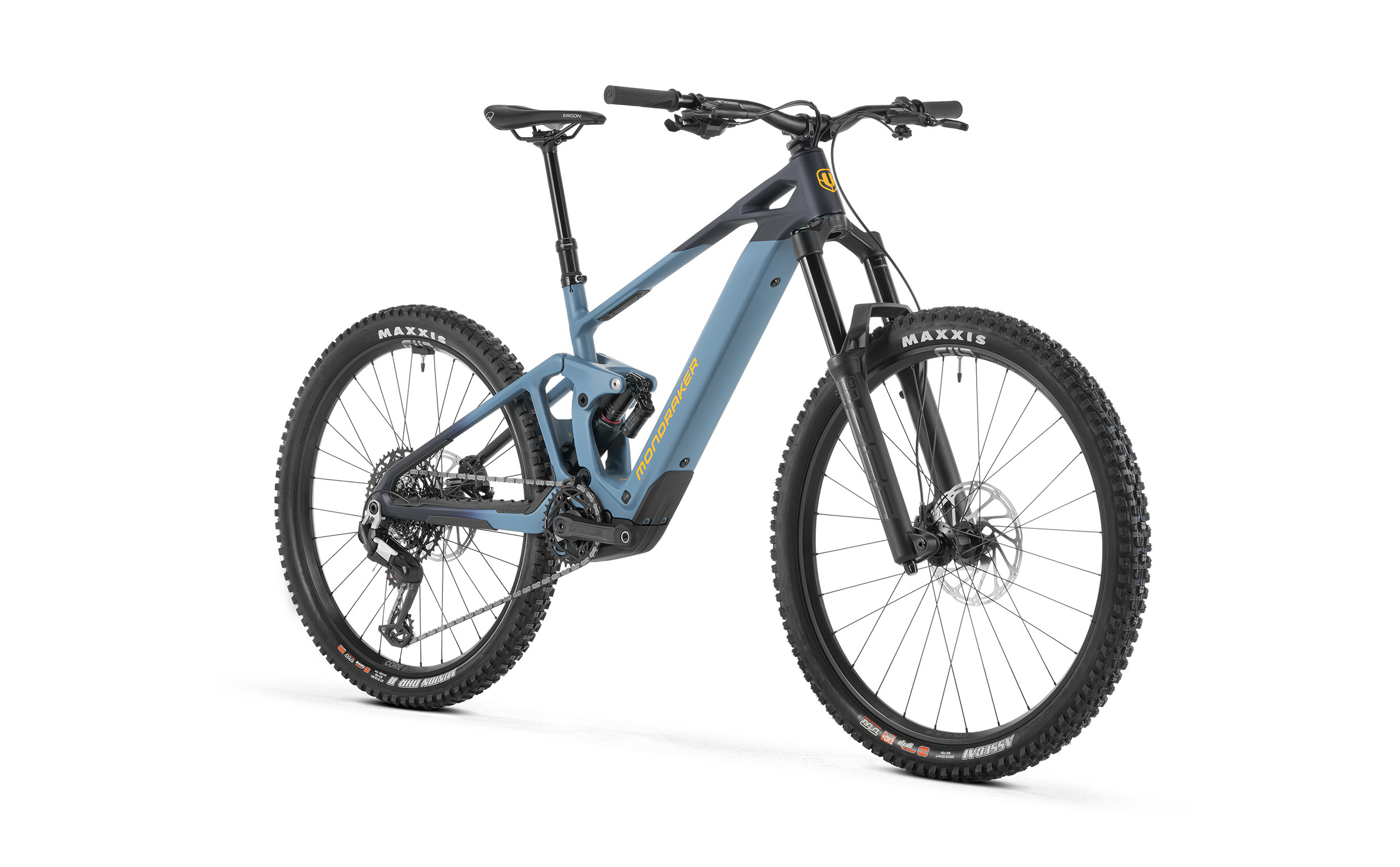

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock
- RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- C34 compression, R23 rebound, 2 tokens
- Fork
- RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
- Battery
- Bosch Compact Powertube 400Wh
Drivetrain
- Crankset
- E.13 Helix Core E*Spec Plus, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Chain
- Sram 70 T-Type, 12s Flattop, PowerLock
- Rear derailleur
- Sram 90 Eagle, T-Type, 12s
- Shift levers
- Sram Trigger 70, 12s, T-Type Actuation
- Cassette
- Sram XS-1270, 10-52T, 12s
Brakes
- Front brake
- Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear brake
- Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake lever
- Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
- Spokes
- e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Front hub
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Rear hub
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
- Front tire
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Cockpit
- Headset
- Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm
- Saddle
- Ergon Enduro SPS20
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

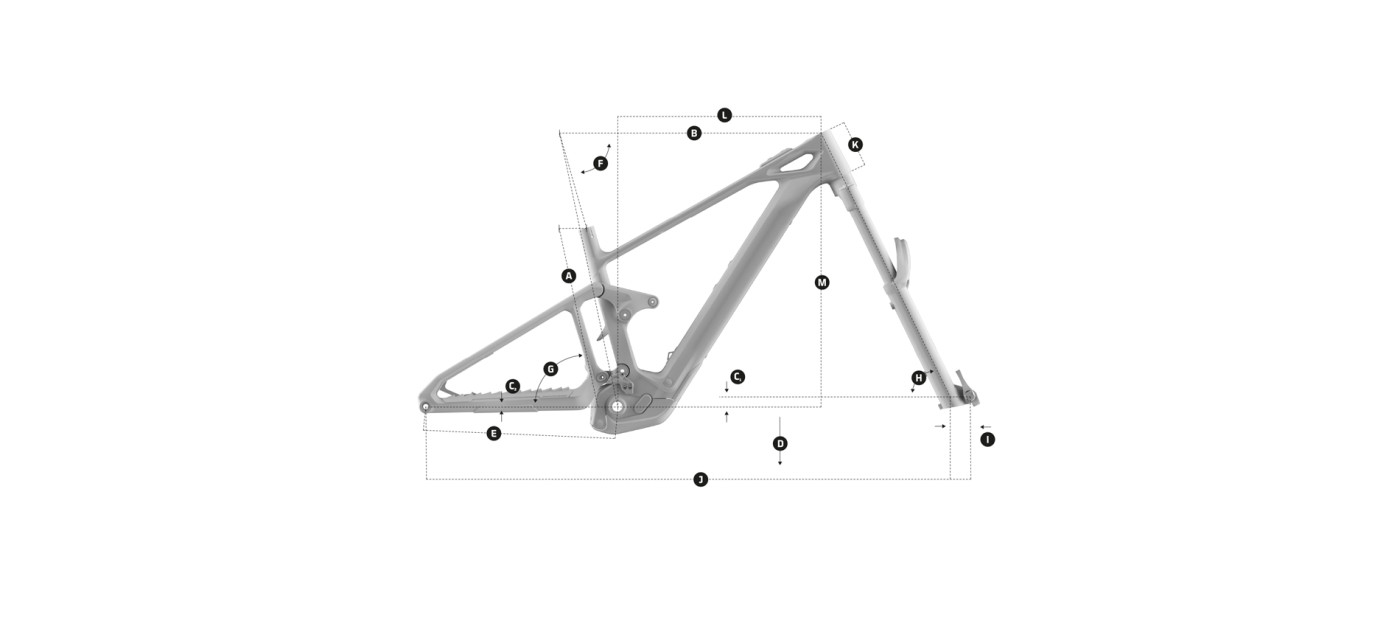

Dune geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 380 mm | 420 mm | 450 mm | 490 mm |
| BTop tube length | 600 mm | 620 mm | 645 mm | 665 mm |
| CBottom bracket drop | -21 / 0 mm | -21 / 0 mm | -21 / 0 mm | -21 / 0 mm |
| DBottom bracket height | 352 mm | 352 mm | 352 mm | 352 mm |
| EChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| FSeat tube angle | 74.0° | 74.0° | 74.0° | 74.0° |
| GEffective seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| HHead tube angle | 64° | 64° | 64° | 64° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1232 mm | 1256 mm | 1285 mm | 1309 mm |
| KHead tube length | 100 mm | 110 mm | 130 mm | 140 mm |
| LReach | 445 mm | 465 mm | 485 mm | 505 mm |
| MStack | 621 mm | 630 mm | 648 mm | 658 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Dune: builds compared
Dune range →| Dune R | Dune RR | |
|---|---|---|
| Price | €7,999 | €9,999 |
| Frame | Full carbon | Full carbon |
| Fork | RockShox ZEB Select Charger RC 29, 170mm | Fox Podium 29 GRIPX2 Factory Kashima, 170mm |
| Shock | RockShox Vivid Base | Fox DHX2 Factory Kashima |
| Derailleur | Sram 90 Eagle | Sram X0 Eagle AXS T-Type,12s |
| Brakes | Sram Maven Base | Sram Maven Bronze |
| Wheels | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Flux, IW30 Hookless |
| Display | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 20.3 kg | 20.5 kg |
Dune R: FAQ
How much does the Mondraker Dune R cost?
€7,999 (RRP Spain, VAT incl.). The Dune range runs from €7,999 (Dune R) to €9,999 (Dune RR). Prices vary by country and dealer.
How much does the Mondraker Dune R weigh?
Mondraker quotes 20.3 kg. It is the lightest build of the Dune.
What motor and battery does the Mondraker Dune R have?
Bosch Performance Line SX (55 Nm; 60 Nm with Bosch OTA update). 400 Wh battery — bosch Compact PowerTube, internal, non-removable.
How much suspension travel does the Mondraker Dune R have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Mondraker Dune R come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Dune R and the Dune RR?
They share the Dune frame platform and motor; the differences are in the parts — fork: RockShox ZEB Select Charger RC 29 vs Fox Podium 29 GRIPX2 Factory Kashima; shock: RockShox Vivid Base vs Fox DHX2 Factory Kashima; derailleur: Sram 90 Eagle vs Sram X0 Eagle AXS T-Type,12s; brakes: Sram Maven Base vs Sram Maven Bronze; claimed weight: 20.3 kg vs 20.5 kg; price: €7,999 vs €9,999.
