MondrakerLevel R
- Motor
- Bosch Performance Line CX Gen 585 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026
- Battery
- 800 WhRemovable, 600 Wh compatible, 250 Wh extender ready
- Travel F / R
- 180 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- 6061 alloy
- Weight
- 26.7 kgManufacturer figure
Overview
The Level R is the €6,999 way into Mondraker's 180/170 mm alloy e-enduro bike, with a RockShox ZEB Select fork, Vivid Coil shock, SRAM 90 Eagle T-Type and Bosch CX with 800 Wh. Claimed weight is 26.7 kg; it uses the Purion 400 display rather than the Kiox.
Level is Mondraker's long-travel alloy e-enduro bike: 170 mm at the rear, a 180 mm fork, mullet wheels and a coil shock on every build.
All three builds use the fifth-generation Bosch CX motor and an 800 Wh battery that comes out through a carbon cover on the down tube; the frame also takes a 600 Wh battery, and a 250 Wh range extender pushes capacity past 1,000 Wh. A flip chip lets you slacken the angles and drop the bottom bracket, and there are five sizes with two rear-triangle lengths.
- 170 / 180 mm travel, mullet wheels
- Bosch CX Gen 5 with OTA power updates
- 800 Wh removable battery + 250 Wh extender option
- Flip chip and five sizes with size-specific chainstays

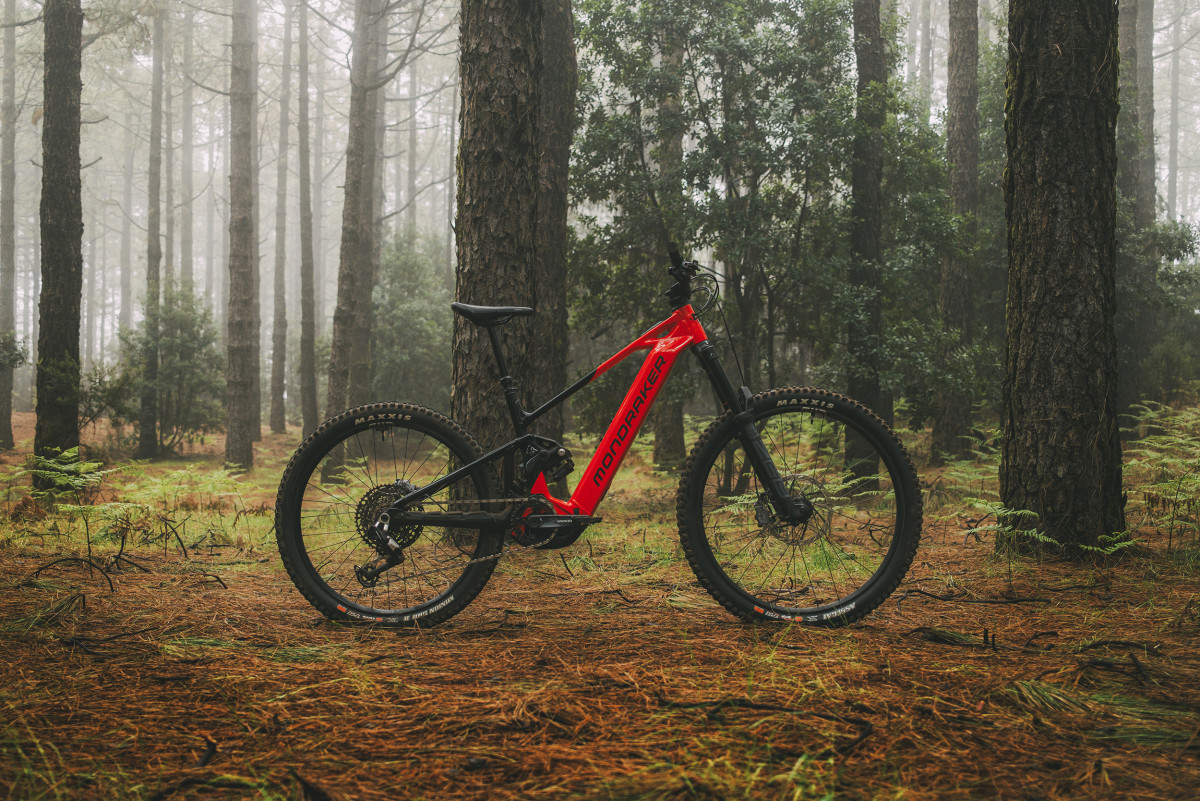

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock
- RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs

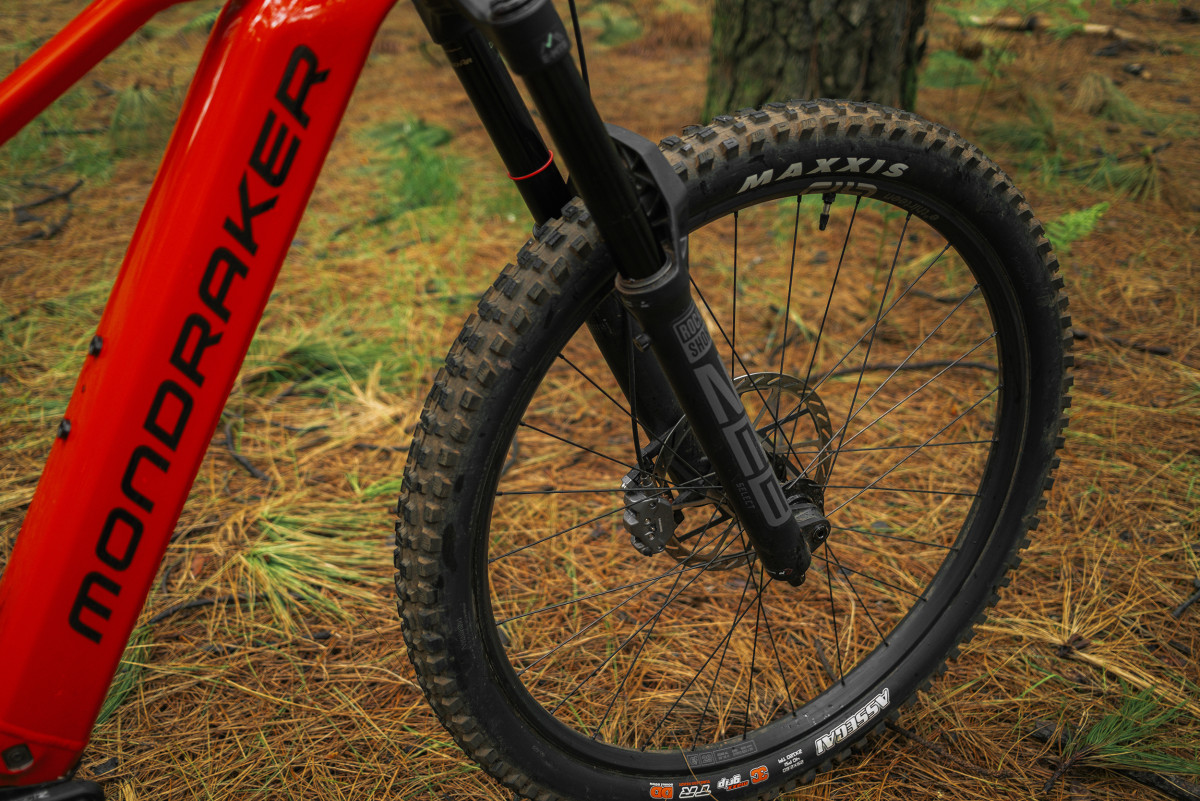

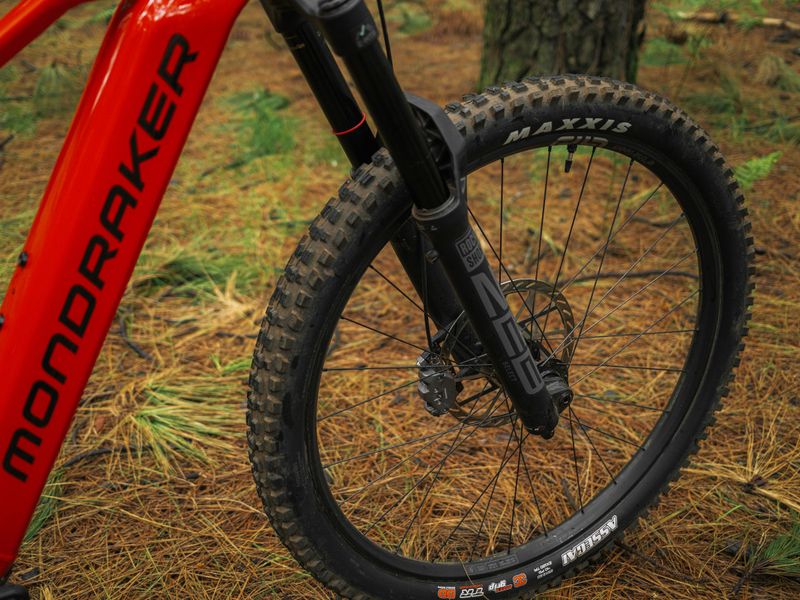

- Fork
- RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
E-system
- Display
- Purion 400 / Bosch Mini Remote / Bosch System Controller
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Battery
- Bosch Powertube 800Wh
Drivetrain
- Crankset
- Race Face Aeffect ebike, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Chain
- Sram 70 Eagle T-Type, 12s, Powerlock
- Rear derailleur
- Sram 90 Eagle T-Type, 12s
- Shift levers
- Sram 90 Eagle, 12s, T-Type Actuation, single click
- Cassette
- Sram XS-1270, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake
- Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

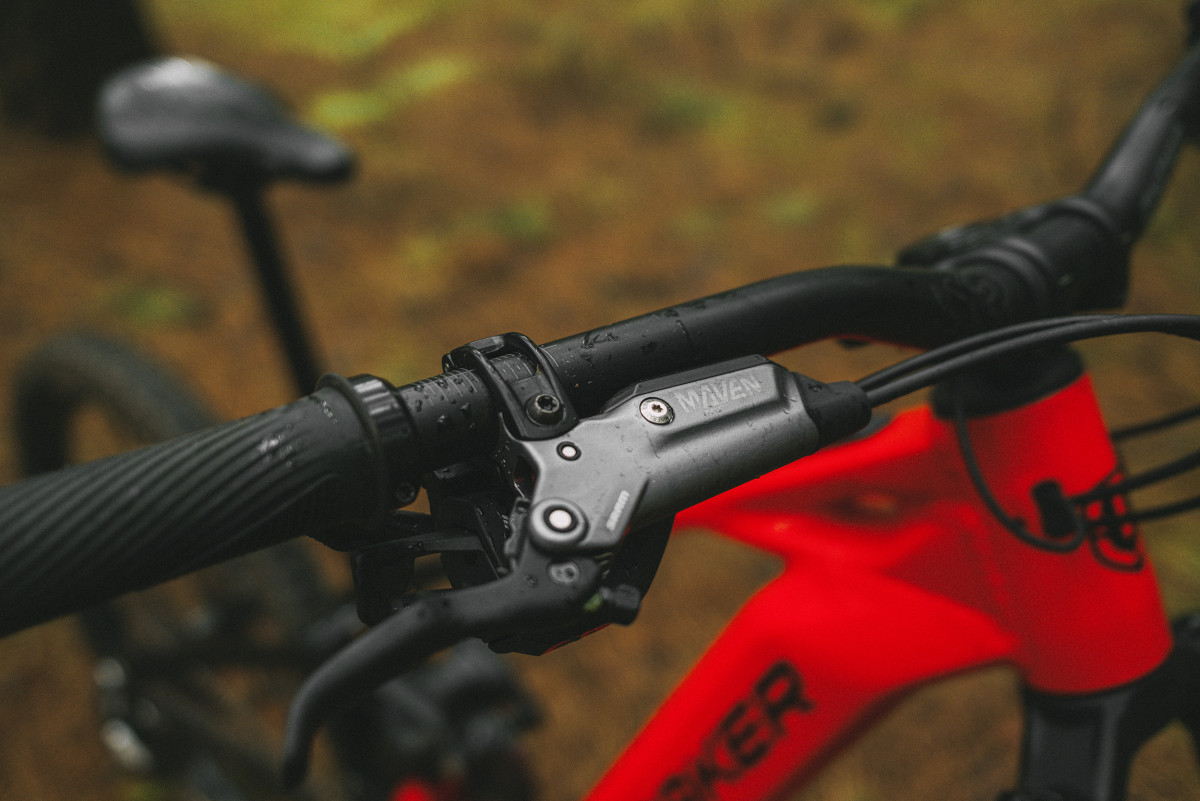

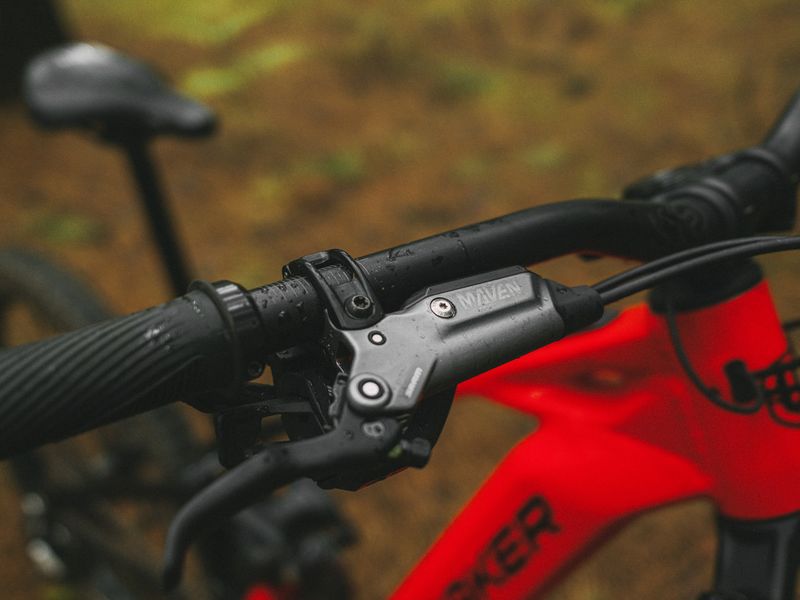

- Brake lever
- Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
- Spokes
- e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Front hub
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Rear hub
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
- Front tire
- Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Cockpit
- Headset
- Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
- Stem
- Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
- Handlebar
- Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Saddle
- FIZIK Terra Aidon X5 145mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

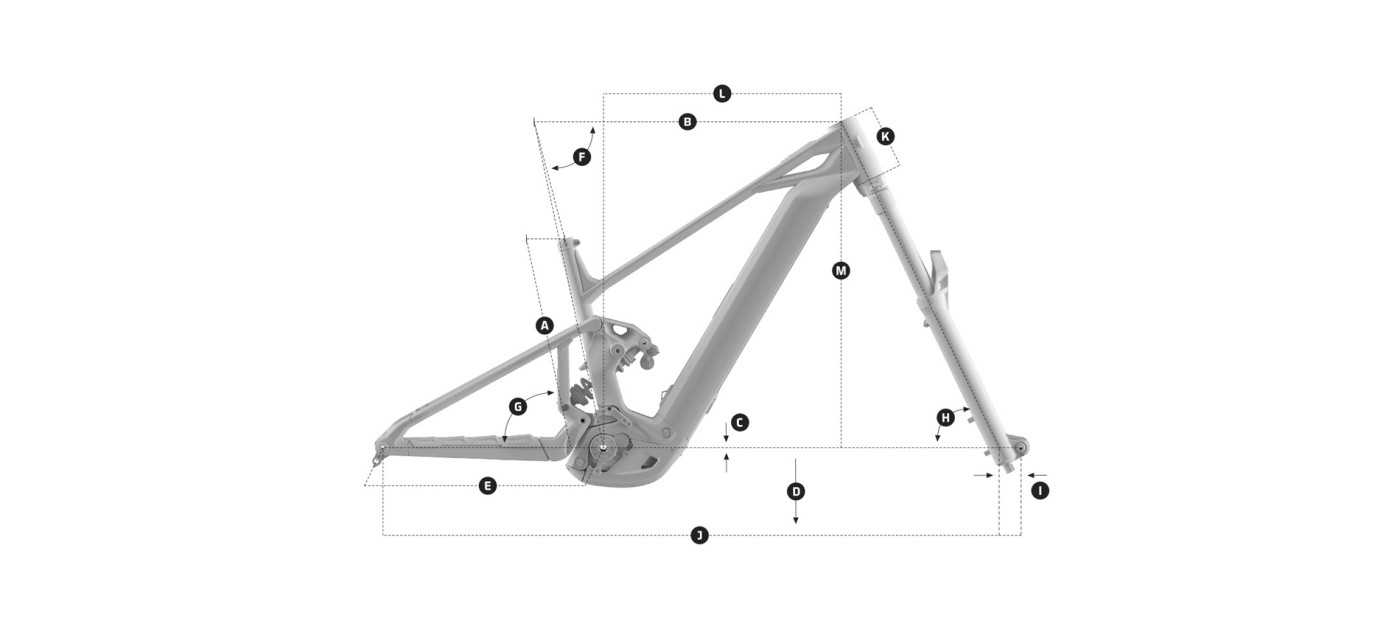

Level geometry
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 576 mm / 577 mm | 598 mm / 599 mm | 620 mm / 621 mm | 642 mm | 664 mm / 665 mm |
| CBottom bracket drop | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm |
| DBottom bracket height | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm |
| EChainstay length | 445 mm / 446 mm | 445 mm / 446 mm | 445 mm / 446 mm | 455 mm / 456 mm | 455 mm / 456 mm |
| FSeat tube angle | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° |
| GEffective seat tube angle | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° |
| HHead tube angle | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1236 mm / 1237 mm | 1260 mm / 1261 mm | 1284 mm / 1285 mm | 1319 mm / 1320 mm | 1343 mm / 1344 mm |
| KHead tube length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| LReach | 440 mm / 436 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| MStack | 640 mm / 643 mm | 649 mm / 652 mm | 658 mm / 661 mm | 667 mm / 670 mm | 676 mm / 679 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Level: builds compared
Level range →| Level R | Level RR | Level XR | |
|---|---|---|---|
| Price | €6,999 | €8,499 | €9,999 |
| Frame | 6061 alloy | 6061 alloy | 6061 alloy |
| Fork | RockShox ZEB Select Charger RC 29, 180mm | Fox 38 29 Float GRIPX2 Factory Kashima, 180mm | Öhlins RXF 38 M.3 29, 180mm |
| Shock | RockShox Vivid Coil base | Fox DHX2 Performance Elite | Öhlins TTX22M.2 205x65mm |
| Derailleur | Sram 90 Eagle T-Type | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS T-Type,12s |
| Brakes | Sram Maven Bronze | Sram Maven Bronze | Sram Maven Silver |
| Wheels | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width |
| Display | Purion 400 / Bosch Mini Remote / Bosch System Controller | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 26.7 kg | 26.9 kg | 25.9 kg |
Level R: FAQ
How much does the Mondraker Level R cost?
€6,999 (RRP Spain, VAT incl.). The Level range runs from €6,999 (Level R) to €9,999 (Level XR). Prices vary by country and dealer.
How much does the Mondraker Level R weigh?
Mondraker quotes 26.7 kg. The lightest Level build is the Level XR at 25.9 kg.
What motor and battery does the Mondraker Level R have?
Bosch Performance Line CX Gen 5 (85 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026). 800 Wh battery — removable, 600 Wh compatible, 250 Wh extender ready.
How much suspension travel does the Mondraker Level R have?
180 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Mondraker Level R come in?
S, M, ML, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Level R and the Level RR?
They share the Level frame platform and motor; the differences are in the parts — fork: RockShox ZEB Select Charger RC 29 vs Fox 38 29 Float GRIPX2 Factory Kashima; shock: RockShox Vivid Coil base vs Fox DHX2 Performance Elite; derailleur: Sram 90 Eagle T-Type vs Sram S1000 Eagle AXS T-Type; claimed weight: 26.7 kg vs 26.9 kg; price: €6,999 vs €8,499.
