MondrakerNeat R
- Motor
- TQ HPR5050 Nm
- Battery
- 360 WhIntegrated, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Full carbon
- Weight
- 18.9 kgManufacturer figure
Overview

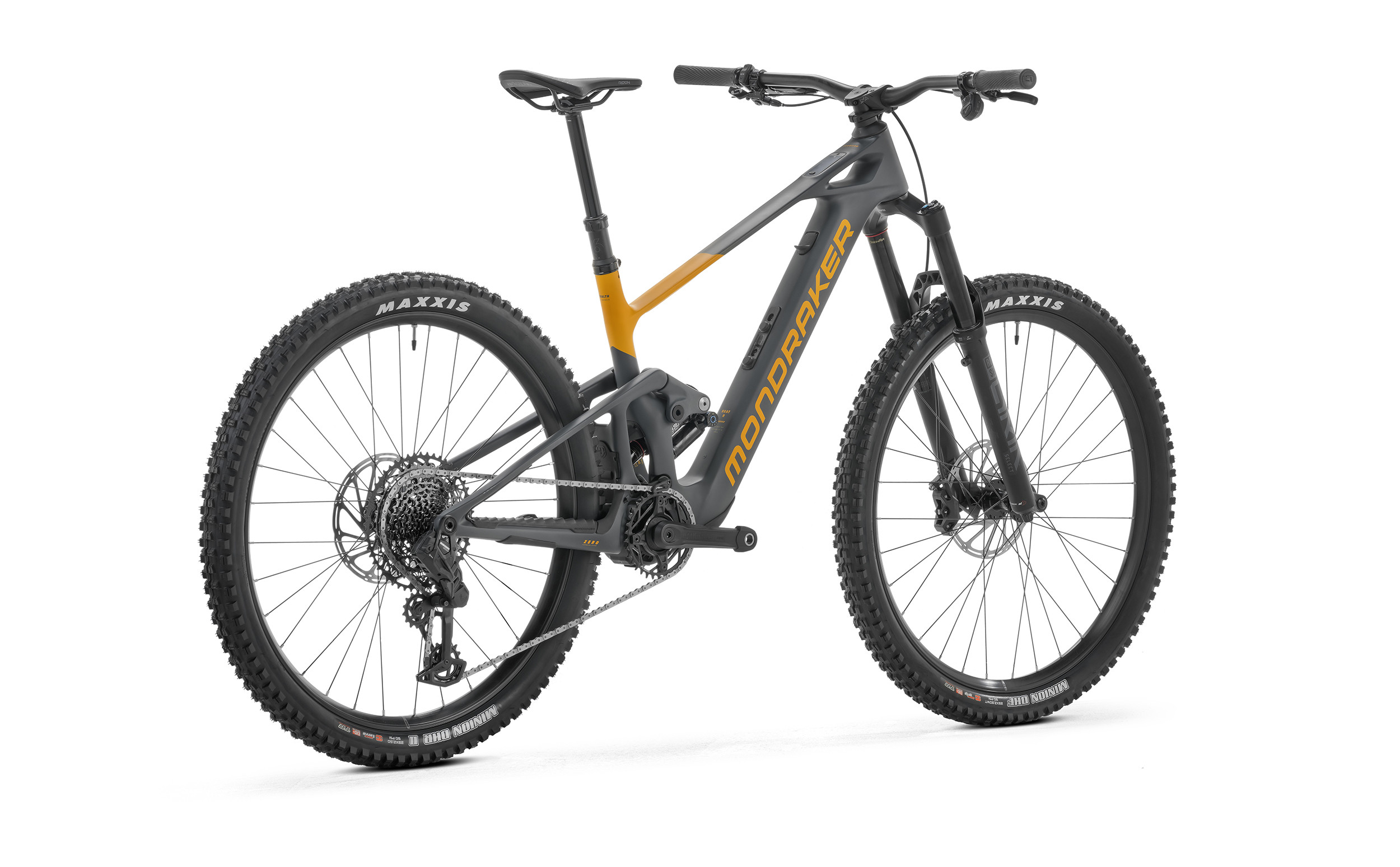

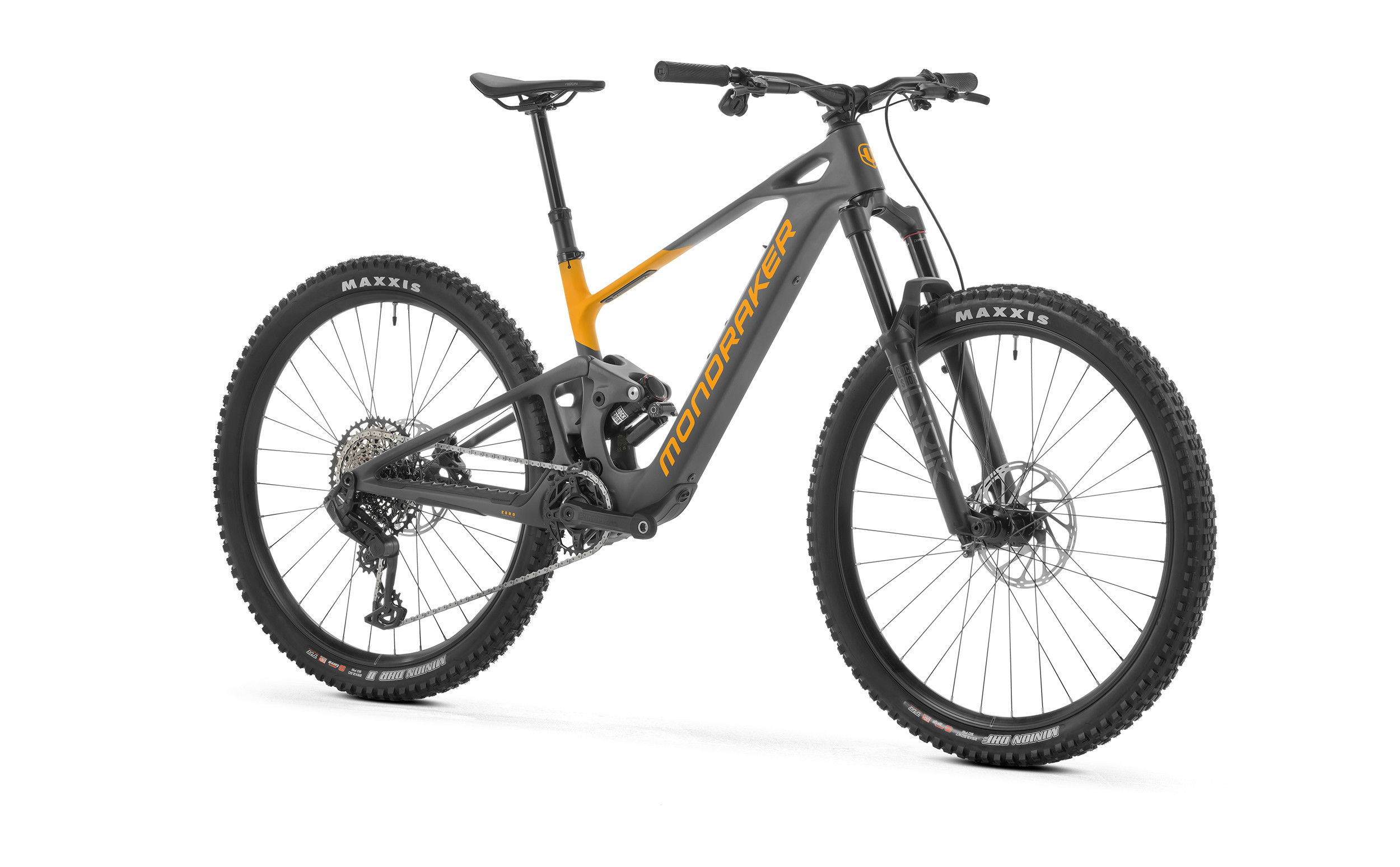

The Neat R is the €8,499 entry to Mondraker's lightest eMTB: a full-carbon frame with the TQ HPR50 motor and 360 Wh battery, RockShox Lyrik Select and Super Deluxe Select suspension, and SRAM S1000 AXS shifting. Claimed weight is 18.9 kg.
Neat is Mondraker's lightest eMTB: a full-carbon Stealth Air frame with 150 mm of rear travel, a 160 mm fork and 29" wheels, built around the compact TQ HPR50 motor and a 360 Wh removable battery.
Claimed weights start at 18.3 kg for the RR SL, the lowest figure in the Mondraker eMTB range.
- TQ HPR50 motor, 360 Wh removable battery
- Full-carbon frame, 150 / 160 mm travel
- From 18.3 kg claimed
Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame

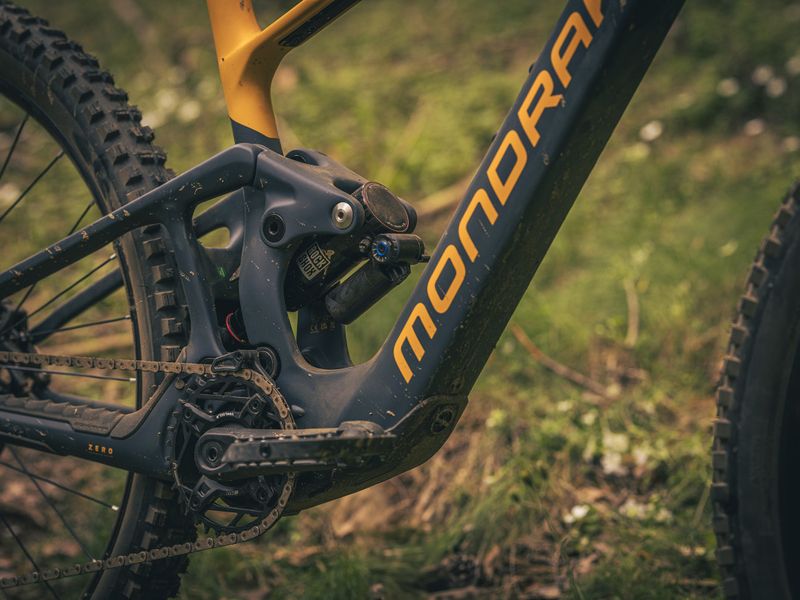

- Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock
- Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- C37 compression, R85 rebound, X4 lock tune, 4 tokens
- Fork
- RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
E-system
- Display
- TQ HPR display V01
- Motor
- TQ HPR-50
- Battery
- TQ HPR-50 360Wh integrated and removable
Drivetrain
- Crankset
- e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
- Chain
- Sram GX Eagle T-Type, 12s, Powerlock
- Rear derailleur
- Sram S1000 Eagle AXS T-Type, 12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XS-1270, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear brake
- Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake lever
- Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Wheels & tyres
- Rims
- Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
- Spokes
- Mavic J-bend double butted, contactless lacing
- Front hub
- Mavic, Boost 15x110mm, IS 6 bolts
- Rear hub
- Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
- Front tire
- Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Cockpit
- Headset
- Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Grips
- Onoff Forest, CNC lock-on, 135mm
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
- Saddle
- Fizik Terra Aidon Slim X5
Other
- Derailleur hanger
- Sram UDH
- Others
- Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Neat geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 380 mm | 420 mm | 450 mm | 490 mm |
| BTop tube length | 595 mm | 615 mm | 640 mm | 660 mm |
| CBottom bracket drop | -25 mm | -25 mm | -25 mm | -25 mm |
| DBottom bracket height | 348 mm | 348 mm | 348 mm | 348 mm |
| EChainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| FSeat tube angle | 72.6° | 72.6° | 72.6° | 72.6° |
| GEffective seat tube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| HHead tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1235 mm | 1255 mm | 1275 mm | 1295 mm |
| KHead tube length | 110 mm | 110 mm | 130 mm | 140 mm |
| LReach | 450 mm | 470 mm | 495 mm | 515 mm |
| MStack | 626 mm | 626 mm | 642 mm | 650 mm |
Source: Mondraker.
Neat: builds compared
Neat range →| Neat R | Neat RR | Neat RR SL | |
|---|---|---|---|
| Price | €8,499 | €9,999 | €11,999 |
| Frame | Full carbon | Full carbon | Full carbon |
| Fork | RockShox LYRIK Select Charger RC 29, 160mm | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm | Fox 36 29 Float GRIPX2 Factory Kashima, 160mm |
| Shock | Rock Shox Super Deluxe Select | Fox Float X Factory Kashima EVOL | Fox Float X Factory Kashima EVOL |
| Derailleur | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS T-Type,12s | Sram XX Eagle AXS |
| Brakes | Sram DB8 stealth | Shimano XT M8120 | Shimano XTR M9120 |
| Wheels | Mavic E-CrossRide 29, 30mm internal width | Mavic E-CrossTrail SL, 29 Boost 30mm internal width | Mavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width |
| Display | TQ HPR display V01 | TQ HPR display V01 | TQ HPR display V01 |
| Weight | 18.9 kg | 18.7 kg | 18.3 kg |
Neat R: FAQ
How much does the Mondraker Neat R cost?
€8,499 (RRP Spain, VAT incl.). The Neat range runs from €8,499 (Neat R) to €11,999 (Neat RR SL). Prices vary by country and dealer.
How much does the Mondraker Neat R weigh?
Mondraker quotes 18.9 kg. The lightest Neat build is the Neat RR SL at 18.3 kg.
What motor and battery does the Mondraker Neat R have?
TQ HPR50 (50 Nm). 360 Wh battery — integrated, removable.
How much suspension travel does the Mondraker Neat R have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Mondraker Neat R come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Neat R and the Neat RR?
They share the Neat frame platform and motor; the differences are in the parts — fork: RockShox LYRIK Select Charger RC 29 vs Fox 36 29 Float GRIPX2 Factory Kashima; shock: Rock Shox Super Deluxe Select vs Fox Float X Factory Kashima EVOL; derailleur: Sram S1000 Eagle AXS T-Type vs Sram GX Eagle AXS T-Type,12s; brakes: Sram DB8 stealth vs Shimano XT M8120; claimed weight: 18.9 kg vs 18.7 kg; price: €8,499 vs €9,999.
