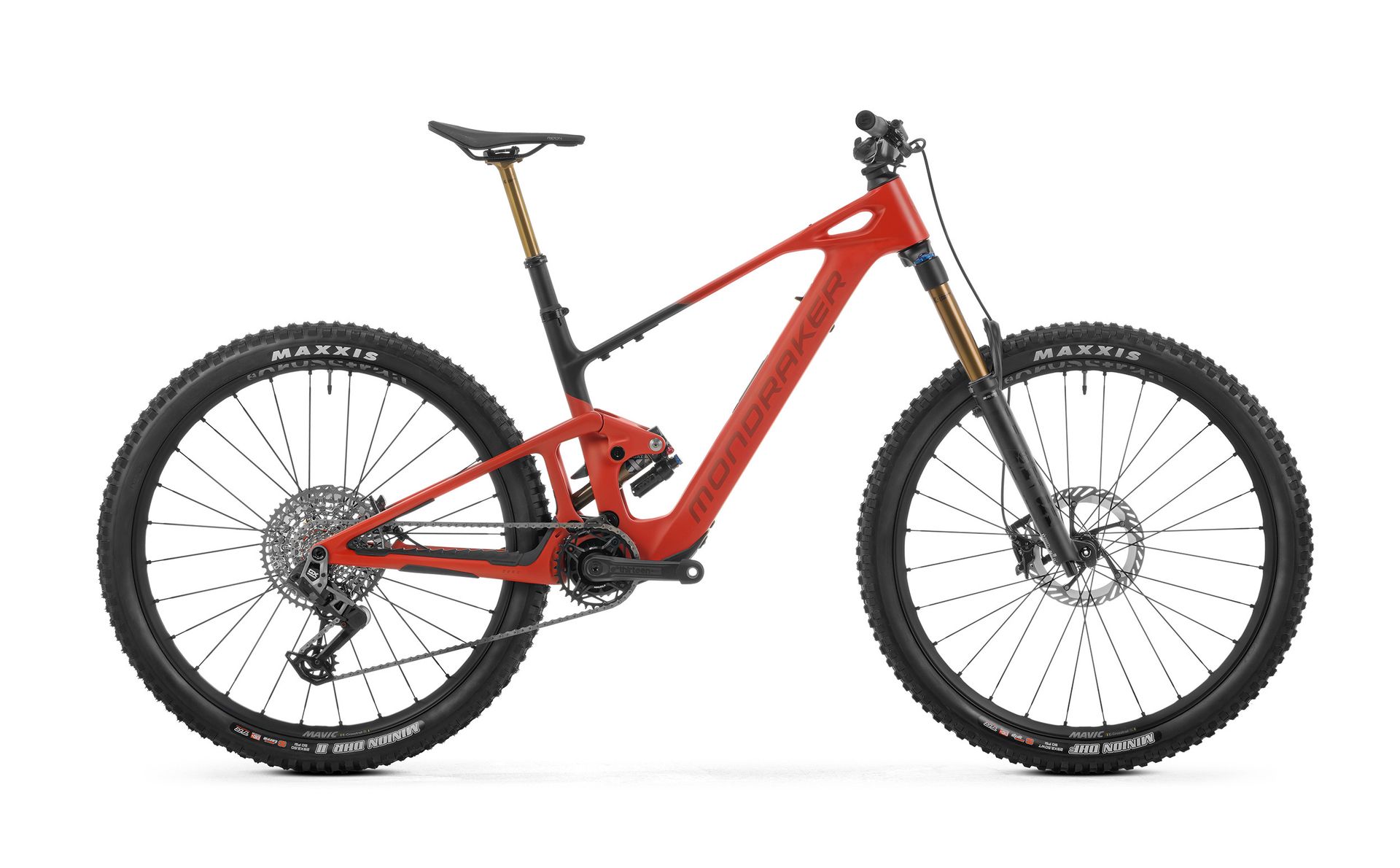

Mondraker Neat RR e-MTB, side view
Photo: Mondraker
Lightweight eMTBTrail / All mountain
Neat range · 3 builds

MondrakerNeat RR

€9,999RRP Spain, VAT incl.
Motor
TQ HPR5050 Nm
Battery
360 WhIntegrated, removable
Travel F / R
160 / 150 mm
Wheels
29"
Frame
Full carbon
Weight
18.7 kgManufacturer figure

All TQ HPR50 / HPR60 eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

For €9,999 the Neat RR upgrades to Fox Factory Kashima suspension (36 GRIPX2, Float X), SRAM GX AXS and Shimano XT brakes on Mavic E-CrossTrail SL wheels. Claimed 18.7 kg.

The Neat RR is one of 3 builds of the Mondraker Neat. About the Neat range and all its builds →

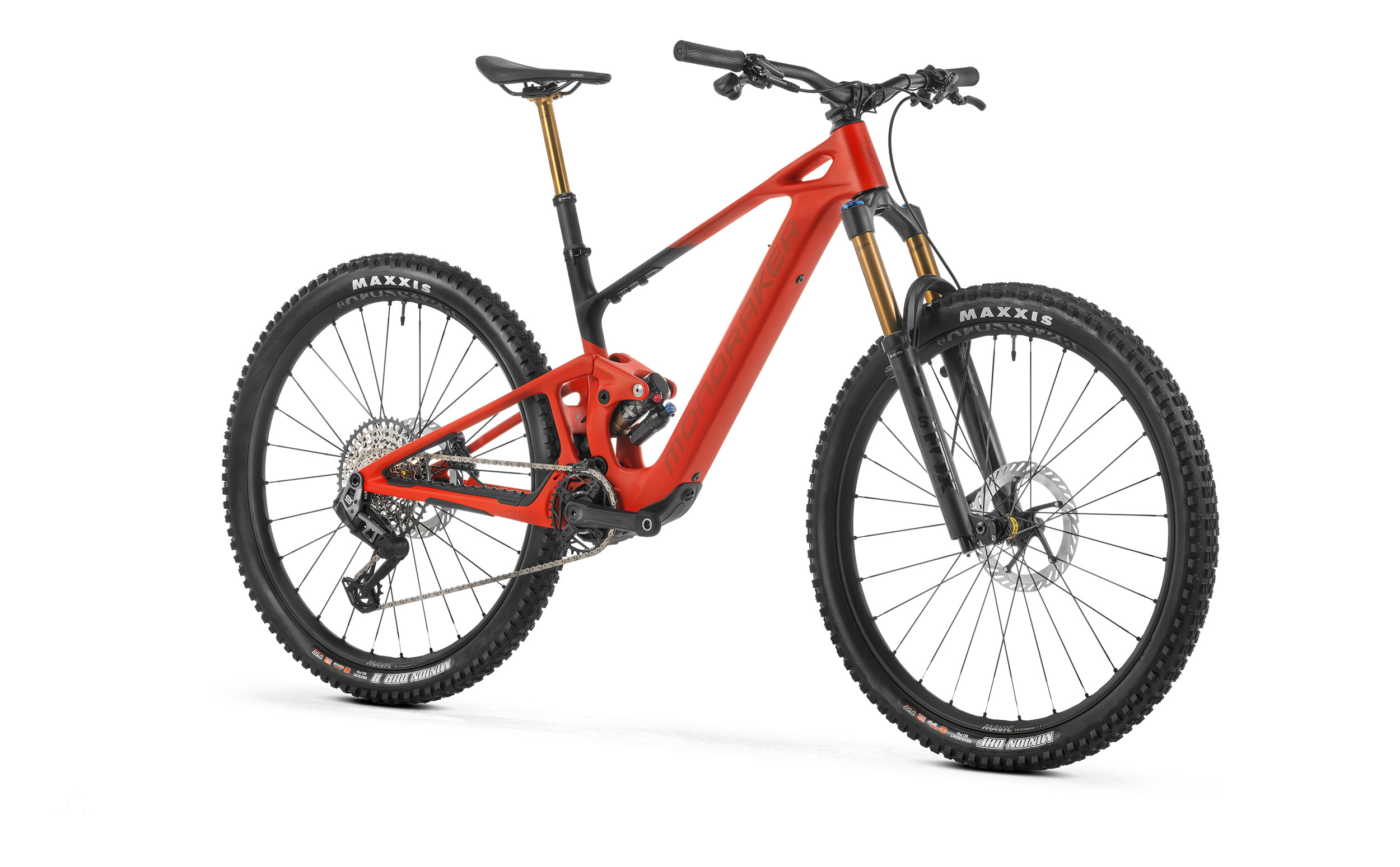

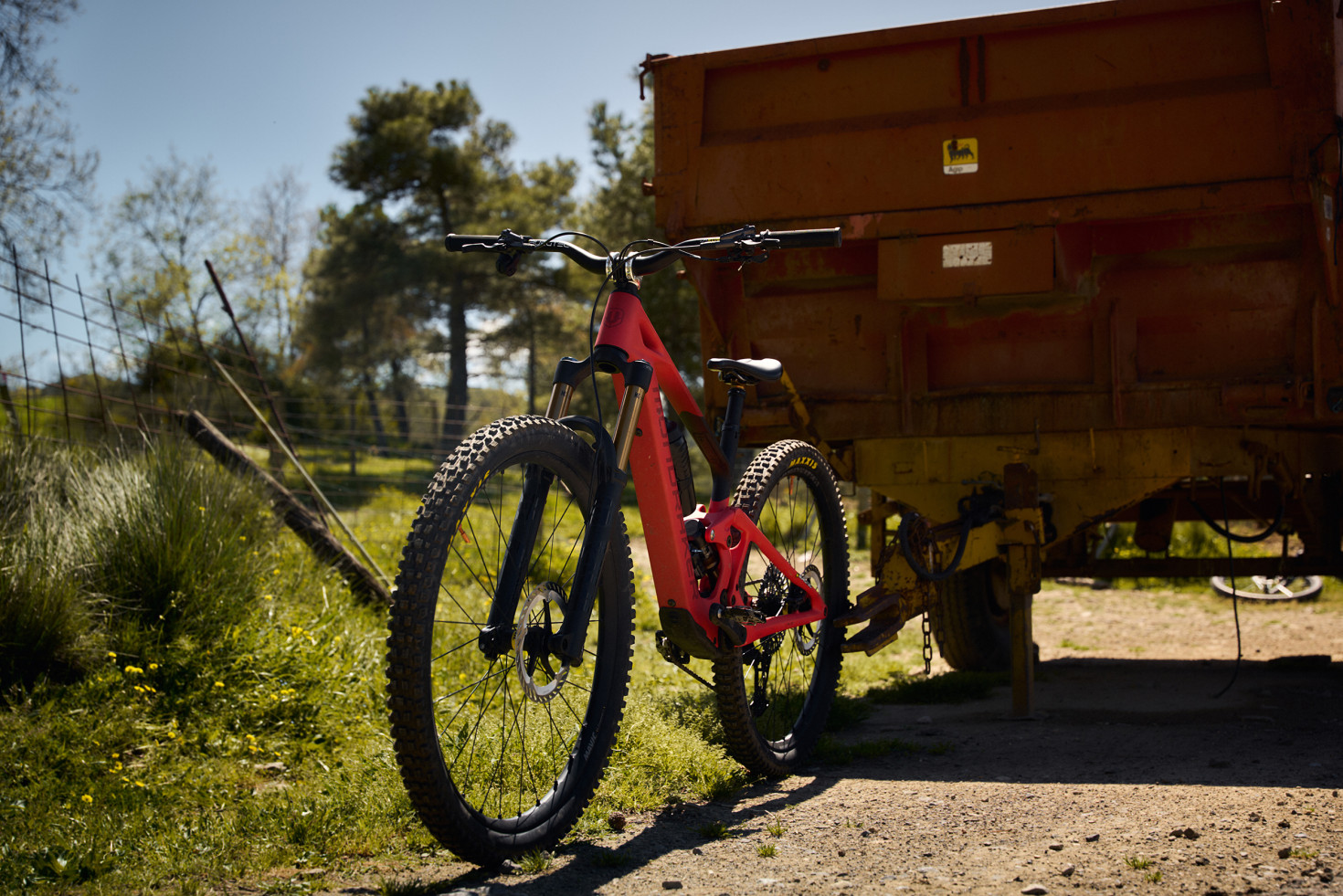

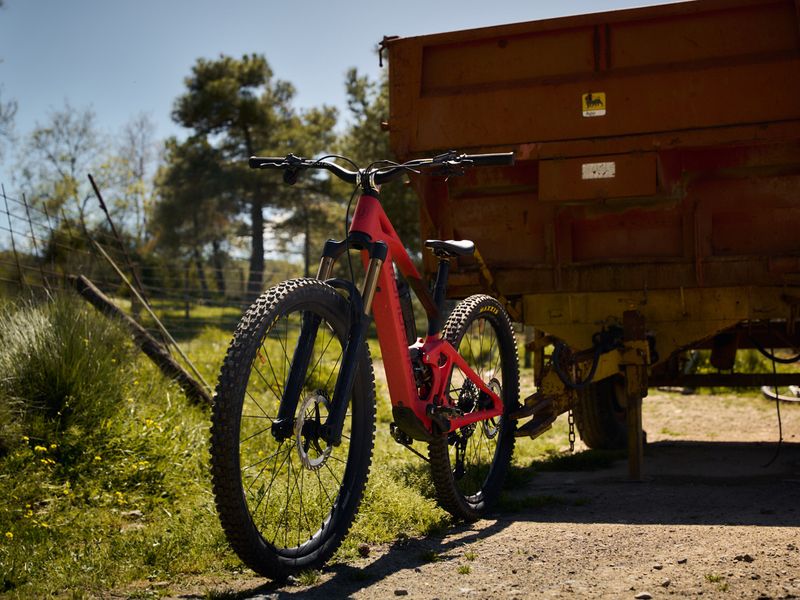

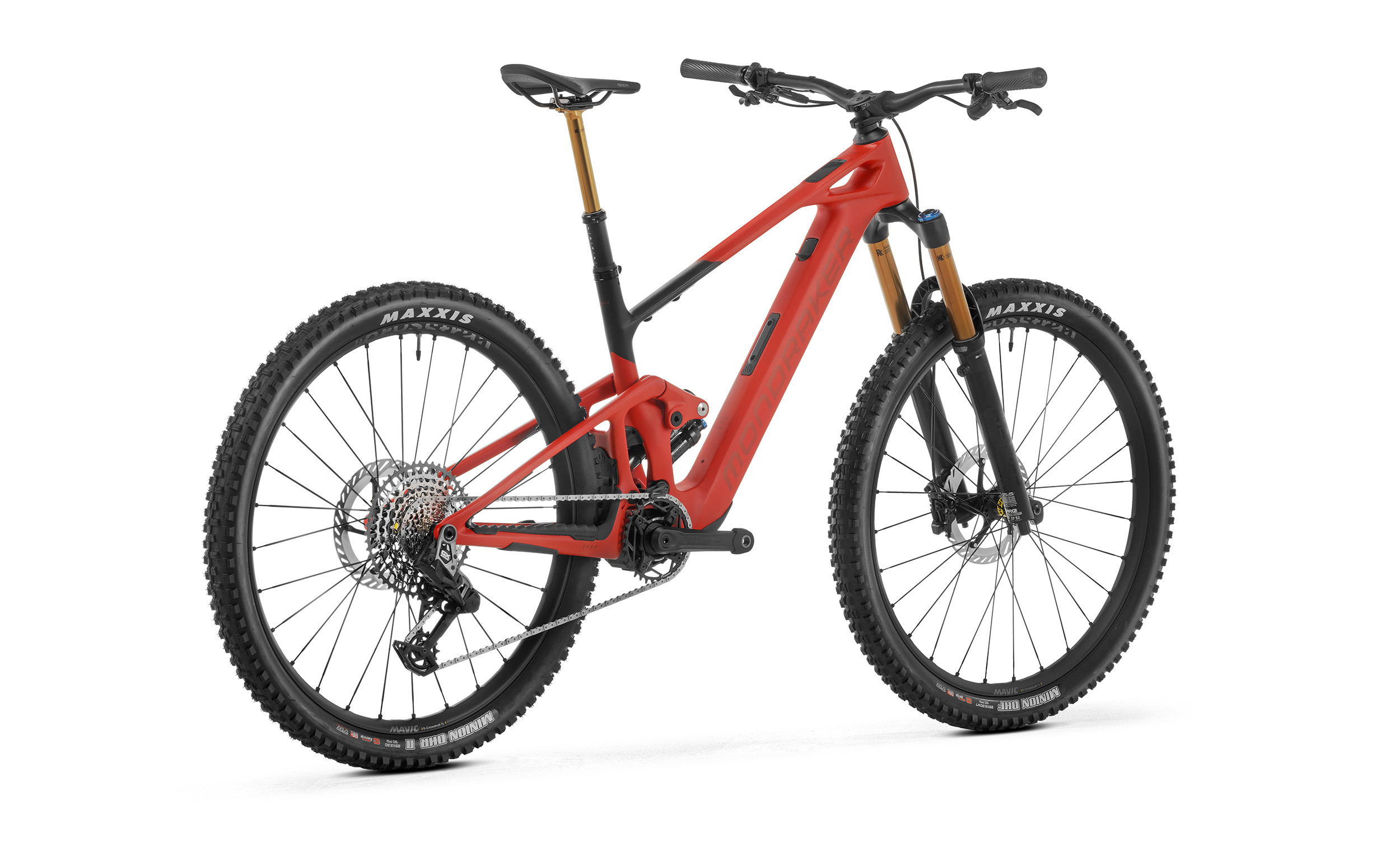

Gallery

Photos: Mondraker

Full specifications

Frame & suspension

Frame
Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork
Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

E-system

Display
TQ HPR display V01
Motor
TQ HPR-50
Battery
TQ HPR-50 360Wh integrated and removable

Drivetrain

Crankset
e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur
Sram GX Eagle AXS T-Type,12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Cassette
Sram XS-1275, 10-52T, T-Type, 12s

Brakes

Front brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Wheels & tyres

Rims
Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes
Mavic 28 straight-pull double butted spokes
Front hub
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead

Cockpit

Headset
Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips
Onoff Forest, CNC lock-on, 135mm
Seatpost
Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle
Fizik Terra Aidon Slim X5

Other

Others
Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Neat geometry

Mondraker Neat geometry diagram
SizeSMLXL
ASeat tube length380 mm420 mm450 mm490 mm
BTop tube length595 mm615 mm640 mm660 mm
CBottom bracket drop-25 mm-25 mm-25 mm-25 mm
DBottom bracket height348 mm348 mm348 mm348 mm
EChainstay length450 mm450 mm450 mm450 mm
FSeat tube angle72.6°72.6°72.6°72.6°
GEffective seat tube angle76.5°76.5°76.5°76.5°
HHead tube angle64.5°64.5°64.5°64.5°
IFork offset44 mm44 mm44 mm44 mm
JWheelbase1235 mm1255 mm1275 mm1295 mm
KHead tube length110 mm110 mm130 mm140 mm
LReach450 mm470 mm495 mm515 mm
MStack626 mm626 mm642 mm650 mm

Source: Mondraker.

Neat: builds compared

Neat range →
Neat RNeat RRNeat RR SL
Price€8,499€9,999€11,999
FrameFull carbonFull carbonFull carbon
ForkRockShox LYRIK Select Charger RC 29, 160mmFox 36 29 Float GRIPX2 Factory Kashima, 160mmFox 36 29 Float GRIPX2 Factory Kashima, 160mm
ShockRock Shox Super Deluxe SelectFox Float X Factory Kashima EVOLFox Float X Factory Kashima EVOL
DerailleurSram S1000 Eagle AXS T-TypeSram GX Eagle AXS T-Type,12sSram XX Eagle AXS
BrakesSram DB8 stealthShimano XT M8120Shimano XTR M9120
WheelsMavic E-CrossRide 29, 30mm internal widthMavic E-CrossTrail SL, 29 Boost 30mm internal widthMavic E-CrossTrail SL Carbon, 29 Boost 30mm internal width
DisplayTQ HPR display V01TQ HPR display V01TQ HPR display V01
Weight18.9 kg18.7 kg18.3 kg

Neat RR: FAQ

What is the difference between the Neat RR and the Neat RR SL?

They share the Neat frame platform and motor; the differences are in the parts: derailleur: Sram GX Eagle AXS T-Type,12s vs Sram XX Eagle AXS; brakes: Shimano XT M8120 vs Shimano XTR M9120; claimed weight: 18.7 kg vs 18.3 kg; price: €9,999 vs €11,999.
