MondrakerCrafty Carbon S
- Motor
- Bosch Performance Line CX Gen 585 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026
- Battery
- 800 WhBosch PowerTube, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon front, alloy rear
- Weight
- 24.8 kgManufacturer figure
Overview
The Crafty Carbon S is the €6,499 entry point to Mondraker's carbon e-enduro: Bosch CX, 800 Wh and RockShox ZEB/Super Deluxe suspension at 24.8 kg. It shares the carbon front triangle and alloy rear of the R, but runs SRAM 70 Eagle T-Type shifting and SRAM DB8 brakes.
Crafty Carbon is Mondraker's full-power all-mountain and enduro eMTB: a Stealth Air carbon frame with 150 mm of rear travel, a 160 mm fork, 29" wheels and the fifth-generation Bosch Performance Line CX motor paired with an 800 Wh removable battery.

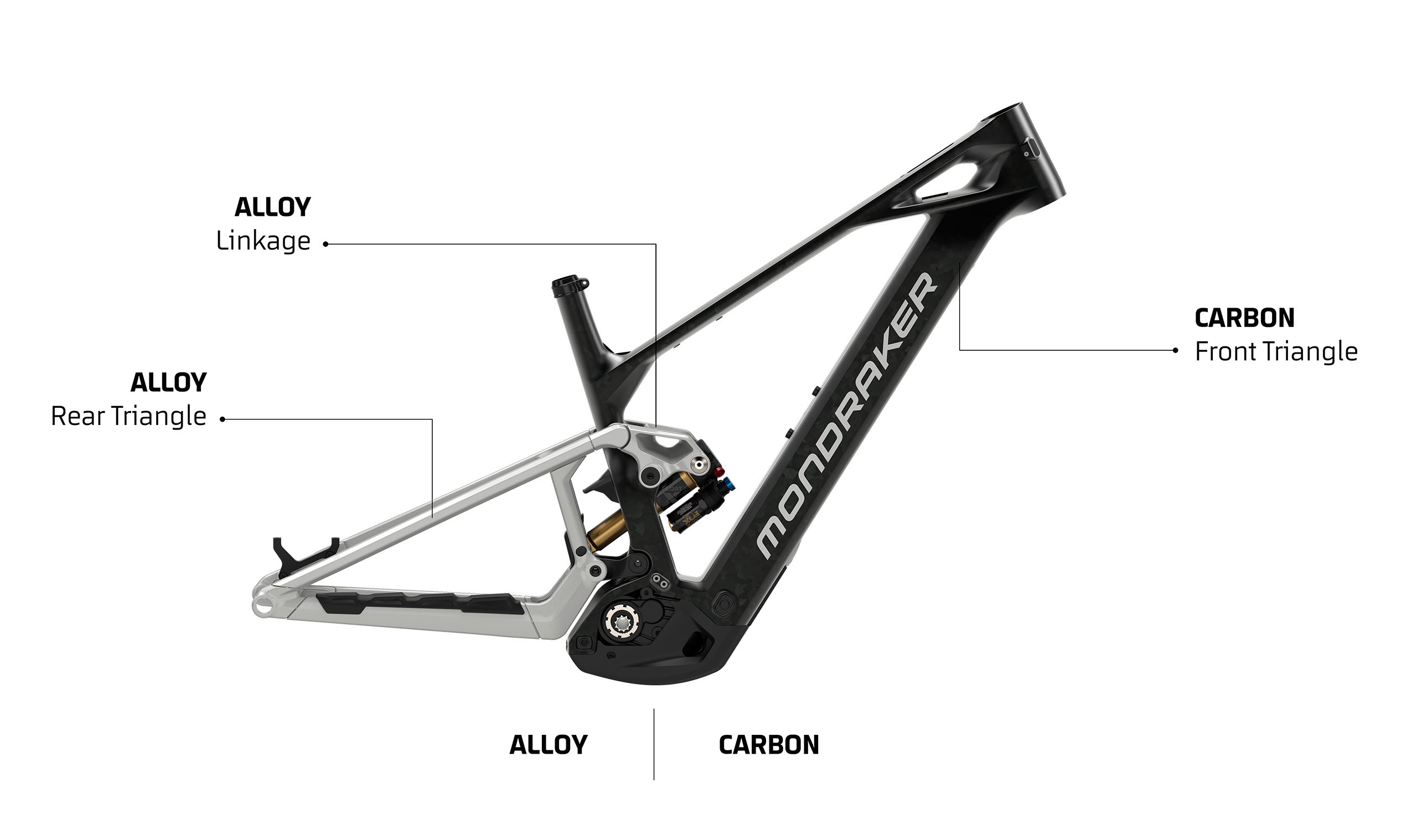

The current frame runs a 64.5° head angle, one degree slacker than before, plus a flip chip on the lower shock mount, and comes in five sizes including ML. The S and R builds combine a carbon front triangle with an alloy rear end; RR and RR S are carbon throughout.
- Bosch CX Gen 5 with 800 Wh removable battery
- Stealth Air carbon frame, Zero Suspension System
- 64.5° head angle and flip-chip adjustable geometry
- Five sizes: S, M, ML, L, XL

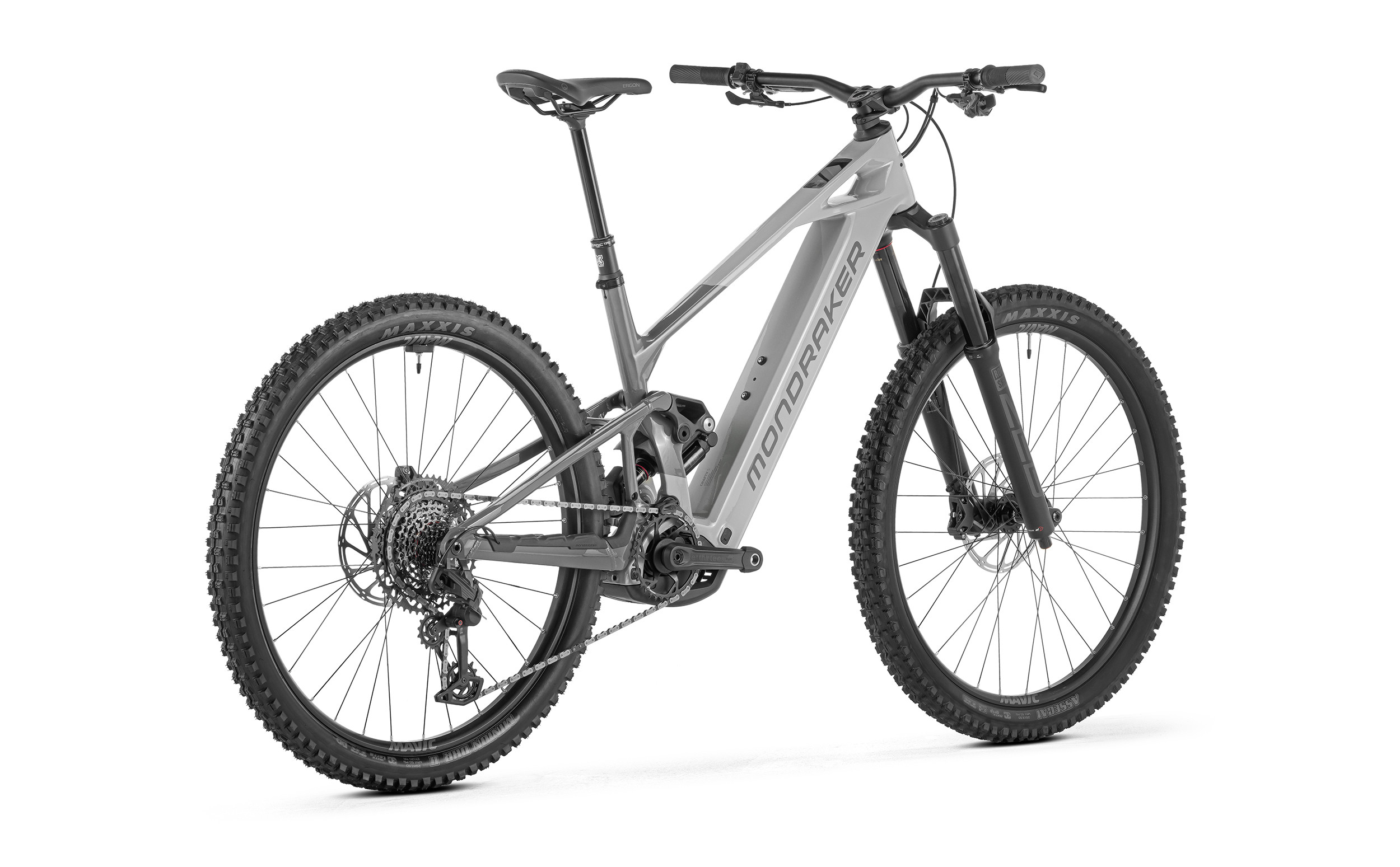

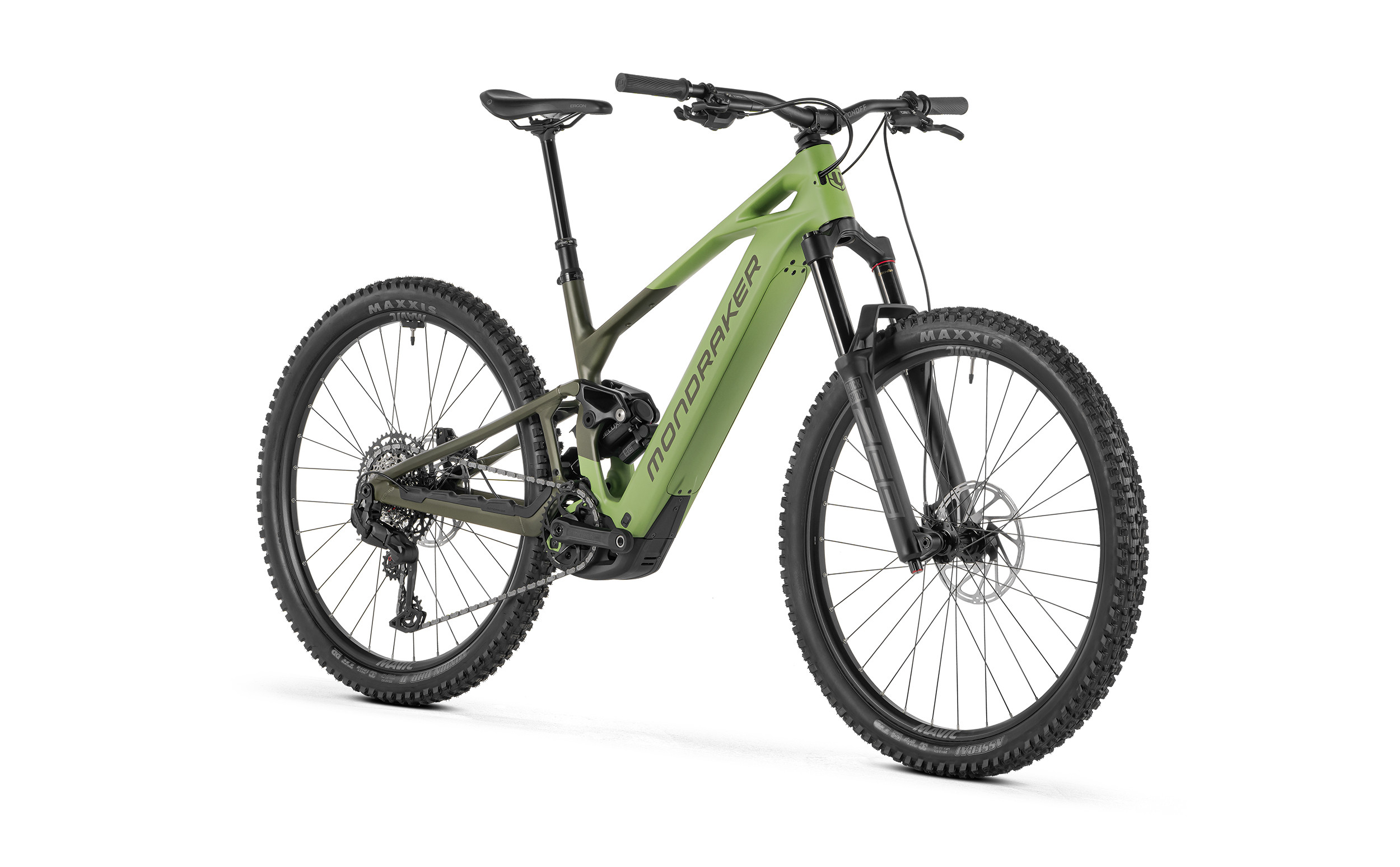

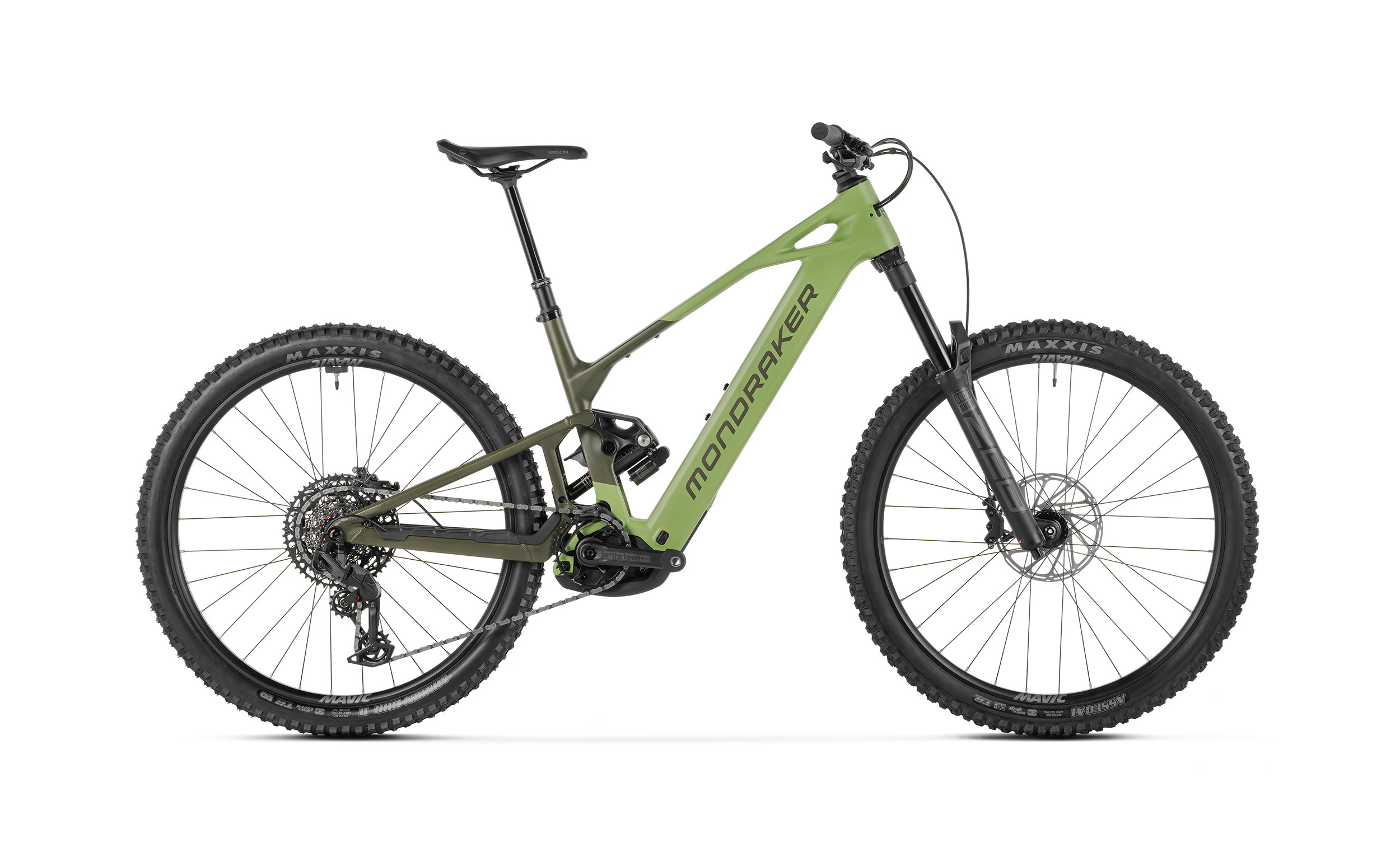

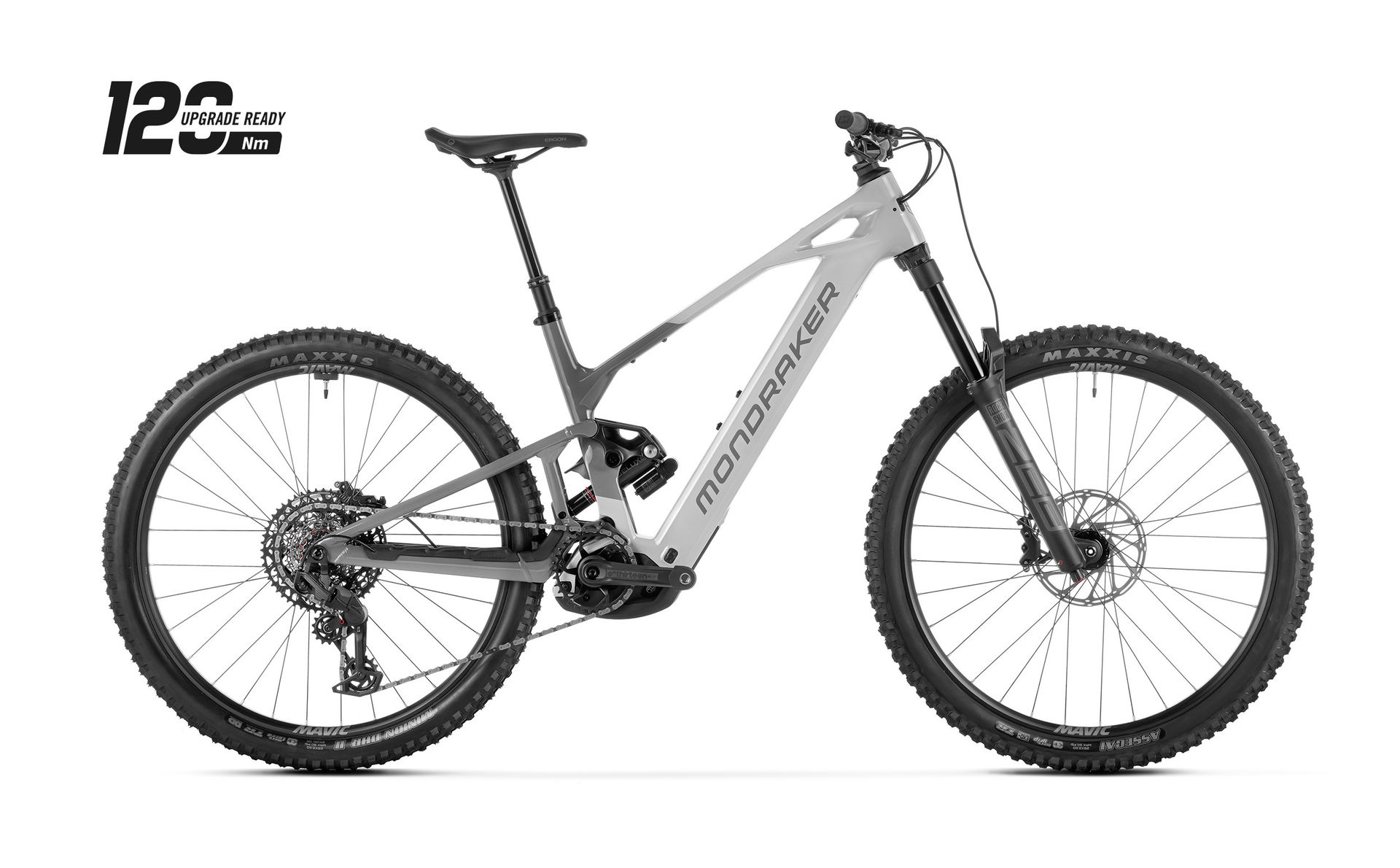

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock
- RockShox Super Deluxe Base, 185x55mm. Settings: external bottom out, 15 cliks rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- C34 compression R55 rebound. Token position 2, X25 lockout force
- Fork
- RockShox ZEB Base 29, Delta RC, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Battery
- Bosch Powertube 800Wh
Drivetrain
- Crankset
- E.13 Helix Core E*Spec Plus, All sizes: 155mm
- Rings
- Sram Eagle 34T T-Type, direct mount, steel, CL55
- Chain
- Sram 70 Eagle T-Type, 12s Flattop, PowerLock
- Rear derailleur
- Sram 70 Eagle, T-Type, 12s
- Shift levers
- Sram Trigger 70, 12s, T-Type Actuation
- Cassette
- Sram XS-1270, 10-52T, 12s
Brakes
- Front brake
- Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear brake
- Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake lever
- Sram DB8, tool reach adjust, lever pivot bushings
Wheels & tyres
- Rims
- Mavic E-Access XR30, 29 Boost 30mm internal width, tubeless ready, 28 spokes
- Spokes
- Mavic Reinforced spokes lacing
- Front hub
- Mavic, Boost 15x110mm, IS 6 bolts
- Rear hub
- Mavic hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
- Front tire
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
Cockpit
- Headset
- Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200
- Saddle
- Ergon SM-10
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

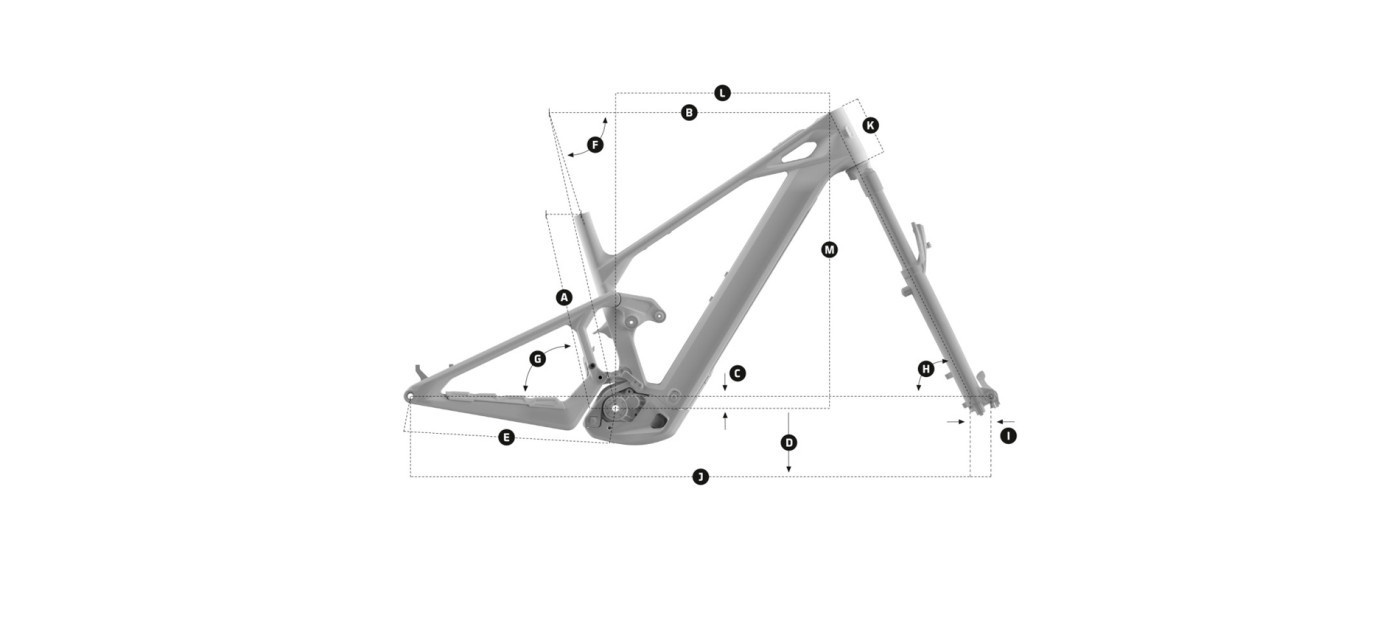

Crafty Carbon geometry
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 581 mm / 582 mm | 596 mm / 597 mm | 618 mm / 619 mm | 640 mm / 641 mm | 662 mm / 663 mm |
| CBottom bracket drop | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm |
| DBottom bracket height | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
| EChainstay length | 455 mm / 456 mm | 455 mm / 456 mm | 455 mm / 456 mm | 465 mm / 466 mm | 465 mm / 466 mm |
| FSeat tube angle | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° |
| GEffective seat tube angle | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° |
| HHead tube angle | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° |
| IFork offset | 44 mm | 44 mm | 44 mm / 44 mm | 44 mm | 44 mm / 44 mm |
| JWheelbase | 1240 mm / 1241 mm | 1255 mm / 1256 mm | 1280 mm / 1281 mm | 1314 mm / 1315 mm | 1338 mm / 1339 mm |
| KHead tube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| LReach | 445 mm / 441 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| MStack | 638 mm / 641 mm | 638 mm / 641 mm | 647 mm / 650 mm | 656 mm / 659 mm | 665 mm / 668 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Crafty Carbon: builds compared
Crafty Carbon range →| Crafty Carbon S | Crafty Carbon R | Crafty Carbon RR | Crafty Carbon RR S | |
|---|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 | €9,999 |
| Frame | Carbon front, alloy rear | Carbon front, alloy rear | Full carbon | Full carbon |
| Fork | RockShox ZEB Base 29, Delta RC | Fox 38 29 Float GRIP Performance, 160mm | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm | Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm |
| Shock | RockShox Super Deluxe Base | Fox Float-X LV Performance | Fox Float-X Factory Kashima EVOL LV | Fox Float-X Factory Kashima EVOL LV |
| Derailleur | Sram 70 Eagle | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS | Sram X0 Eagle AXS |
| Brakes | Sram DB8 | Sram Maven Base | Sram Maven Bronze | Sram Maven Silver |
| Wheels | Mavic E-Access XR30, 29 Boost 30mm internal width | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid HX 1700 Spline, 30mm internal width |
| Display | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 24.8 kg | 24.5 kg | 23.7 kg | 23.9 kg |
Crafty Carbon S: FAQ
How much does the Mondraker Crafty Carbon S cost?
€6,499 (RRP Spain, VAT incl.). The Crafty Carbon range runs from €6,499 (Crafty Carbon S) to €9,999 (Crafty Carbon RR S). Prices vary by country and dealer.
How much does the Mondraker Crafty Carbon S weigh?
Mondraker quotes 24.8 kg. The lightest Crafty Carbon build is the Crafty Carbon RR at 23.7 kg.
What motor and battery does the Mondraker Crafty Carbon S have?
Bosch Performance Line CX Gen 5 (85 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026). 800 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Mondraker Crafty Carbon S have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Mondraker Crafty Carbon S come in?
S, M, ML, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Crafty Carbon S and the Crafty Carbon R?
They share the Crafty Carbon frame platform and motor; the differences are in the parts — fork: RockShox ZEB Base 29 vs Fox 38 29 Float GRIP Performance; shock: RockShox Super Deluxe Base vs Fox Float-X LV Performance; derailleur: Sram 70 Eagle vs Sram S1000 Eagle AXS T-Type; brakes: Sram DB8 vs Sram Maven Base; claimed weight: 24.8 kg vs 24.5 kg; price: €6,499 vs €7,499.
