MondrakerCrafty Carbon R
- Motor
- Bosch Performance Line CX Gen 585 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026
- Battery
- 800 WhBosch PowerTube, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon front, alloy rear
- Weight
- 24.5 kgManufacturer figure
Overview
The Crafty Carbon R adds Fox 38 Performance and Float-X suspension, wireless SRAM S1000 AXS shifting and Maven Base brakes for €7,499. Claimed weight is 24.5 kg, with the same carbon/alloy frame as the S and DT Swiss Hybrid wheels.
Crafty Carbon is Mondraker's full-power all-mountain and enduro eMTB: a Stealth Air carbon frame with 150 mm of rear travel, a 160 mm fork, 29" wheels and the fifth-generation Bosch Performance Line CX motor paired with an 800 Wh removable battery.
The current frame runs a 64.5° head angle, one degree slacker than before, plus a flip chip on the lower shock mount, and comes in five sizes including ML. The S and R builds combine a carbon front triangle with an alloy rear end; RR and RR S are carbon throughout.
- Bosch CX Gen 5 with 800 Wh removable battery
- Stealth Air carbon frame, Zero Suspension System
- 64.5° head angle and flip-chip adjustable geometry
- Five sizes: S, M, ML, L, XL

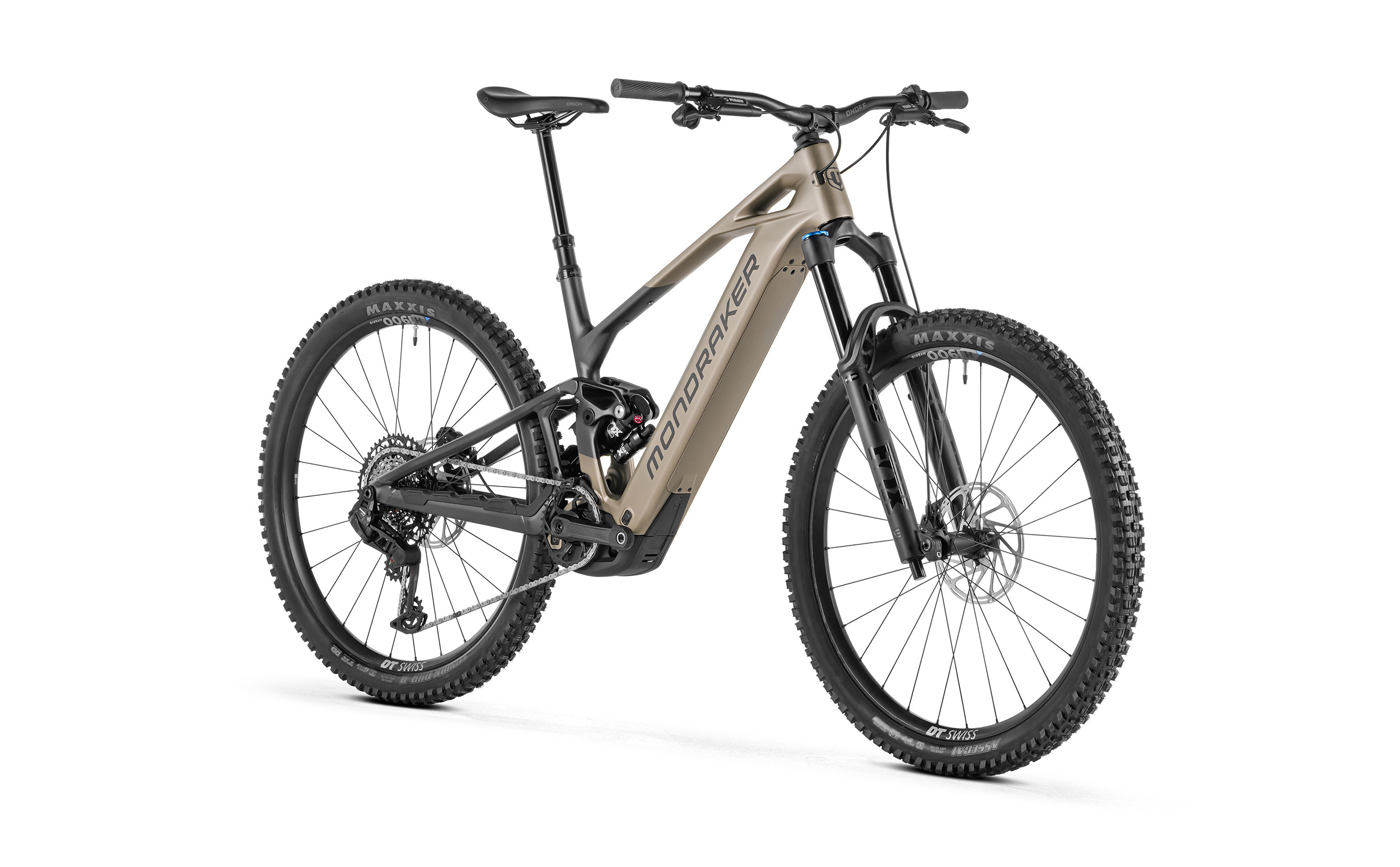

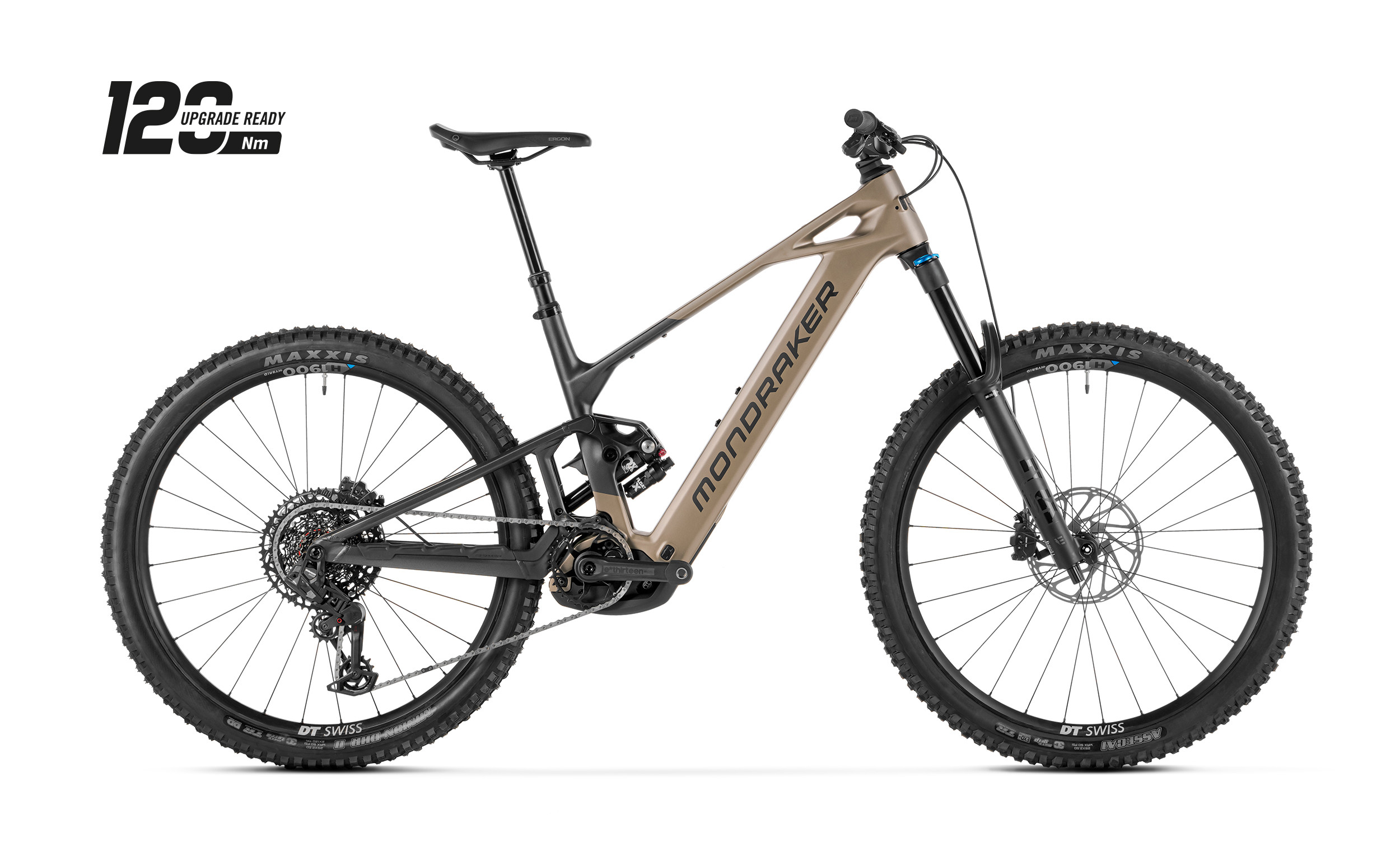

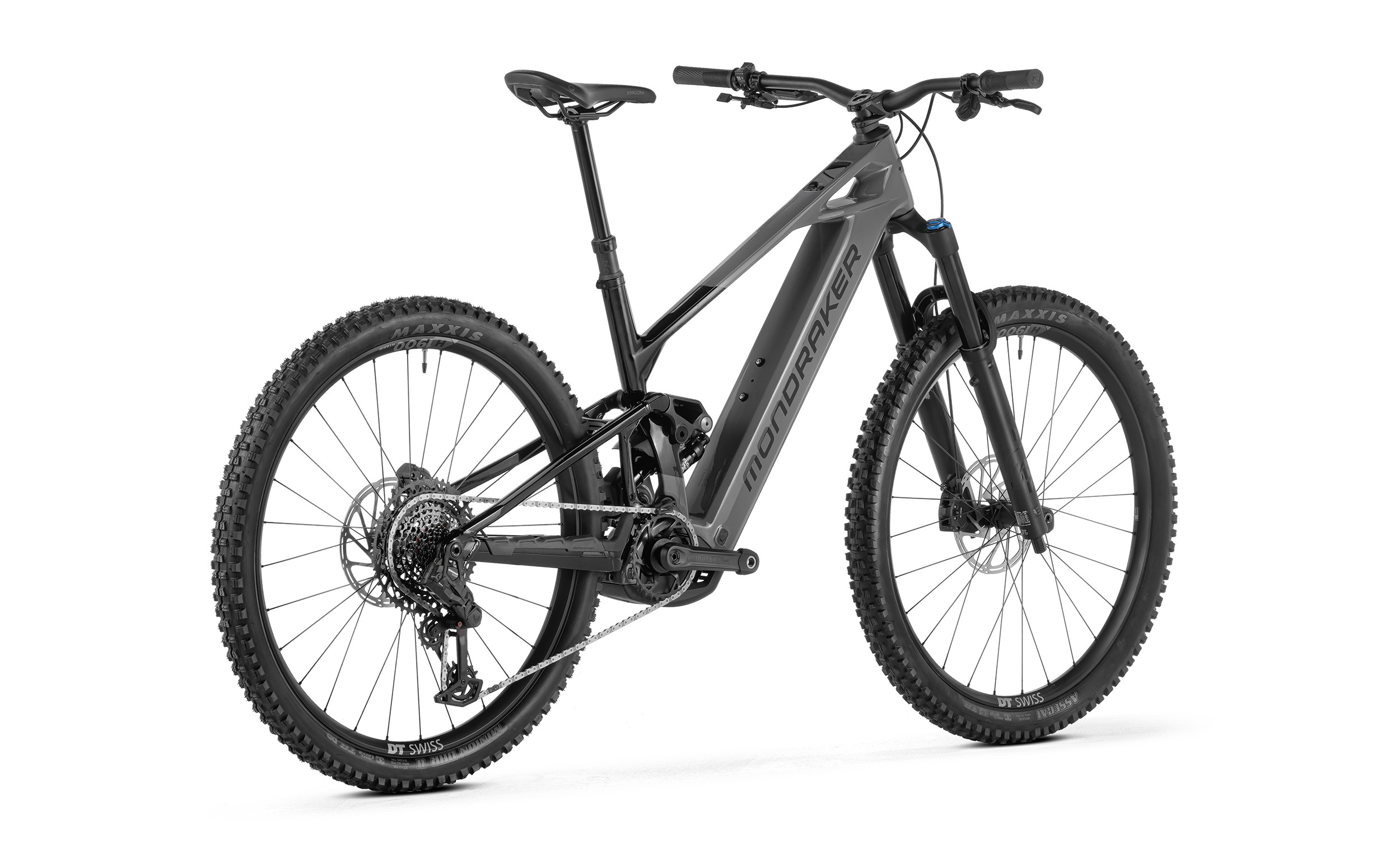

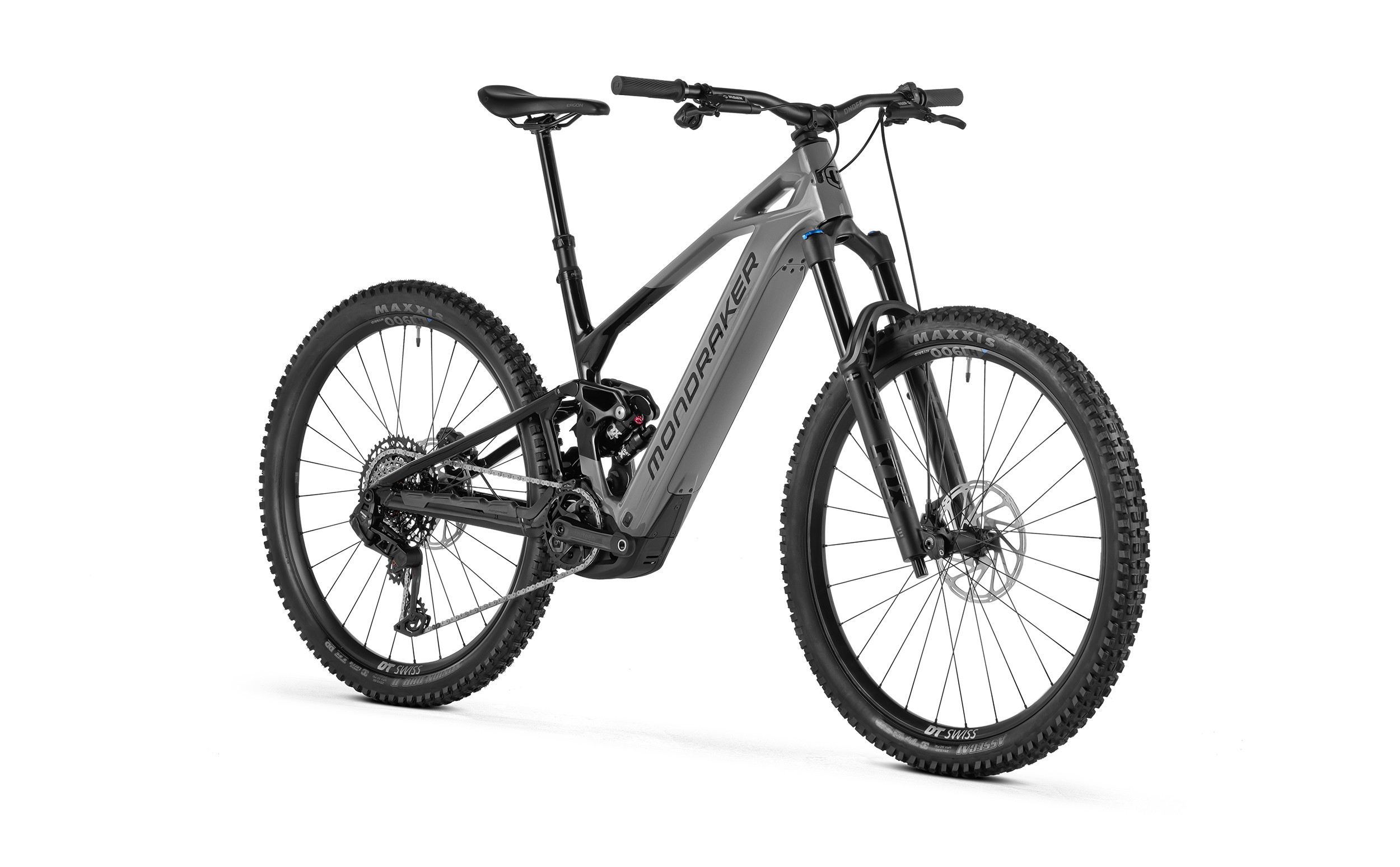

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Crafty Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock
- Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer
- Fork
- Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Battery
- Bosch Powertube 800Wh
Drivetrain
- Crankset
- E.13 Helix Core E*Spec Plus, All sizes: 155mm
- Rings
- Sram Eagle 34T T-Type, direct mount, steel, CL55
- Chain
- Sram GX Eagle T-Type, 12s Flattop, Powerlock
- Rear derailleur
- Sram S1000 Eagle AXS T-Type, 12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XS-1270, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear brake
- Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake lever
- Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
- Spokes
- DT Swiss Straightpull spokes, DT Hybrid I, black
- Front hub
- DT Swiss 370, Boost 15x110mm, IS 6 bolts
- Rear hub
- DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
- Front tire
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
Cockpit
- Headset
- Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Saddle
- Ergon SM-10
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Crafty Carbon geometry
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 581 mm / 582 mm | 596 mm / 597 mm | 618 mm / 619 mm | 640 mm / 641 mm | 662 mm / 663 mm |
| CBottom bracket drop | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm |
| DBottom bracket height | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
| EChainstay length | 455 mm / 456 mm | 455 mm / 456 mm | 455 mm / 456 mm | 465 mm / 466 mm | 465 mm / 466 mm |
| FSeat tube angle | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° |
| GEffective seat tube angle | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° |
| HHead tube angle | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° |
| IFork offset | 44 mm | 44 mm | 44 mm / 44 mm | 44 mm | 44 mm / 44 mm |
| JWheelbase | 1240 mm / 1241 mm | 1255 mm / 1256 mm | 1280 mm / 1281 mm | 1314 mm / 1315 mm | 1338 mm / 1339 mm |
| KHead tube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| LReach | 445 mm / 441 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| MStack | 638 mm / 641 mm | 638 mm / 641 mm | 647 mm / 650 mm | 656 mm / 659 mm | 665 mm / 668 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Crafty Carbon: builds compared
Crafty Carbon range →| Crafty Carbon S | Crafty Carbon R | Crafty Carbon RR | Crafty Carbon RR S | |
|---|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 | €9,999 |
| Frame | Carbon front, alloy rear | Carbon front, alloy rear | Full carbon | Full carbon |
| Fork | RockShox ZEB Base 29, Delta RC | Fox 38 29 Float GRIP Performance, 160mm | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm | Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm |
| Shock | RockShox Super Deluxe Base | Fox Float-X LV Performance | Fox Float-X Factory Kashima EVOL LV | Fox Float-X Factory Kashima EVOL LV |
| Derailleur | Sram 70 Eagle | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS | Sram X0 Eagle AXS |
| Brakes | Sram DB8 | Sram Maven Base | Sram Maven Bronze | Sram Maven Silver |
| Wheels | Mavic E-Access XR30, 29 Boost 30mm internal width | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid HX 1700 Spline, 30mm internal width |
| Display | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 24.8 kg | 24.5 kg | 23.7 kg | 23.9 kg |
Crafty Carbon R: FAQ
How much does the Mondraker Crafty Carbon R cost?
€7,499 (RRP Spain, VAT incl.). The Crafty Carbon range runs from €6,499 (Crafty Carbon S) to €9,999 (Crafty Carbon RR S). Prices vary by country and dealer.
How much does the Mondraker Crafty Carbon R weigh?
Mondraker quotes 24.5 kg. The lightest Crafty Carbon build is the Crafty Carbon RR at 23.7 kg.
What motor and battery does the Mondraker Crafty Carbon R have?
Bosch Performance Line CX Gen 5 (85 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026). 800 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Mondraker Crafty Carbon R have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Mondraker Crafty Carbon R come in?
S, M, ML, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Crafty Carbon R and the Crafty Carbon RR?
They share the Crafty Carbon frame platform and motor; the differences are in the parts — frame: carbon front, alloy rear vs full carbon; fork: Fox 38 29 Float GRIP Performance vs Fox 38 29 Float GRIPX2 Factory Kashima; shock: Fox Float-X LV Performance vs Fox Float-X Factory Kashima EVOL LV; derailleur: Sram S1000 Eagle AXS T-Type vs Sram GX Eagle AXS; brakes: Sram Maven Base vs Sram Maven Bronze; claimed weight: 24.5 kg vs 23.7 kg; price: €7,499 vs €8,499.
