MondrakerCrafty Carbon RR
- Motor
- Bosch Performance Line CX Gen 585 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026
- Battery
- 800 WhBosch PowerTube, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Full carbon
- Weight
- 23.7 kgManufacturer figure
Overview
The Crafty Carbon RR is the first full-carbon build: €8,499 for Fox Factory Kashima suspension (38 GRIPX2, Float-X), SRAM GX AXS and Maven Bronze brakes. At a claimed 23.7 kg it is the lightest Crafty Carbon in the range.
Crafty Carbon is Mondraker's full-power all-mountain and enduro eMTB: a Stealth Air carbon frame with 150 mm of rear travel, a 160 mm fork, 29" wheels and the fifth-generation Bosch Performance Line CX motor paired with an 800 Wh removable battery.
The current frame runs a 64.5° head angle, one degree slacker than before, plus a flip chip on the lower shock mount, and comes in five sizes including ML. The S and R builds combine a carbon front triangle with an alloy rear end; RR and RR S are carbon throughout.
- Bosch CX Gen 5 with 800 Wh removable battery
- Stealth Air carbon frame, Zero Suspension System
- 64.5° head angle and flip-chip adjustable geometry
- Five sizes: S, M, ML, L, XL

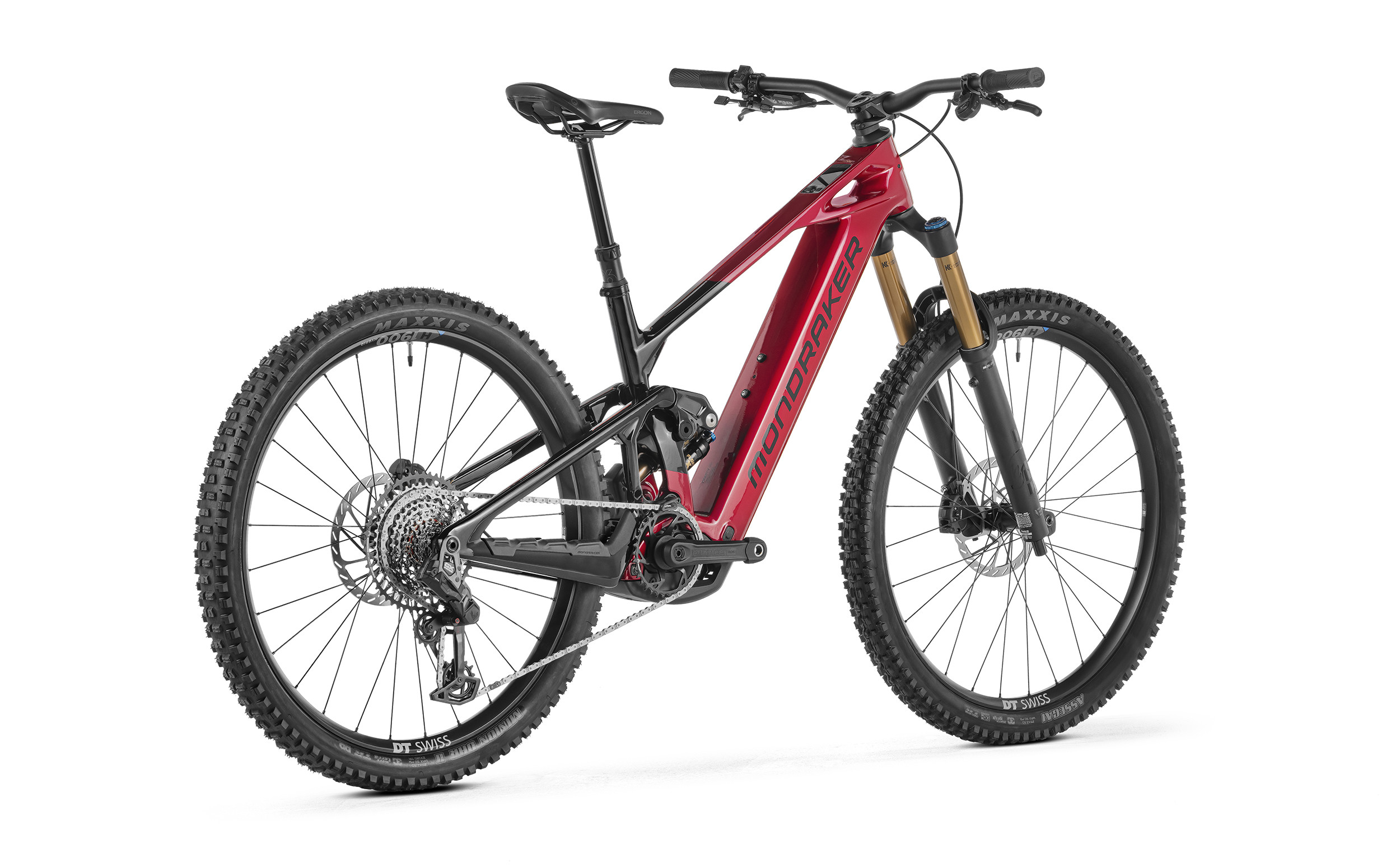

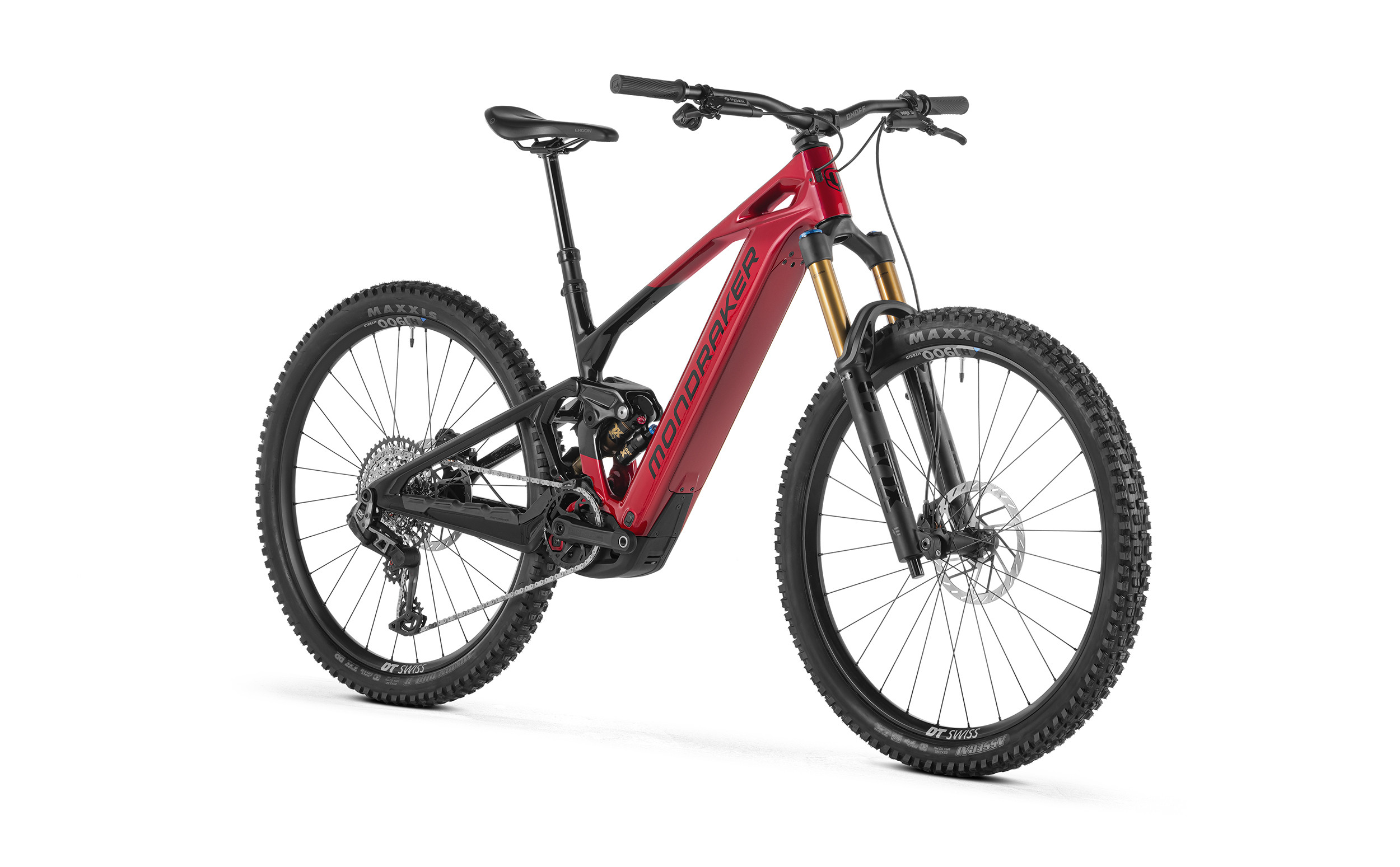

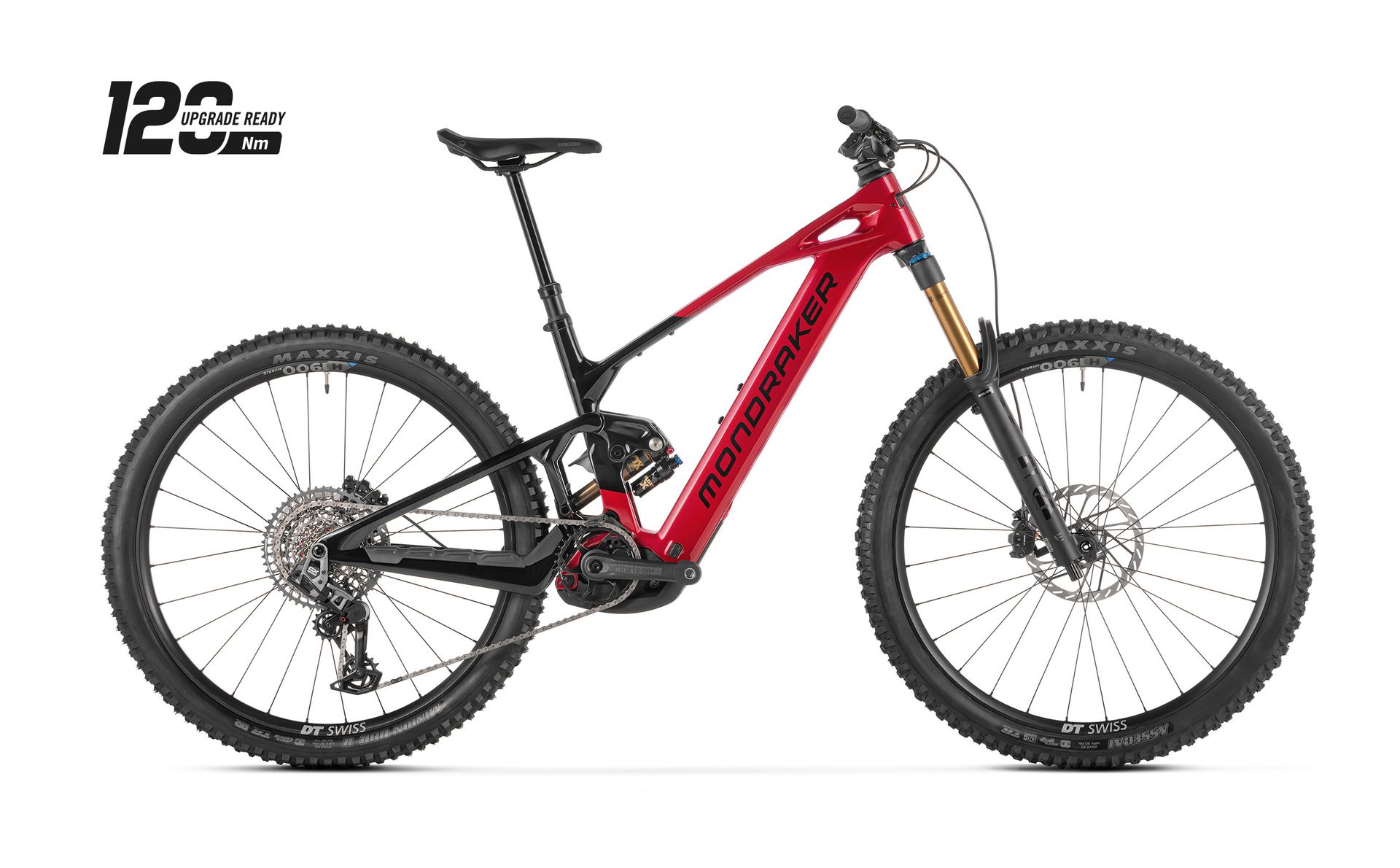

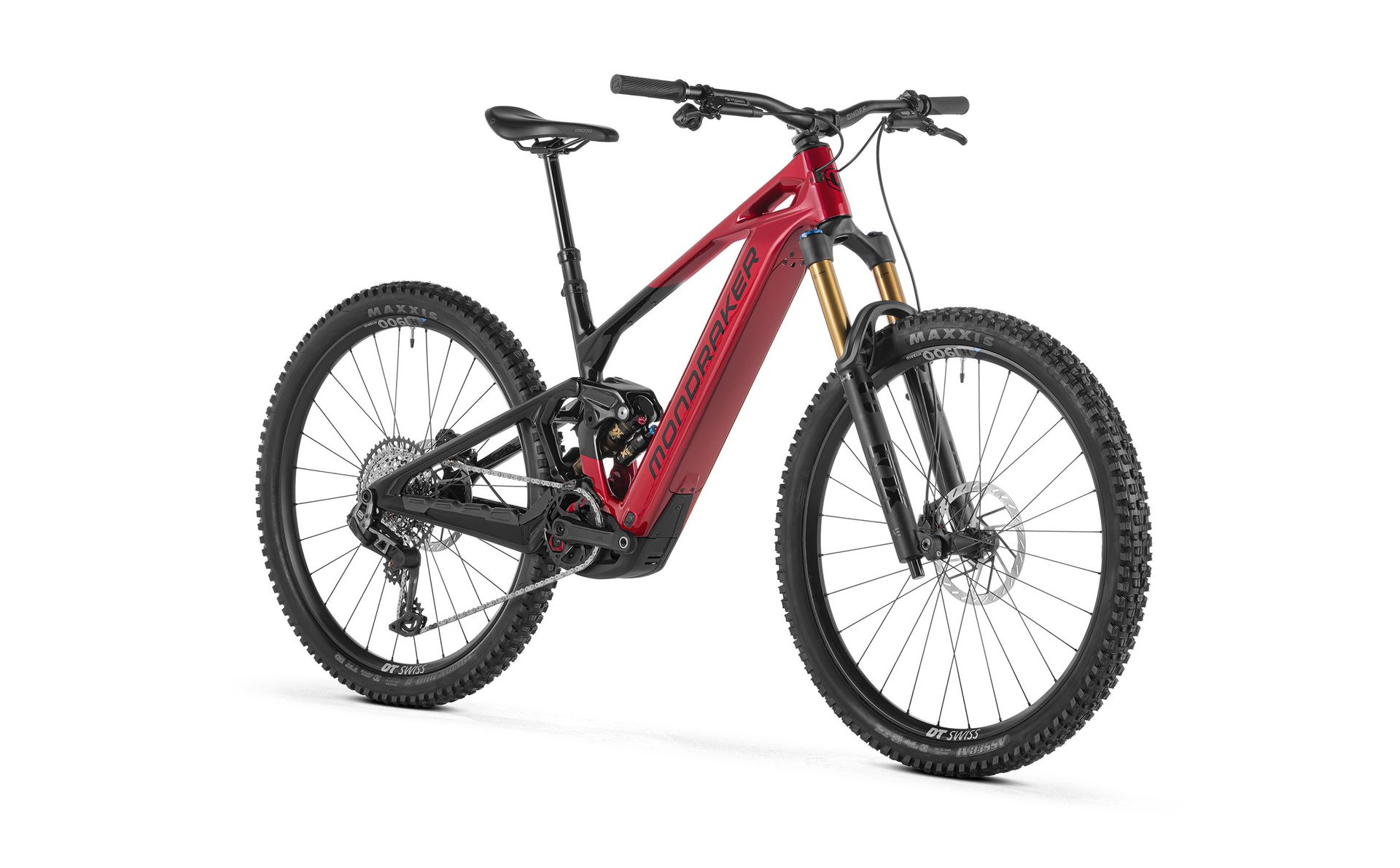

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock
- Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- CS50 compression, RL70 rebound, 1,1 Bleed, Rezi B60, LML, MCU, 0.2 Volume Spacer
- Fork
- Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Battery
- Bosch Powertube 800Wh
Drivetrain
- Crankset
- E.13 Helix Core E*Spec Plus, All sizes: 155mm
- Rings
- Sram Eagle 34T T-Type, direct mount, steel, CL55
- Chain
- Sram GX Eagle T-Type, 12s Flattop, Powerlock
- Rear derailleur
- Sram GX Eagle AXS, T-Type, 12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XS-1275, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake
- Sram Maven Bronze, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brake lever
- Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
- Spokes
- DT Swiss Straightpull spokes, DT Hybrid I, black
- Front hub
- DT Swiss 370, Boost 15x110mm, IS 6 bolts
- Rear hub
- DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, XD freehub
- Front tire
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
Cockpit
- Headset
- Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Saddle
- Ergon SM-10
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Crafty Carbon geometry
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 581 mm / 582 mm | 596 mm / 597 mm | 618 mm / 619 mm | 640 mm / 641 mm | 662 mm / 663 mm |
| CBottom bracket drop | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm | -25 mm / -30 mm |
| DBottom bracket height | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
| EChainstay length | 455 mm / 456 mm | 455 mm / 456 mm | 455 mm / 456 mm | 465 mm / 466 mm | 465 mm / 466 mm |
| FSeat tube angle | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° | 73° / 72.65° |
| GEffective seat tube angle | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° | 77.95° / 77.6° |
| HHead tube angle | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° | 64.5° / 64.15° |
| IFork offset | 44 mm | 44 mm | 44 mm / 44 mm | 44 mm | 44 mm / 44 mm |
| JWheelbase | 1240 mm / 1241 mm | 1255 mm / 1256 mm | 1280 mm / 1281 mm | 1314 mm / 1315 mm | 1338 mm / 1339 mm |
| KHead tube length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| LReach | 445 mm / 441 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| MStack | 638 mm / 641 mm | 638 mm / 641 mm | 647 mm / 650 mm | 656 mm / 659 mm | 665 mm / 668 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Crafty Carbon: builds compared
Crafty Carbon range →| Crafty Carbon S | Crafty Carbon R | Crafty Carbon RR | Crafty Carbon RR S | |
|---|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 | €9,999 |
| Frame | Carbon front, alloy rear | Carbon front, alloy rear | Full carbon | Full carbon |
| Fork | RockShox ZEB Base 29, Delta RC | Fox 38 29 Float GRIP Performance, 160mm | Fox 38 29 Float GRIPX2 Factory Kashima, 160mm | Fox Podium 29 Float GRIPX2 Factory Kashima, 160mm |
| Shock | RockShox Super Deluxe Base | Fox Float-X LV Performance | Fox Float-X Factory Kashima EVOL LV | Fox Float-X Factory Kashima EVOL LV |
| Derailleur | Sram 70 Eagle | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS | Sram X0 Eagle AXS |
| Brakes | Sram DB8 | Sram Maven Base | Sram Maven Bronze | Sram Maven Silver |
| Wheels | Mavic E-Access XR30, 29 Boost 30mm internal width | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid HX 1700 Spline, 30mm internal width |
| Display | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 24.8 kg | 24.5 kg | 23.7 kg | 23.9 kg |
Crafty Carbon RR: FAQ
How much does the Mondraker Crafty Carbon RR cost?
€8,499 (RRP Spain, VAT incl.). The Crafty Carbon range runs from €6,499 (Crafty Carbon S) to €9,999 (Crafty Carbon RR S). Prices vary by country and dealer.
How much does the Mondraker Crafty Carbon RR weigh?
Mondraker quotes 23.7 kg. It is the lightest build of the Crafty Carbon.
What motor and battery does the Mondraker Crafty Carbon RR have?
Bosch Performance Line CX Gen 5 (85 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026). 800 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Mondraker Crafty Carbon RR have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Mondraker Crafty Carbon RR come in?
S, M, ML, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Crafty Carbon RR and the Crafty Carbon RR S?
They share the Crafty Carbon frame platform and motor; the differences are in the parts — fork: Fox 38 29 Float GRIPX2 Factory Kashima vs Fox Podium 29 Float GRIPX2 Factory Kashima; derailleur: Sram GX Eagle AXS vs Sram X0 Eagle AXS; brakes: Sram Maven Bronze vs Sram Maven Silver; claimed weight: 23.7 kg vs 23.9 kg; price: €8,499 vs €9,999.
