MondrakerLevel XR
- Motor
- Bosch Performance Line CX Gen 585 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026
- Battery
- 800 WhRemovable, 600 Wh compatible, 250 Wh extender ready
- Travel F / R
- 180 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- 6061 alloy
- Weight
- 25.9 kgManufacturer figure
Overview

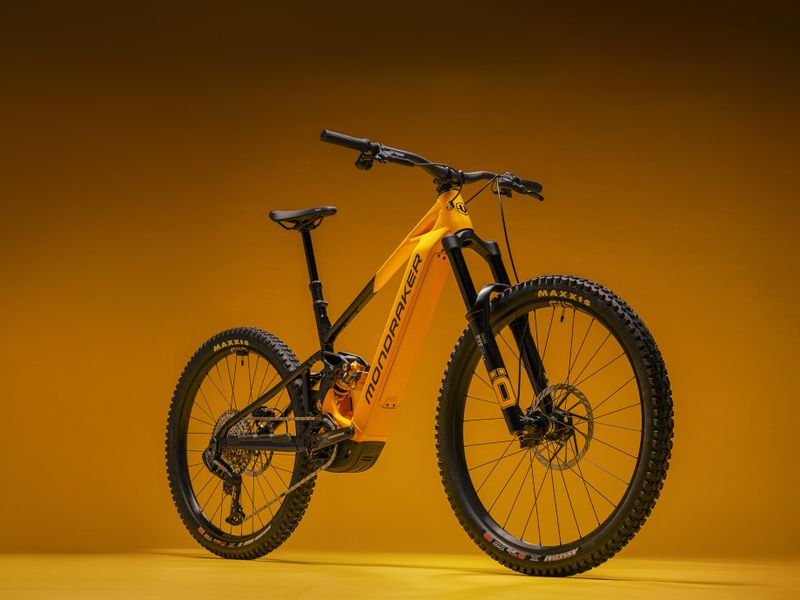

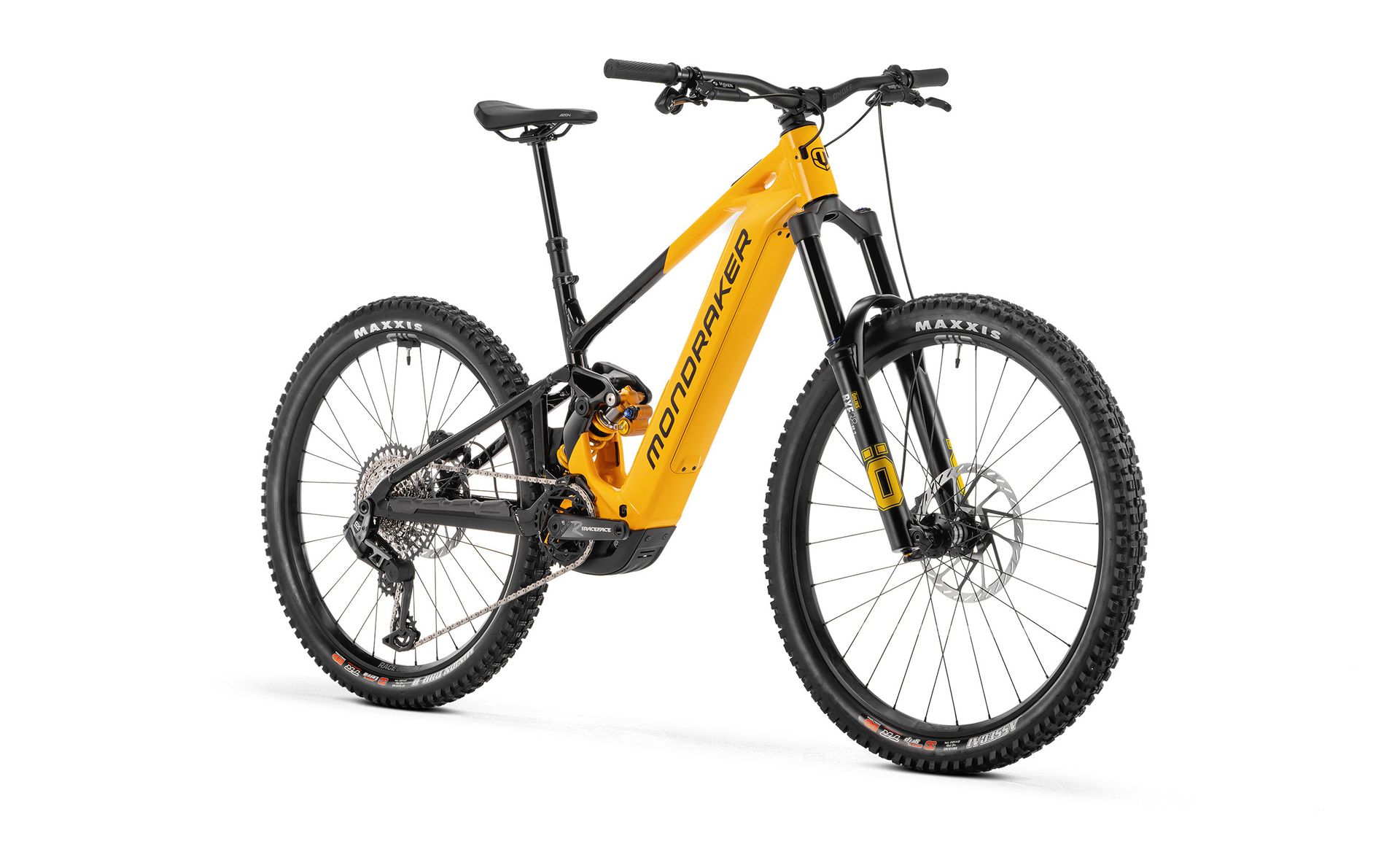

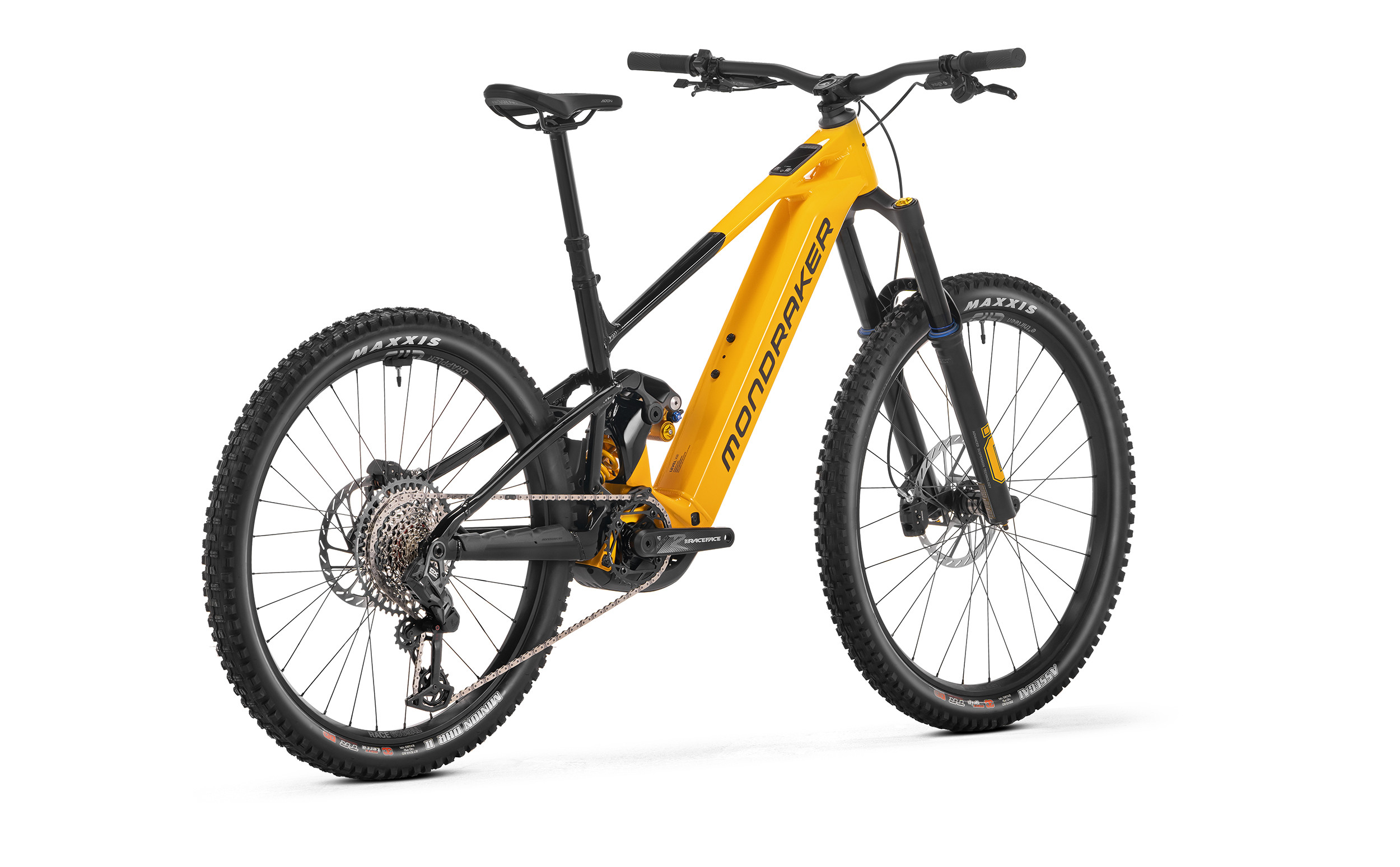

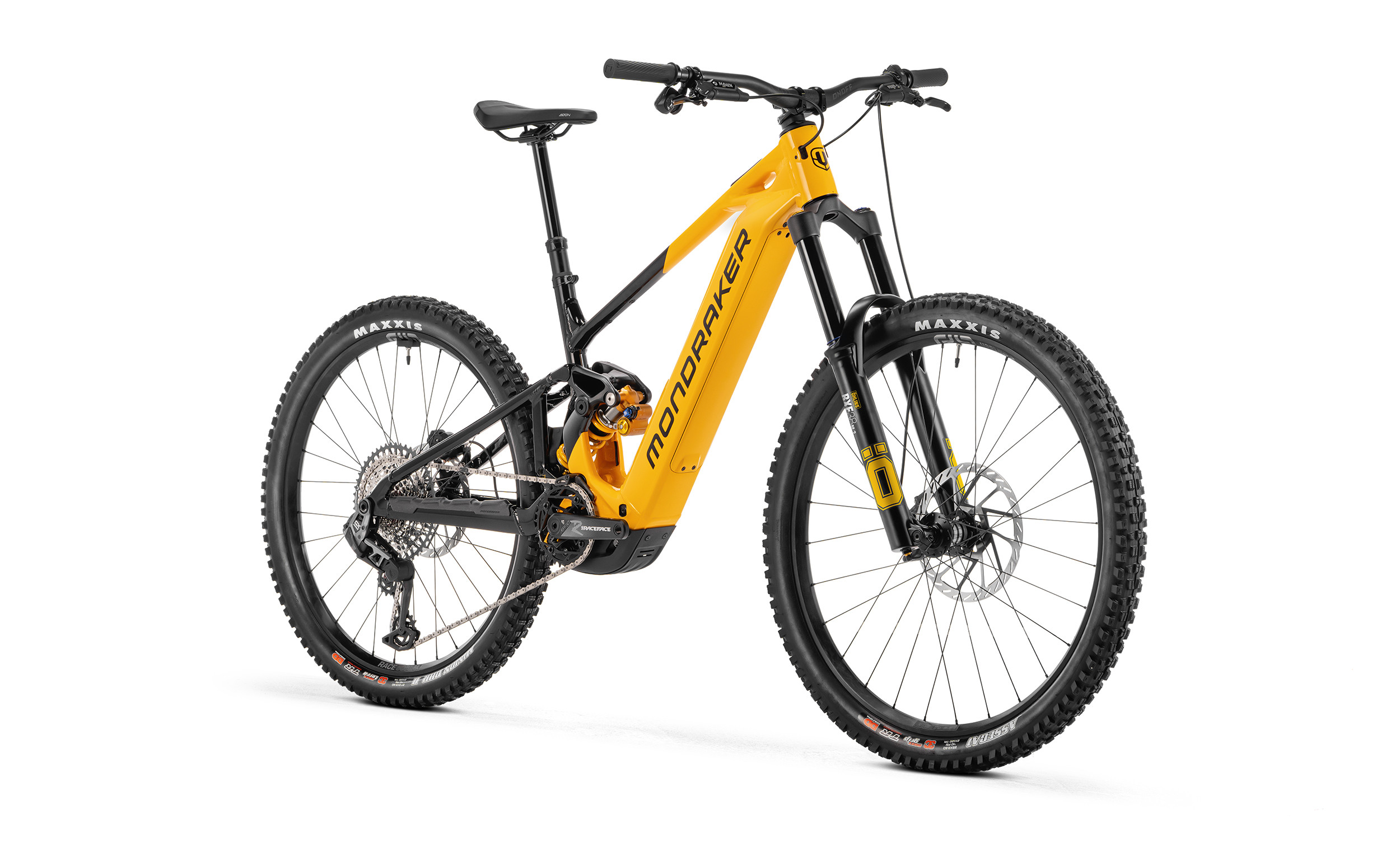

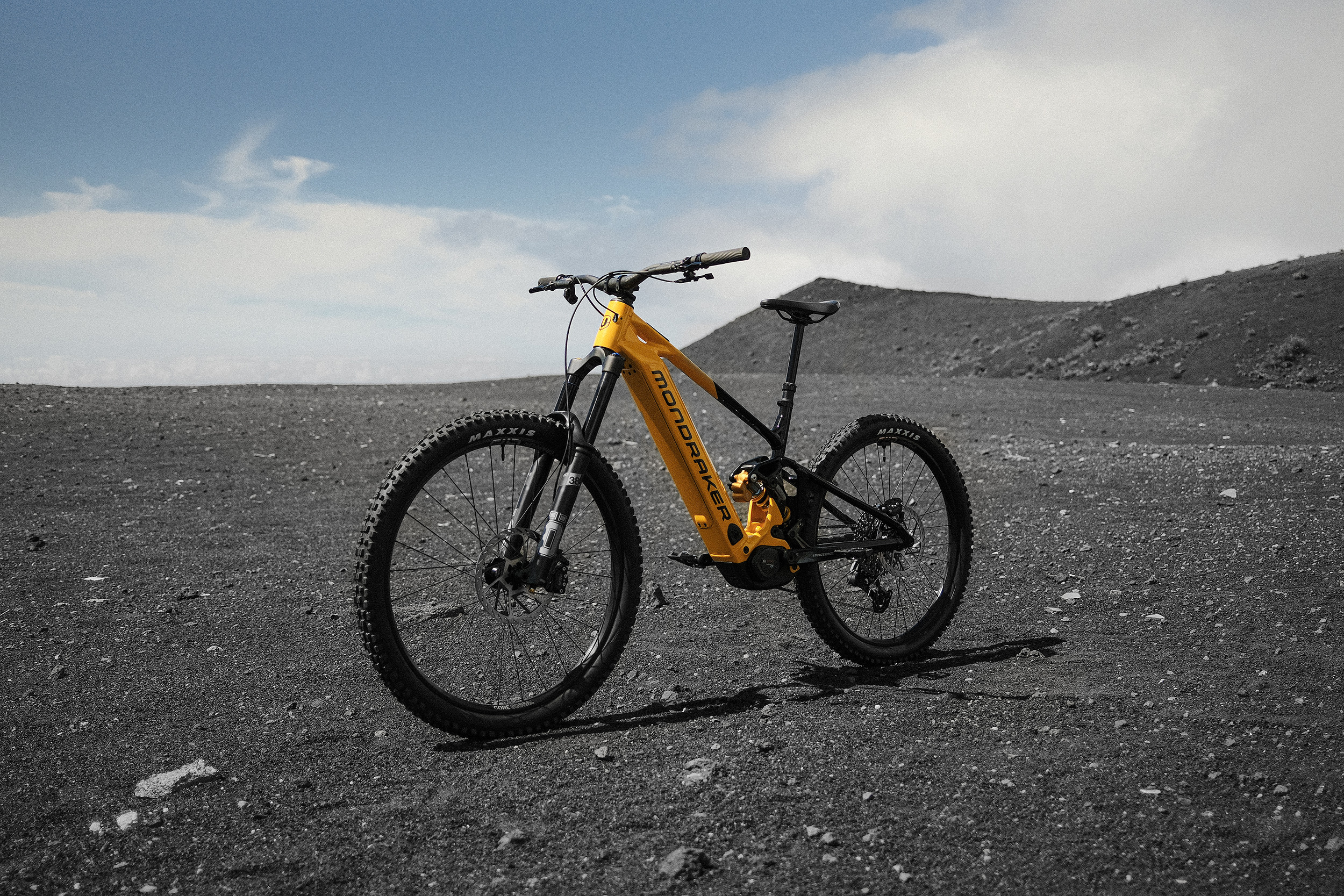

The Level XR is the €9,999 top Level, built around Öhlins suspension — an RXF38 m.3 fork and TTX22M.2 coil shock — with SRAM GX AXS, Maven Silver brakes and e*thirteen Grappler Race wheels. At 25.9 kg it is the lightest Level.

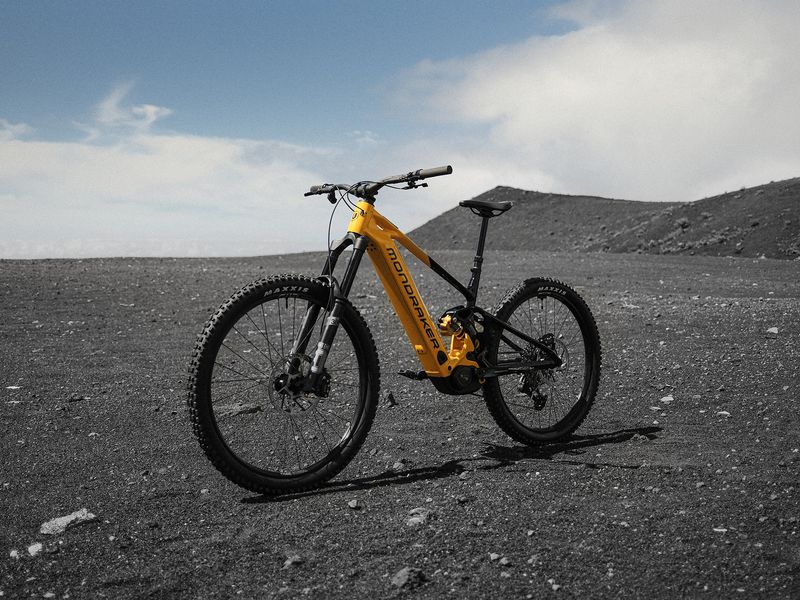

Level is Mondraker's long-travel alloy e-enduro bike: 170 mm at the rear, a 180 mm fork, mullet wheels and a coil shock on every build.
All three builds use the fifth-generation Bosch CX motor and an 800 Wh battery that comes out through a carbon cover on the down tube; the frame also takes a 600 Wh battery, and a 250 Wh range extender pushes capacity past 1,000 Wh. A flip chip lets you slacken the angles and drop the bottom bracket, and there are five sizes with two rear-triangle lengths.
- 170 / 180 mm travel, mullet wheels
- Bosch CX Gen 5 with OTA power updates
- 800 Wh removable battery + 250 Wh extender option
- Flip chip and five sizes with size-specific chainstays
Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock

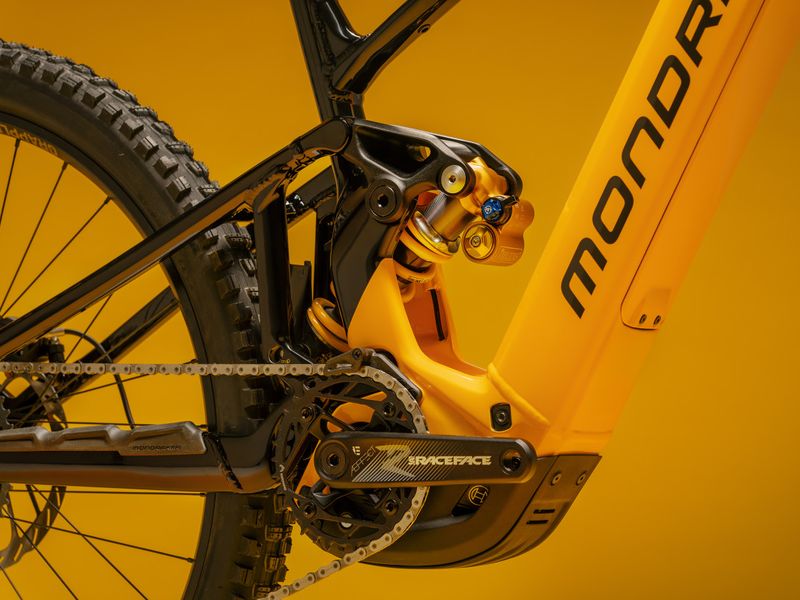

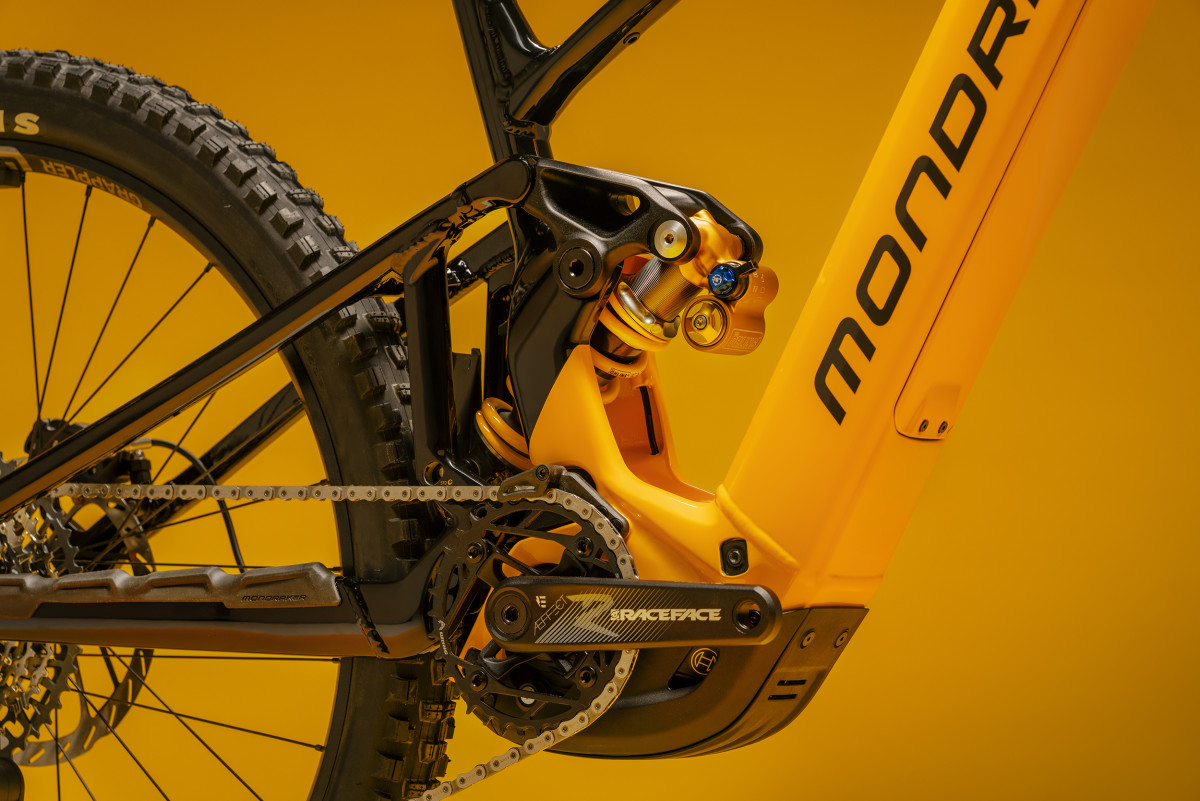

- Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs
- Fork
- Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
- Battery
- Bosch Powertube 800Wh
Drivetrain
- Crankset

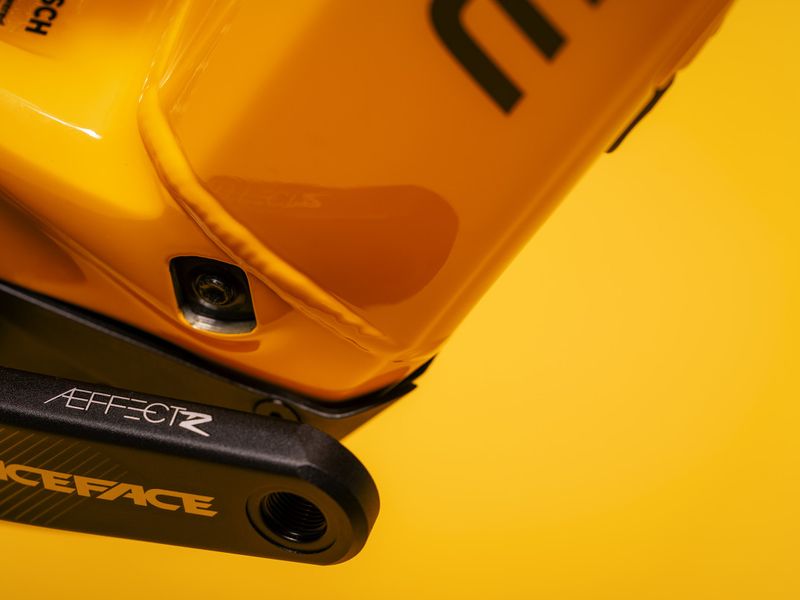

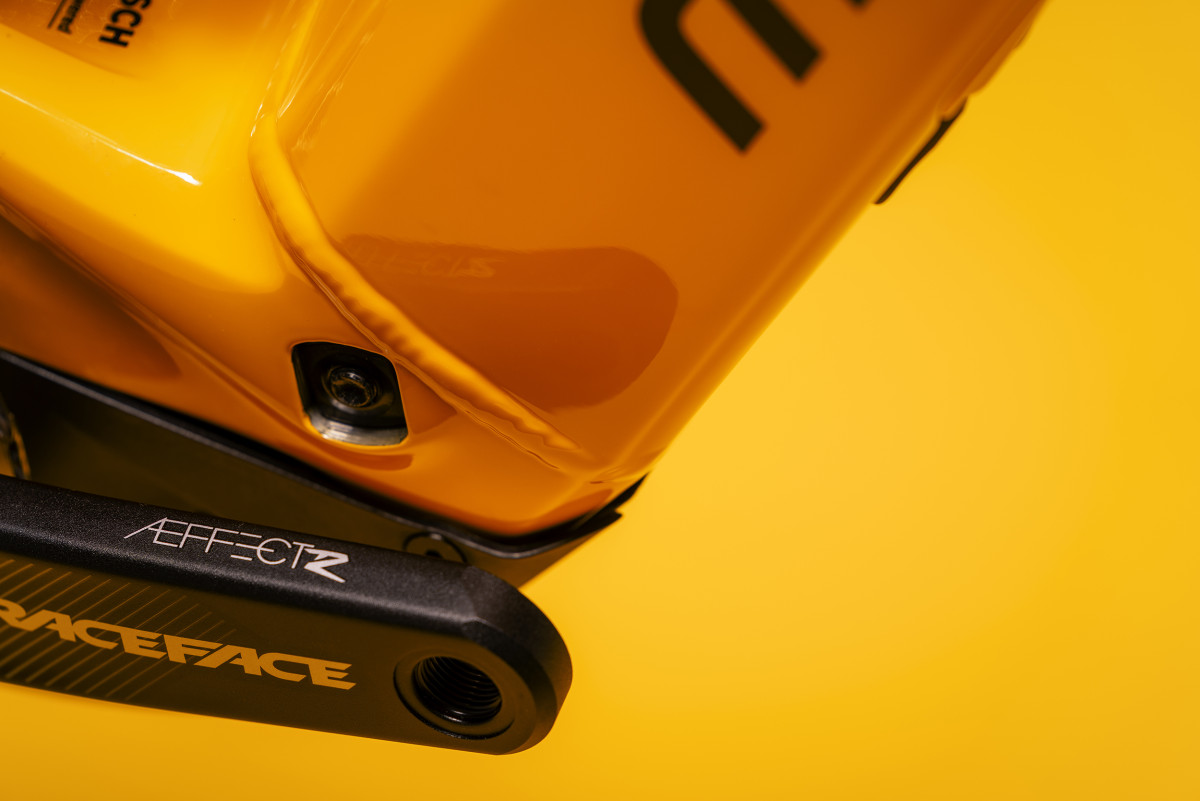

- Race Face Aeffect ebike, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Chain
- Sram GX Eagle T-Type, 12s, Powerlock
- Rear derailleur
- Sram GX Eagle AXS T-Type,12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XS-1275, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake
- Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brake lever

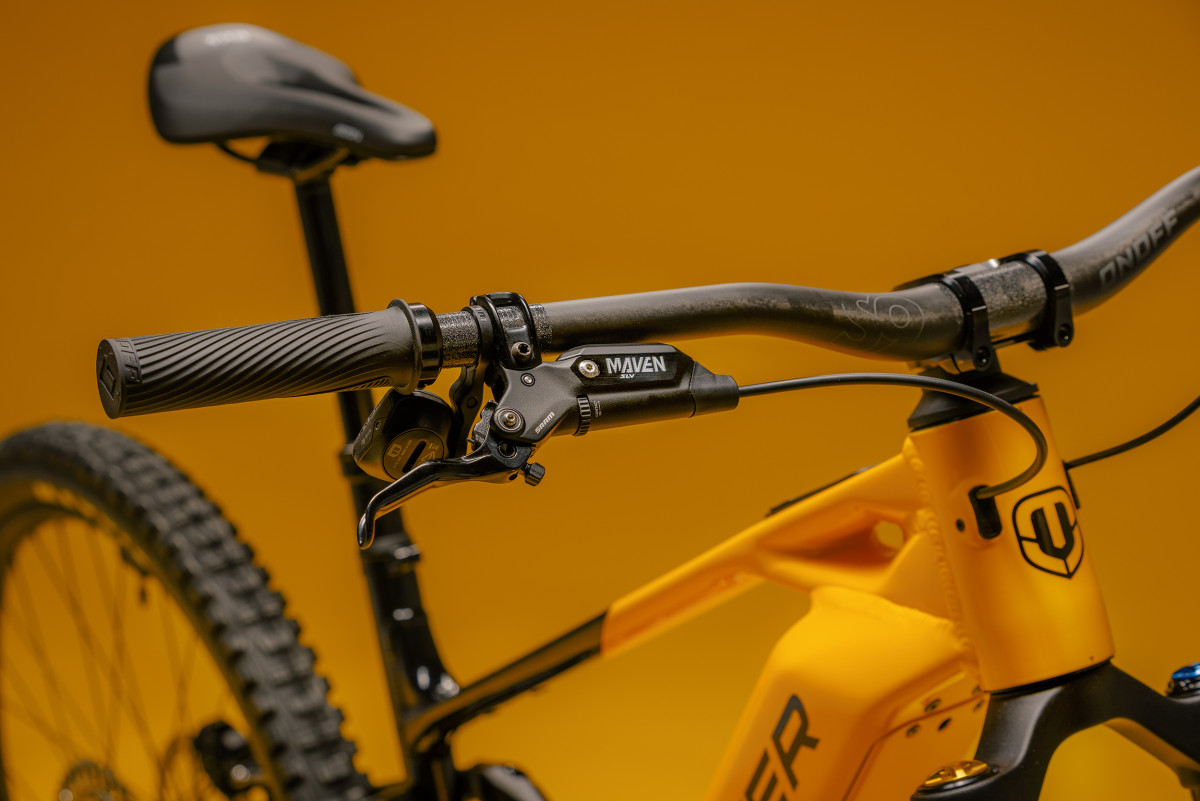

- Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
- Spokes
- e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Front hub
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Rear hub
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Front tire
- Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Cockpit
- Headset
- Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
- Stem
- Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
- Handlebar

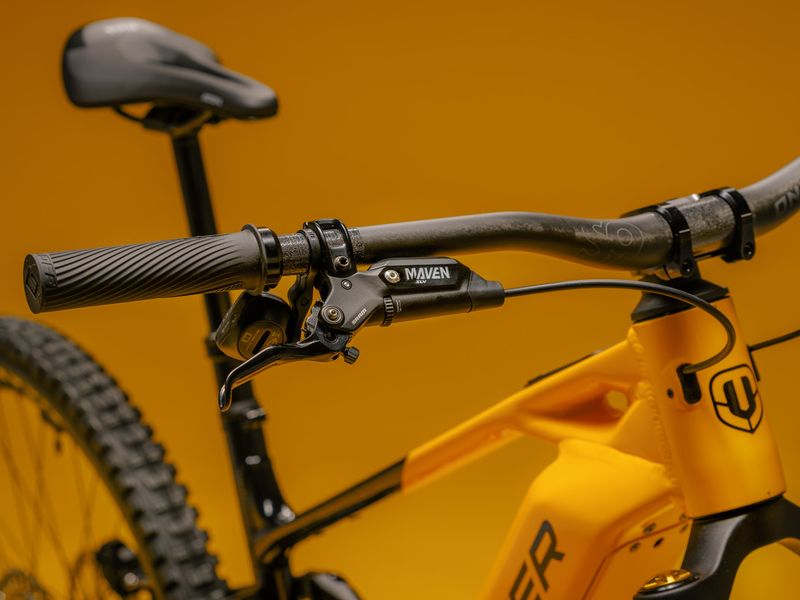

- Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
- Saddle
- FIZIK Terra Aidon X5 145mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Level geometry
| Size | S | M | ML | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 576 mm / 577 mm | 598 mm / 599 mm | 620 mm / 621 mm | 642 mm | 664 mm / 665 mm |
| CBottom bracket drop | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm | -2 mm / -7 mm |
| DBottom bracket height | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm | 353 mm / 348 mm |
| EChainstay length | 445 mm / 446 mm | 445 mm / 446 mm | 445 mm / 446 mm | 455 mm / 456 mm | 455 mm / 456 mm |
| FSeat tube angle | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° | 75.3° / 74.95° |
| GEffective seat tube angle | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° | 78° / 77.65° |
| HHead tube angle | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° | 64.0° / 63.65° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1236 mm / 1237 mm | 1260 mm / 1261 mm | 1284 mm / 1285 mm | 1319 mm / 1320 mm | 1343 mm / 1344 mm |
| KHead tube length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| LReach | 440 mm / 436 mm | 460 mm / 456 mm | 480 mm / 476 mm | 500 mm / 496 mm | 520 mm / 516 mm |
| MStack | 640 mm / 643 mm | 649 mm / 652 mm | 658 mm / 661 mm | 667 mm / 670 mm | 676 mm / 679 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Level: builds compared
Level range →| Level R | Level RR | Level XR | |
|---|---|---|---|
| Price | €6,999 | €8,499 | €9,999 |
| Frame | 6061 alloy | 6061 alloy | 6061 alloy |
| Fork | RockShox ZEB Select Charger RC 29, 180mm | Fox 38 29 Float GRIPX2 Factory Kashima, 180mm | Öhlins RXF 38 M.3 29, 180mm |
| Shock | RockShox Vivid Coil base | Fox DHX2 Performance Elite | Öhlins TTX22M.2 205x65mm |
| Derailleur | Sram 90 Eagle T-Type | Sram S1000 Eagle AXS T-Type | Sram GX Eagle AXS T-Type,12s |
| Brakes | Sram Maven Bronze | Sram Maven Bronze | Sram Maven Silver |
| Wheels | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width |
| Display | Purion 400 / Bosch Mini Remote / Bosch System Controller | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 26.7 kg | 26.9 kg | 25.9 kg |
Level XR: FAQ
How much does the Mondraker Level XR cost?
€9,999 (RRP Spain, VAT incl.). The Level range runs from €6,999 (Level R) to €9,999 (Level XR). Prices vary by country and dealer.
How much does the Mondraker Level XR weigh?
Mondraker quotes 25.9 kg. It is the lightest build of the Level.
What motor and battery does the Mondraker Level XR have?
Bosch Performance Line CX Gen 5 (85 Nm stock; 100 Nm via OTA update, up to 120 Nm from May 2026). 800 Wh battery — removable, 600 Wh compatible, 250 Wh extender ready.
How much suspension travel does the Mondraker Level XR have?
180 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Mondraker Level XR come in?
S, M, ML, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Level XR and the Level RR?
They share the Level frame platform and motor; the differences are in the parts — fork: Öhlins RXF 38 M.3 29 vs Fox 38 29 Float GRIPX2 Factory Kashima; shock: Öhlins TTX22M.2 205x65mm vs Fox DHX2 Performance Elite; derailleur: Sram GX Eagle AXS T-Type,12s vs Sram S1000 Eagle AXS T-Type; brakes: Sram Maven Silver vs Sram Maven Bronze; claimed weight: 25.9 kg vs 26.9 kg; price: €9,999 vs €8,499.
