MondrakerDune RR
- Motor
- Bosch Performance Line SX55 Nm; 60 Nm with Bosch OTA update
- Battery
- 400 WhBosch Compact PowerTube, internal, non-removable
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Full carbon
- Weight
- 20.5 kgManufacturer figure
Overview
The Dune RR (€9,999) gets Fox Factory Kashima suspension — a Podium GRIPX2 fork with a 20 mm axle and a DHX2 coil shock — plus SRAM X0 AXS shifting and e*thirteen Grappler Flux wheels. Claimed weight is 20.5 kg.
Dune is Mondraker's lightweight e-enduro bike: a full-carbon Stealth Air frame with 165 mm of rear travel, a 170 mm fork and mullet wheels, powered by the compact Bosch SX motor with a 400 Wh battery.
The battery sits inside the down tube and isn't removable; claimed weights are 20.3–20.5 kg.
- Full-carbon frame, 165 / 170 mm travel
- Bosch SX with 400 Wh battery
- Mullet wheels
- Around 20.5 kg claimed

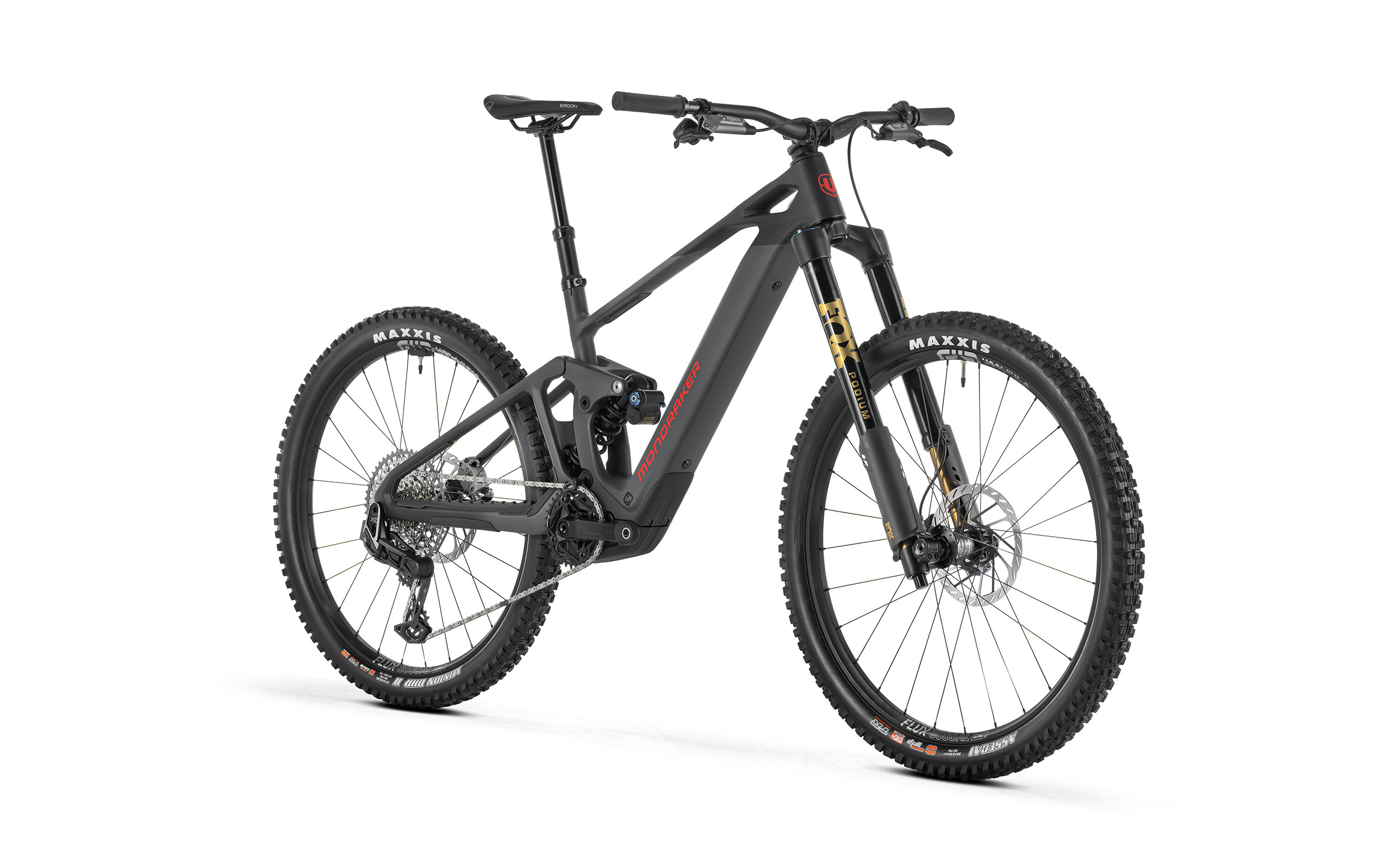

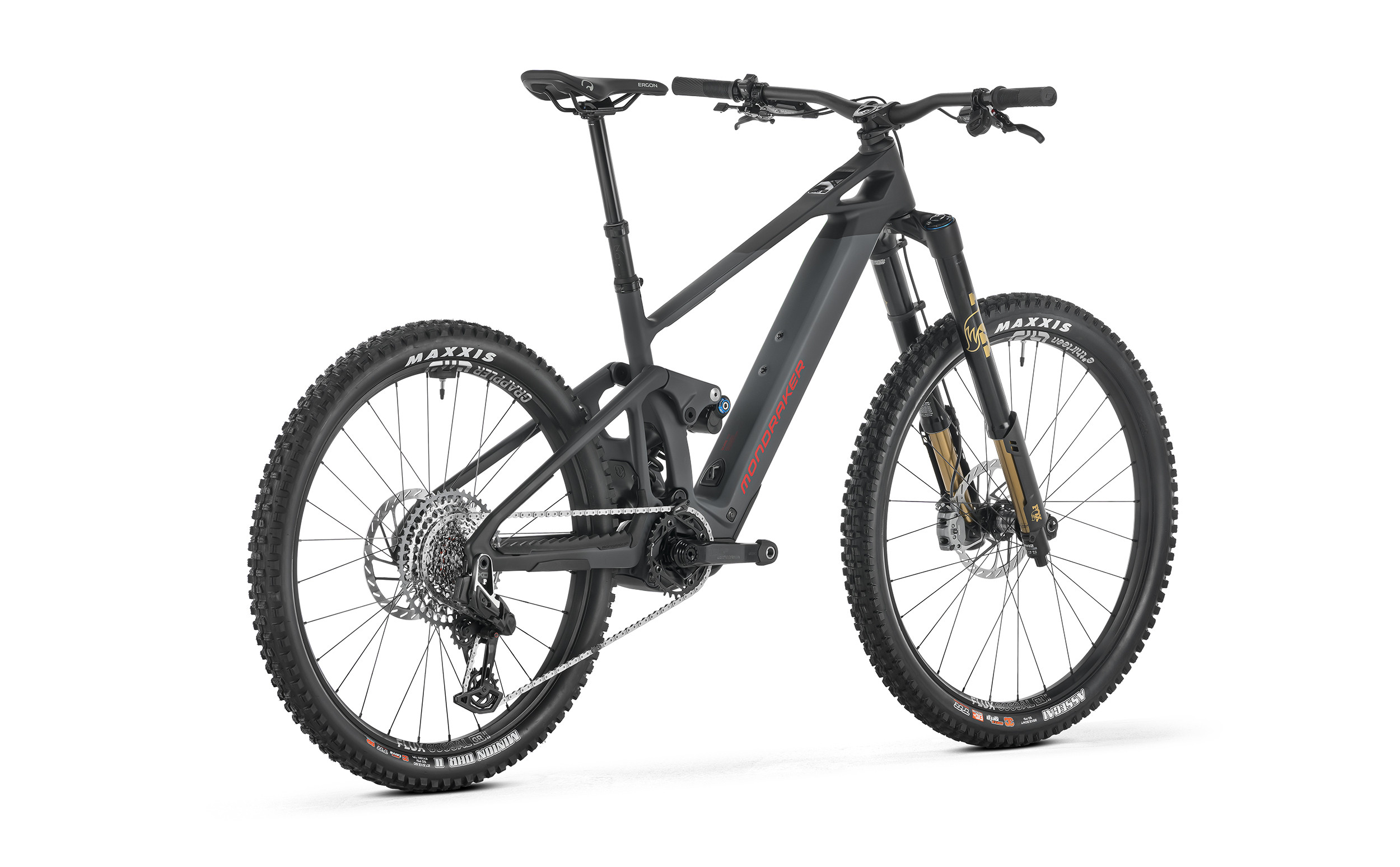

Gallery
Photos: Mondraker
Full specifications
Frame & suspension
- Frame
- Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear shock
- Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
- Shock settings
- CS40 compression, RS30 rebound, LML, Rezi B40, Bleed 0,9, VVCM Spring rate:S size 350 lbs, M size 400 lbs, L size 450 lbs, XL size 500 lbs
- Fork
- Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
E-system
- Display
- Kiox 400C / Bosch Mini Remote
- Motor
- Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
- Battery
- Bosch Compact Powertube 400Wh
Drivetrain
- Crankset
- E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm
- Rings
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Chain
- Sram GX Eagle T-Type, 12s, Powerlock
- Rear derailleur
- Sram X0 Eagle AXS T-Type,12s
- Shift levers
- Sram Eagle AXS Pod MMX, 12s
- Cassette
- Sram XS-1275, 10-52T, T-Type, 12s
Brakes
- Front brake
- Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Rear brake
- Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brake lever
- Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Wheels & tyres
- Rims
- e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
- Spokes
- e*thirteen Sapim D-light / Brass
- Front hub
- e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Rear hub
- e*thirteen Superboost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
- Front tire
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
- Rear tire
- Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Cockpit
- Headset
- Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem
- Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar
- Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
- Grips
- Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
- Saddle
- Ergon Enduro SPS20
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Dune geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 380 mm | 420 mm | 450 mm | 490 mm |
| BTop tube length | 600 mm | 620 mm | 645 mm | 665 mm |
| CBottom bracket drop | -21 / 0 mm | -21 / 0 mm | -21 / 0 mm | -21 / 0 mm |
| DBottom bracket height | 352 mm | 352 mm | 352 mm | 352 mm |
| EChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| FSeat tube angle | 74.0° | 74.0° | 74.0° | 74.0° |
| GEffective seat tube angle | 77.5° | 77.5° | 77.5° | 77.5° |
| HHead tube angle | 64° | 64° | 64° | 64° |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1232 mm | 1256 mm | 1285 mm | 1309 mm |
| KHead tube length | 100 mm | 110 mm | 130 mm | 140 mm |
| LReach | 445 mm | 465 mm | 485 mm | 505 mm |
| MStack | 621 mm | 630 mm | 648 mm | 658 mm |
Where two values are given: standard / low flip-chip position. Source: Mondraker.
Dune: builds compared
Dune range →| Dune R | Dune RR | |
|---|---|---|
| Price | €7,999 | €9,999 |
| Frame | Full carbon | Full carbon |
| Fork | RockShox ZEB Select Charger RC 29, 170mm | Fox Podium 29 GRIPX2 Factory Kashima, 170mm |
| Shock | RockShox Vivid Base | Fox DHX2 Factory Kashima |
| Derailleur | Sram 90 Eagle | Sram X0 Eagle AXS T-Type,12s |
| Brakes | Sram Maven Base | Sram Maven Bronze |
| Wheels | e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width | e*thirteen Grappler Flux, IW30 Hookless |
| Display | Kiox 400C / Bosch Mini Remote | Kiox 400C / Bosch Mini Remote |
| Weight | 20.3 kg | 20.5 kg |
Dune RR: FAQ
How much does the Mondraker Dune RR cost?
€9,999 (RRP Spain, VAT incl.). The Dune range runs from €7,999 (Dune R) to €9,999 (Dune RR). Prices vary by country and dealer.
How much does the Mondraker Dune RR weigh?
Mondraker quotes 20.5 kg. The lightest Dune build is the Dune R at 20.3 kg.
What motor and battery does the Mondraker Dune RR have?
Bosch Performance Line SX (55 Nm; 60 Nm with Bosch OTA update). 400 Wh battery — bosch Compact PowerTube, internal, non-removable.
How much suspension travel does the Mondraker Dune RR have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Mondraker Dune RR come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Dune RR and the Dune R?
They share the Dune frame platform and motor; the differences are in the parts — fork: Fox Podium 29 GRIPX2 Factory Kashima vs RockShox ZEB Select Charger RC 29; shock: Fox DHX2 Factory Kashima vs RockShox Vivid Base; derailleur: Sram X0 Eagle AXS T-Type,12s vs Sram 90 Eagle; brakes: Sram Maven Bronze vs Sram Maven Base; claimed weight: 20.5 kg vs 20.3 kg; price: €9,999 vs €7,999.
