Pinion MGU eMTBs
The Pinion Motor.Gearbox.Unit combines the motor and a 12-speed gearbox in one sealed housing, so there is no derailleur or cassette — most bikes run a Gates carbon belt instead of a chain.
- Builds
- 10
- Brands
- 4
- Torque (as quoted)
- 85-160 Nm · 85 Nm
- Battery
- 780–1060 Wh
- Price
- ≈€5,999 – €11,990
- Lightest
- 24.3 kg
Brands: Moustache, Simplon, Haibike, Rotwild · filter in catalog →
About the Pinion MGU
The Pinion MGU (Motor Gearbox Unit) combines an e-bike motor with Pinion's sealed gearbox in one housing. It was introduced in 2023 in two versions: the E1.12 with 12 gears and 600% gear range, and the E1.9 with 9 gears, each also offered as an S-Pedelec variant.
Both deliver 85 Nm and 600 W peak with up to 400% support. Because shifting happens inside the unit, the bike needs no derailleur or cassette, can shift while stopped, and has less unsprung mass at the rear wheel.
The MGU is integrated through the FIT system, with batteries from 480 to 960 Wh depending on the bike, a 535 Wh range extender, a top-tube display and the FIT E-Bike Control app. Pinion firmware updates since 2023 have added rider-set speed limits, motor overrun (2024) and S-Pedelec overrun (2025).
The MGU suits riders who value low drivetrain maintenance, all-weather durability and simple shifting, such as tourers and trail riders who ride in mud. It is fitted to e-MTBs and trekking bikes from several brands that use the FIT system.
Pinion MGU: specs
| Version | Torque | Peak power | Weight | Notes |
|---|---|---|---|---|
| MGU E1.12 | 85 Nm | 600 W | 4.14 kg (motor-gearbox unit, per eMTB-Mag) | 12-speed integrated gearbox, 600% gear range; E1.12S S-Pedelec version. |
| MGU E1.9 | 85 Nm | 600 W | — | 9-speed integrated gearbox; E1.9S S-Pedelec version. |
- Launched
- 2023
- System
- Integrated via the FIT e-bike system: FIT batteries, FIT range extender, FIT Master Node top-tube display, FIT Remote, FIT E-Bike Control app.
- Batteries
- 480, 700, 720, 800 and 960 Wh (FIT, bike-dependent); 535 Wh range extender
- Assist modes
- ECO, FLOW, FLEX, FLY
- App & tuning
- FIT E-Bike Control app: mode tuning, Pre.Select, Auto.Shift / Auto.Shift.Pro automatic shifting, digital motor lock; firmware updates via dealer.
Strengths and drawbacks
Strengths
- + Motor and sealed gearbox in one unit; no derailleur or cassette
- + Shifting while stationary or under load
- + Low maintenance: oil change every 10,000 km
- + Optional automatic shifting (Auto.Shift)
Drawbacks
- – Heavy unit (over 4 kg), partly offset by removing the derailleur drivetrain
- – Tests report noticeable gearbox whine in low gears
- – Firmware updates require a dealer (no OTA in tests)
Error codes & firmware
All Pinion MGU bikes, by price
| Bike | Motor | Battery | Travel F / R | Weight | Price |
|---|---|---|---|---|---|

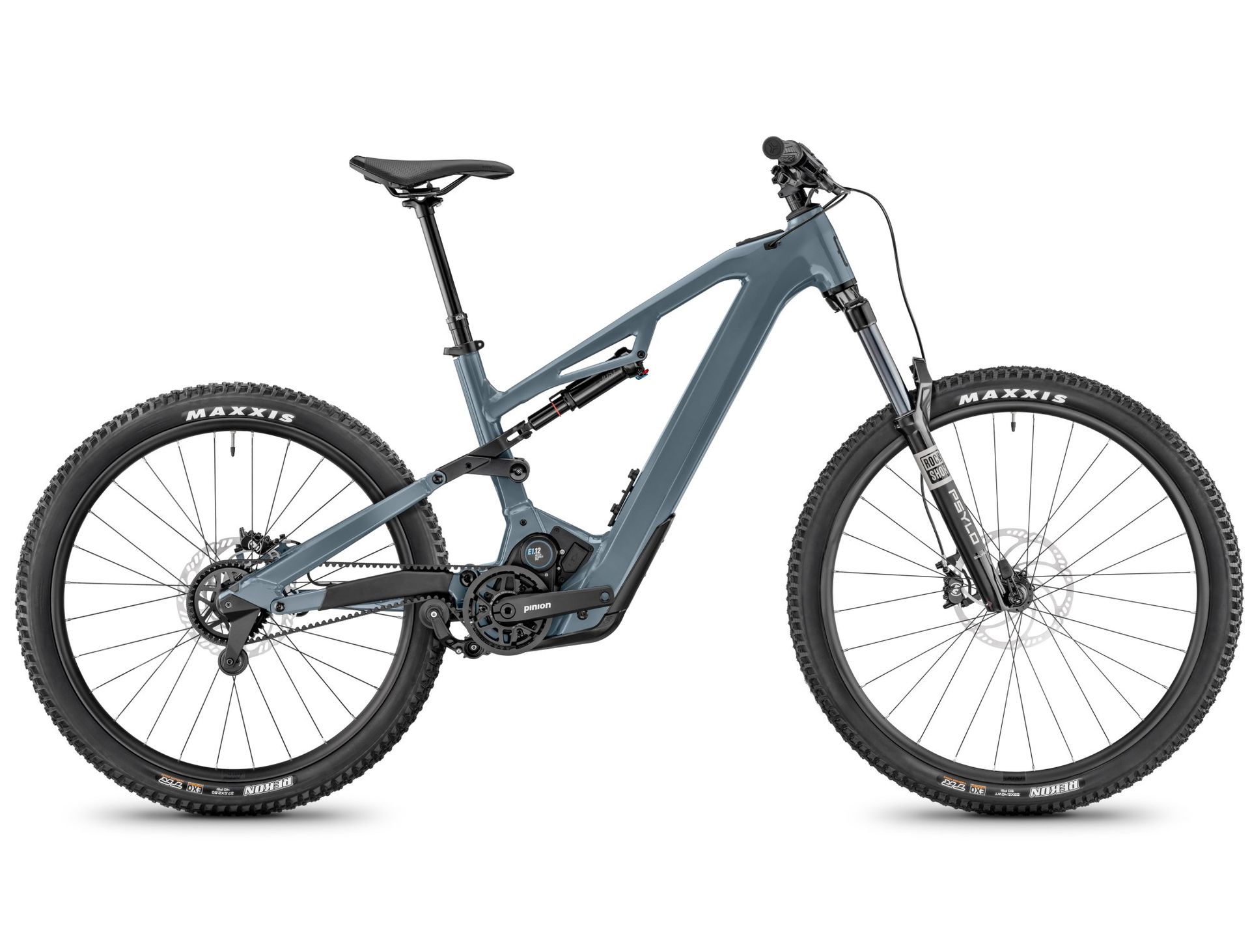

 MoustacheClutch 150.7 | Pinion MGU | 780 Wh | 150 / 150 mm | 27 kg | €5,999 |

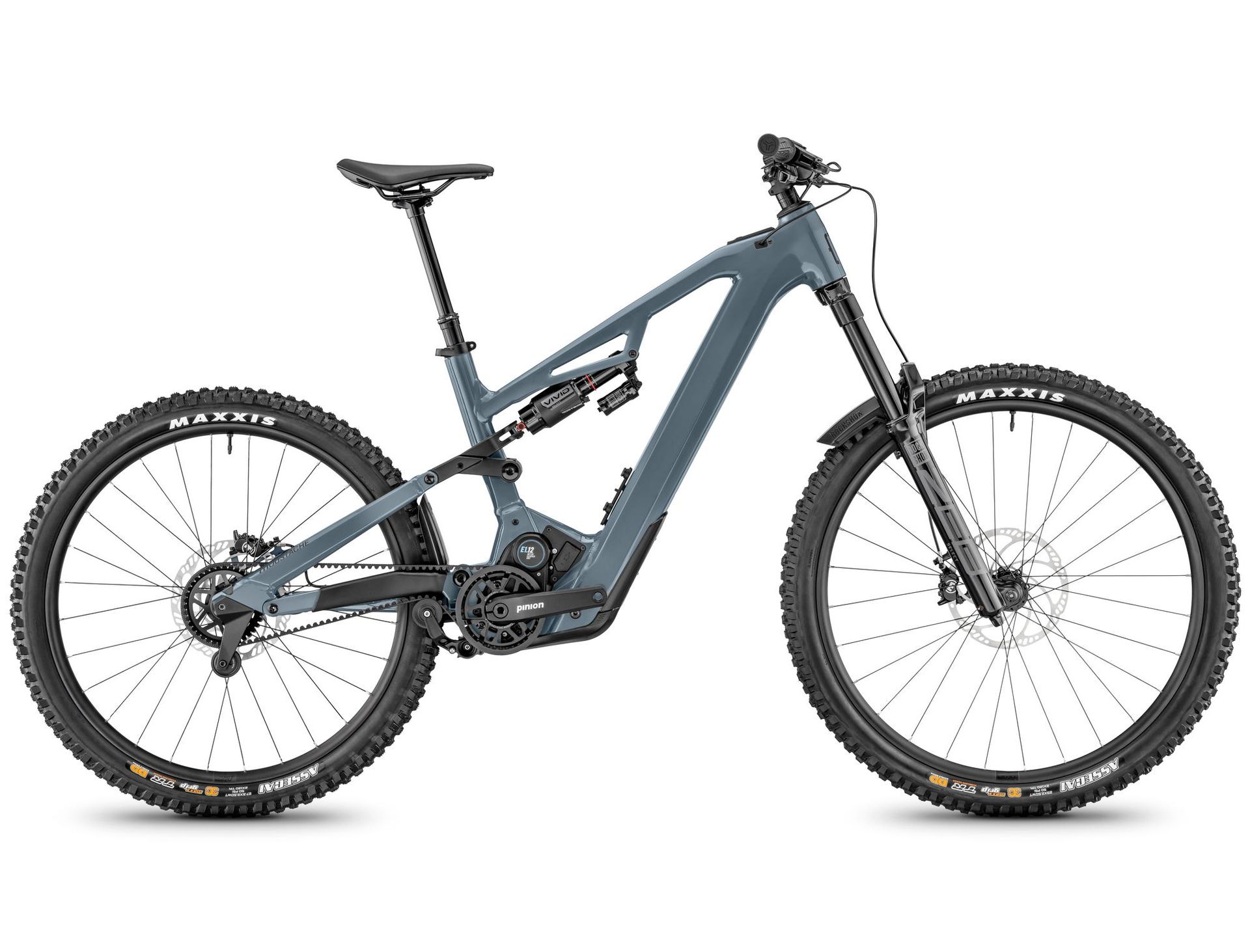

 MoustacheClutch 160.8 | Pinion MGU | 780 Wh | 170 / 160 mm | 26.9 kg | €6,499 |

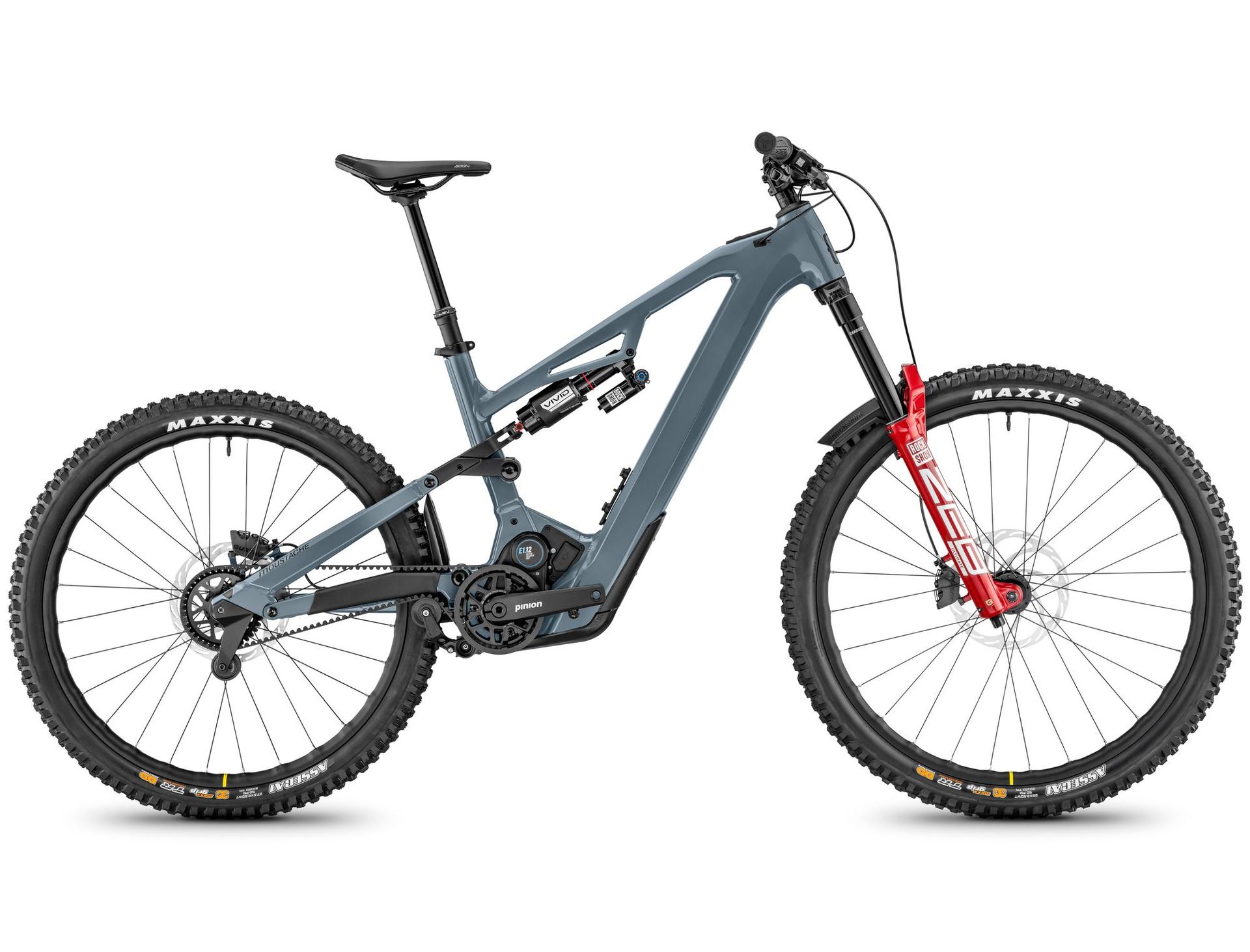

 MoustacheClutch 160.9 | Pinion MGU | 780 Wh | 170 / 160 mm | 27.4 kg | €7,499 |
 SimplonRapcon :ePinion Core | Pinion MGU E1.12 | 800 Wh | 160 / 160 mm | 25.2 kg | €7,999 |
 HaibikeALLMTN CF 10 TRN/IQ | Pinion MGU E1.12 | 800 Wh | 160 / 160 mm | — | €8,000 |

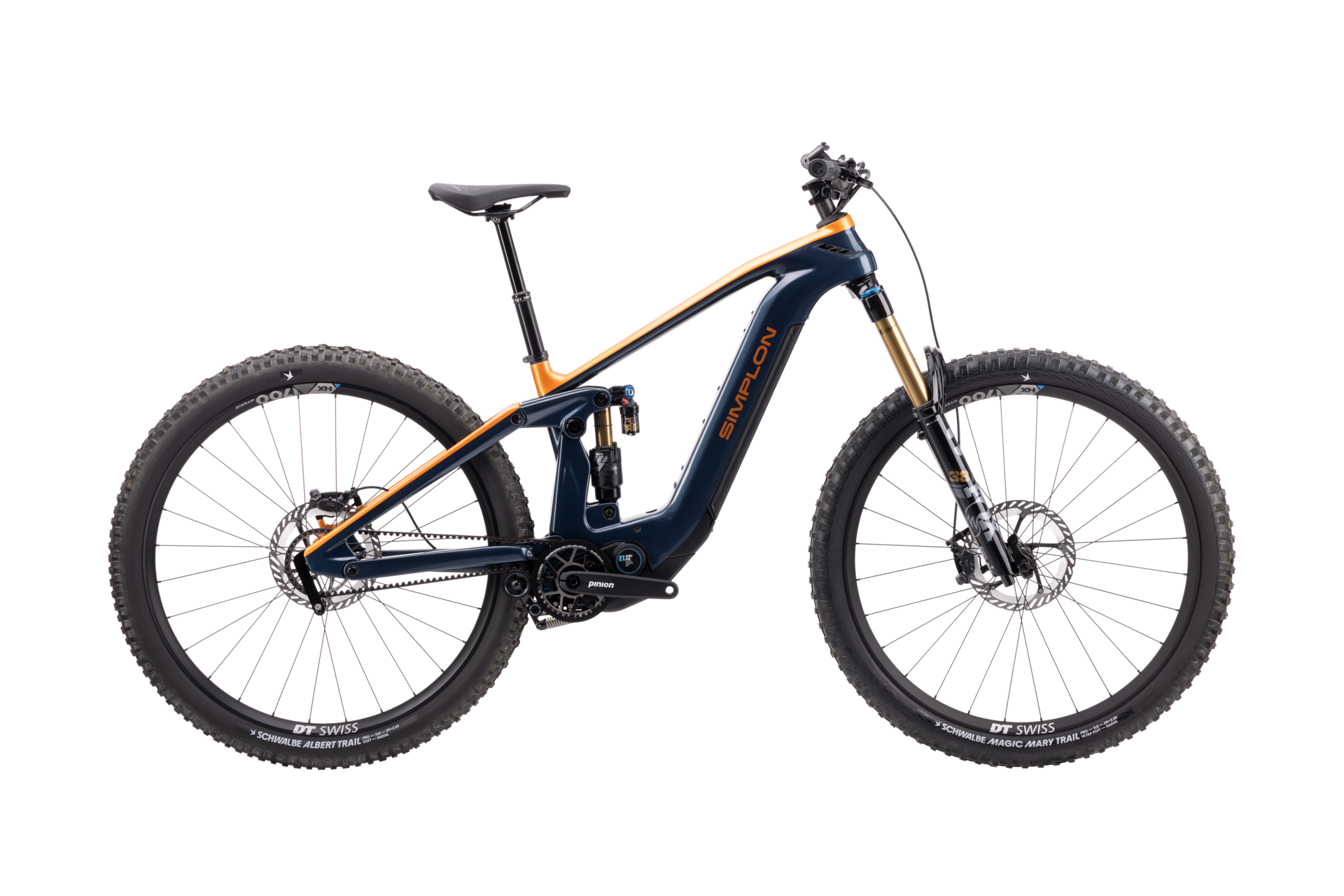

 SimplonRapcon :ePinion Expert | Pinion MGU E1.12 | 800 Wh | 160 / 160 mm | 25.1 kg | €8,999 |
 HaibikeALLMTN CF 11 TRN/IQ | Pinion MGU E1.12 | 800 Wh | 160 / 160 mm | — | €9,000 |

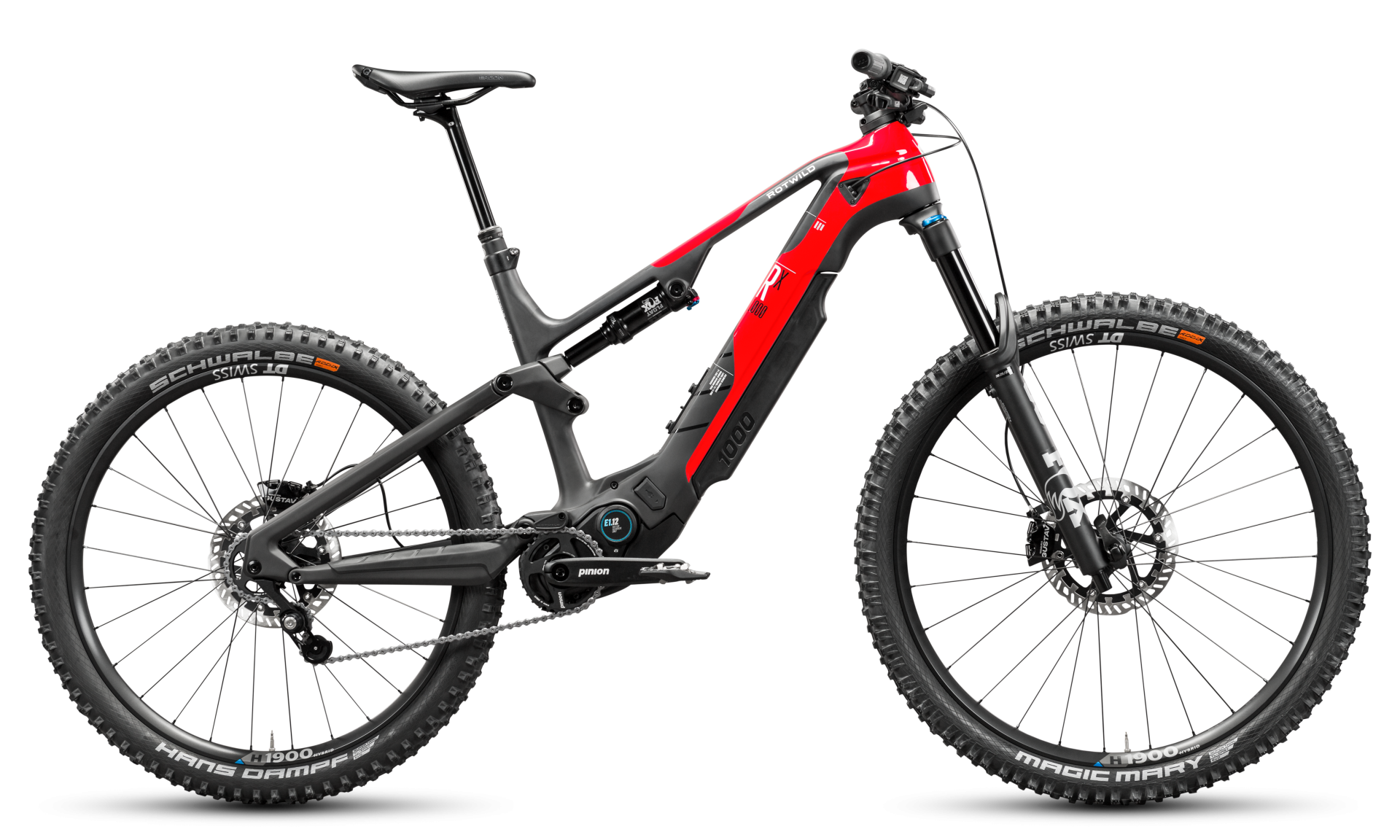

 RotwildR.X1000 Pro | Pinion MGU E1.12 | 1060 Wh | 150 / 150 mm | 24.8 kg | €9,990 |
 SimplonRapcon :ePinion Ultimate | Pinion MGU E1.12 | 800 Wh | 160 / 160 mm | 25.5 kg | €9,999 |

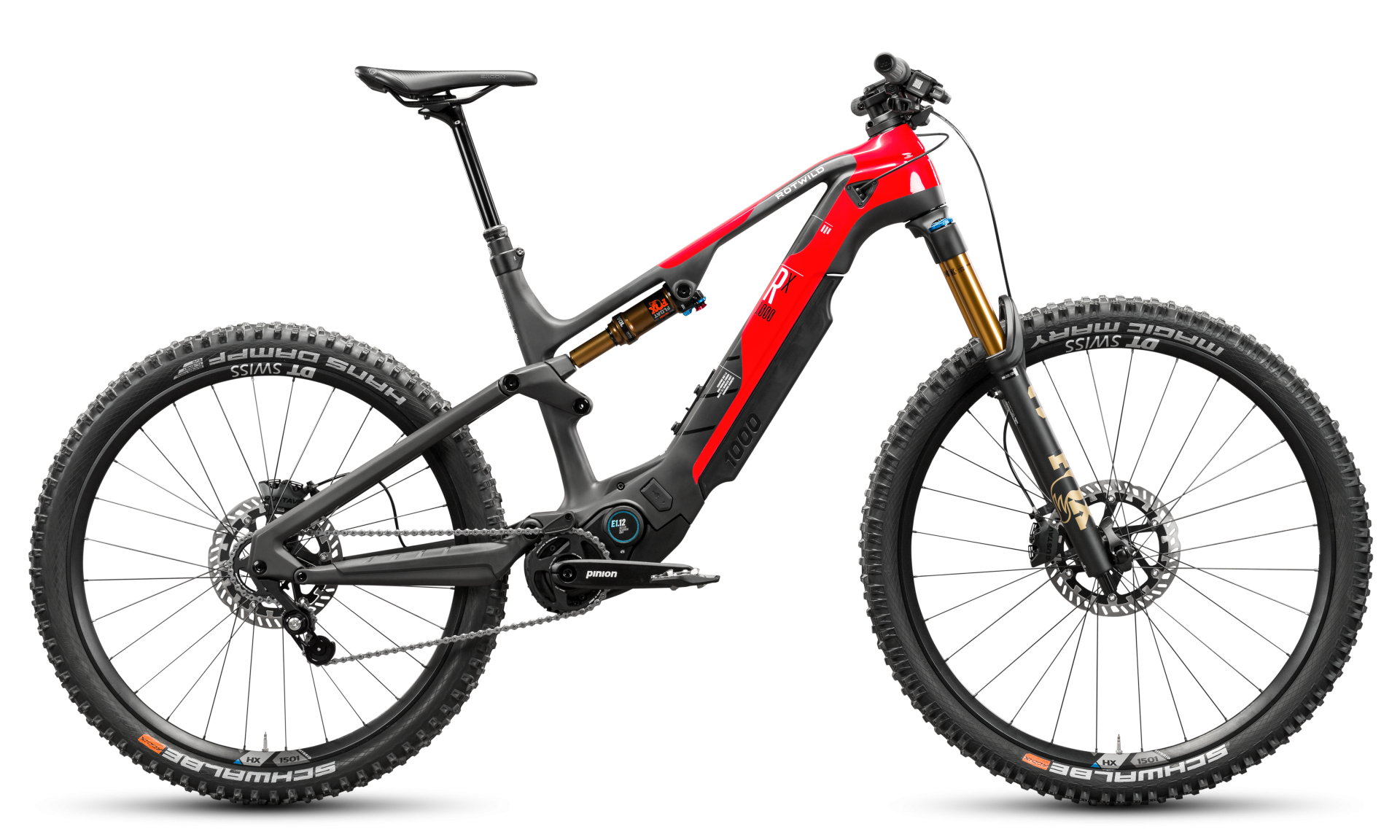

 RotwildR.X1000 Ultra | Pinion MGU E1.12 | 1060 Wh | 150 / 150 mm | 24.3 kg | €11,990 |
Prices are manufacturer RRPs in the brand’s currency; ≈€ figures use approximate exchange rates.
Pinion MGU: FAQ
What is the difference between the MGU E1.12 and E1.9?
The E1.12 has 12 gears with a 600% range; the E1.9 has 9 gears. Both offer 85 Nm and 600 W peak.
How often does the MGU need servicing?
Pinion specifies an oil change every 10,000 km, with no other regular gearbox service in between.
Does the Pinion MGU shift automatically?
Yes, with FIT's Auto.Shift functions, which can select gears by cadence and pre-select a gear when coasting; manual override remains possible.
Which eMTBs use the Pinion MGU?
10 builds in our catalog from 4 brands: Moustache, Simplon, Haibike, Rotwild.
What is the cheapest eMTB with the Pinion MGU?
The Moustache Clutch 150.7 at €5,999.
What is the lightest eMTB with the Pinion MGU?
The Rotwild R.X1000 Ultra at a claimed 24.3 kg.
What battery sizes come with the Pinion MGU?
From 780 Wh to 1060 Wh, depending on the bike and build.
