RotwildR.X1000 Pro
- Motor
- Pinion MGU E1.1285 Nm
- Battery
- 1060 WhIPU1000 Ultracore
- Travel F / R
- 150 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 24.8 kgManufacturer figure (size M)
Overview
The Rotwild R.X1000 Pro (€9,990) is the entry build of the R.X1000: Pinion MGU E1.12 (85 Nm) with 1,060 Wh, FOX 36 Float Performance fork, FOX Float DPS Performance shock, the Pinion 12-speed gearbox and MAGURA Gustav Elite brakes. Claimed weight is 24.8 kg.
The R.X1000 is Rotwild's carbon e-MTB for long off-road tours, built around the Pinion MGU E1.12: a motor-gearbox unit with 85 Nm and 12 electronically shifted gears, driving a singlespeed chain. The IPU1000 Ultracore battery holds 1,060 Wh (48 V) and has an ABUS lock.
It has 150 mm of travel front and rear, mixed wheels (29-inch front, 27.5-inch rear), a 66° head angle and a carbon linkage. It comes in S to XL; Rotwild lists 24.1 to 24.8 kg depending on build and source.
- Pinion MGU E1.12: motor + 12-speed gearbox
- 1,060 Wh battery with ABUS lock
- 150 / 150 mm travel, mullet wheels
- Singlespeed chain, electronic shifting

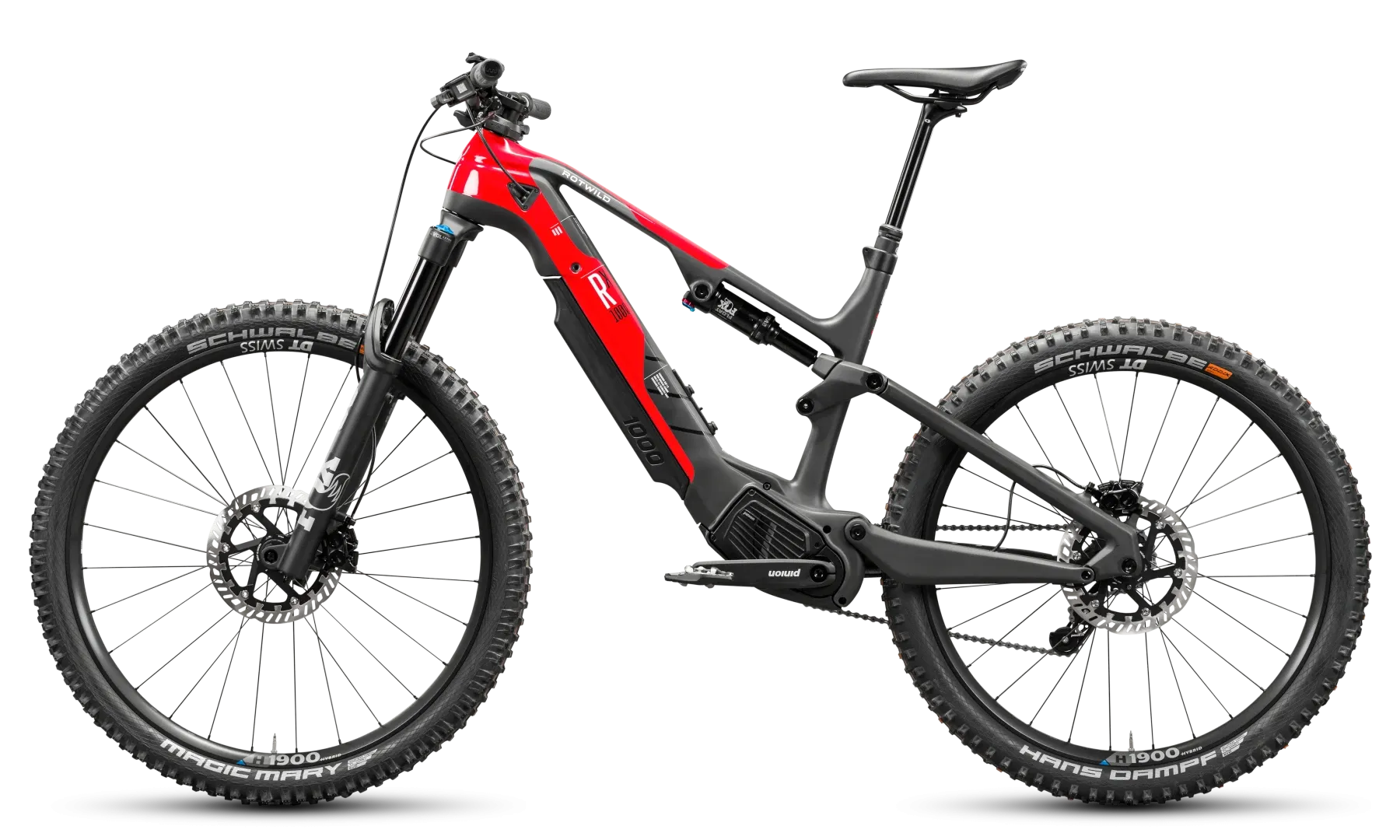

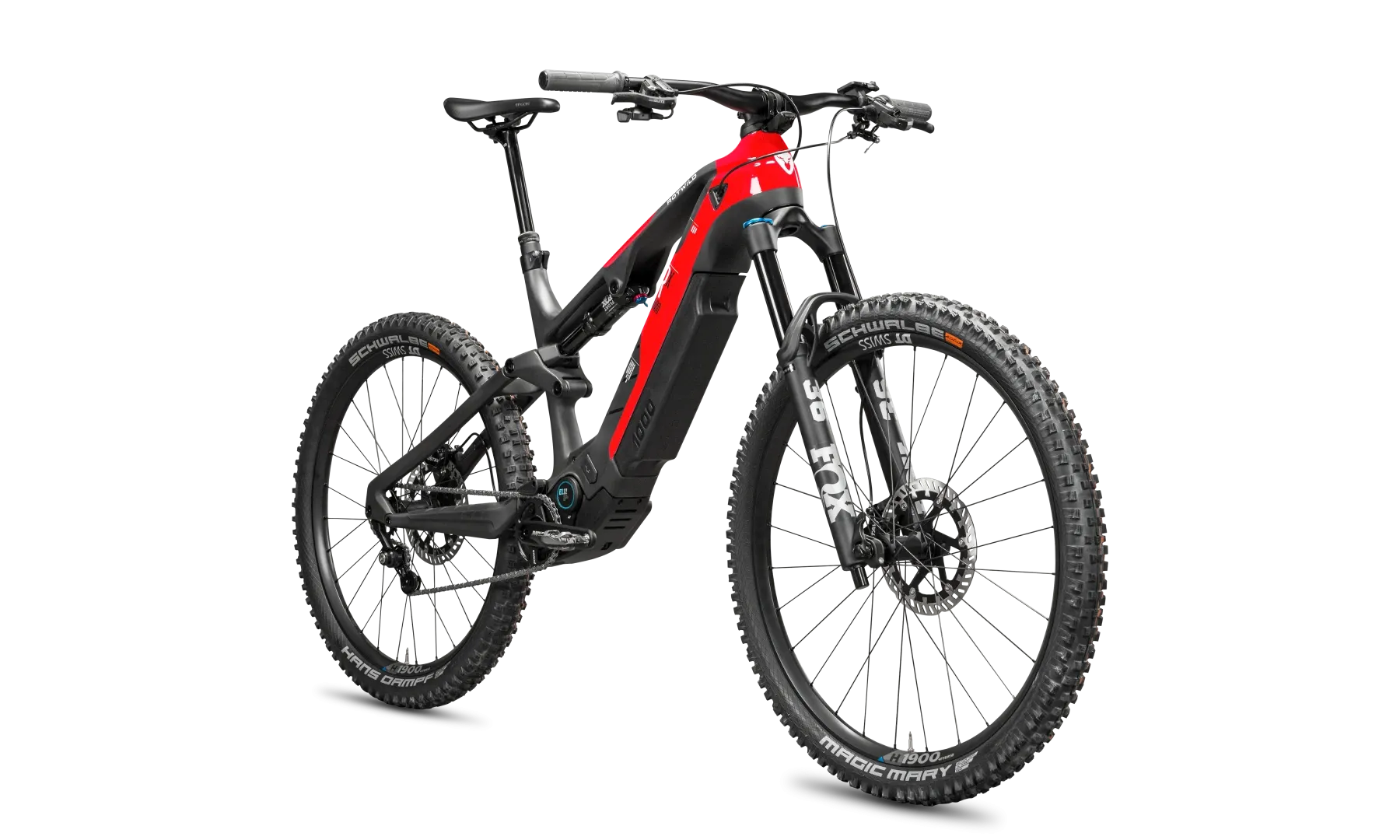

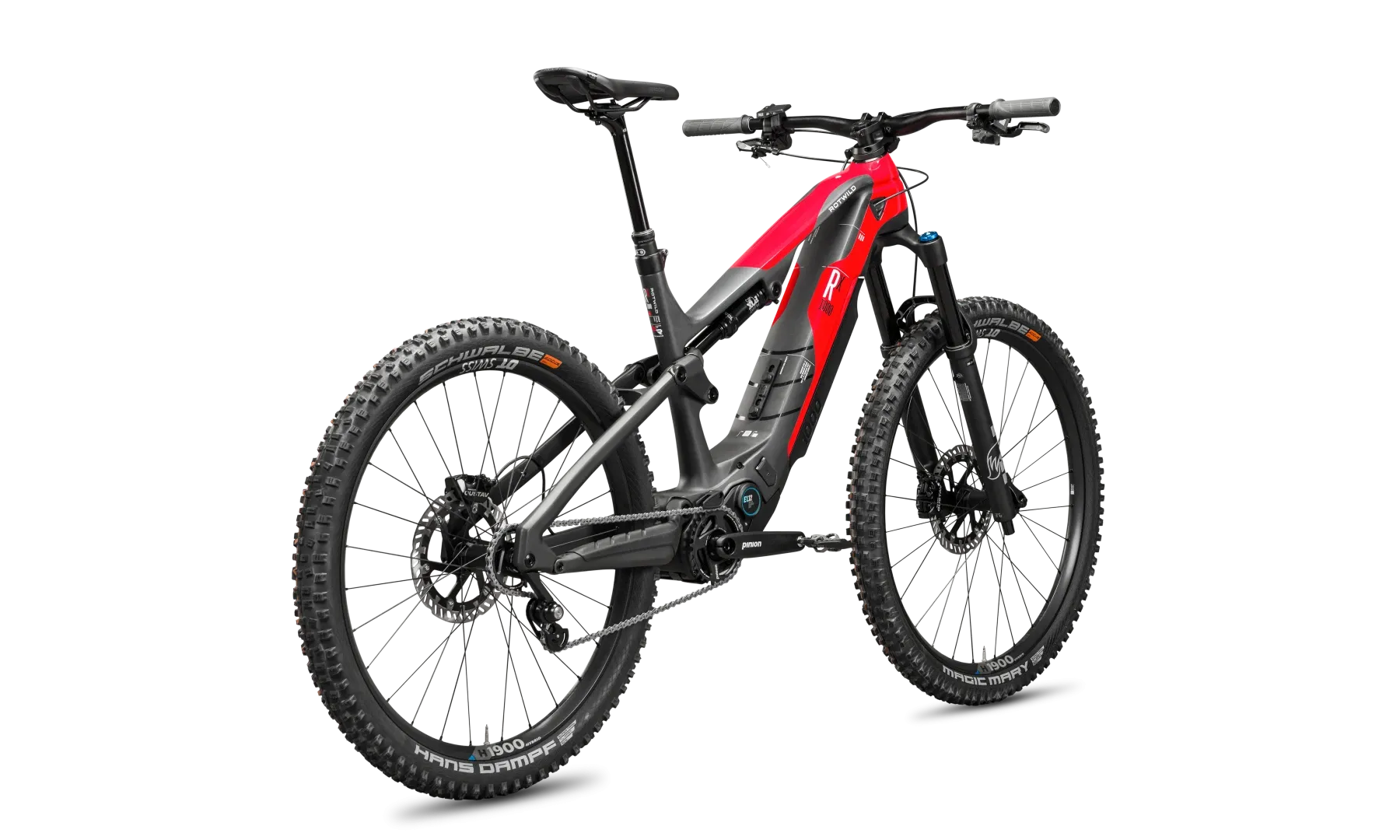

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- Carbon, Carbon Linkage
- Rear shock
- FOX Float DPS Performance, 205 x 60 mm / 3-Pos
- Headset
- ACROS RW750 1.5
- Fork
- FOX 36 Float Performance 150 mm / Grip / 3-Pos
- Colour
- Red
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- FIT Remote Display / USB-C
- Motor
- PINION E1.12 MGU 12-Speed Gear Box
- Battery
- IPU1000 Ultracore [1.060 Wh], 1.060 Wh / 48 V / 21.700 Cell / 4.700 g / ABUS Lock
- Charger
- FIT - 4.8 A
Drivetrain
- Crankset
- PINION 165 mm (S/M) / 170 mm (L/XL)
- Chainring
- PINION Direct Mount Chainring, 30 T.
- Chain guide
- ROTWILD R.1000
- Shifter
- PINION TE1
- Chain
- PINION X1, Longlife
- Cassette
- PINION Chainwheel 24 T.
Brakes
- Front brake
- MAGURA Gustav Elite
- Front rotor
- MAGURA MDR-P, 203 mm
- Rear brake
- MAGURA Gustav Elite, Shiftmix
- Rear rotor
- MAGURA MDR-P, 203 mm
Wheels & tyres
- Front Wheel
- DT SWISS H1900 Spline, 30 mm Width / 110-15 mm / Centerlock
- Rear Wheel
- DT SWISS H1900 Spline 30 mm Width / 148-12 mm / Single Speed / Centerlock
- Front tyre
- SCHWALBE Magic Mary Evo, Super Ground / Soft / TLE / 29x2.4
- Rear tyre
- SCHWALBE Hans Dampf Evo, Super Trail / Soft / TLE / 27.5x2.6
Cockpit
- Handlebar
- ROTWILD B280, 15 mm Rise / 780 mm Width
- Stem
- ROTWILD S140, 50 mm Length / Monkeylink Interface
- Seatpost
- CRANKBROTHERS Highline, Ø34.9 mm / up to 150 mm (XL)
- Saddle
- ERGON SM Sport
- Grips
- ERGON GD10, Slim Factory Frozen
Other
- Weight
- 24.8 kg (size M)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
R.X1000 geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 413 mm | 444 mm | 473 mm | 509 mm |
| BTop Tube Length | 588 mm | 617 mm | 654 mm | 688 mm |
| CHead Tube Length | 110 mm | 110 mm | 130 mm | 140 mm |
| DChain Stay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| EBB Height | 350 mm | 350 mm | 350 mm | 350 mm |
| FBB Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| GHead Tube Angle | 66° | 66° | 66° | 66° |
| HSeat Tube Angle | 74° | 74° | 74° | 74° |
| IReach | 405 mm | 437 mm | 468 mm | 500 mm |
| JStack | 610 mm | 617 mm | 637 mm | 648 mm |
| KWheel Base | 1172 mm | 1198 mm | 1236 mm | 1270 mm |
| LStandover | 750 mm | 750 mm | 750 mm | 750 mm |
Source: Rotwild.
R.X1000: builds compared
R.X1000 range →| R.X1000 Pro | R.X1000 Ultra | |
|---|---|---|
| Price | €9,990 | €11,990 |
| Frame | Carbon | Carbon |
| Fork | FOX 36 Float Performance 150 mm / Grip / 3-Pos | FOX 36 Float Factory Kashima 150 mm / Grip X / HSC/LSC/LSR |
| Shock | FOX Float DPS Performance | FOX Float Factory Kashima 205 x 60 mm / 3-Pos Adjust |
| Brakes | MAGURA Gustav Elite | MAGURA Gustav Pro |
| Wheels | DT SWISS H1900 Spline | DT SWISS HX1501 Spline1 |
| Display | FIT Remote Display / USB-C | FIT Remote Display / USB-C |
| Weight | 24.8 kg | 24.3 kg |
R.X1000 Pro: FAQ
How much does the Rotwild R.X1000 Pro cost?
€9,990 (MSRP Germany, VAT incl.). The R.X1000 range runs from €9,990 (R.X1000 Pro) to €11,990 (R.X1000 Ultra). Prices vary by country and dealer.
How much does the Rotwild R.X1000 Pro weigh?
Rotwild quotes 24.8 kg. The lightest R.X1000 build is the R.X1000 Ultra at 24.3 kg.
What motor and battery does the Rotwild R.X1000 Pro have?
Pinion MGU E1.12 (85 Nm). 1060 Wh battery — iPU1000 Ultracore.
How much suspension travel does the Rotwild R.X1000 Pro have?
150 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Rotwild R.X1000 Pro come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the R.X1000 Pro and the R.X1000 Ultra?
They share the R.X1000 frame platform and motor; the differences are in the parts — fork: FOX 36 Float Performance 150 mm / Grip / 3-Pos vs FOX 36 Float Factory Kashima 150 mm / Grip X / HSC/LSC/LSR; shock: FOX Float DPS Performance vs FOX Float Factory Kashima 205 x 60 mm / 3-Pos Adjust; brakes: MAGURA Gustav Elite vs MAGURA Gustav Pro; claimed weight: 24.8 kg vs 24.3 kg; price: €9,990 vs €11,990.
