RotwildR.XX Core
- Motor
- DJI Avinox M2125 Nm; 1,100 W peak
- Battery
- 700 WhAvinox FP700
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5" (S, M); 29" (M/L, L, XL)
- Frame
- Carbon
Overview
The Rotwild R.XX Core (€8,490) is the entry build of the R.XX: DJI Avinox M2 (125 Nm) with 700 Wh, FOX 36 Float Rhythm fork, FOX Float X Performance shock, SRAM EAGLE90 and SRAM Motive Bronze brakes.
The R.XX is Rotwild's new carbon all-mountain e-MTB for model year 2027, built around the DJI Avinox drive and a fully integrated Avinox FP700 battery (700 Wh, 36 V), with a target weight of around 20 kg. Pro, Ultra and Ultimate use the Avinox M2S (150 Nm, up to 1,500 W boost); the Core gets the Avinox M2.
It pairs a 160 mm fork with 150 mm of rear travel from Rotwild's Elevated Box Design kinematics. The frame comes in five sizes (S, M, M/L, L, XL) with size-specific chainstays from 435 to 460 mm; sizes S and M run a 27.5-inch rear wheel, M/L to XL run 29 inches front and rear.
- DJI Avinox M2S, 150 Nm, up to 1,500 W
- Integrated 700 Wh Avinox battery
- 160 / 150 mm travel, mullet or full 29"
- Five sizes, size-specific chainstays

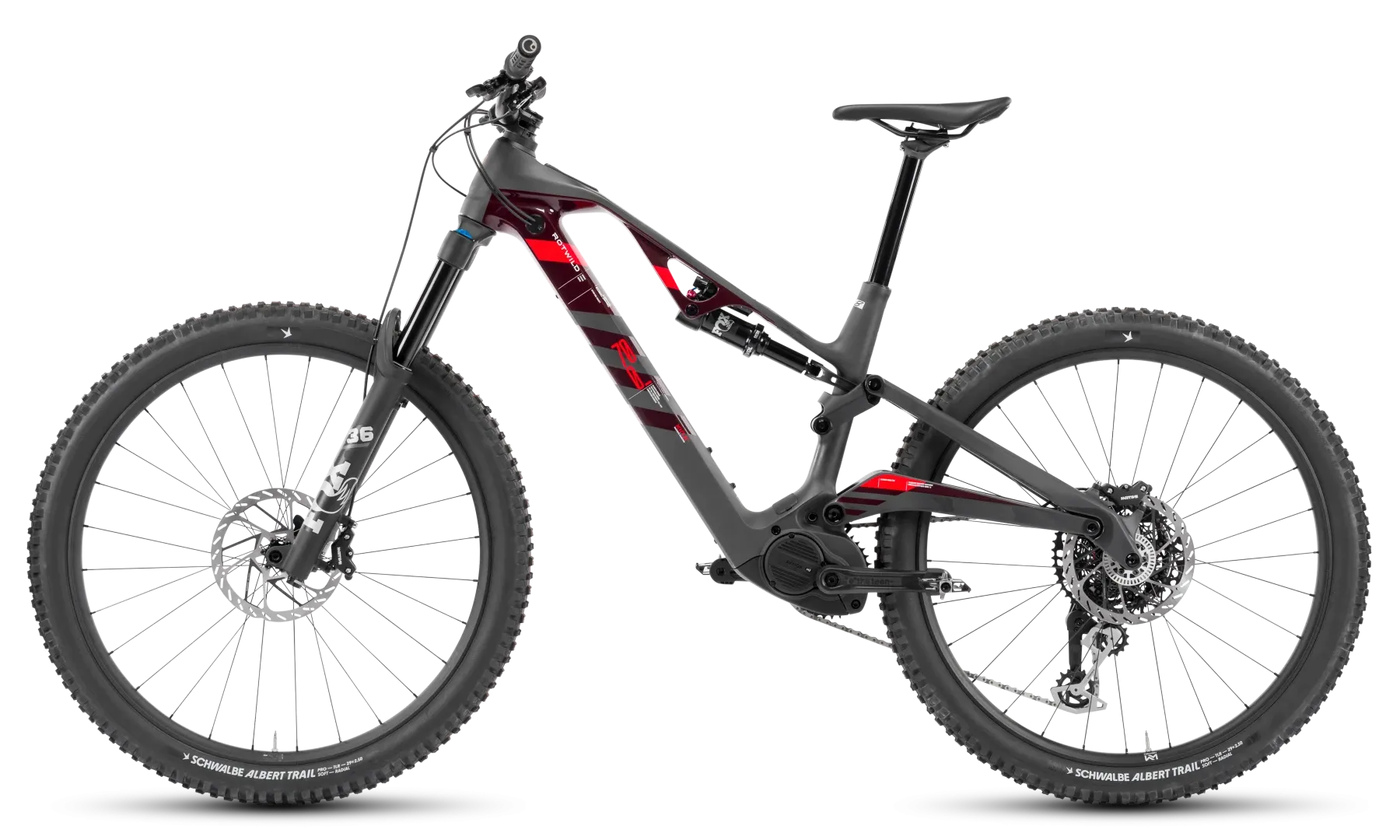

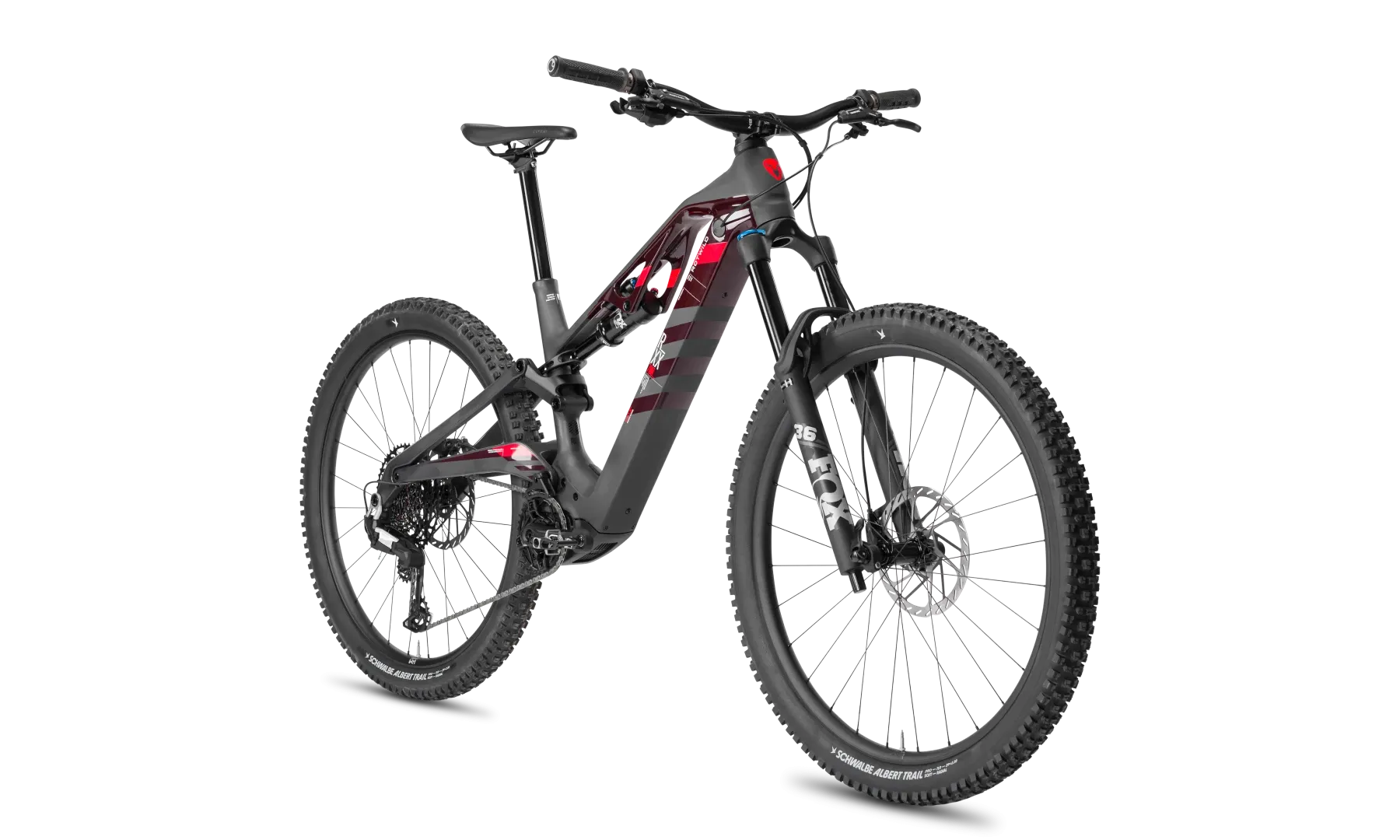

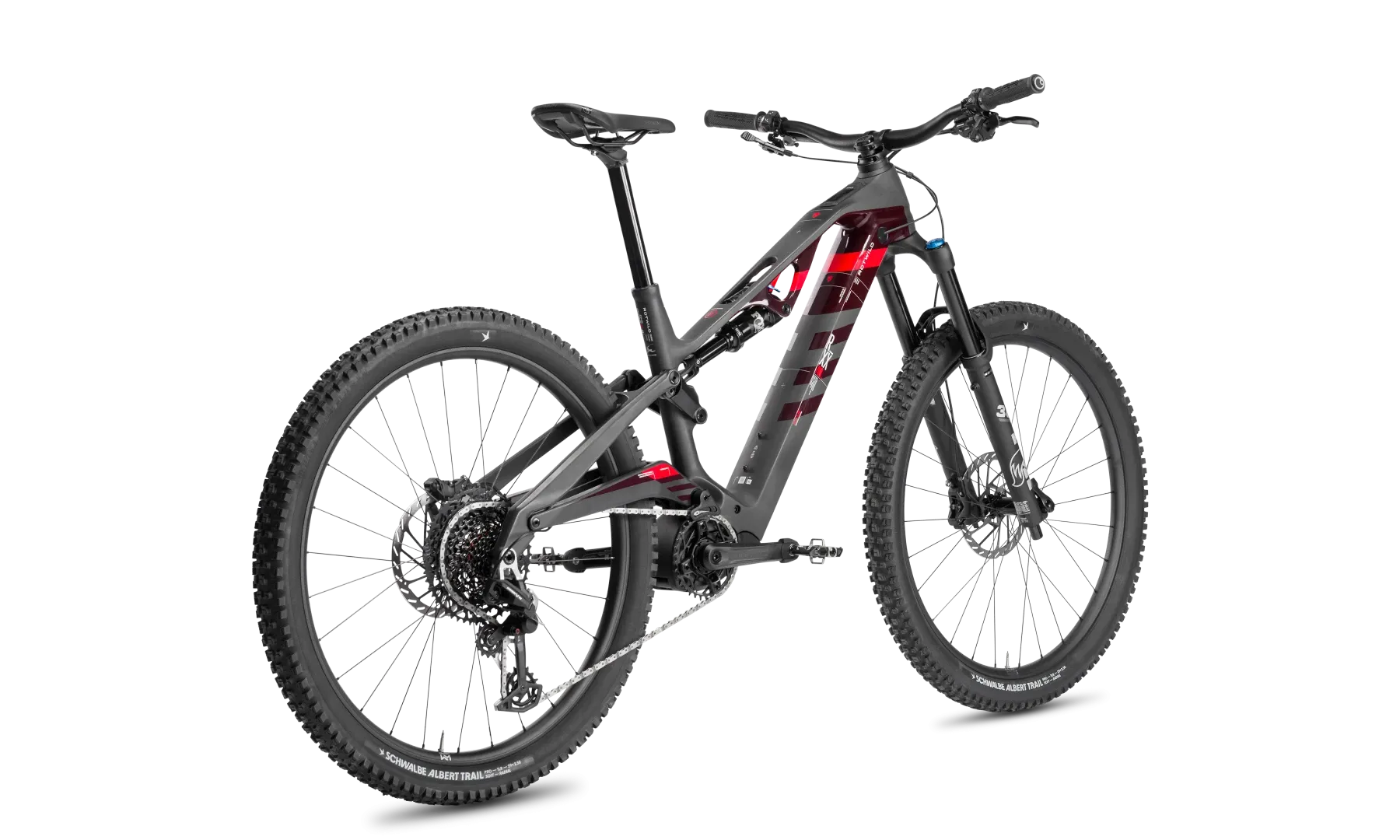

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, M/L, L, XL
- Frame
- Polydynamic Carbon
- Rear shock
- FOX Float X Performance, 205 x 60 mm / 2-Pos
- Headset
- ACROS RW EXC
- Fork
- FOX 36 Float Rhythm, 160 mm / Grip / Sweep Adjust
- Colour
- Bloodfin red
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- AVINOX 2" OLED
- Motor
- AVINOX M2, max. 125 Nm / 1.100 W
- Battery
- AVINOX FP700, 700 Wh / 36 V / 3.180 g
- Charger
- AVINOX 4A Charger
Drivetrain
- Crankset
- e*thirteen Plus, 160 mm (S/M/ML/L) / 165 mm (XL)
- Chainring
- e*thirteen Spider / SRAM Chainring 34 T.
- Chain guide
- ROTWILD XX Chainguide
- Shifter
- SRAM EAGLE90 Trigger
- Rear derailleur
- SRAM EAGLE90
- Chain
- SRAM GX Eagle Transmission
- Cassette
- SRAM GX Eagle XS 1270, 10-52 T. / 12-Speed
Brakes
- Front brake
- SRAM Motive Bronze
- Front rotor
- SRAM HS2 / 200 mm
- Rear brake
- SRAM Motive Bronze
- Rear rotor
- SRAM HS2 / 200 mm
Wheels & tyres
- Front Wheel
- NEWMEN Beskar, 30 mm Width / 110-15 mm / 6-Bolt
- Rear Wheel
- NEWMEN Beskar, 30 mm Width / 148-12 mm / 6-Bolt
- Front tyre
- SCHWALBE Albert Evo Radial, Trail / Soft / TLR / 29x2.5
- Rear tyre
- SCHWALBE Albert Evo Radial, Trail / Soft / TLR / 27.5x2.5 (S/M) / 29x2.5 (ML/L/XL)
Cockpit
- Handlebar
- NEWMEN Beskar, 40 mm Rise / 760 (S/M) 780 mm (ML/L/XL) Width
- Stem
- ROTWILD S120, 35 mm Length
- Seatpost
- 8PINS H01, up to 200 mm (XL)
- Saddle
- ERGON SM Sport
- Grips
- ERGON GDH TEAM, Slim Factory Frozen
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
R.XX geometry
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| ASeat Tube Length | 399 mm | 423 mm | 447 mm | 470 mm | 494 mm |
| BTop Tube Length | 553 mm | 580 mm | 603 mm | 625 mm | 654 mm |
| CHead Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 150 mm |
| DChain Stay Length | 435 mm | 440 mm | 445 mm | 452.5 mm | 460 mm |
| EBB Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| FBB Drop | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| GHead Tube Angle | 64° | 64° | 64° | 64° | 64° |
| HSeat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| IReach | 430 mm | 455 mm | 475 mm | 495 mm | 520 mm |
| JStack | 623 mm | 632 mm | 641 mm | 650 mm | 663 mm |
| KWheel Base | 1203 mm | 1237 mm | 1267 mm | 1299 mm | 1338 mm |
| LStandover | 754 mm | 754 mm | 754 mm | 754 mm | 754 mm |
Sizes S and M run a 27.5" rear wheel, M/L to XL 29" front and rear. Source: Rotwild.
R.XX: builds compared
R.XX range →| R.XX Core | R.XX Pro | R.XX Ultra | R.XX Ultimate | |
|---|---|---|---|---|
| Price | €8,490 | €9,990 | €11,990 | €13,490 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | FOX 36 Float Rhythm, 160 mm / Grip / Sweep Adjust | FOX 36 Float Performance, 160 mm / Grip / Sweep Adjust | FOX 36 Float Factory Kashima, 160 mm / Grip X / HSC/LSC / LSR | FOX 36 Float Factory Kashima, 160 mm / Grip X / HSC/LSC / LSR |
| Shock | FOX Float X Performance | FOX Float X Performance | FOX Float X Factory Kashima | FOX Float X Factory Kashima |
| Derailleur | SRAM EAGLE90 | SRAM GX Eagle Transmission AXS | SRAM X0 Eagle Transmission AXS | SRAM XX Eagle Transmission AXS |
| Brakes | SRAM Motive Bronze | SRAM Motive Bronze | SRAM Motive Silver | SRAM Motive Ultimate Carbon |
| Wheels | NEWMEN Beskar | NEWMEN Phase Carbon | NEWMEN Phase Carbon | NEWMEN Phase Carbon |
| Display | AVINOX 2" OLED | AVINOX 2" OLED | AVINOX 2" OLED | AVINOX 2" OLED |
| Weight | — | 20.9 kg | 20.6 kg | — |
R.XX Core: FAQ
How much does the Rotwild R.XX Core cost?
€8,490 (MSRP Germany, VAT incl.). The R.XX range runs from €8,490 (R.XX Core) to €13,490 (R.XX Ultimate). Prices vary by country and dealer.
What motor and battery does the Rotwild R.XX Core have?
DJI Avinox M2 (125 Nm; 1,100 W peak). 700 Wh battery — avinox FP700.
How much suspension travel does the Rotwild R.XX Core have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" (S, M); 29" (M/L, L, XL) wheels.
What sizes does the Rotwild R.XX Core come in?
S, M, M/L, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the R.XX Core and the R.XX Pro?
They share the R.XX frame platform; the differences are in the parts — fork: FOX 36 Float Rhythm vs FOX 36 Float Performance; derailleur: SRAM EAGLE90 vs SRAM GX Eagle Transmission AXS; price: €8,490 vs €9,990.
