RotwildR.XX Pro
- Motor
- DJI Avinox M2S150 Nm; 1,500 W peak
- Battery
- 700 WhAvinox FP700
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5" (S, M); 29" (M/L, L, XL)
- Frame
- Carbon
- Weight
- 20.9 kgManufacturer figure (size M)
Watching this bike? Get new models and updates on Telegram →
Overview
For €9,990 the R.XX Pro gets the full 150 Nm Avinox M2S, a Fox 36 Performance fork and wireless SRAM GX Transmission. At a claimed 20.9 kg it's the sensible middle of the range if you want the stronger motor without Kashima prices.
The R.XX Pro is one of 4 builds of the Rotwild R.XX. About the R.XX range and all its builds →

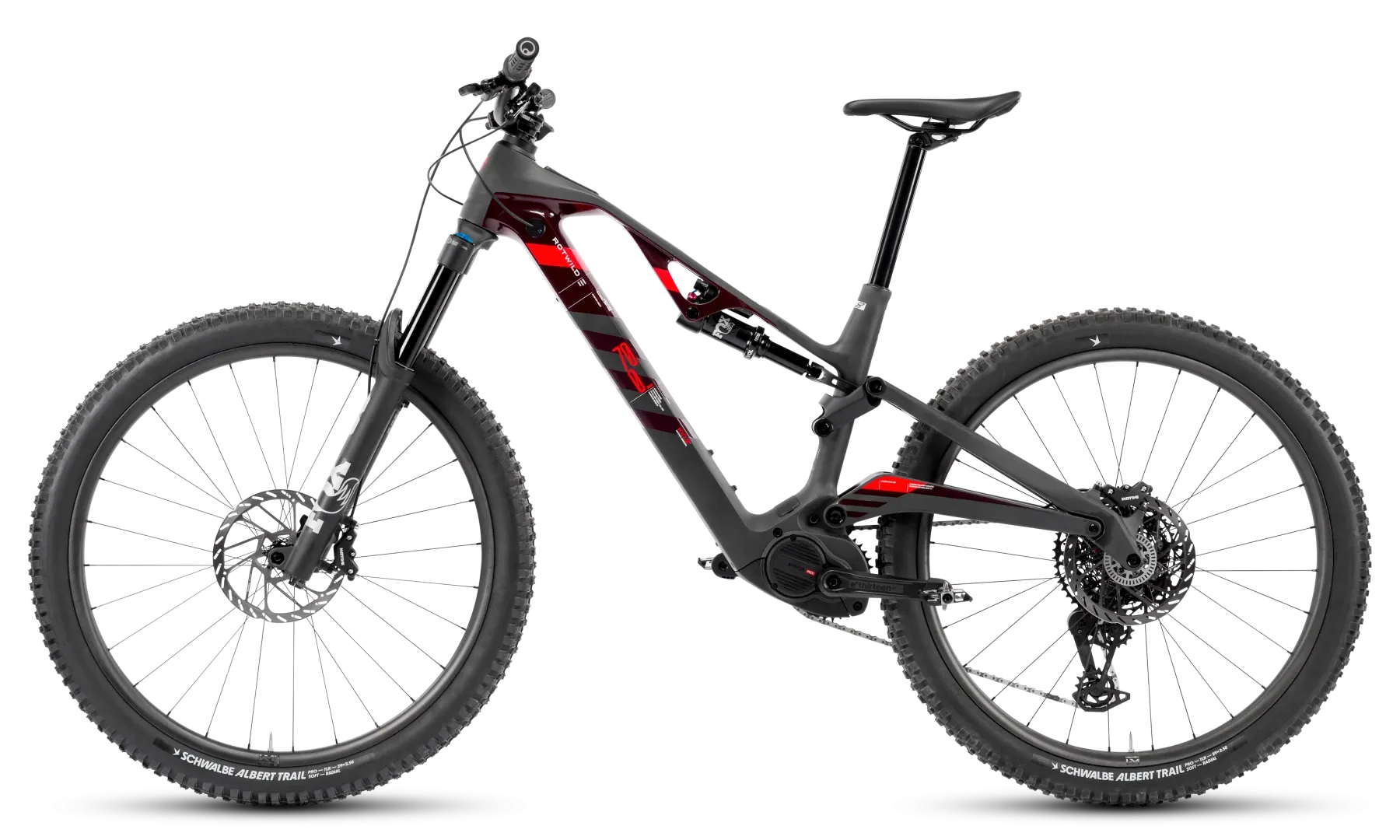

Gallery
Photos: Rotwild
Full specifications
Frame & suspension
- Sizes
- S, M, M/L, L, XL
- Frame
- Polydynamic Carbon
- Rear shock
- FOX Float X Performance, 205 x 60 mm / 2-Pos
- Headset
- ACROS RW EXC
- Fork
- FOX 36 Float Performance, 160 mm / Grip / Sweep Adjust
- Colour
- Bloodfin red
- Max. system weight
- ASTM4 - 130 kg
E-system
- Display
- AVINOX 2" OLED
- Motor
- AVINOX M2.S, max. 150 Nm / 1.500 W
- Battery
- AVINOX FP700, 700 Wh / 36 V / 3.180 g
- Charger
- AVINOX 12A Charger
Drivetrain
- Crankset
- e*thirteen Plus, 160 mm (S/M/ML/L) / 165 mm (XL)
- Chainring
- e*thirteen Spider / SRAM Chainring 34 T.
- Chain guide
- ROTWILD XX Chainguide
- Shifter
- SRAM AXS Pod
- Rear derailleur
- SRAM GX Eagle Transmission AXS
- Chain
- SRAM GX Eagle Transmission
- Cassette
- SRAM GX Eagle XS 1270, 10-52 T. / 12-Speed
Brakes
- Front brake
- SRAM Motive Bronze
- Front rotor
- SRAM HS2 / 200 mm
- Rear brake
- SRAM Motive Bronze
- Rear rotor
- SRAM HS2 / 200 mm
Wheels & tyres
- Front Wheel
- NEWMEN Phase Carbon, 30 mm Width / 110-15 mm / 6-Bolt
- Rear Wheel
- NEWMEN Phase Carbon, 30 mm Width / 148-12 mm / 6-Bolt
- Front tyre
- SCHWALBE Albert Evo Radial, Trail / Soft / TLR / 29x2.5
- Rear tyre
- SCHWALBE Albert Evo Radial, Trail / Soft / TLR / 27.5x2.5 (S/M) / 29x2.5 (ML/L/XL)
Cockpit
- Handlebar
- NEWMEN Beskar, 40 mm Rise / 760 (S/M) 780 mm (ML/L/XL) Width
- Stem
- ROTWILD S120, 35 mm Length
- Seatpost
- 8PINS NGS3.0, up to 240 mm (XL)
- Saddle
- ERGON SM Sport
- Grips
- ERGON GDH TEAM, Slim Factory Frozen
Other
- Weight
- 20.9 kg (size M)
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
R.XX geometry
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| ASeat Tube Length | 399 mm | 423 mm | 447 mm | 470 mm | 494 mm |
| BTop Tube Length | 553 mm | 580 mm | 603 mm | 625 mm | 654 mm |
| CHead Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 150 mm |
| DChain Stay Length | 435 mm | 440 mm | 445 mm | 452.5 mm | 460 mm |
| EBB Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| FBB Drop | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| GHead Tube Angle | 64° | 64° | 64° | 64° | 64° |
| HSeat Tube Angle | 77° | 77° | 77° | 77° | 77° |
| IReach | 430 mm | 455 mm | 475 mm | 495 mm | 520 mm |
| JStack | 623 mm | 632 mm | 641 mm | 650 mm | 663 mm |
| KWheel Base | 1203 mm | 1237 mm | 1267 mm | 1299 mm | 1338 mm |
| LStandover | 754 mm | 754 mm | 754 mm | 754 mm | 754 mm |
Sizes S and M run a 27.5" rear wheel, M/L to XL 29" front and rear. Source: Rotwild.
R.XX: builds compared
R.XX range →| R.XX Core | R.XX Pro | R.XX Ultra | R.XX Ultimate | |
|---|---|---|---|---|
| Price | €8,490 | €9,990 | €11,990 | €13,490 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | FOX 36 Float Rhythm, 160 mm / Grip / Sweep Adjust | FOX 36 Float Performance, 160 mm / Grip / Sweep Adjust | FOX 36 Float Factory Kashima, 160 mm / Grip X / HSC/LSC / LSR | FOX 36 Float Factory Kashima, 160 mm / Grip X / HSC/LSC / LSR |
| Shock | FOX Float X Performance | FOX Float X Performance | FOX Float X Factory Kashima | FOX Float X Factory Kashima |
| Derailleur | SRAM EAGLE90 | SRAM GX Eagle Transmission AXS | SRAM X0 Eagle Transmission AXS | SRAM XX Eagle Transmission AXS |
| Brakes | SRAM Motive Bronze | SRAM Motive Bronze | SRAM Motive Silver | SRAM Motive Ultimate Carbon |
| Wheels | NEWMEN Beskar | NEWMEN Phase Carbon | NEWMEN Phase Carbon | NEWMEN Phase Carbon |
| Display | AVINOX 2" OLED | AVINOX 2" OLED | AVINOX 2" OLED | AVINOX 2" OLED |
| Weight | — | 20.9 kg | 20.6 kg | — |
R.XX Pro: FAQ
What is the difference between the R.XX Pro and the R.XX Ultra?
They share the R.XX frame platform and motor; the differences are in the parts: fork: FOX 36 Float Performance vs FOX 36 Float Factory Kashima; shock: FOX Float X Performance vs FOX Float X Factory Kashima; derailleur: SRAM GX Eagle Transmission AXS vs SRAM X0 Eagle Transmission AXS; brakes: SRAM Motive Bronze vs SRAM Motive Silver; claimed weight: 20.9 kg vs 20.6 kg; price: €9,990 vs €11,990.
