HaibikeALLMTN CF 11 TRN/IQ
- Motor
- Pinion MGU E1.1285 Nm
- Battery
- 800 WhInTube
- Travel F / R
- 160 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

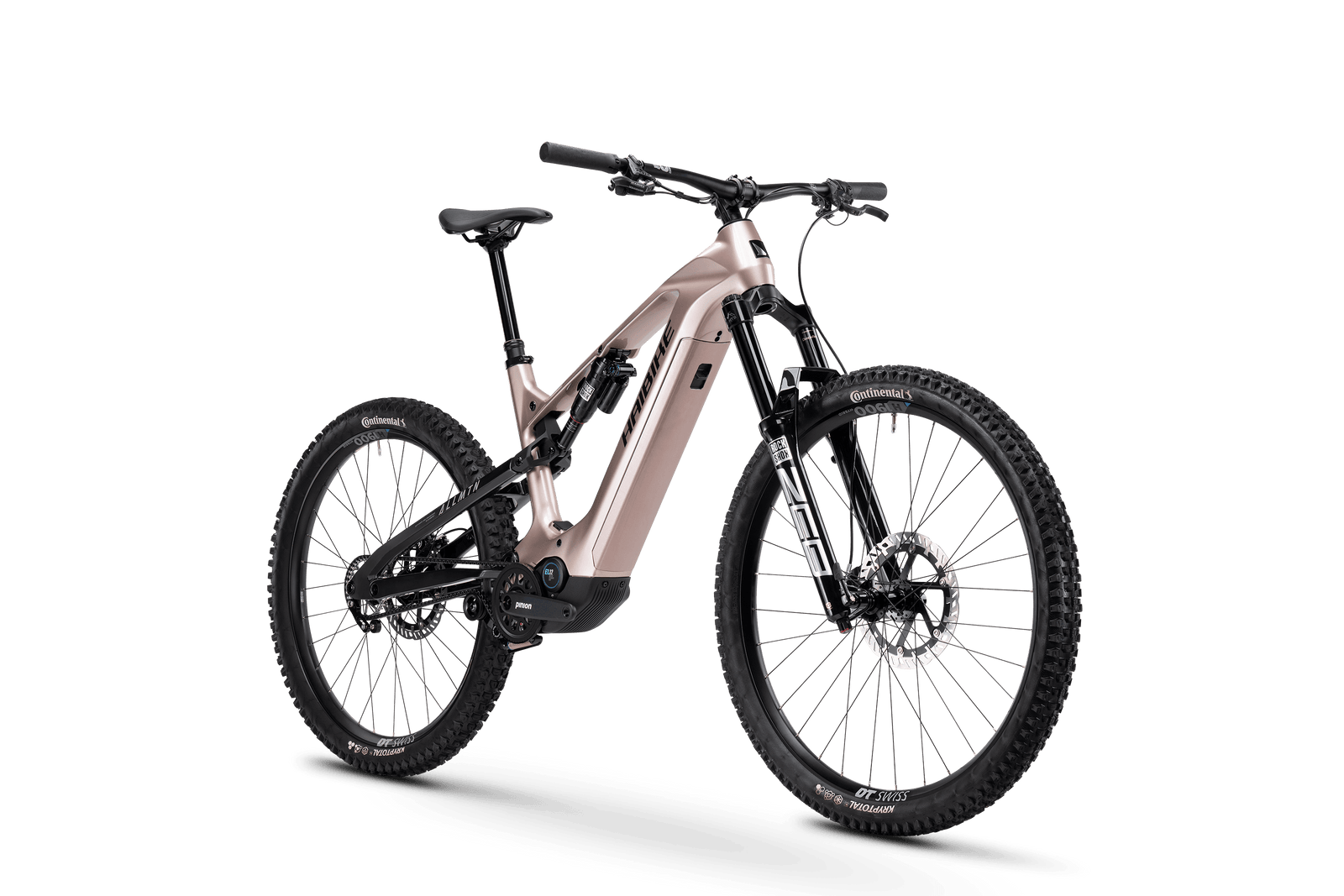

The Haibike ALLMTN CF 11 TRN/IQ (€9,000) is the top build of the ALLMTN CF TRN/IQ range: Pinion MGU E1.12 (85 Nm) with 800 Wh, RockShox ZEB Ultimate Charger 3.1 RC2 fork, RockShox Super Deluxe Ultimate RC2T 230x60mm shock, Pinion Motor-Gearbox-Unit and Magura MT5 brakes.

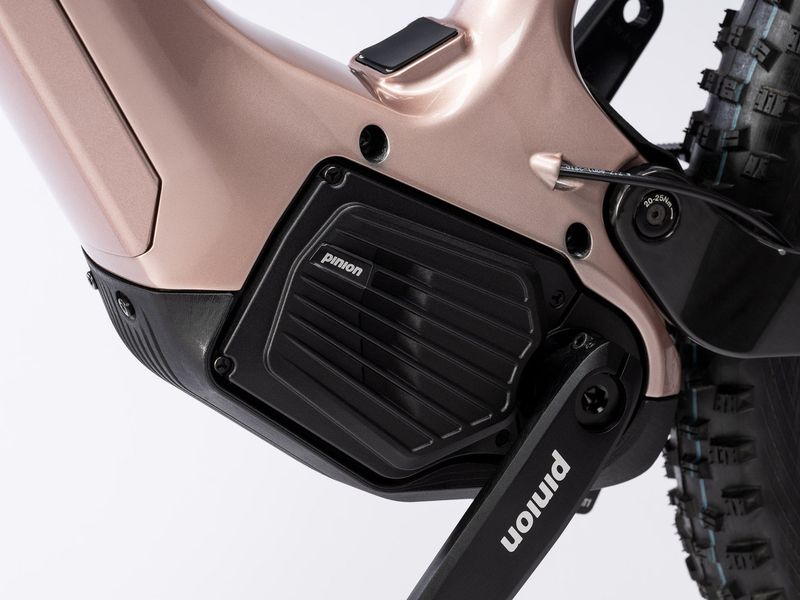

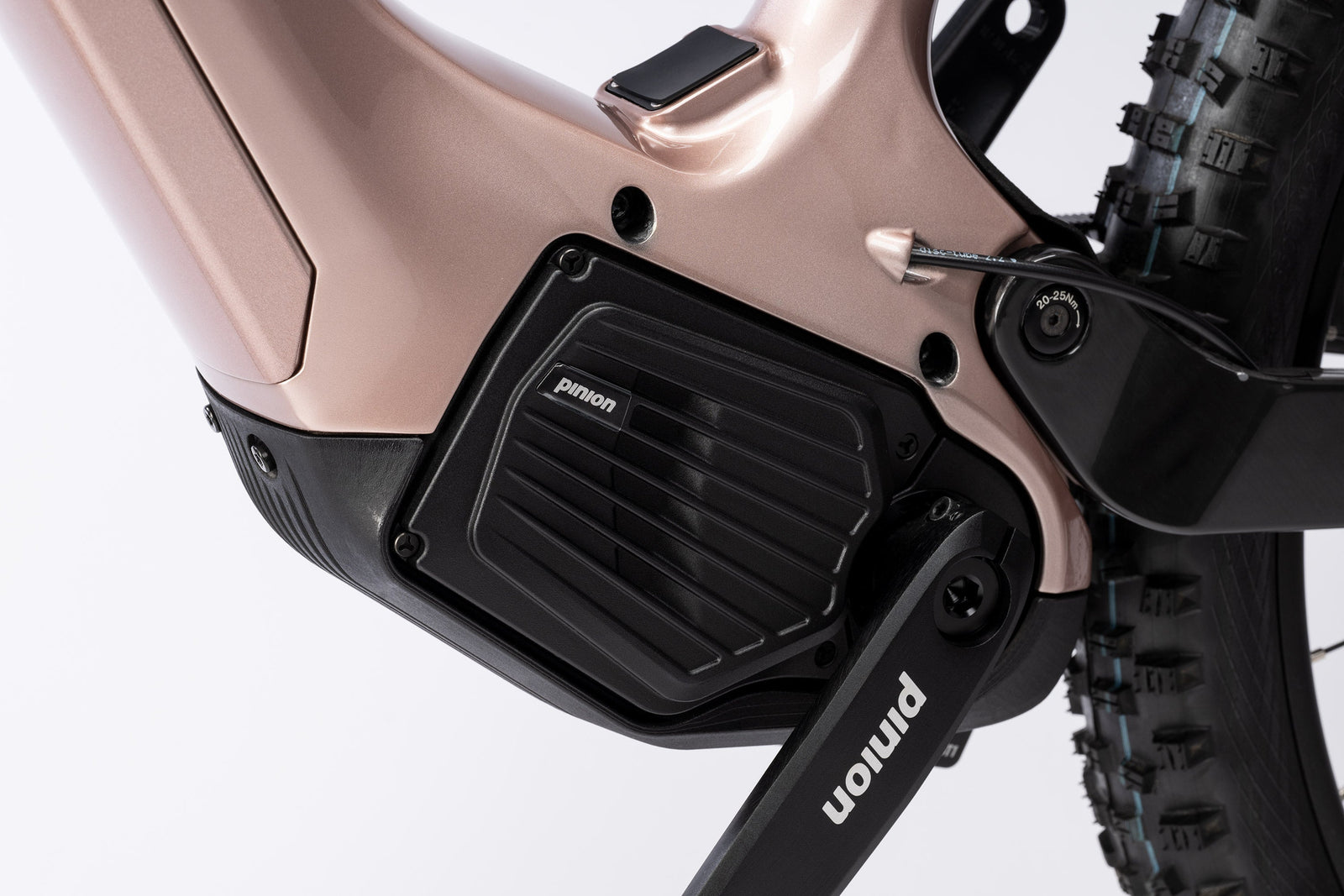

The ALLMTN CF TRN/IQ swaps the usual motor and derailleur for a Pinion MGU E1.12: a motor and 12-speed gearbox in one housing, driven by a Gates carbon belt, with automatic shifting. It has a carbon frame, 160 mm of travel front and rear, mullet wheels and an 800 Wh InTube battery.
- Pinion MGU E1.12, 85 Nm
- 12-speed gearbox, auto-shift

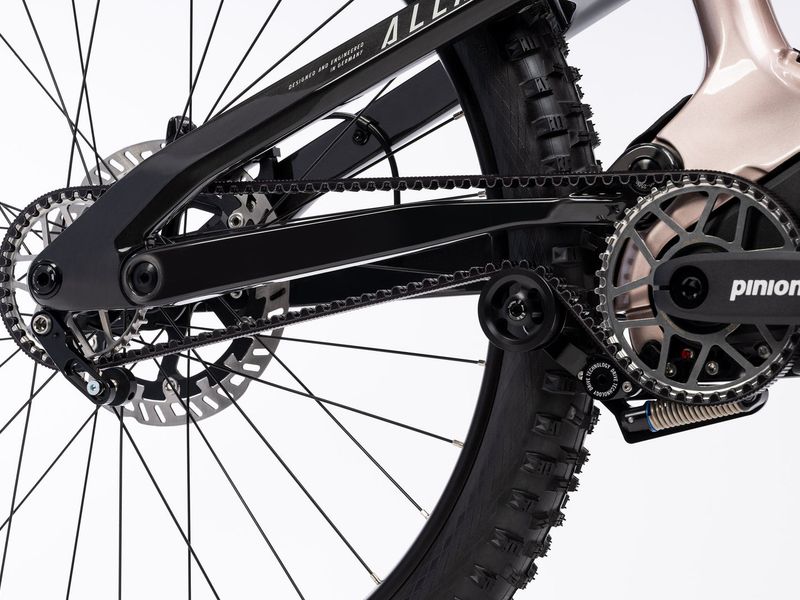

- Gates belt drive
- 160 mm travel, carbon
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount
- Fork

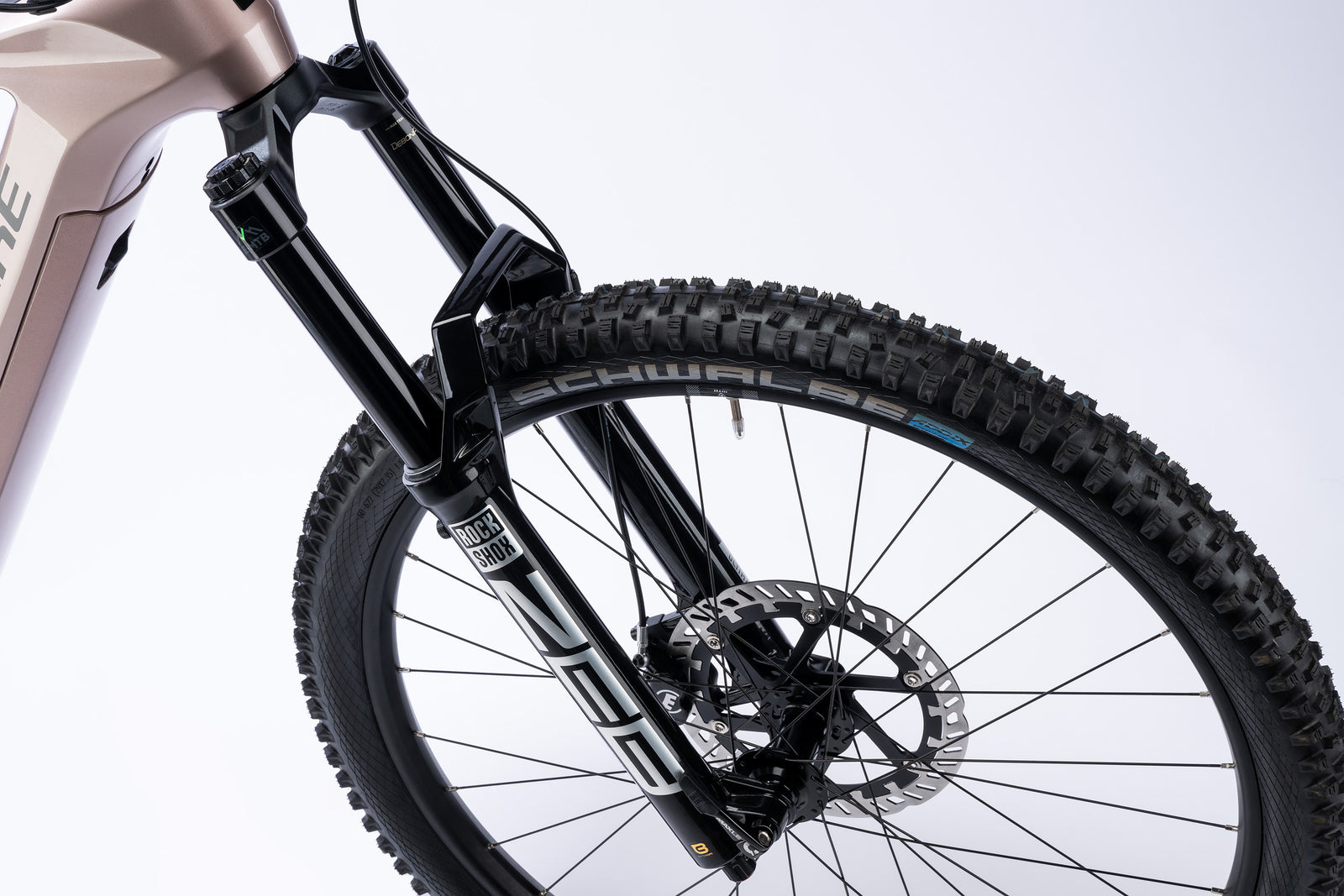

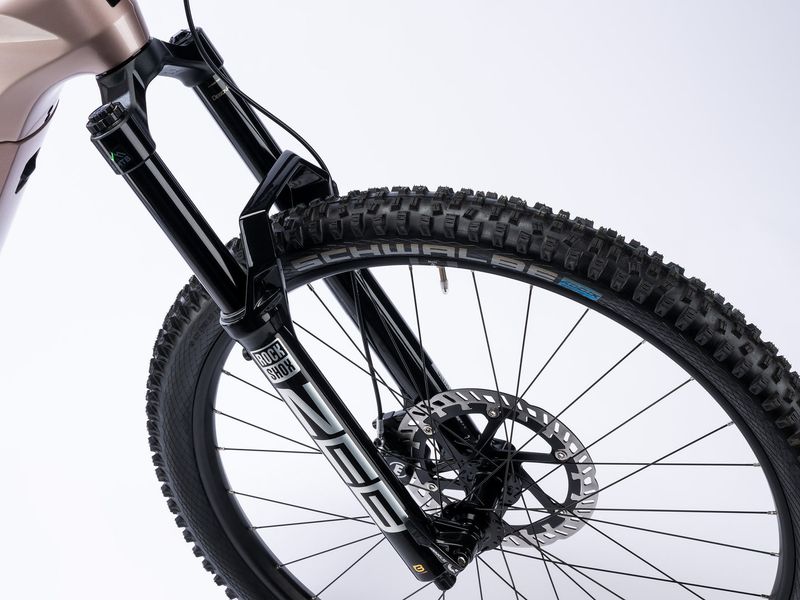

- RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir, Offset: 44 mm, Travel: 160mm
- Rear shock

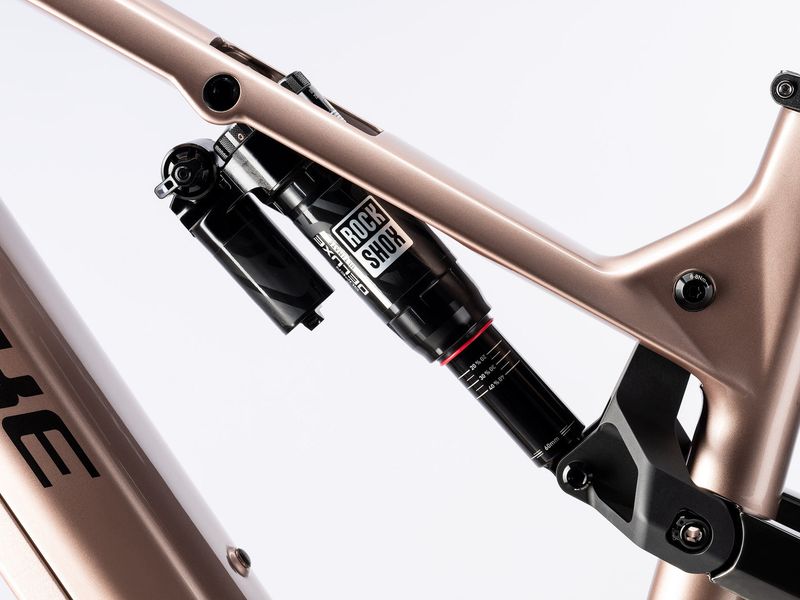

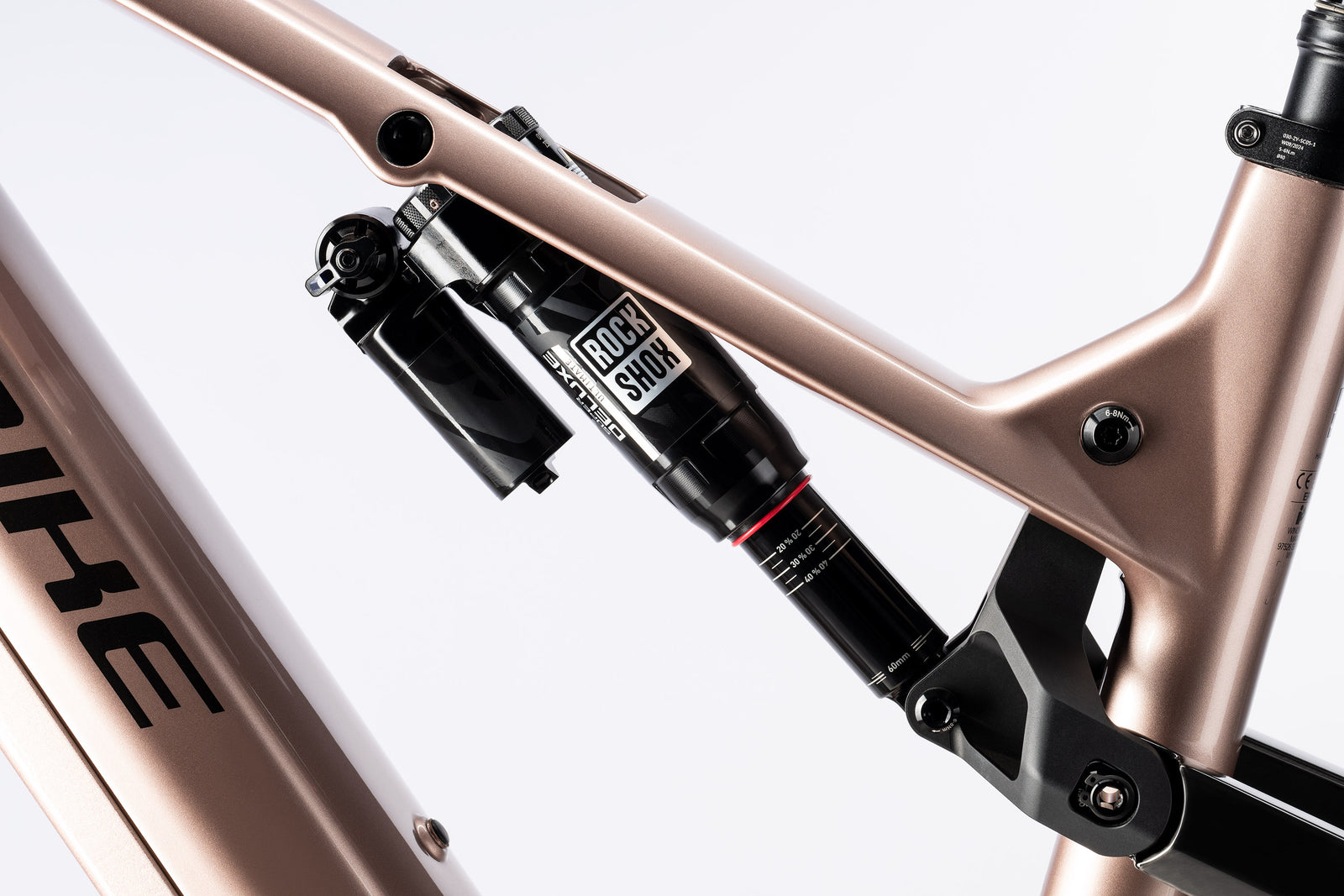

- RockShox Super Deluxe Ultimate RC2T 230x60mm, DebonAir
E-system
- Battery
- InTube 800Wh
- Charger
- Pinion FIT Standard Charger 48V
- Display
- Pinion FIT Master Node Display + Remote Pure
- Motor
- Pinion E1.12 MGU, 600W, 85Nm
Drivetrain
- Chain

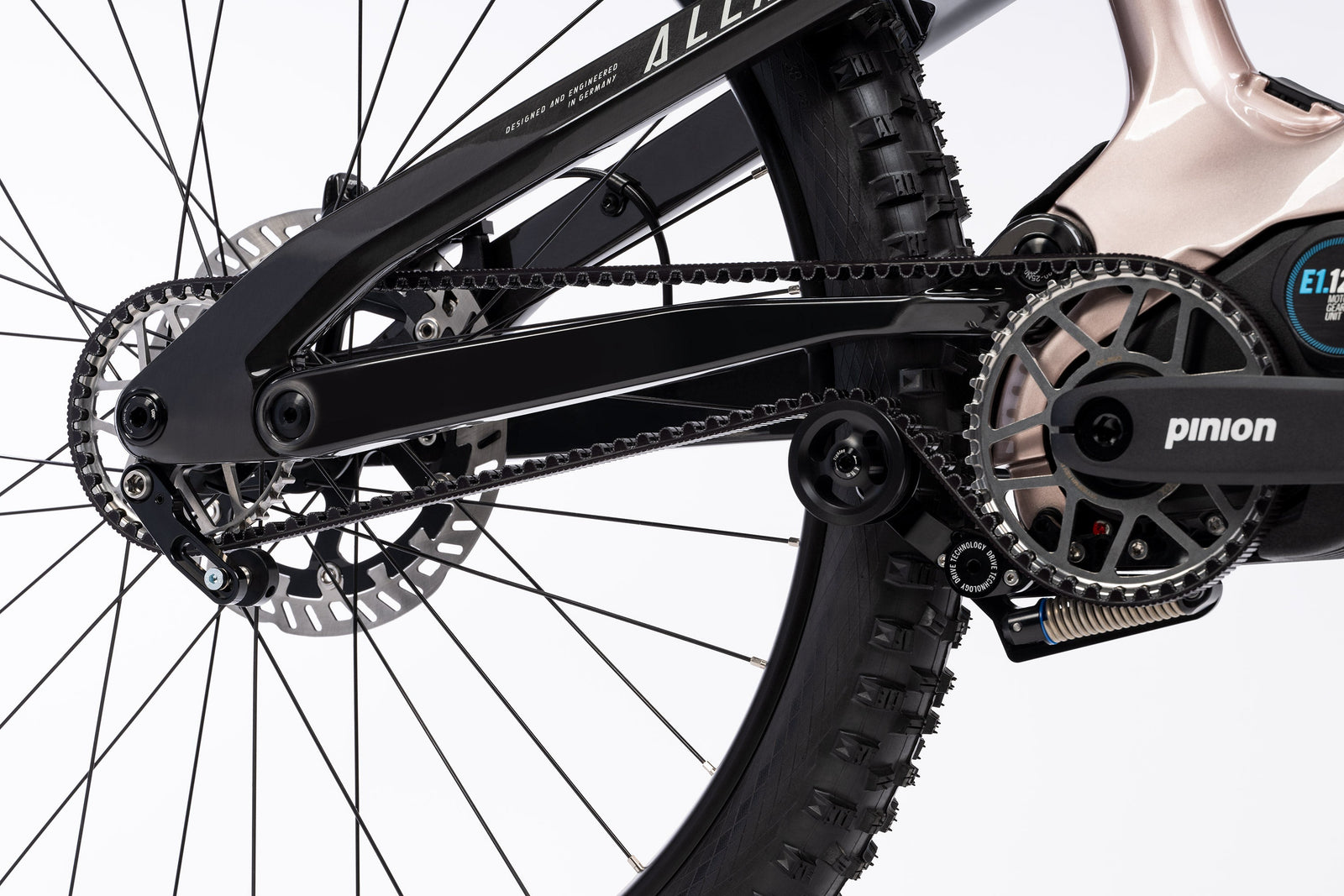

- Gates Carbon Drive Belt CDX, 120T
- Gearbox
- Pinion Motor-Gearbox-Unit, 12-speed
- Gears
- 12-speed
- Shifter
- Pinion Smart Shift TE1 E-Trigger, Trigger shifter
Brakes
- Front brake
- Magura MT5, 4 pistons, 203 mm
- Rear brake
- Magura MT5, 4 pistons, 203 mm
Wheels & tyres
- Front Wheel
- DT Swiss H 1900 Spline, 29", 30 mm, 15x110 mm, Centerlock
- Rear wheel
- DT Swiss H 1900 Spline, 27,5", 35 mm, 12x148 mm, CL, HG Single Speed
- Tyres
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622

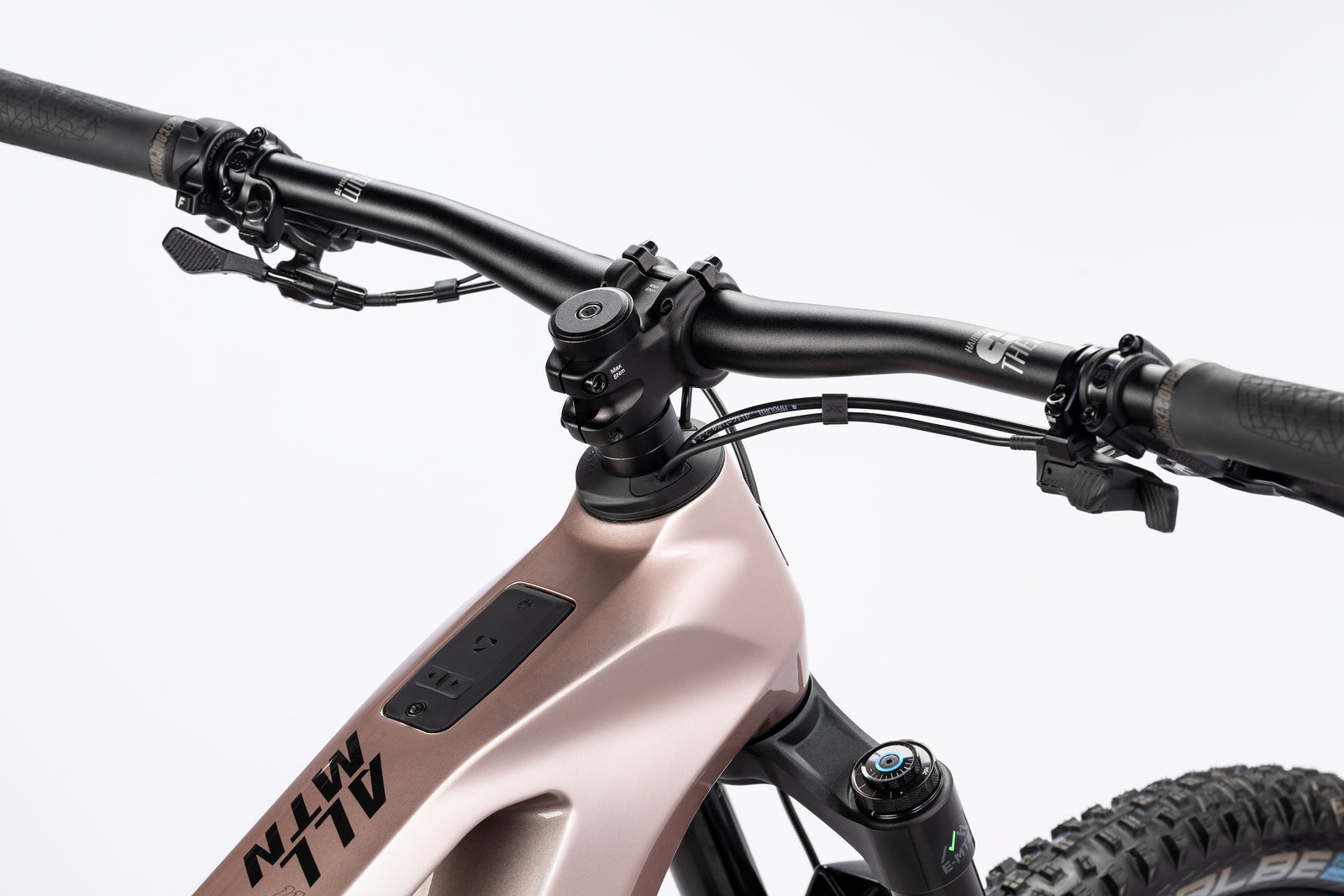

Cockpit
- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar

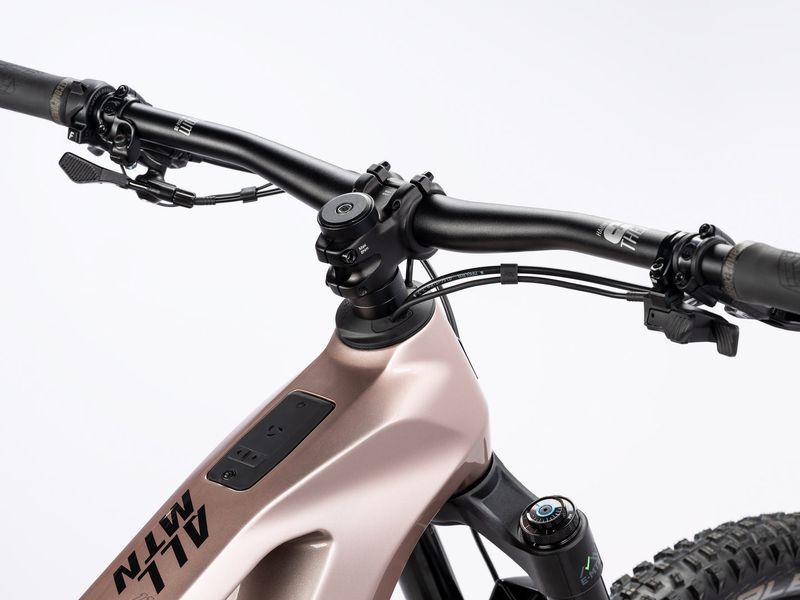

- Haibike TheBar++ Dia. 31.8 mm 780 mm
- Pedals
- VP Components VPE-527 Alloy w/ Reflector
- Saddle
- Selle Royal Vivo
- Seatpost
- Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLMTN CF TRN/IQ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 624 mm | 656 mm |
| CHead tube length | 100 mm | 110 mm | 120 mm | 130 mm |
| DHead Tube Angle | 64° | 64° | 64° | 64° |
| ESeat Tube Angle | 72.5° | 72.6° | 72.6° | 72.7° |
| FChain stay length | 440 mm | 440 mm | 440 mm | 440 mm |
| GWheelbase | 1203 mm | 1237 mm | 1271 mm | 1306 mm |
| HStack | 617 mm | 626 mm | 635 mm | 644 mm |
| IReach | 425 mm | 455 mm | 485 mm | 515 mm |
| JStand over height | 760 mm | 760 mm | 760 mm | 760 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Haibike.
ALLMTN CF TRN/IQ: builds compared
ALLMTN CF TRN/IQ range →| ALLMTN CF 10 TRN/IQ | ALLMTN CF 11 TRN/IQ | |
|---|---|---|
| Price | €8,000 | €9,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox Psylo Gold RC, Crown Adj | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir |
| Shock | RockShox Super Deluxe Select RT 230x60mm | RockShox Super Deluxe Ultimate RC2T 230x60mm |
| Brakes | Tektro TRP Slate EVO HD-M807 | Magura MT5 |
| Wheels | DT Swiss H 1900 Spline | DT Swiss H 1900 Spline |
| Display | Pinion FIT Master Node Display + Remote Pure | Pinion FIT Master Node Display + Remote Pure |
ALLMTN CF 11 TRN/IQ: FAQ
How much does the Haibike ALLMTN CF 11 TRN/IQ cost?
€9,000 (RRP Germany, VAT incl.). The ALLMTN CF TRN/IQ range runs from €8,000 (ALLMTN CF 10 TRN/IQ) to €9,000 (ALLMTN CF 11 TRN/IQ). Prices vary by country and dealer.
What motor and battery does the Haibike ALLMTN CF 11 TRN/IQ have?
Pinion MGU E1.12 (85 Nm). 800 Wh battery — inTube.
How much suspension travel does the Haibike ALLMTN CF 11 TRN/IQ have?
160 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike ALLMTN CF 11 TRN/IQ come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLMTN CF 11 TRN/IQ and the ALLMTN CF 10 TRN/IQ?
They share the ALLMTN CF TRN/IQ frame platform and motor; the differences are in the parts — fork: RockShox ZEB Ultimate Charger 3.1 RC2 vs RockShox Psylo Gold RC; shock: RockShox Super Deluxe Ultimate RC2T 230x60mm vs RockShox Super Deluxe Select RT 230x60mm; brakes: Magura MT5 vs Tektro TRP Slate EVO HD-M807; price: €9,000 vs €8,000.
