Full-power eMTBAll-mountain2025
Model range · 2 buildsHaibikeALLMTN CF TRN/IQ
- Price
- €8,000 – €9,000
- Motor
- Pinion MGU E1.1285 Nm
- Battery
- 800 WhInTube
- Travel F / R
- 160 / 160 mm
- Wheels
- Mullet 29" / 27.5"
Overview

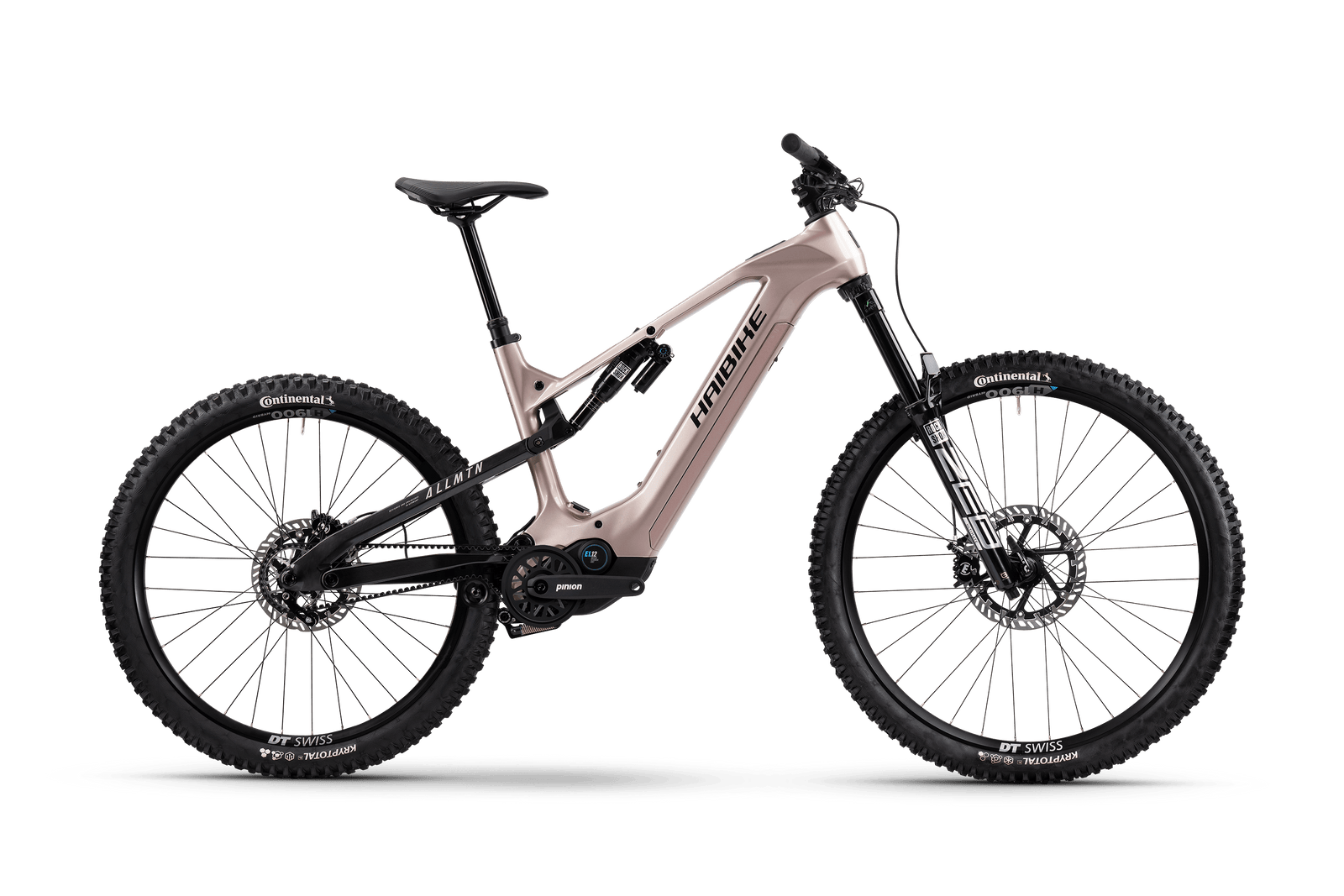

The ALLMTN CF TRN/IQ swaps the usual motor and derailleur for a Pinion MGU E1.12: a motor and 12-speed gearbox in one housing, driven by a Gates carbon belt, with automatic shifting. It has a carbon frame, 160 mm of travel front and rear, mullet wheels and an 800 Wh InTube battery.
- Pinion MGU E1.12, 85 Nm
- 12-speed gearbox, auto-shift
- Gates belt drive
- 160 mm travel, carbon
Haibike ALLMTN CF TRN/IQ builds
ALLMTN CF TRN/IQ builds compared
| ALLMTN CF 10 TRN/IQ | ALLMTN CF 11 TRN/IQ | |
|---|---|---|
| Price | €8,000 | €9,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox Psylo Gold RC, Crown Adj | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir |
| Shock | RockShox Super Deluxe Select RT 230x60mm | RockShox Super Deluxe Ultimate RC2T 230x60mm |
| Brakes | Tektro TRP Slate EVO HD-M807 | Magura MT5 |
| Wheels | DT Swiss H 1900 Spline | DT Swiss H 1900 Spline |
| Display | Pinion FIT Master Node Display + Remote Pure | Pinion FIT Master Node Display + Remote Pure |
ALLMTN CF TRN/IQ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 624 mm | 656 mm |
| CHead tube length | 100 mm | 110 mm | 120 mm | 130 mm |
| DHead Tube Angle | 64° | 64° | 64° | 64° |
| ESeat Tube Angle | 72.5° | 72.6° | 72.6° | 72.7° |
| FChain stay length | 440 mm | 440 mm | 440 mm | 440 mm |
| GWheelbase | 1203 mm | 1237 mm | 1271 mm | 1306 mm |
| HStack | 617 mm | 626 mm | 635 mm | 644 mm |
| IReach | 425 mm | 455 mm | 485 mm | 515 mm |
| JStand over height | 760 mm | 760 mm | 760 mm | 760 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Haibike.
Haibike ALLMTN CF TRN/IQ: FAQ
How much does the Haibike ALLMTN CF TRN/IQ cost?
€8,000 – €9,000 depending on the build (ALLMTN CF 10 TRN/IQ €8,000, ALLMTN CF 11 TRN/IQ €9,000); RRP Germany, VAT incl..
How many Haibike ALLMTN CF TRN/IQ builds are there?
2: ALLMTN CF 10 TRN/IQ, ALLMTN CF 11 TRN/IQ. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Haibike ALLMTN CF TRN/IQ use?
Pinion MGU E1.12 (85 Nm) with a 800 Wh battery (intube).
How much travel does the Haibike ALLMTN CF TRN/IQ have?
160 mm fork and 160 mm rear travel on mullet 29" / 27.5" wheels.
