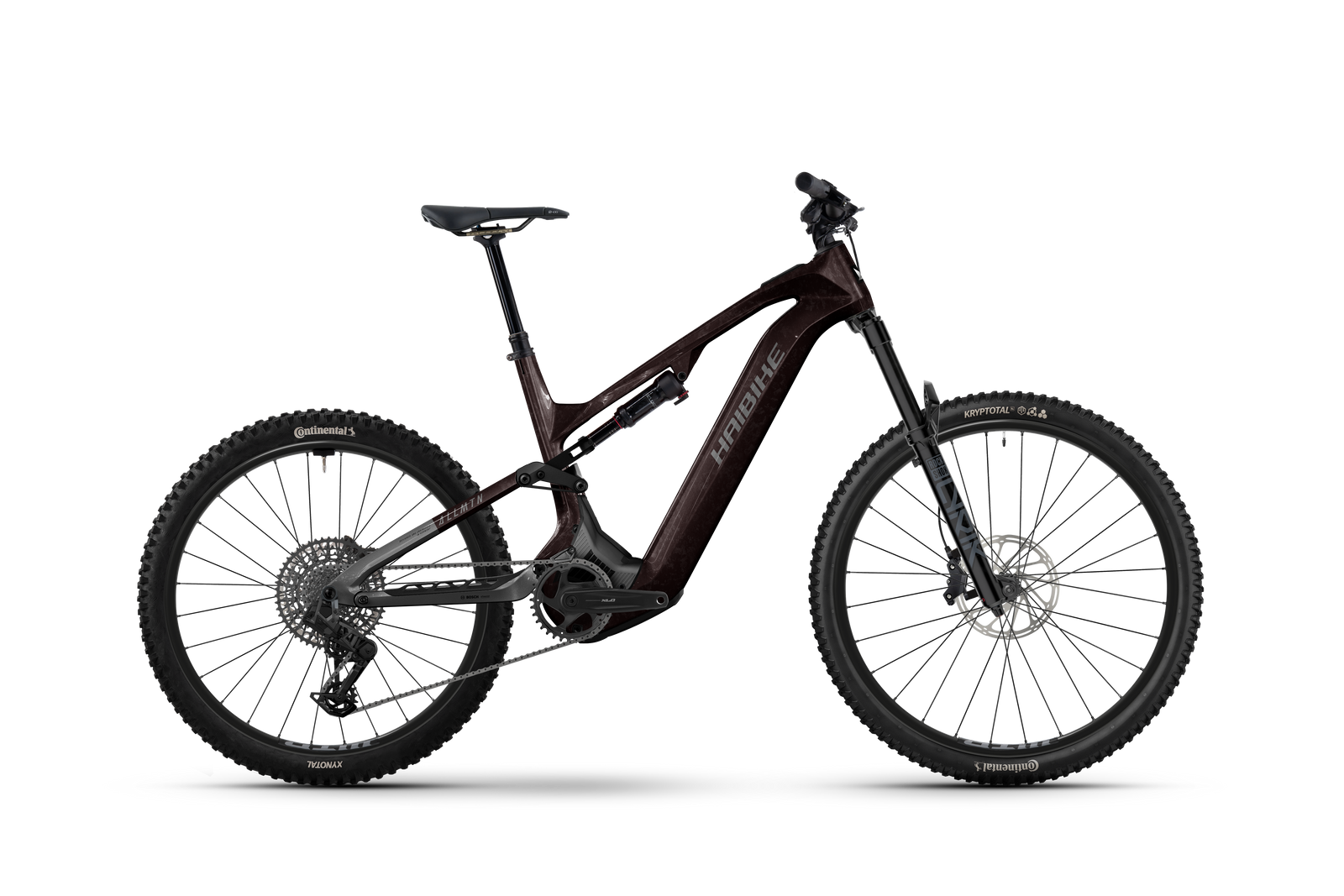

HaibikeALLMTN CF 9
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Haibike ALLMTN CF 9 (€7,199) is the entry build of the ALLMTN CF range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Lyrik Base Rush RC fork, RockShox Deluxe Select+ RT 230x60mm shock, Sram S1000 Eagle AXS T-Type 12s and Sram DB8 Stealth brakes.
The ALLMTN CF is the carbon version of Haibike's all-mountain platform: 160 mm of travel up front, 150 mm at the rear, mullet wheels and a Bosch Performance Line CX mounted upside down in the frame, which Haibike says improves heat management. An 800 Wh battery is integrated and removable; the CF 9.5 adds Bosch ABS.
- Carbon frame, 160/150 mm
- Inverted Bosch CX, 800 Wh
- Mullet wheels
- Bosch ABS on the CF 9.5
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount
- Fork
- RockShox Lyrik Base Rush RC, DebonAir+, Offset: 44 mm, Travel: 160mm
- Rear shock
- RockShox Deluxe Select+ RT 230x60mm, Standard, DebonAir+
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 400C + Mini Remote
- Motor
- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain
- Sram GX Eagle T-Type 12s
- Rear derailleur
- Sram S1000 Eagle AXS T-Type 12s, wireless, 12-speed
- Gears
- 12-speed
- Shifter
- Sram AXS Pod Controller, Trigger shifter
Brakes
- Front brake
- Sram DB8 Stealth, 4 pistons, 220 mm
- Rear brake
- Sram DB8 Stealth, 4 pistons, 200 mm
Wheels & tyres
- Rims
- XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- Prologo Proxim W450 Performance 145 mm
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 200 mm, L: 556 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLMTN CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 625 mm | 657 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 74.2° | 74.2° | 74.2° | 74.2° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1207 mm | 1240 mm | 1275 mm | 1309 mm |
| HStack | 631 mm | 640 mm | 649 mm | 658 mm |
| IReach | 427 mm | 456 mm | 487 mm | 516 mm |
| JStand over height | 770 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm |
Source: Haibike.
ALLMTN CF: builds compared
ALLMTN CF range →| ALLMTN CF 9 | ALLMTN CF 9.5 ABS | |
|---|---|---|
| Price | €7,199 | €8,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox Lyrik Base Rush RC, DebonAir+ | RockShox Psylo Gold RC ABS, Crown Adj |
| Shock | RockShox Deluxe Select+ RT 230x60mm | RockShox Deluxe Select+ RT 230x60mm |
| Derailleur | Sram S1000 Eagle AXS T-Type 12s | Shimano Deore XT RD-M8260-SGS 12s |
| Brakes | Sram DB8 Stealth | Shimano Deore XT BR-M8220 |
| Wheels | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | XLC WR-M59 Asym Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
ALLMTN CF 9: FAQ
How much does the Haibike ALLMTN CF 9 cost?
€7,199 (RRP Germany, VAT incl.). The ALLMTN CF range runs from €7,199 (ALLMTN CF 9) to €8,000 (ALLMTN CF 9.5 ABS). Prices vary by country and dealer.
What motor and battery does the Haibike ALLMTN CF 9 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLMTN CF 9 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike ALLMTN CF 9 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLMTN CF 9 and the ALLMTN CF 9.5 ABS?
They share the ALLMTN CF frame platform and motor; the differences are in the parts — fork: RockShox Lyrik Base Rush RC vs RockShox Psylo Gold RC ABS; derailleur: Sram S1000 Eagle AXS T-Type 12s vs Shimano Deore XT RD-M8260-SGS 12s; brakes: Sram DB8 Stealth vs Shimano Deore XT BR-M8220; price: €7,199 vs €8,000.
