HaibikeHYBE CF 9
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

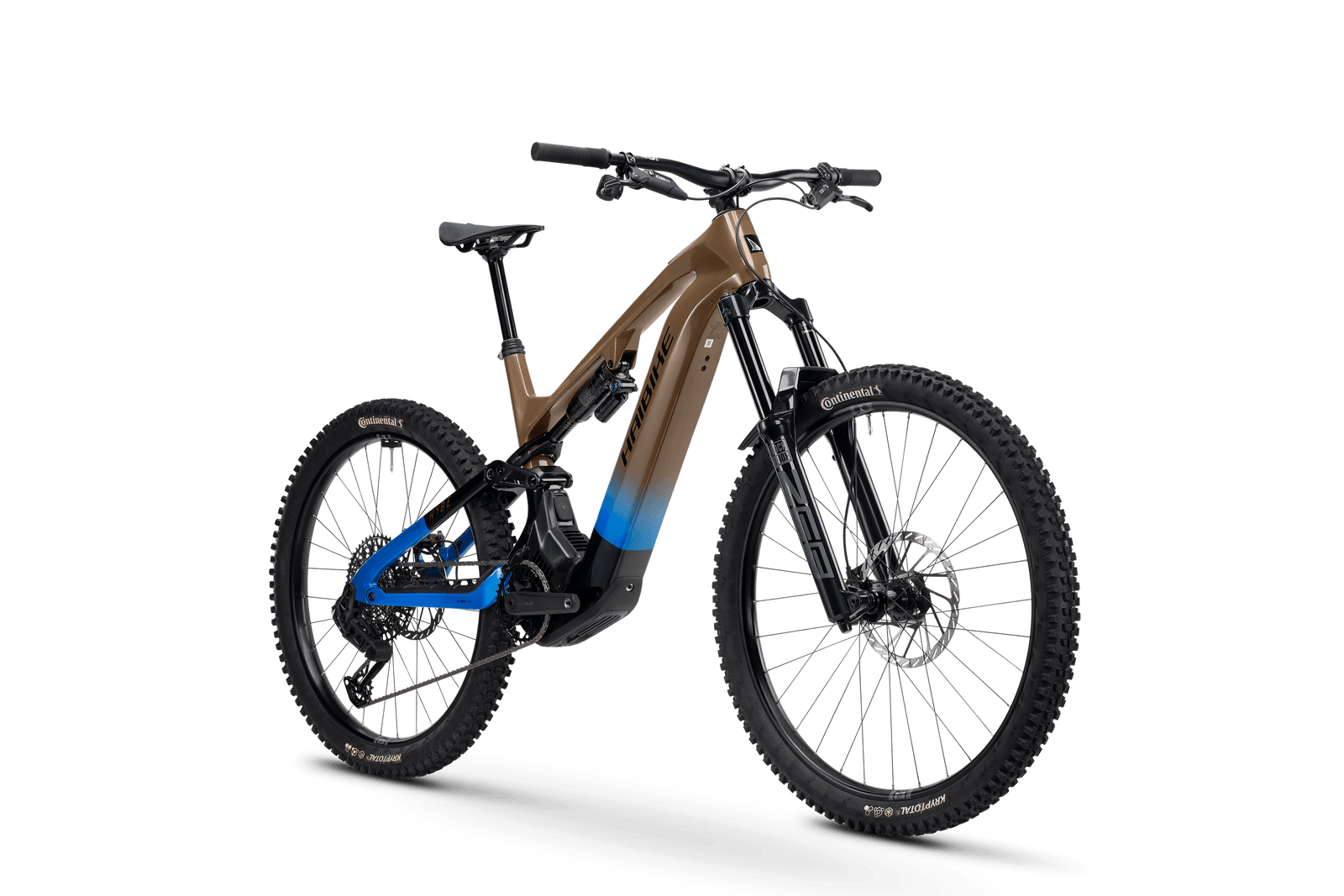

The Haibike HYBE CF 9 (€7,499) is the entry build of the HYBE CF range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox ZEB Select Charger RC fork, RockShox Super Deluxe Select+ RCT 230x65mm shock, Sram S1000 Eagle AXS T-Type 12s and Sram DB8 Stealth brakes.
The HYBE CF is Haibike's carbon enduro eMTB: 170 mm of travel at the front, 160 mm at the rear, mullet wheels and Bosch power with an 800 Wh battery — the Performance Line CX on the CF 9 and the CX-R on the CF 11.
- 170 mm fork / 160 mm rear
- Bosch CX or CX-R, 800 Wh
- Carbon frame
- Mullet wheels
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount
- Fork
- RockShox ZEB Select Charger RC, Boost, DebonAir+, Offset: 44 mm, Travel: 170mm
- Rear shock
- RockShox Super Deluxe Select+ RCT 230x65mm, DebonAir
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Mini Remote with Controller
- Motor
- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain
- Sram GX Eagle T-Type 12s
- Rear derailleur
- Sram S1000 Eagle AXS T-Type 12s, wireless, 12-speed
- Gears
- 12-speed
- Shifter
- Sram AXS Pod Controller, Trigger shifter
Brakes
- Front brake
- Sram DB8 Stealth, 4 pistons, 220 mm
- Rear brake
- Sram DB8 Stealth, 4 pistons, 200 mm
Wheels & tyres
- Rims
- WTB ST i30 TCS 2.0 29" 32H
- Tyres
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- Haibike TheBar++ Dia. 31.8 mm 780 mm
- Pedals
- VP Components VPE-527 Alloy w/ Reflector
- Saddle
- Selle Italia Model X Black
- Seatpost
- Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
HYBE CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 625 mm | 657 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| ESeat Tube Angle | 73.8° | 73.8° | 73.8° | 73.8° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1211 mm | 1245 mm | 1279 mm | 1313 mm |
| HStack | 633 mm | 642 mm | 651 mm | 660 mm |
| IReach | 421 mm | 451 mm | 481 mm | 511 mm |
| JStand over height | 770 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Haibike.
HYBE CF: builds compared
HYBE CF range →| HYBE CF 9 | HYBE CF 11 | |
|---|---|---|
| Price | €7,499 | €11,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox ZEB Select Charger RC, Boost | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+ |
| Shock | RockShox Super Deluxe Select+ RCT 230x65mm | RockShox Super Deluxe Ultimate RC2T 230x65mm |
| Derailleur | Sram S1000 Eagle AXS T-Type 12s | Sram X0 Eagle AXS T-Type 12s |
| Brakes | Sram DB8 Stealth | Sram DB Maven Ultimate |
| Wheels | WTB ST i30 TCS 2.0 29" 32H | DT Swiss HX 1501 Spline One |
| Display | Bosch Mini Remote with Controller | Bosch Kiox 400C + Mini Remote |
HYBE CF 9: FAQ
How much does the Haibike HYBE CF 9 cost?
€7,499 (RRP Germany, VAT incl.). The HYBE CF range runs from €7,499 (HYBE CF 9) to €11,000 (HYBE CF 11). Prices vary by country and dealer.
What motor and battery does the Haibike HYBE CF 9 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike HYBE CF 9 have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike HYBE CF 9 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the HYBE CF 9 and the HYBE CF 11?
They share the HYBE CF frame platform; the differences are in the parts — fork: RockShox ZEB Select Charger RC vs RockShox ZEB Ultimate Charger 3.1 RC2; shock: RockShox Super Deluxe Select+ RCT 230x65mm vs RockShox Super Deluxe Ultimate RC2T 230x65mm; derailleur: Sram S1000 Eagle AXS T-Type 12s vs Sram X0 Eagle AXS T-Type 12s; brakes: Sram DB8 Stealth vs Sram DB Maven Ultimate; price: €7,499 vs €11,000.
