Full-power eMTBEnduro2025
Model range · 2 buildsHaibikeHYBE CF
- Price
- €7,499 – €11,000
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
Overview

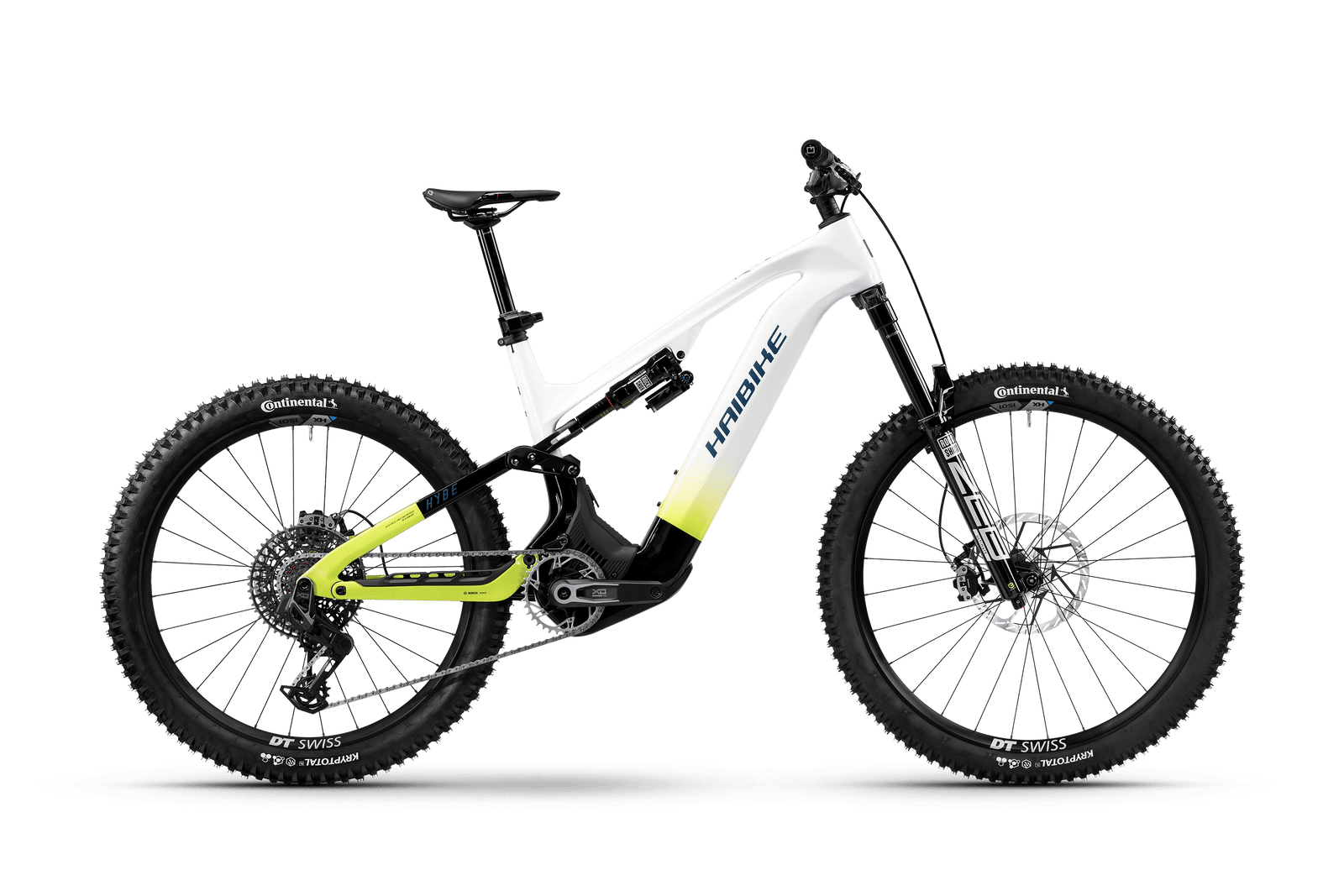

The HYBE CF is Haibike's carbon enduro eMTB: 170 mm of travel at the front, 160 mm at the rear, mullet wheels and Bosch power with an 800 Wh battery — the Performance Line CX on the CF 9 and the CX-R on the CF 11.
- 170 mm fork / 160 mm rear
- Bosch CX or CX-R, 800 Wh
- Carbon frame
- Mullet wheels
Haibike HYBE CF builds
HYBE CF builds compared
| HYBE CF 9 | HYBE CF 11 | |
|---|---|---|
| Price | €7,499 | €11,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox ZEB Select Charger RC, Boost | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+ |
| Shock | RockShox Super Deluxe Select+ RCT 230x65mm | RockShox Super Deluxe Ultimate RC2T 230x65mm |
| Derailleur | Sram S1000 Eagle AXS T-Type 12s | Sram X0 Eagle AXS T-Type 12s |
| Brakes | Sram DB8 Stealth | Sram DB Maven Ultimate |
| Wheels | WTB ST i30 TCS 2.0 29" 32H | DT Swiss HX 1501 Spline One |
| Display | Bosch Mini Remote with Controller | Bosch Kiox 400C + Mini Remote |
HYBE CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 625 mm | 657 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| ESeat Tube Angle | 73.8° | 73.8° | 73.8° | 73.8° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1211 mm | 1245 mm | 1279 mm | 1313 mm |
| HStack | 633 mm | 642 mm | 651 mm | 660 mm |
| IReach | 421 mm | 451 mm | 481 mm | 511 mm |
| JStand over height | 770 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Haibike.
Haibike HYBE CF: FAQ
How much does the Haibike HYBE CF cost?
€7,499 – €11,000 depending on the build (HYBE CF 9 €7,499, HYBE CF 11 €11,000); RRP Germany, VAT incl..
How many Haibike HYBE CF builds are there?
2: HYBE CF 9, HYBE CF 11. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Haibike HYBE CF use?
Bosch Performance Line CX (85 Nm) with a 800 Wh battery (powertube).
How much travel does the Haibike HYBE CF have?
170 mm fork and 160 mm rear travel on mullet 29" / 27.5" wheels.
