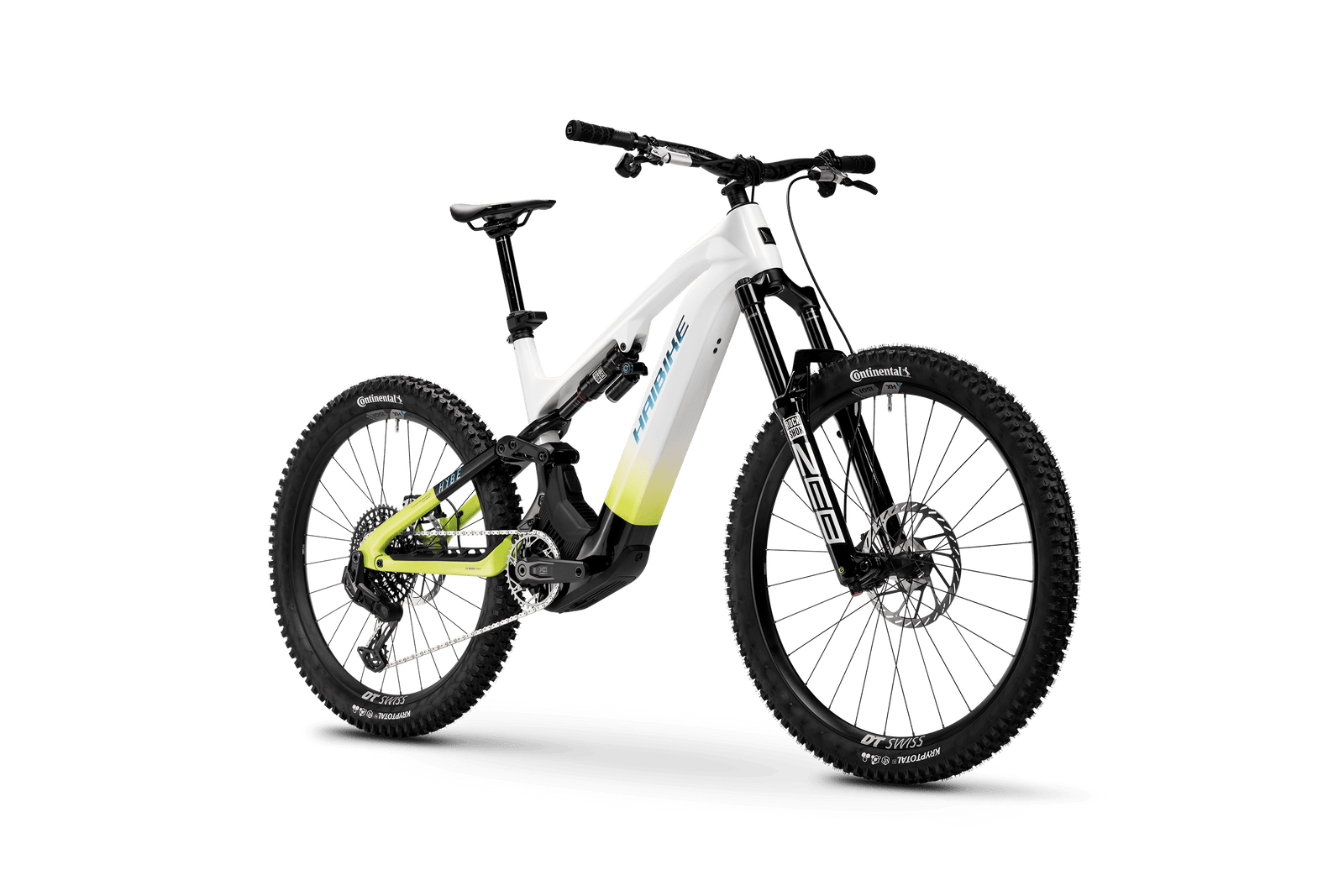

HaibikeHYBE CF 11
- Motor
- Bosch Performance Line CX-R100 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Haibike HYBE CF 11 (€11,000) is the top build of the HYBE CF range: Bosch Performance Line CX-R (100 Nm) with 800 Wh, RockShox ZEB Ultimate Charger 3.1 RC2 fork, RockShox Super Deluxe Ultimate RC2T 230x65mm shock, Sram X0 Eagle AXS T-Type 12s and Sram DB Maven Ultimate brakes.
The HYBE CF is Haibike's carbon enduro eMTB: 170 mm of travel at the front, 160 mm at the rear, mullet wheels and Bosch power with an 800 Wh battery — the Performance Line CX on the CF 9 and the CX-R on the CF 11.
- 170 mm fork / 160 mm rear
- Bosch CX or CX-R, 800 Wh
- Carbon frame
- Mullet wheels
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount
- Fork
- RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+, Offset: 44 mm, Travel: 170mm

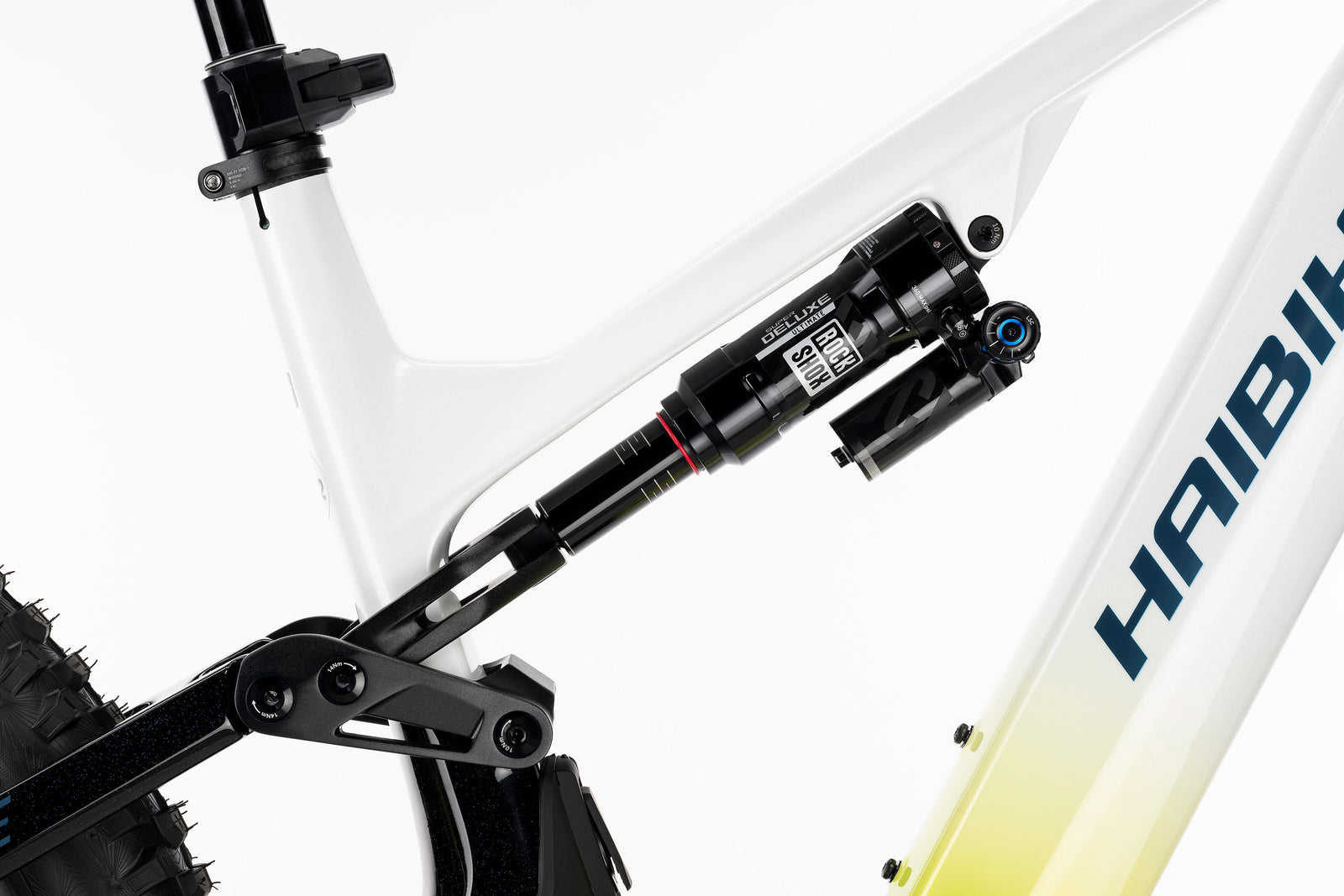

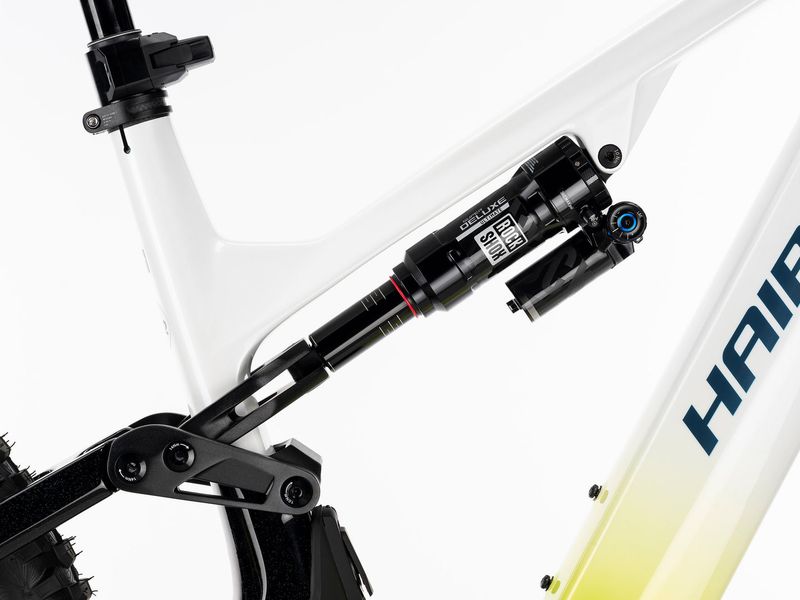

- Rear shock
- RockShox Super Deluxe Ultimate RC2T 230x65mm, DebonAir
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 400C + Mini Remote

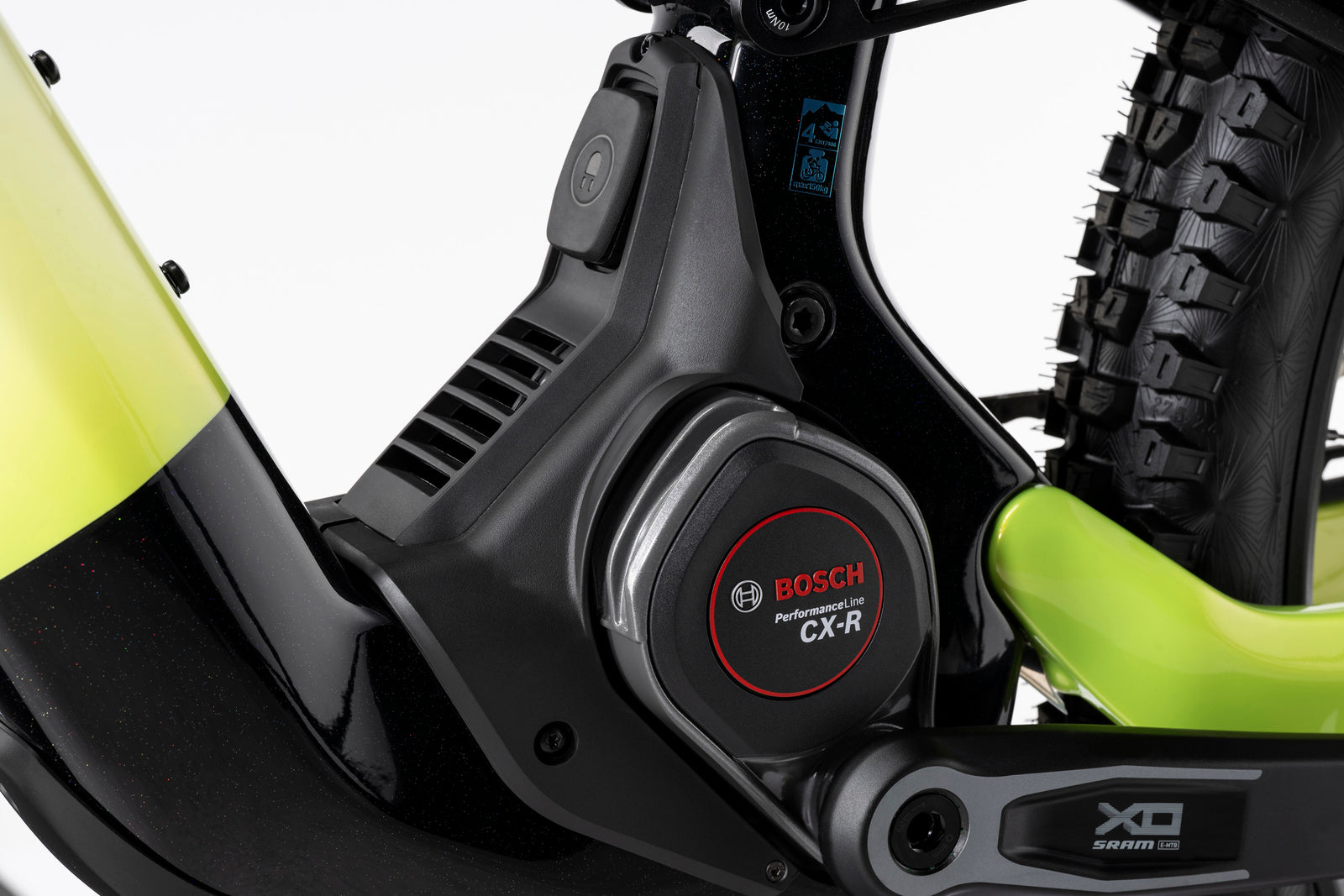

- Motor

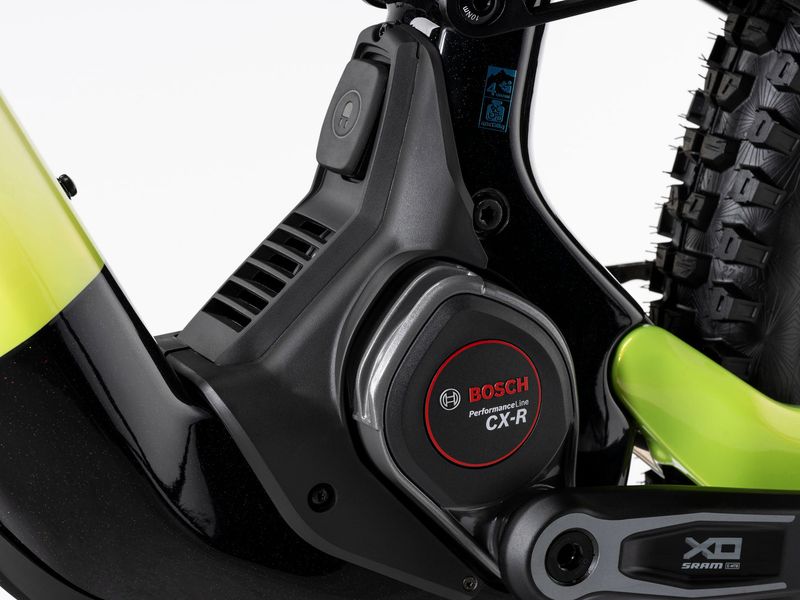

- Bosch Performance Line CX-R, 750W, 100Nm, 25km/h
Drivetrain
- Chain
- Sram GX Eagle T-Type 12s

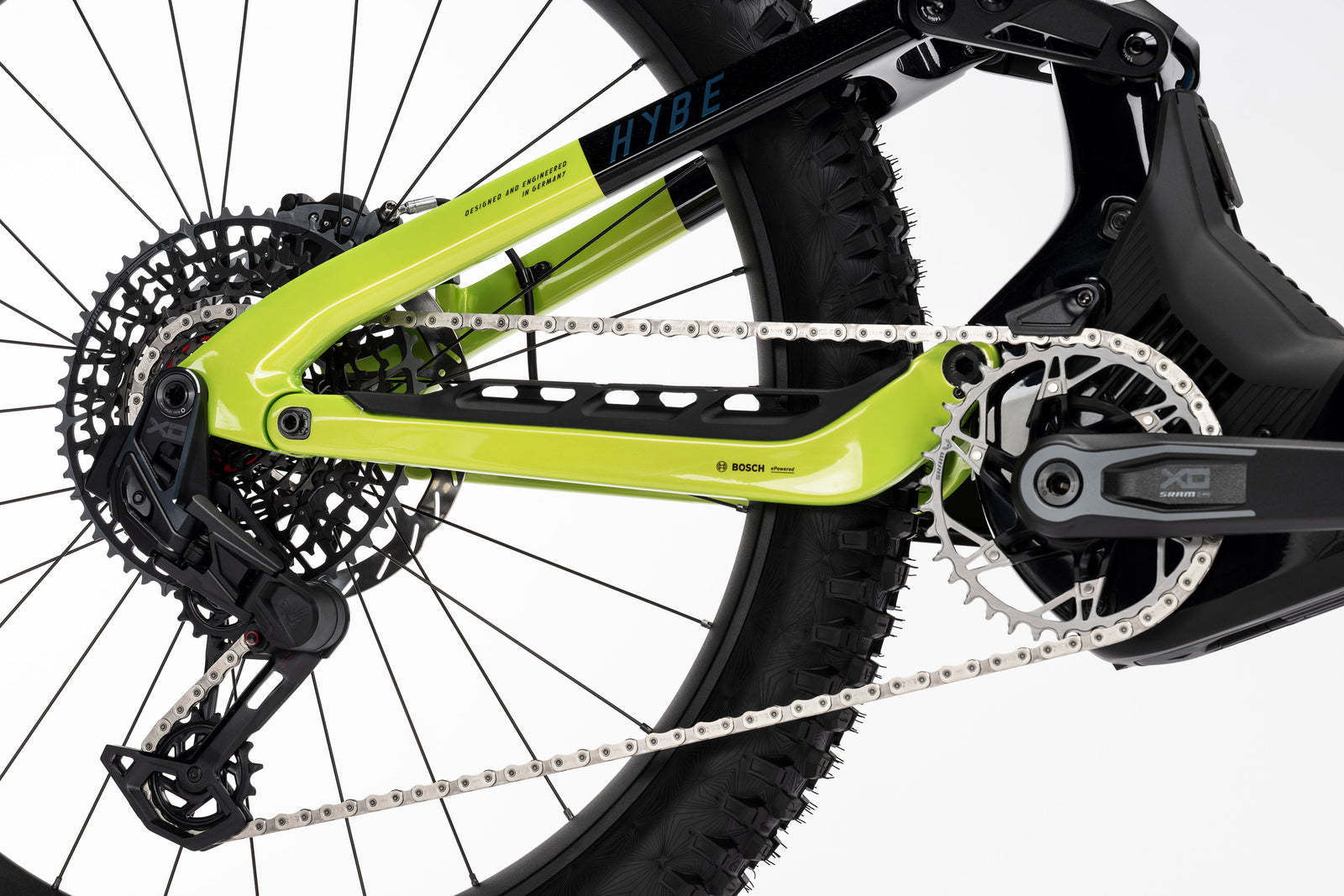

- Rear derailleur

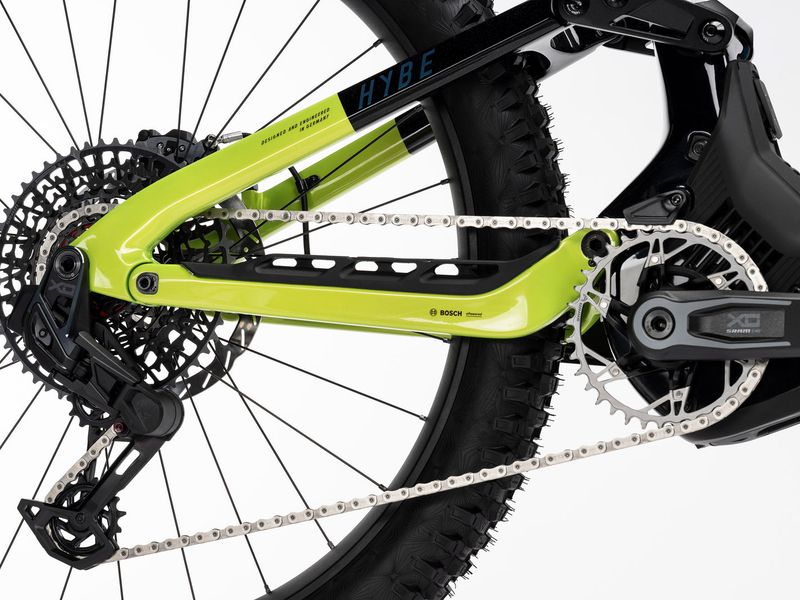

- Sram X0 Eagle AXS T-Type 12s, wireless, 12-speed
- Gears
- 12-speed
- Shifter
- Sram AXS Pod Ultimate Controller, Trigger shifter
Brakes
- Front brake
- Sram DB Maven Ultimate, 4 pistons, organic pad, 220 mm
- Rear brake
- Sram DB Maven Ultimate, 4 pistons, organic pad, 200 mm
Wheels & tyres
- Front Wheel
- DT Swiss HX 1501 Spline One, 15x110 mm, 6 bolt Disc
- Rear wheel
- DT Swiss HX 1501 Spline One, 12x148 mm, 6 bolt Disc, XD
- Tyres
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
Cockpit
- Grips
- Prologo Proxim X-Shred Grip - Black

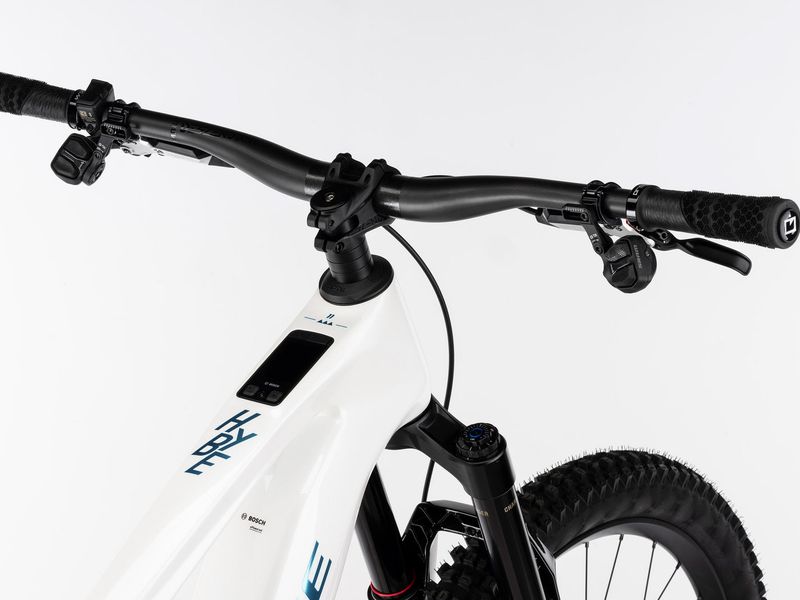

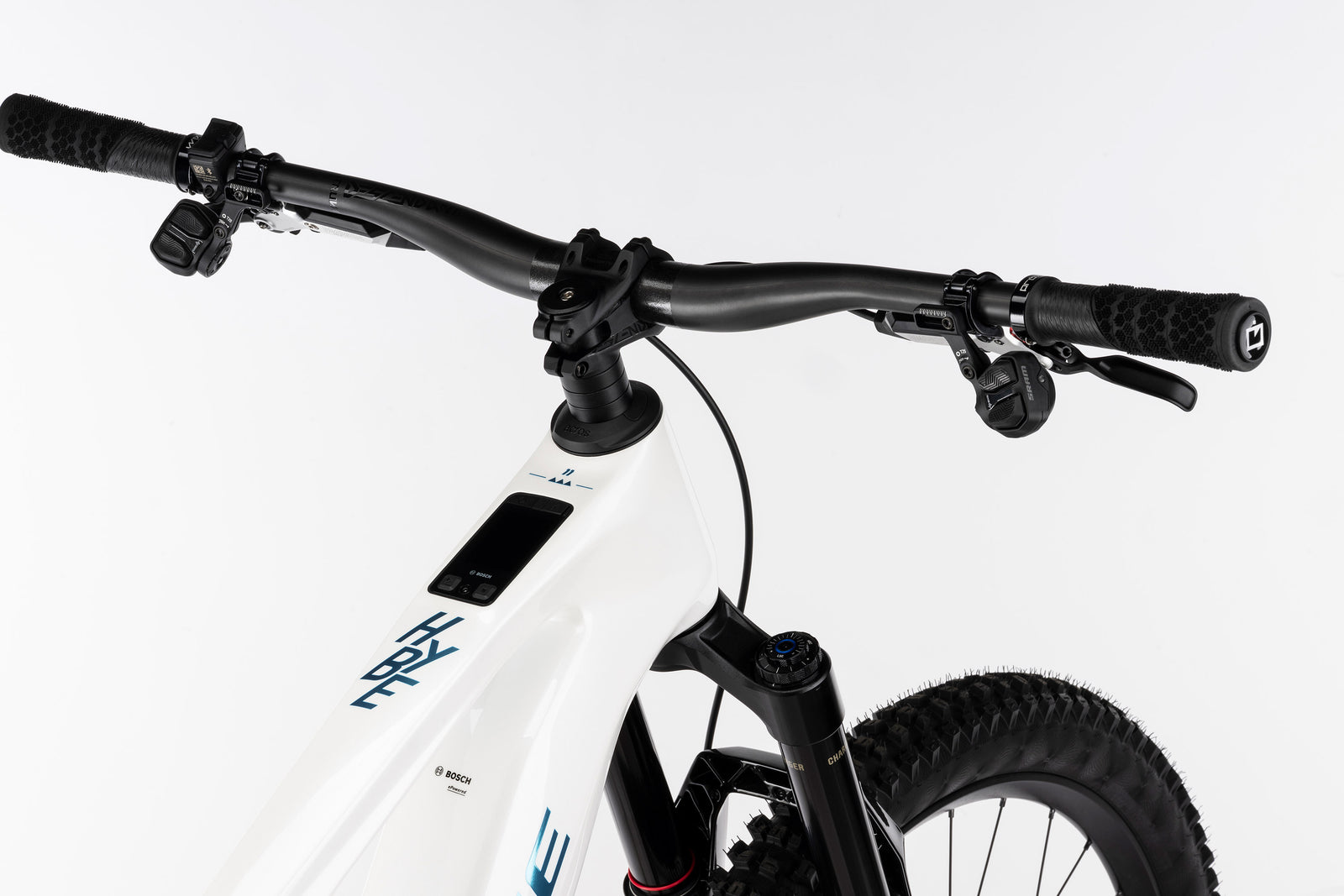

- Handlebar
- Truvativ Descendant Riser Carbon DH Dia. 35 mm, Rise: 25 mm 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins

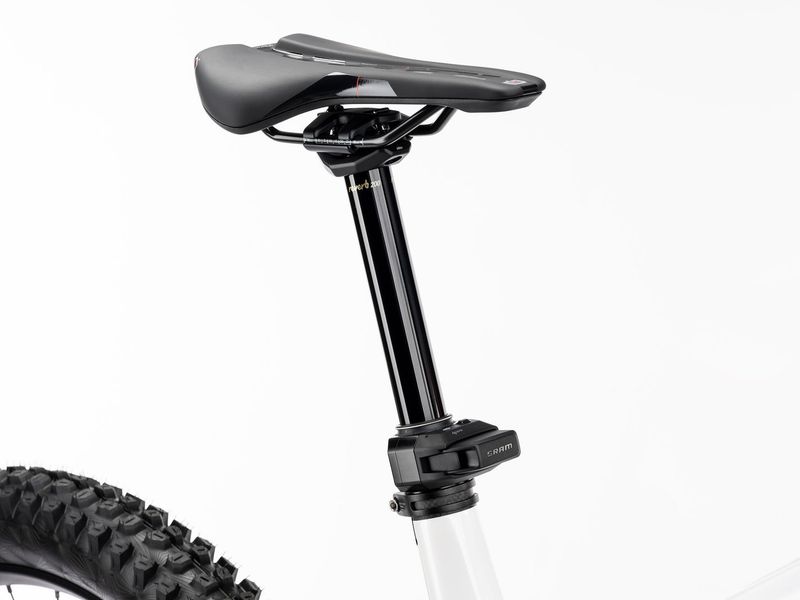

- Saddle
- Prologo Proxim Nembo Steel rail 145 mm
- Seatpost

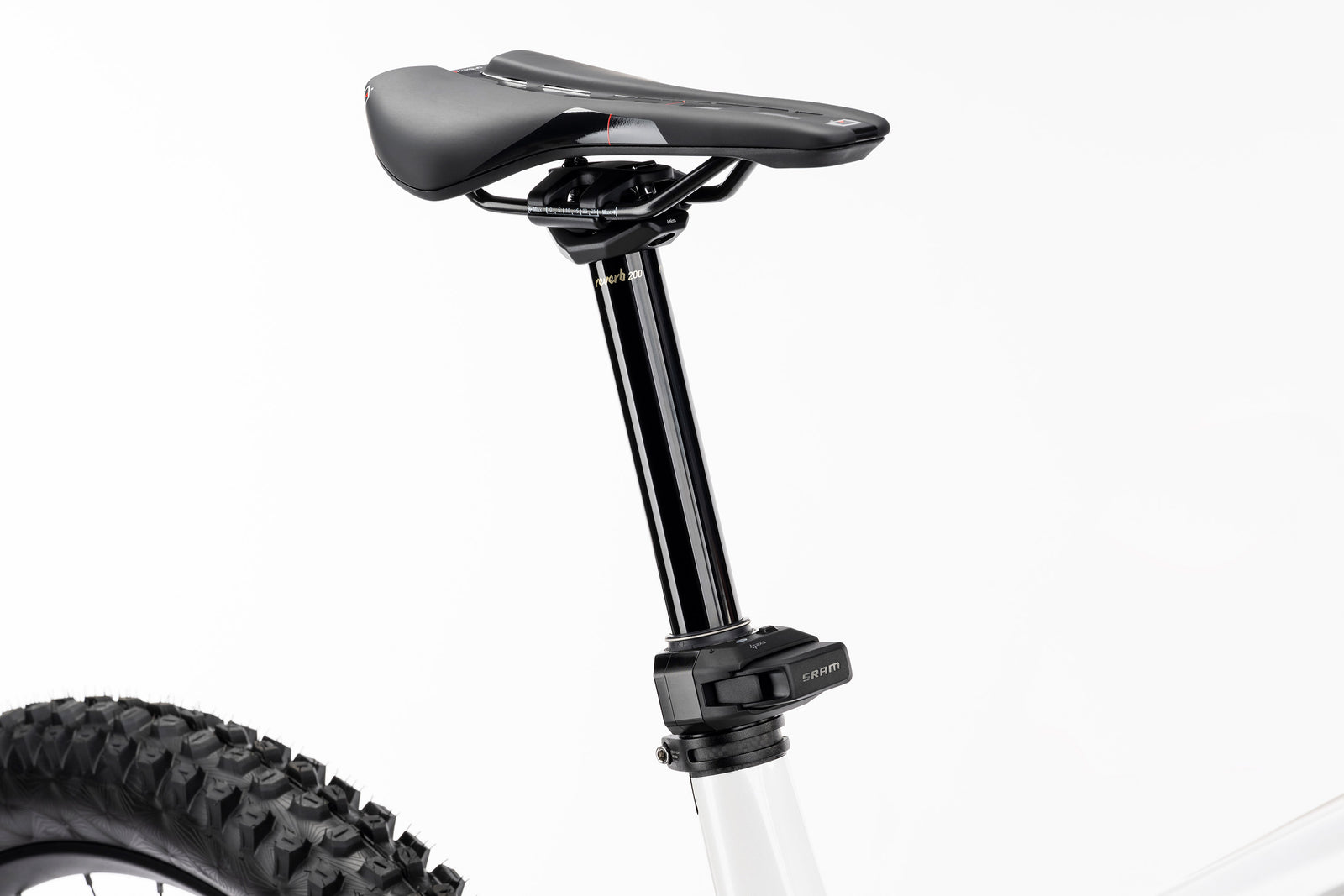

- RockShox Reverb AXS, Dia. 34.9 mm, Travel: 200 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
HYBE CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 625 mm | 657 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| ESeat Tube Angle | 73.8° | 73.8° | 73.8° | 73.8° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1211 mm | 1245 mm | 1279 mm | 1313 mm |
| HStack | 633 mm | 642 mm | 651 mm | 660 mm |
| IReach | 421 mm | 451 mm | 481 mm | 511 mm |
| JStand over height | 770 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Haibike.
HYBE CF: builds compared
HYBE CF range →| HYBE CF 9 | HYBE CF 11 | |
|---|---|---|
| Price | €7,499 | €11,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox ZEB Select Charger RC, Boost | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir+ |
| Shock | RockShox Super Deluxe Select+ RCT 230x65mm | RockShox Super Deluxe Ultimate RC2T 230x65mm |
| Derailleur | Sram S1000 Eagle AXS T-Type 12s | Sram X0 Eagle AXS T-Type 12s |
| Brakes | Sram DB8 Stealth | Sram DB Maven Ultimate |
| Wheels | WTB ST i30 TCS 2.0 29" 32H | DT Swiss HX 1501 Spline One |
| Display | Bosch Mini Remote with Controller | Bosch Kiox 400C + Mini Remote |
HYBE CF 11: FAQ
How much does the Haibike HYBE CF 11 cost?
€11,000 (RRP Germany, VAT incl.). The HYBE CF range runs from €7,499 (HYBE CF 9) to €11,000 (HYBE CF 11). Prices vary by country and dealer.
What motor and battery does the Haibike HYBE CF 11 have?
Bosch Performance Line CX-R (100 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike HYBE CF 11 have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike HYBE CF 11 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the HYBE CF 11 and the HYBE CF 9?
They share the HYBE CF frame platform; the differences are in the parts — fork: RockShox ZEB Ultimate Charger 3.1 RC2 vs RockShox ZEB Select Charger RC; shock: RockShox Super Deluxe Ultimate RC2T 230x65mm vs RockShox Super Deluxe Select+ RCT 230x65mm; derailleur: Sram X0 Eagle AXS T-Type 12s vs Sram S1000 Eagle AXS T-Type 12s; brakes: Sram DB Maven Ultimate vs Sram DB8 Stealth; price: €11,000 vs €7,499.
