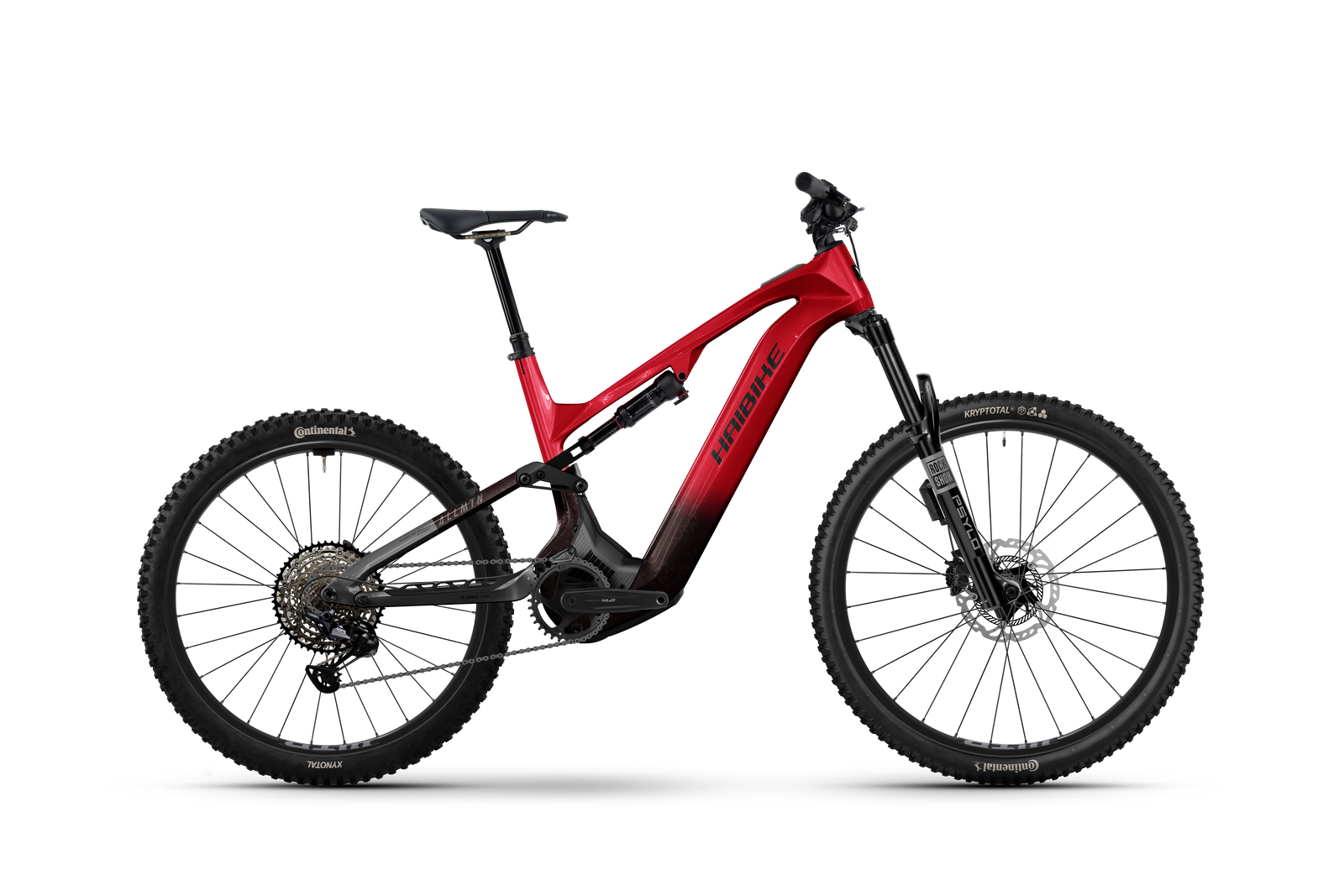

HaibikeALLMTN CF 9.5 ABS
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview
The Haibike ALLMTN CF 9.5 ABS (€8,000) is the top build of the ALLMTN CF range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Psylo Gold RC ABS fork, RockShox Deluxe Select+ RT 230x60mm shock, Shimano Deore XT RD-M8260-SGS 12s and Shimano Deore XT BR-M8220 brakes.
The ALLMTN CF is the carbon version of Haibike's all-mountain platform: 160 mm of travel up front, 150 mm at the rear, mullet wheels and a Bosch Performance Line CX mounted upside down in the frame, which Haibike says improves heat management. An 800 Wh battery is integrated and removable; the CF 9.5 adds Bosch ABS.
- Carbon frame, 160/150 mm
- Inverted Bosch CX, 800 Wh
- Mullet wheels
- Bosch ABS on the CF 9.5
Full specifications
Frame & suspension
- Frame
- carbon, disc brake Post Mount
- Fork
- RockShox Psylo Gold RC ABS, Crown Adj, DebonAir, Offset: 44 mm, Travel: 160mm
- Rear shock
- RockShox Deluxe Select+ RT 230x60mm, Standard, DebonAir+
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 400C + Mini Remote
- Motor
- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain
- Shimano Deore XT CN-M8100 12s
- Rear derailleur
- Shimano Deore XT RD-M8260-SGS 12s, Shadow, wireless, 12-speed
- Gears
- 12-speed
- Shifter
- Shimano Deore XT SW-M8250-IR, I-SPEC EV, Trigger shifter
Brakes
- Front brake
- Shimano Deore XT BR-M8220, 4 pistons, resin pad, 203 mm
- Rear brake
- Shimano Deore XT BR-M8220, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Rims
- XLC WR-M59 Asym Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- Prologo Proxim W450 Performance 145 mm
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm, L: 495 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLMTN CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 560 mm | 592 mm | 625 mm | 657 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 65° | 65° | 65° | 65° |
| ESeat Tube Angle | 74.2° | 74.2° | 74.2° | 74.2° |
| FChain stay length | 450 mm | 450 mm | 450 mm | 450 mm |
| GWheelbase | 1207 mm | 1240 mm | 1275 mm | 1309 mm |
| HStack | 631 mm | 640 mm | 649 mm | 658 mm |
| IReach | 427 mm | 456 mm | 487 mm | 516 mm |
| JStand over height | 770 mm | 770 mm | 770 mm | 770 mm |
| KBottom bracket drop | 13.5 mm | 13.5 mm | 13.5 mm | 13.5 mm |
Source: Haibike.
ALLMTN CF: builds compared
ALLMTN CF range →| ALLMTN CF 9 | ALLMTN CF 9.5 ABS | |
|---|---|---|
| Price | €7,199 | €8,000 |
| Frame | Carbon | Carbon |
| Fork | RockShox Lyrik Base Rush RC, DebonAir+ | RockShox Psylo Gold RC ABS, Crown Adj |
| Shock | RockShox Deluxe Select+ RT 230x60mm | RockShox Deluxe Select+ RT 230x60mm |
| Derailleur | Sram S1000 Eagle AXS T-Type 12s | Shimano Deore XT RD-M8260-SGS 12s |
| Brakes | Sram DB8 Stealth | Shimano Deore XT BR-M8220 |
| Wheels | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | XLC WR-M59 Asym Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
ALLMTN CF 9.5 ABS: FAQ
How much does the Haibike ALLMTN CF 9.5 ABS cost?
€8,000 (RRP Germany, VAT incl.). The ALLMTN CF range runs from €7,199 (ALLMTN CF 9) to €8,000 (ALLMTN CF 9.5 ABS). Prices vary by country and dealer.
What motor and battery does the Haibike ALLMTN CF 9.5 ABS have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLMTN CF 9.5 ABS have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike ALLMTN CF 9.5 ABS come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLMTN CF 9.5 ABS and the ALLMTN CF 9?
They share the ALLMTN CF frame platform and motor; the differences are in the parts — fork: RockShox Psylo Gold RC ABS vs RockShox Lyrik Base Rush RC; derailleur: Shimano Deore XT RD-M8260-SGS 12s vs Sram S1000 Eagle AXS T-Type 12s; brakes: Shimano Deore XT BR-M8220 vs Sram DB8 Stealth; price: €8,000 vs €7,199.
