NicolaiS16 MGU
- Motor
- Pinion E1.12 MGU160 Nm at rear wheel (gears 1–4); 600 W
- Battery
- 800 WhFIT Tubepack; 1060 Wh option +€200; 240 Wh Buddy Pack extender
- Travel F / R
- 160 / 160 mm
- Wheels
- 29" (MX 29" / 27.5" optional)
- Frame
- Alloy
Overview
The NICOLAI S16 MGU (€11,399) is the only build of the S16 MGU: Pinion E1.12 Motor.Gearbox.Unit with 800 Wh, Fox 38 Factory 160 mm fork, Fox DHX Factory coil shock, a Pinion 12-speed gearbox with Gates belt drive and Magura MT7 Pro HC brakes.
The S16 MGU is NICOLAI's 29er e-enduro built around the Pinion E1.12 Motor.Gearbox.Unit: a brushless motor (600 W, up to 400 % assist, 160 Nm at the rear wheel in gears 1–4) combined with an electronically shifted 12-speed gearbox (600 % range) and a Gates CDX belt drive, so there is no derailleur or cassette. Batteries are FIT Tubepacks of 800 Wh or 1060 Wh (+€200), with a FIT Master Node display in the top tube and a FIT Remote Pure.
The 7020-T6 aluminium Horst-link frame gives 160 mm of travel front and rear, with 29" wheels or an MX (29/27.5) setup. Size M has 490–495 mm reach, a 64.5° head angle and a 77.4–77.5° seat angle; sizes run XS–XXL. Each bike is built to order (approx. 8 weeks), and an Explorer Kit with fenders, rack and lights is optional.
- Pinion E1.12 MGU: 12-speed gearbox, Gates belt drive
- 800 Wh or 1060 Wh FIT battery
- 160 mm travel front and rear, 29" or MX
- Built to order in Germany, configurable

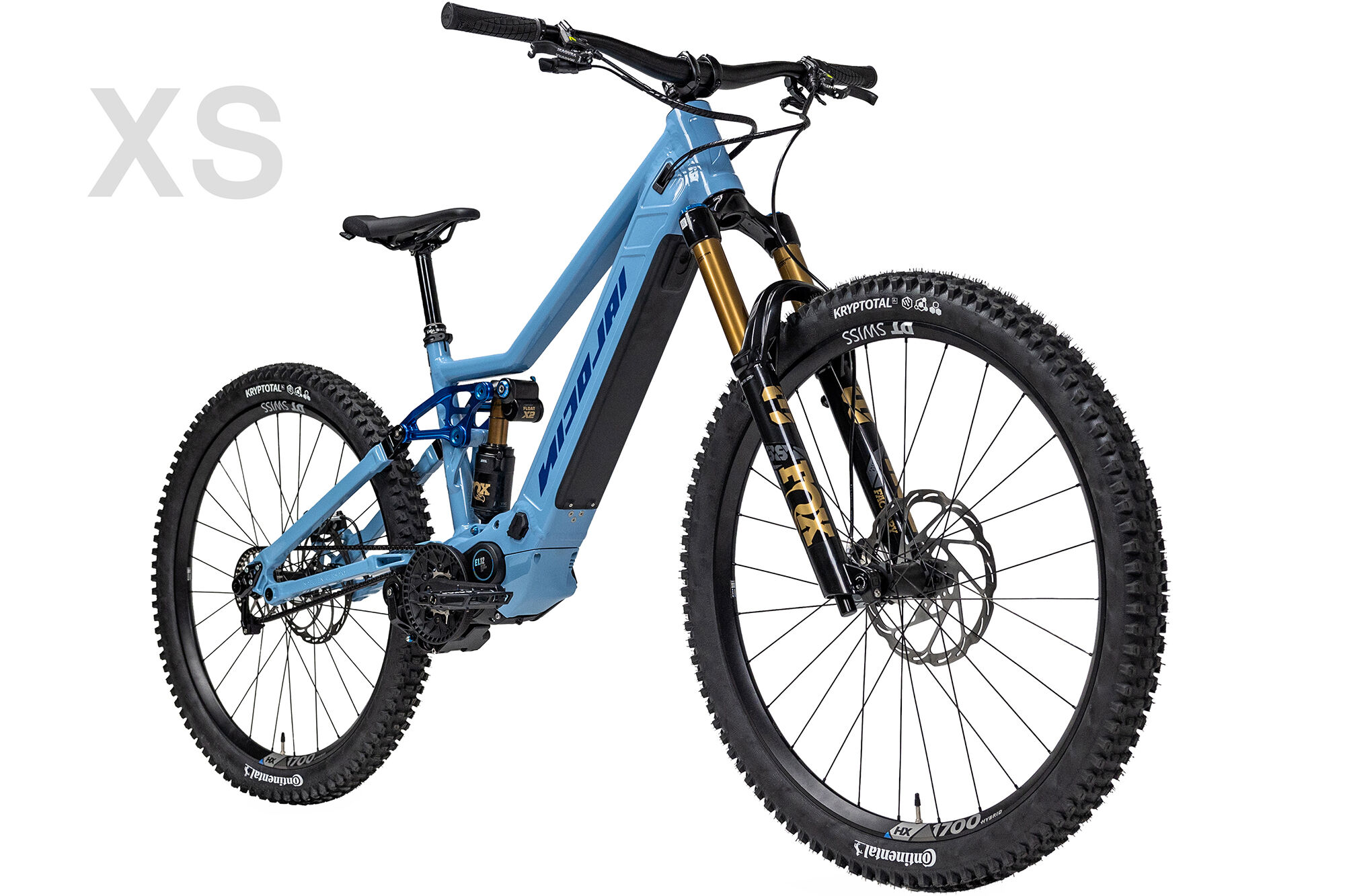

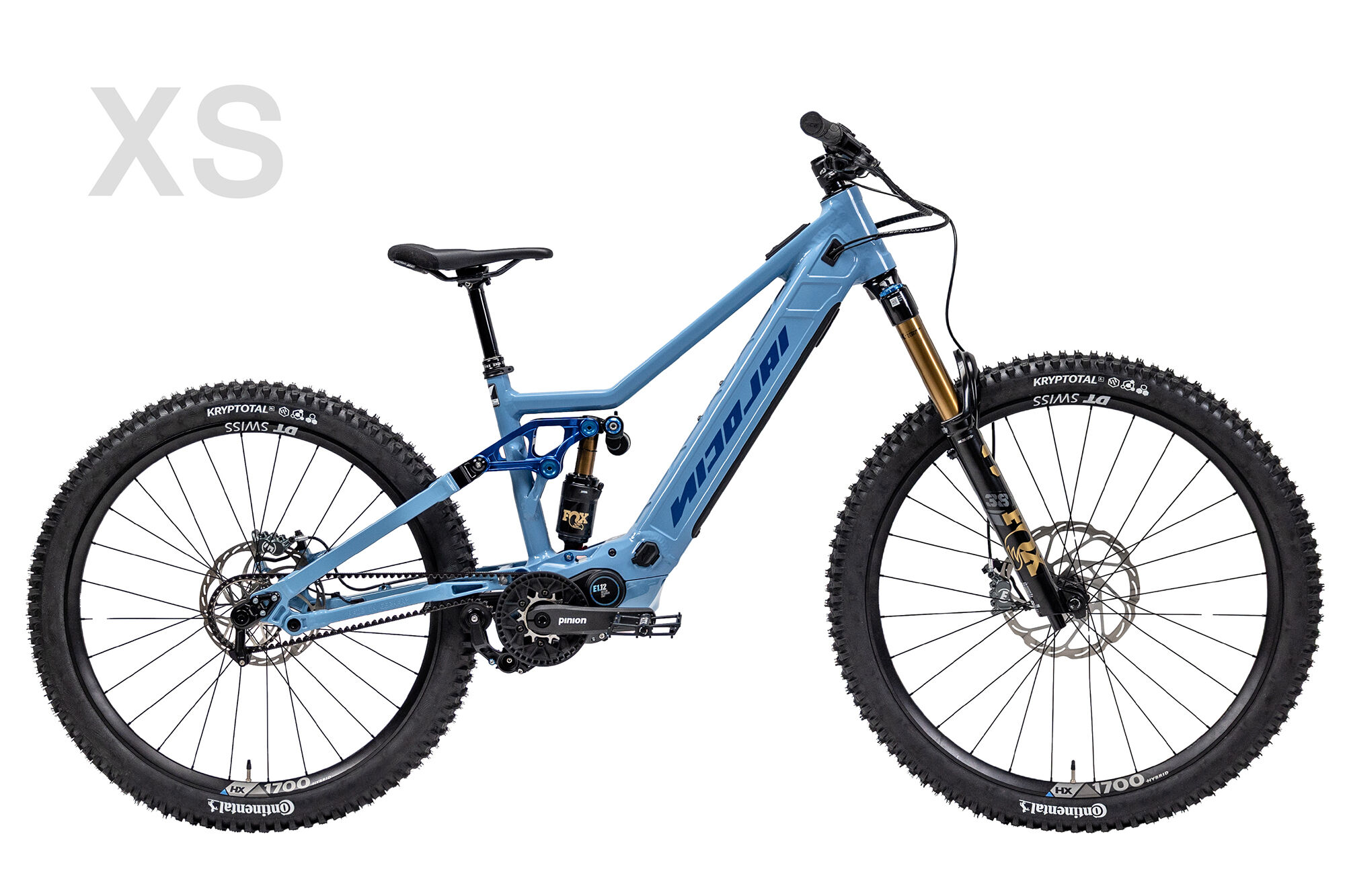

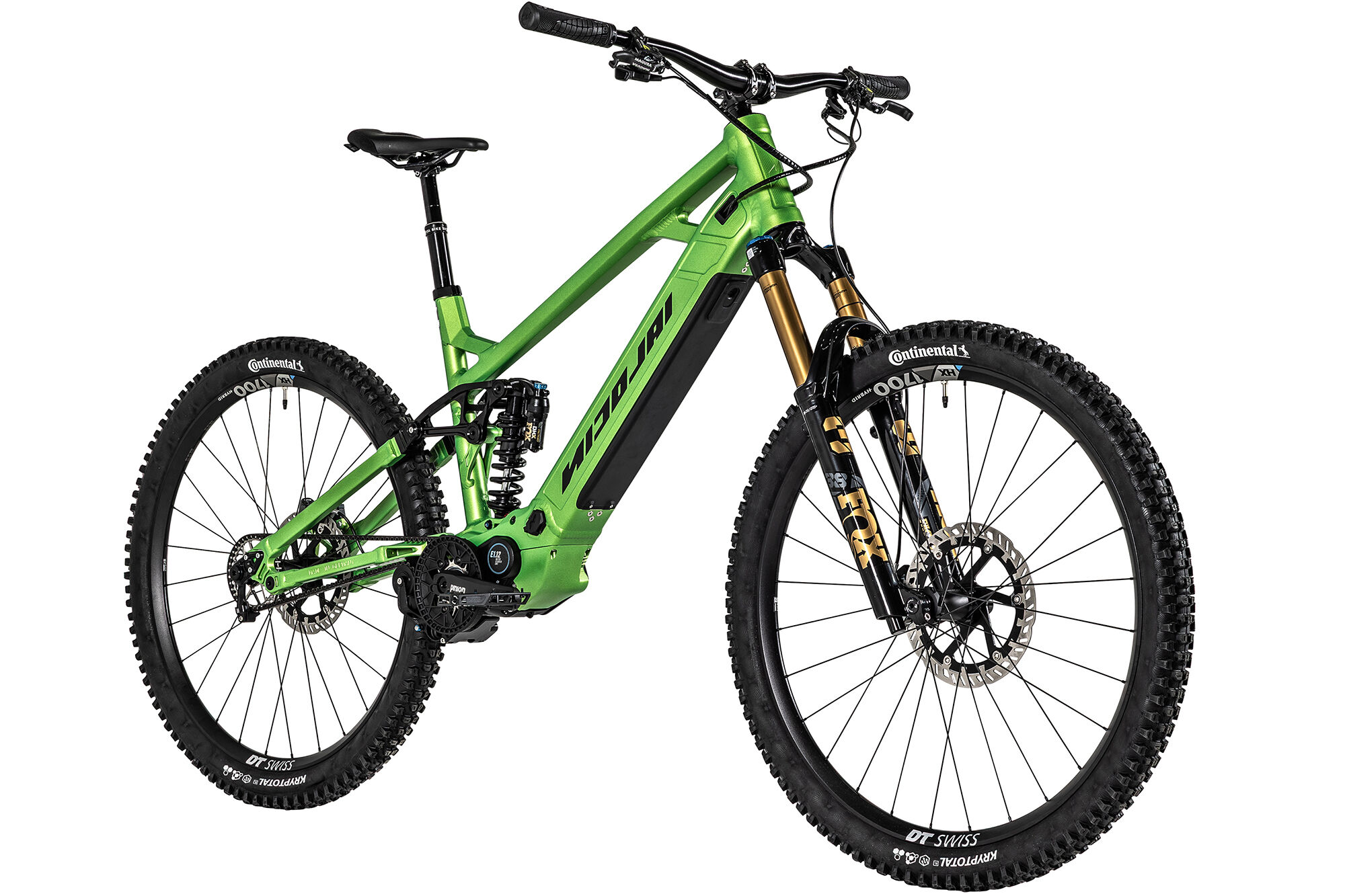

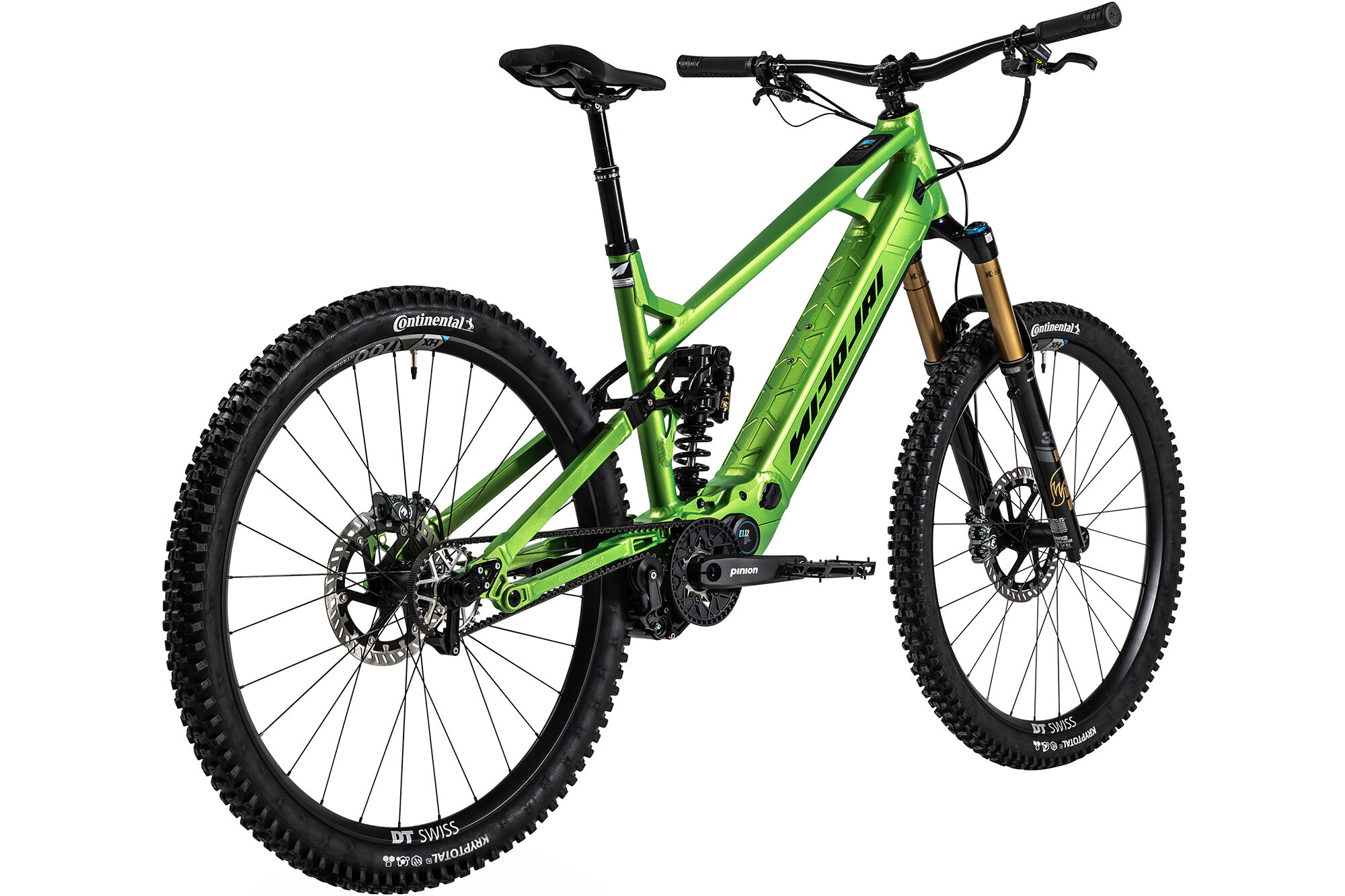

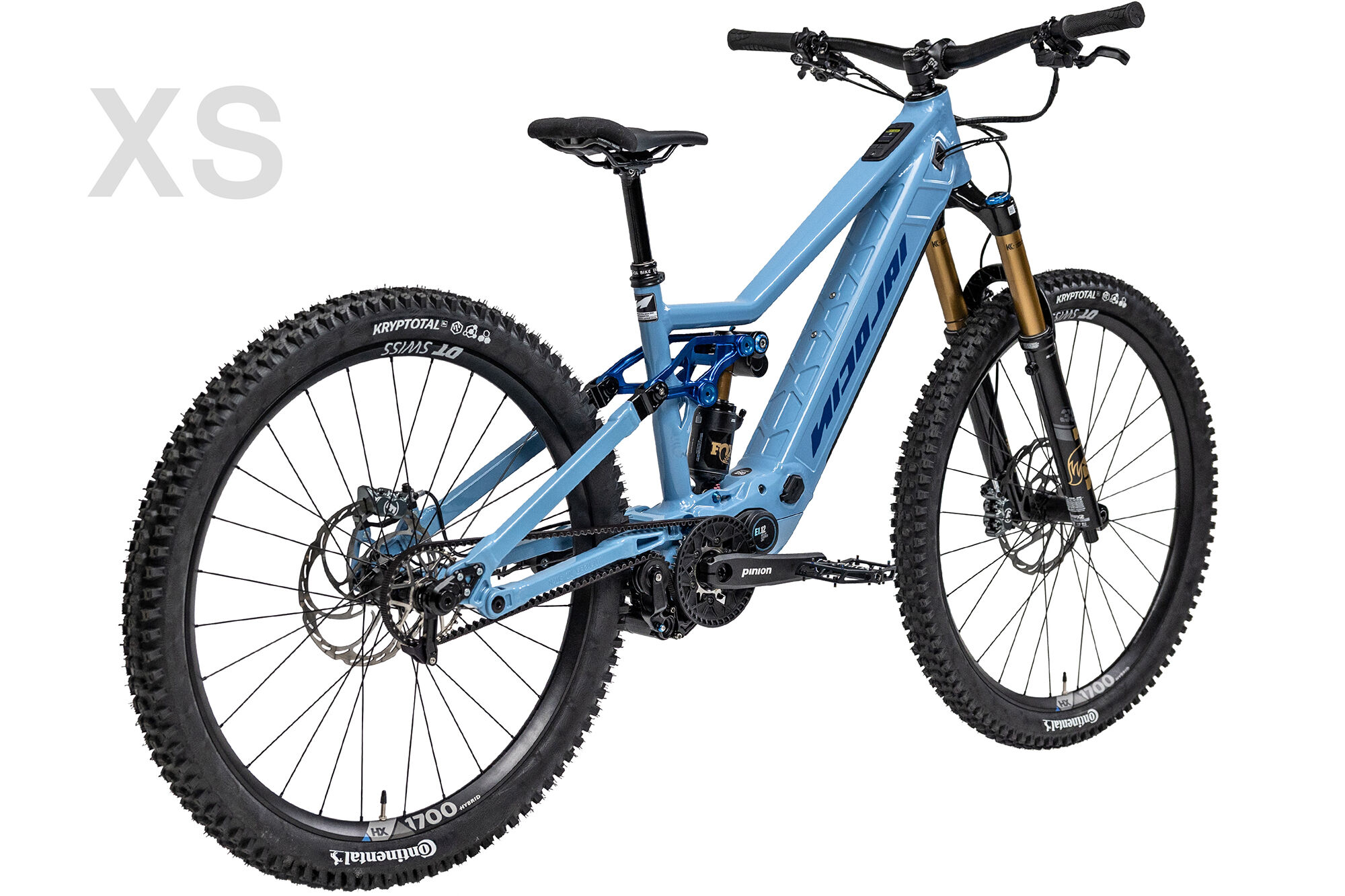

Gallery
Photos: NICOLAI
Full specifications
Frame & suspension
- Frame
- NICOLAI S16 MGU, 7020-T6 aluminium, Horst-link, 160 mm rear travel
- Fork
- Fox 38 Factory Grip X2, 160 mm
- Rear shock
- Fox DHX Factory coil, trunnion 205x62.5 mm
- Headset
- Acros BlockLock ZS56/28.6 – ZS56/40
E-system
- Motor
- Pinion E1.12 Motor.Gearbox.Unit (600 W, 160 Nm at rear wheel in gears 1–4)
- Battery
- FIT Tubepack 800 Wh (1060 Wh optional, +€200)
- Display
- FIT Master Node (top tube) + FIT Remote Pure
Drivetrain
- Gearbox
- Pinion 12-speed integrated in MGU, 600 % range
- Shifter
- Pinion TE1 electronic trigger
- Front pulley
- Gates CDX 39T
- Rear sprocket
- Gates CDX 34T
- Belt
- Gates Carbon Drive CDX 125T
- Belt tensioner
- GBT3
Brakes
- Brakes
- Magura MT7 Pro HC, 220/203 mm
Wheels & tyres
- Wheelset
- DT Swiss HX 1700 Spline 29", 30 mm
- Front tyre
- Continental Kryptotal-F Enduro Soft (spec table: Schwalbe Eddy Current Front 29x2.6)
- Rear tyre
- Continental Kryptotal-R Enduro Soft (spec table: Schwalbe Eddy Current Rear 29x2.6)
Cockpit
- Handlebar
- BikeYoke Barmate AL7050, 800x25 mm, 35 mm
- Stem
- e*thirteen TRS Base, 40 mm
- Grips
- SQlab 7OX 2.0
- Seatpost
- BikeYoke Divine 30.9, 185 mm (S/M), 213 mm (L–XXL)
- Saddle
- SQlab 6OX Ergowave Active
Other
- Pedals
- Acros A-Flat MD
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
S16 MGU geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| QReach | 468 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| RStack | 643 mm | 652 mm | 660 mm | 670 mm | 670 mm |
| ATop tube length | 617 mm | 639 mm | 661 mm | 683 mm | 705 mm |
| BSeat tube length | 375 mm | 440 mm | 455 mm | 475 mm | 505 mm |
| CHead tube length | 150 mm | 160 mm | 170 mm | 180 mm | 190 mm |
| EHead angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| FSeat angle (effective) | 77.4° | 77.4° | 77.4° | 77.4° | 77.4° |
| HrChainstay length | 459 mm | 459 mm | 459 mm | 459 mm | 459 mm |
| DWheelbase | 1283 mm | 1307 mm | 1332 mm | 1355 mm | 1380 mm |
| GBB drop | 0 mm | 0 mm | 0 mm | 0 mm | 0 mm |
| OStandover | 690 mm | 720 mm | 725 mm | 725 mm | 750 mm |
| MSeat tube offset | 50 mm | 110 mm | 130 mm | 155 mm | 155 mm |
Source: NICOLAI tech sheet S16 MGU (2025), sizes S–XXL (XS offered but not in sheet); head angle, chainstay and BB drop given as single values for all sizes.
S16 MGU: FAQ
How much does the Nicolai S16 MGU cost?
€11,399 (RRP Germany, VAT incl. (base configuration)). Prices vary by country and dealer.
What motor and battery does the Nicolai S16 MGU have?
Pinion E1.12 MGU (160 Nm at rear wheel (gears 1–4); 600 W). 800 Wh battery — fIT Tubepack; 1060 Wh option +€200; 240 Wh Buddy Pack extender.
How much suspension travel does the Nicolai S16 MGU have?
160 mm at the fork and 160 mm at the rear, on 29" (MX 29" / 27.5" optional) wheels.
What sizes does the Nicolai S16 MGU come in?
XS, S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
