ScottVoltage eRIDE 900 Tuned
- Motor
- TQ HPR6060 Nm
- Battery
- 360 Wh+160 Wh range extender
- Travel F / R
- 160 / 155 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 19.1 kgManufacturer figure, tubeless, without range extender
Overview

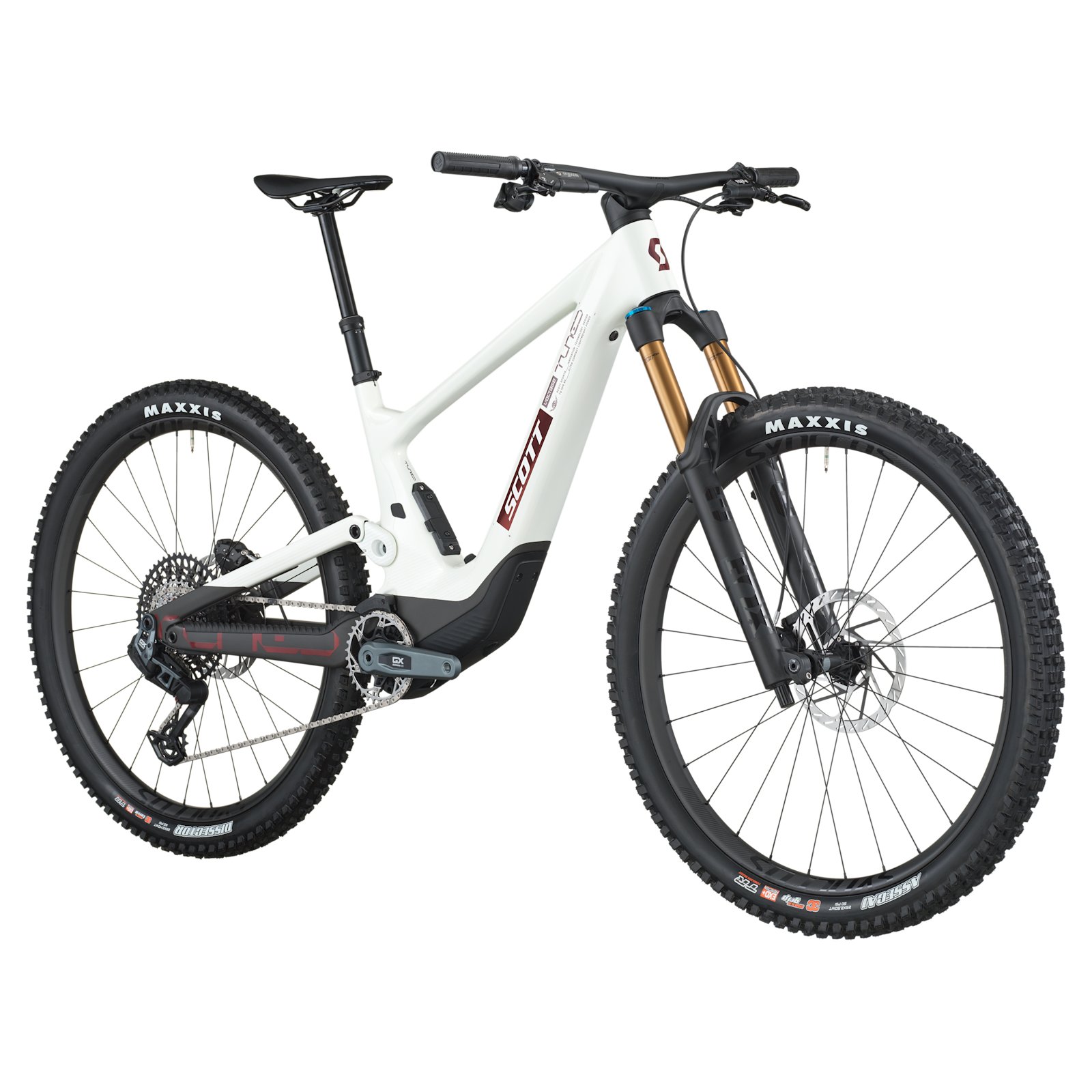

The Scott Voltage eRIDE 900 Tuned (£9,599) is the top build of the Voltage eRIDE: TQ HPR60 with 360 Wh, FOX 36 Factory Air GripX2 fork, FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion shock, SRAM GX Eagle AXS Transmission 12 Speed and SRAM Maven Silver Stealth 4-Piston brakes. Claimed weight is 19.1 kg (tubeless, without the range extender), the lightest Voltage eRIDE.
The Voltage eRIDE is Scott's lightweight long-travel trail e-MTB: a carbon frame with 155 mm of rear travel, a 150–160 mm fork and TQ's compact HPR60 motor (60 Nm).
Each build ships with a 360 Wh internal battery plus a 160 Wh range extender; claimed weights start at 19.1 kg without the extender.
- TQ HPR60, 60 Nm
- 360 Wh + 160 Wh range extender
- 155 mm rear travel
- From 19.1 kg claimed

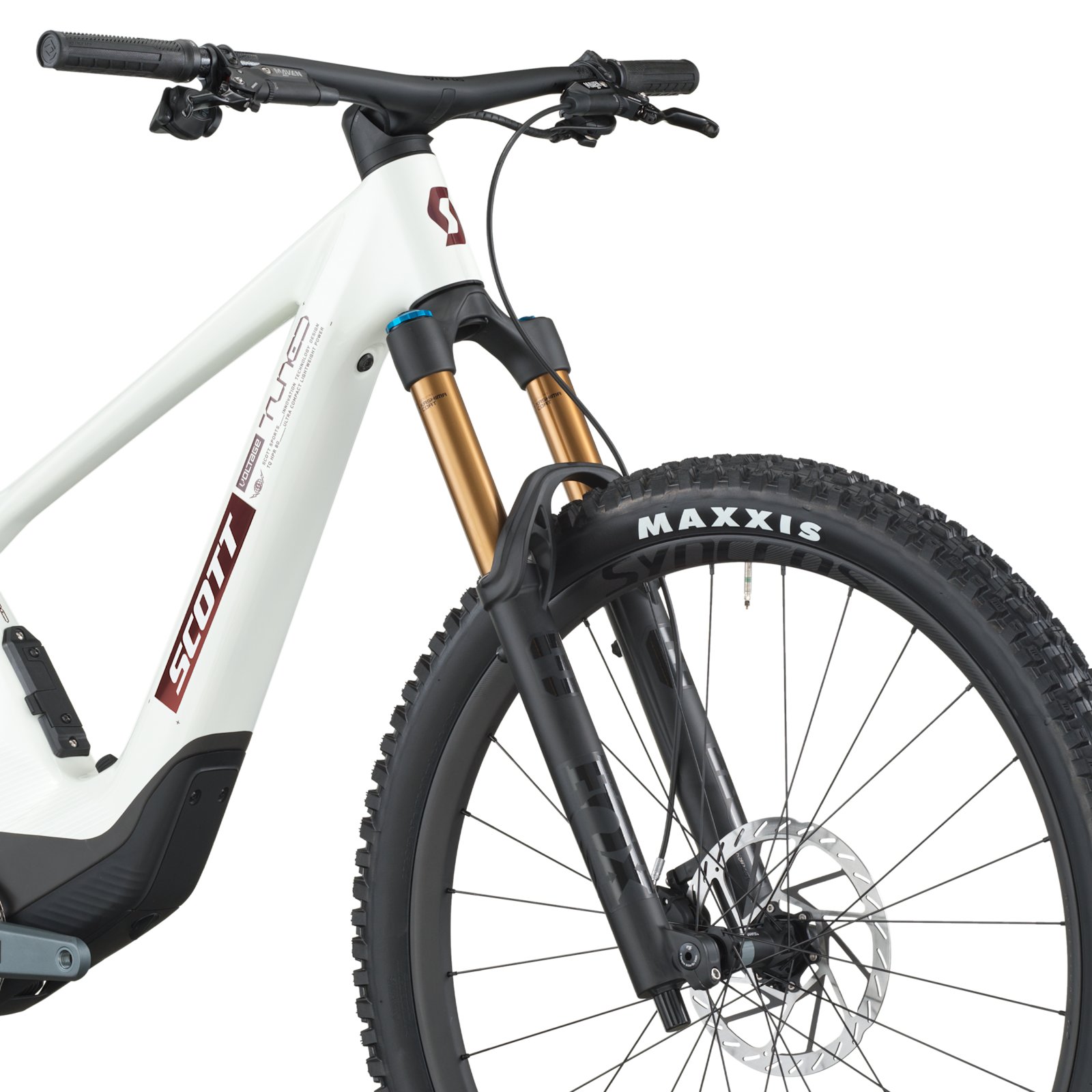

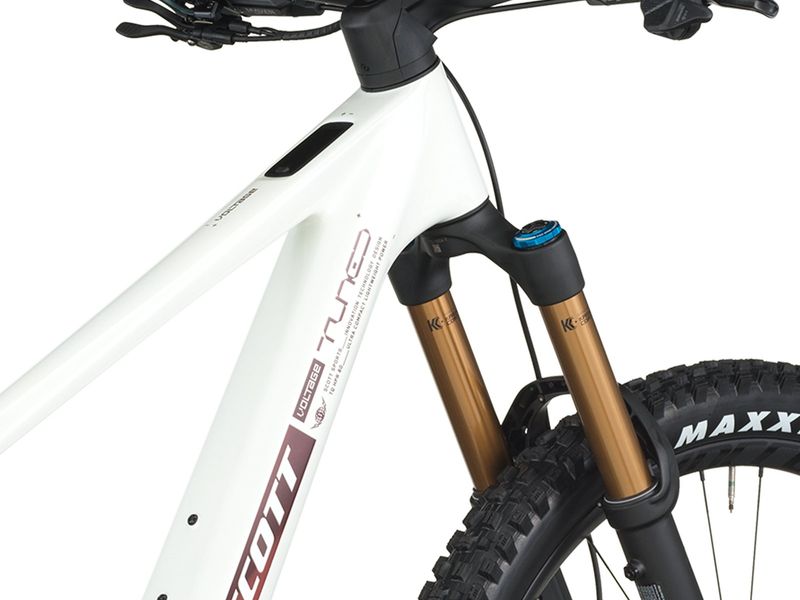

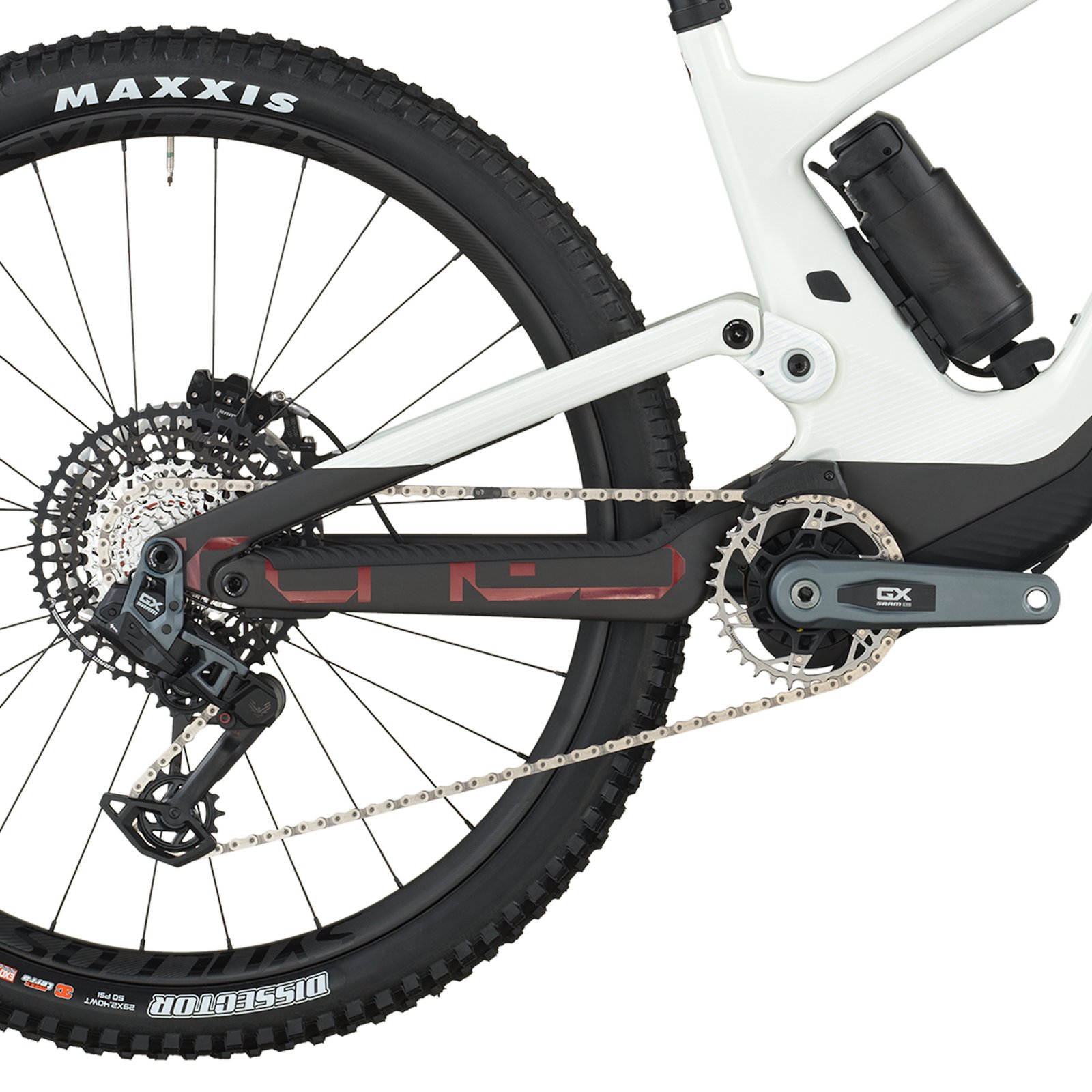

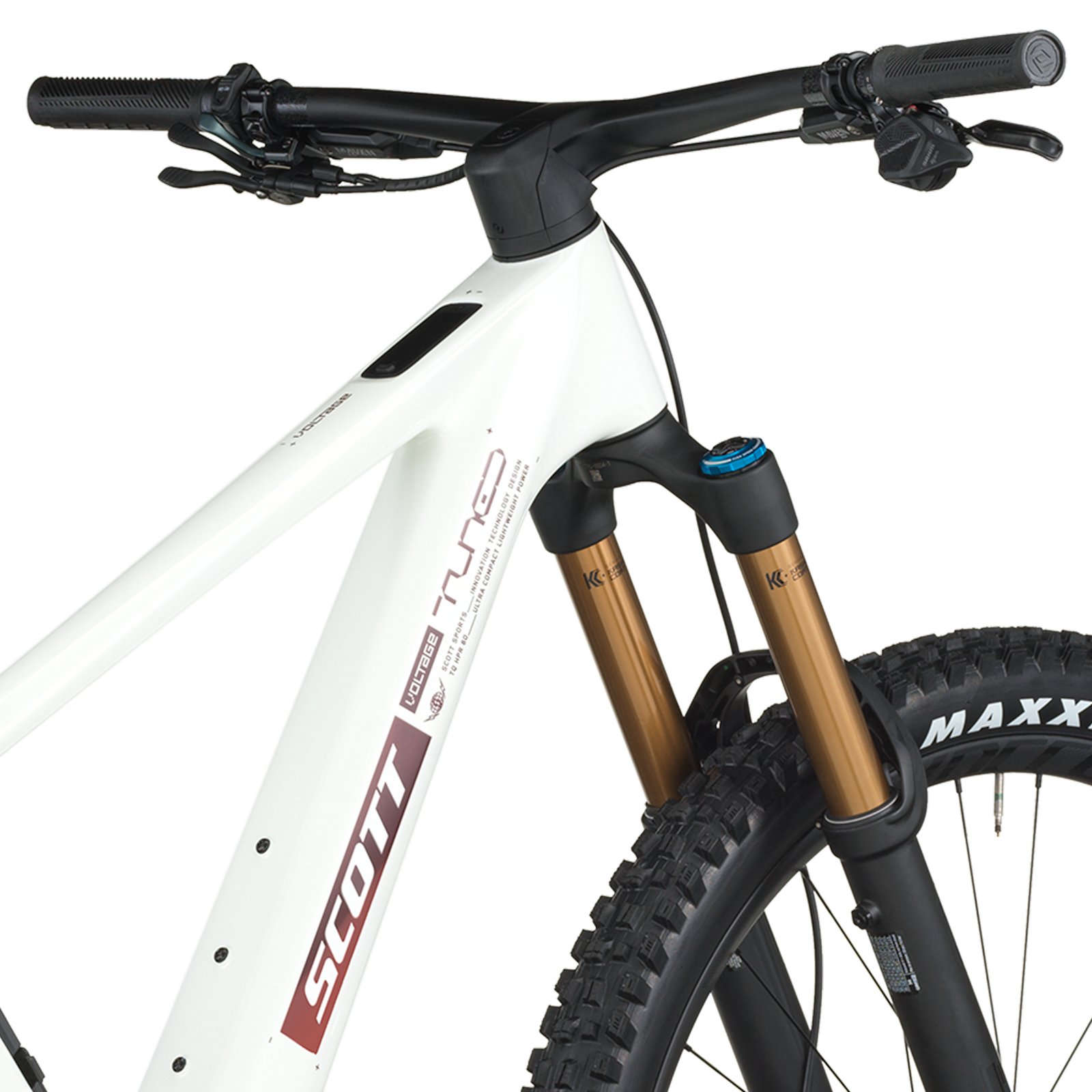

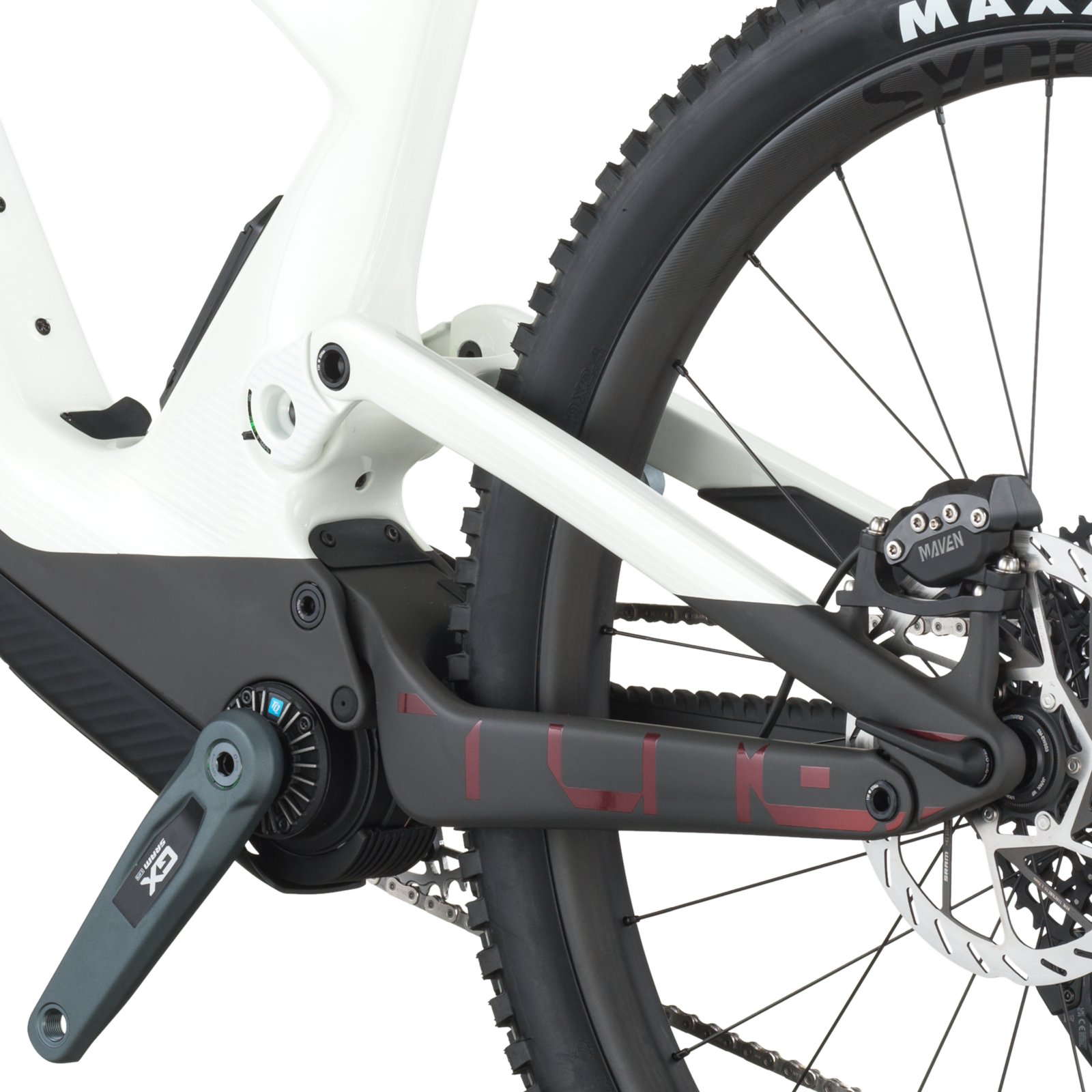

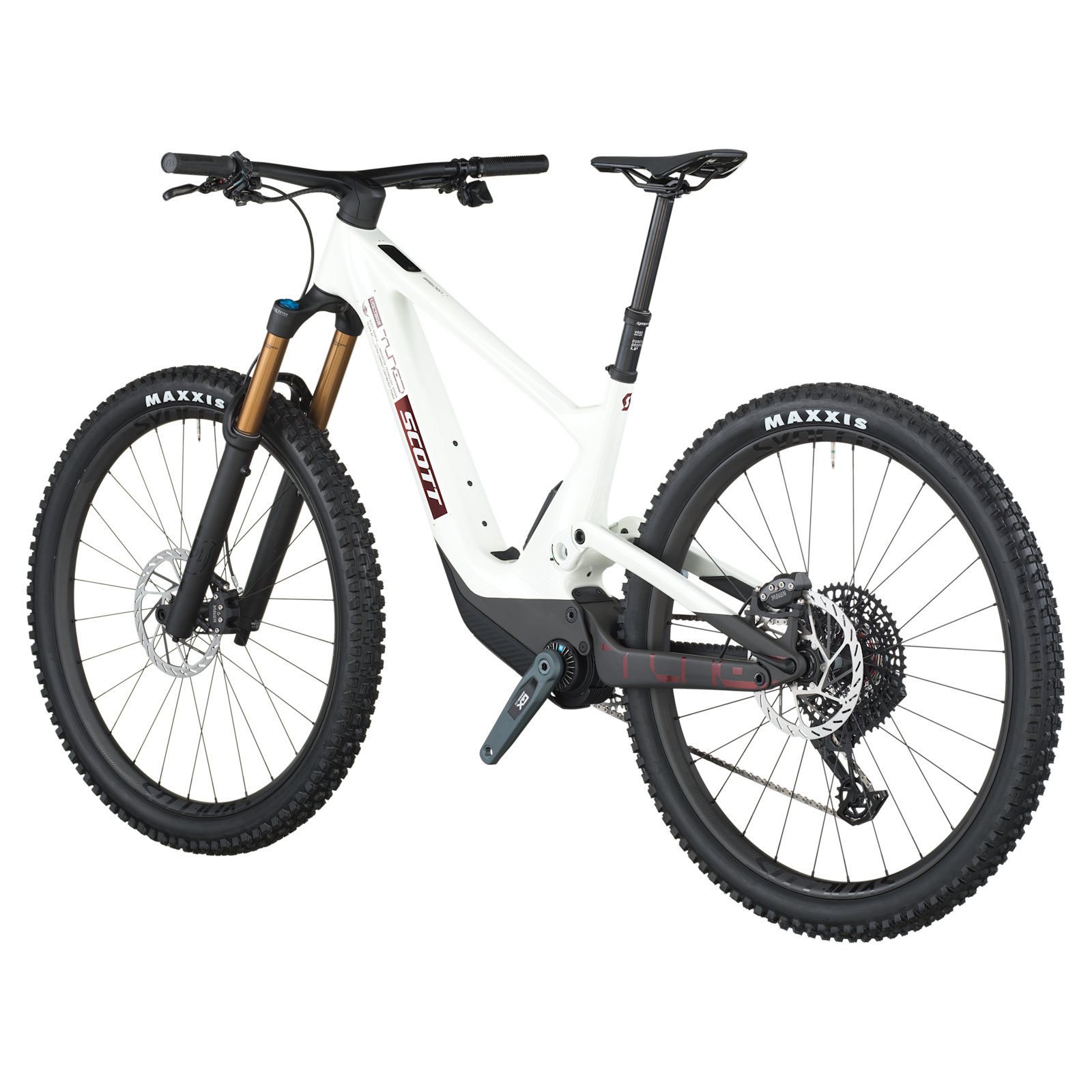

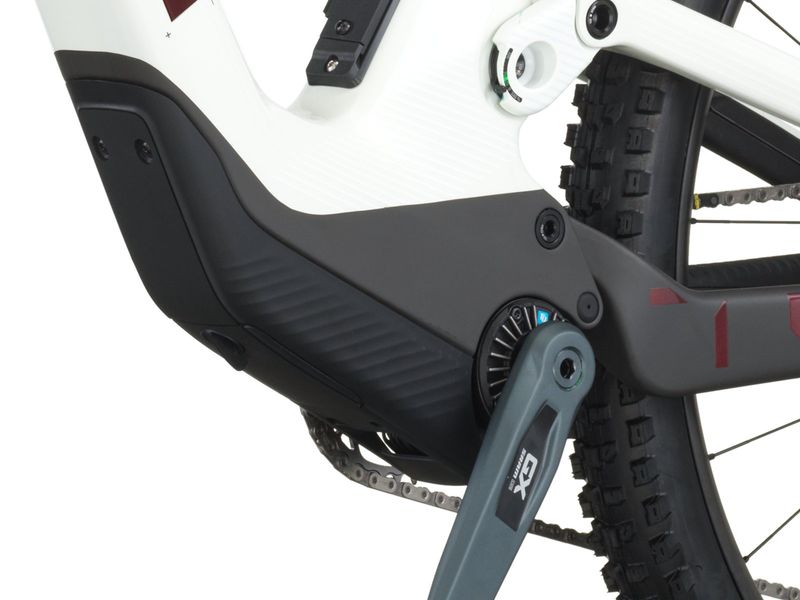

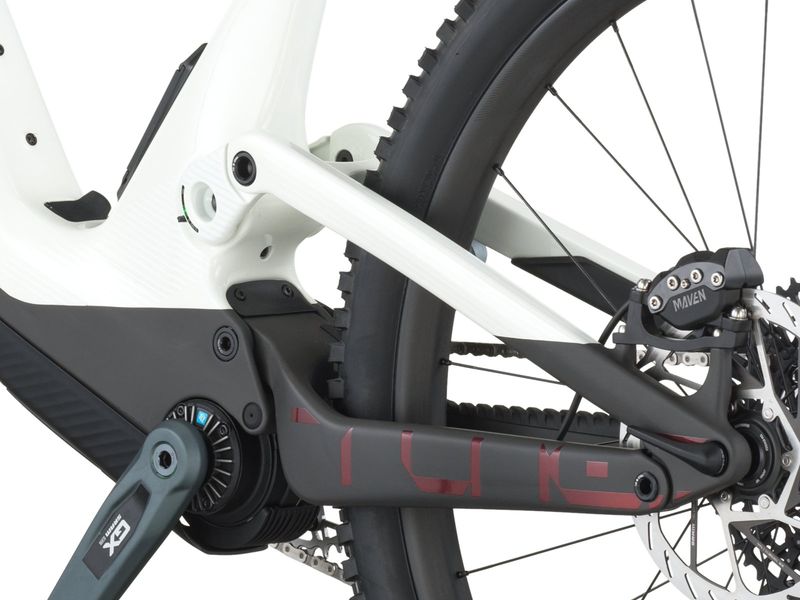

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon HMF; Integrated Suspension Technology; Virtual 4 Link kinematic, Adjustable head angle; Syncros Cable Integration System; TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline
- Travel
- Front: 160mm, Rear: 155mm

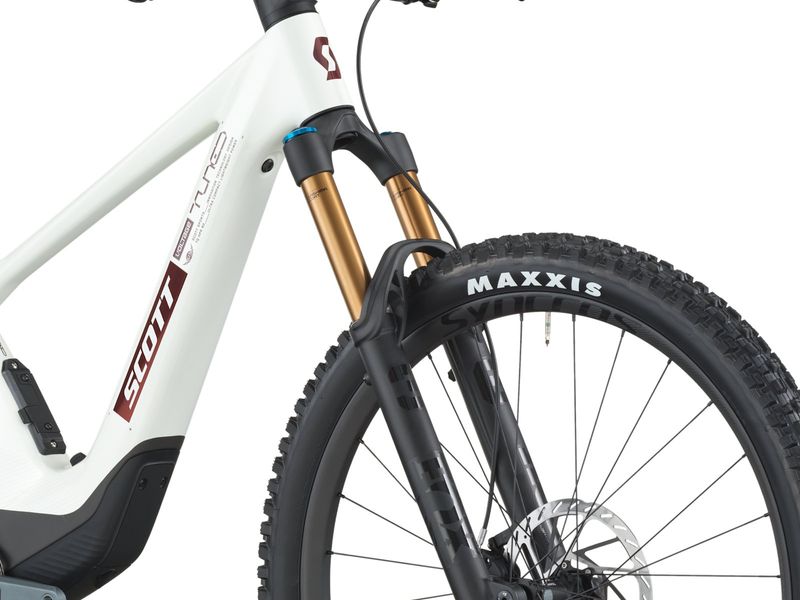

- Fork
- FOX 36 Factory Air GripX2, HSC - LSC - HSR - LSR adjustable, 15x110mm QR axle, tapered steerer; 44mm offset, 160mm travel
- Rear shock
- FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion, SCOTT custom w. travel, geo adj.; 3 modes: Climb-Ramp Control-Descend; Custom large Air volume, Comp & Reb. Adj. Travel 155-100-Climb, T185X55mm
- Remote
- TracLoc Technology; Rear Suspension & Dropper Remote; 3 Rear Suspension modes
E-system

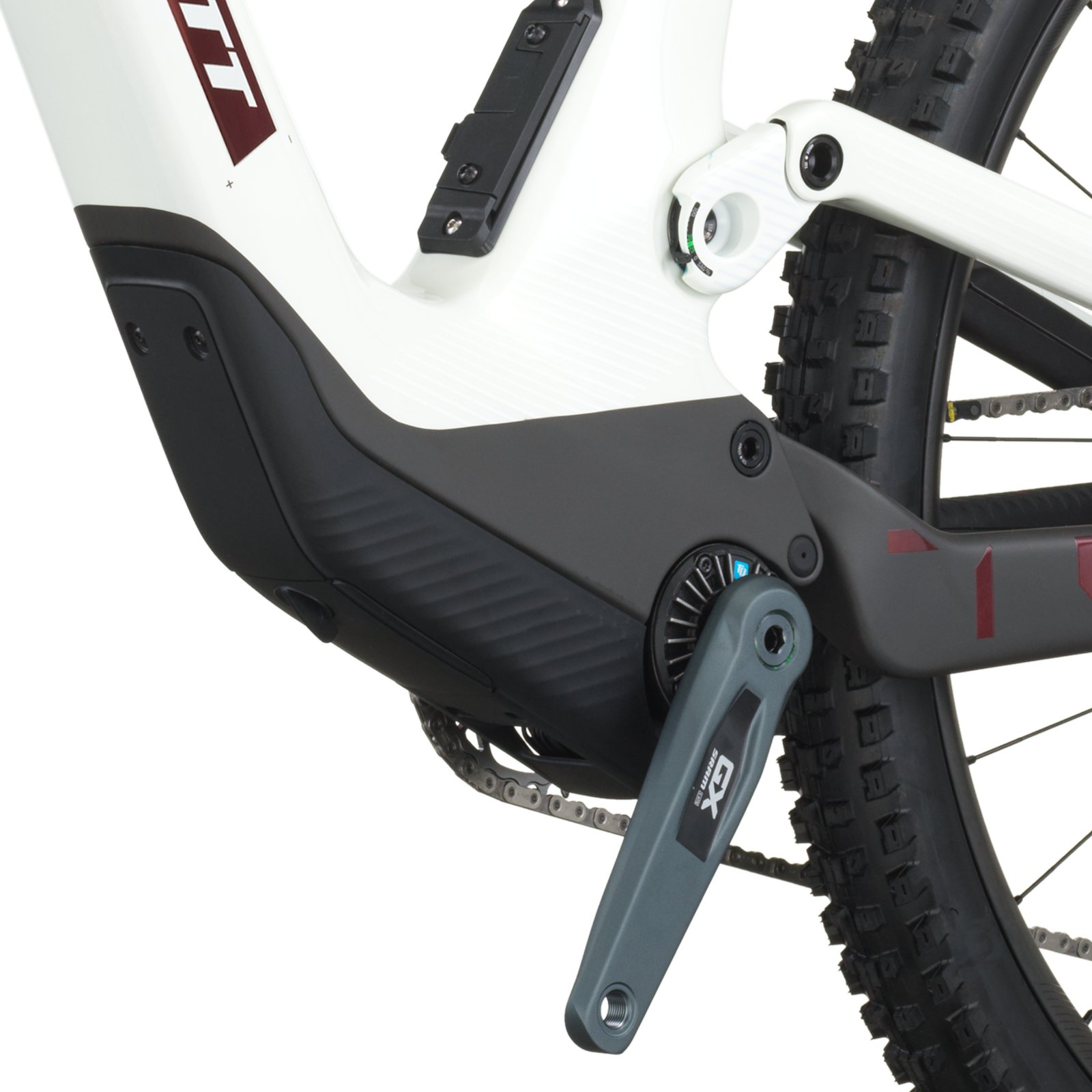

- Motor
- TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph
- Battery
- TQ Internal 360Wh + TQ Range Extender 160Wh
- Display
- TQ HPR Color; Bluetooth, ANT+, Dedicated Smartphone app
- Charger
- TQ 100-240V-4A

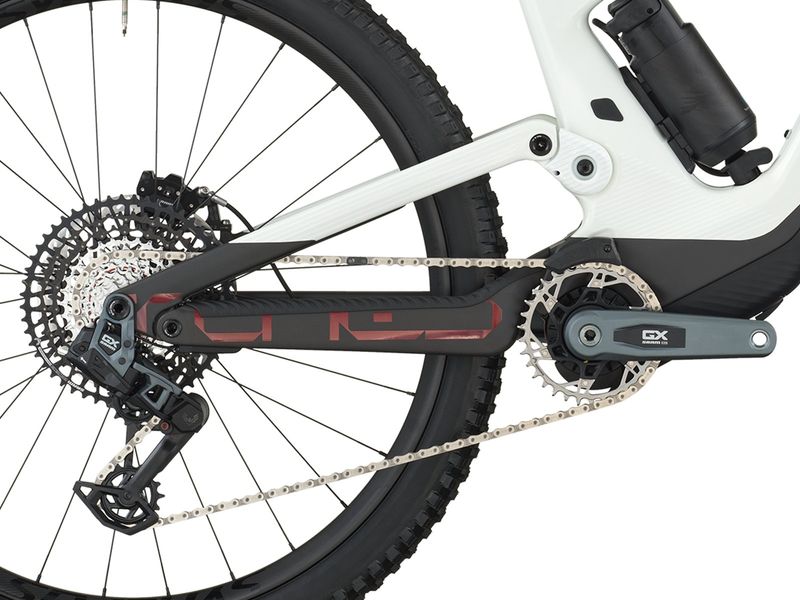

Drivetrain
- Rear derailleur
- SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System
- Shifters
- SRAM AXS Rocker Pod Controller
- Crankset
- SRAM GX Eagle, Alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- SRAM XX Eagle Transmission 34T chainring
- Chain
- SRAM CN GX Eagle Transmission
- Cassette
- SRAM GX Eagle XS 1275 Transmission 10-52
Brakes
- Brakes
- SRAM Maven Silver Stealth 4-Piston Disc
- Rotor
- SRAM HS2 Rotors F&R 200mm
Wheels & tyres
- Wheelset
- Syncros Revelstoke 1.0-30 CL; F: 15x110mm, R: 12x148mm; 30mm Tubeless ready Carbon rim 28H; DT Swiss Ratchet Hubs, XD Driver, Syncros Axle w/Removable Lever; with 6mm Allen, T30 and T25 Tools
- Front tyre
- Maxxis Assegai, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra
- Rear tyre
- Maxxis Dissector, 2.5", 60TPI Foldable; Tubeless Ready, EXO+ 3C Maxx Terra
Cockpit
- Handlebar
- Syncros Hixon iC Carbon, Size S & M 15mm rise, Size L & XL 25mm rise; back sweep 8°, 780mm; Syncros Endurance lock-on grips
- Seatpost
- Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm; S size 140mm, M size 180mm, L size 180mm, XL size 210mm
- Saddle
- Syncros Tofino 1.5 Regular; Titanium rails
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System; Stainless, +-0.6° head angle adjustment; ZS56/28.6 – ZS56/40 MTB
Other
- Extras
- SRAM AXS Extension Cord
- Max system weight
- 130kg
- Weight
- 19.1 kg (tubeless, without range extender)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Voltage eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 63.9° | 63.9° | 63.9° | 63.9° |
| BHead tube length | 110 mm | 110 mm | 120 mm | 130 mm |
| CTop tube horizontal | 580.2 mm | 600 mm | 629.9 mm | 659.8 mm |
| DStandover height | 765 mm | 765 mm | 772 mm | 788 mm |
| EBB offset | 27.4 mm | 27.5 mm | 27.4 mm | 27.3 mm |
| FBB height | 349.6 mm | 349.5 mm | 349.6 mm | 349.7 mm |
| GWheel base | 1232.8 mm | 1252.6 mm | 1284.8 mm | 1316.9 mm |
| IBB center to top of seattube | 404.6 mm | 424.5 mm | 449.6 mm | 479.7 mm |
| JSeat angle | 77.1° | 77.1° | 77.1° | 77.1° |
| KChainstay | 455 mm | 455 mm | 455 mm | 455 mm |
| LReach | 437.4 mm | 457.2 mm | 485 mm | 512.7 mm |
| MStack | 622.3 mm | 622.4 mm | 631.3 mm | 640.2 mm |
| NStem length | 40 mm | 40 mm | 50 mm | 50 mm |
| OTrail | 135.7 mm | 135.7 mm | 135.7 mm | 135.7 mm |
| PFork length | 571 mm | 571 mm | 571 mm | 571 mm |
| QMaximum Seatpost Insertion | 190 mm | 210 mm | 235 mm | 265 mm |
| RCrank Length | 170 mm | 170 mm | 175 mm | 175 mm |
Source: Scott.
Voltage eRIDE: builds compared
Voltage eRIDE range →| Voltage eRIDE 920 | Voltage eRIDE 910 | Voltage eRIDE 900 Tuned | |
|---|---|---|---|
| Price | £5,999 | £7,799 | £9,599 |
| Frame | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | Marzocchi Z2 Air Rail, Sweep Adj | FOX 36 Rhythm Air Grip, Sweep Adj. | FOX 36 Factory Air GripX2, HSC - LSC - HSR - LSR adjustable |
| Shock | X-Fusion NUDE 5 RLX Trunnion; SCOTT custom w | FOX FLOAT X NUDE EVOL Piggy Back Trunnion | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion |
| Derailleur | SRAM Eagle 70 Transmission 12 Speed | SRAM S1000 Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System | SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System |
| Brakes | SRAM DB4 Stealth 4-Piston Disc | SRAM Maven Bronze Stealth 4-Piston Disc | SRAM Maven Silver Stealth 4-Piston Disc |
| Wheels | Syncros X-30S, 32H | Syncros X-30S, 32H | — |
| Display | TQ HPR; Bluetooth | TQ HPR; Bluetooth | TQ HPR Color; Bluetooth |
| Weight | 19.8 kg | 19.9 kg | 19.1 kg |
Voltage eRIDE 900 Tuned: FAQ
How much does the Scott Voltage eRIDE 900 Tuned cost?
£9,599 (UK RRP, VAT incl.). The Voltage eRIDE range runs from £5,999 (Voltage eRIDE 920) to £9,599 (Voltage eRIDE 900 Tuned). Prices vary by country and dealer.
How much does the Scott Voltage eRIDE 900 Tuned weigh?
Scott quotes 19.1 kg. It is the lightest build of the Voltage eRIDE.
What motor and battery does the Scott Voltage eRIDE 900 Tuned have?
TQ HPR60 (60 Nm). 360 Wh battery — +160 Wh range extender.
How much suspension travel does the Scott Voltage eRIDE 900 Tuned have?
160 mm at the fork and 155 mm at the rear, on 29" wheels.
What sizes does the Scott Voltage eRIDE 900 Tuned come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Voltage eRIDE 900 Tuned and the Voltage eRIDE 910?
They share the Voltage eRIDE frame platform and motor; the differences are in the parts — fork: FOX 36 Factory Air GripX2 vs FOX 36 Rhythm Air Grip; shock: FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion vs FOX FLOAT X NUDE EVOL Piggy Back Trunnion; derailleur: SRAM GX Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System vs SRAM S1000 Eagle AXS Transmission 12 Speed; Wireless Electronic Shift System; claimed weight: 19.1 kg vs 19.9 kg; price: £9,599 vs £7,799.
