ScottLumen eRIDE 920
- Motor
- TQ HPR6060 Nm
- Battery
- 360 Wh+160 Wh range extender
- Travel F / R
- 140 / 130 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 18.5 kgManufacturer figure
Overview
The Scott Lumen eRIDE 920 (£5,999) is the entry build of the Lumen eRIDE: TQ HPR60 with 360 Wh, RockShox Recon Gold RL Solo Air fork, X-Fusion Nude 5 RLX Trunnion shock, SRAM Eagle 70 Transmission and SRAM DB4 4-Piston brakes. Claimed weight is 18.5 kg.
The Lumen eRIDE is Scott's down-country e-MTB, built on the Spark platform with an integrated shock: 130 mm of rear travel, a 140 mm fork and the TQ HPR60 motor (60 Nm) with a 360 Wh internal battery and a 160 Wh range extender.
Claimed weights run from 17.8 to 18.5 kg, close to a regular trail bike.
- TQ HPR60, 60 Nm
- 360 Wh + 160 Wh range extender
- 130 mm rear / 140 mm fork
- From 17.8 kg claimed

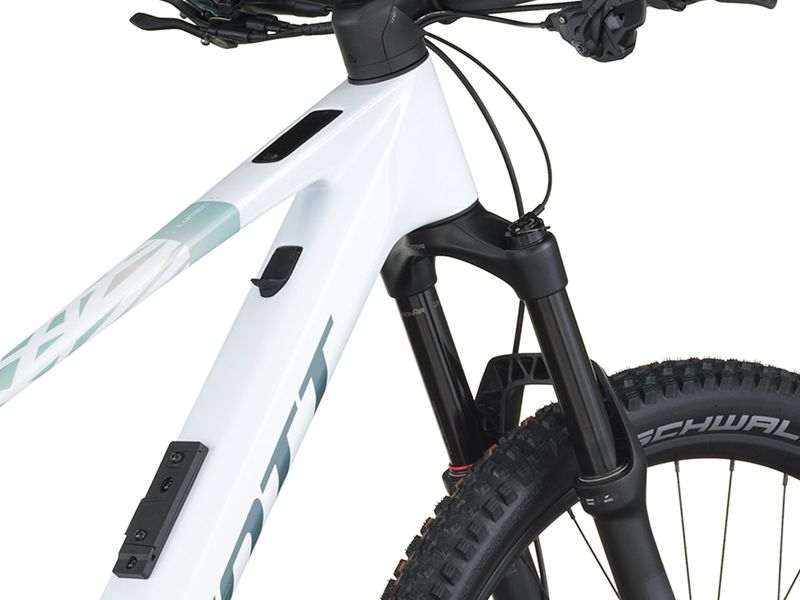

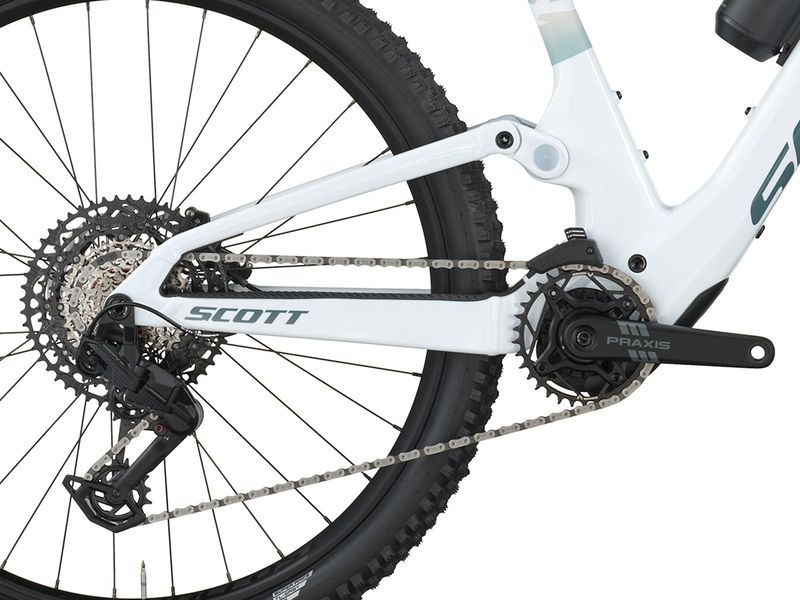

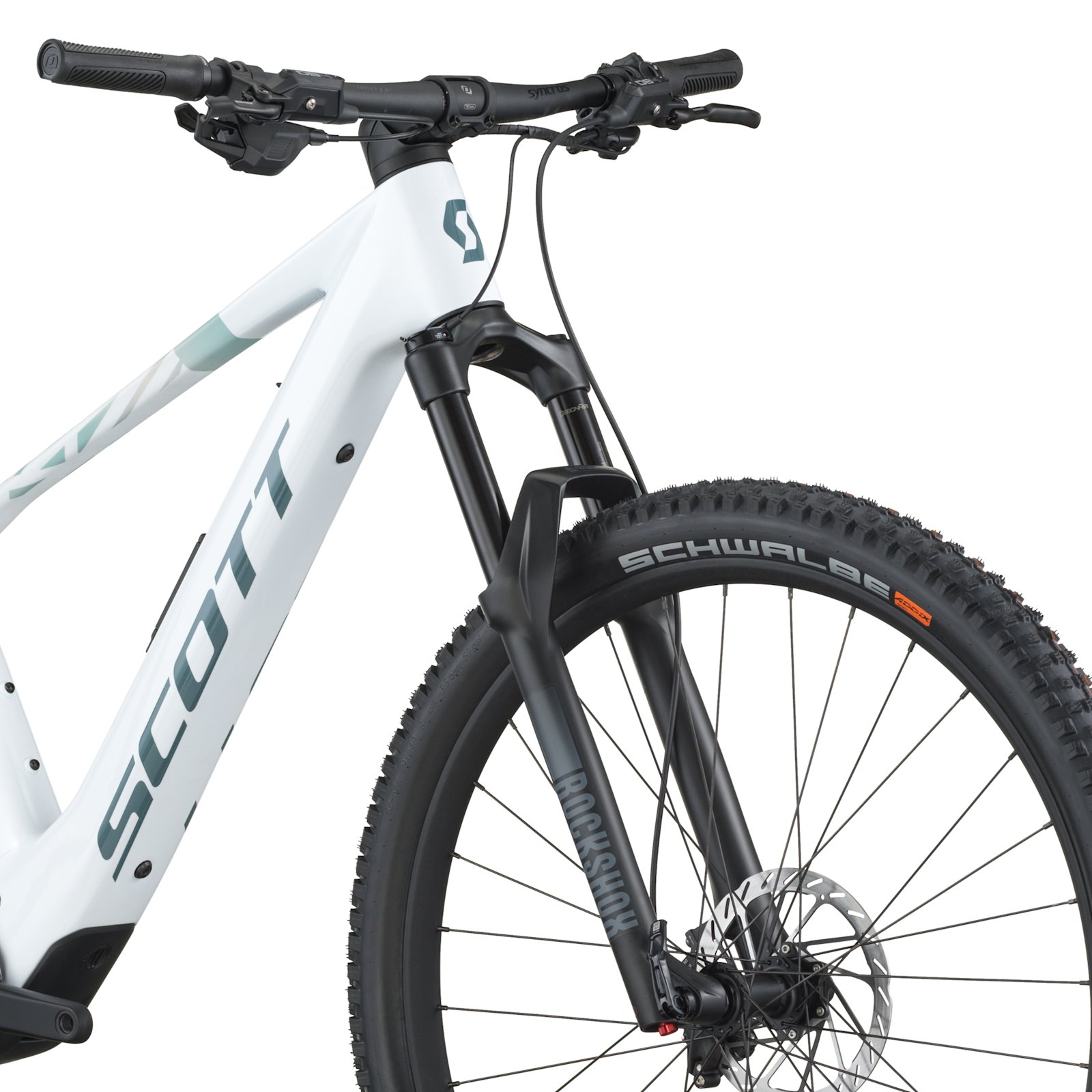

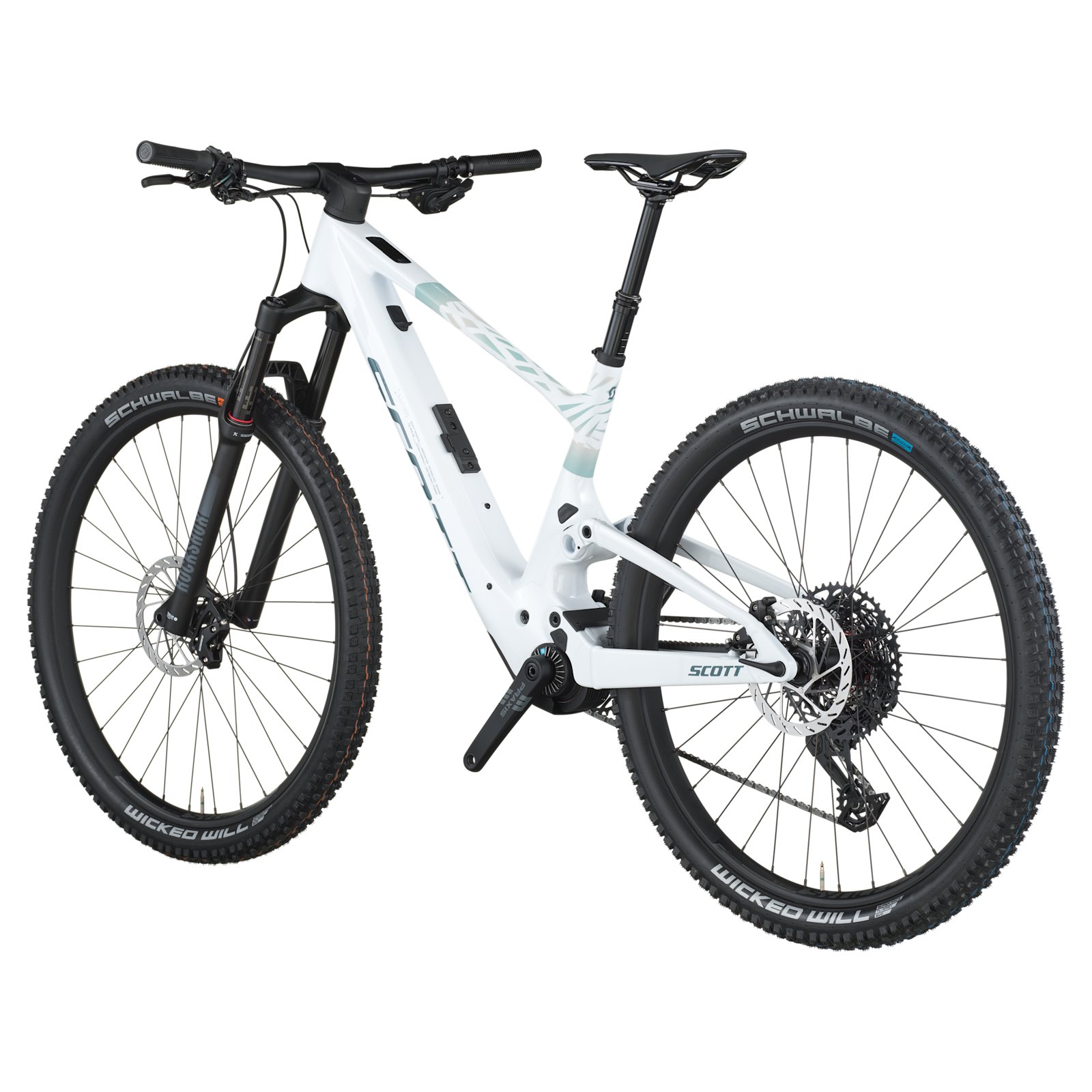

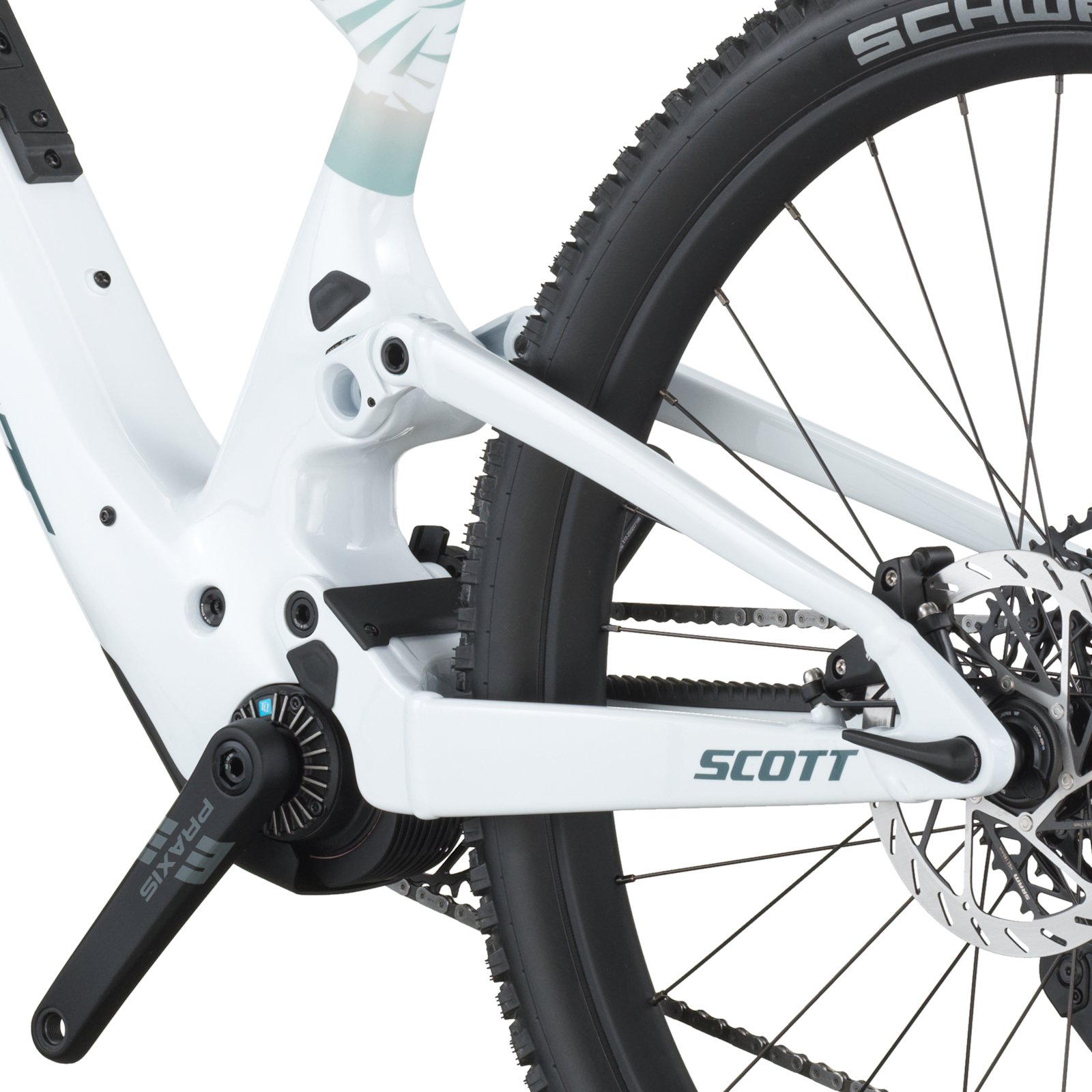

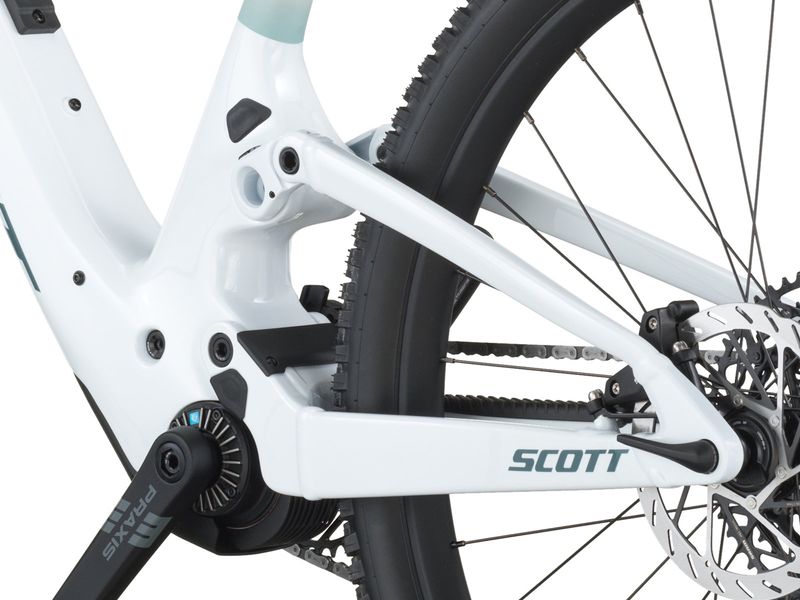

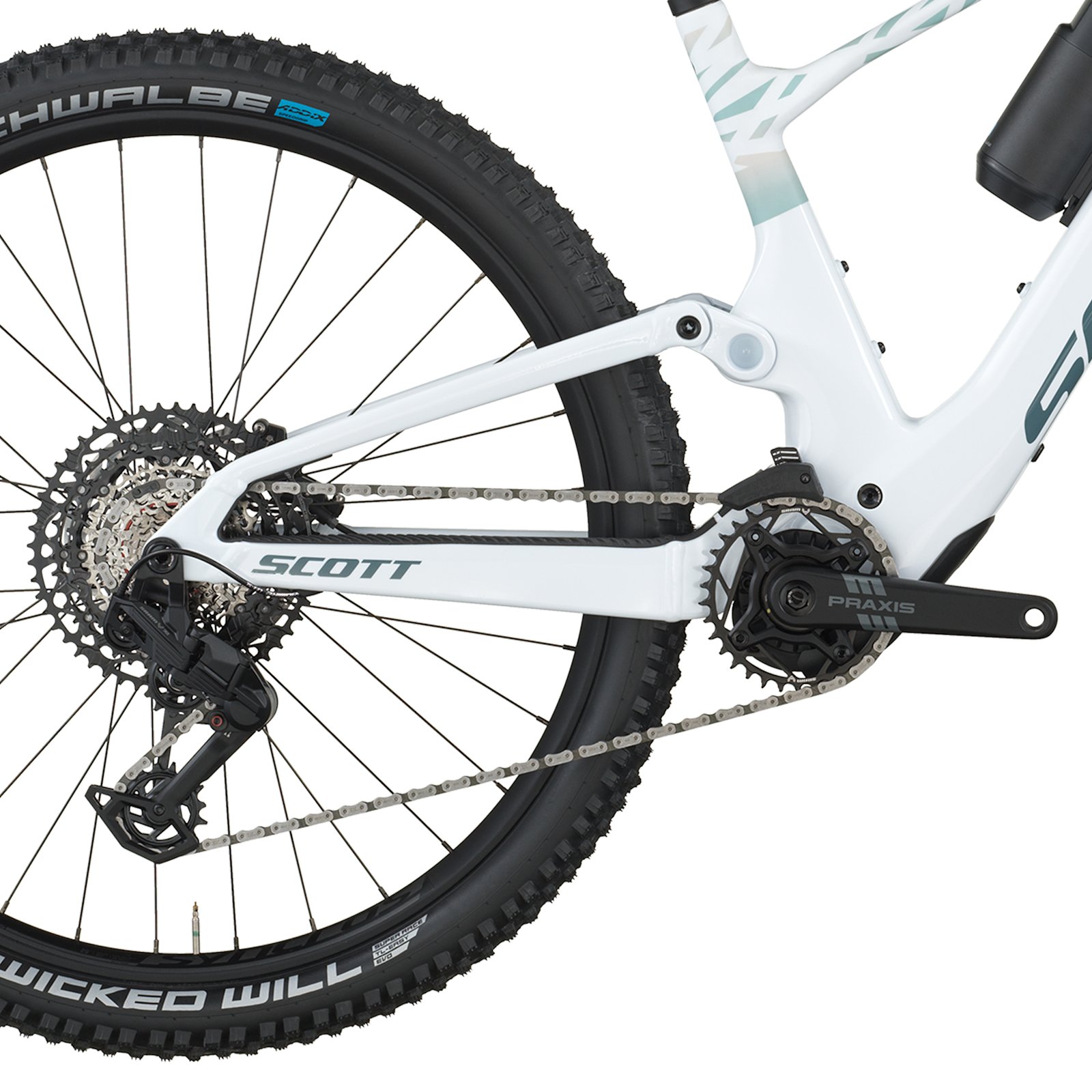

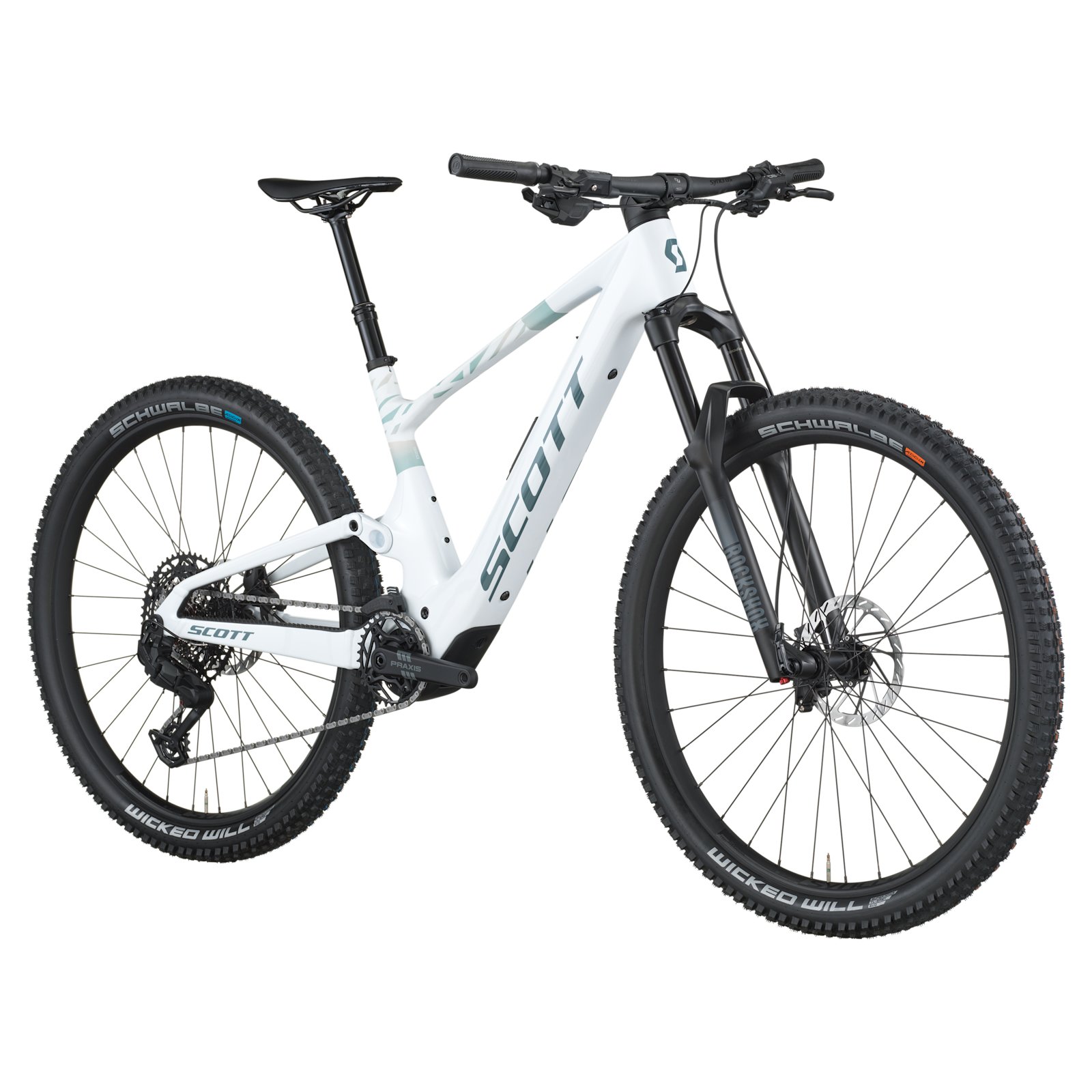

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon HMF Main Frame, alloy SST-CST, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH interface, 12x148mm with 55mm chainline
- Travel
- Front: 140 mm / Rear: 130 mm
- Fork

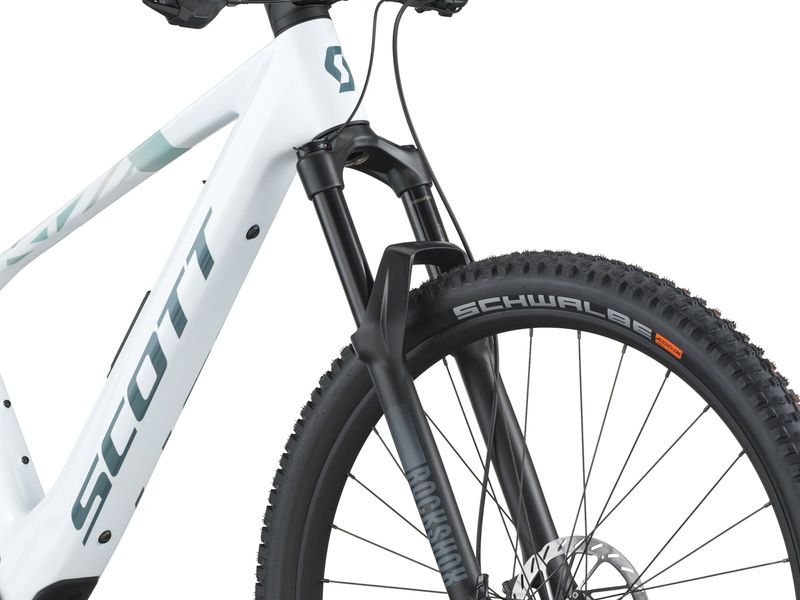

- RockShox Recon Gold RL Solo Air, 15x110mm axle, tapered steerer, Reb. Adj., Lockout
- Rear shock
- X-Fusion Nude 5 RLX Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., T165X45mm
- Remote
- SCOTT TwinLoc Technology, 3 Suspension modes
E-system
- Motor
- TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph
- Battery
- TQ Internal 360Wh
- Display
- TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
- Charger
- TQ 4A 100-240V
Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission, 12 Speed
- Shifters
- SRAM Eagle 70 Trigger
- Crankset

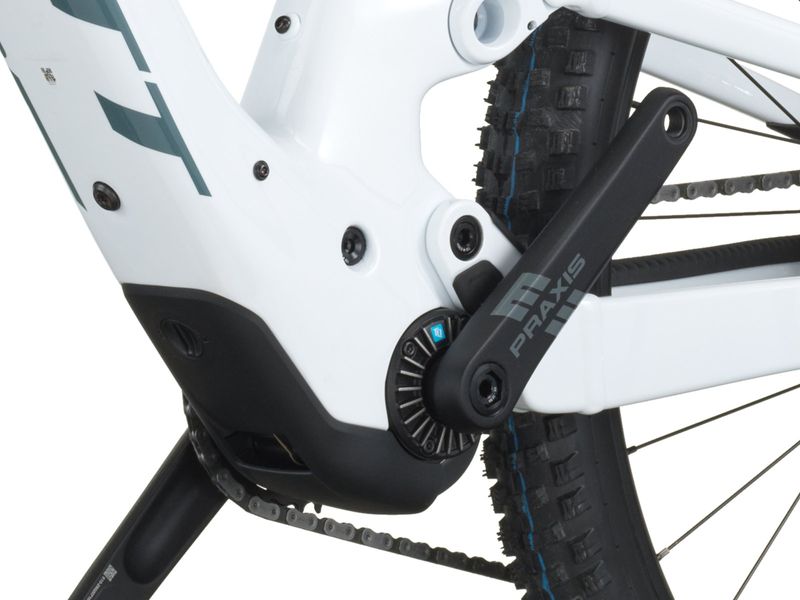

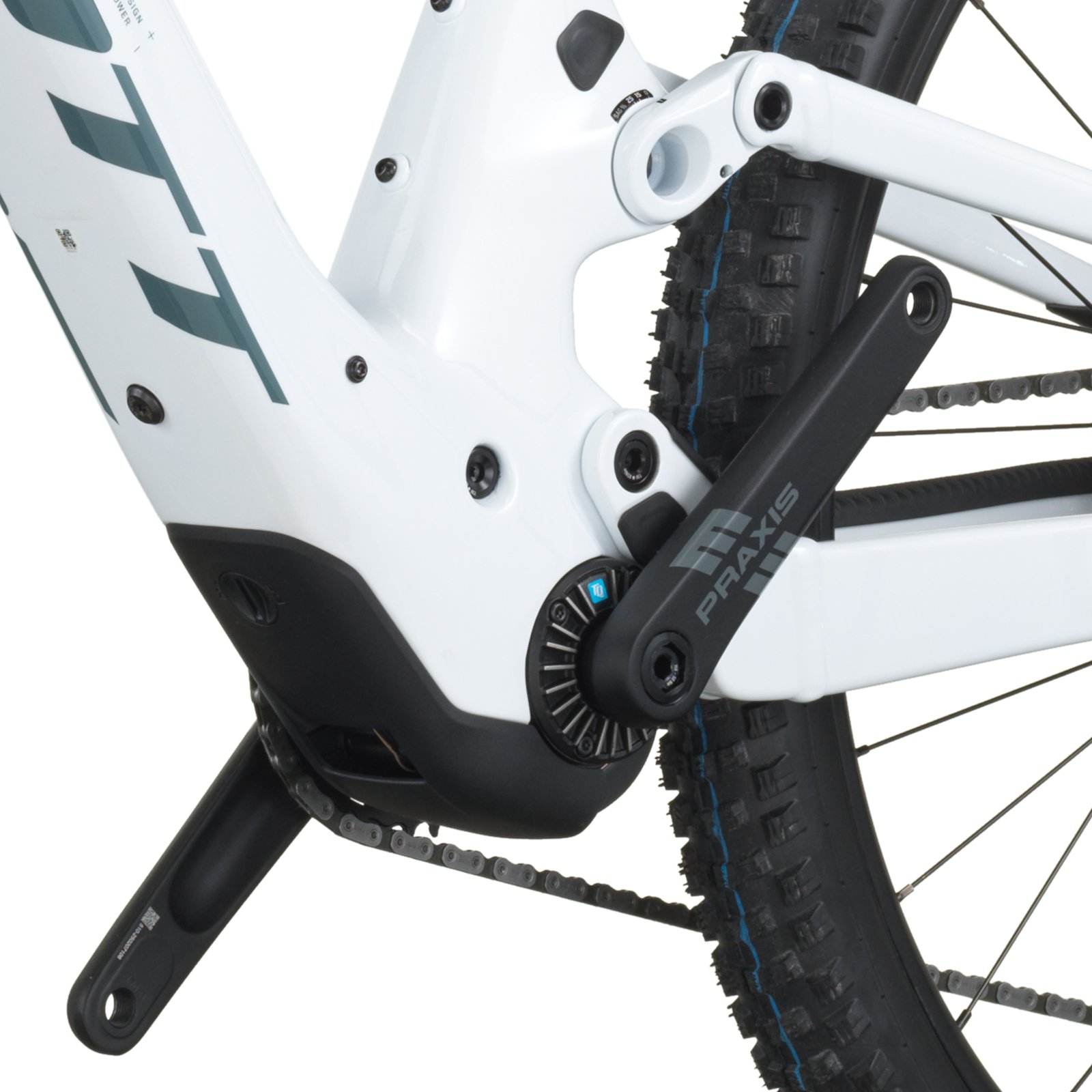

- Praxis alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- SRAM 104BCD 34T
- Chain
- SRAM Eagle 70 Transmission
- Cassette
- SRAM Eagle XS-1270 Transmission, 10-52T
Brakes
- Brakes
- SRAM DB4 4-Piston
- Front rotor
- SRAM HS2 CL, 180mm
- Rear rotor
- SRAM HS2 CL, 180mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula CL-148S, 12x148mm
- Spokes
- Stainless Black
- Rims
- Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
- Rear Rim
- Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
- Front tyre
- Schwalbe Wicked Will EVO, TLE 29 x 2.40
- Rear tyre
- Schwalbe Wicked Will EVO, TLE 29 x 2.40
Cockpit
- Grips
- Syncros Performance XC Lock-On
- Handlebar

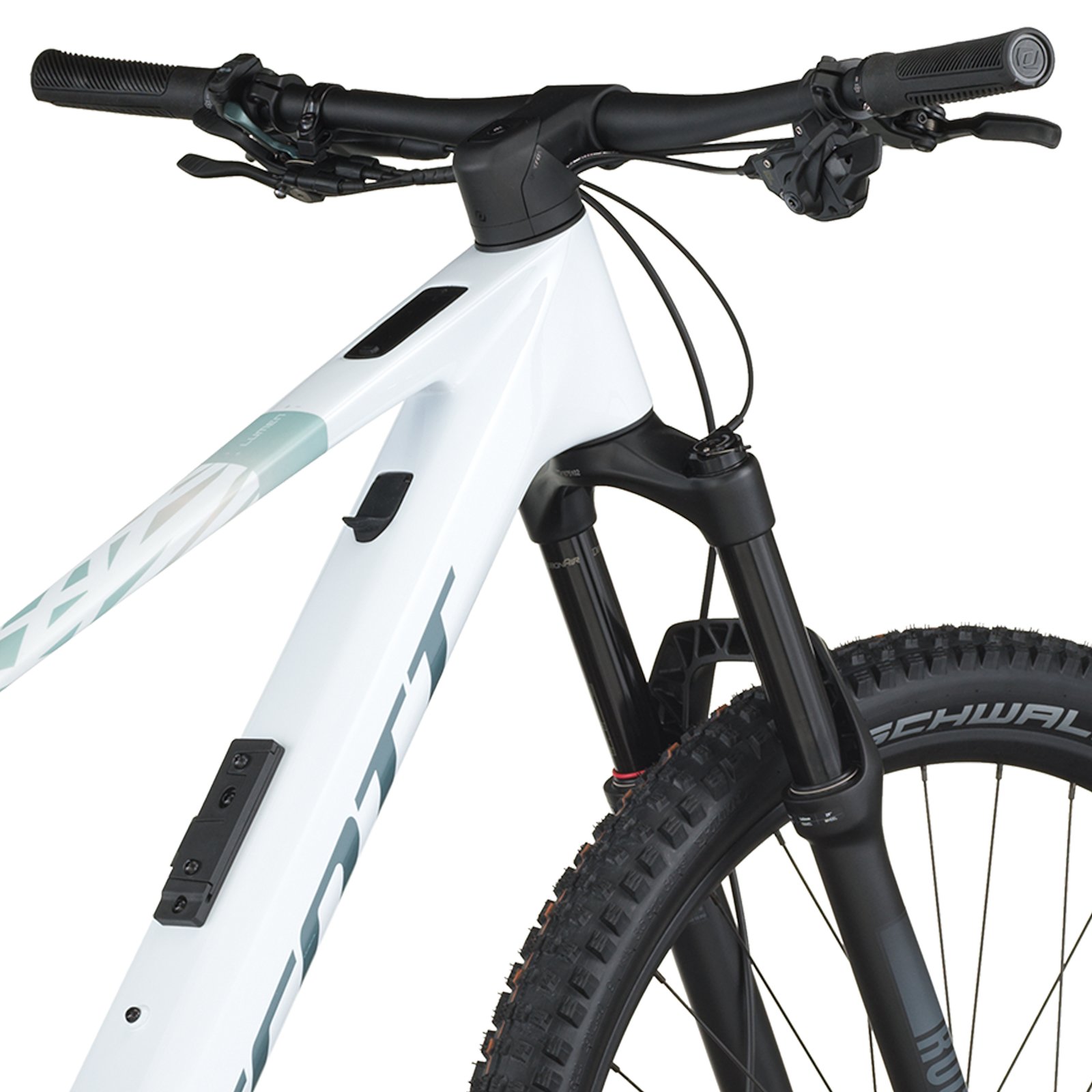

- Syncros Fraser 2.0 DC alloy 6061 D.B. Mini Rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips
- Stem
- Syncros DC 2.0 Syncros Cable Integration System 0° rise, 6061 alloy, 31.8mm, 1 1/8"
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- Syncros Tofino R 1.5
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB
Other
- Extras
- TQ 160Wh Range Extender
- Accessories
- Milkit Sealant
- Max system weight
- 130kg
- Weight
- 18.5 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Lumen eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| BHead tube length | 110 mm | 110 mm | 120 mm | 135 mm |
| CTop tube horizontal | 562 mm | 589 mm | 620 mm | 645 mm |
| DStandover height | 765 mm | 767 mm | 780 mm | 800 mm |
| EBB offset | -38.5 mm | -38.5 mm | -38.5 mm | -38.5 mm |
| FBB height | 338.5 mm | 338.5 mm | 338.5 mm | 338.5 mm |
| GWheel base | 1176 mm | 1206 mm | 1240 mm | 1270 mm |
| IBB center to top of seattube | 415 mm | 440 mm | 480 mm | 520 mm |
| JSeat angle | 76.8° | 77° | 77.2° | 77.5° |
| KChainstay | 450 mm | 450 mm | 450 mm | 450 mm |
| LReach | 416 mm | 446 mm | 476 mm | 501 mm |
| MStack | 615 mm | 615 mm | 625 mm | 638 mm |
| NStem Length | 50 mm | 60 mm | 70 mm | 70 mm |
| PFork length | 540 mm | 540 mm | 540 mm | 540 mm |
| QMaximum Seatpost Insertion | 150 mm | 175 mm | 215 mm | 255 mm |
| RHandlebar Width | 760 mm | 760 mm | 760 mm | 760 mm |
Source: Scott.
Lumen eRIDE: builds compared
Lumen eRIDE range →| Lumen eRIDE 920 | Lumen eRIDE 910 | Lumen eRIDE 900 | |
|---|---|---|---|
| Price | £5,999 | £7,599 | £8,999 |
| Frame | Carbon | Carbon | Carbon |
| Fork | RockShox Recon Gold RL Solo Air, 15x110mm axle | Fox 34 Rhythm Grip, 3P | Fox 36SL Performance Elite Grip SL , 3P with low speed adj. |
| Shock | X-Fusion Nude 5 RLX Trunnion | Fox Nude 6 EVOL Trunnion | Fox Nude 6 EVOL Trunnion |
| Derailleur | SRAM Eagle 70 Transmission | SRAM S1000 Eagle AXS Transmission 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed |
| Brakes | SRAM DB4 4-Piston | SRAM Motive Bronze 4-Piston | SRAM Motive Silver 4-Piston |
| Wheels | Alex Rims X-30S 32H, Sleeve Joint | Alex Rims X-30S 32H, Sleeve Joint | — |
| Display | TQ HPR | TQ HPR | TQ HPR |
| Weight | 18.5 kg | 17.8 kg | 18.2 kg |
Lumen eRIDE 920: FAQ
How much does the Scott Lumen eRIDE 920 cost?
£5,999 (UK RRP, VAT incl.). The Lumen eRIDE range runs from £5,999 (Lumen eRIDE 920) to £8,999 (Lumen eRIDE 900). Prices vary by country and dealer.
How much does the Scott Lumen eRIDE 920 weigh?
Scott quotes 18.5 kg. The lightest Lumen eRIDE build is the Lumen eRIDE 910 at 17.8 kg.
What motor and battery does the Scott Lumen eRIDE 920 have?
TQ HPR60 (60 Nm). 360 Wh battery — +160 Wh range extender.
How much suspension travel does the Scott Lumen eRIDE 920 have?
140 mm at the fork and 130 mm at the rear, on 29" wheels.
What sizes does the Scott Lumen eRIDE 920 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Lumen eRIDE 920 and the Lumen eRIDE 910?
They share the Lumen eRIDE frame platform and motor; the differences are in the parts — fork: RockShox Recon Gold RL Solo Air vs Fox 34 Rhythm Grip; shock: X-Fusion Nude 5 RLX Trunnion vs Fox Nude 6 EVOL Trunnion; derailleur: SRAM Eagle 70 Transmission vs SRAM S1000 Eagle AXS Transmission 12 Speed; claimed weight: 18.5 kg vs 17.8 kg; price: £5,999 vs £7,599.
