Lightweight eMTBDown-country

ScottLumen eRIDE 910

£7,599UK RRP, VAT incl.

Motor: TQ HPR6060 Nm
Battery: 360 Wh+160 Wh range extender
Travel F / R: 140 / 130 mm
Wheels: 29"
Frame: Carbon
Weight: 17.8 kgManufacturer figure, tubeless, without range extender

Compare 3 builds Compare with…Official page →

Overview

The Scott Lumen eRIDE 910 (£7,599) is a mid-range build of the Lumen eRIDE: TQ HPR60 with 360 Wh, Fox 34 Rhythm Grip fork, Fox Nude 6 EVOL Trunnion shock, SRAM S1000 Eagle AXS Transmission 12 Speed and SRAM Motive Bronze 4-Piston brakes. Claimed weight is 17.8 kg (tubeless, without the range extender), the lightest Lumen eRIDE.

The Lumen eRIDE is Scott's down-country e-MTB, built on the Spark platform with an integrated shock: 130 mm of rear travel, a 140 mm fork and the TQ HPR60 motor (60 Nm) with a 360 Wh internal battery and a 160 Wh range extender.

Claimed weights run from 17.8 to 18.5 kg, close to a regular trail bike.

TQ HPR60, 60 Nm
360 Wh + 160 Wh range extender
130 mm rear / 140 mm fork
From 17.8 kg claimed

Gallery

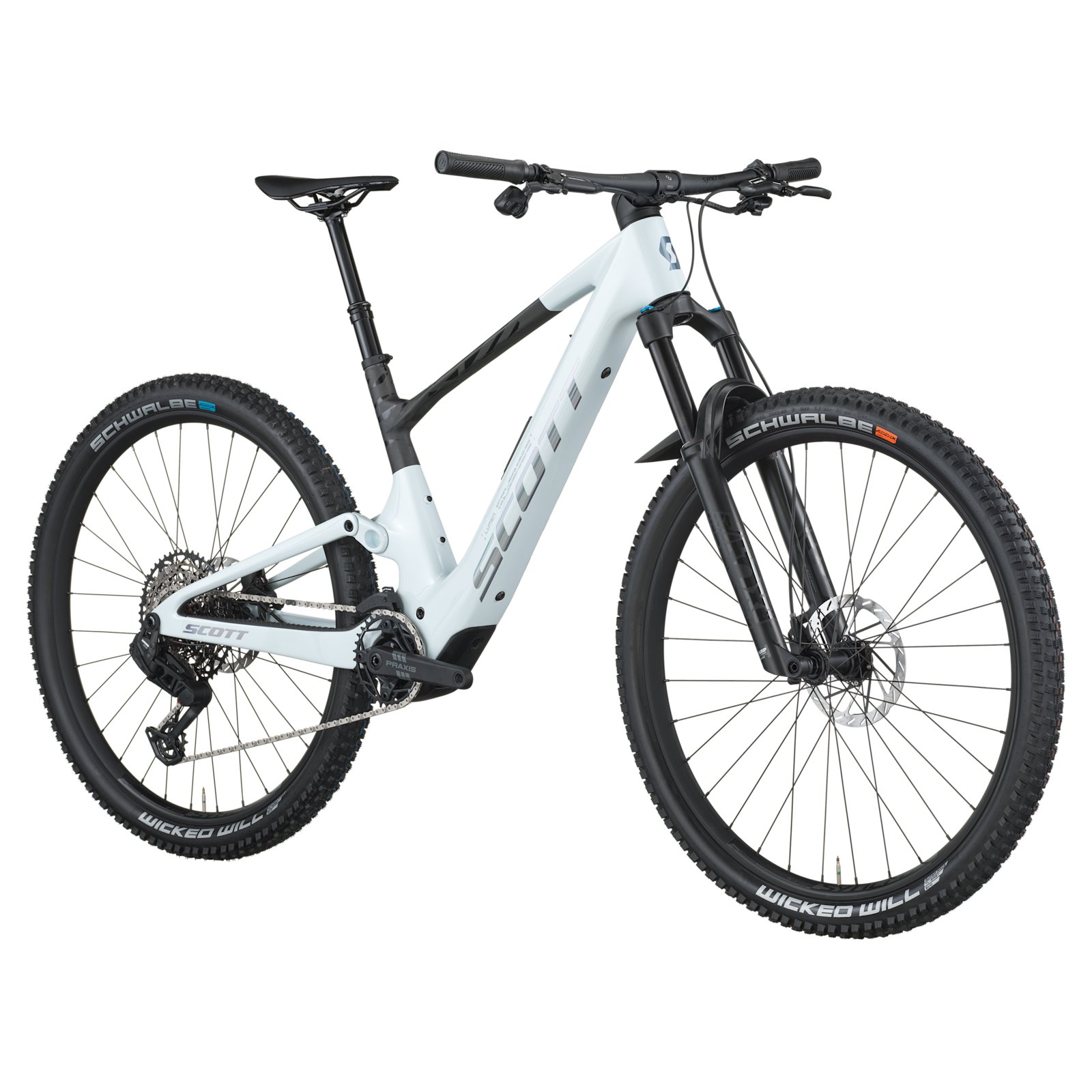

Scott Lumen eRIDE 910 e-MTB, studio shot 1

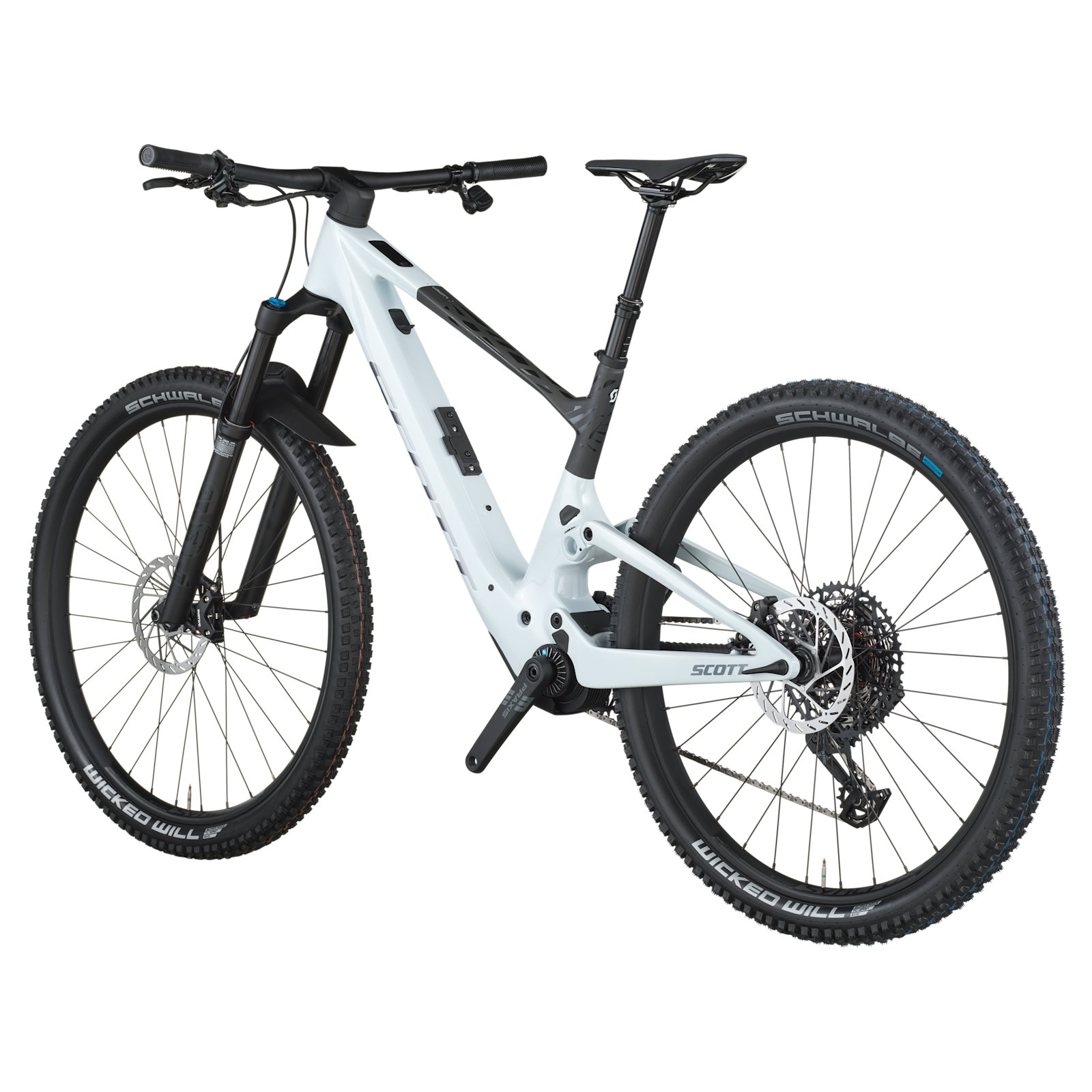

Scott Lumen eRIDE 910 e-MTB, studio shot 2

Photos: Scott

Full specifications

Frame & suspension

Frame: Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH interface, 12x148mm with 55mm chainline
Travel: Front: 140 mm / Rear: 130 mm
Fork: Fox 34 Rhythm Grip, 3P, Kabolt 15x110mm axle, tapered steerer, Reb. Adj, Lockout
Rear shock: Fox Nude 6 EVOL Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, low speed Adj., Custom large Air volume, Reb. Adj., Bearing Hardware, T165X45mm
Remote: SCOTT TwinLoc Technology, 3 Suspension modes

E-system

Motor: TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh - INT: 20mph - US: 28mph
Battery: TQ Internal 360Wh
Display: TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app
Charger: TQ 4A 100-240V

Drivetrain

Rear derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
Shifters: SRAM AXS Pod Controller
Crankset: Praxis alloy
Chainguide: e*thirteen, e*spec Slider
Chainring: SRAM 104BCD 34T
Chain: SRAM GX Eagle Transmission
Cassette: SRAM Eagle XS-1270 Transmission, 10-52T

Brakes

Brakes: SRAM Motive Bronze 4-Piston
Front rotor: SRAM HS2 CL, 180mm
Rear rotor: SRAM HS2 CL, 180mm

Wheels & tyres

Front hub: Formula CL-811, 15x110mm
Rear hub: Formula CL-148S, 12x148mm
Spokes: Stainless Black
Rims: Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
Rear Rim: Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready
Front tyre: Schwalbe Wicked Will EVO, TLE 29 x 2.40
Rear tyre: Schwalbe Wicked Will EVO, TLE 29 x 2.40

Cockpit

Grips: Syncros Performance XC Lock-On
Handlebar: Syncros Fraser 2.0 DC alloy 6061 D.B. Mini Rise, back sweep 8°, 740mm Syncros Performance XC lock-on grips
Stem: Syncros DC 2.0 Syncros Cable Integration System 0° rise, 6061 alloy, 31.8mm, 1 1/8"
Seatpost: Syncros dropper post SP-M302-AL2, 31.6mm
Saddle: Syncros Tofino R 1.5
Headset: Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB

Other

Extras: TQ 160Wh Range Extender
Accessories: Milkit Sealant
Max system weight: 130kg
Weight: 17.8 kg (tubeless, without range extender)

Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

Lumen eRIDE geometry

Size	S	M	L	XL
AHead tube angle	65.5°	65.5°	65.5°	65.5°
BHead tube length	110 mm	110 mm	120 mm	135 mm
CTop tube horizontal	562 mm	589 mm	620 mm	645 mm
DStandover height	765 mm	767 mm	780 mm	800 mm
EBB offset	-38.5 mm	-38.5 mm	-38.5 mm	-38.5 mm
FBB height	338.5 mm	338.5 mm	338.5 mm	338.5 mm
GWheel base	1176 mm	1206 mm	1240 mm	1270 mm
IBB center to top of seattube	415 mm	440 mm	480 mm	520 mm
JSeat angle	76.8°	77°	77.2°	77.5°
KChainstay	450 mm	450 mm	450 mm	450 mm
LReach	416 mm	446 mm	476 mm	501 mm
MStack	615 mm	615 mm	625 mm	638 mm
NStem Length	50 mm	60 mm	70 mm	70 mm
PFork length	540 mm	540 mm	540 mm	540 mm
QMaximum Seatpost Insertion	150 mm	175 mm	215 mm	255 mm
RHandlebar Width	760 mm	760 mm	760 mm	760 mm

Source: Scott.

Lumen eRIDE: builds compared

Lumen eRIDE range →

	Lumen eRIDE 920	Lumen eRIDE 910	Lumen eRIDE 900
Price	£5,999	£7,599	£8,999
Frame	Carbon	Carbon	Carbon
Fork	RockShox Recon Gold RL Solo Air, 15x110mm axle	Fox 34 Rhythm Grip, 3P	Fox 36SL Performance Elite Grip SL , 3P with low speed adj.
Shock	X-Fusion Nude 5 RLX Trunnion	Fox Nude 6 EVOL Trunnion	Fox Nude 6 EVOL Trunnion
Derailleur	SRAM Eagle 70 Transmission	SRAM S1000 Eagle AXS Transmission 12 Speed	SRAM GX Eagle AXS Transmission 12 Speed
Brakes	SRAM DB4 4-Piston	SRAM Motive Bronze 4-Piston	SRAM Motive Silver 4-Piston
Wheels	Alex Rims X-30S 32H, Sleeve Joint	Alex Rims X-30S 32H, Sleeve Joint	—
Display	TQ HPR	TQ HPR	TQ HPR
Weight	18.5 kg	17.8 kg	18.2 kg

Lumen eRIDE 910: FAQ

How much does the Scott Lumen eRIDE 910 cost?

£7,599 (UK RRP, VAT incl.). The Lumen eRIDE range runs from £5,999 (Lumen eRIDE 920) to £8,999 (Lumen eRIDE 900). Prices vary by country and dealer.

How much does the Scott Lumen eRIDE 910 weigh?

Scott quotes 17.8 kg. It is the lightest build of the Lumen eRIDE.

What motor and battery does the Scott Lumen eRIDE 910 have?

TQ HPR60 (60 Nm). 360 Wh battery — +160 Wh range extender.

How much suspension travel does the Scott Lumen eRIDE 910 have?

140 mm at the fork and 130 mm at the rear, on 29" wheels.

What sizes does the Scott Lumen eRIDE 910 come in?

S, M, L, XL. Check the geometry table to compare reach and stack between sizes.

What is the difference between the Lumen eRIDE 910 and the Lumen eRIDE 900?

They share the Lumen eRIDE frame platform and motor; the differences are in the parts — fork: Fox 34 Rhythm Grip vs Fox 36SL Performance Elite Grip SL; derailleur: SRAM S1000 Eagle AXS Transmission 12 Speed vs SRAM GX Eagle AXS Transmission 12 Speed; claimed weight: 17.8 kg vs 18.2 kg; price: £7,599 vs £8,999.
