ScottPatron eRIDE 30
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 24 kgManufacturer figure
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
At £5,699 and a claimed 24.0 kg, the Patron eRIDE 30 is both the cheapest and the lightest Patron eRIDE. Bosch CX with 800 Wh, Fox AWL HD Sport and Float Rhythm suspension, Shimano Deore 12-speed and MT620 four-piston brakes.
The Patron eRIDE 30 is one of 3 builds of the Scott Patron eRIDE. About the Patron eRIDE range and all its builds →

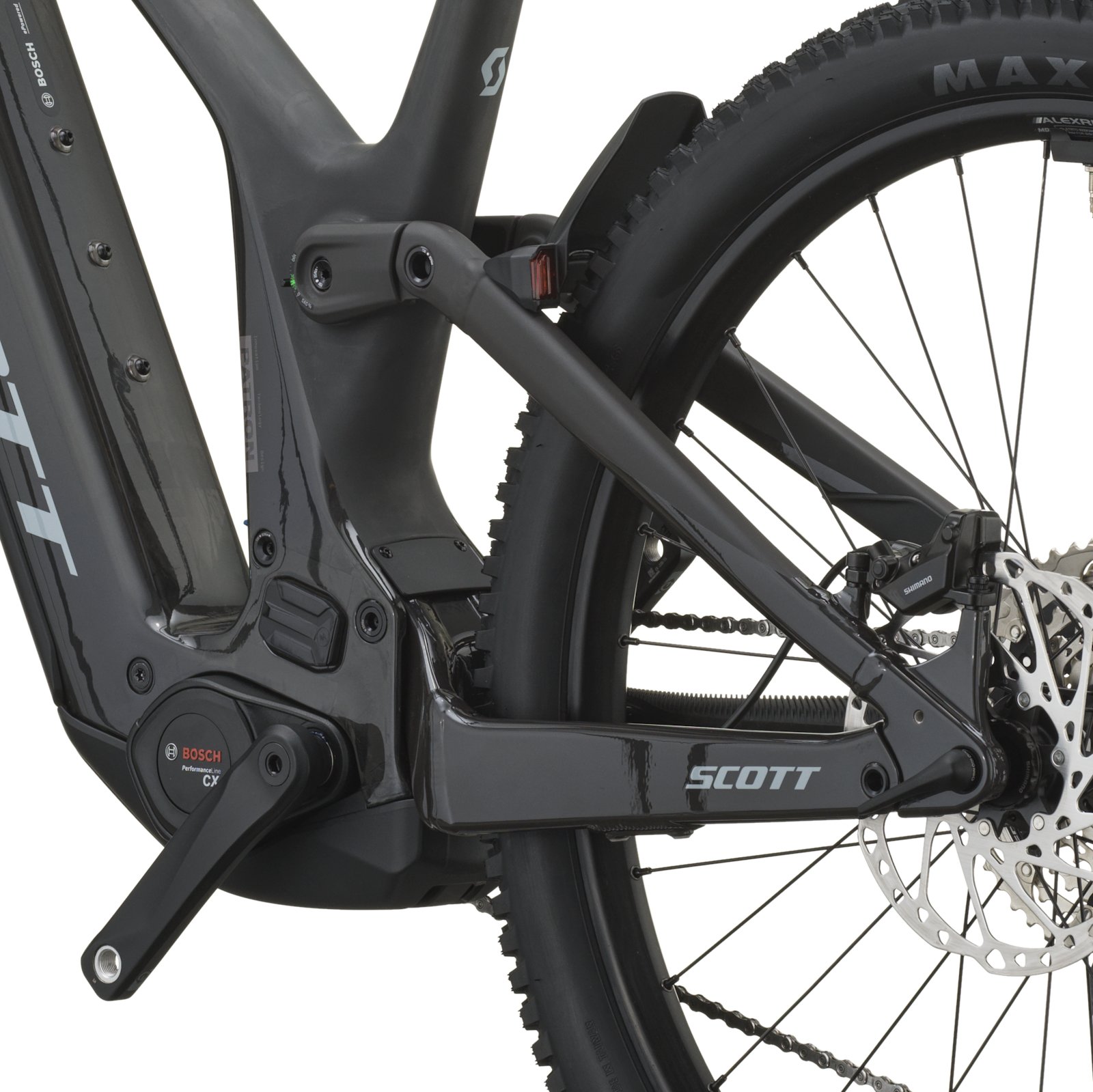

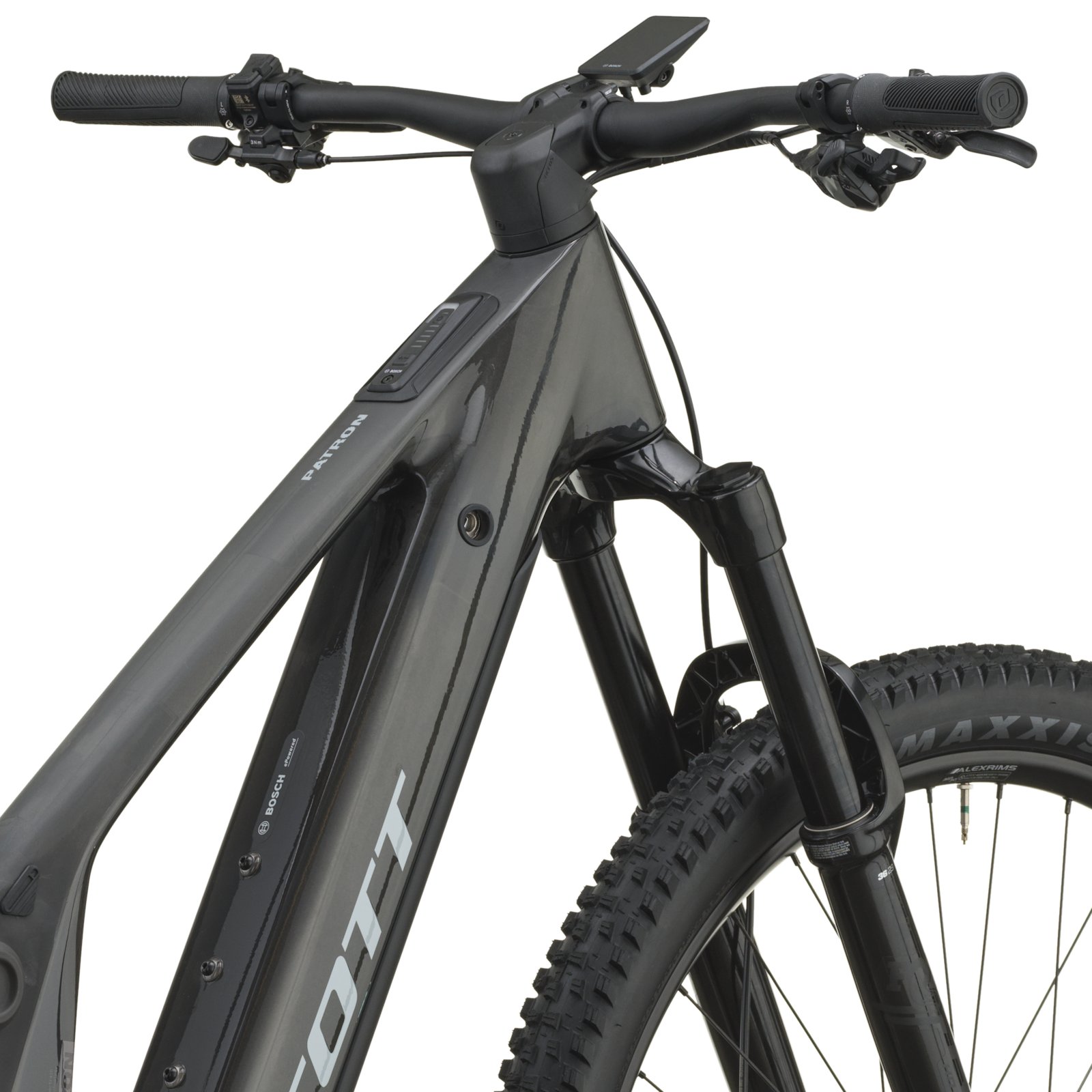

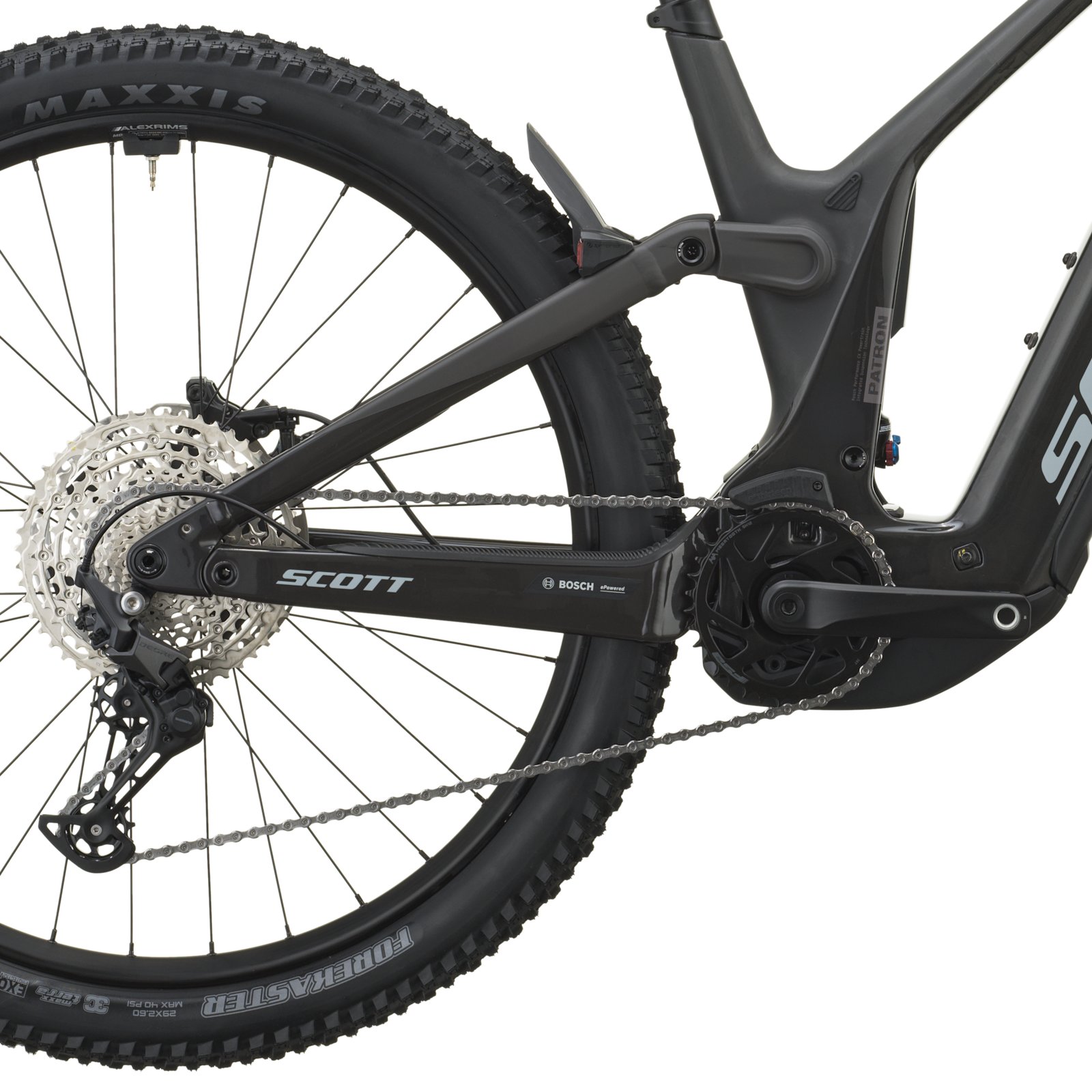

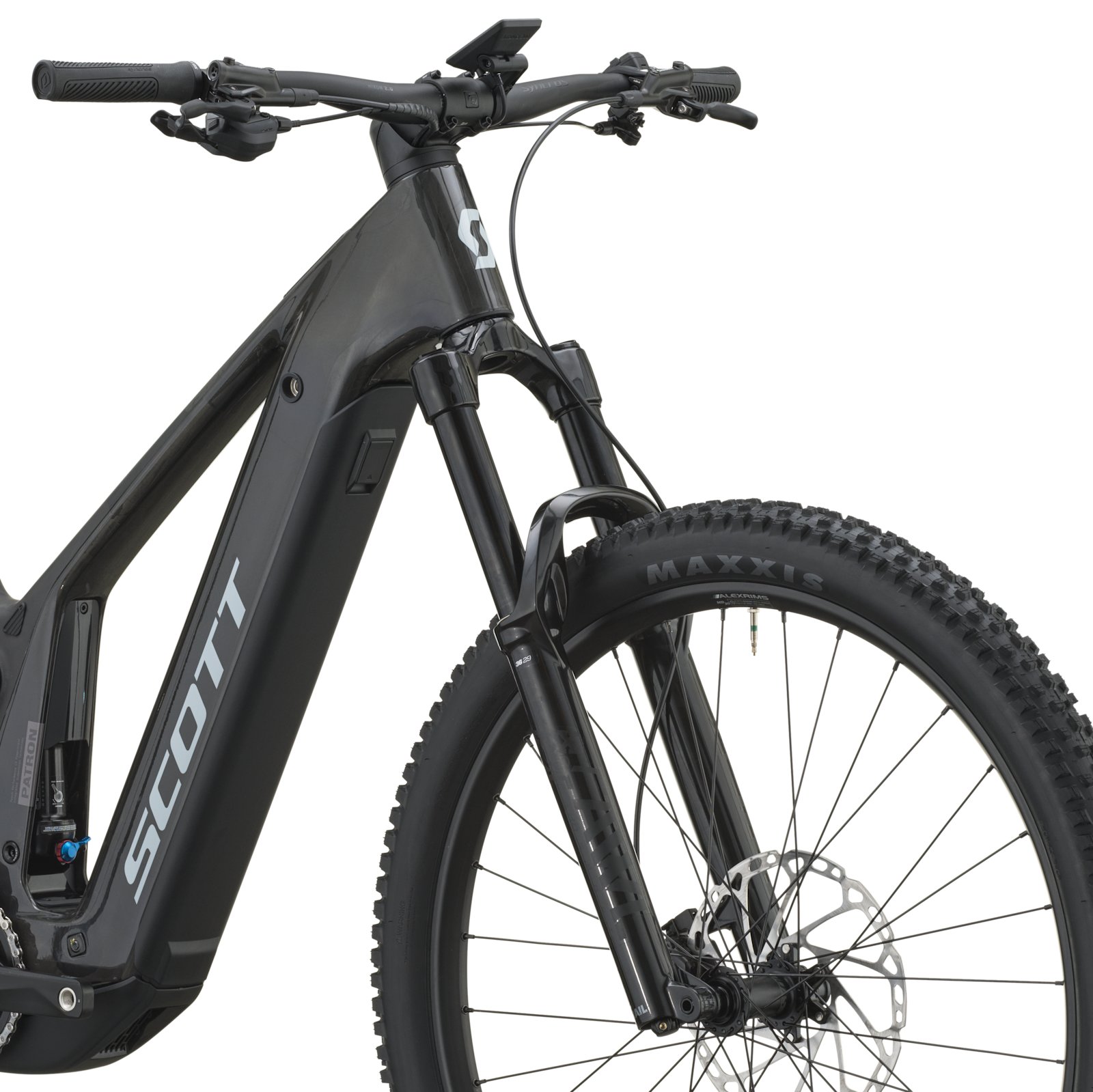

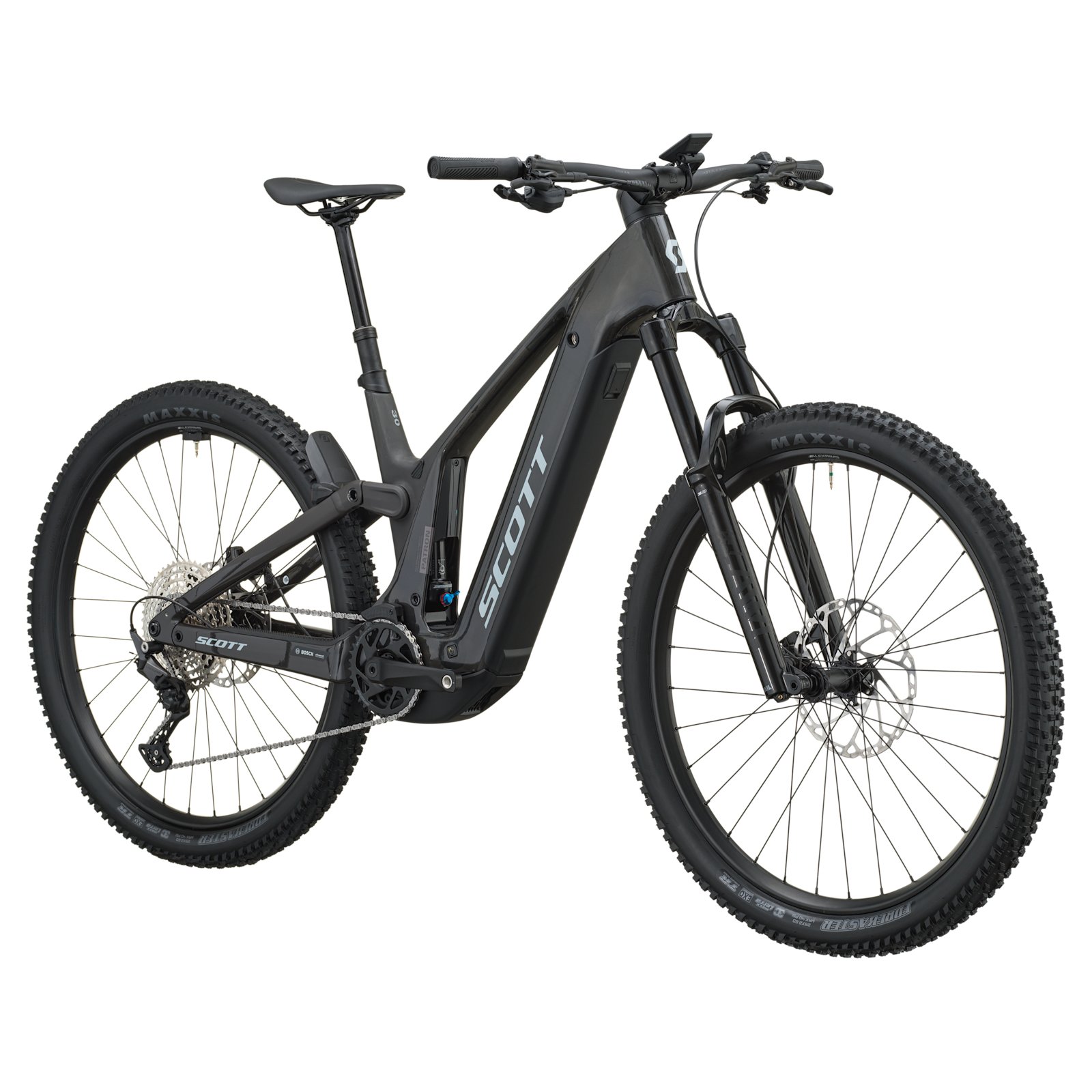

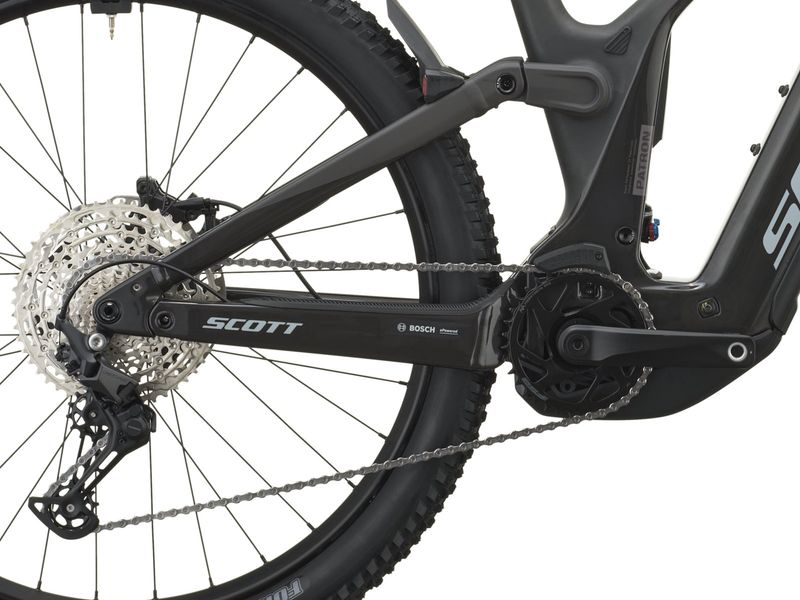

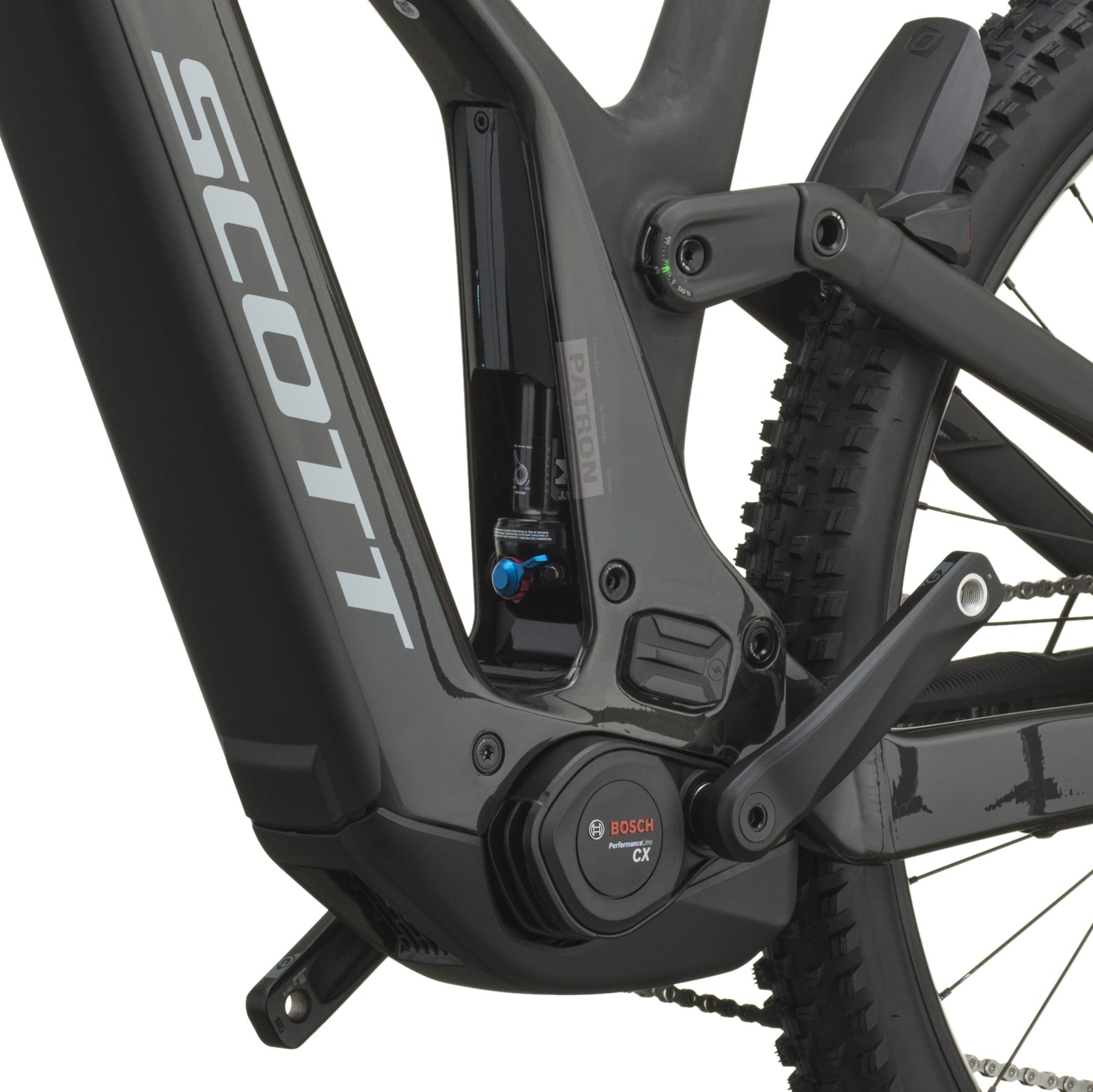

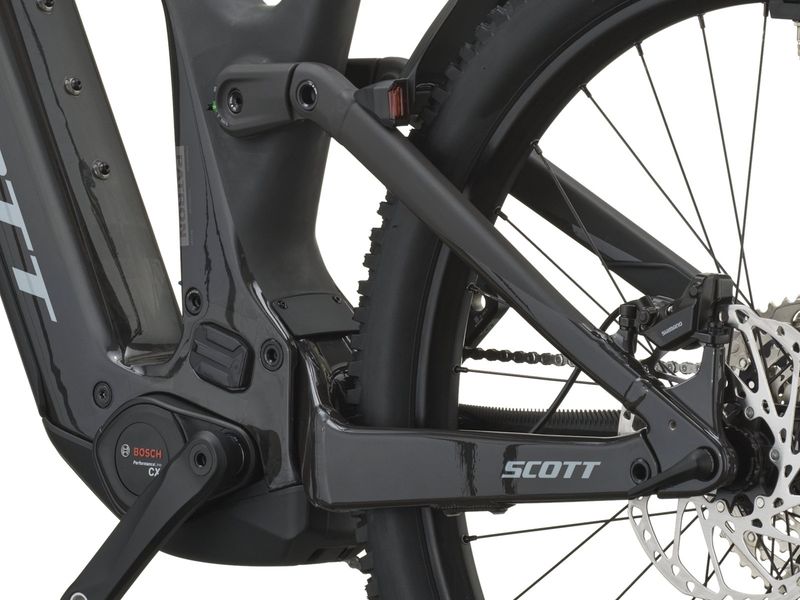

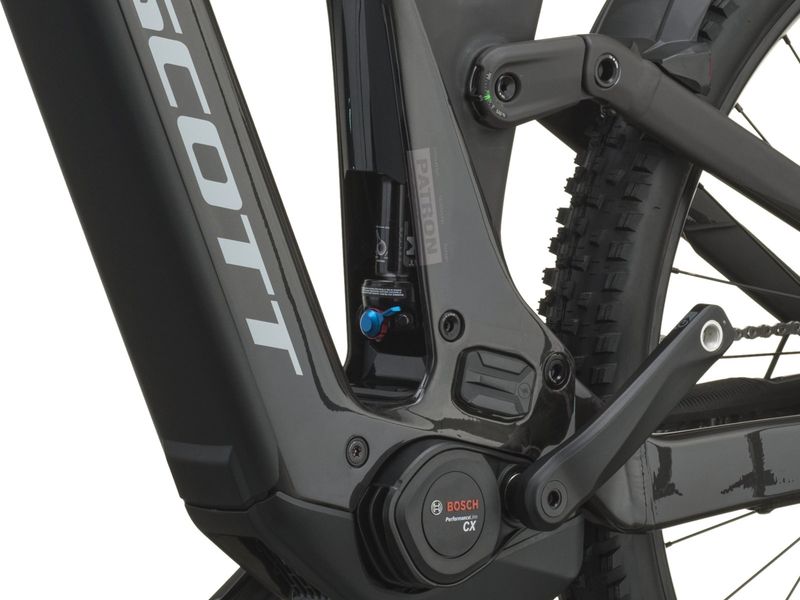

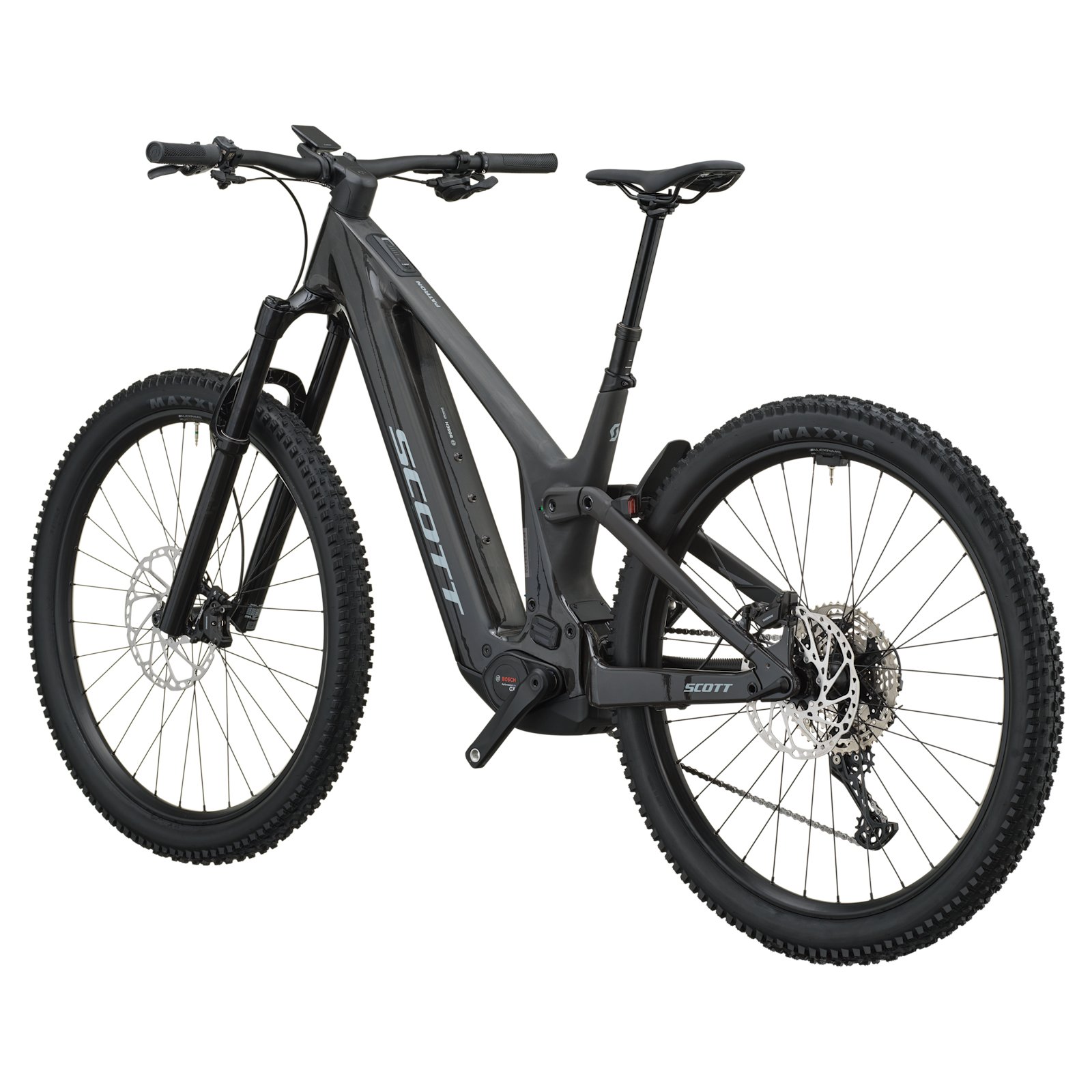

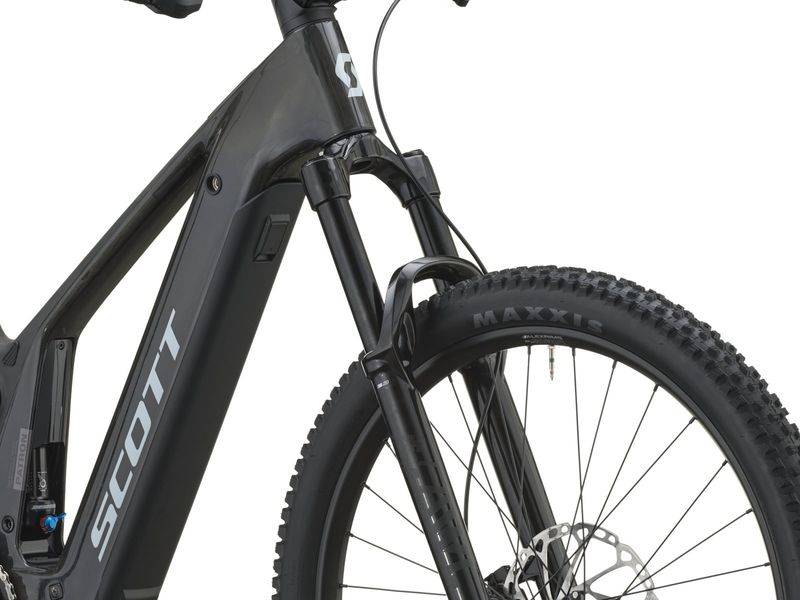

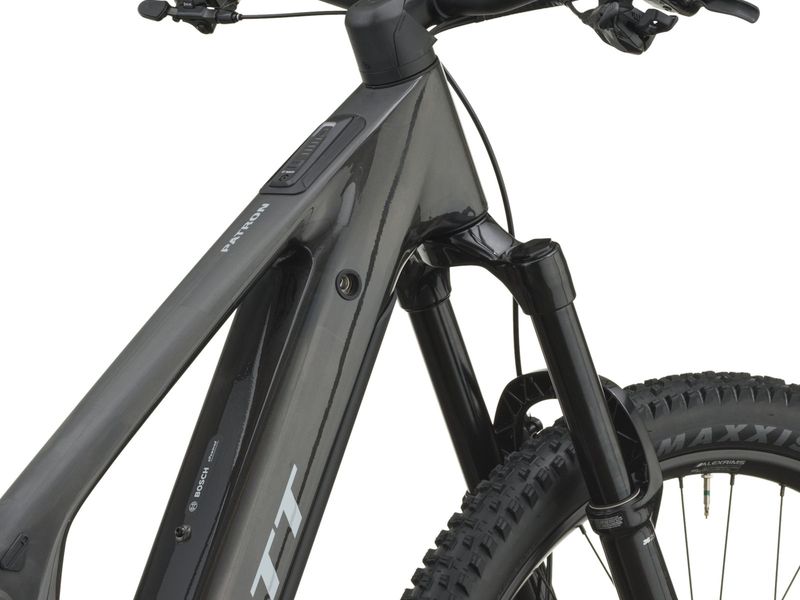

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 150 mm / Rear travel: 150 mm
- Fork
- Fox AWL HD Sport, Rail 2.0, LSR
- Rear shock
- Fox Float Rhythm LV EVOL, LSR, 2 Pos Lever
E-system
- Motor
- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch Intuvia 200
- Charger
- Bosch 4A Charger 230V
Drivetrain
- Rear derailleur
- Shimano Deore RD-M6200 12-speed
- Shifters
- Shimano Deore SL-M6210
- Crankset
- FSA alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- FSA 12 Speed 36T DM chainring
- Chain
- Shimano CN-M6100
- Cassette
- Shimano Deore CS-M6200, 10-51T
Brakes
- Brakes
- Shimano BR-MT620 4-Piston
- Front rotor
- Shimano SM-RT64 rotor 220mm
- Rear rotor
- Shimano SM-RT64 rotor 203mm
Wheels & tyres
- Front hub
- Formula CL-811, 15x110mm
- Rear hub
- Formula ECT-148M, Boost 148x12mm
- Spokes
- Stainless Black
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
Cockpit
- Grips
- Syncros Performance XC Lock-On
- Handlebar
- Syncros Hixon 2.0 alloy 6061 D.B, 12mm Rise, back sweep 8°, 780mm
- Stem
- Syncros AM 2.0, Syncros Cable Integration System, 4° rise, 6061 alloy, 31.8mm, 1 1/8"
- Seatpost
- Syncros dropper post SP-M302-AL2, 31.6mm
- Saddle
- Syncros Tofino R 2.5
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6, ZS56/40 MTB
Other
- Accessories
- Milkit Sealant
- Max system weight
- 130kg
- Weight
- 24 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Patron eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 65.8° | 65.8° | 65.8° | 65.8° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 579.3 mm | 605.5 mm | 626.6 mm | 657 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -36.2 mm | -36.1 mm | -35.9 mm | -35.8 mm |
| FBB height | 340.8 mm | 340.9 mm | 341.1 mm | 341.2 mm |
| GWheel base | 1212.8 mm | 1234.9 mm | 1264.7 mm | 1298.4 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.4° | 77.2° | 77.2° | 77.2° |
| KChainstay | 453.5 mm | 453.5 mm | 453.5 mm | 453.5 mm |
| LReach | 439.4 mm | 459.3 mm | 484.7 mm | 514.2 mm |
| MStack | 643 mm | 647.4 mm | 656.3 mm | 665.1 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| PFork length | 561 mm | 561 mm | 561 mm | 561 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
Source: Scott.
Patron eRIDE: builds compared
Patron eRIDE range →| Patron eRIDE 30 | Patron eRIDE 20 | Patron eRIDE 10 | |
|---|---|---|---|
| Price | £5,699 | £6,999 | £8,199 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized | Fox 36 Perf, Air |
| Shock | Fox Float Rhythm LV EVOL | Fox Float Performance EVOL | Fox Float Performance EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | SRAM S1000 Eagle AXS Transmission 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed |
| Brakes | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Intuvia 200 | Bosch Kiox 300 | Bosch Kiox 300 |
| Weight | 24 kg | 24.3 kg | 24.4 kg |
Patron eRIDE 30: FAQ
What is the difference between the Patron eRIDE 30 and the Patron eRIDE 20?
They share the Patron eRIDE frame platform and motor; the differences are in the parts: fork: Fox AWL HD Sport vs Fox 36 Rhythm; shock: Fox Float Rhythm LV EVOL vs Fox Float Performance EVOL; derailleur: Shimano Deore RD-M6200 12-speed vs SRAM S1000 Eagle AXS Transmission 12 Speed; claimed weight: 24 kg vs 24.3 kg; price: £5,699 vs £6,999.
