ScottPatron eRIDE 10
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 150 / 150 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 24.4 kgManufacturer figure
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
Top of the Patron eRIDE range at £8,199: Fox 36 Performance fork, Float Performance shock, SRAM GX Eagle AXS Transmission and Shimano XT brakes with ABS Pro. Claimed 24.4 kg.
The Patron eRIDE 10 is one of 3 builds of the Scott Patron eRIDE. About the Patron eRIDE range and all its builds →

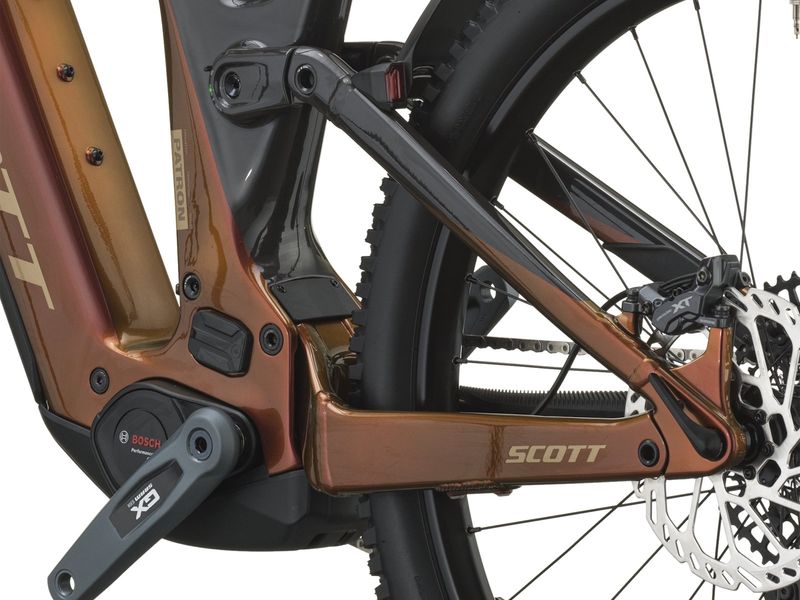

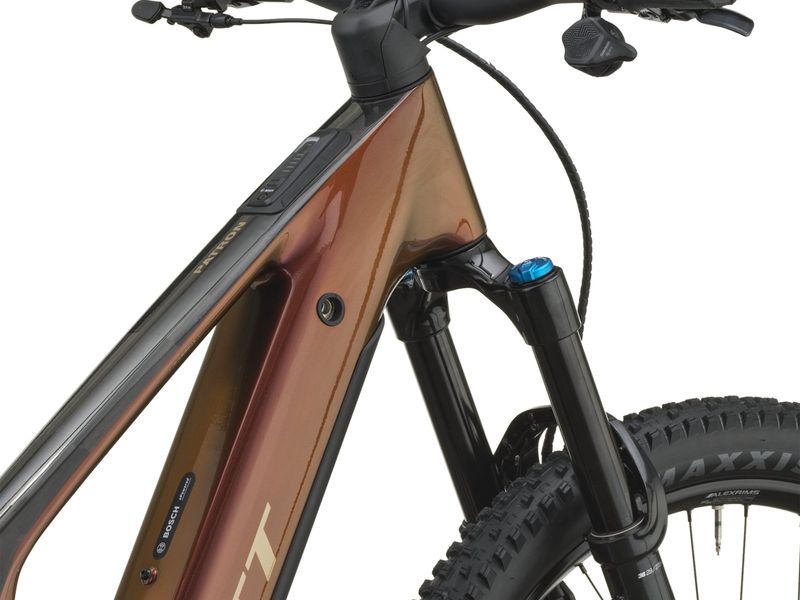

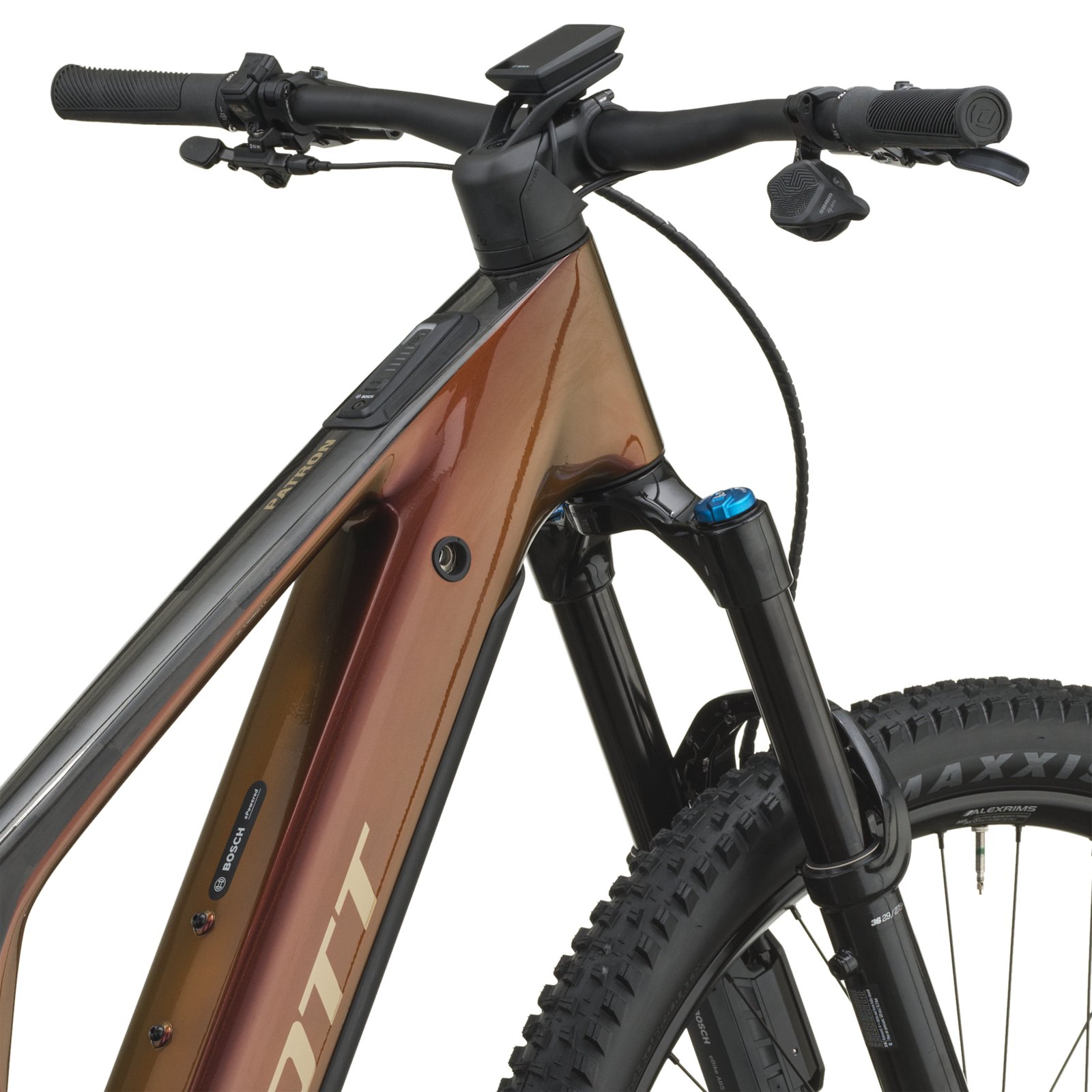

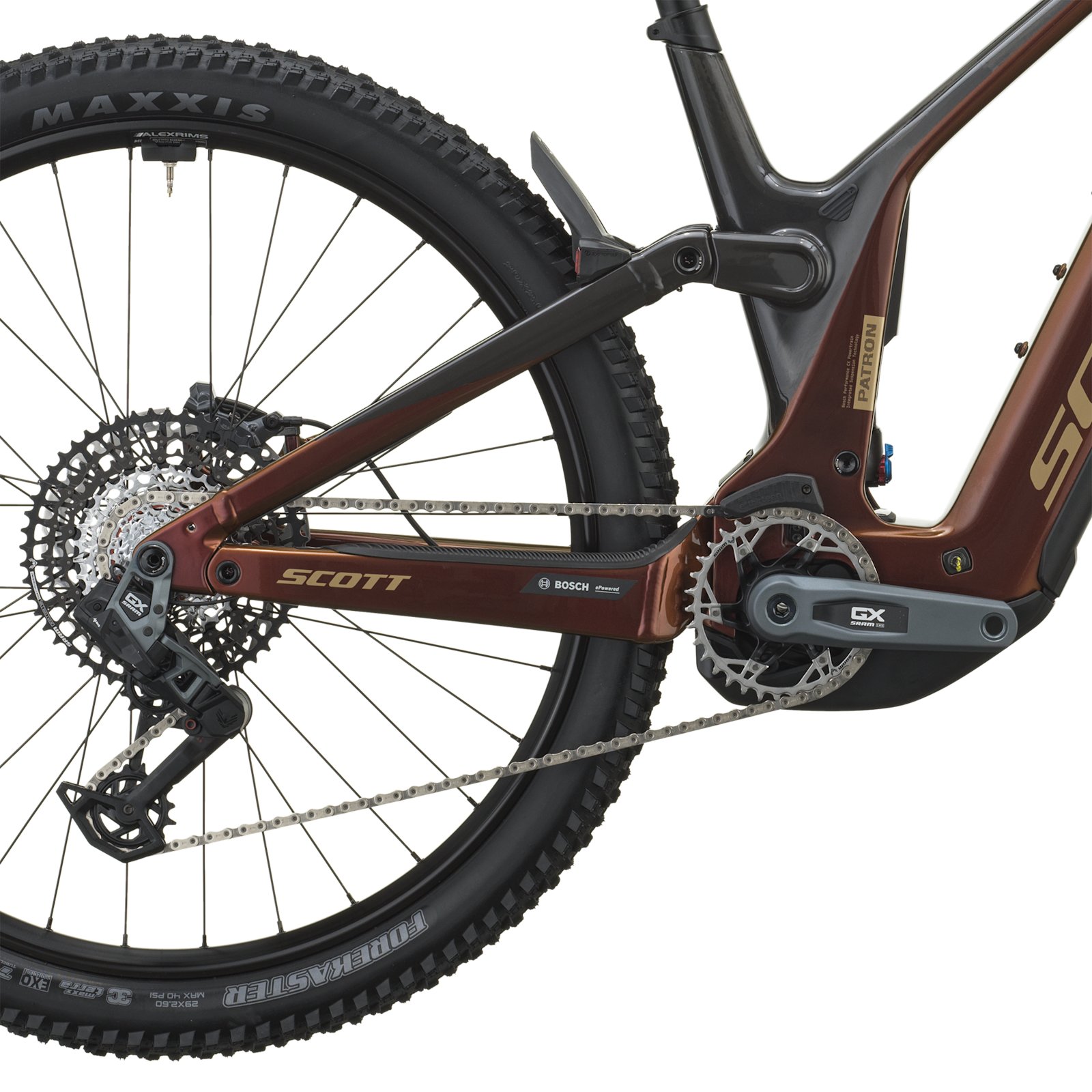

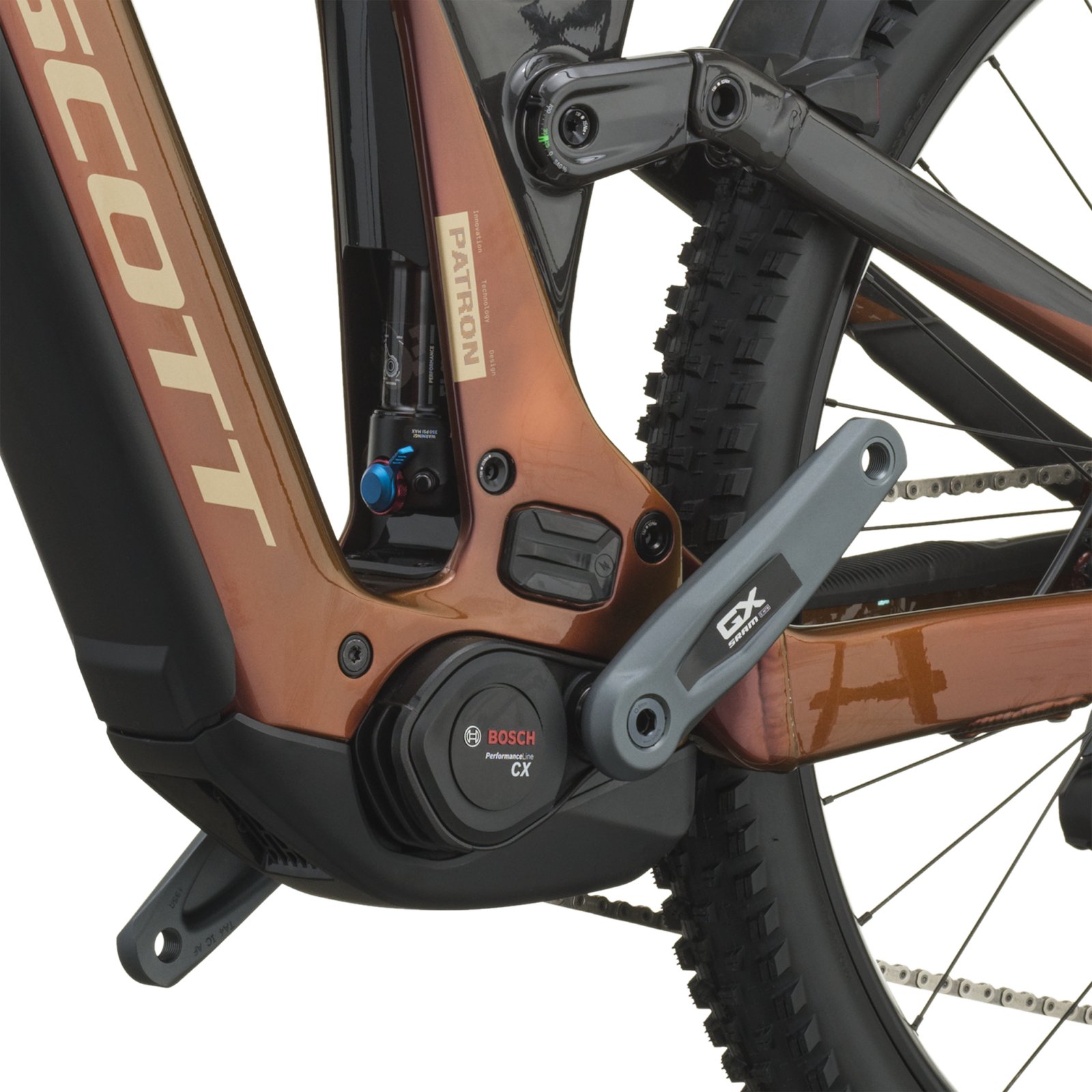

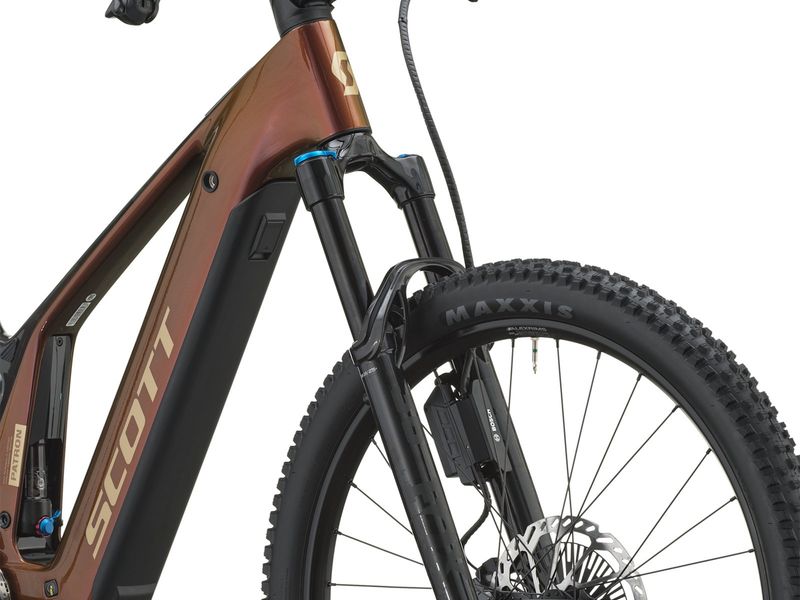

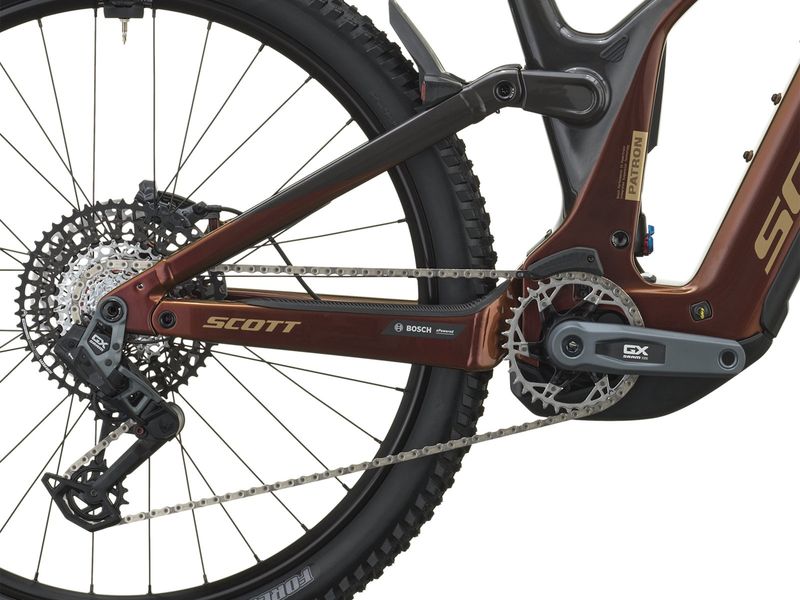

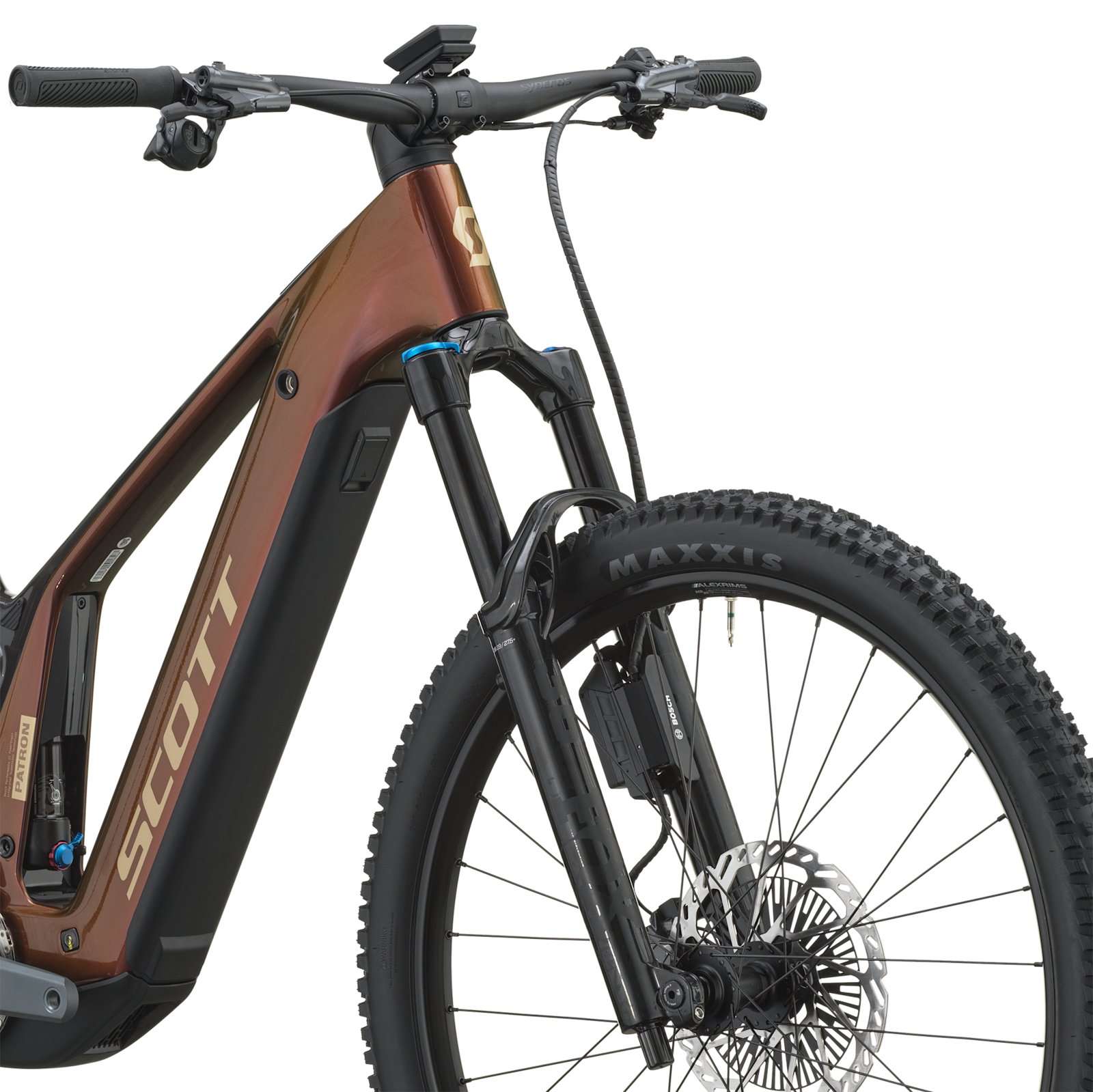

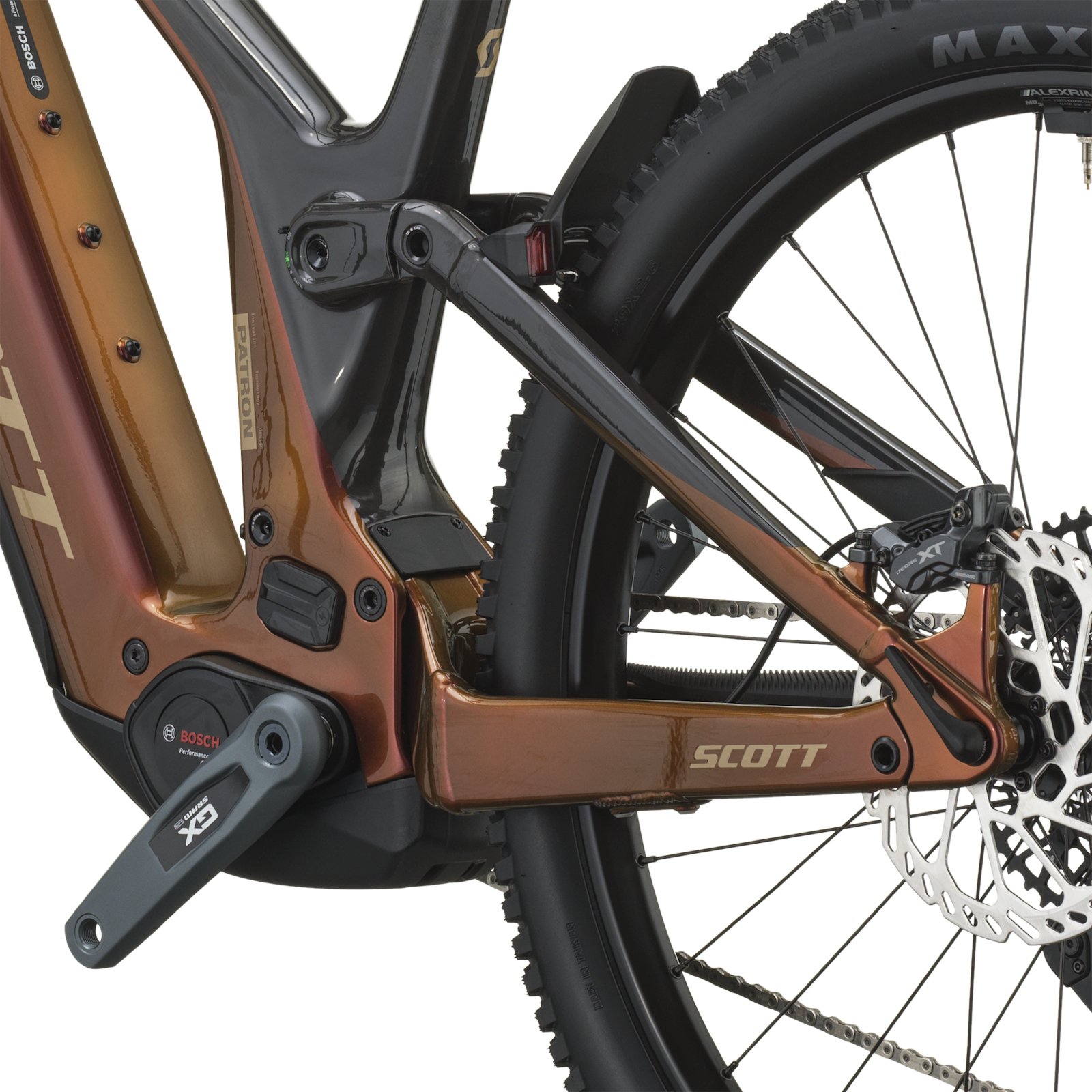

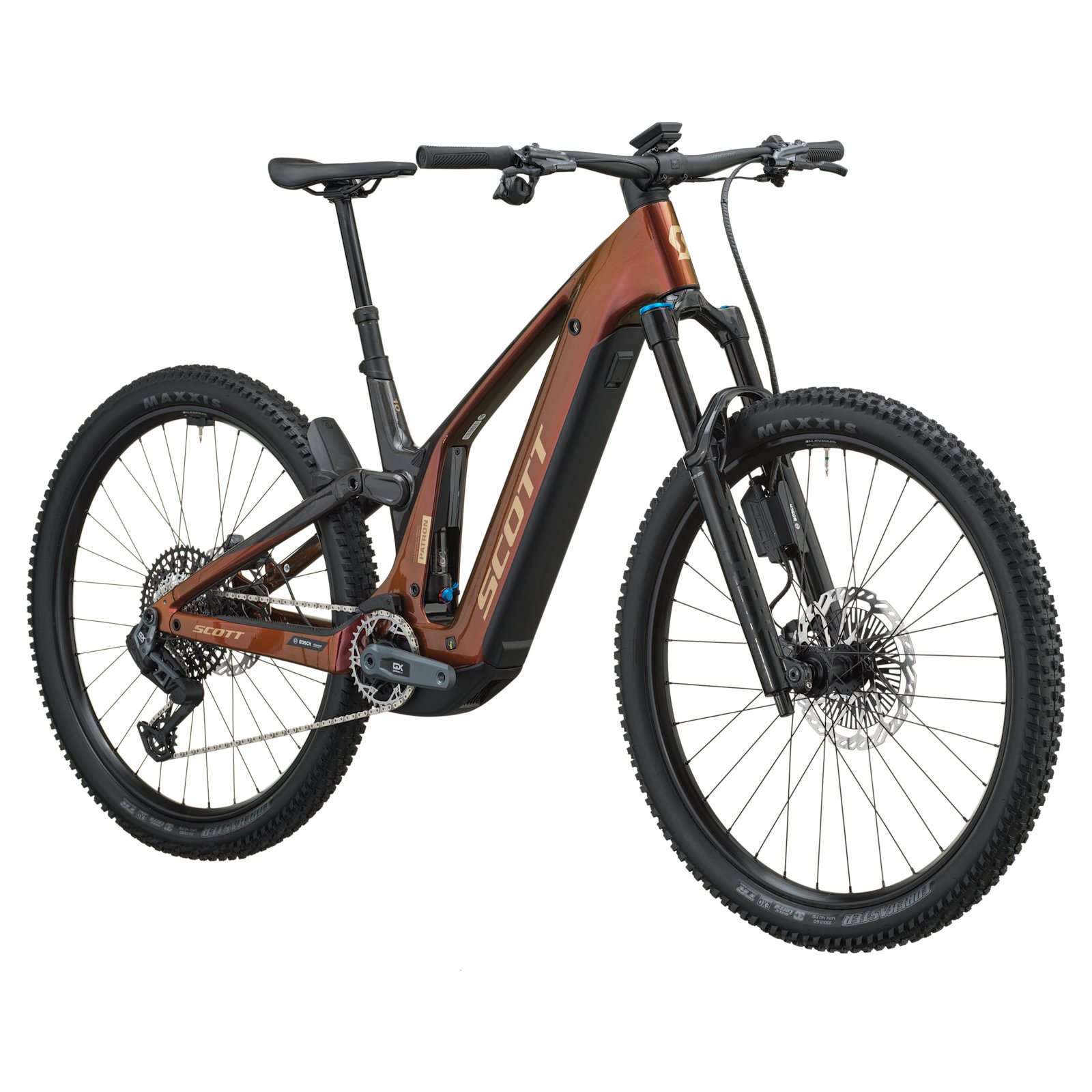

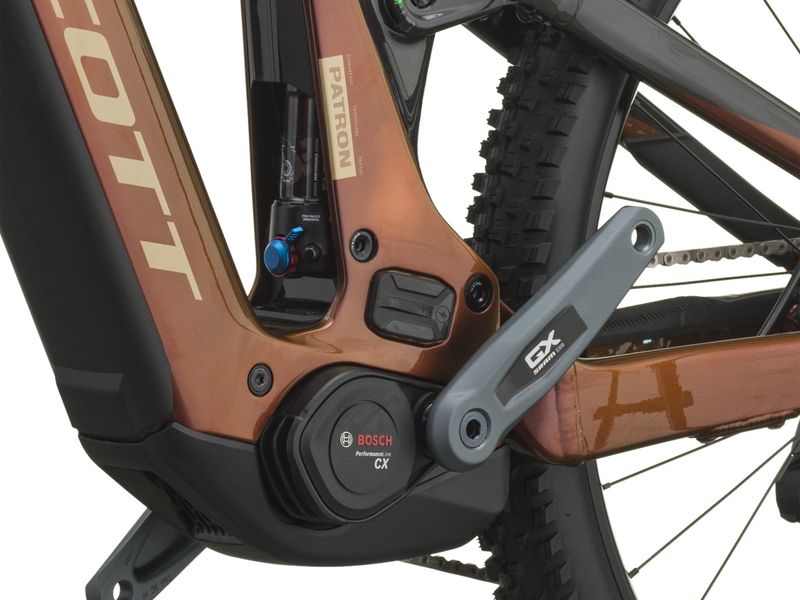

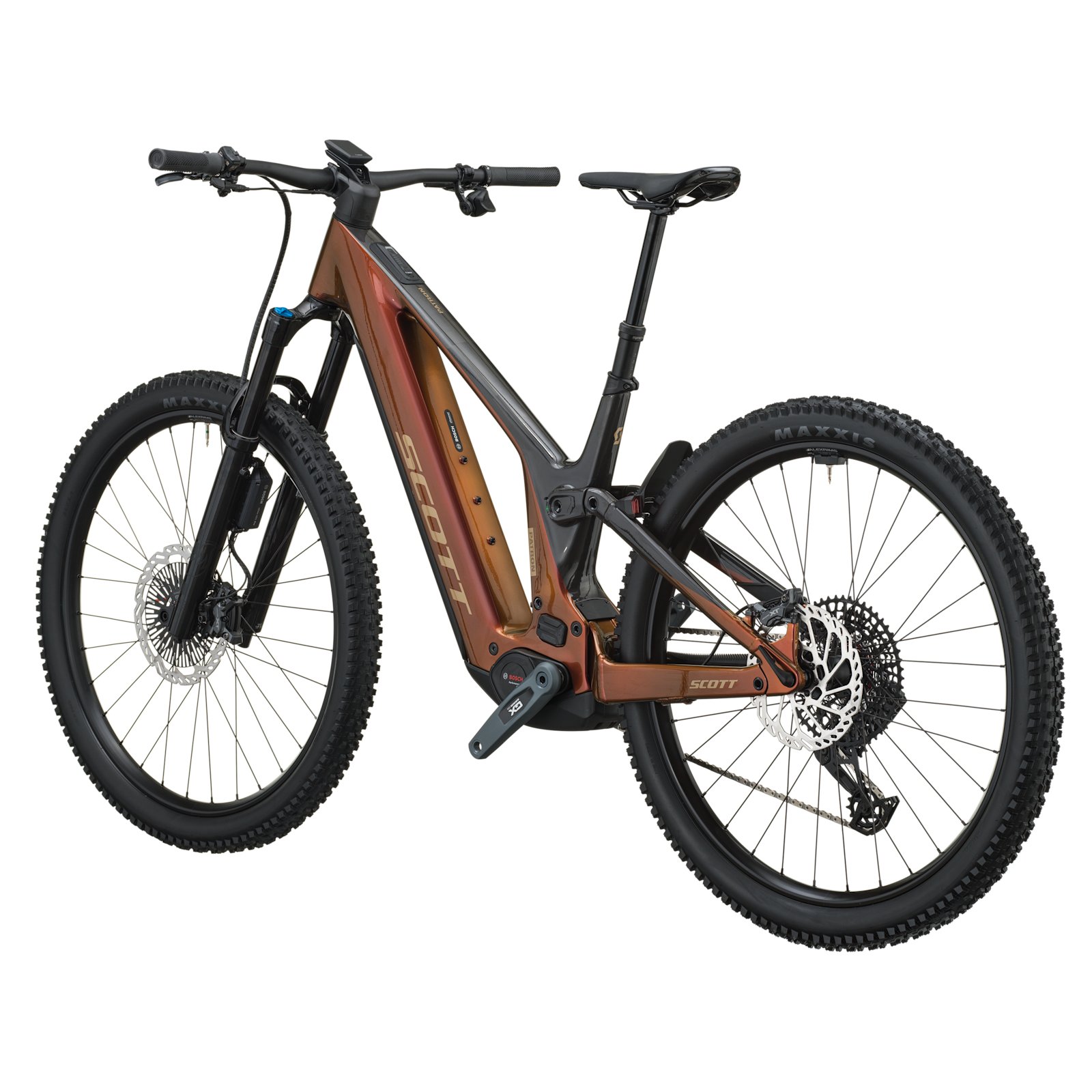

Gallery
Photos: Scott
Full specifications
Frame & suspension
- Frame
- Carbon Main Frame, alloy SST-CST, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready
- Travel
- Front travel: 150 mm / Rear travel: 150 mm
- Fork
- Fox 36 Perf. Air, eOptimized, Grip, 3Pos Microadj, Reb Adj, QR Axle 15x110mm axle, tapered steerer
- Rear shock
- Fox Float Performance EVOL, LSR, 2P Lever
E-system
- Motor
- Bosch Performance Line CX (BDU384Y)
- Battery
- Bosch PowerTube 800Wh
- Display
- Bosch Kiox 300
- Charger
- Bosch 4A Charger 230V
Drivetrain
- Rear derailleur
- SRAM GX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System
- Shifters
- SRAM AXS Rocker Pod Controller
- Crankset
- SRAM GX Eagle, alloy
- Chainguide
- e*thirteen, e*spec Slider
- Chainring
- SRAM XX Direct Mount Bosch 34T
- Chain
- SRAM GX Eagle Transmission
- Cassette
- SRAM GX Eagle XS-1275 Transmission, 10-52T
Brakes
- Brakes
- Shimano XT BR-M8220 ABS Pro 4-Piston
- Front rotor
- Shimano RT-6B750, 220mm
- Rear rotor
- Shimano RT-6B750, 200mm
Wheels & tyres
- Front hub
- Formula DC-611, 15x110mm
- Rear hub
- Formula EHL-148S, Boost 148x12mm
- Rims
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Rear Rim
- Alex Rims MD30 Disc 29" 32H, Black, Tubeless Ready
- Front tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
- Rear tyre
- Maxxis Forekaster 29x2.6", 60TPI Foldable, Tubeless Ready, EXO 3C maxx Terra
Cockpit
- Grips
- Syncros Performance XC Lock-On
- Handlebar
- Syncros Hixon 1.5 alloy 7050, back sweep 8°, 780mm
- Stem
- Syncros AM 1.5, Syncros Cable Integration System, 4° rise, 7050 alloy, 31.8mm, 1 1/8"
- Seatpost
- Syncros dropper post SP-M300-AL2, +RAD drop adjust, 31.6mm
- Saddle
- Syncros Tofino-E 1.5, Titanium rails
- Headset
- Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6, ZS56/40 MTB
Other
- Accessories
- Milkit Sealant
- Max system weight
- 130kg
- Weight
- 24.4 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Patron eRIDE geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AHead tube angle | 65.8° | 65.8° | 65.8° | 65.8° |
| BHead tube length | 120 mm | 125 mm | 135 mm | 145 mm |
| CTop tube horizontal | 579.3 mm | 605.5 mm | 626.6 mm | 657 mm |
| DStandover height | 719 mm | 719 mm | 729 mm | 732 mm |
| EBB offset | -36.2 mm | -36.1 mm | -35.9 mm | -35.8 mm |
| FBB height | 340.8 mm | 340.9 mm | 341.1 mm | 341.2 mm |
| GWheel base | 1212.8 mm | 1234.9 mm | 1264.7 mm | 1298.4 mm |
| IBB center to top of seattube | 405 mm | 435 mm | 470 mm | 500 mm |
| JSeat angle | 77.4° | 77.2° | 77.2° | 77.2° |
| KChainstay | 453.5 mm | 453.5 mm | 453.5 mm | 453.5 mm |
| LReach | 439.4 mm | 459.3 mm | 484.7 mm | 514.2 mm |
| MStack | 643 mm | 647.4 mm | 656.3 mm | 665.1 mm |
| NStem Length | 50 mm | 50 mm | 50 mm | 50 mm |
| PFork length | 561 mm | 561 mm | 561 mm | 561 mm |
| QMaximum Seatpost Insertion | 200 mm | 230 mm | 265 mm | 295 mm |
| RHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
Source: Scott.
Patron eRIDE: builds compared
Patron eRIDE range →| Patron eRIDE 30 | Patron eRIDE 20 | Patron eRIDE 10 | |
|---|---|---|---|
| Price | £5,699 | £6,999 | £8,199 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | Fox AWL HD Sport, Rail 2.0 | Fox 36 Rhythm, eOptimized | Fox 36 Perf, Air |
| Shock | Fox Float Rhythm LV EVOL | Fox Float Performance EVOL | Fox Float Performance EVOL |
| Derailleur | Shimano Deore RD-M6200 12-speed | SRAM S1000 Eagle AXS Transmission 12 Speed | SRAM GX Eagle AXS Transmission 12 Speed |
| Brakes | Shimano BR-MT620 4-Piston | Shimano Deore BR-M6220 4-Piston | Shimano XT BR-M8220 ABS Pro 4-Piston |
| Wheels | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black | Alex Rims MD30 Disc 29" 32H, Black |
| Display | Bosch Intuvia 200 | Bosch Kiox 300 | Bosch Kiox 300 |
| Weight | 24 kg | 24.3 kg | 24.4 kg |
Patron eRIDE 10: FAQ
What is the difference between the Patron eRIDE 10 and the Patron eRIDE 20?
They share the Patron eRIDE frame platform and motor; the differences are in the parts: fork: Fox 36 Perf vs Fox 36 Rhythm; derailleur: SRAM GX Eagle AXS Transmission 12 Speed vs SRAM S1000 Eagle AXS Transmission 12 Speed; claimed weight: 24.4 kg vs 24.3 kg; price: £8,199 vs £6,999.
